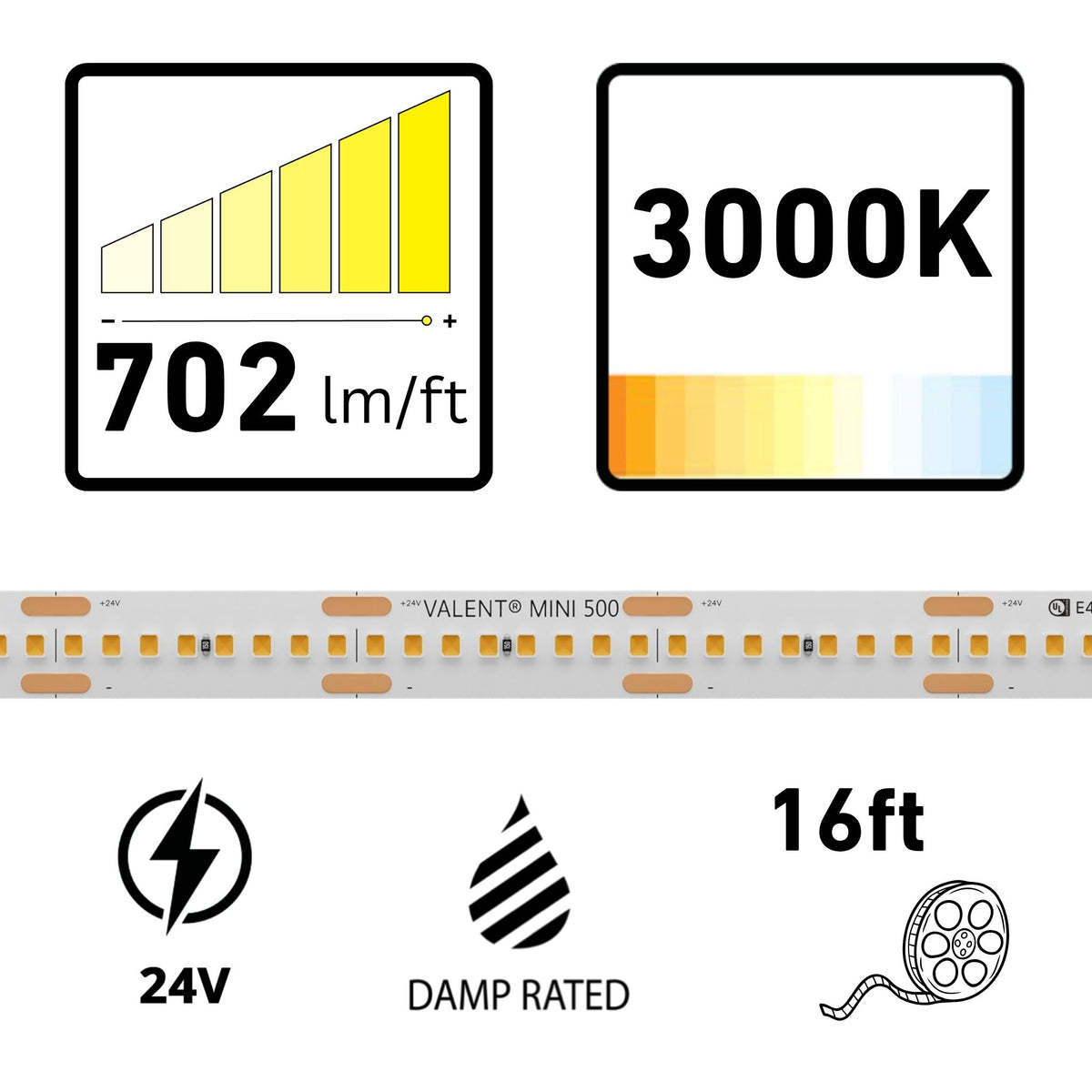

VALENT MINI, 16ft, LED Tape Light, 3000K, 702 Lumens/ft, 24V
In stock
About this item
About this item
- Color Temperature: Provides a warm 3000K light ideal for ambient settings.
- Voltage: Operates at 24V, ensuring efficient power consumption.
- Max Run: Supports up to 22 ft. continuous run to prevent voltage drop.
- Cuttable: Field cuttable every 1.09 in. for custom lengths.
- IP Rating: Rated IP20 for indoor and damp locations.
We process payments securely and do not store credit card information.
Description
Description

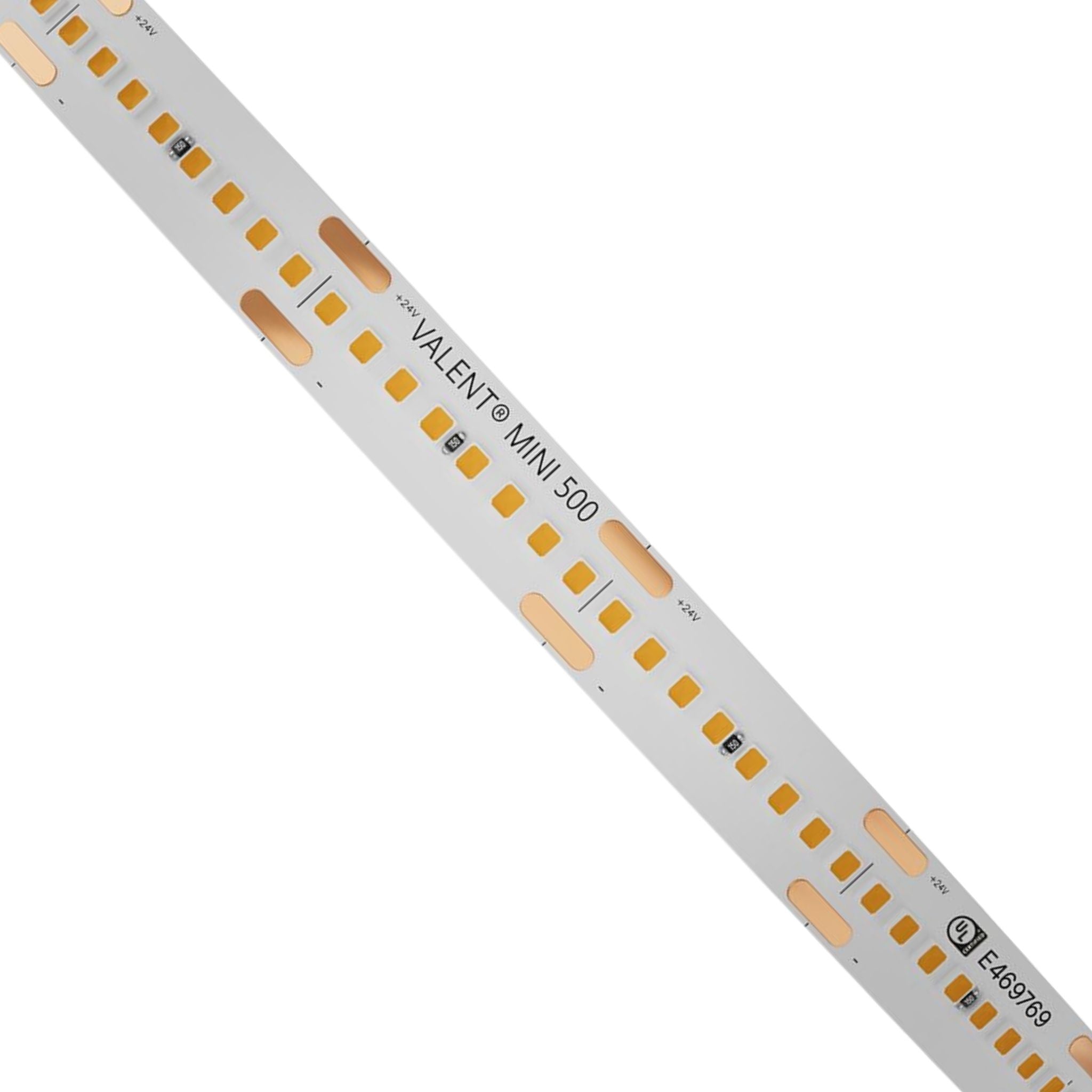

VALENT MINI LED Tape Light — 3000K & Dot-Free
The VALENT MINI DI-24V-VL10MN5-30-016 LED Tape Light offers a sleek 10mm width and high-density LED placement for seamless, dot-free illumination. This 16-foot tape light operates at 24V and is IP20 rated for indoor and damp locations.
Key Features
- Voltage: 24V DC operation for efficient energy use.
- Wattage: Consumes 4.5W per foot.
- Lumens: Delivers up to 702 lumens per foot.
- LED Density: Features 88 LEDs per foot for consistent light output.
- Max Run: Supports up to 22 feet in a single run.
- Cut Increments: Can be cut every 1.09 inches for precise installations.
- PCB Width: Slim 10mm design fits narrow channels.
- Beam Angle: Wide 120-degree beam angle for broad coverage.
- Certifications: UL Listed and RoHS Compliant.
Core Design & Construction
The VALENT MINI features a 10mm wide PCB, compatible with various aluminum channels. It includes a protective coating and 3M adhesive backing for secure mounting in dry and damp environments.
LED Illumination & Performance
With a high CRI of 90+, this tape light ensures excellent color rendering. It uses standard SMD LEDs for a bright, consistent light output.
Power, Wiring & Installation
This tape light requires a 24V driver, sold separately. It is field-cuttable every 1.09 inches and supports a maximum continuous run of 22 feet. It is dimmable for customizable lighting levels.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16 ft. spool of LED tape light
- 36 in. white bare lead wire
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the VALENT MINI tape light?
What is the maximum run length for the VALENT MINI tape light?
How often can the VALENT MINI tape light be cut?
How often can the VALENT MINI tape light be cut?
What voltage is required for the VALENT MINI tape light?
What voltage is required for the VALENT MINI tape light?
Is the VALENT MINI tape light suitable for outdoor use?
Is the VALENT MINI tape light suitable for outdoor use?
What type of channels are compatible with the VALENT MINI tape light?
What type of channels are compatible with the VALENT MINI tape light?
