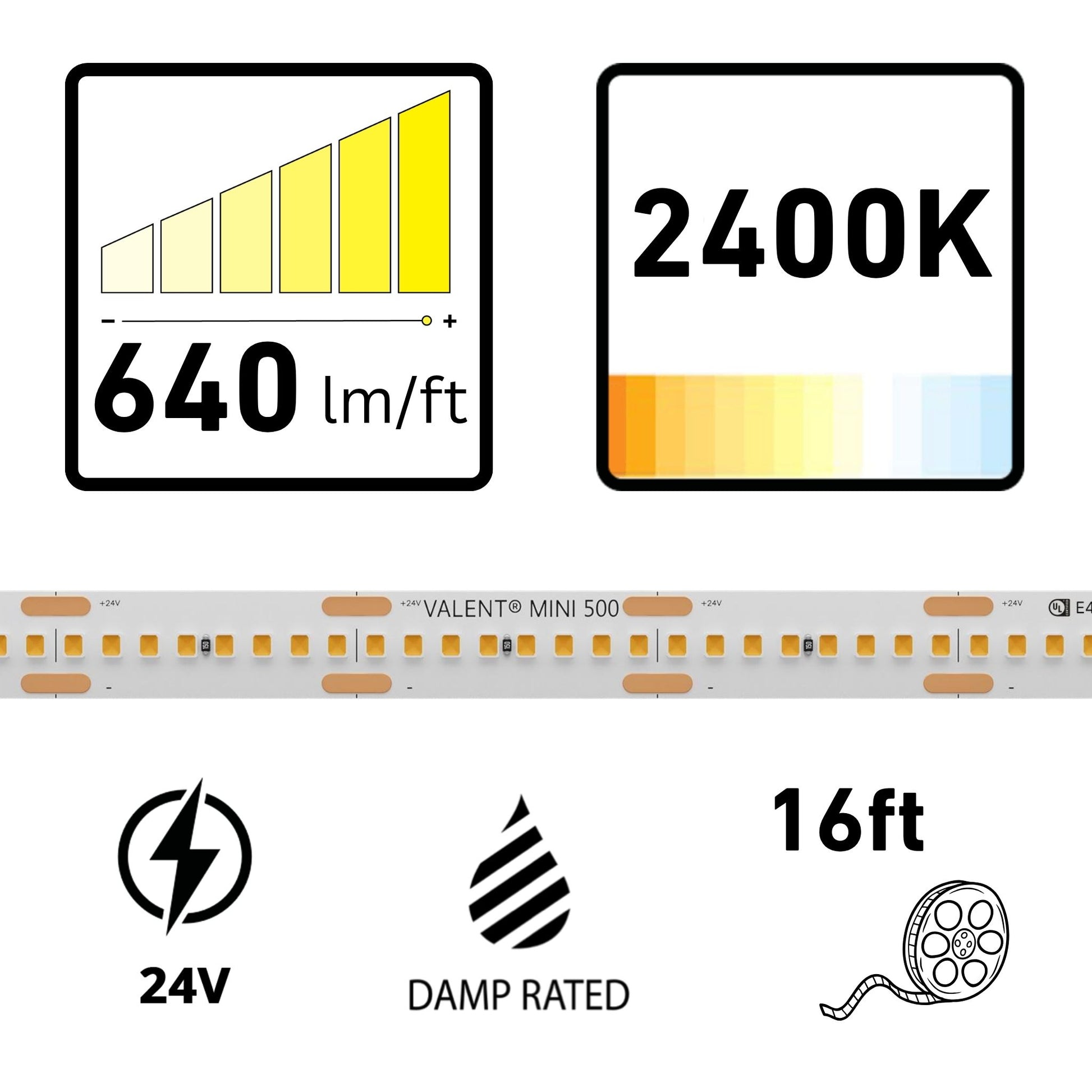

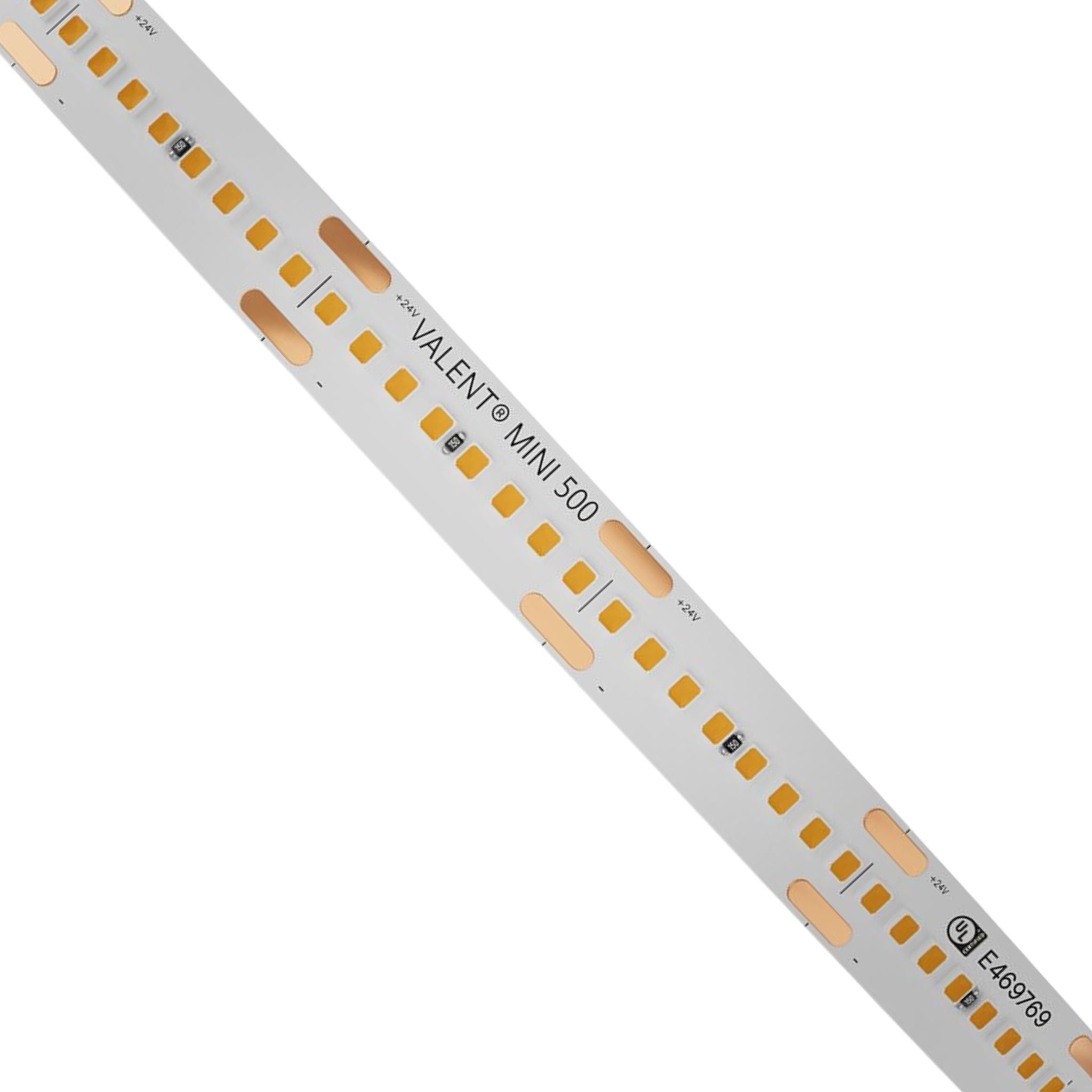

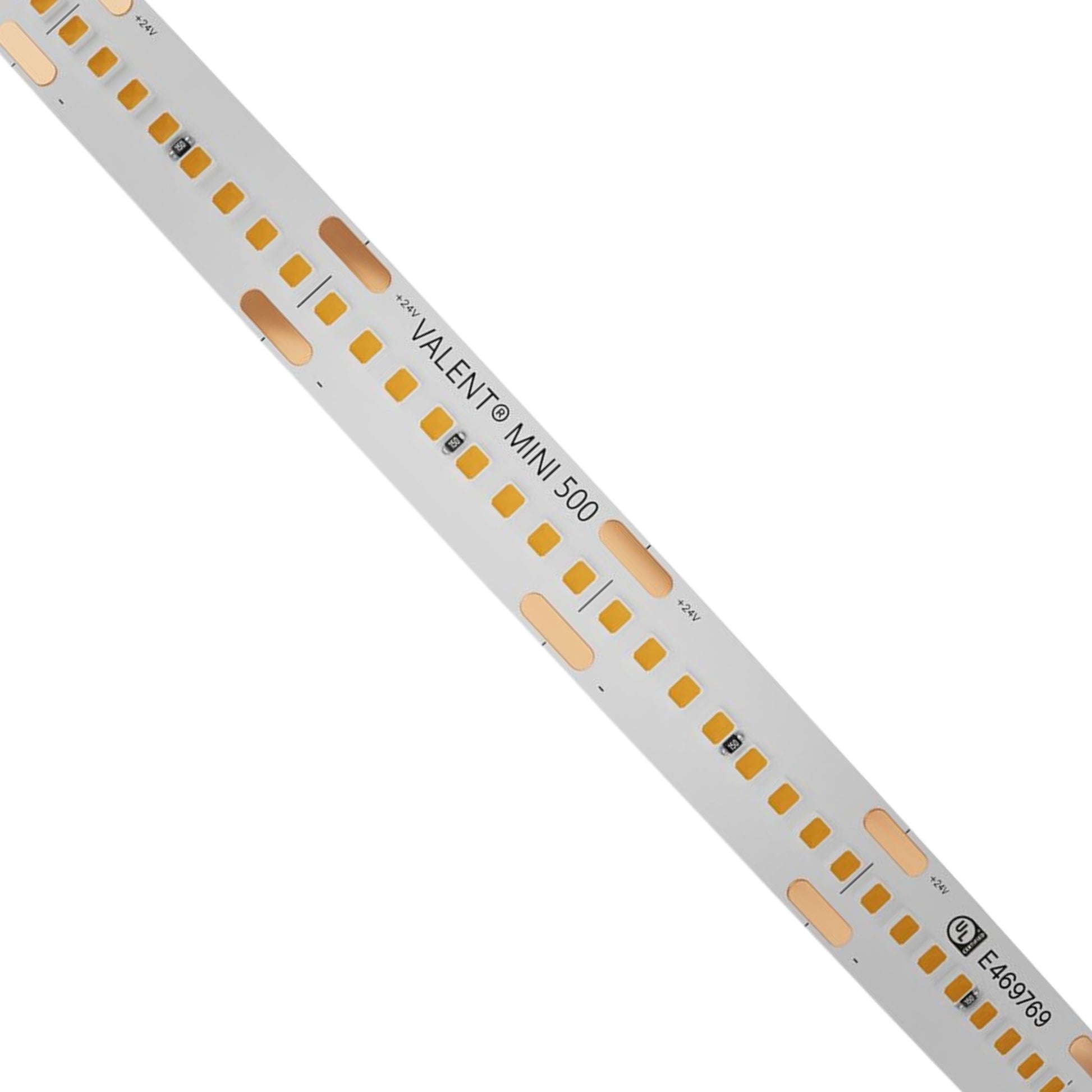

VALENT MINI, 16 ft, LED Tape Light, 2400K, 640 Lumens/ft, 24V
In stock
About this item
About this item
- Color Temperature: 2400K for warm, inviting illumination.
- Voltage: Operates at 24V for efficient power usage.
- Max Run: Supports up to 22 ft continuous run to minimize voltage drop.
- Cuttable: Field cuttable every 1.09 in. for custom lengths.
- IP Rating: IP20 rated for indoor/damp locations.
We process payments securely and do not store credit card information.
Description
Description
VALENT MINI LED Tape Light — 2400K & Dot-Free
The VALENT MINI DI-24V-VL10MN5-24-016 is a high-density LED Tape Light offering seamless, dot-free illumination. This 16 ft tape light operates at 24V and is IP20 rated for indoor use, making it ideal for various architectural applications.
Key Features
- Voltage: 24V DC for stable power supply.
- Wattage: 4.5W/ft for energy-efficient lighting.
- Lumens: 640 lumens per foot for bright illumination.
- LED Density: 88 LEDs per foot for consistent light output.
- Max Run: Up to 22 ft to prevent voltage drop.
- Cuttable: Every 1.09 in. for precise length adjustments.
- PCB Width: 10mm for compatibility with standard channels.
- Beam Angle: 120° for wide light distribution.
- IP Rating: IP20 for indoor/damp environments.
- Certifications: UL Listed, RoHS Compliant, Title 24.
Core Design & Construction
The VALENT MINI features a slim 10mm PCB width, ensuring compatibility with various aluminum channels. It includes a durable adhesive backing for easy installation and is designed for indoor/damp environments.
LED Illumination & Performance
Delivering 640 lumens per foot with a 90+ CRI, this tape light provides high-quality, warm illumination using dense LED placement for dot-free lighting.
Power, Wiring & Installation
Requires a 24V driver (sold separately). The tape is field cuttable every 1.09 in. and supports up to 22 ft continuous runs. It is dimmable for customizable lighting.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16 ft spool of LED tape light
- 36 in. white bare lead wire
