Diode LED Neon BLAZE Neon Tape Light — Green & Top Bending

The Diode LED DI-24V-TE-NBL4-GN-16 is a 16 ft neon tape light featuring a vibrant green color. This 24V tape light is designed for wet locations with an IP65 rating, making it ideal for outdoor applications. Its top-bending capability allows for versatile installation in various architectural details.

Key Features

• Voltage: 24V DC ensures reliable operation.
• Wattage: Consumes 4.4W per foot.
• Lumens: Provides 151 lumens per foot.
• LEDs per Foot: High-density LED configuration for uniform light output.
• Max Run: Supports a maximum run of 16 ft.
• Cut Increments: Can be cut every 2 inches for precise length adjustments.

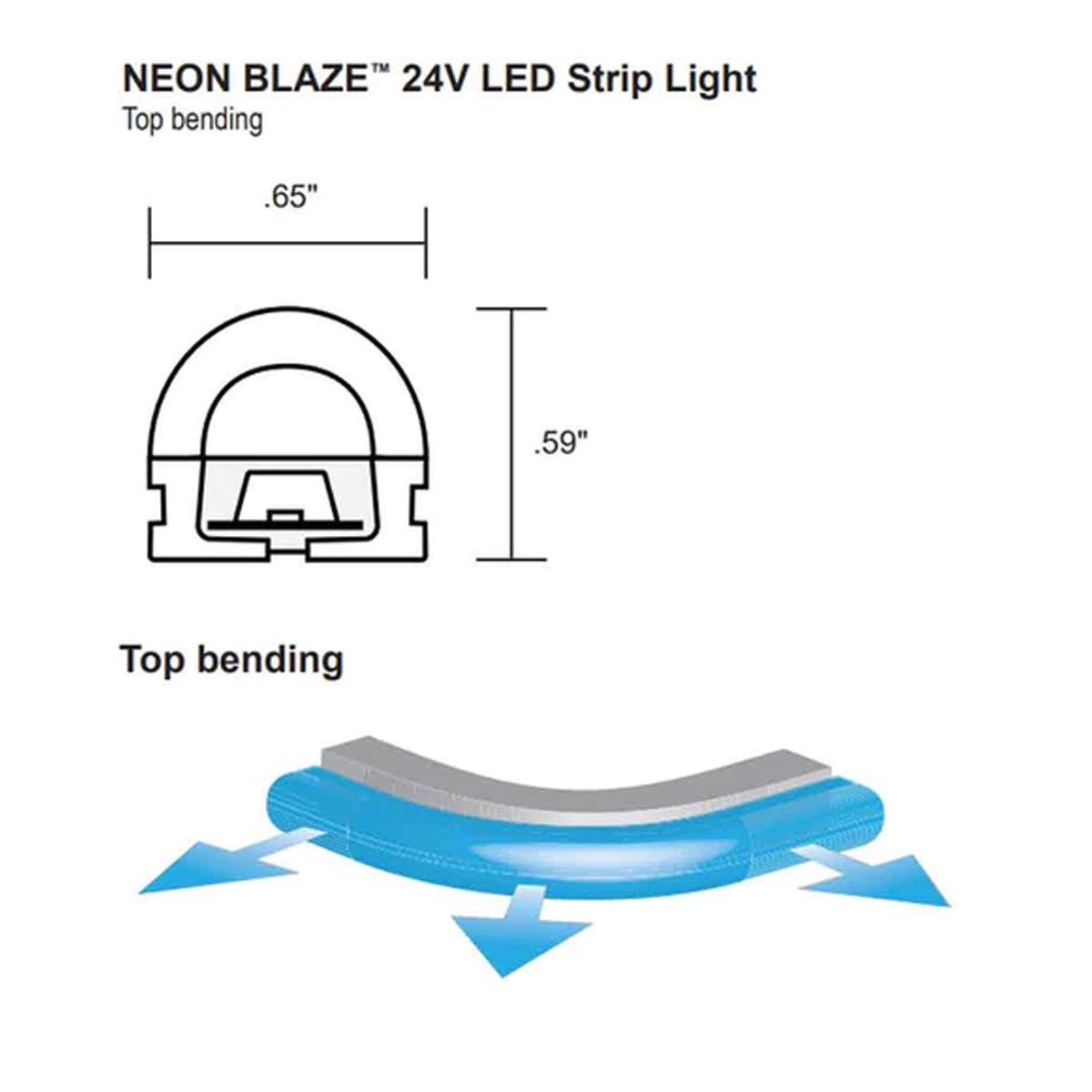

• PCB Width: 0.65 in. width for compatibility with standard channels.
• Beam Angle: Wide beam angle for even light distribution.
• IP Rating: IP65 rated for wet and outdoor environments.
• Certifications: UL Listed for safety and reliability.

Core Design & Construction

Constructed with a 0.65 in. wide PCB, this tape light is compatible with standard aluminum channels. It features a durable silicone coating for protection against environmental factors and includes a strong adhesive backing for secure mounting.

LED Illumination & Performance

With a light output of 151 lumens per foot and a CRI of 80+, this neon tape light ensures vibrant and consistent green illumination. The top-bending design allows for creative installations in various settings.

Power, Wiring & Installation

This 24V tape light requires a compatible driver for operation. It is field-cuttable every 2 inches, allowing for custom lengths. The maximum continuous run is 16 ft to prevent voltage drop, and it is dimmable for adjustable brightness.

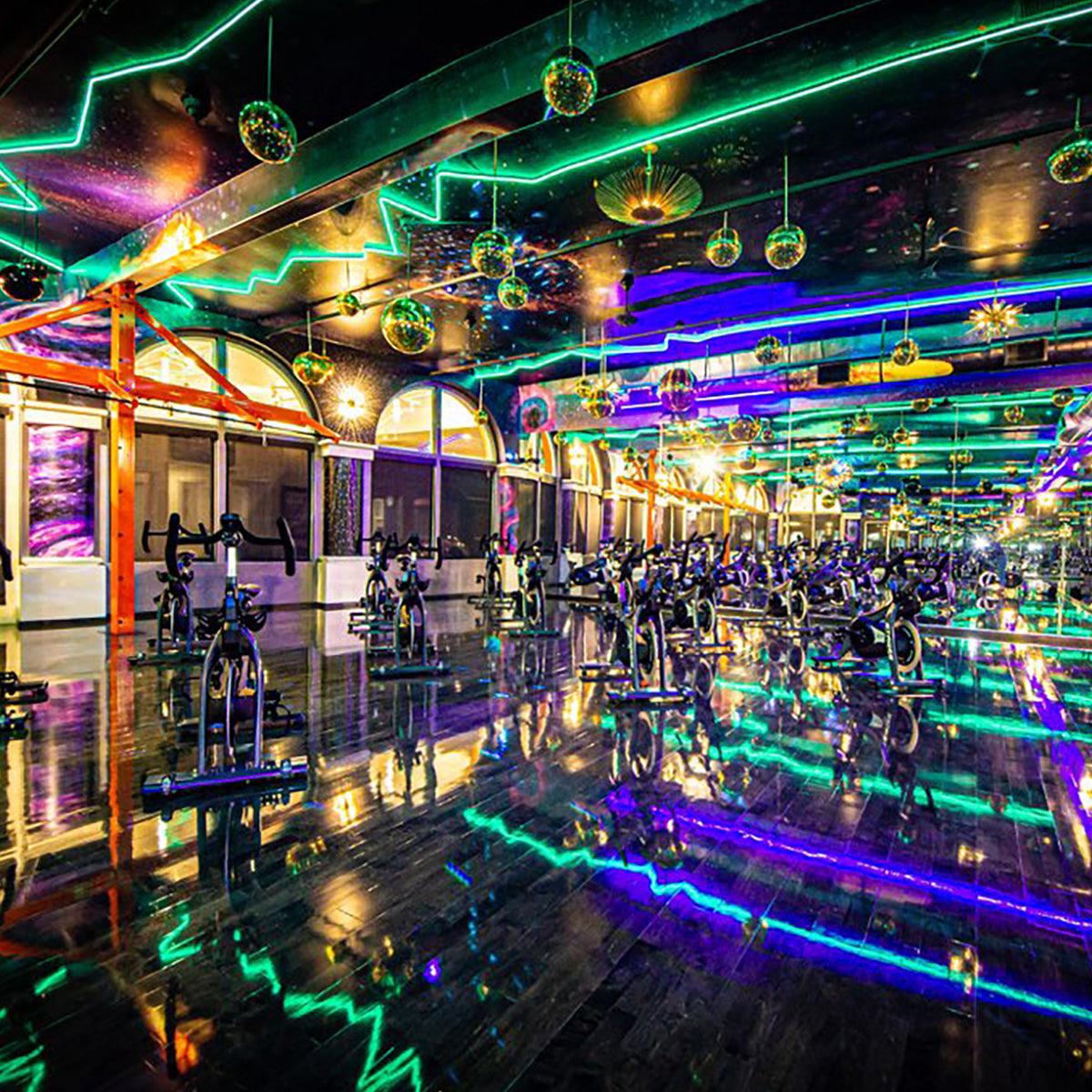

Where This Tape Works Best

• Outdoor architectural accents
• Wet location installations
• Signage and displays
• Pathway and landscape lighting

What's Included

• 16 ft spool of neon tape light
• Pre-attached leads for easy connection
