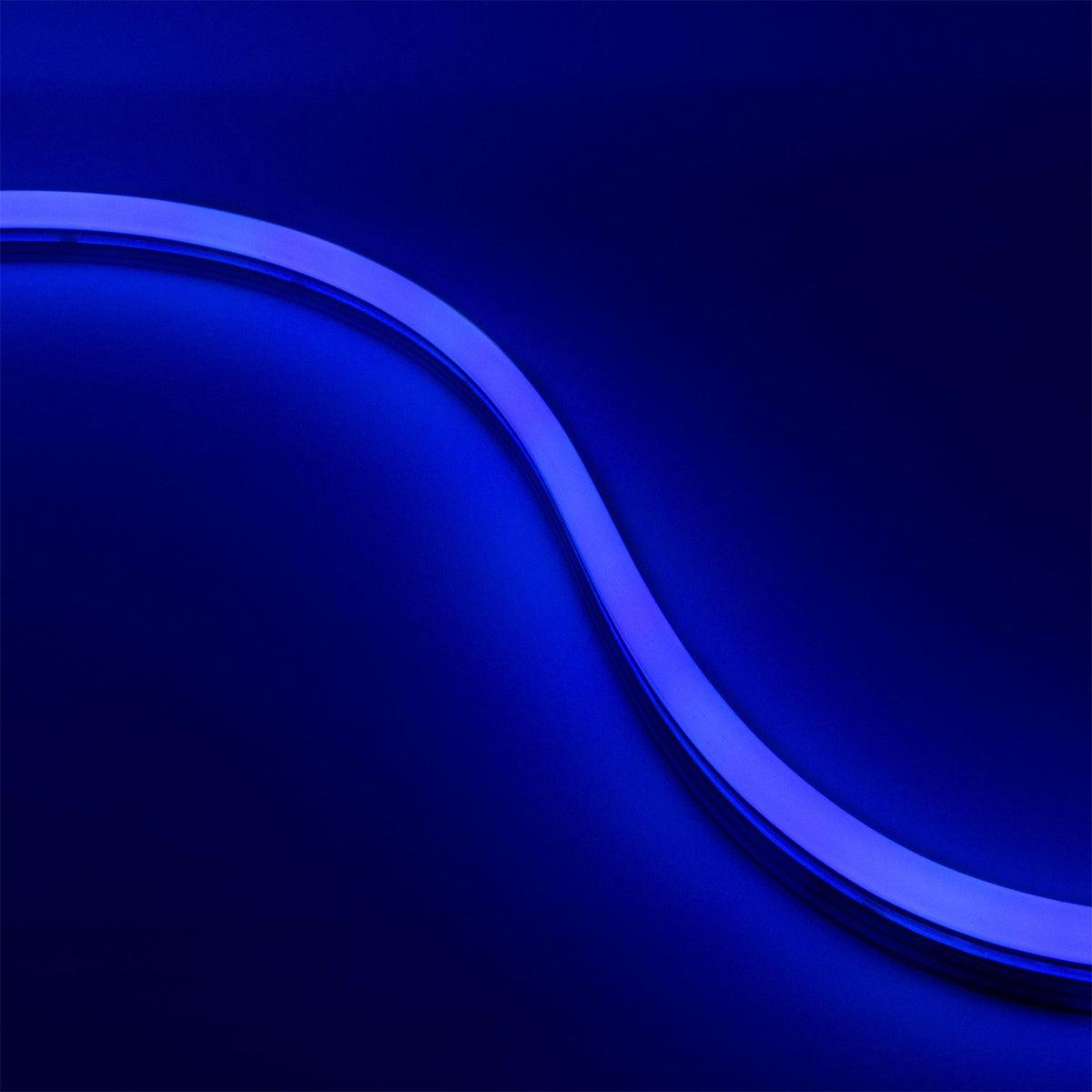

Diode LED Neon BLAZE Neon Tape Light — Blue & Diffused Light

The Diode LED DI-24V-TE-NBL4-BL-16 is a 16 ft Neon Tape Light that emits a vibrant blue color. Designed for outdoor use, it features an IP65 rating for wet locations. This tape light operates on 24V and is ideal for various architectural applications.

Key Features

• Voltage: Operates at 24V DC for low-voltage applications.
• Wattage: Consumes 4.4W per foot.
• Lumens: Provides 37 lumens per foot.
• LEDs per Foot: High-density LED configuration for uniform light output.
• Max Run: Maximum continuous run of 16 ft.
• Cuttable: Field cuttable every 2 inches for custom installations.
• PCB Width: Measures 0.65 inches wide, compatible with standard channels.
• Beam Angle: Diffused light for even illumination.
• IP Rating: IP65 rated for wet locations.
• Certifications: UL Listed for safety and reliability.

Core Design & Construction

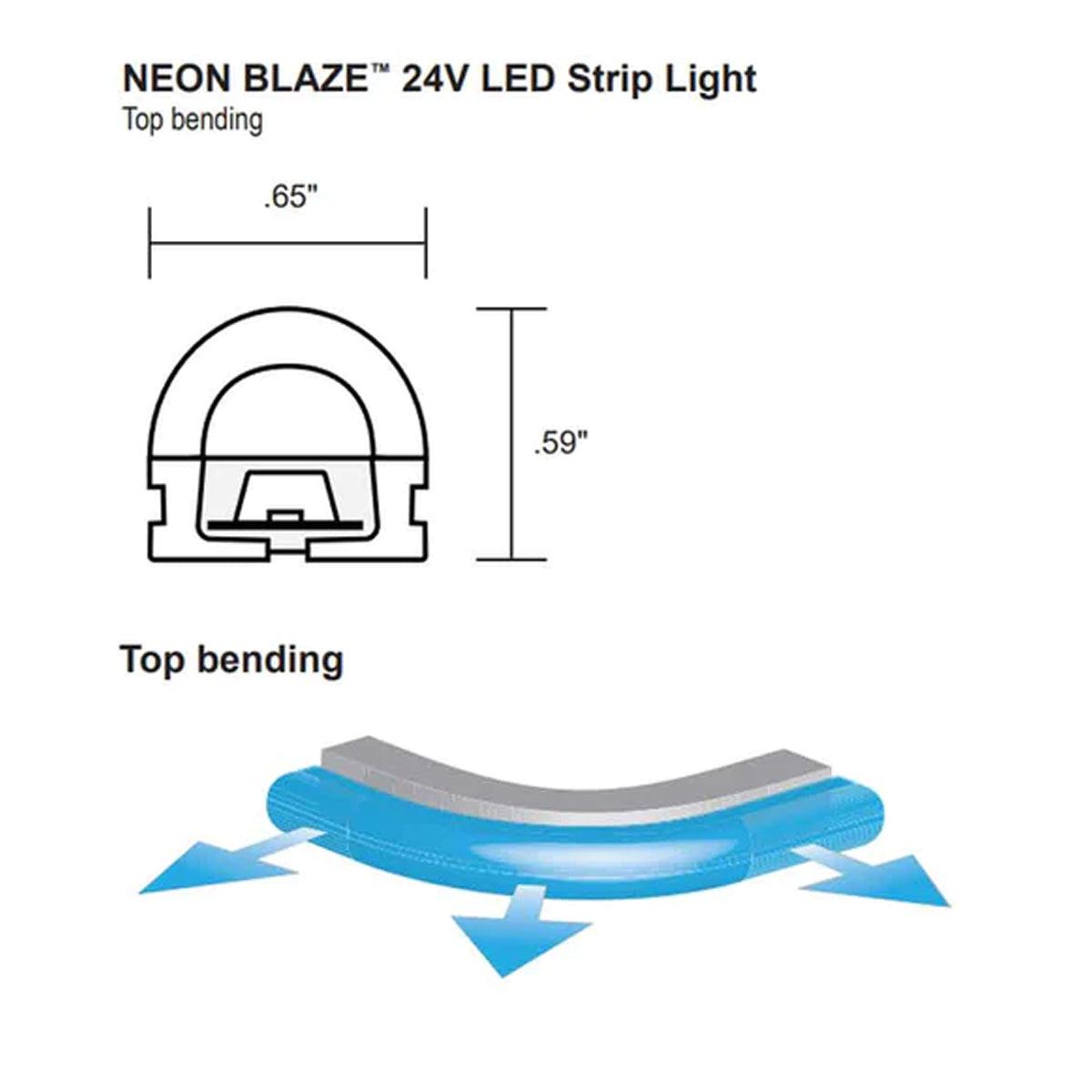

The tape light features a 0.65 in. width PCB, ensuring compatibility with most aluminum channels. It includes a durable silicone coating for protection against environmental elements and features a reliable adhesive backing for easy installation.

LED Illumination & Performance

With a light output of 37 lumens per foot and a CRI of 80+, this neon tape light provides vibrant blue illumination, perfect for accent and decorative lighting applications.

Power, Wiring & Installation

This 24V tape light requires a compatible driver for operation. It is field-cuttable every 2 inches, allowing for precise customization. Ensure not to exceed the 16 ft maximum run to avoid voltage drop. The light is dimmable, offering flexibility in lighting design.

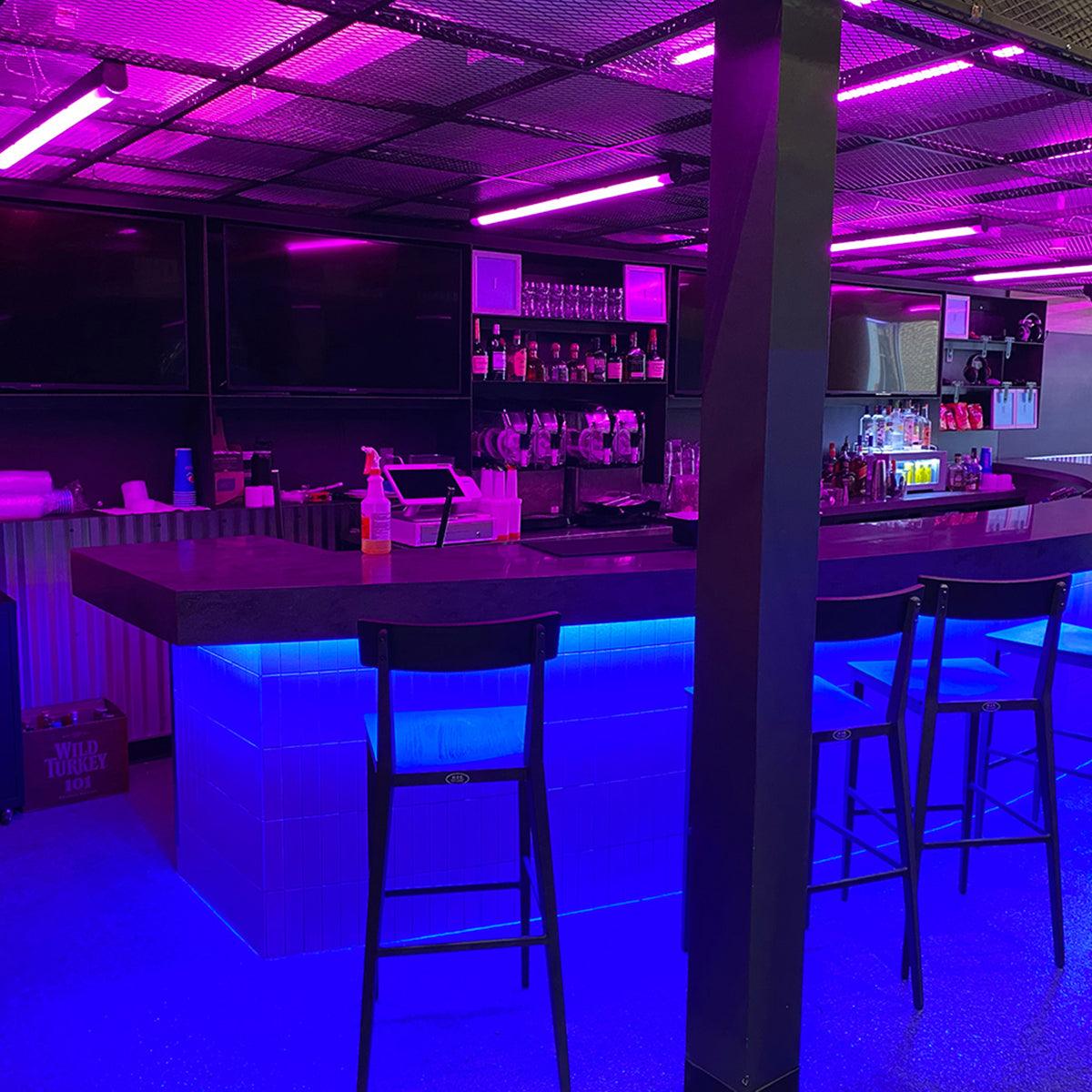

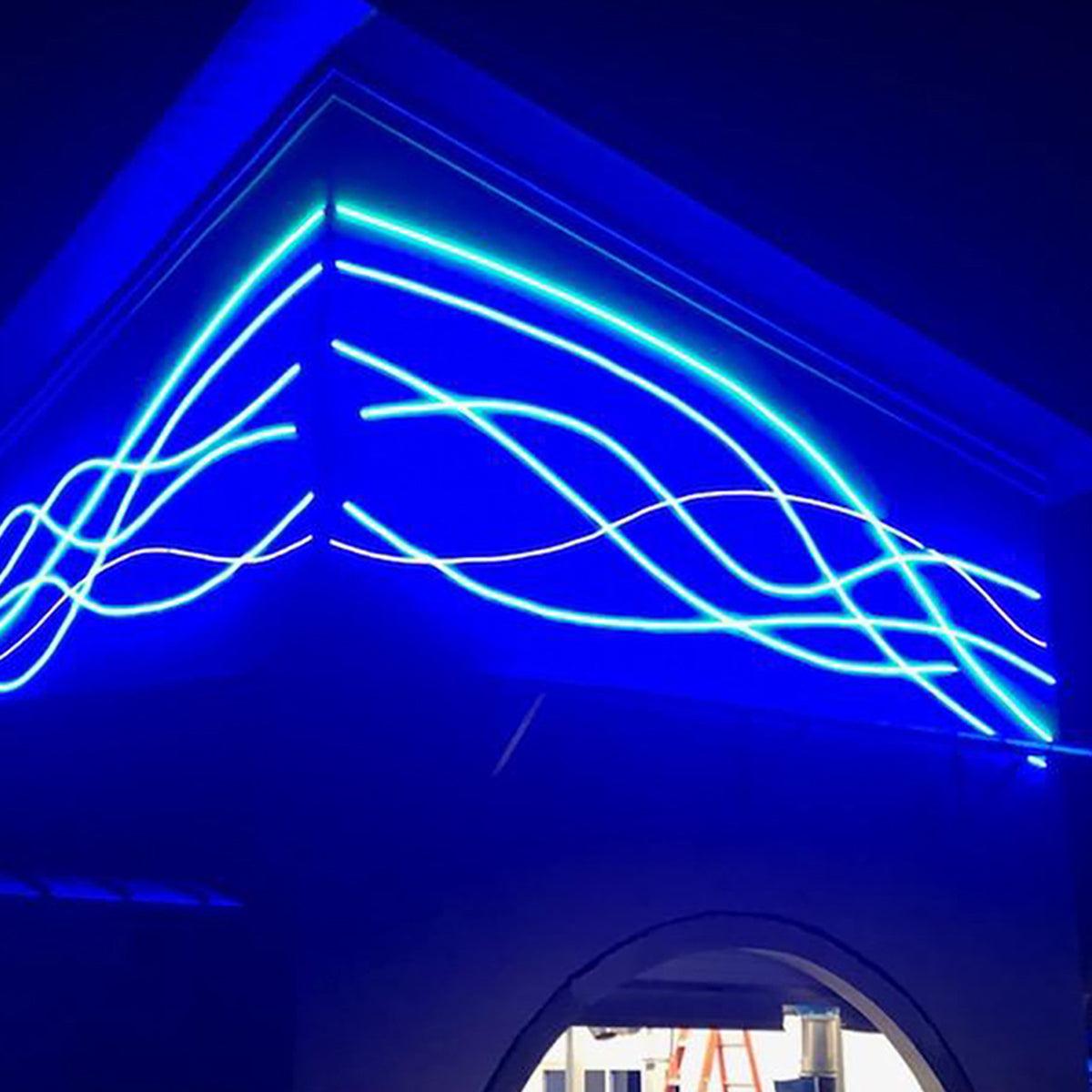

Where This Tape Works Best

• Outdoor pathways
• Architectural accents
• Signage lighting
• Deck and patio lighting

What's Included

• 16 ft spool of Neon BLAZE tape light
• Pre-attached leads
