Diode LED Neon BLAZE, 16 ft, Neon Tape Light, IP65, 6300K, 225 Lumens/ft, 24V
Available in stock (200)
About this item
About this item
- Voltage: Operates at 24V DC for efficient power usage.
- Color Temperature: Provides a crisp 6300K light for vibrant illumination.
- Max Run: Supports up to 16 ft continuous run to minimize voltage drop.
- Cuttable Increments: Can be cut every 2 inches for custom lengths.
- IP Rating: IP65 rated for wet locations, suitable for outdoor applications.
We process payments securely and do not store credit card information.
Description
Description
Diode LED Neon BLAZE Neon Tape Light — 6300K & Wet Rated
The Diode LED DI-24V-TE-NBL4-63-16 is a 16 ft Neon Tape Light designed for outdoor applications with an IP65 rating. It operates at 24V DC, providing a bright 6300K color temperature ideal for vibrant lighting needs.
Key Features
- Voltage: 24V DC for consistent power delivery.
- Wattage: 4.4W per foot for energy-efficient performance.
- Lumens: 225 lumens per foot for bright illumination.
- LEDs per Foot: High-density configuration for uniform light output.
- Max Run: 16 ft maximum run to prevent voltage drop.
- Cuttable: Every 2 inches for precise customization.

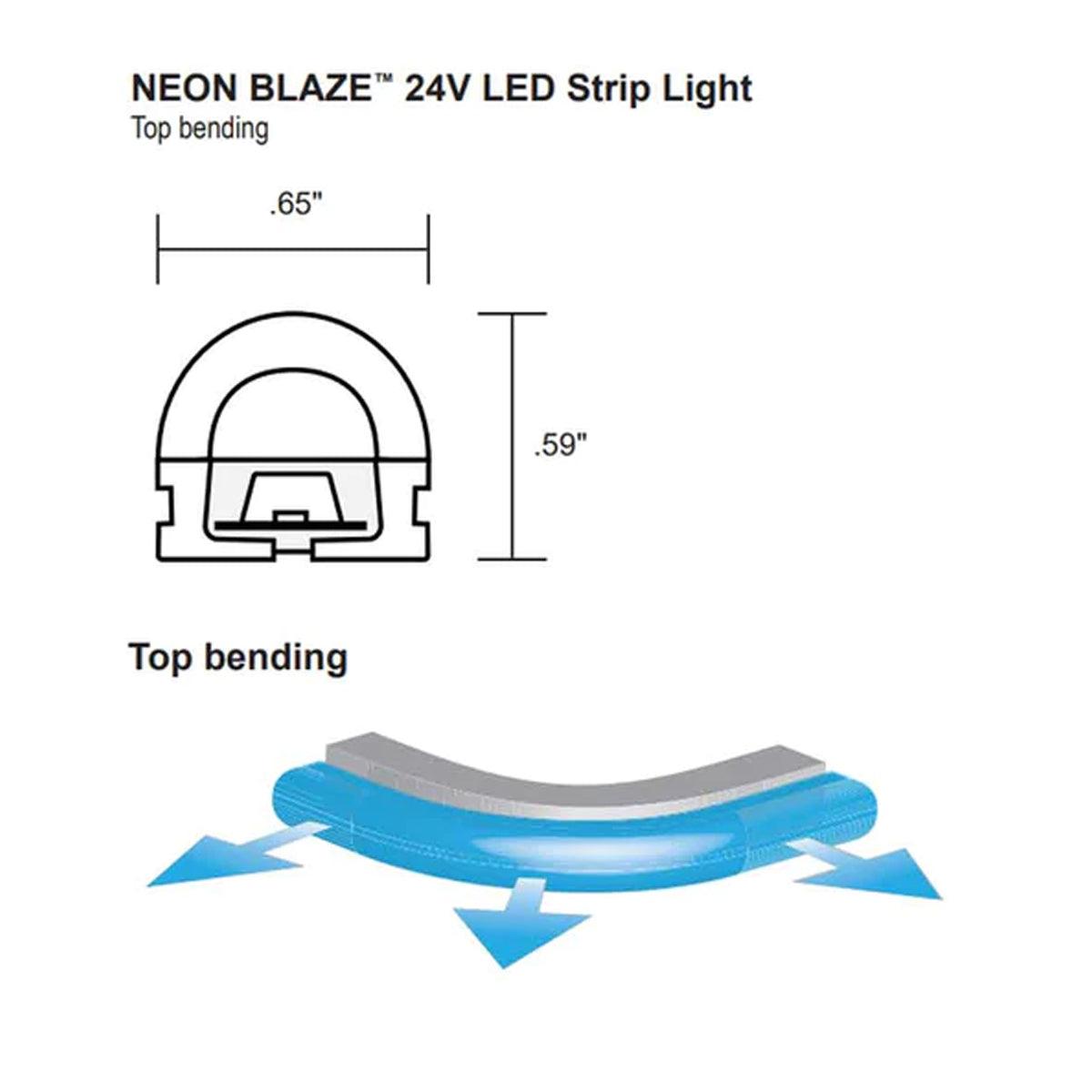

- PCB Width: 0.65 inches for compatibility with standard channels.
- Beam Angle: Wide distribution for even lighting.
- IP Rating: IP65 for wet location use.
- Certifications: UL Listed for safety and reliability.
Core Design & Construction
The Neon BLAZE features a 0.65-inch wide PCB, ensuring compatibility with most aluminum channels. Its robust construction includes a UV-stabilized, fully diffused silicone coating for durability in outdoor environments.
LED Illumination & Performance
Delivering 225 lumens per foot, this tape light offers high brightness with an 80+ CRI for accurate color rendering. The neon-like diffused light is ideal for creating continuous lines of light without visible hotspots.
Power, Wiring & Installation
Requires a 24V DC driver, sold separately. The tape light is field-cuttable every 2 inches, allowing for tailored installations. It supports dimming for adjustable ambiance.
Where This Tape Works Best
- Outdoor architectural accents
- Landscape lighting

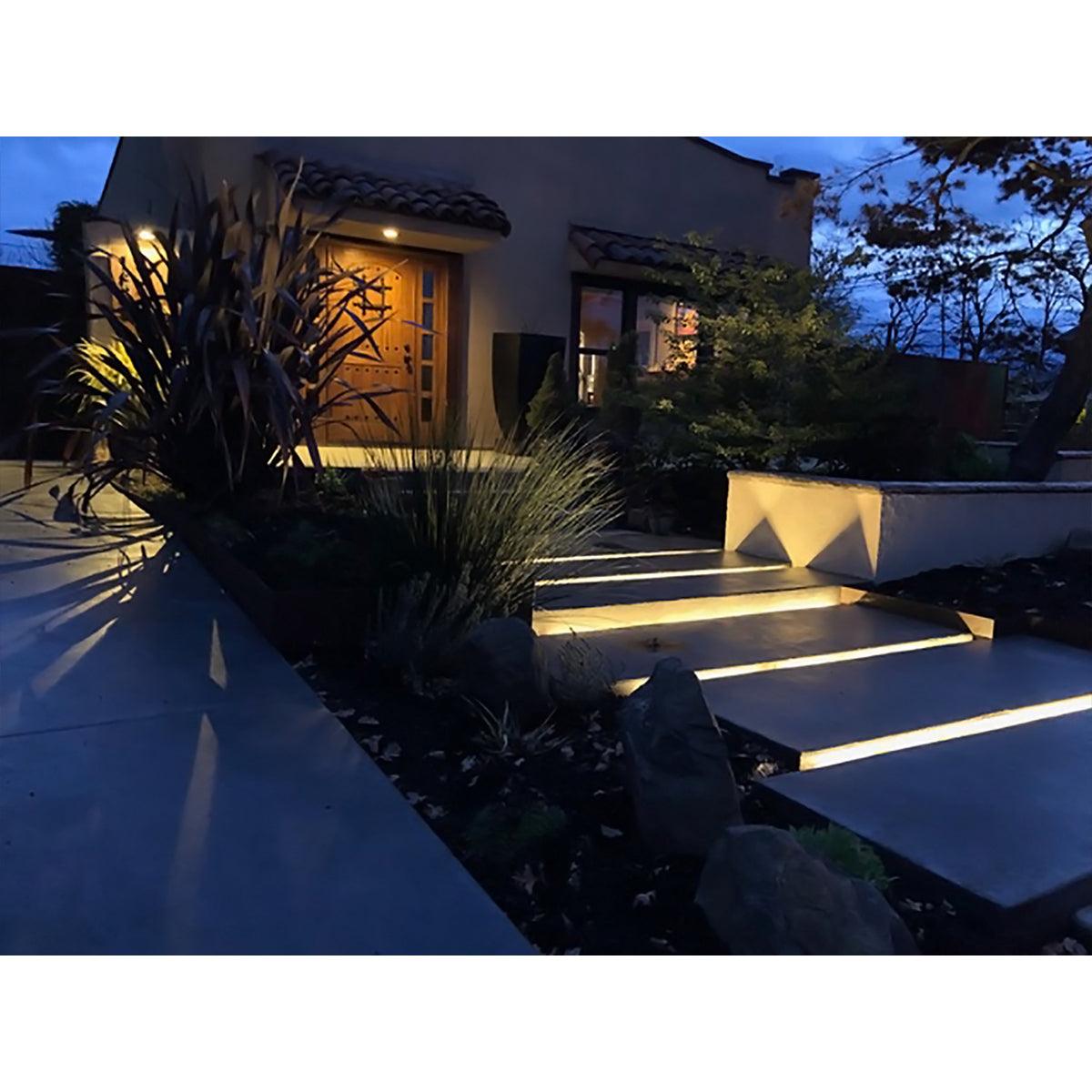

- Pathway illumination
- Signage and displays
What's Included
- 16 ft spool of Neon Tape Light

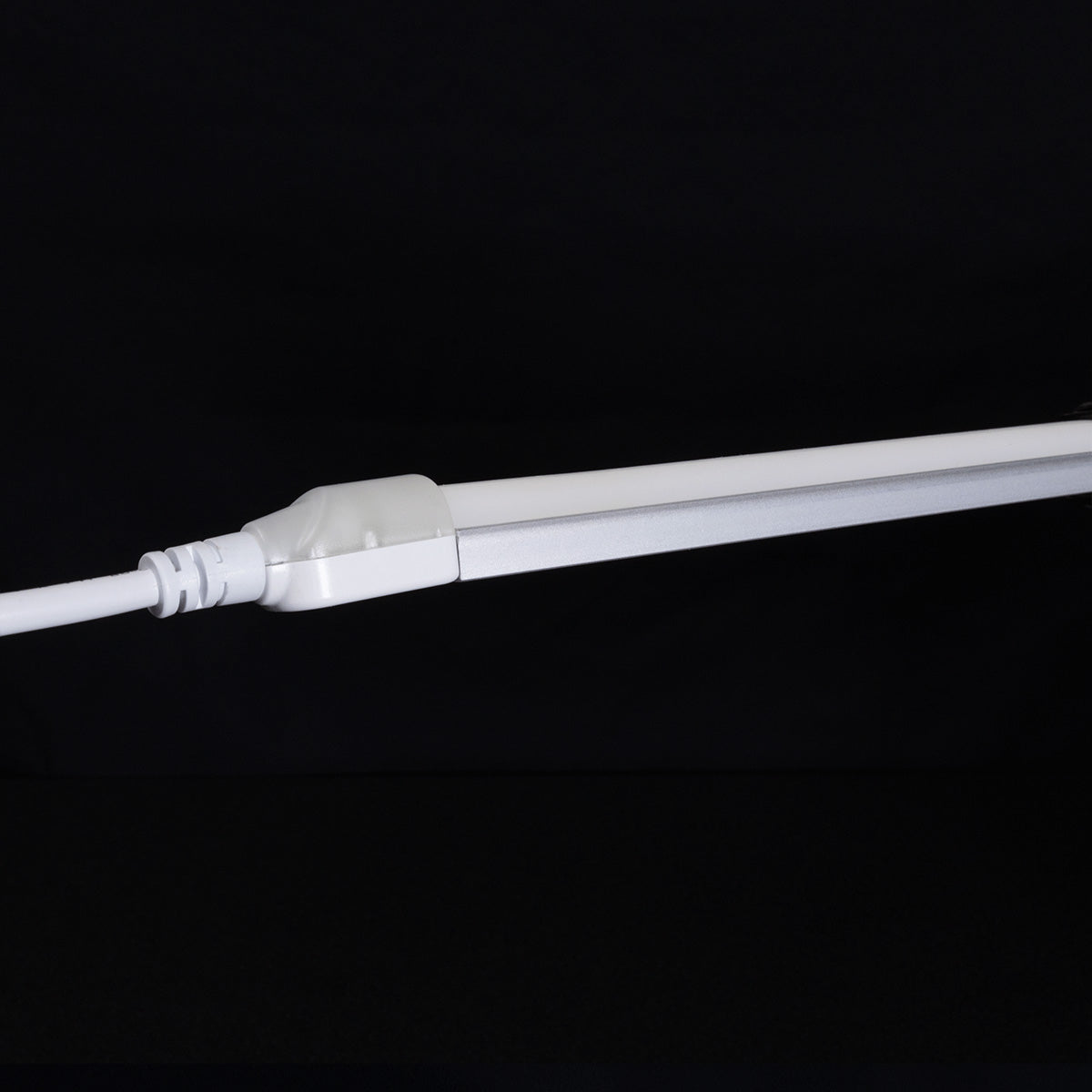

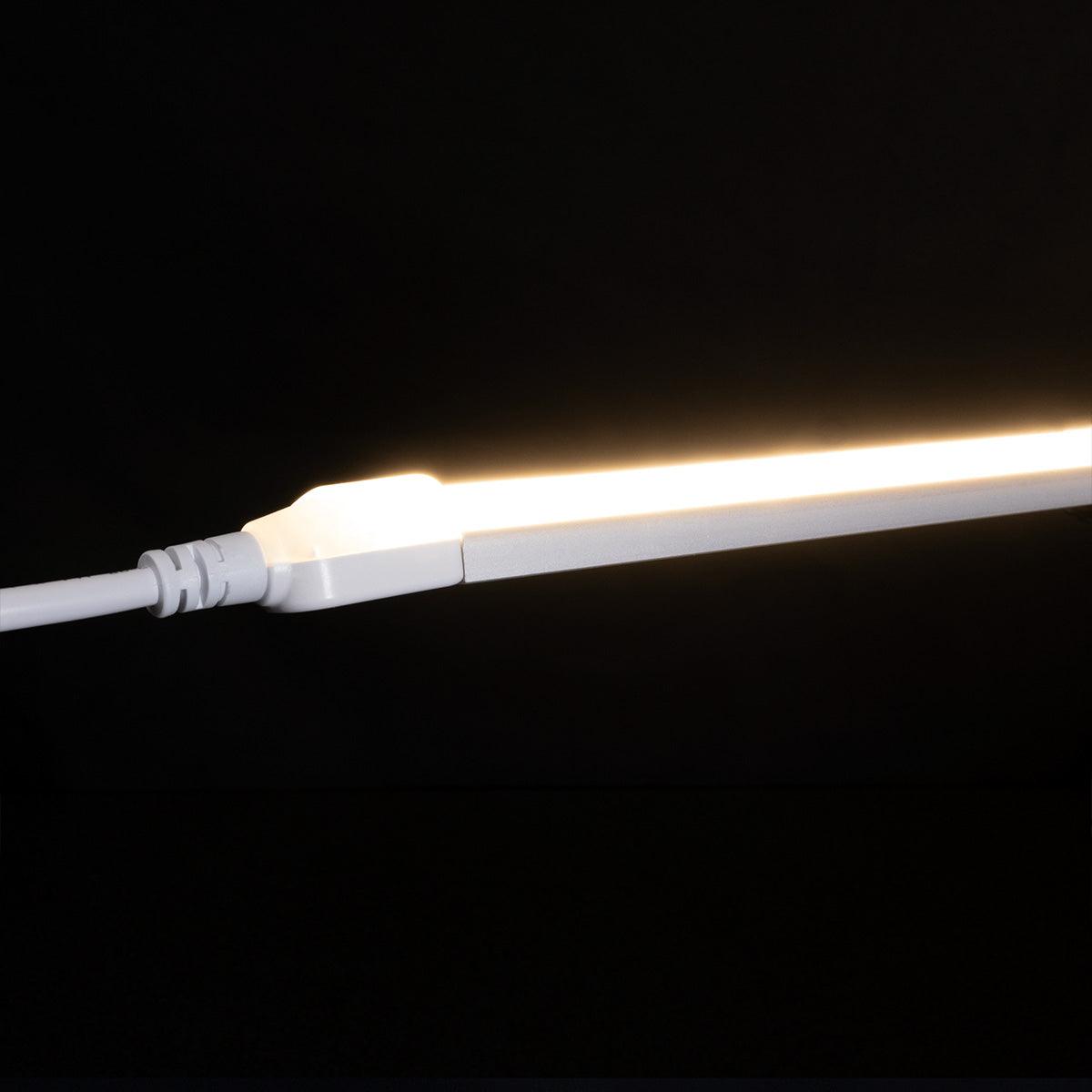

- Pre-attached leads for easy connection
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the DI-24V-TE-NBL4-63-16?
What is the maximum run length for the DI-24V-TE-NBL4-63-16?
How often can the Neon Tape Light be cut?
How often can the Neon Tape Light be cut?
What voltage is required for the Neon BLAZE tape light?
What voltage is required for the Neon BLAZE tape light?
Is the Neon BLAZE tape light suitable for outdoor use?
Is the Neon BLAZE tape light suitable for outdoor use?
What type of adhesive backing does the tape light have?
What type of adhesive backing does the tape light have?
