Diode LED Neon BLAZE, 16 ft, Neon Tape Light, IP65, 3500K, 228 Lumens/ft, 24V
Available in stock (200)
About this item
About this item
- Voltage: Operates at 24V DC for efficient power consumption.
- Color Temperature: Provides a neutral white light at 3500K.
- Max Run: Maximum continuous length of 16 feet to prevent voltage drop.
- Cuttable Increments: Field cuttable every 2 inches for custom lengths.
- IP Rating: IP65 rated for wet locations, suitable for outdoor use.
We process payments securely and do not store credit card information.
Description
Description

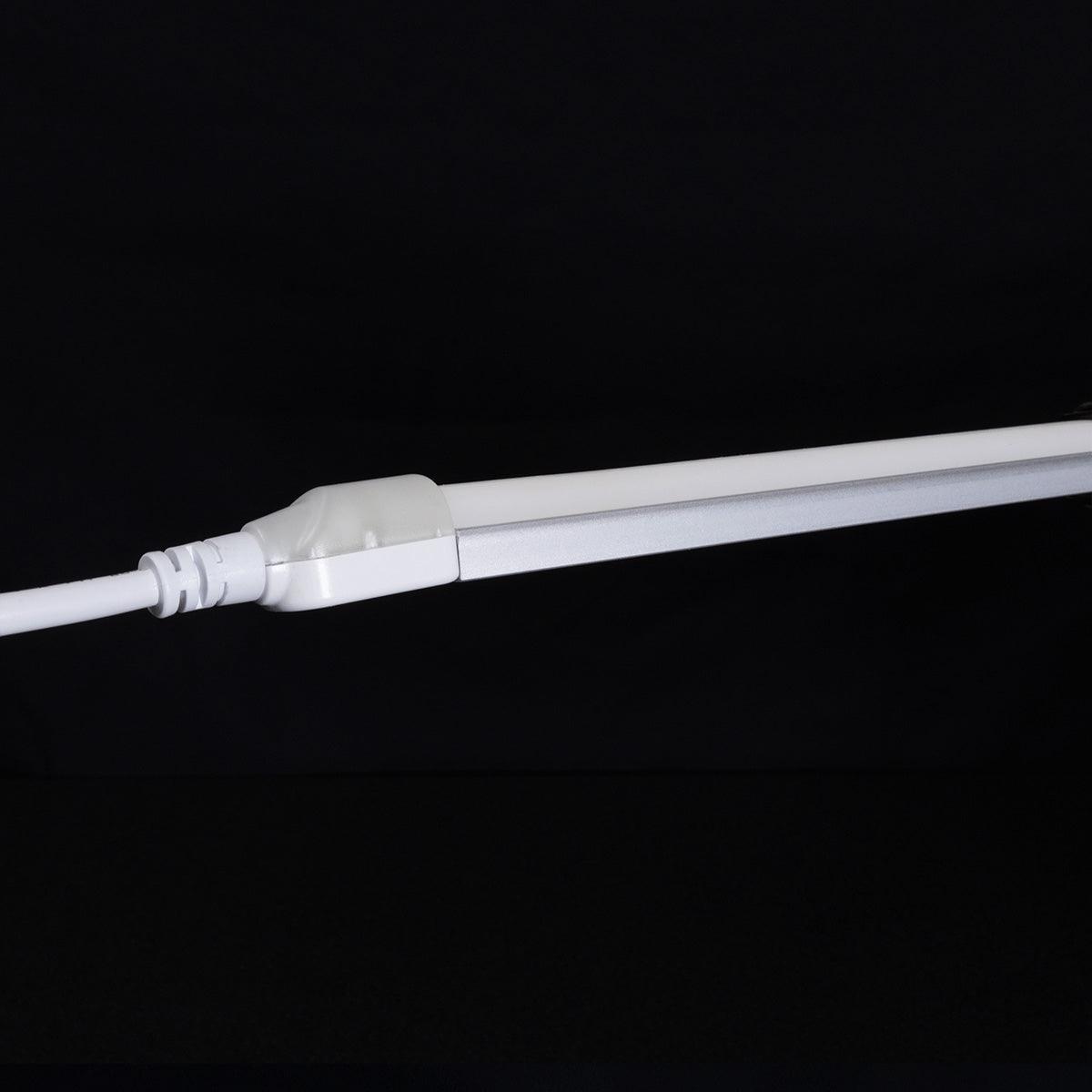

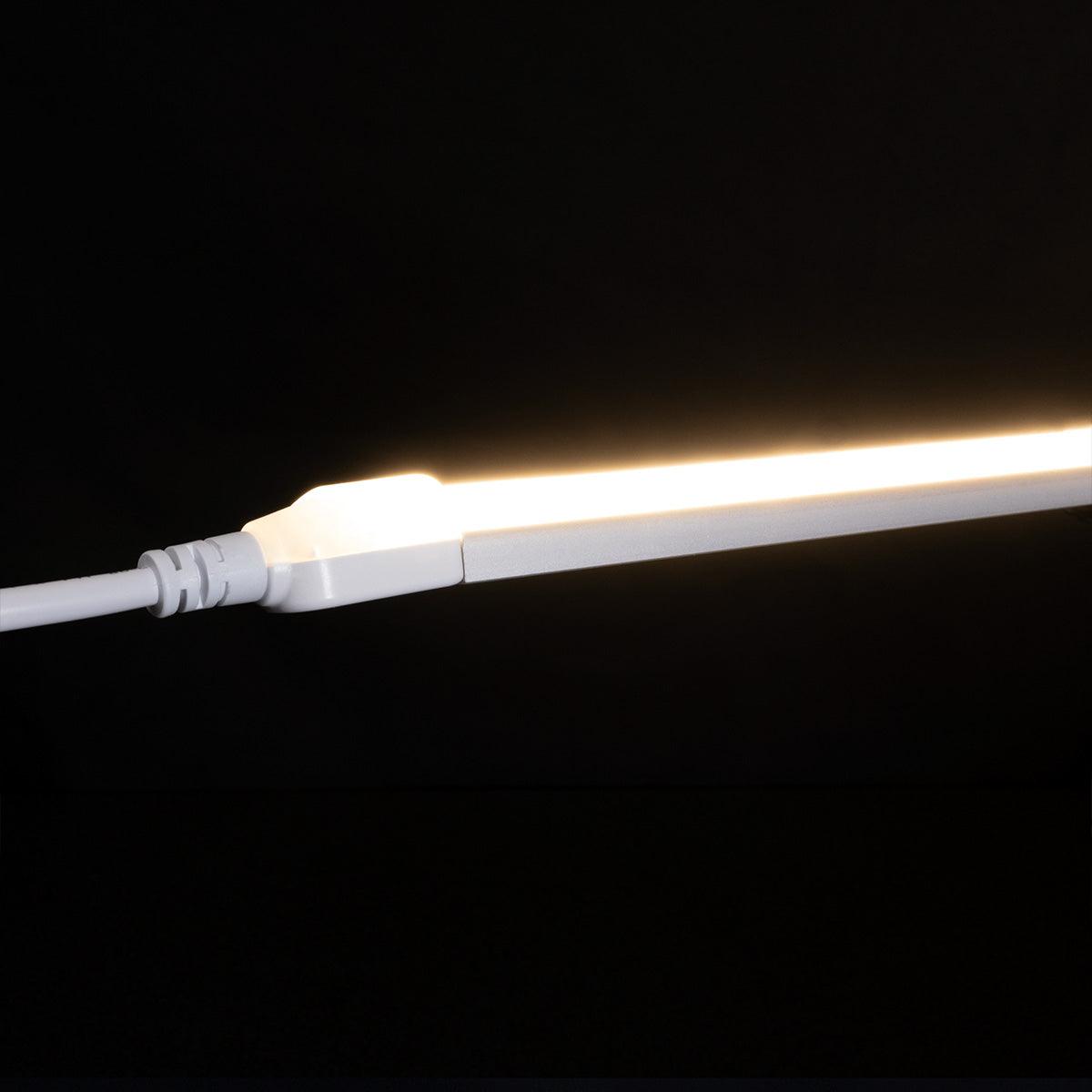

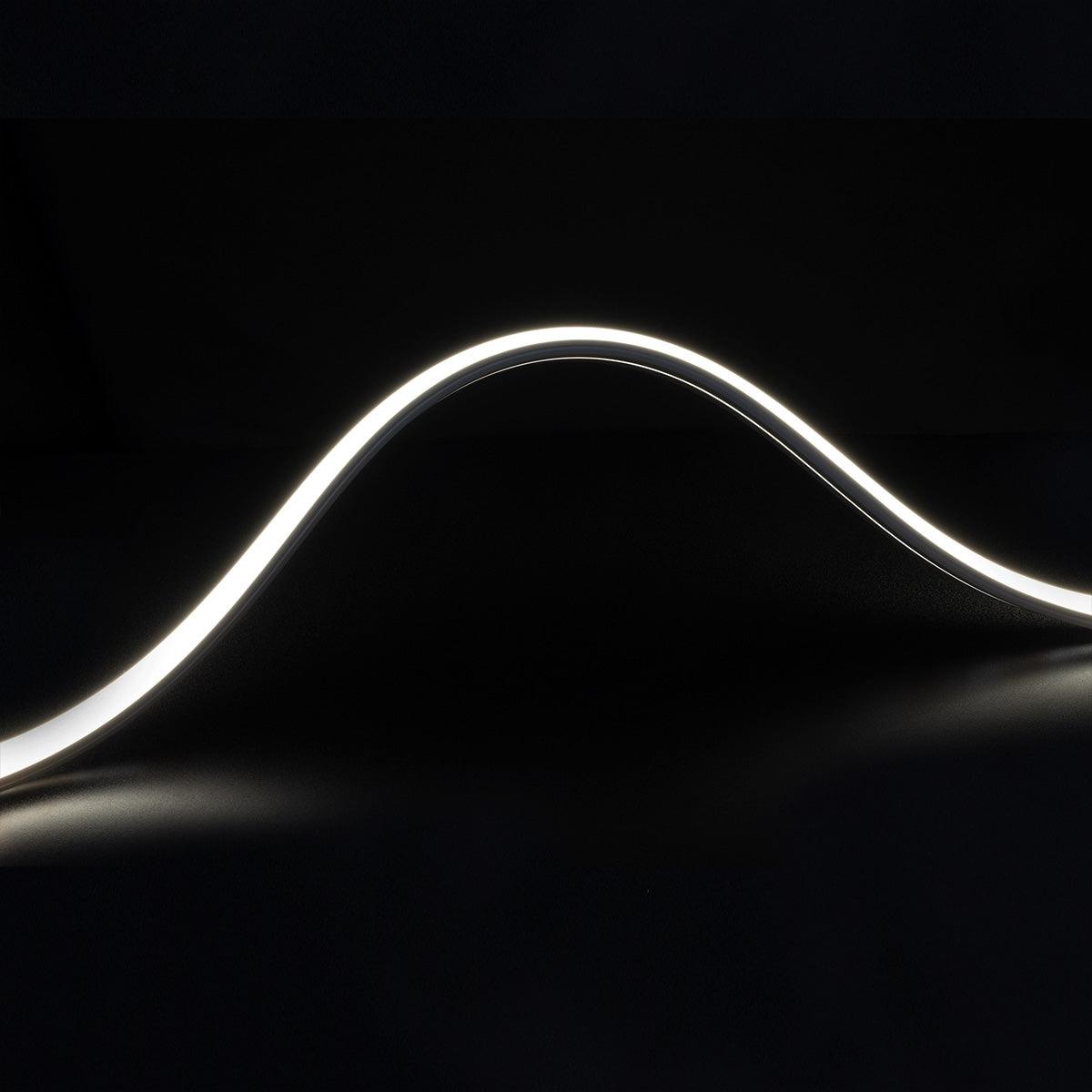

Diode LED Neon BLAZE Neon Tape Light — 3500K & IP65 Wet Rated
The Diode LED DI-24V-TE-NBL4-35-16 is a 16-foot neon tape light designed for outdoor applications. This fixture operates at 24V DC and is IP65 rated, making it ideal for wet locations. It offers a neutral white light at 3500K with a luminous output of 228 lumens per foot.
Key Features
- Voltage: 24V DC operation for efficient power usage.
- Wattage: Consumes 4.4 watts per foot.
- Lumens: Delivers 228 lumens per foot for bright illumination.
- LEDs per Foot: High-density LED configuration for uniform light output.
- Max Run: Supports up to 16 feet in a single run to prevent voltage drop.
- Cuttable: Can be cut every 2 inches for precise length adjustments.

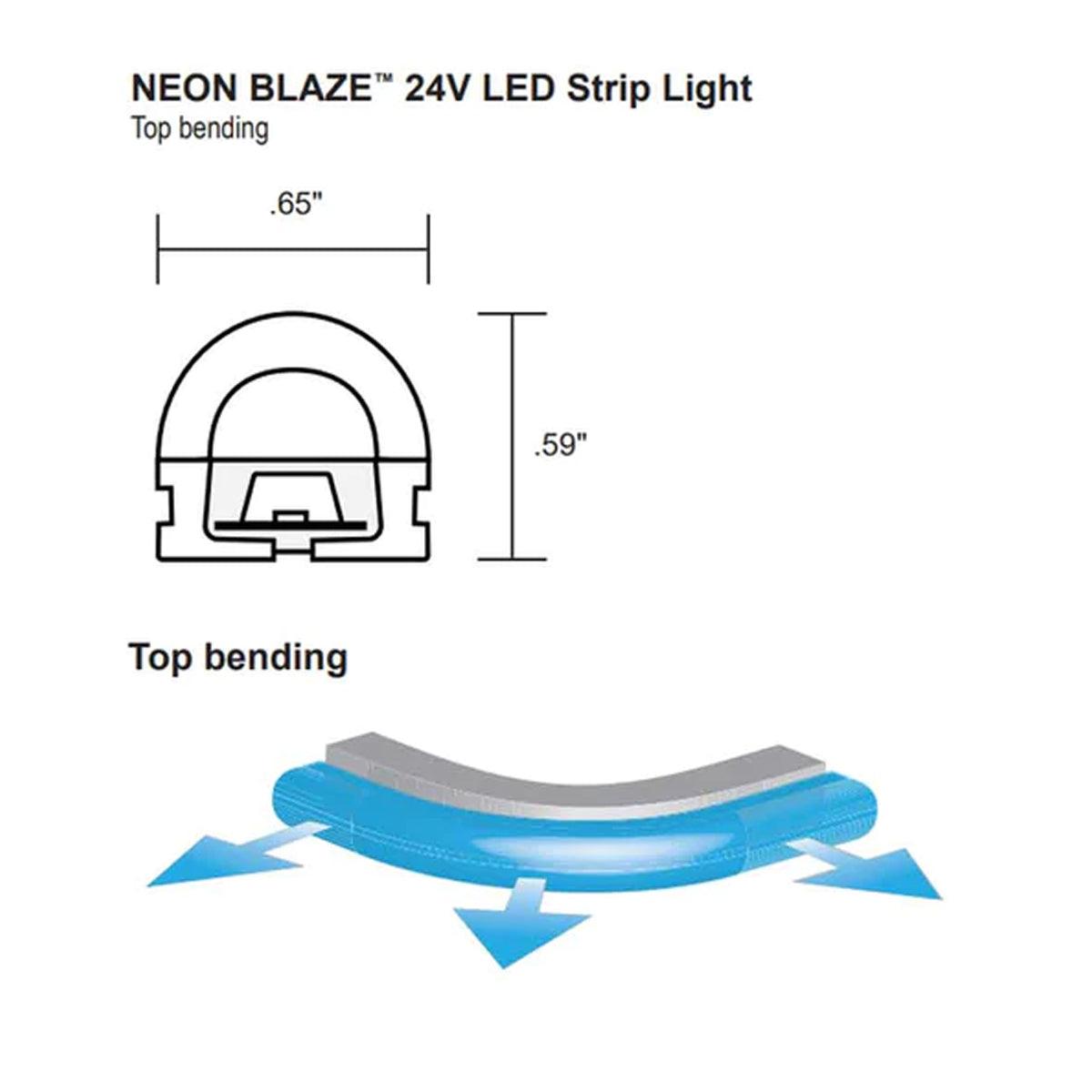

- PCB Width: Measures 0.65 inches wide for compatibility with various channels.
- Beam Angle: Provides a wide beam spread for even lighting.
- IP Rating: IP65 rated for wet locations, ensuring durability outdoors.
- Certifications: UL Listed for safety and performance.
Core Design & Construction
The Neon BLAZE features a robust design with a PCB width of 0.65 inches, ensuring compatibility with standard mounting channels. Its silicone coating provides protection against environmental factors, and the 3M VHB adhesive backing ensures secure installation.
LED Illumination & Performance
With a luminous efficacy of 228 lumens per foot and a CRI of 80+, this neon tape light delivers high-quality illumination. The diffused LED light source ensures a smooth, dotless appearance, ideal for architectural applications.
Power, Wiring & Installation
This tape light requires a 24V DC power supply and is field-cuttable every 2 inches for custom installations. It supports a maximum run of 16 feet and is dimmable, allowing for versatile lighting control.

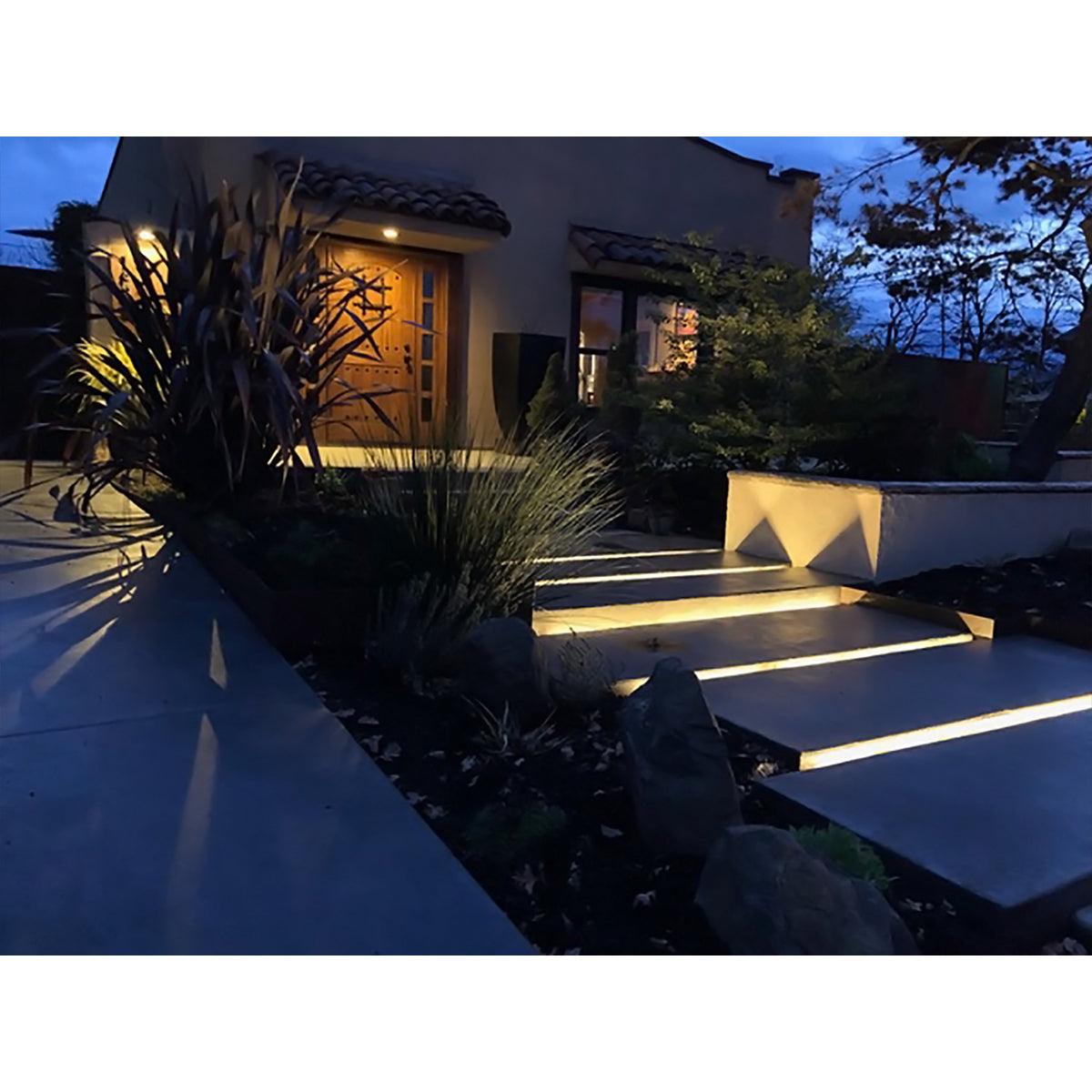

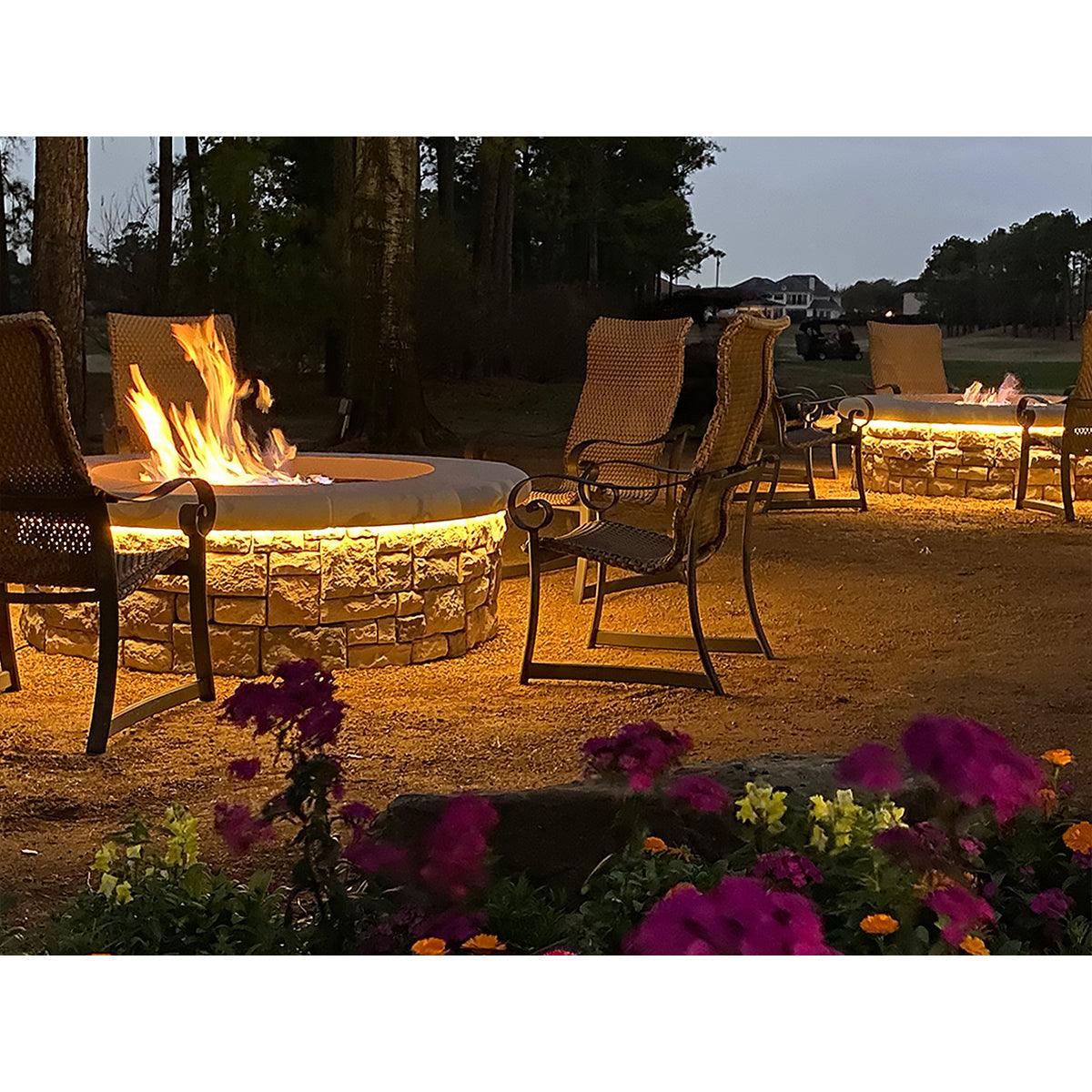

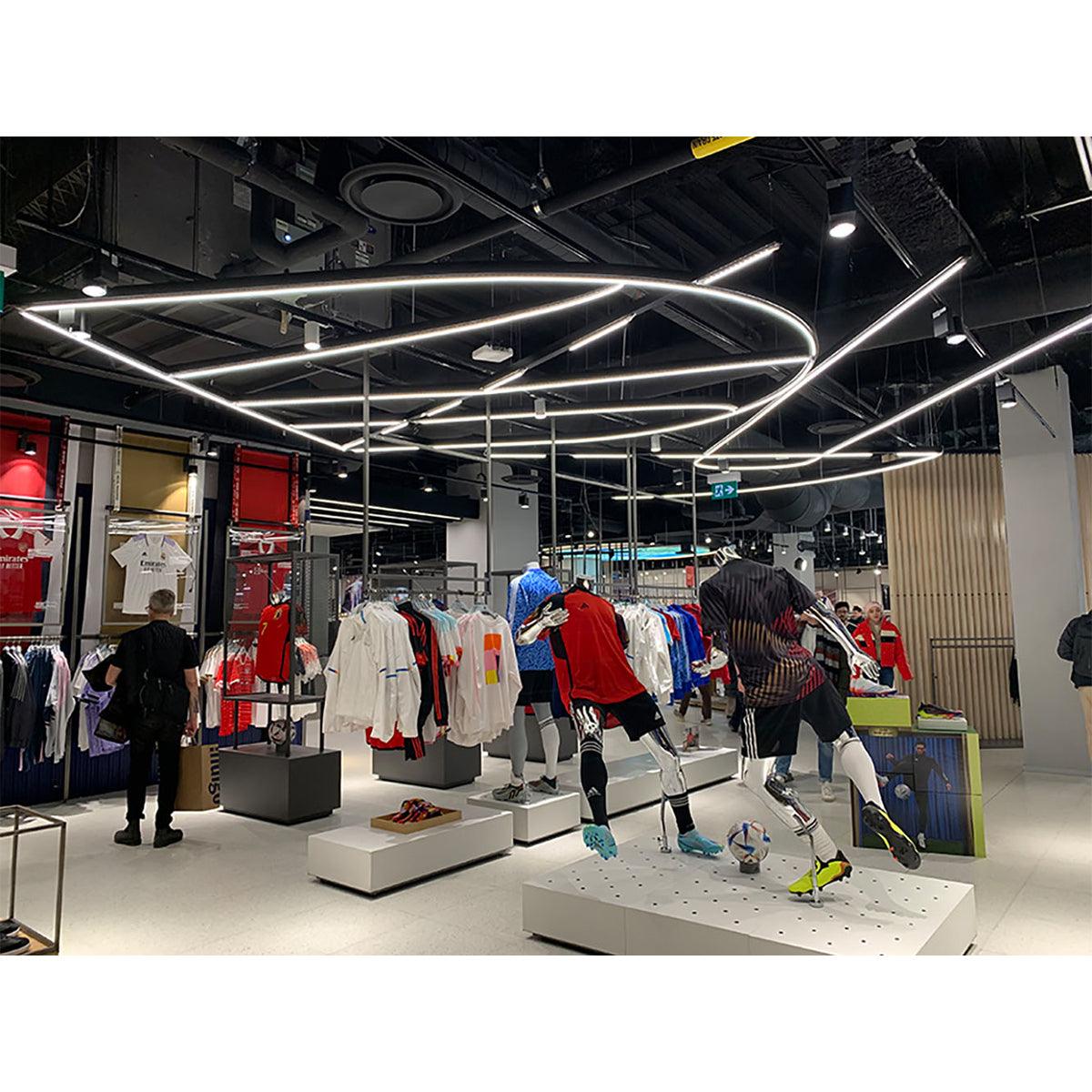

Where This Tape Works Best
- Cove lighting
- Outdoor pathways
- Accent lighting
- Signage illumination
What's Included
- 16 ft spool of Neon BLAZE tape light
- Pre-attached leads
