Diode LED Neon BLAZE, 16 ft, Neon Tape Light, IP65, 3000K, 198 Lumens/ft, 24V
Available in stock (200)
About this item
About this item
- Voltage: Operates on 24V DC, ideal for consistent outdoor lighting applications.
- Color Temperature: Provides a warm 3000K light, perfect for ambient settings.
- Lumens per Foot: Delivers 198 lumens per foot for bright, efficient illumination.
- IP Rating: IP65 rated for wet locations, suitable for outdoor environments.
- Cuttable Increments: Field cuttable every 2 inches for custom installations.
We process payments securely and do not store credit card information.
Description
Description
Diode LED Neon BLAZE Neon Tape Light — 3000K & Wet Rated
The Diode LED DI-24V-TE-NBL4-30-16 is a 16-foot neon tape light designed for outdoor applications. This fixture operates at 24V DC and is IP65 rated, making it suitable for wet locations. The tape light emits a warm 3000K color temperature, providing a cozy ambiance.
Key Features
- Voltage: 24V DC for stable outdoor lighting.
- Wattage: 4.4W per foot for energy-efficient performance.
- Lumens per Foot: 198 lumens for bright illumination.
- LEDs per Foot: High-density for uniform light distribution.
- Maximum Run: 16 feet per power feed to prevent voltage drop.
- Cuttable Increments: Every 2 inches for precise customization.

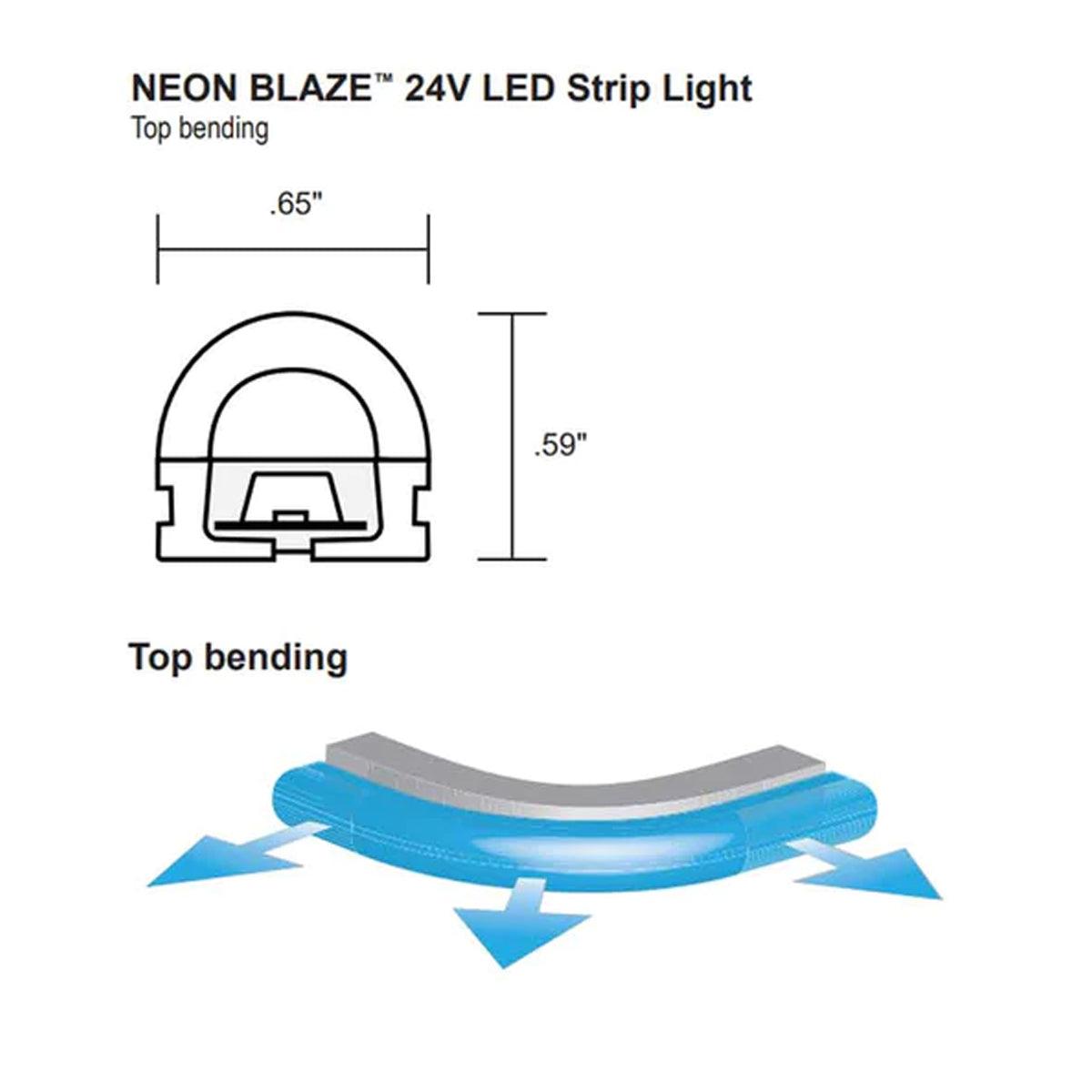

- PCB Width: 0.65 inches for compatibility with standard channels.
- Beam Angle: Wide distribution for even lighting.
- IP Rating: IP65 for wet locations.
- Certifications: UL Listed for safety and reliability.
Core Design & Construction
The tape light features a 0.65-inch wide PCB, ensuring compatibility with most aluminum channels. It includes a durable silicone coating for protection against environmental elements and comes with a strong adhesive backing for secure installation.
LED Illumination & Performance
With 198 lumens per foot and a CRI of 80+, this neon tape light provides vibrant and accurate color rendering. The diffused light engine ensures a dotless, uniform glow.
Power, Wiring & Installation
Requires a 24V DC driver, sold separately. The tape is field-cuttable every 2 inches, allowing for tailored installations. Maximum continuous run is 16 feet to avoid voltage drop. Dimmable with compatible systems.
Where This Tape Works Best

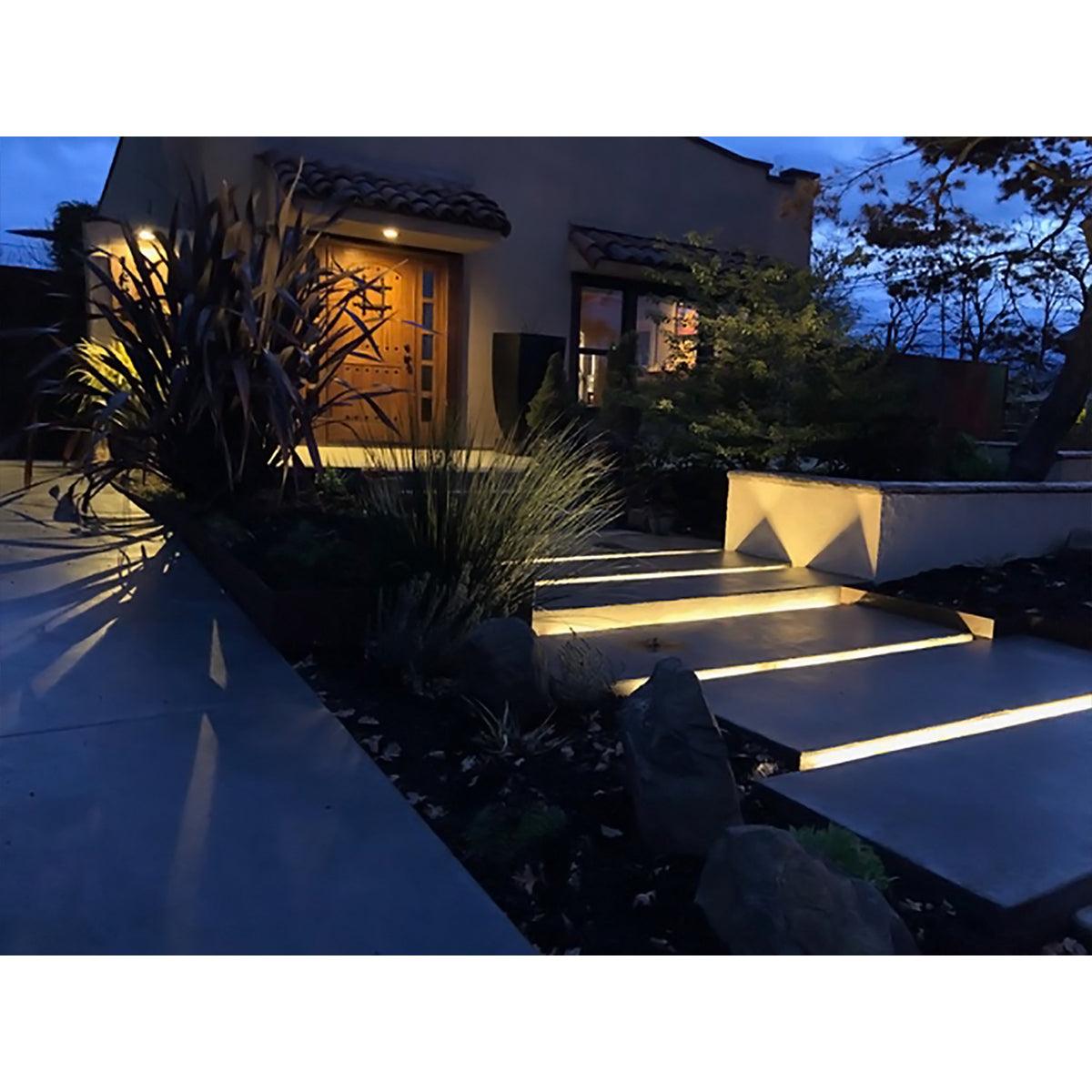

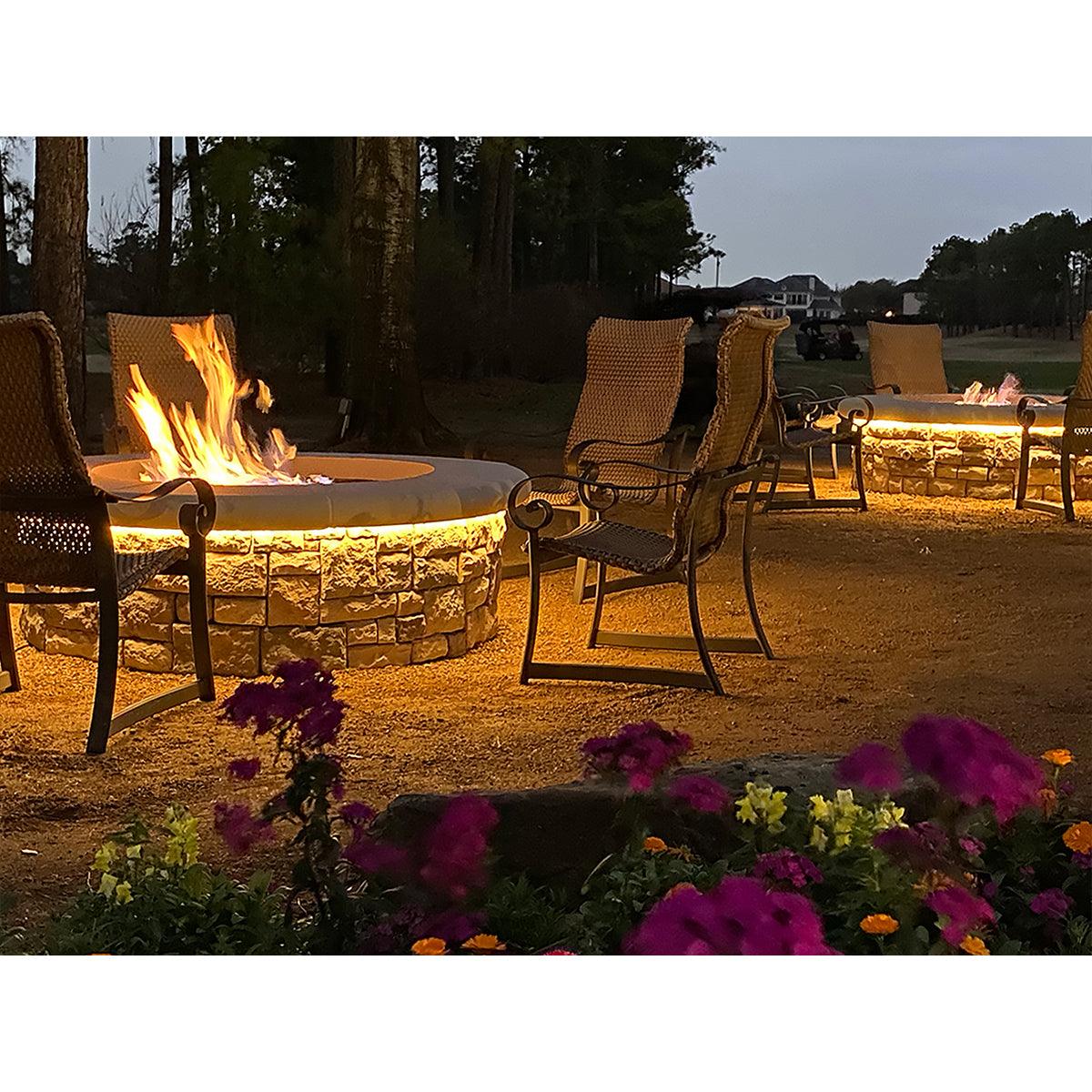

- Outdoor pathways

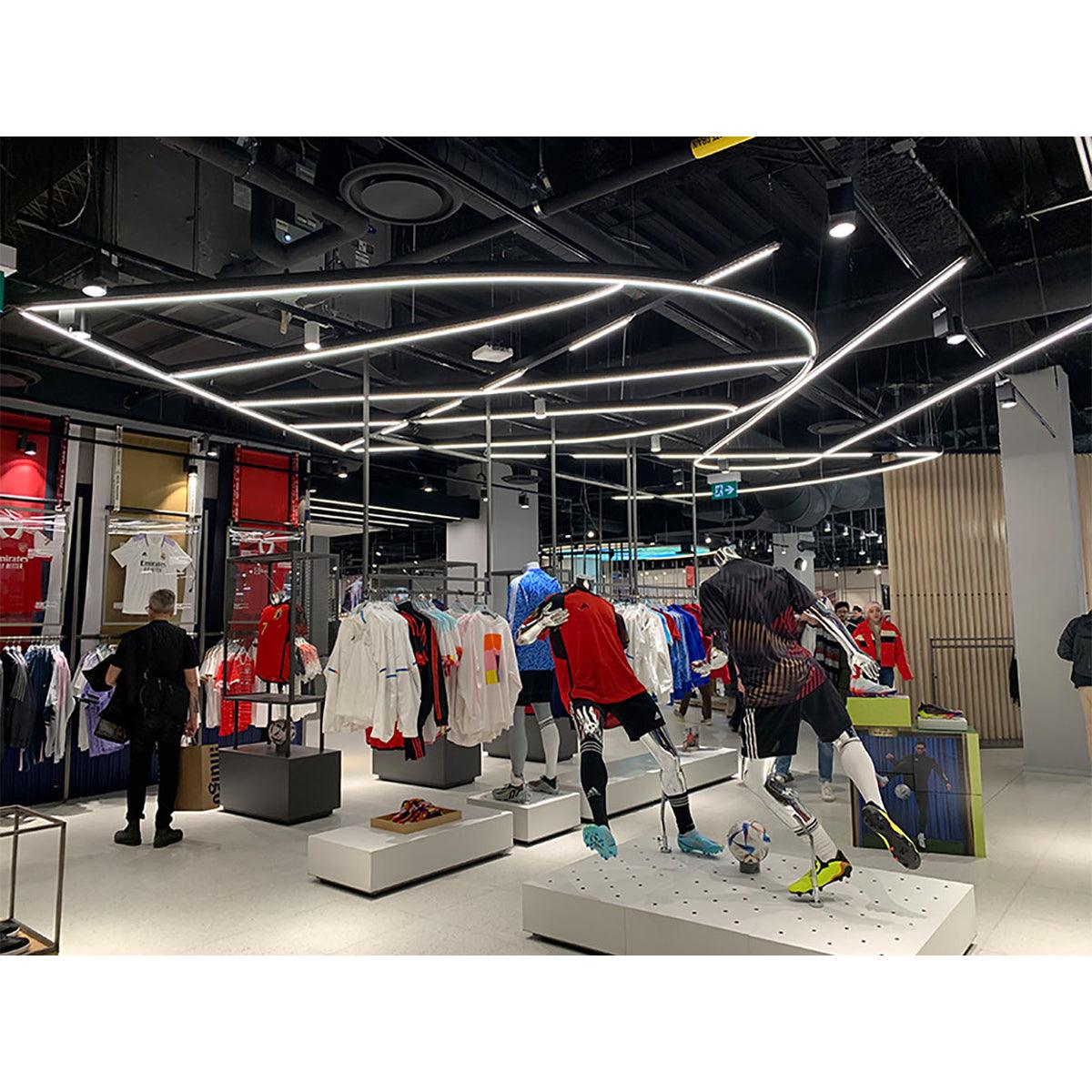

- Architectural accents
- Cove lighting
- Under cabinet lighting
- Signage illumination
What's Included
- 16 ft spool of neon tape light

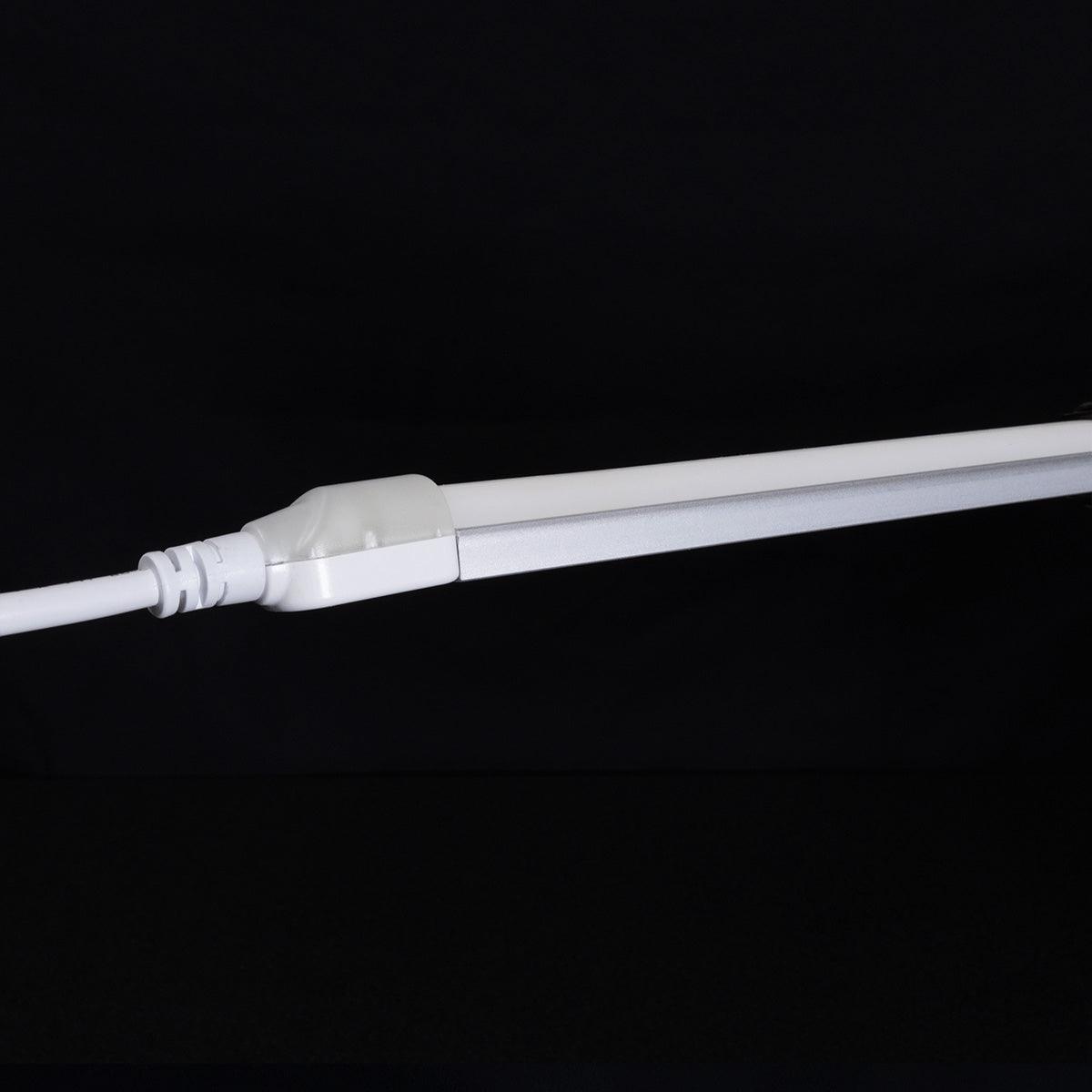

- Pre-attached leads
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the DI-24V-TE-NBL4-30-16?
What is the maximum run length for the DI-24V-TE-NBL4-30-16?
Can the DI-24V-TE-NBL4-30-16 be cut to size?
Can the DI-24V-TE-NBL4-30-16 be cut to size?
What voltage is required for the DI-24V-TE-NBL4-30-16?
What voltage is required for the DI-24V-TE-NBL4-30-16?
Is the DI-24V-TE-NBL4-30-16 suitable for outdoor use?
Is the DI-24V-TE-NBL4-30-16 suitable for outdoor use?
What type of channel is compatible with the DI-24V-TE-NBL4-30-16?
What type of channel is compatible with the DI-24V-TE-NBL4-30-16?
