Diode LED Neon BLAZE Neon Tape Light — 6300K & Wet Rated

The Diode LED DI-24-TE-NBL2-63-32 is a 32-foot Neon Tape Light designed for outdoor applications. With a color temperature of 6300K, it delivers a bright, cool white light. This tape light operates at 24V DC and is IP65 rated for wet locations, making it ideal for outdoor installations.

Key Features

• Voltage: 24V DC operation for efficient power usage.
• Wattage: 2.44W per foot for energy-efficient illumination.
• Lumens: 145 lumens per foot for bright lighting output.
• LEDs per Foot: High-density LED configuration for uniform light distribution.
• Max Run: 32 feet maximum run length to prevent voltage drop.
• Cuttable: Field cuttable every 2 inches for custom lengths.
• PCB Width: 0.65 inches, compatible with standard channels.
• Beam Angle: Wide beam angle for broad coverage.
• IP Rating: IP65 for wet locations, suitable for outdoor use.
• Certifications: UL Listed for safety and reliability.

Core Design & Construction

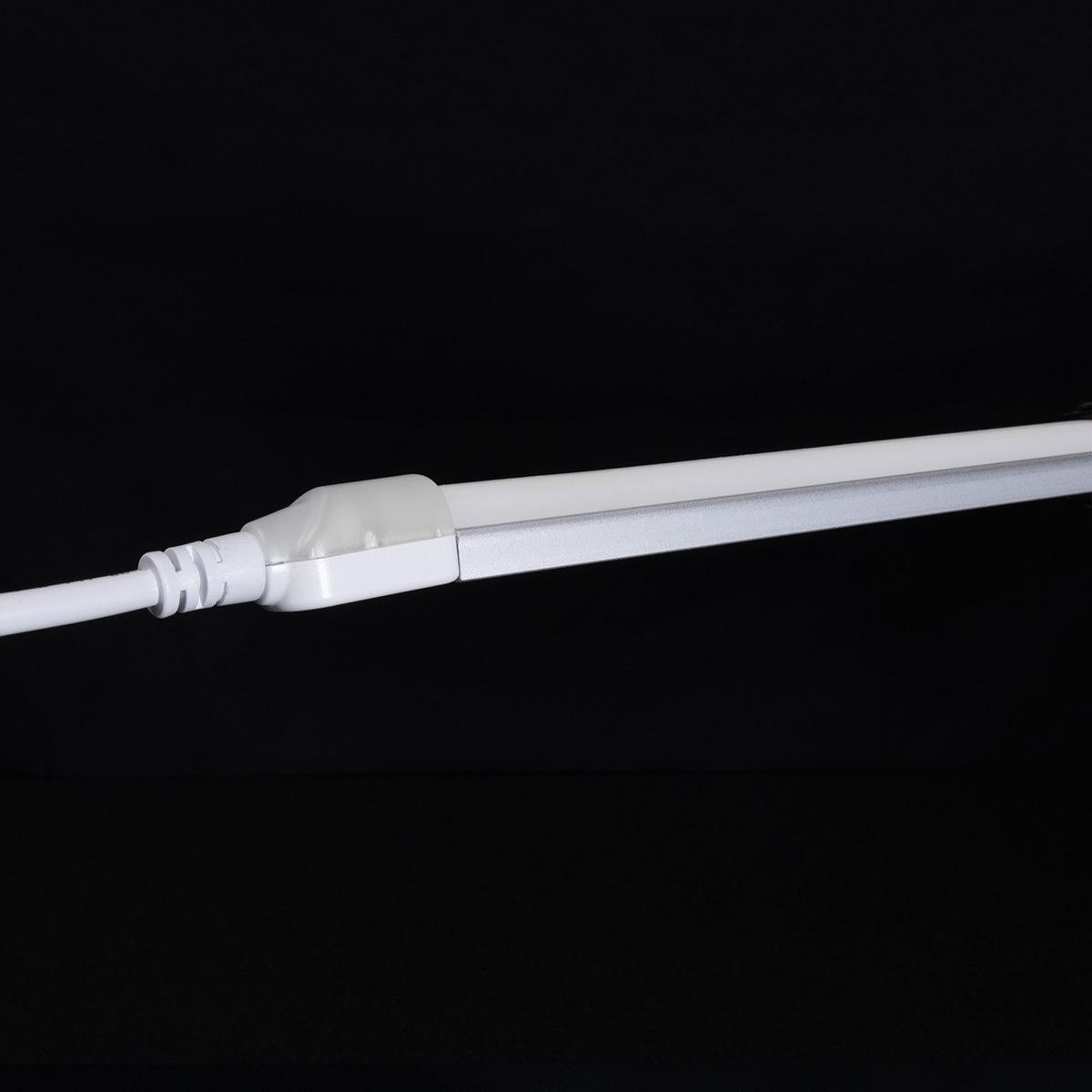

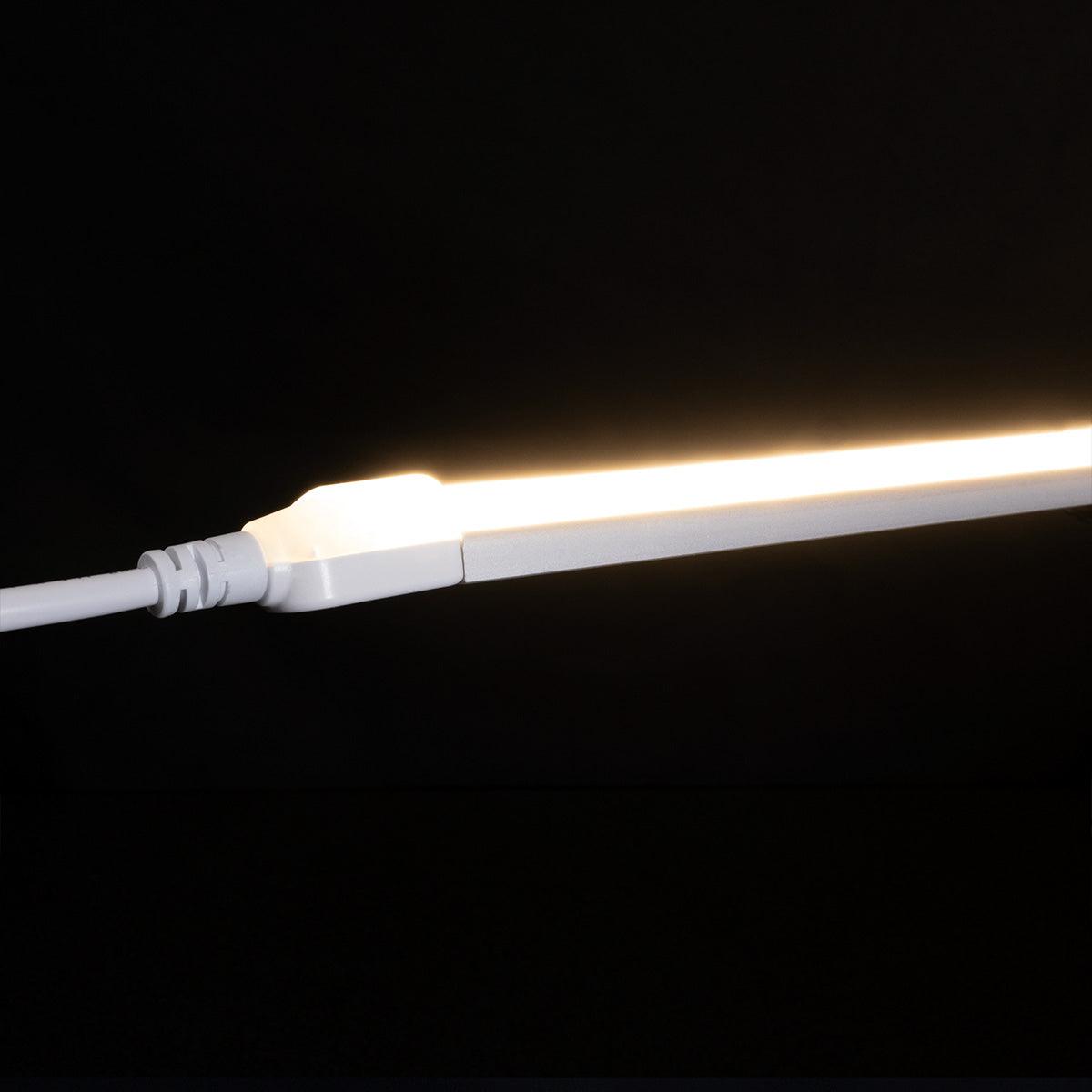

The Neon BLAZE features a 0.65-inch wide PCB, ensuring compatibility with standard aluminum channels. It includes a durable silicone coating for protection against environmental elements and utilizes a strong adhesive backing for secure installation.

LED Illumination & Performance

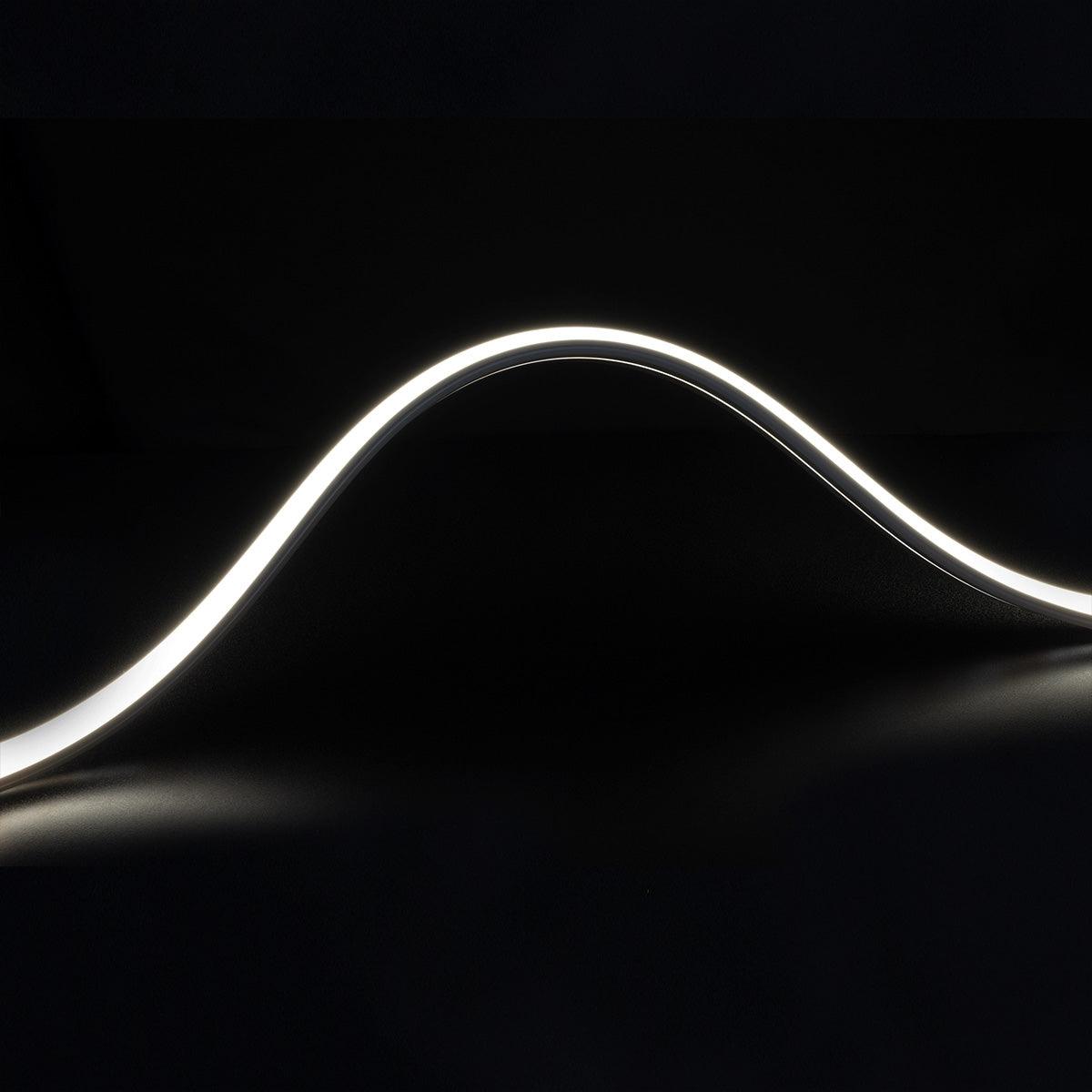

With a luminous output of 145 lumens per foot and a CRI of 80+, this tape light provides bright, high-quality illumination. The light engine is designed for consistent, dotless lighting, ideal for architectural applications.

Power, Wiring & Installation

This tape light requires a 24V DC driver for operation. It is field cuttable every 2 inches, allowing for precise customization. The maximum continuous run is 32 feet, and it is fully dimmable with compatible controls.

Where This Tape Works Best

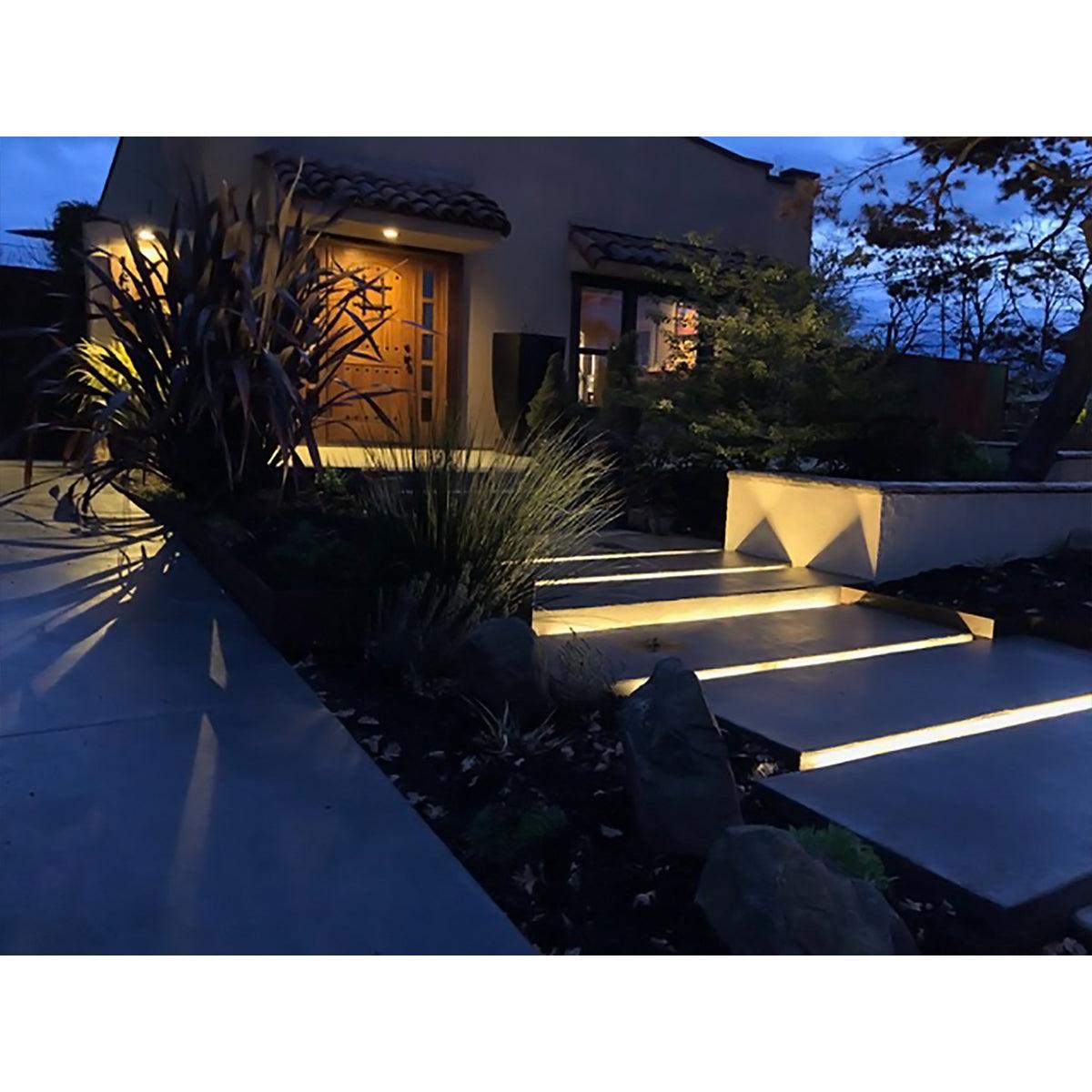

• Outdoor pathways

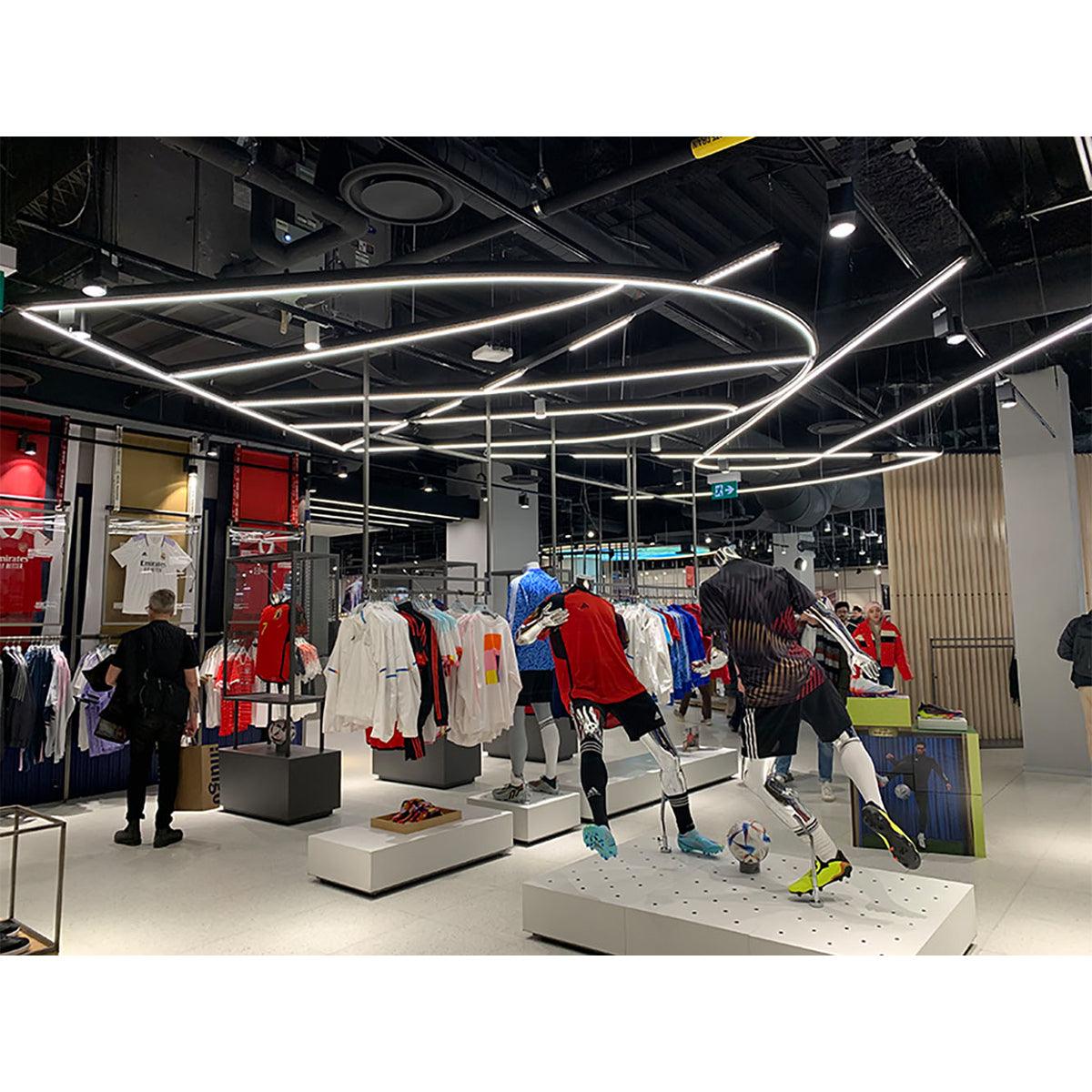

• Architectural accents

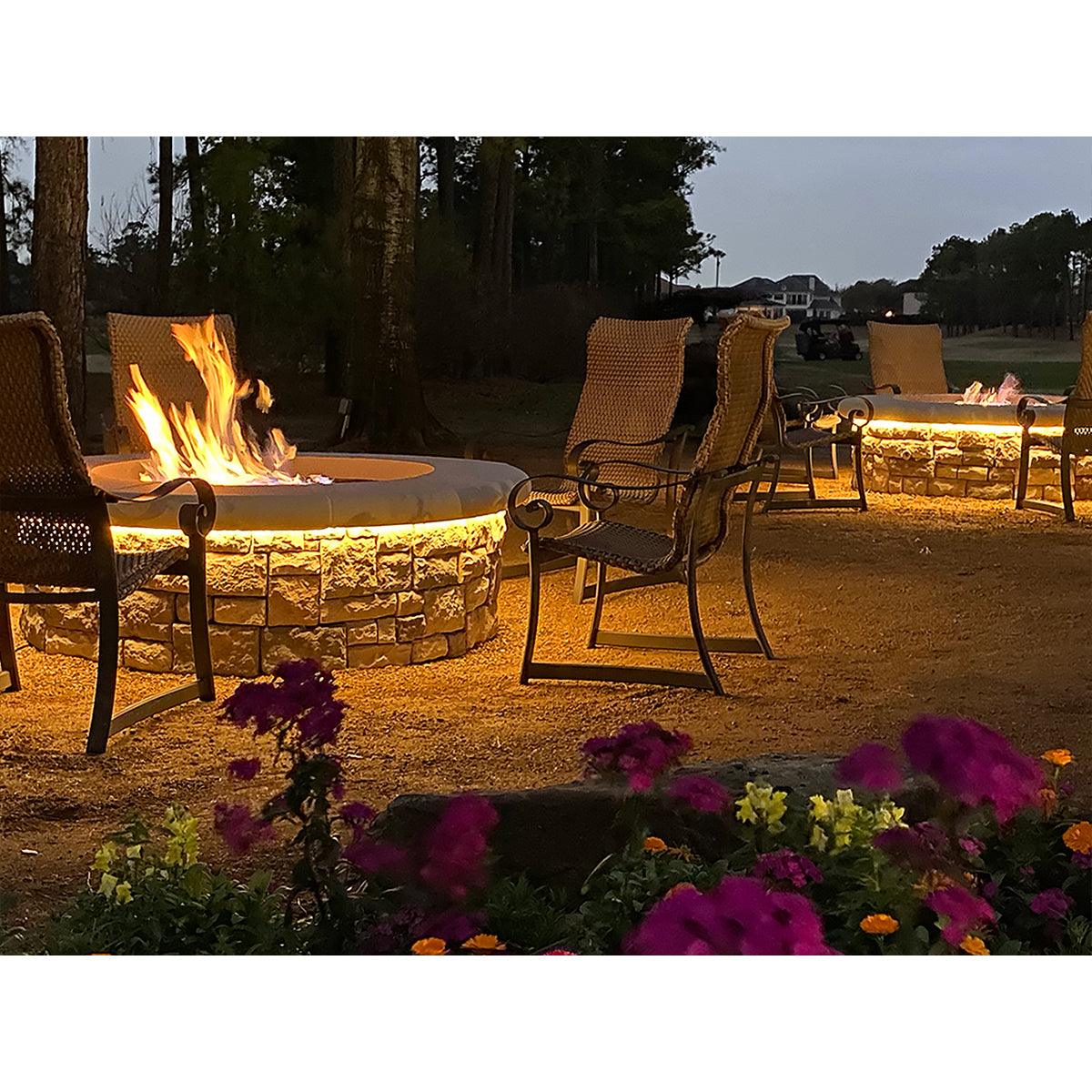

• Garden lighting
• Poolside illumination

What's Included

• 32 ft spool of Neon Tape Light
• Pre-attached leads for easy connection
