Diode LED Neon BLAZE, 32ft, Neon Tape Light, IP65, 3500K, 155 Lumens/ft, 24V
Available in stock (200)
About this item
About this item
- Voltage: Operates at 24V DC, ensuring efficient energy use and compatibility with standard low-voltage systems.
- Color Temperature: Provides a neutral white light at 3500K, ideal for versatile lighting applications.
- Max Run: Capable of a maximum continuous run of 32 feet, suitable for extensive installations.
- Cuttable Increments: Field cuttable every 2 inches for precise customization to fit specific project needs.
- IP Rating: IP65 rated for wet locations, making it suitable for outdoor and damp environments.
We process payments securely and do not store credit card information.
Description
Description
Diode LED Neon BLAZE Neon Tape Light — 3500K & Wet Rated
The Diode LED DI-24-TE-NBL2-35-32 is a 32-foot neon tape light designed for both aesthetic and functional lighting applications. This fixture operates at 24V DC and is IP65 rated, making it suitable for wet locations. Its diffused, dotless light output provides a seamless glow, ideal for architectural accents.
Key Features
- Voltage: 24V DC for low-voltage applications.
- Wattage: 2.44W per foot for efficient energy consumption.
- Lumens: 155 lumens per foot for bright illumination.
- LEDs per Foot: High-density LED arrangement for uniform light distribution.
- Max Run: 32 feet per power feed to prevent voltage drop.
- Cut Increments: 2-inch cuttable sections for custom lengths.
- PCB Width: 0.65 inches for compatibility with standard channels.
- Beam Angle: Wide beam for broad coverage.
- IP Rating: IP65 for outdoor and wet environments.
- Certifications: UL Listed for safety and reliability.
Core Design & Construction

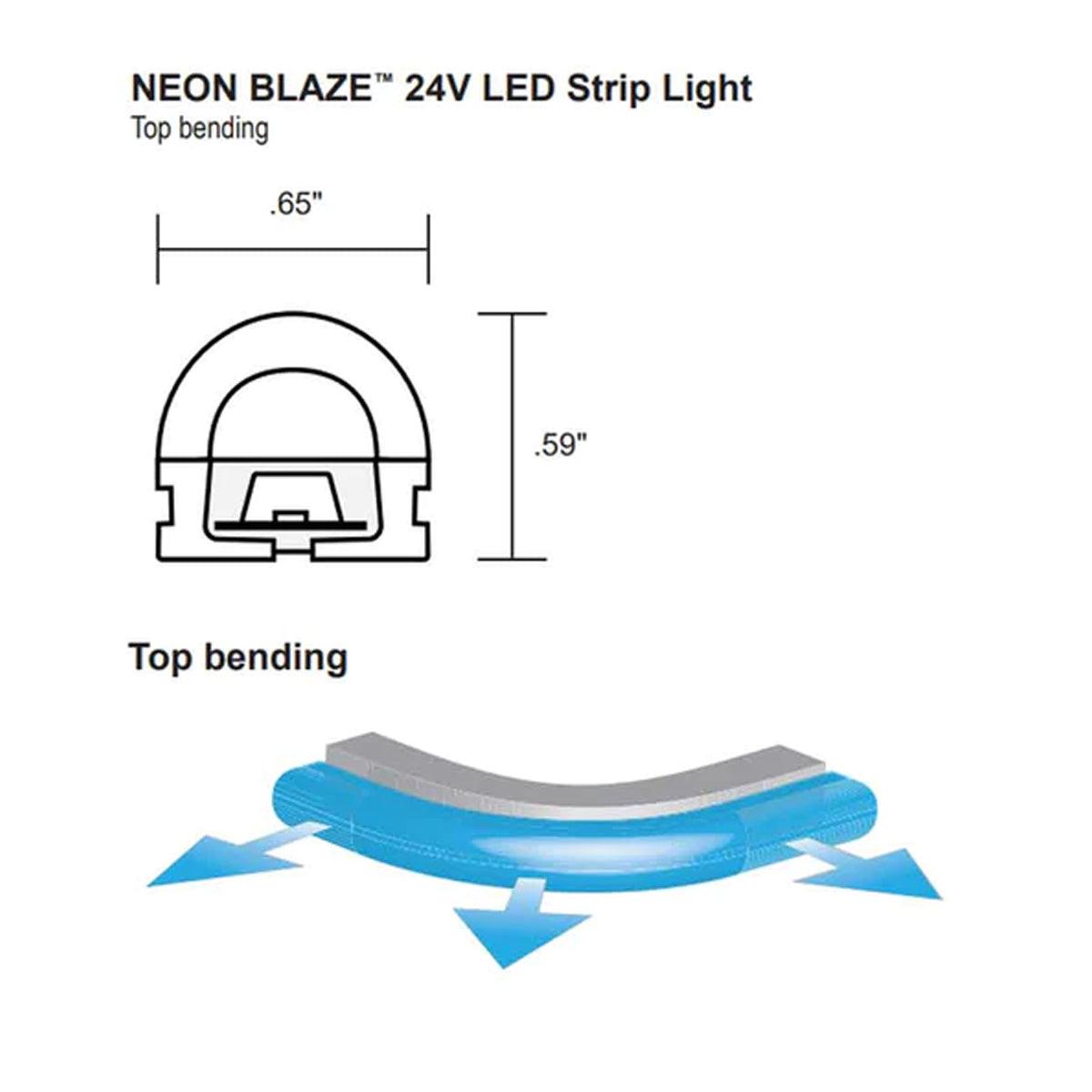

The Neon BLAZE features a 0.65-inch wide PCB, ensuring compatibility with most aluminum channels. Its silicone coating provides durability and UV stability, while the 3M adhesive backing allows for easy installation on various surfaces.
LED Illumination & Performance

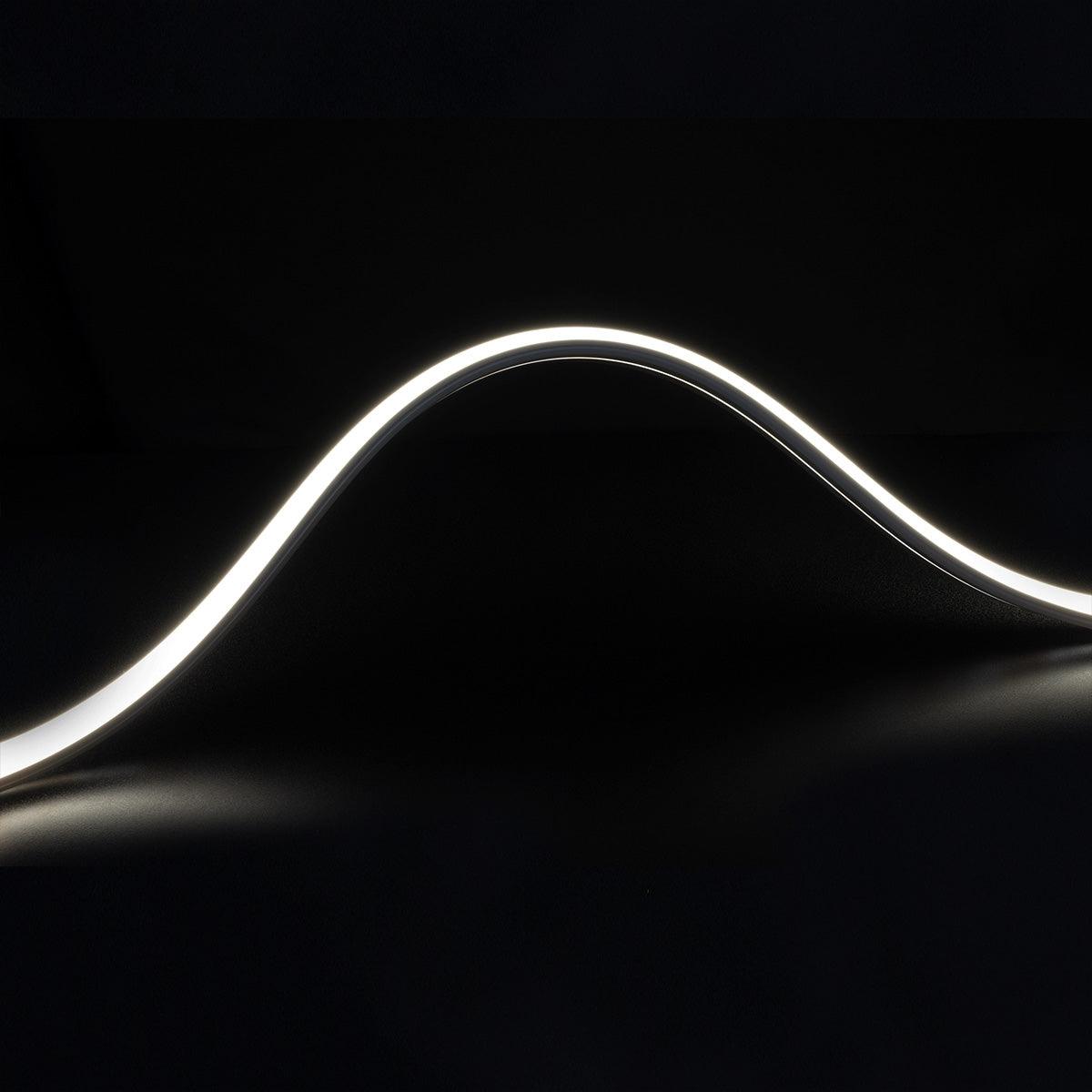

Emitting 155 lumens per foot with a CRI of 80+, this tape light delivers consistent and vibrant 3500K illumination. The dotless COB technology ensures a smooth, continuous light output without visible hotspots.
Power, Wiring & Installation
Requiring a 24V DC power supply, this tape light is field-cuttable every 2 inches, allowing for precise length adjustments. It supports dimming for customizable ambiance and should not exceed a 32-foot continuous run to avoid voltage drop.
Where This Tape Works Best
- Cove lighting for ambient illumination.
- Under cabinet lighting for task areas.

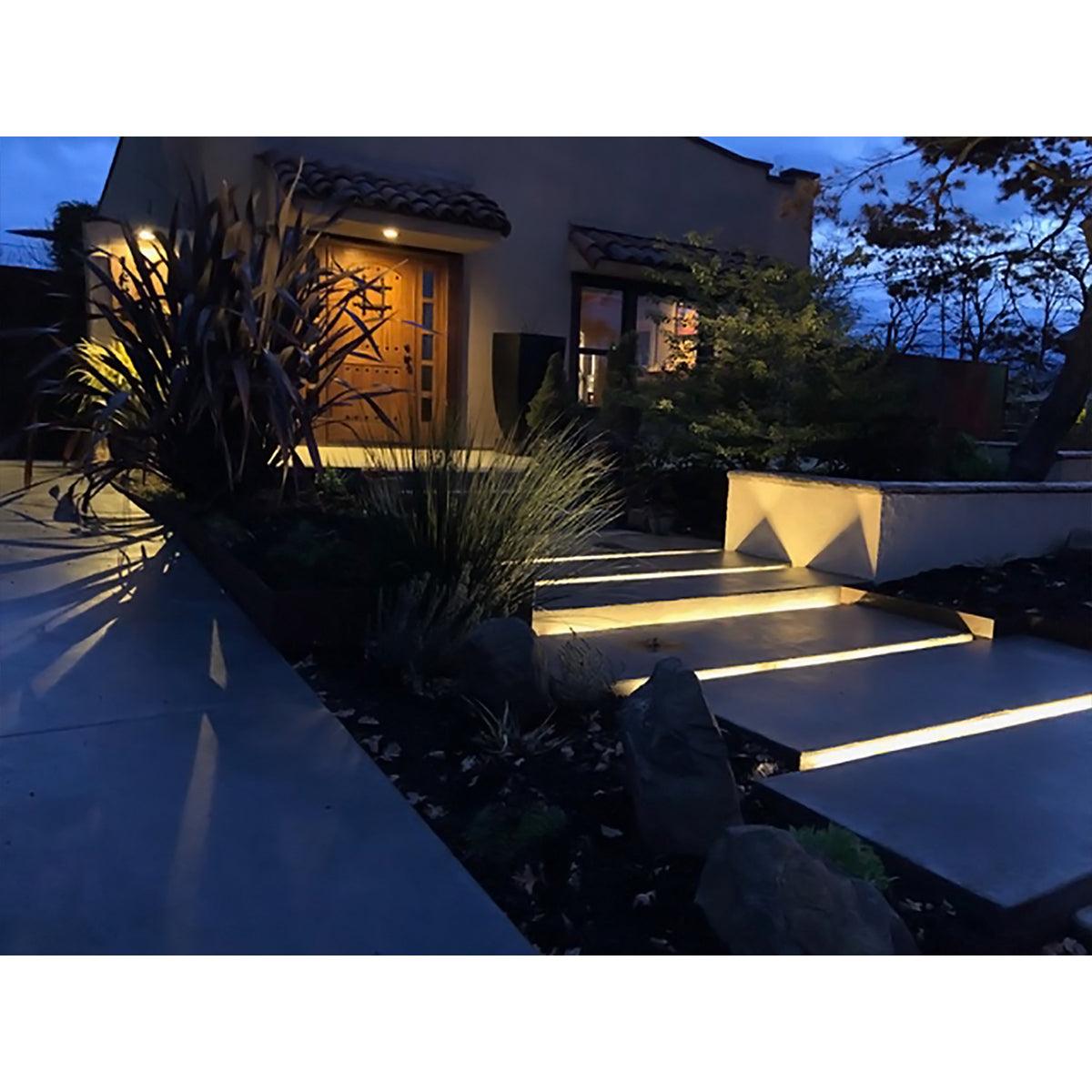

- Outdoor pathways for safe navigation.

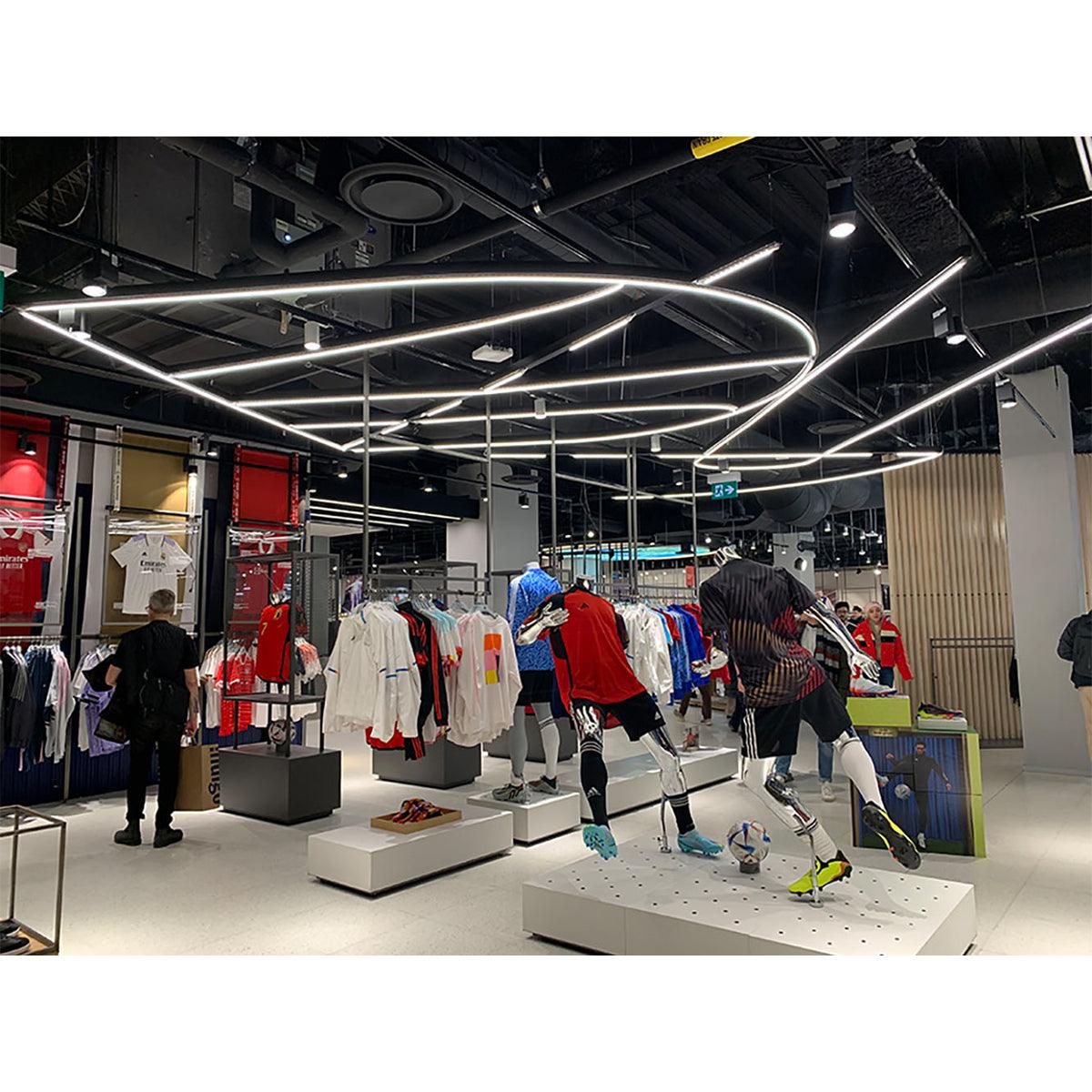

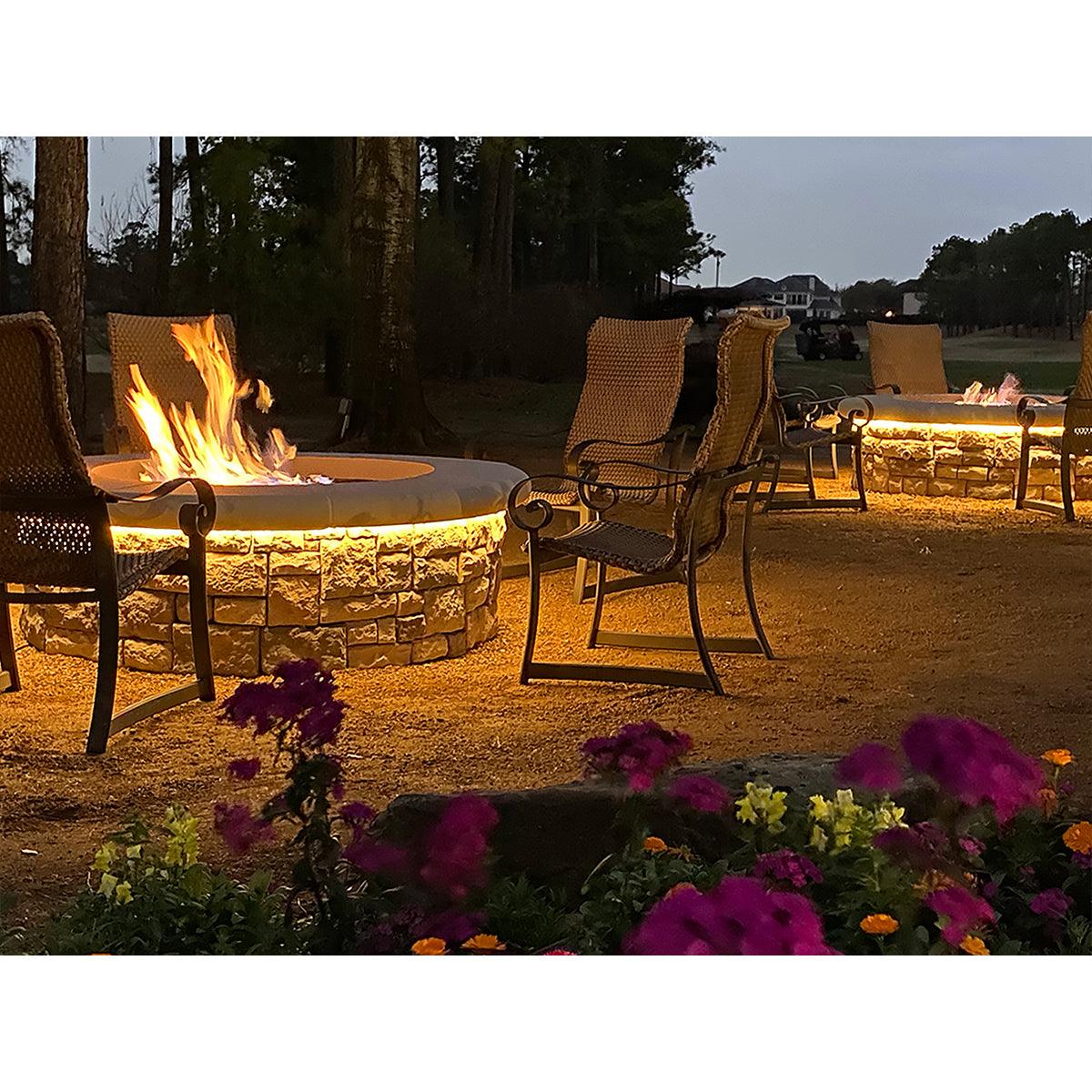

- Accent lighting for architectural features.
What's Included
- 32-foot spool of Neon BLAZE tape light.

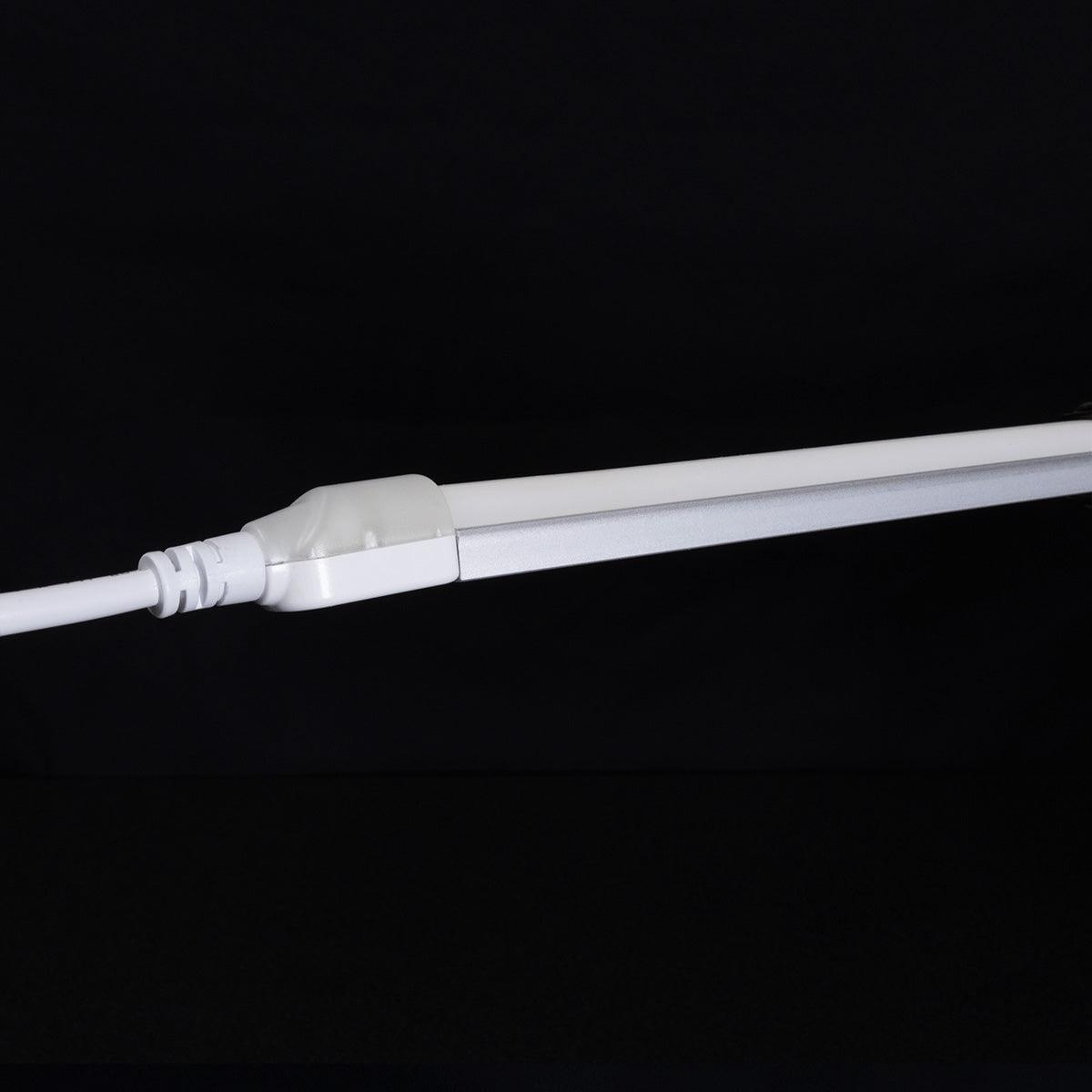

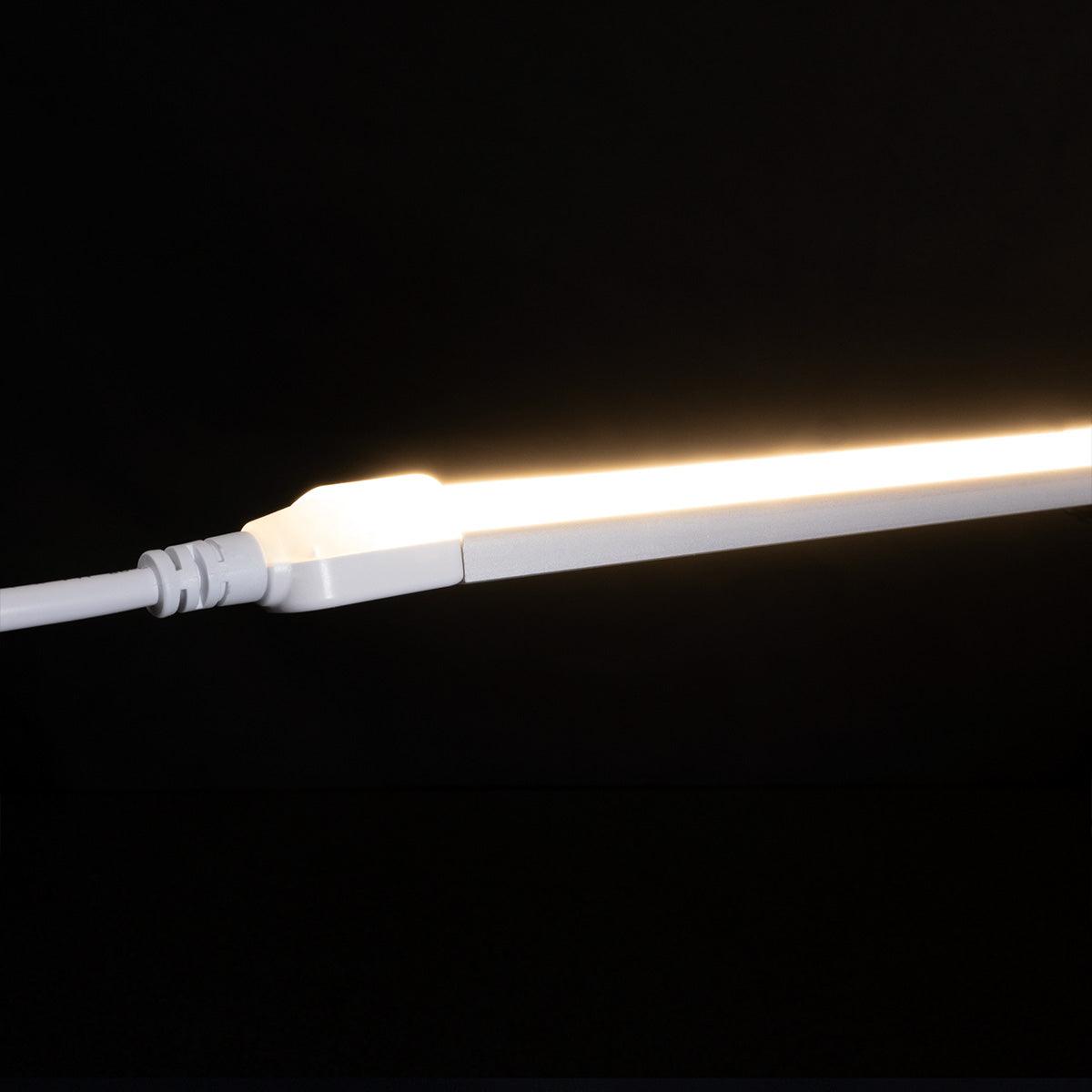

- Pre-attached leads for easy connection.
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the DI-24-TE-NBL2-35-32?
What is the maximum run length for the DI-24-TE-NBL2-35-32?
How often can the Neon BLAZE tape light be cut?
How often can the Neon BLAZE tape light be cut?
What voltage is required for the Neon BLAZE tape light?
What voltage is required for the Neon BLAZE tape light?
Is the Neon BLAZE tape light suitable for outdoor use?
Is the Neon BLAZE tape light suitable for outdoor use?
What type of adhesive is used on the Neon BLAZE tape light?
What type of adhesive is used on the Neon BLAZE tape light?
