Diode LED Neon BLAZE, 65 ft, Neon Tape Light, IP65, 3500K, 89 Lumens per Foot, 24V
Available in stock (100)
About this item
About this item
- Voltage: Operates at 24V DC, suitable for various applications.
- Color Temperature: Provides a consistent 3500K neutral white light.
- Max Run: Supports up to 65 ft continuous runs, ideal for extensive installations.
- Cuttable Increments: Can be cut every 2 inches for custom lengths.
- IP Rating: IP65 rated for wet locations, ensuring durability outdoors.
We process payments securely and do not store credit card information.
Description
Description

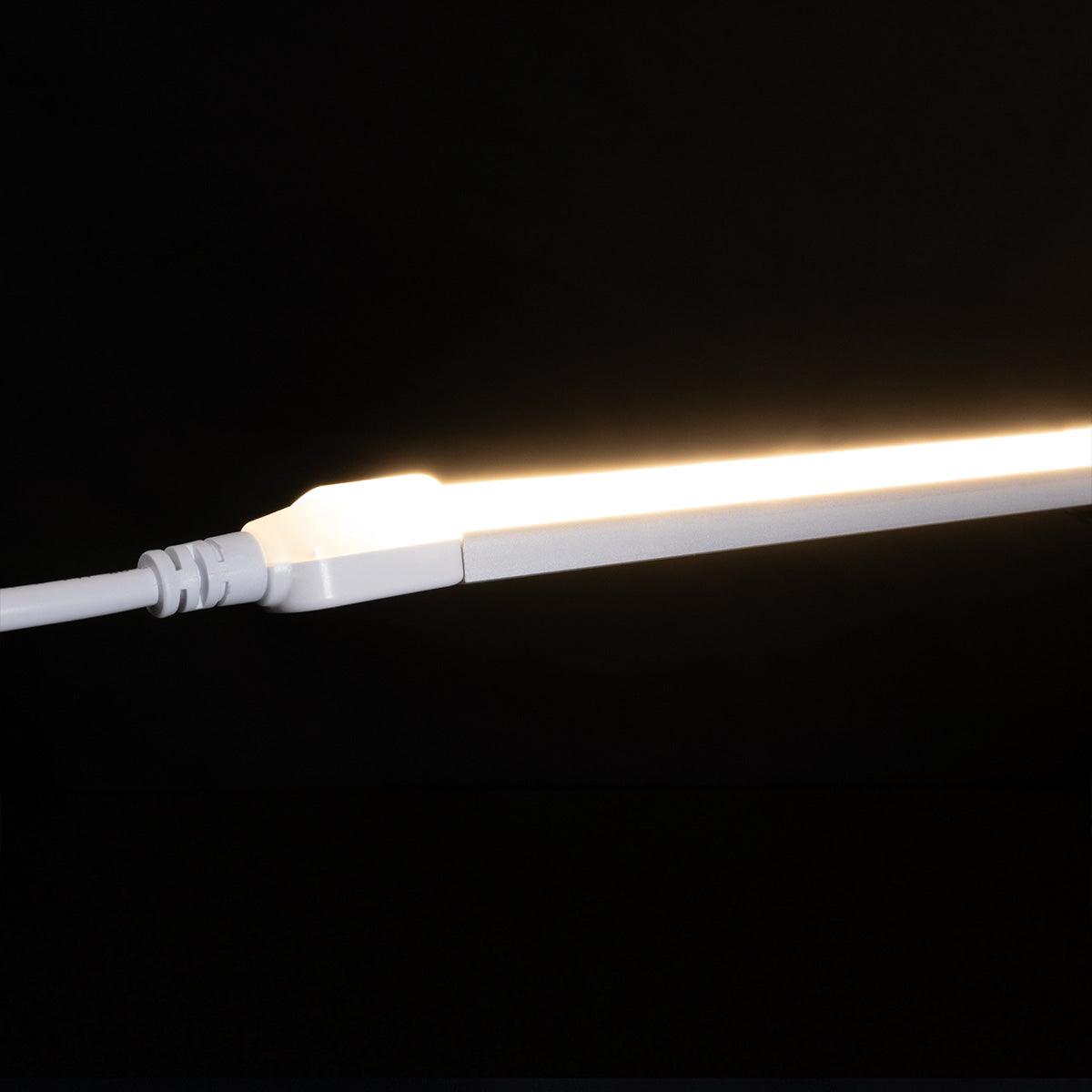

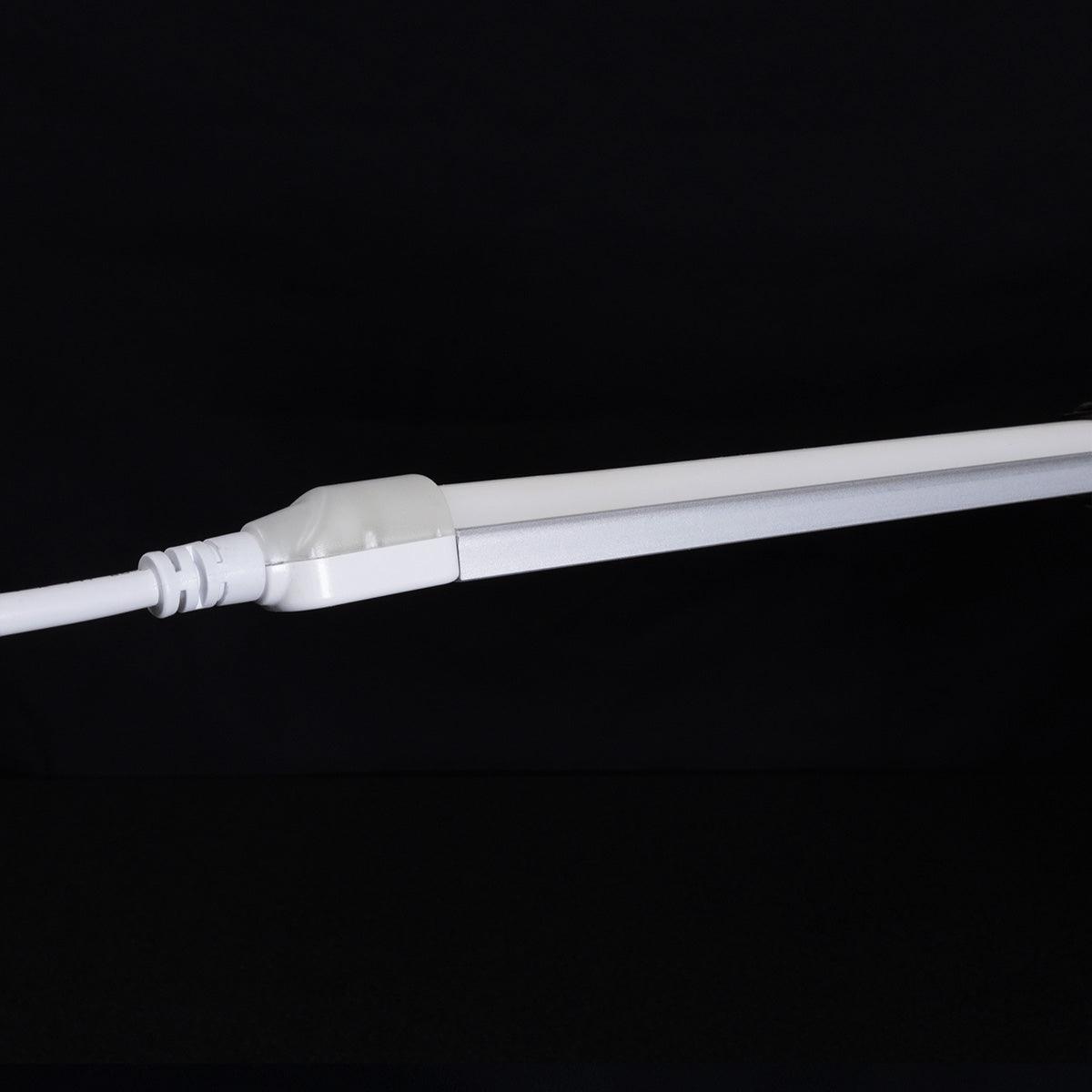

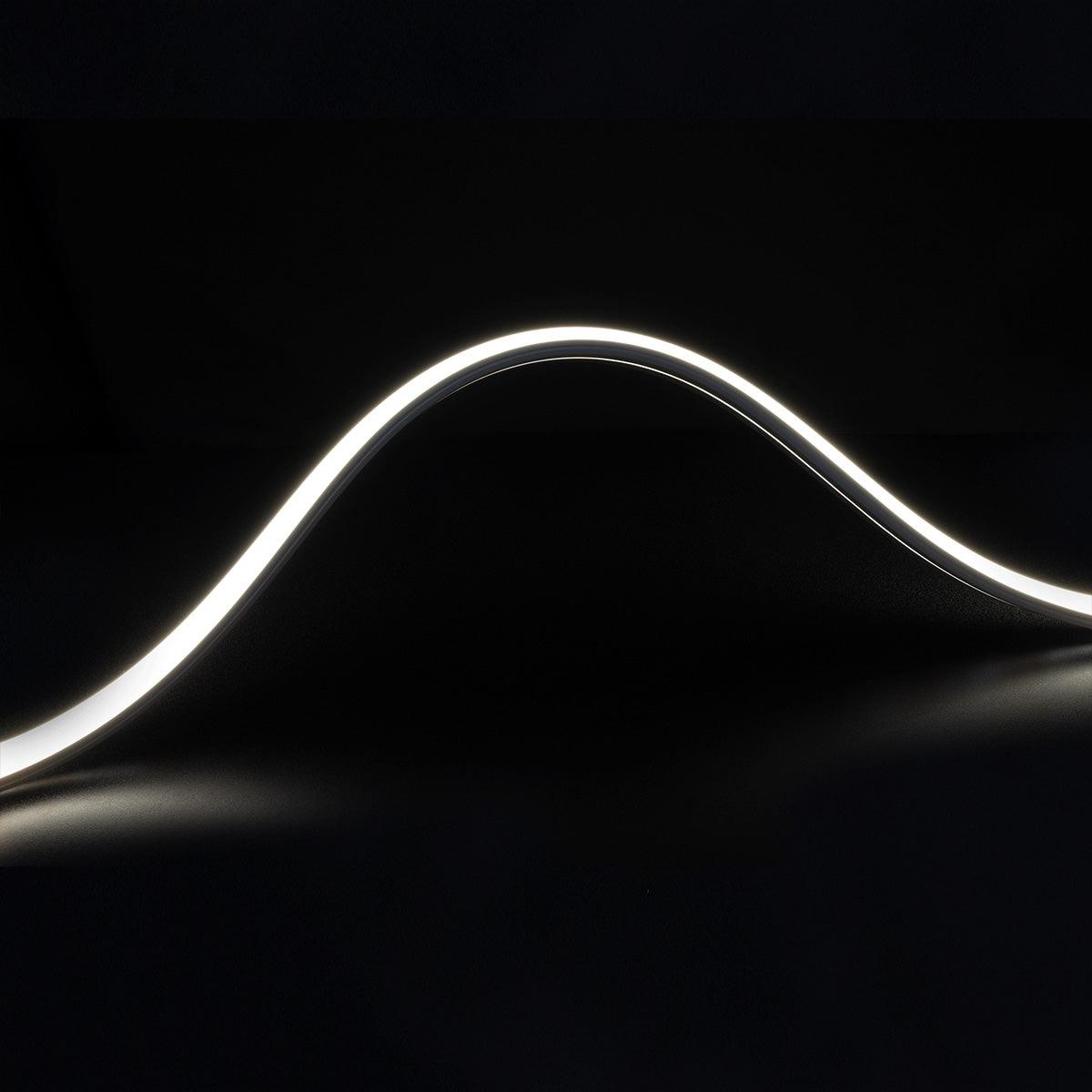

Diode LED Neon BLAZE Neon Tape Light — 3500K & Wet Rated
The Diode LED DI-24V-TE-NBL1-35-65 is a 65 ft neon tape light designed for outdoor applications. Operating at 24V DC, this tape light is IP65 rated for wet locations, making it suitable for various environmental conditions. The tape light emits a 3500K neutral white light, perfect for architectural and decorative lighting.
Key Features
- Voltage: 24V DC for efficient power consumption.
- Wattage: 1.22W/ft for energy-efficient operation.
- Lumens per Foot: 89 Lm/ft for bright illumination.
- LEDs per Foot: Provides a consistent light output.
- Maximum Run Length: Up to 65 ft for extensive coverage.
- Field Cuttable: Every 2 inches for custom installations.
- PCB Width: 0.65 in. for compatibility with various channels.
- Beam Angle: Provides uniform light distribution.
- IP Rating: IP65 for wet locations.
- Certifications: UL Listed 2108, RoHS compliant.
Core Design & Construction

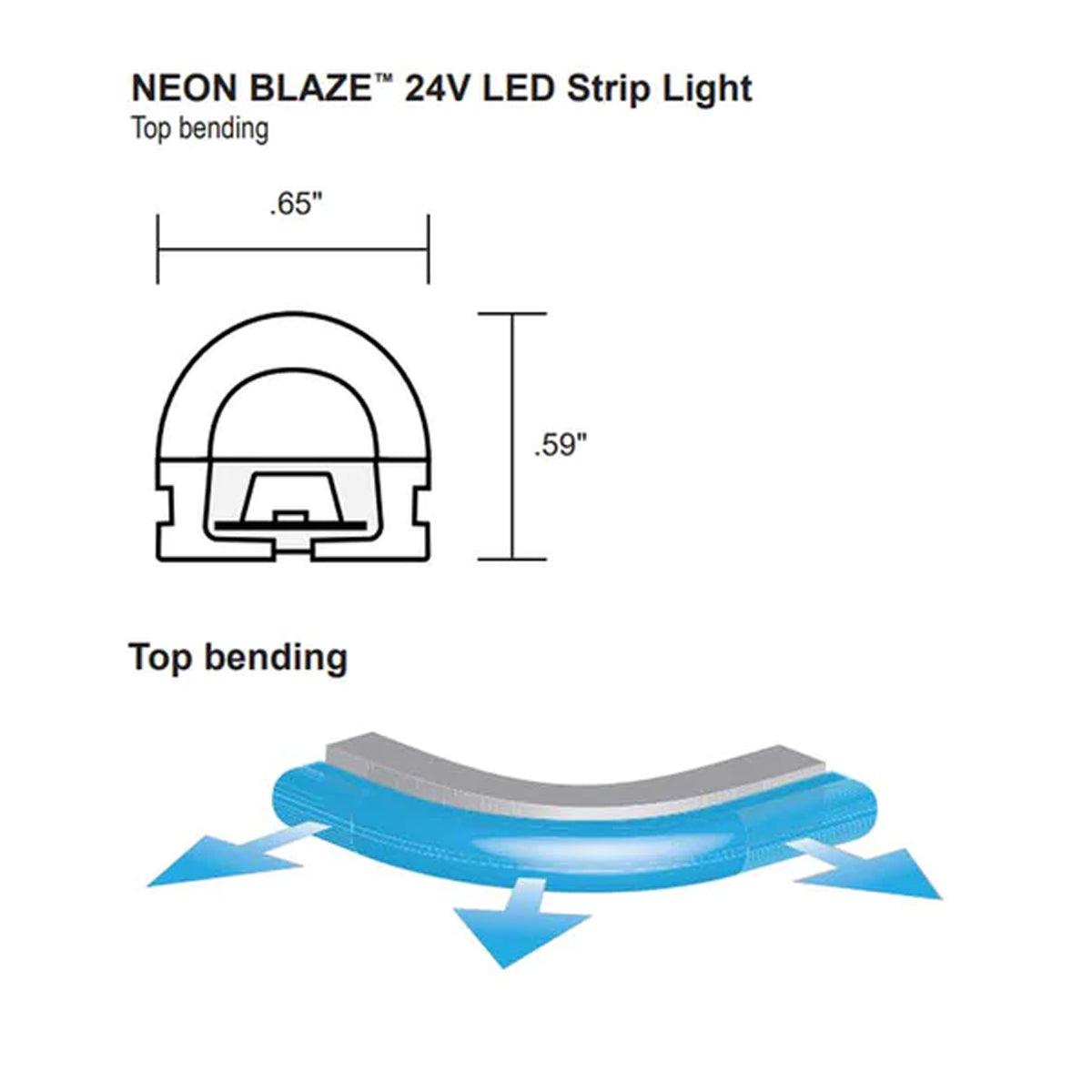

The Neon BLAZE features a 0.65 in. wide PCB, ensuring compatibility with standard aluminum channels. Its silicone coating provides protection against environmental factors, while the 3M VHB adhesive backing ensures secure mounting.
LED Illumination & Performance
Delivering 89 lumens per foot with a CRI of 80+, this tape light uses a diffused LED light engine for a smooth, neon-like appearance.
Power, Wiring & Installation
Requires a 24V driver for operation. The tape light is field-cuttable every 2 inches, allowing for precise customization. Maximum continuous run is 65 ft to prevent voltage drop. Compatible with dimming systems for adjustable lighting.
Where This Tape Works Best

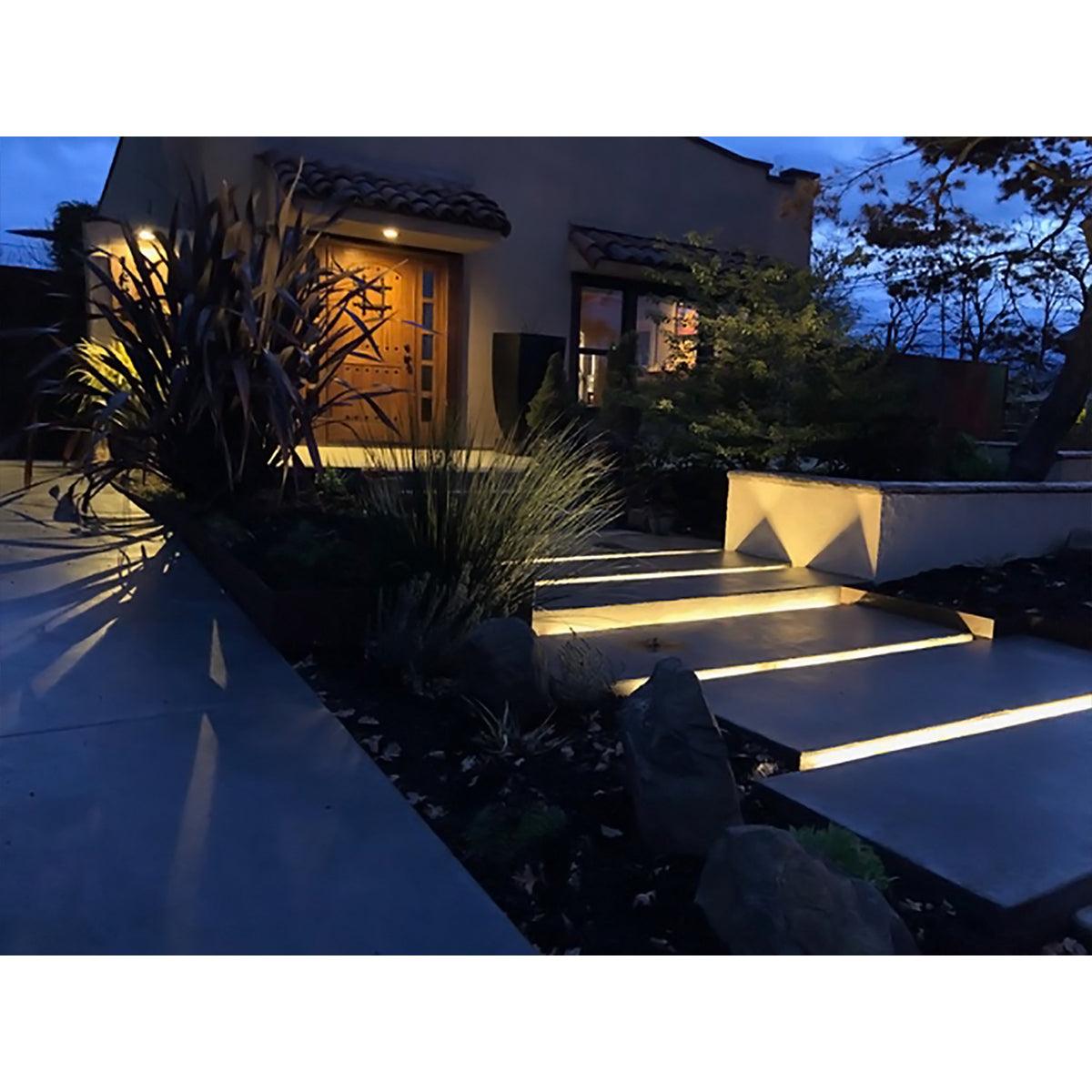

- Outdoor pathways

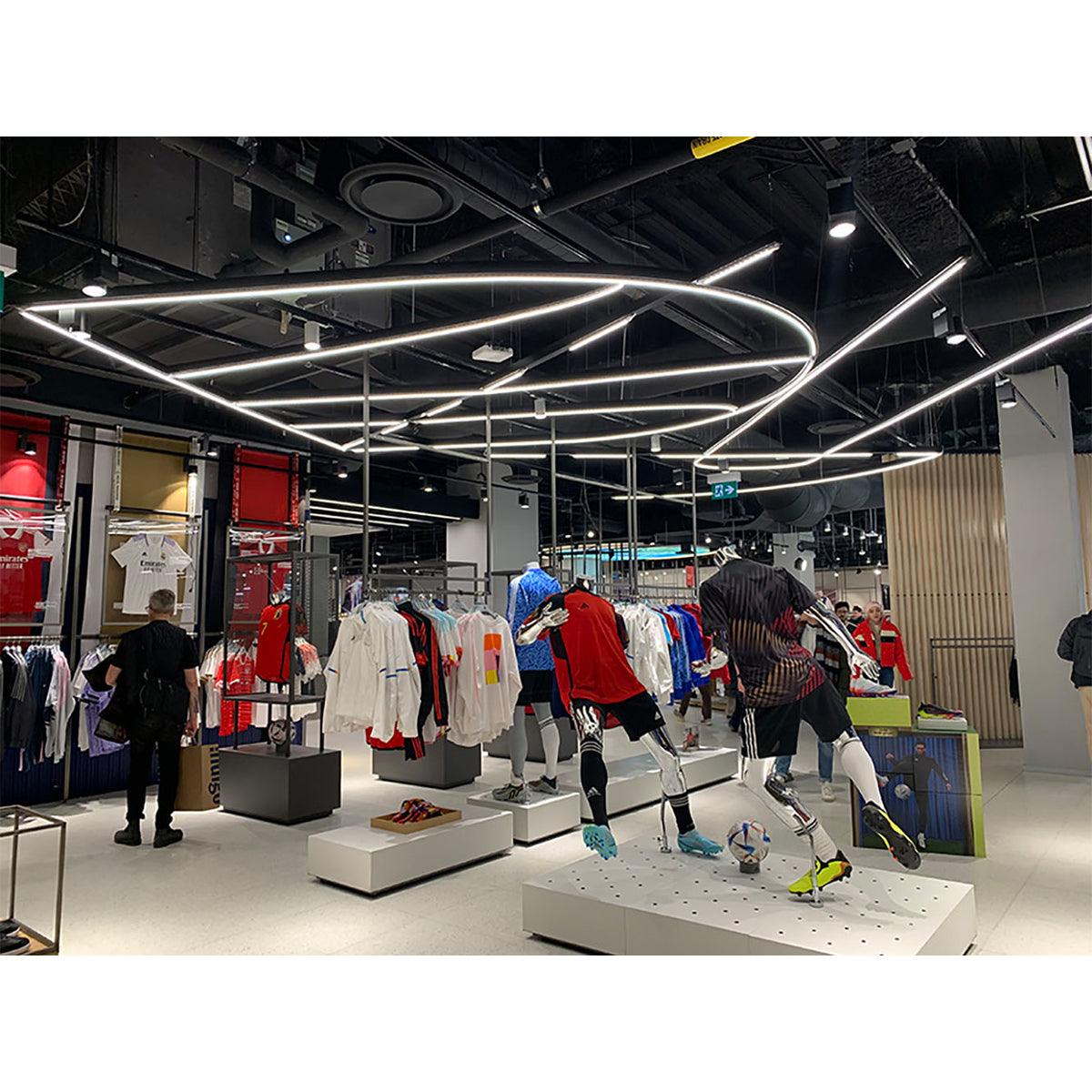

- Architectural accent lighting
- Cove lighting
- Signage and displays
What's Included
- 65 ft spool of Neon BLAZE tape light
- Pre-attached leads
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the DI-24V-TE-NBL1-35-65?
What is the maximum run length for the DI-24V-TE-NBL1-35-65?
How often can the Neon BLAZE tape light be cut?
How often can the Neon BLAZE tape light be cut?
What voltage is required for the Neon BLAZE tape light?
What voltage is required for the Neon BLAZE tape light?
Is the Neon BLAZE tape light suitable for outdoor use?
Is the Neon BLAZE tape light suitable for outdoor use?
What type of adhesive backing does the tape light have?
What type of adhesive backing does the tape light have?
