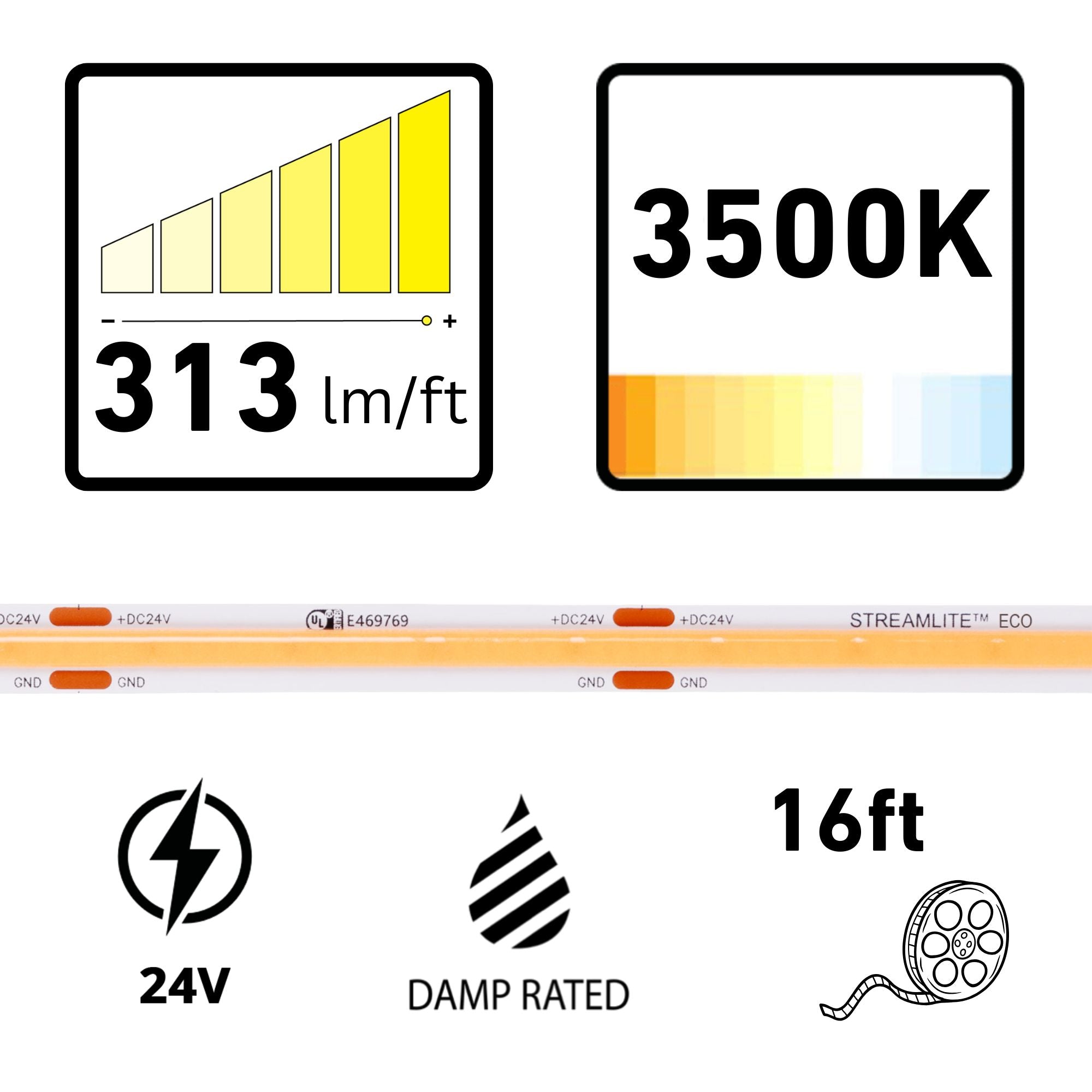

Diode LED Streamlite, 16 ft., LED Tape Light, 3500K, 313 Lumens/ft, 24V
Available in stock (200)
About this item
About this item
- Voltage: Operates at 24V for efficient power consumption and extended runs.
- Color Temperature: Provides a neutral white light at 3500K, ideal for various applications.
- Lumens per Foot: Delivers 313 lumens per foot for bright, consistent illumination.
- Max Run Length: Supports up to 16.4 ft. continuous runs to minimize power supply needs.
- Cuttable Increments: Field cuttable every 1.96 in. for custom lengths and installations.
We process payments securely and do not store credit card information.
Description
Description

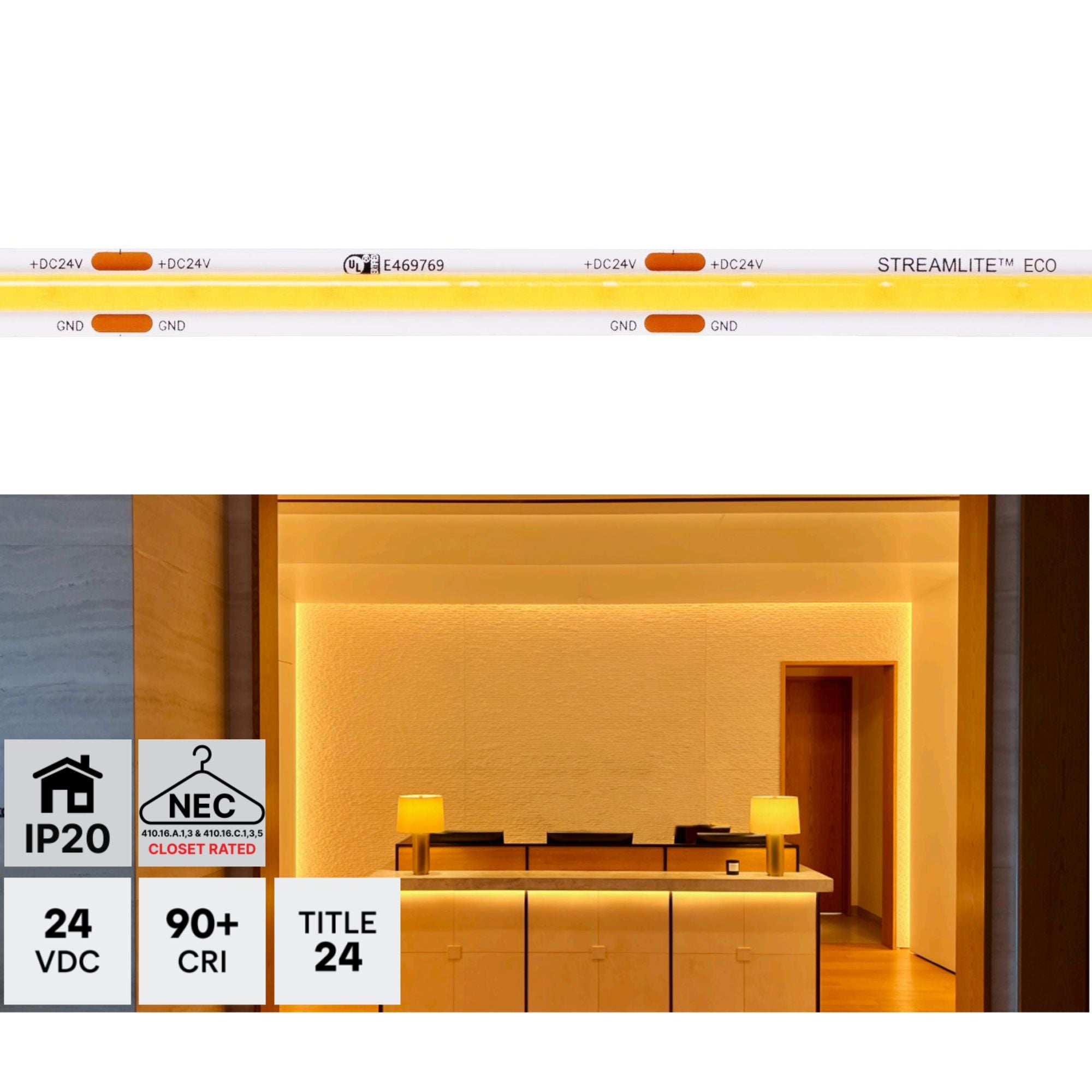

Diode LED Streamlite LED Tape Light — 3500K & COB Dotless
The Diode LED DI-24V-STMLTECO-35-016 is a 16 ft. LED tape light designed for seamless, dot-free illumination with a color temperature of 3500K. This tape light operates at 24V and is IP20 rated for indoor and damp locations, ensuring reliable performance in a variety of settings.
Key Features
- Voltage: 24VDC for efficient power usage.
- Wattage: 3.3W per foot for optimal brightness.
- Lumens per Foot: 313 lumens for bright, consistent lighting.
- LEDs per Foot: 160 LEDs for seamless illumination.
- Maximum Run Length: Up to 16.4 ft. for extended installations.
- Cuttable Increments: 1.96 in. for precise customization.

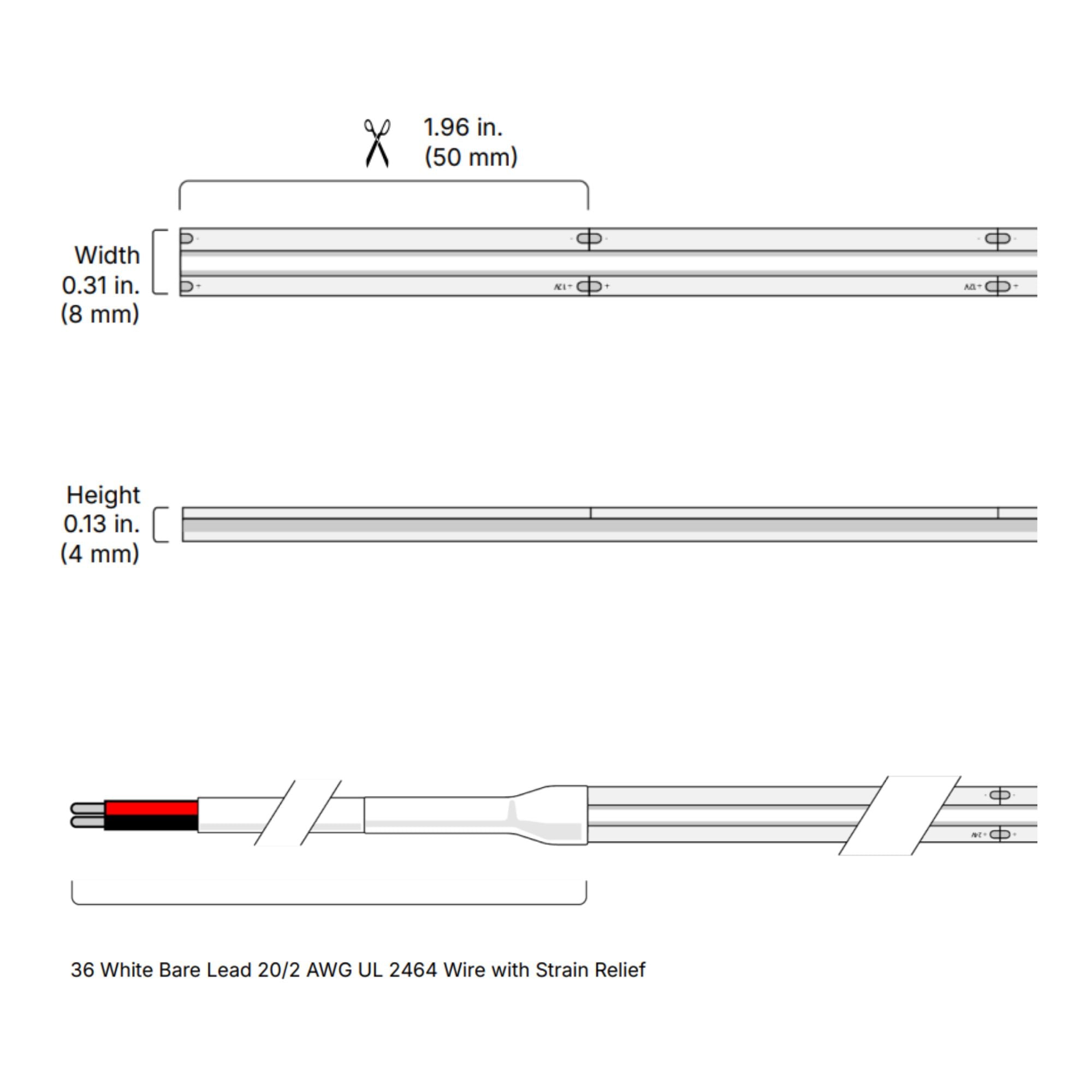

- PCB Width: 0.31 in. for compatibility with standard channels.
- Beam Angle: 120 degrees for wide light distribution.
- IP Rating: IP20 for indoor and damp locations.
- Certifications: UL Listed, RoHS Compliant, Title 24.
Core Design & Construction

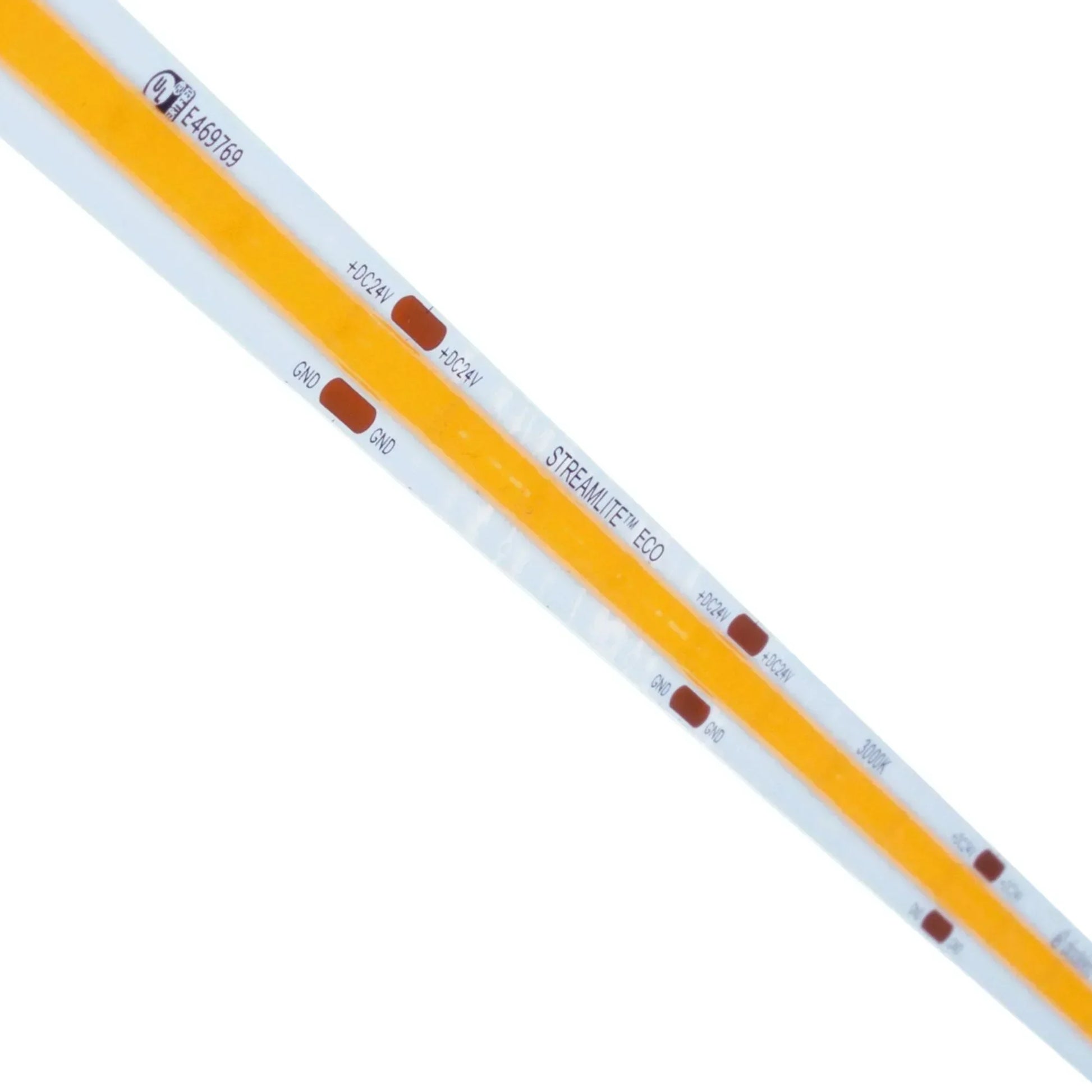

The tape light features a 0.31 in. wide PCB, ensuring compatibility with most aluminum channels. It includes a durable silicone coating for protection and a reliable 3M adhesive backing for easy installation.
LED Illumination & Performance

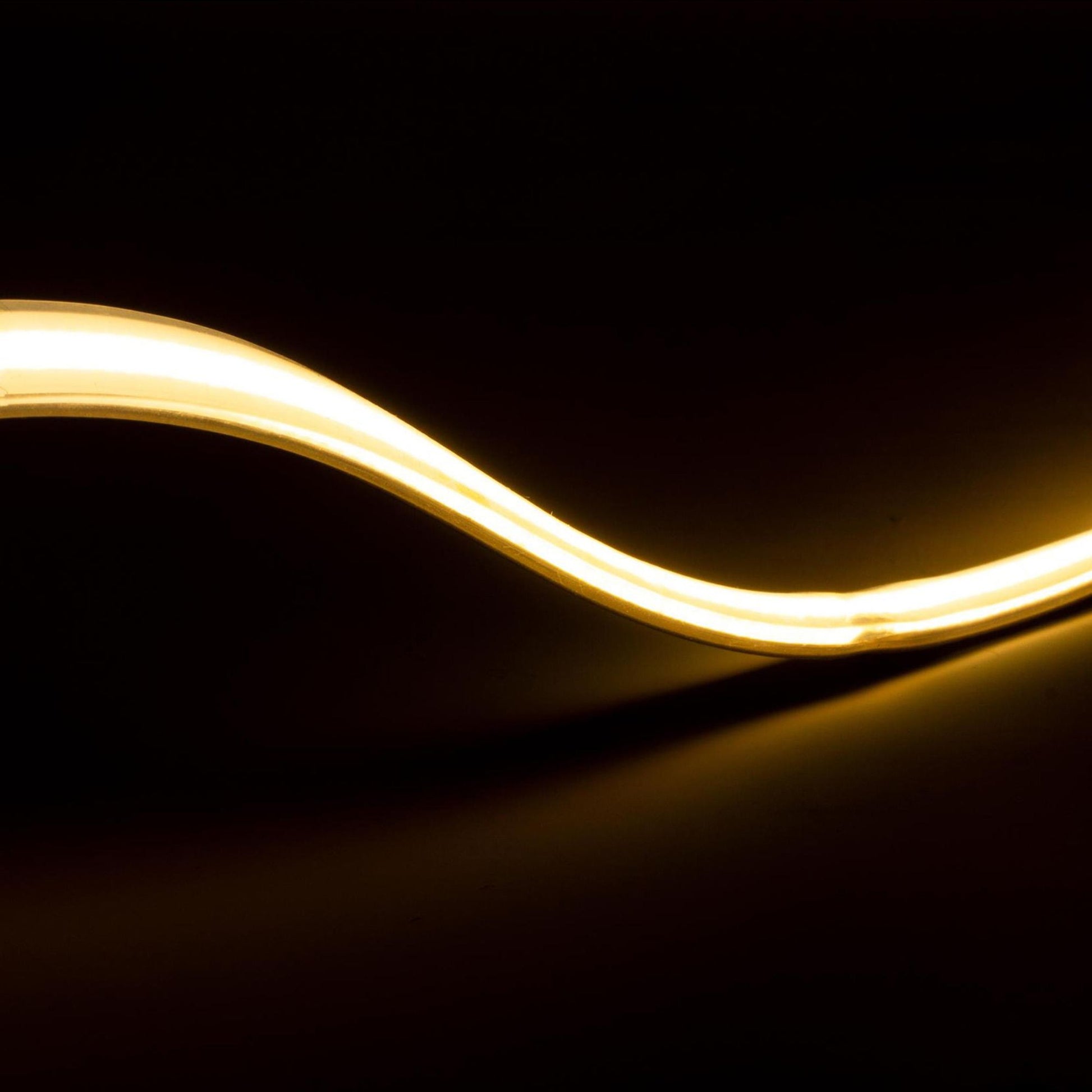

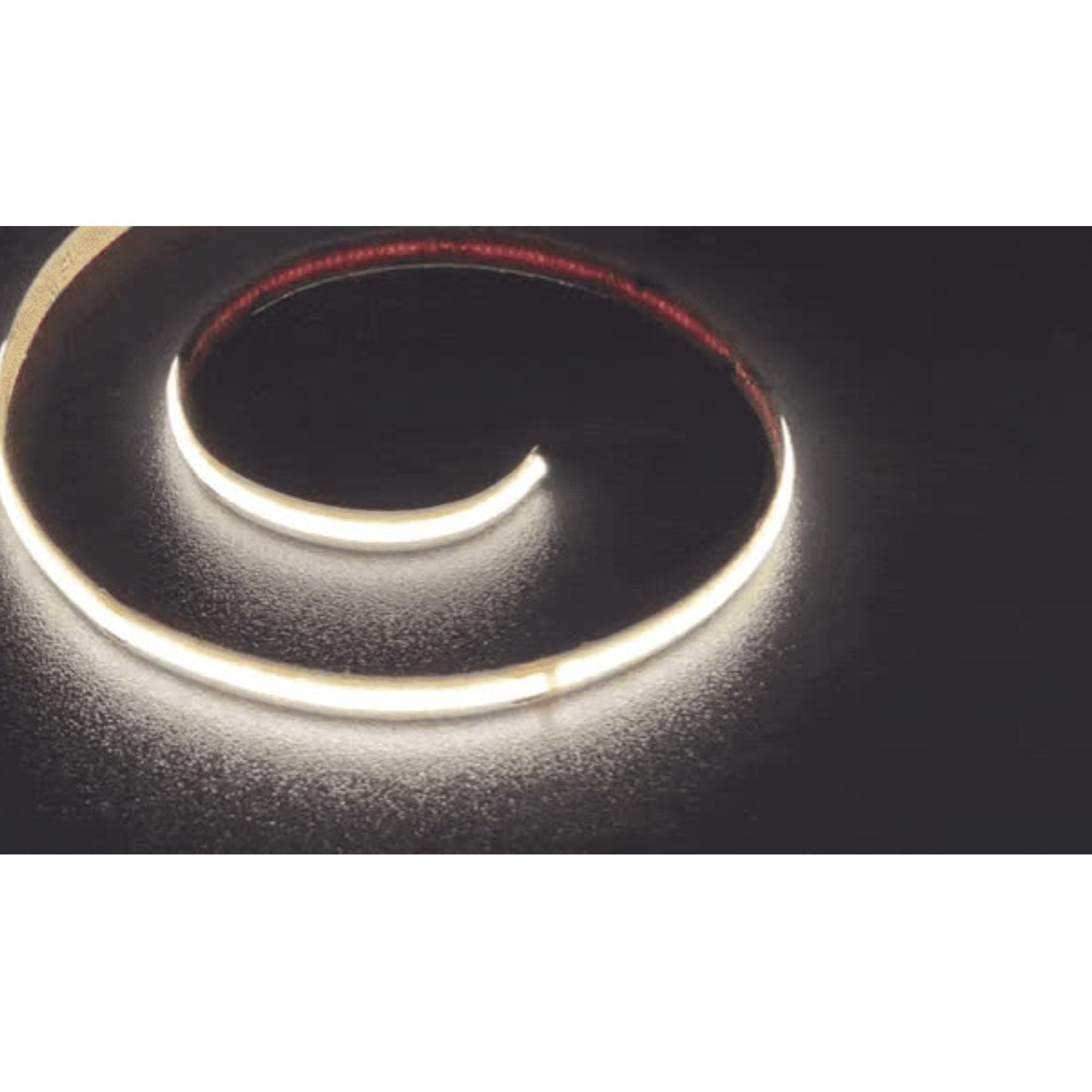

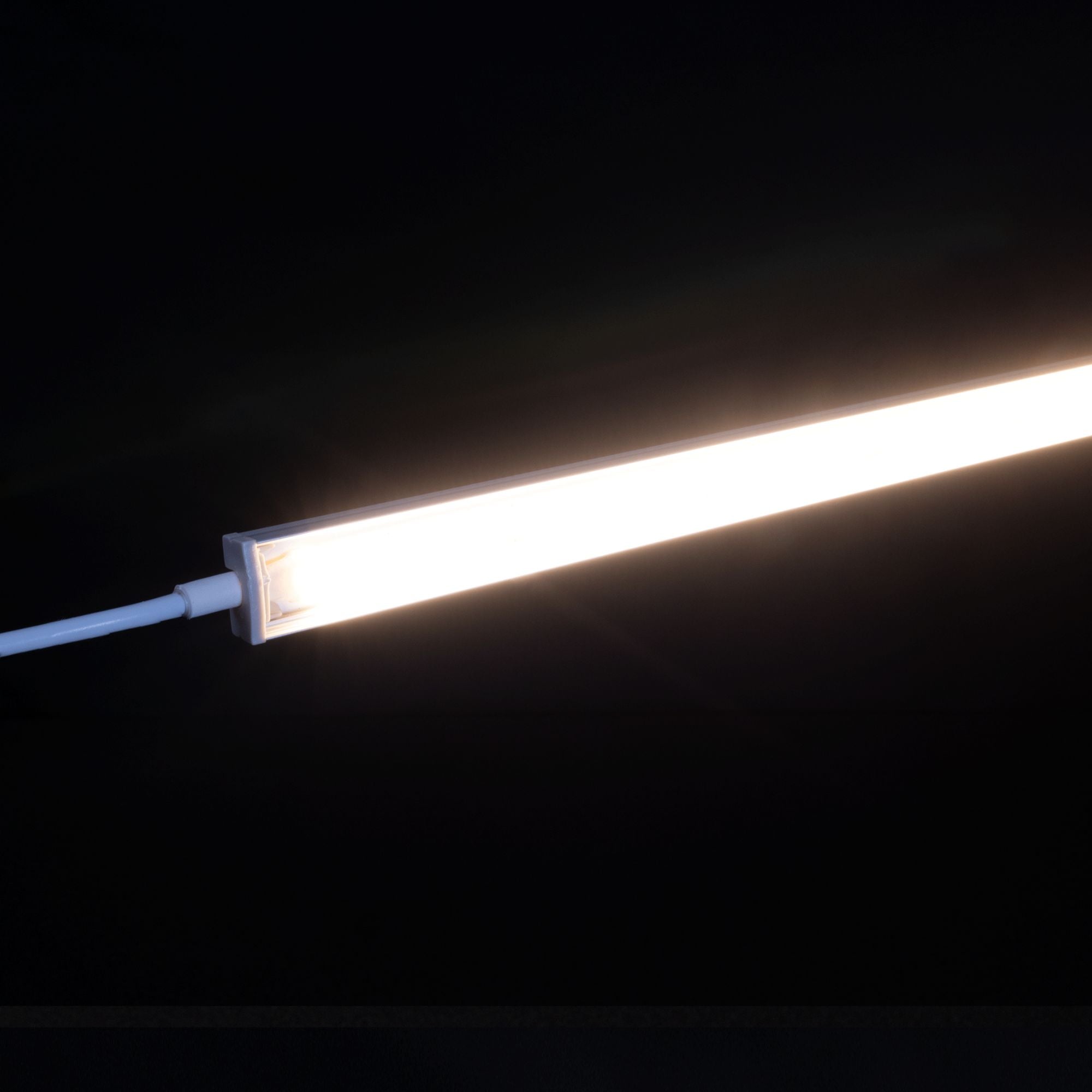

With 313 lumens per foot and a high CRI of 90+, this tape light provides excellent color rendering and brightness. The COB technology ensures a dotless, uniform light output.
Power, Wiring & Installation
This tape light requires a 24V driver for operation. It is field cuttable every 1.96 in. and supports a maximum continuous run of 16.4 ft. to prevent voltage drop. It is dimmable for adjustable lighting levels.

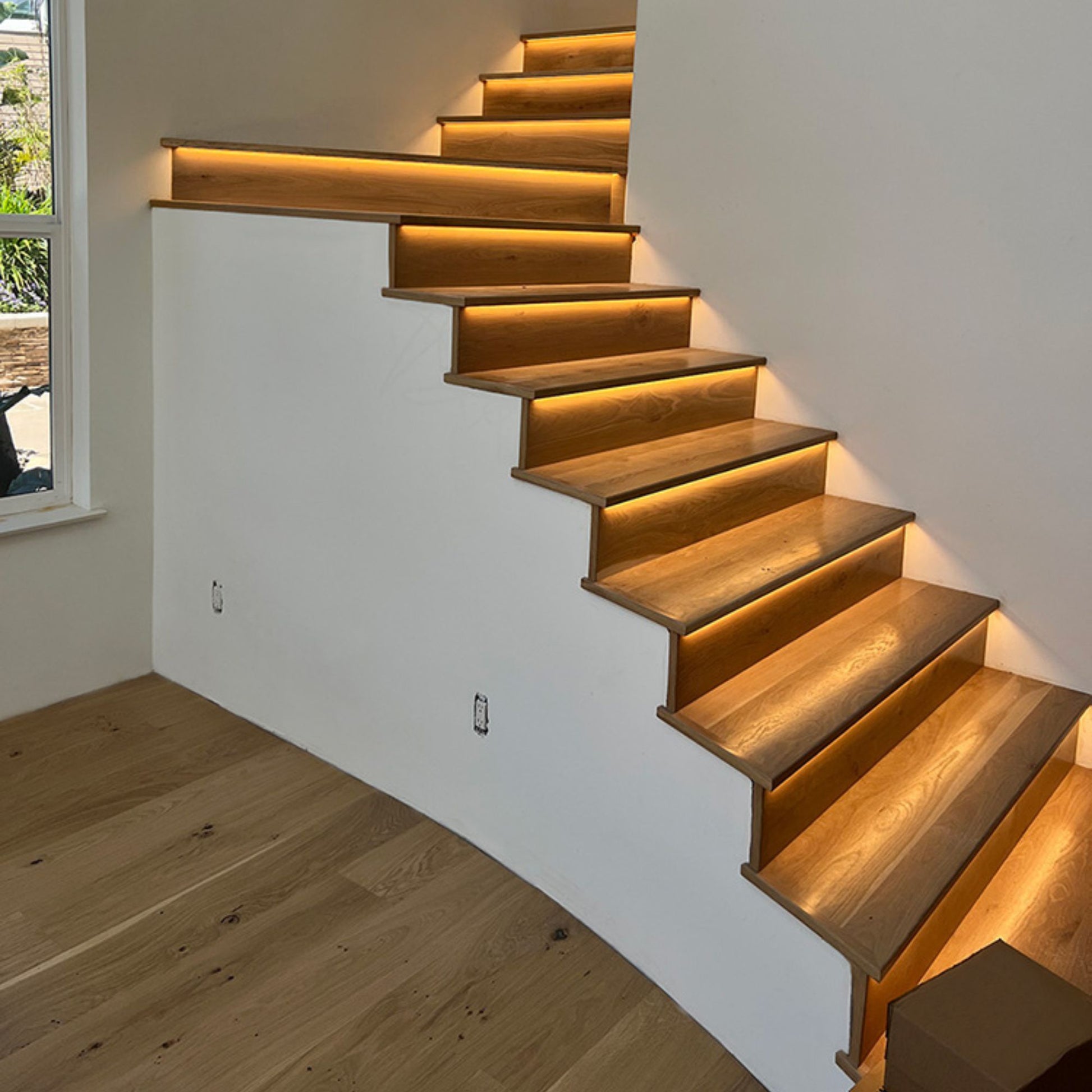

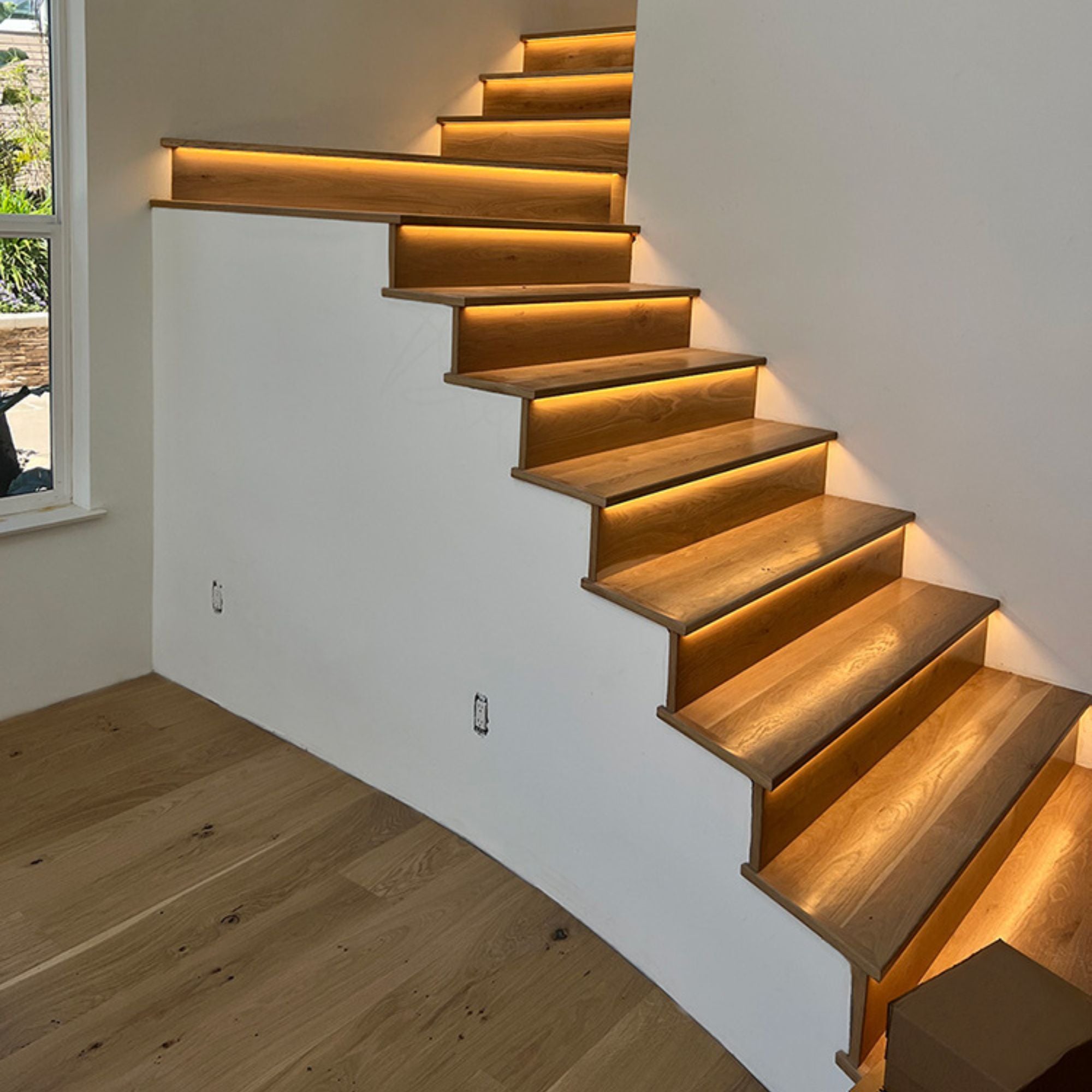

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting

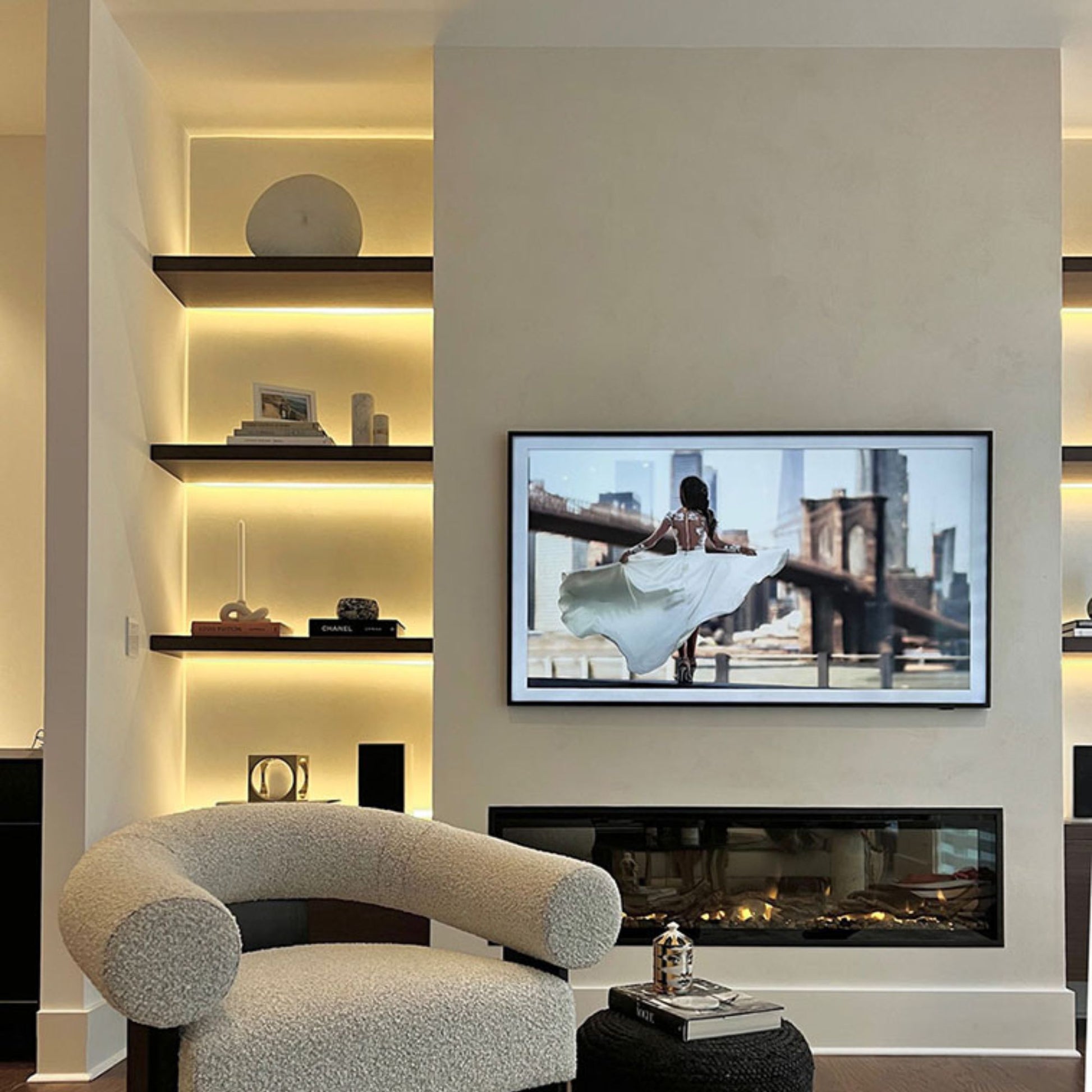

- Accent lighting

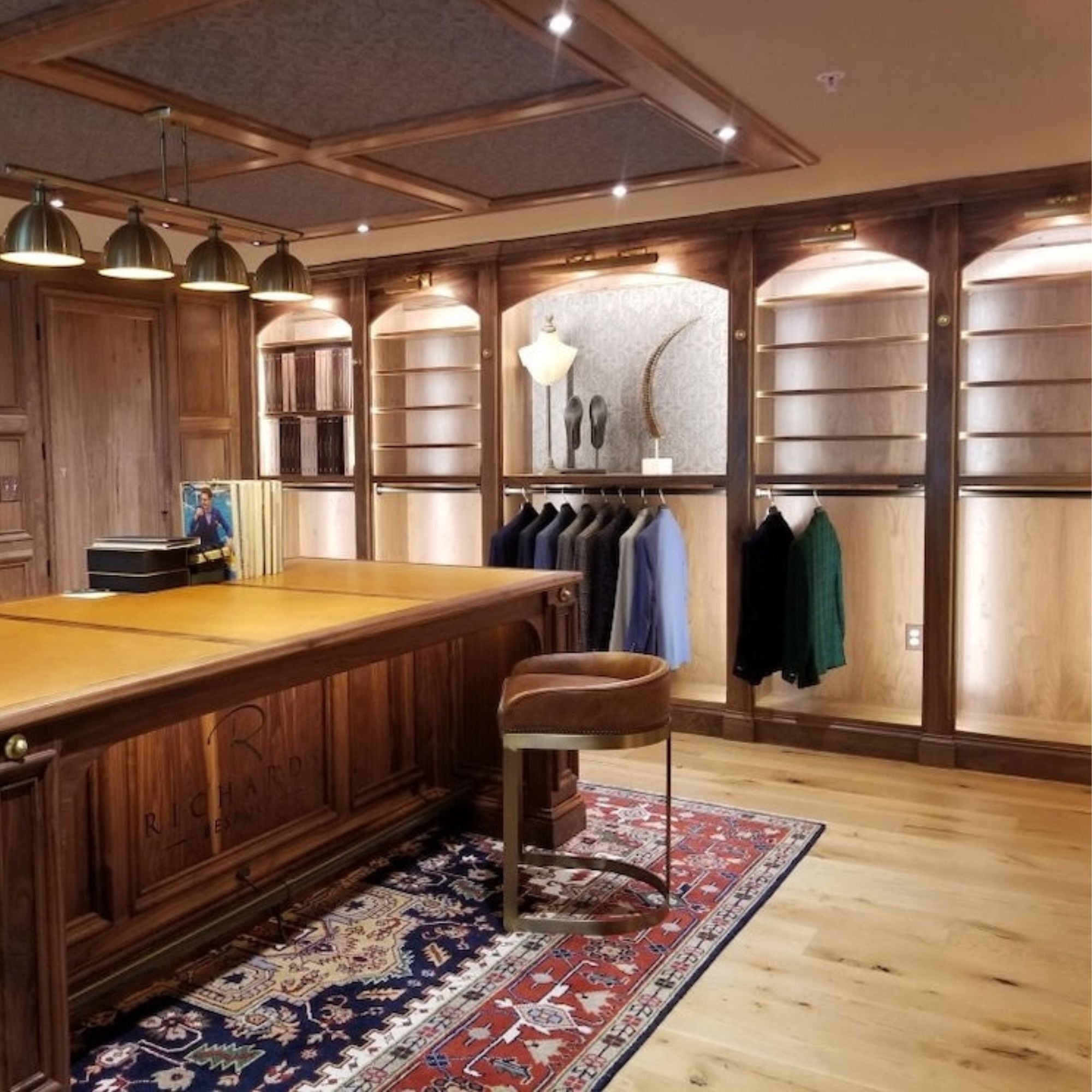

- Display case lighting
- Architectural lighting
What's Included
- 16 ft. spool of LED tape light
- 36 in. white bare lead wire
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the DI-24V-STMLTECO-35-016 tape light?
What is the maximum run length for the DI-24V-STMLTECO-35-016 tape light?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for the Streamlite tape light?
What voltage is required for the Streamlite tape light?
Is the DI-24V-STMLTECO-35-016 tape light dimmable?
Is the DI-24V-STMLTECO-35-016 tape light dimmable?
What is the width of the PCB for channel compatibility?
What is the width of the PCB for channel compatibility?
