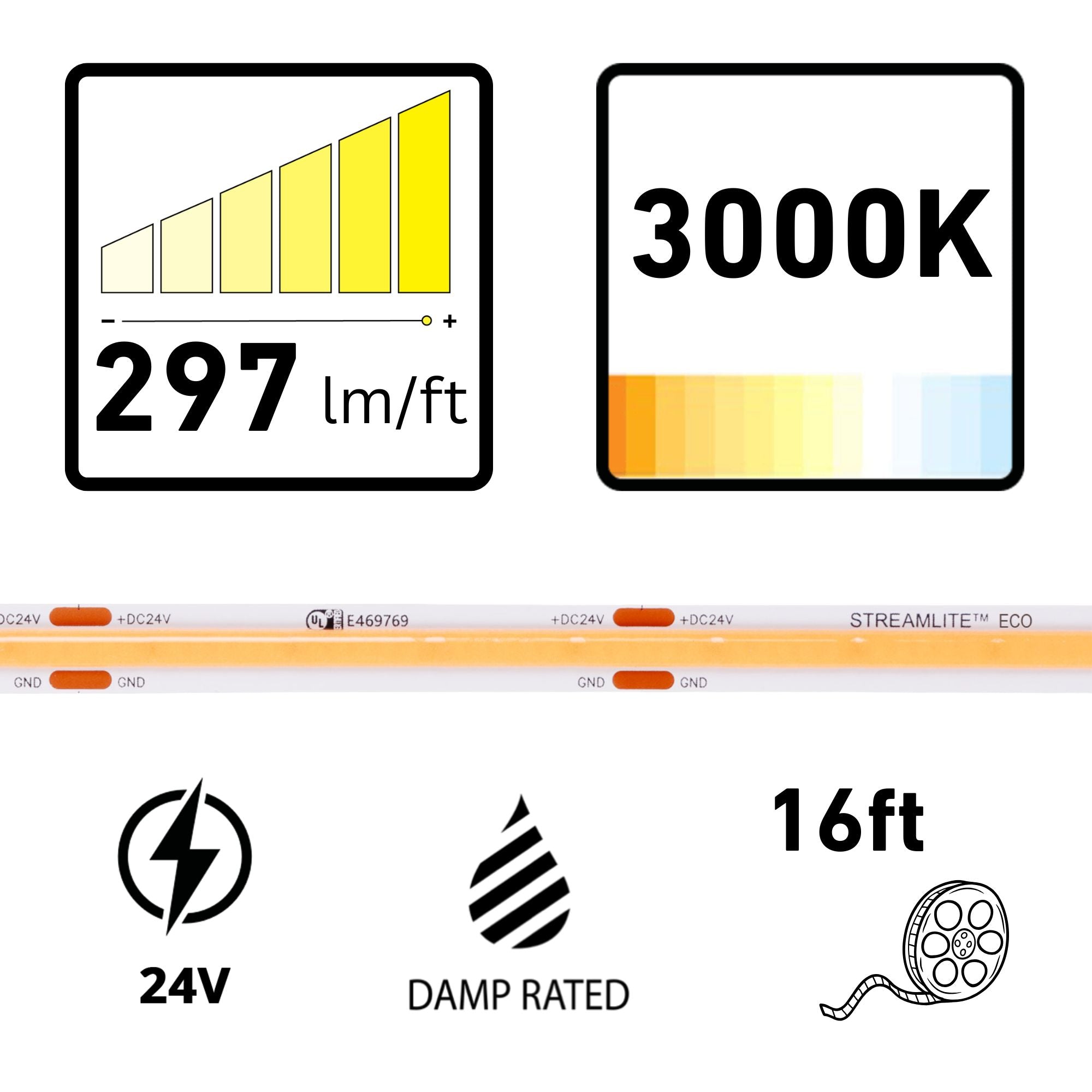

Diode LED Streamlite, 16 ft., LED Tape Light, 3000K, 297 Lumens/ft, 24V
In stock
About this item
About this item
- Voltage: Operates at 24V for efficient power consumption and longer runs.
- Color Temperature: 3000K for warm white illumination, ideal for ambient lighting.
- Maximum Run: Supports extended runs up to 30 ft. without significant voltage drop.
- Cuttable Increments: Field cuttable every 1.96 in. for custom lengths and installations.
- CRI: 90+ CRI for superior color rendering in residential and commercial applications.
We process payments securely and do not store credit card information.
Description
Description

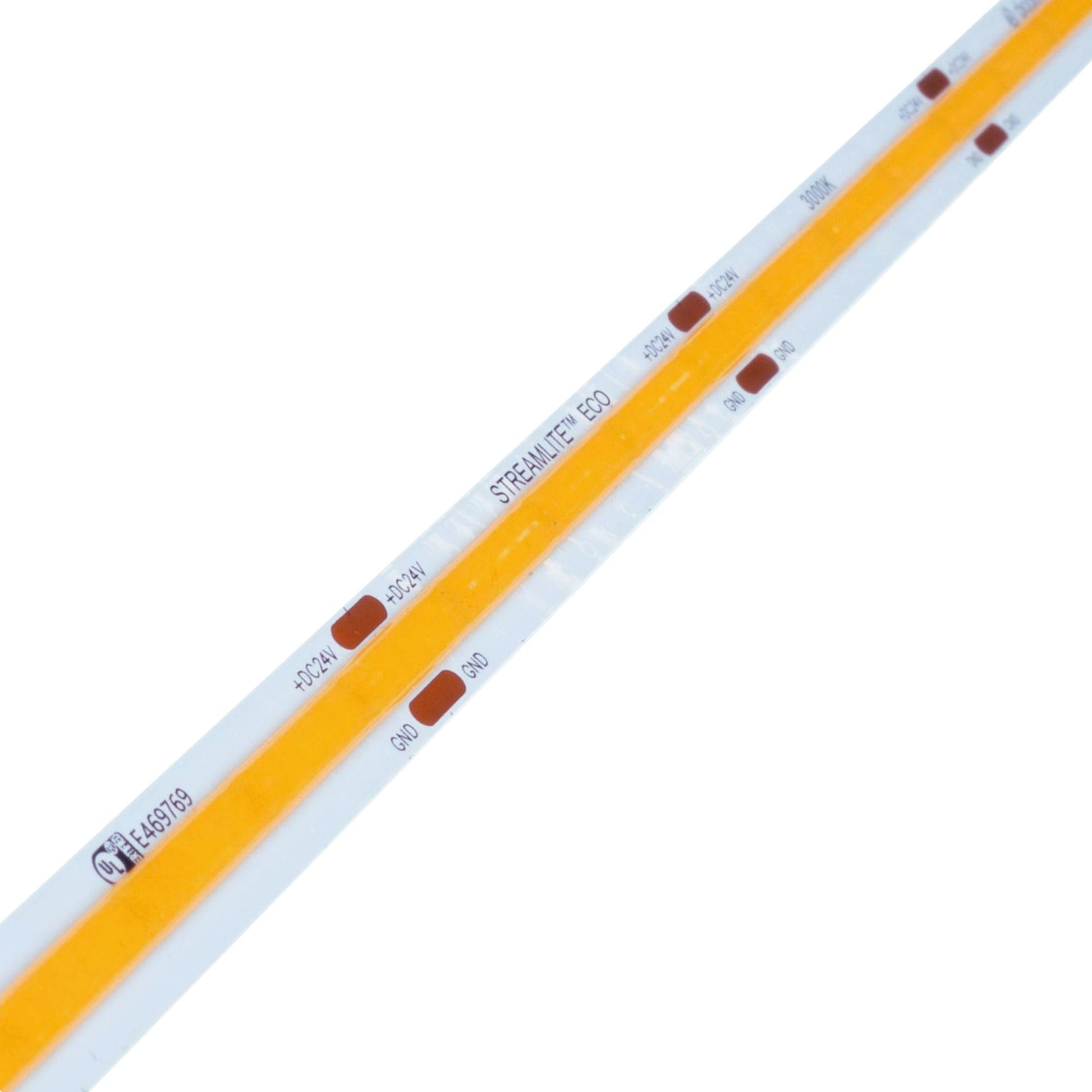

Diode LED Streamlite LED Tape Light — 3000K & COB Technology

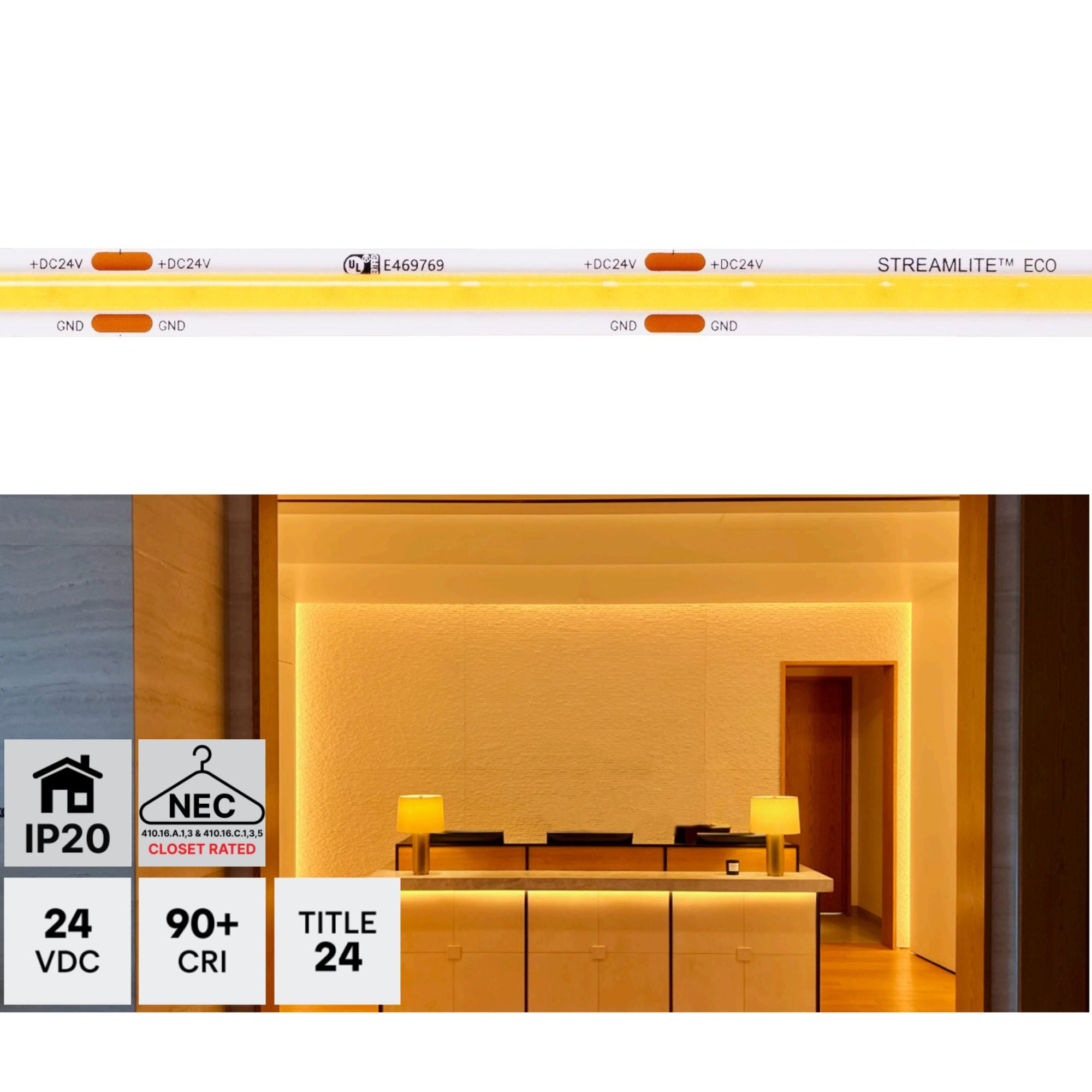

The Diode LED DI-24V-STMLTECO-30-016 is a 16 ft. LED tape light designed for indoor applications. Featuring COB technology and a 3000K color temperature, this tape light provides seamless, dot-free illumination with a high CRI of 90+. Operating at 24V, it is suitable for indoor/damp locations with an IP20 rating.
Key Features
- Voltage: 24V DC for efficient power usage.
- Wattage: 3.3W/ft. for energy-efficient lighting.
- Lumens: 297 lumens per foot for bright illumination.
- LEDs: 160 LEDs per foot for consistent light output.
- Max Run: Up to 30 ft. for extended installations.
- Cuttable: Every 1.96 in. for custom lengths.
- PCB Width: 0.31 in. for compatibility with standard channels.
- Beam Angle: 120 degrees for wide light distribution.
- IP Rating: IP20 for indoor use.
- Certifications: UL Listed, RoHS Compliant, Title 24.
Core Design & Construction

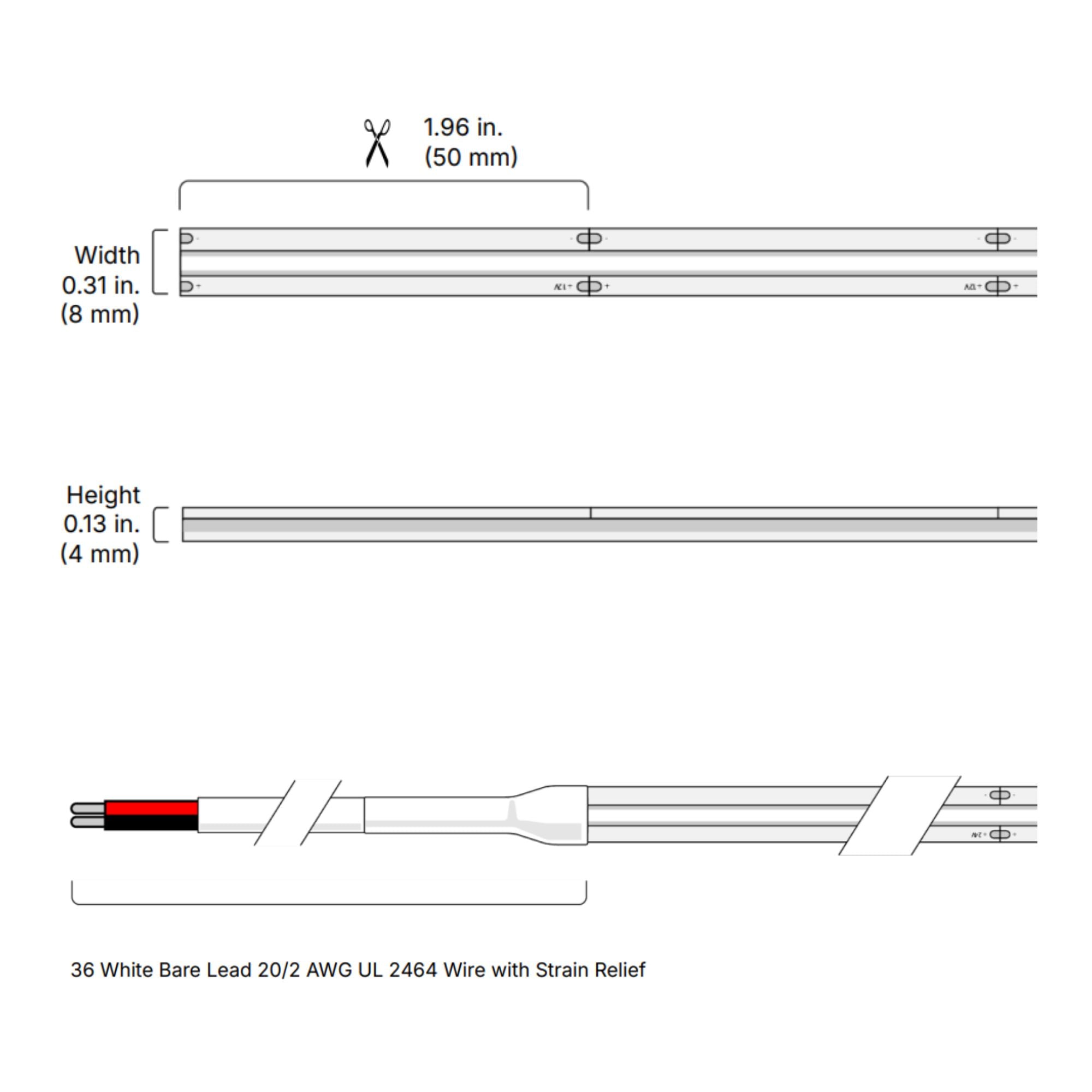

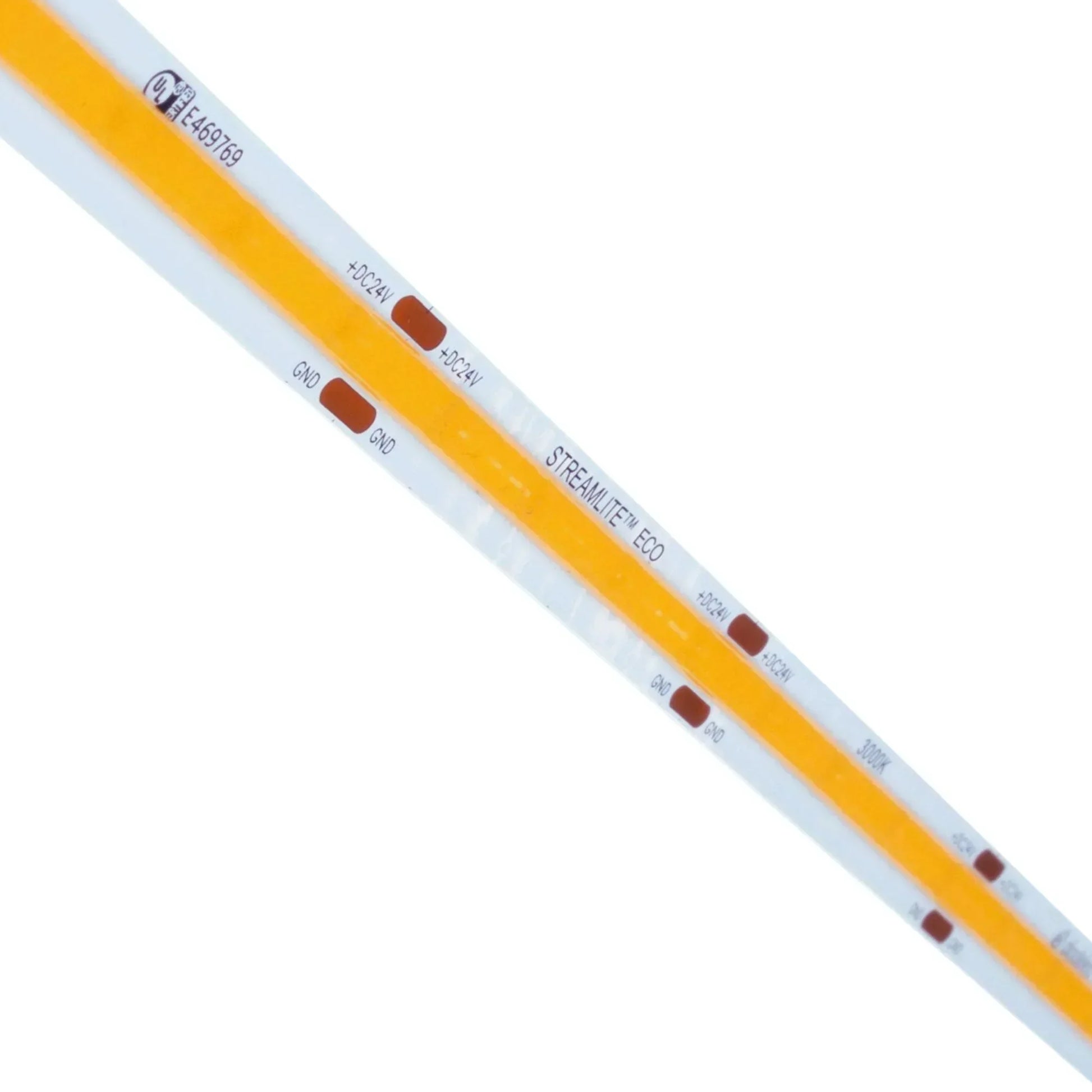

The tape light features a 0.31 in. PCB width, making it compatible with various aluminum channels. It includes a durable silicone coating for protection and a reliable 3M adhesive backing for easy installation in dry and damp environments.
LED Illumination & Performance

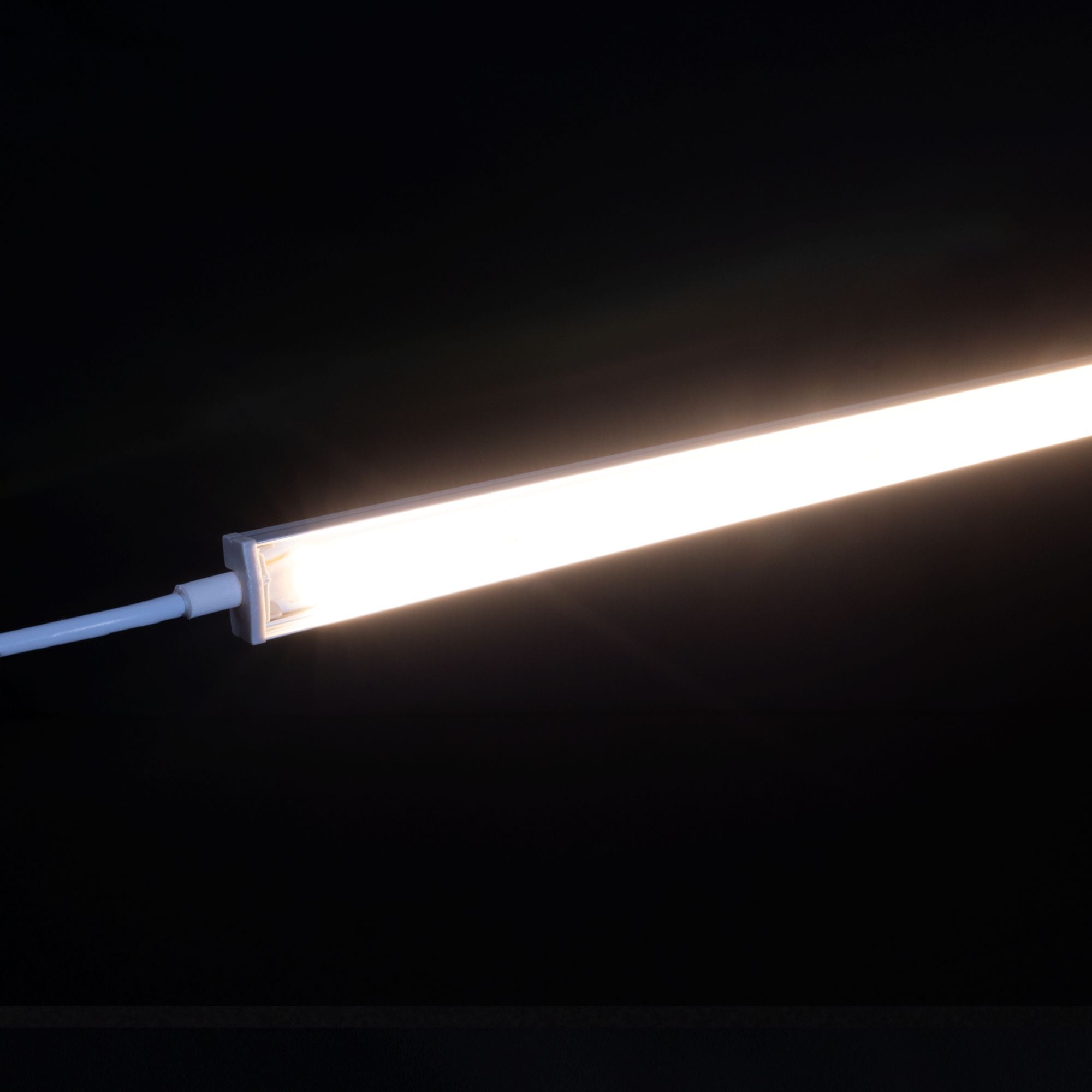

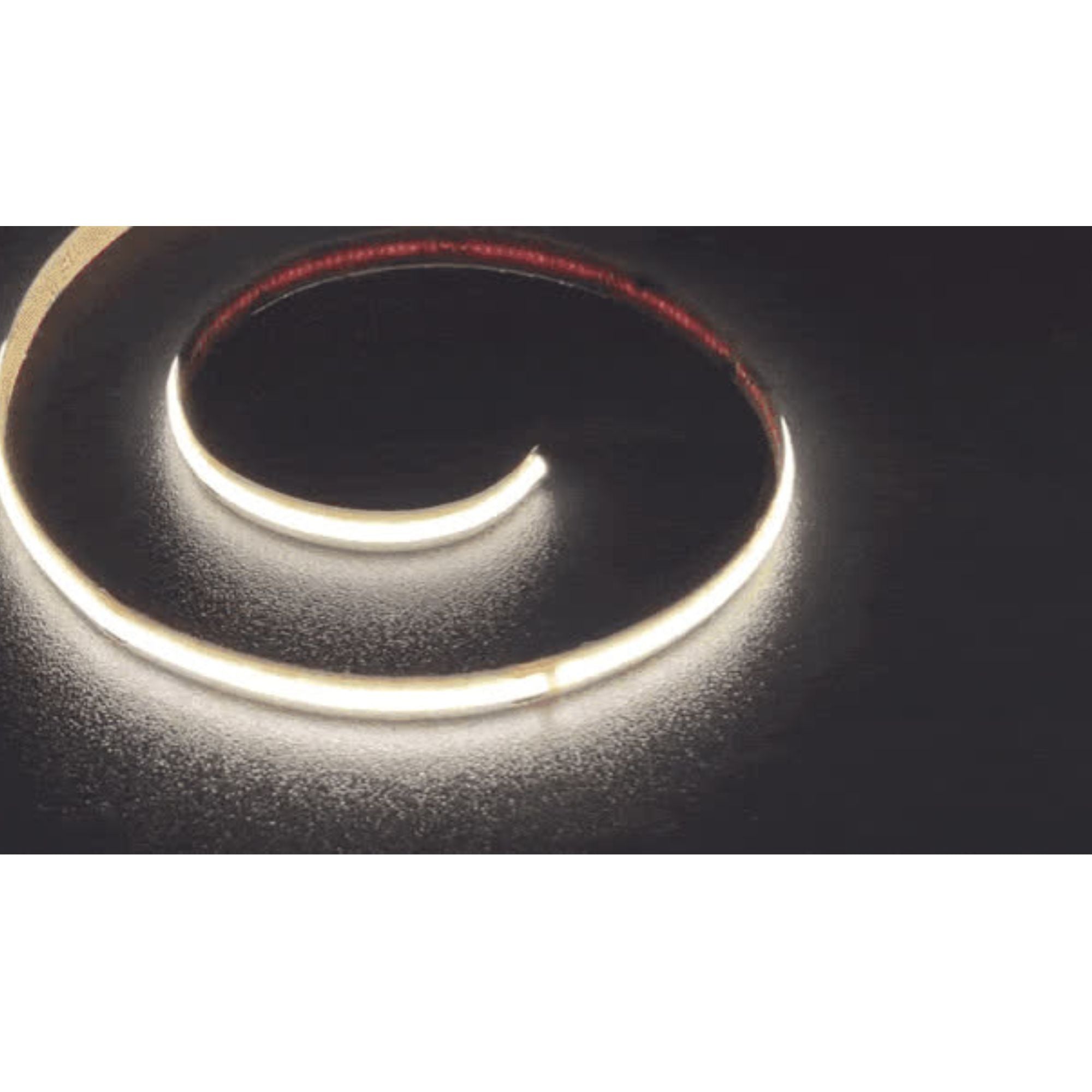

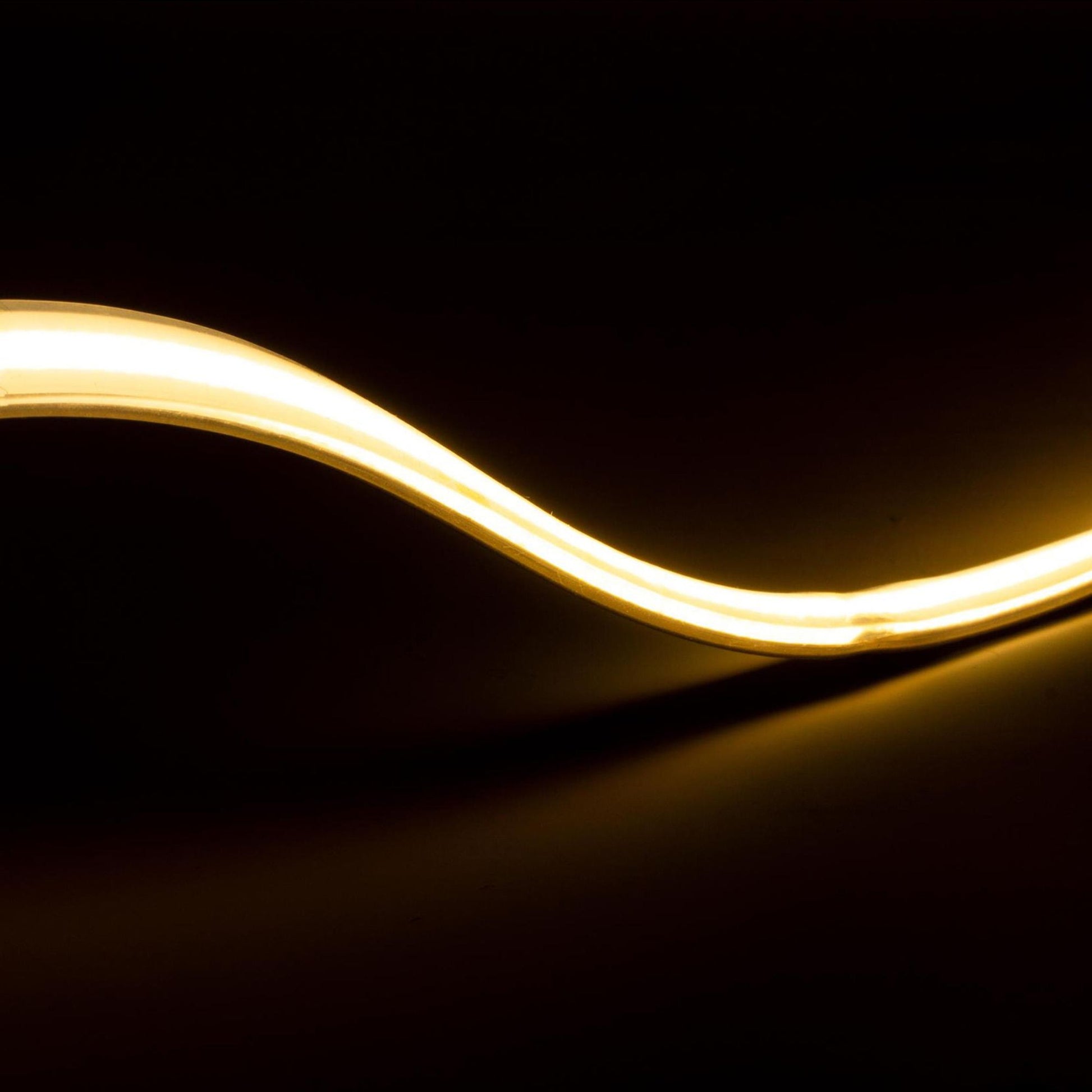

With 297 lumens per foot and a 90+ CRI, this tape light delivers high-quality illumination. The COB technology ensures a dot-free, uniform light output, ideal for accent and task lighting.
Power, Wiring & Installation
Requires a 24V driver for operation. The tape is field-cuttable every 1.96 in. and supports a maximum continuous run of 30 ft. It is dimmable, allowing for customized lighting levels.

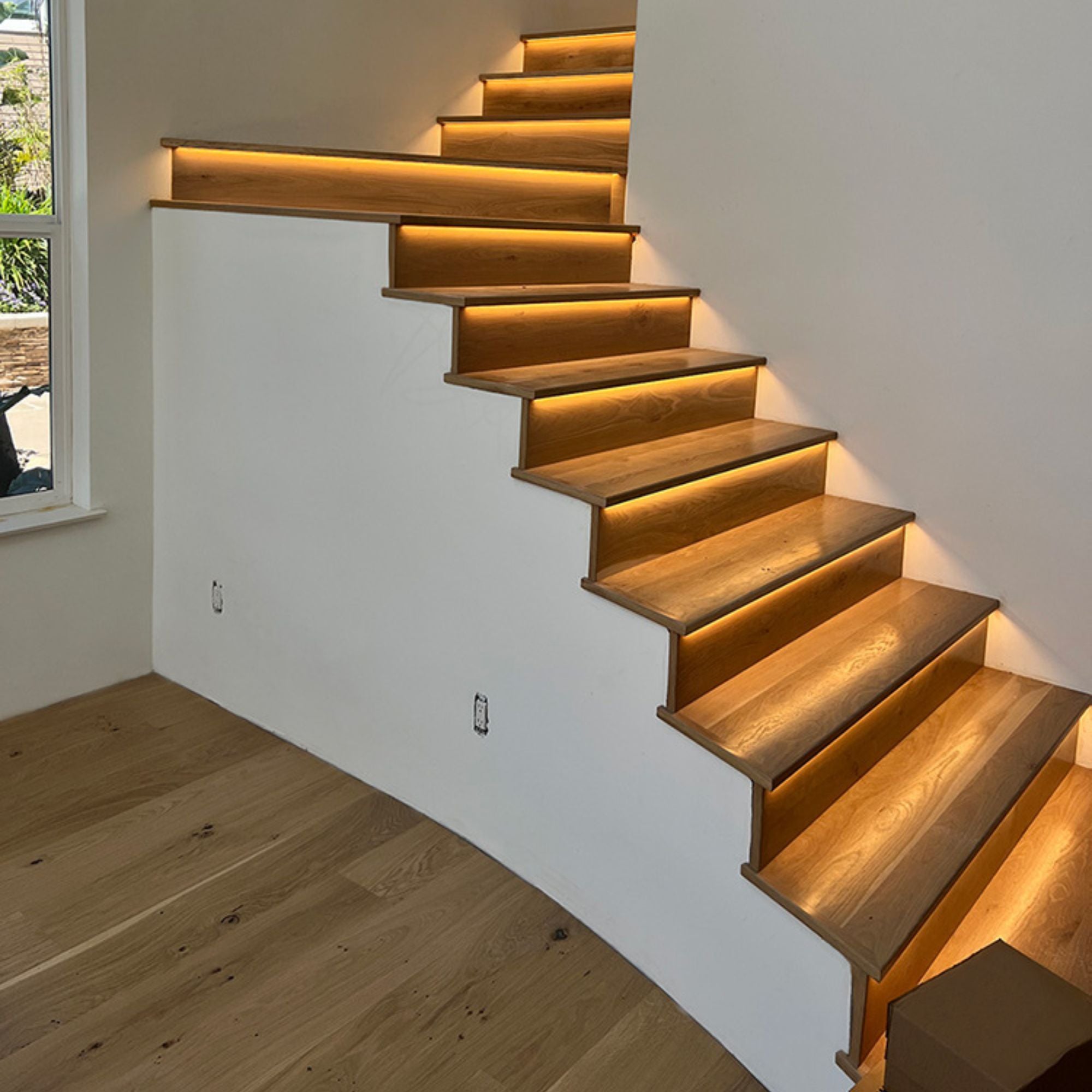

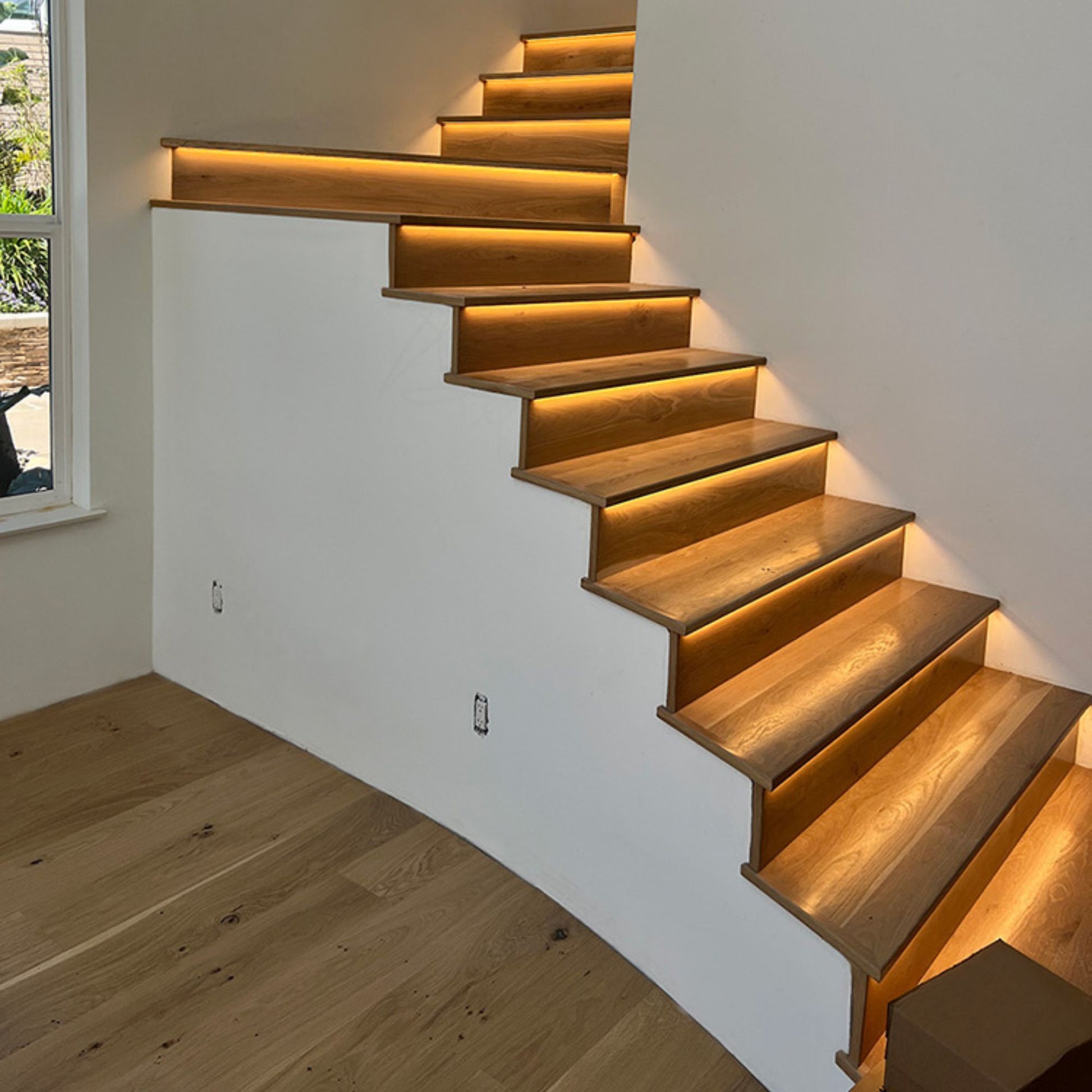

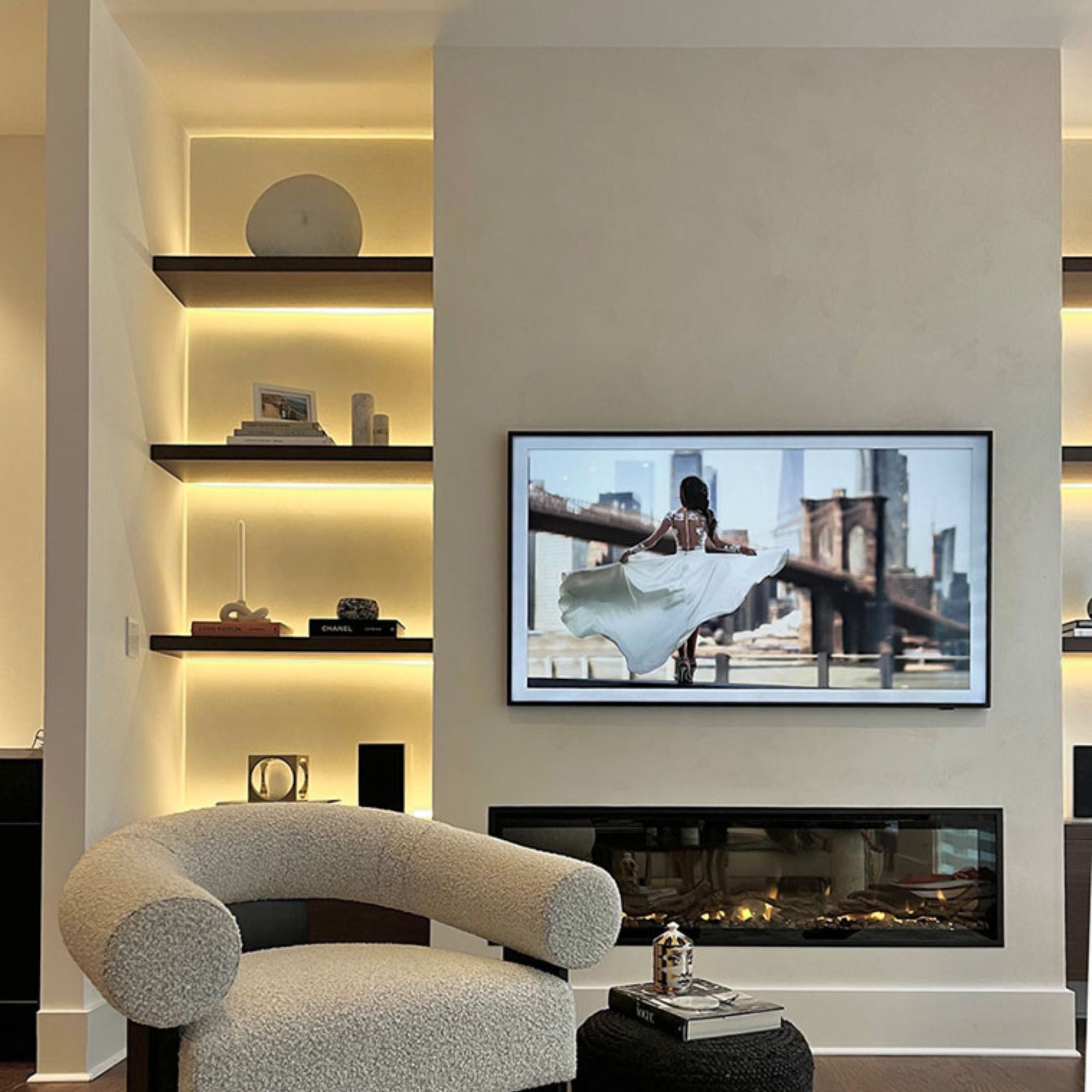

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting

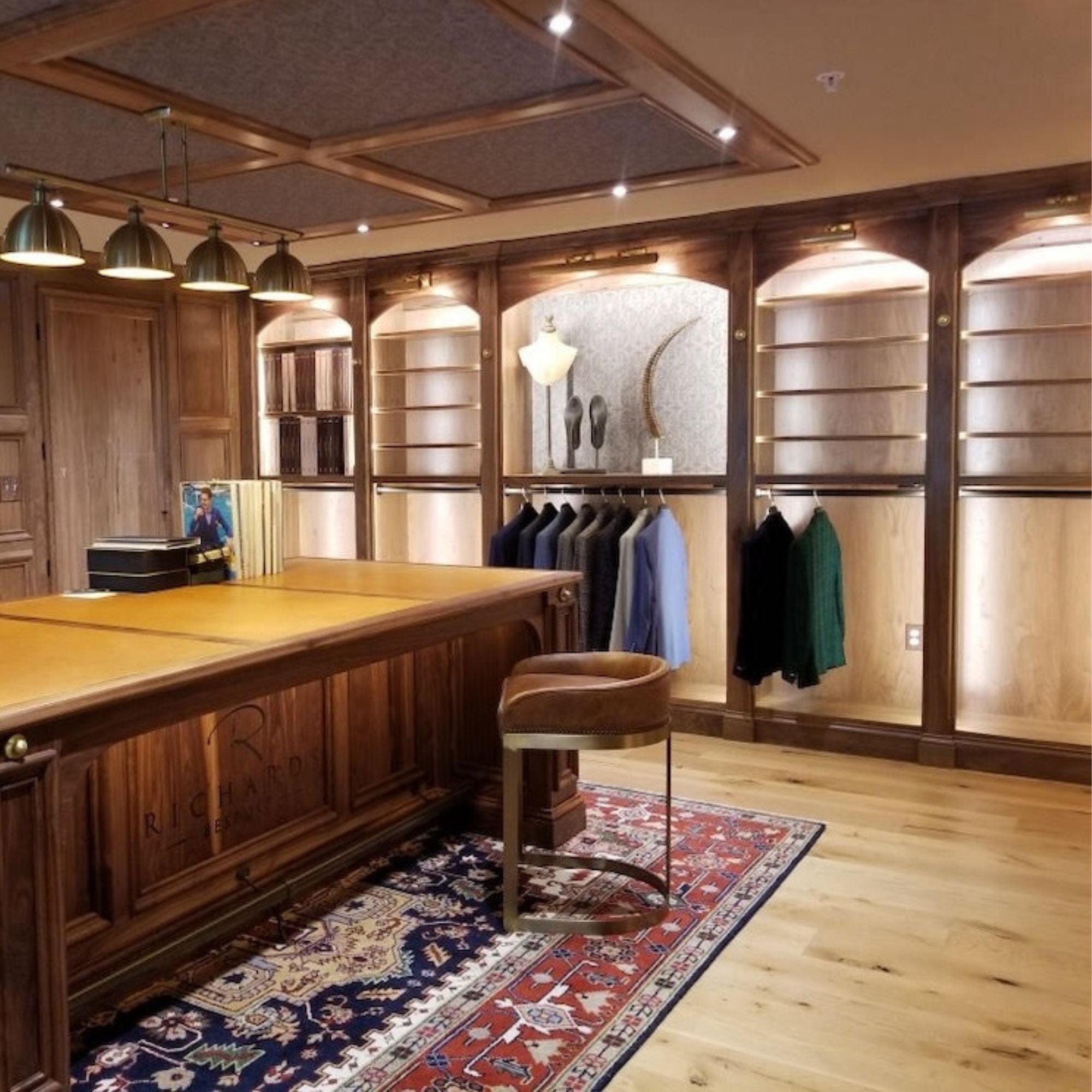

- Retail shelving
What's Included
- 16 ft. spool of LED tape light
- 36 in. white bare lead wire
