Diode LED Streamlite, 16 ft, LED Tape Light, 2700K, 284 Lumens/ft, 24V
Available in stock (202)
About this item
About this item
- Color Temperature: Provides a warm 2700K light, ideal for creating cozy environments.
- Voltage: Operates at 24V, ensuring efficient energy consumption and compatibility with standard drivers.
- Max Run: Supports extended runs up to 16.4 ft, reducing the need for multiple power supplies.
- Cuttable Increments: Field cuttable every 1.96 in., allowing for precise length customization.
- IP Rating: Rated IP20 for indoor and damp locations, suitable for protected environments.
We process payments securely and do not store credit card information.
Description
Description

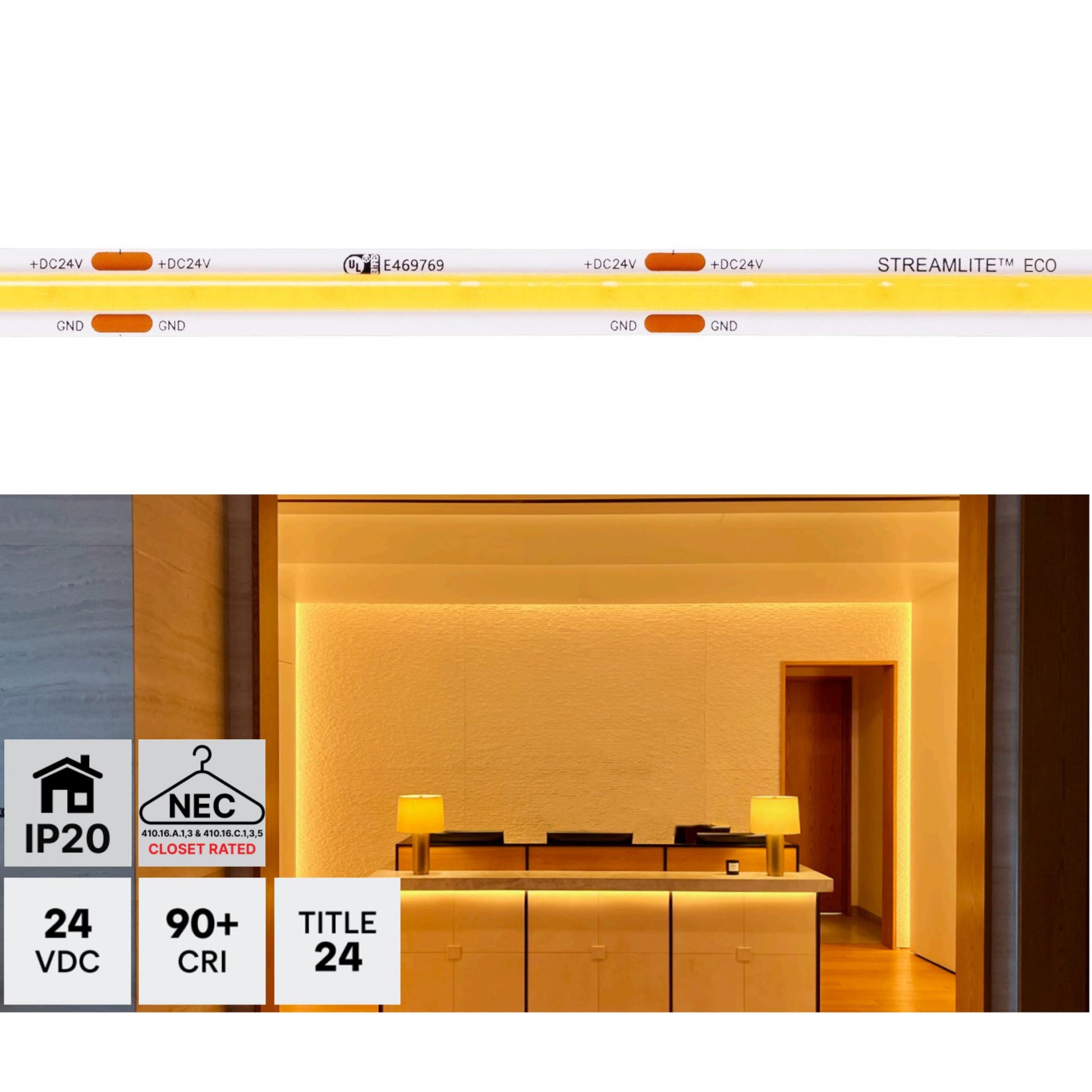

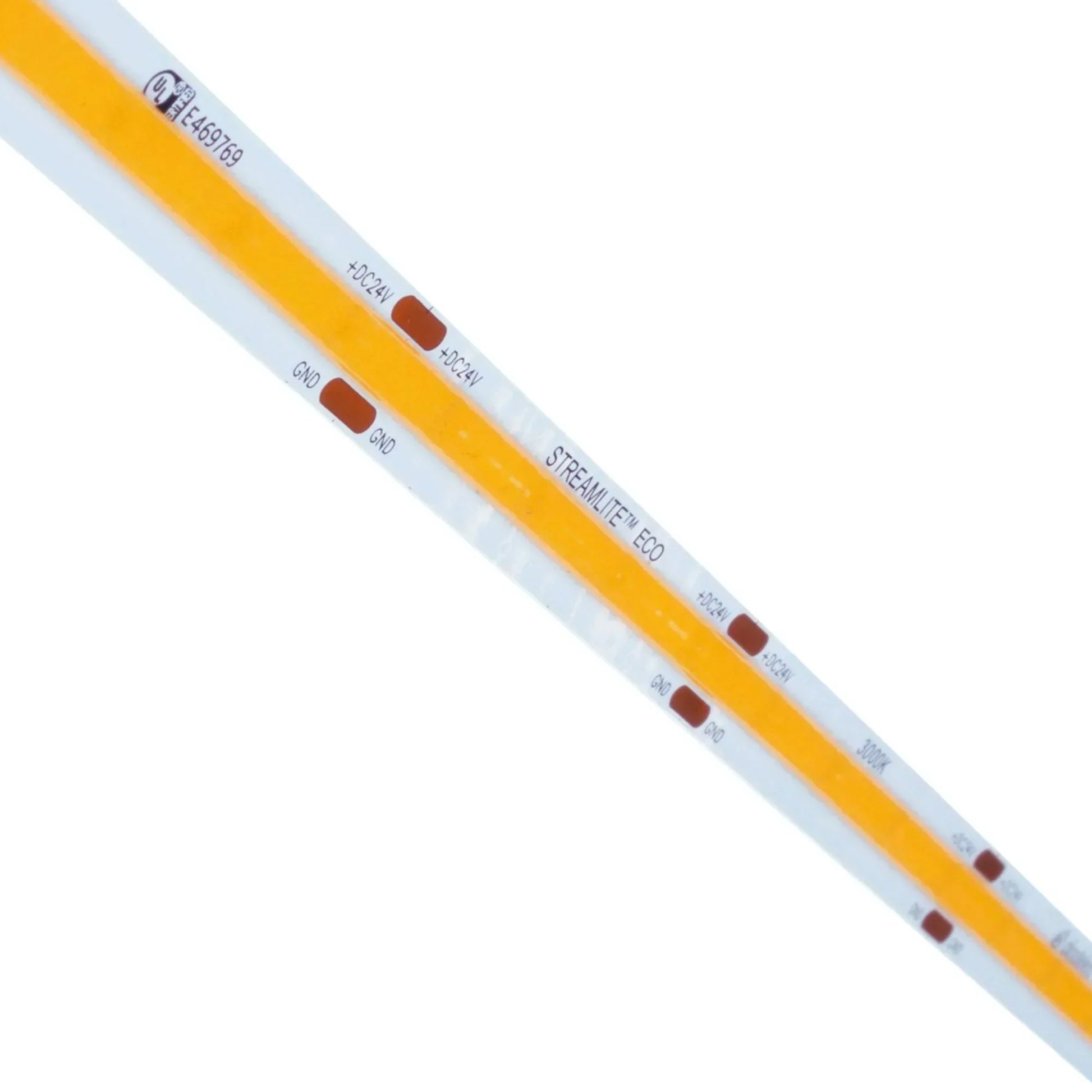

Diode LED Streamlite LED Tape Light — 2700K & COB Dotless
The Diode LED DI-24V-STMLTECO-27-016 is a 16 ft LED tape light designed for seamless, dot-free illumination. This tape light operates at 24V and is IP20 rated, making it suitable for indoor and damp locations. With a color temperature of 2700K, it provides a warm and inviting ambiance.
Key Features
- Voltage: 24V DC operation for efficient energy use.
- Wattage: Available in 3.3W/ft options.
- Lumens per Foot: 284 Lm/ft for 2700K.
- LEDs per Foot: 160 LEDs/ft for consistent light output.
- Maximum Run Length: Up to 16.4 ft for extended installations.
- Field Cuttable: Every 1.96 in. for custom lengths.

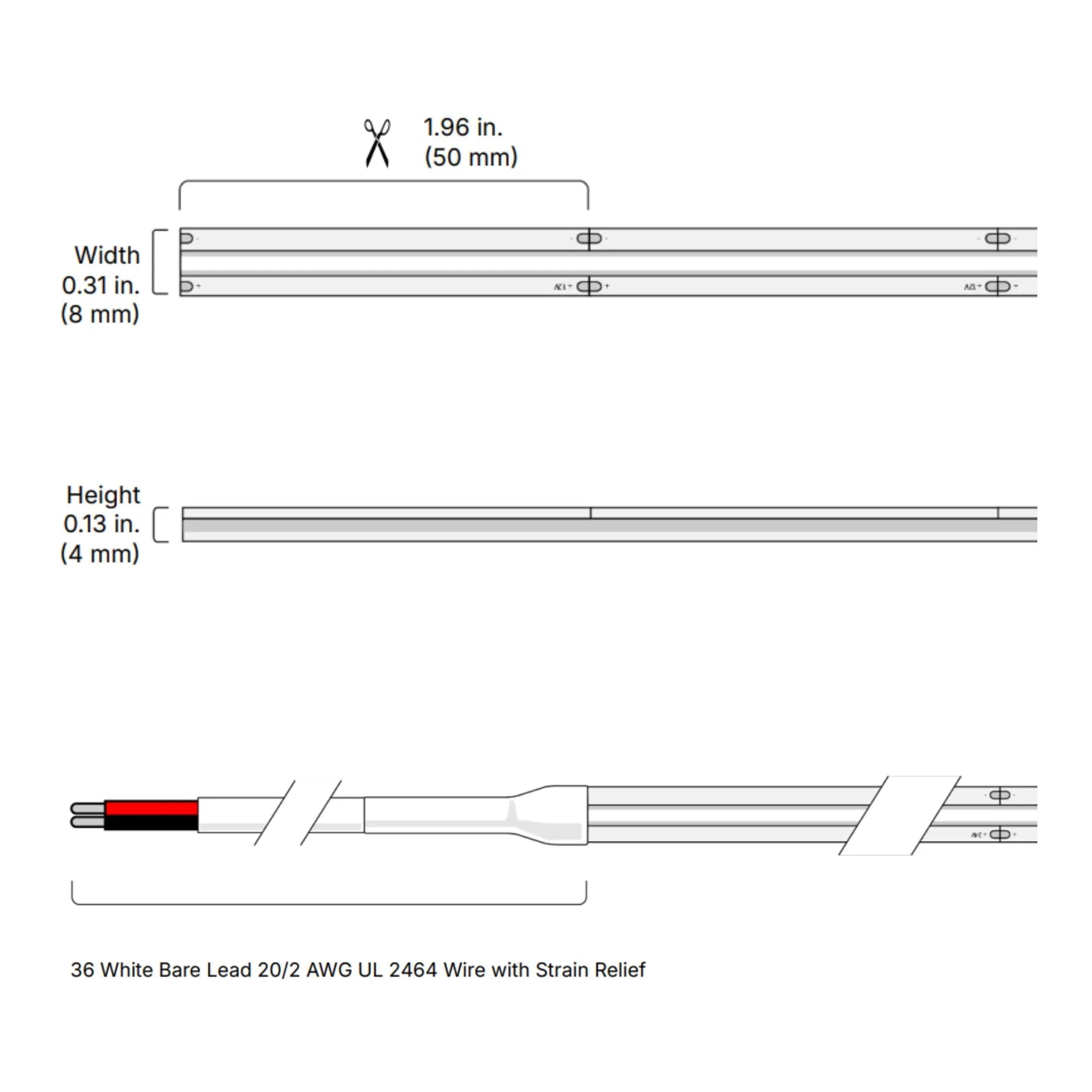

- PCB Width: 0.31 in. for compatibility with various channels.
- Beam Angle: 120° for wide light distribution.
- IP Rating: IP20, suitable for indoor use.
- Certifications: UL Listed, RoHS Compliant, Title 24.
Core Design & Construction

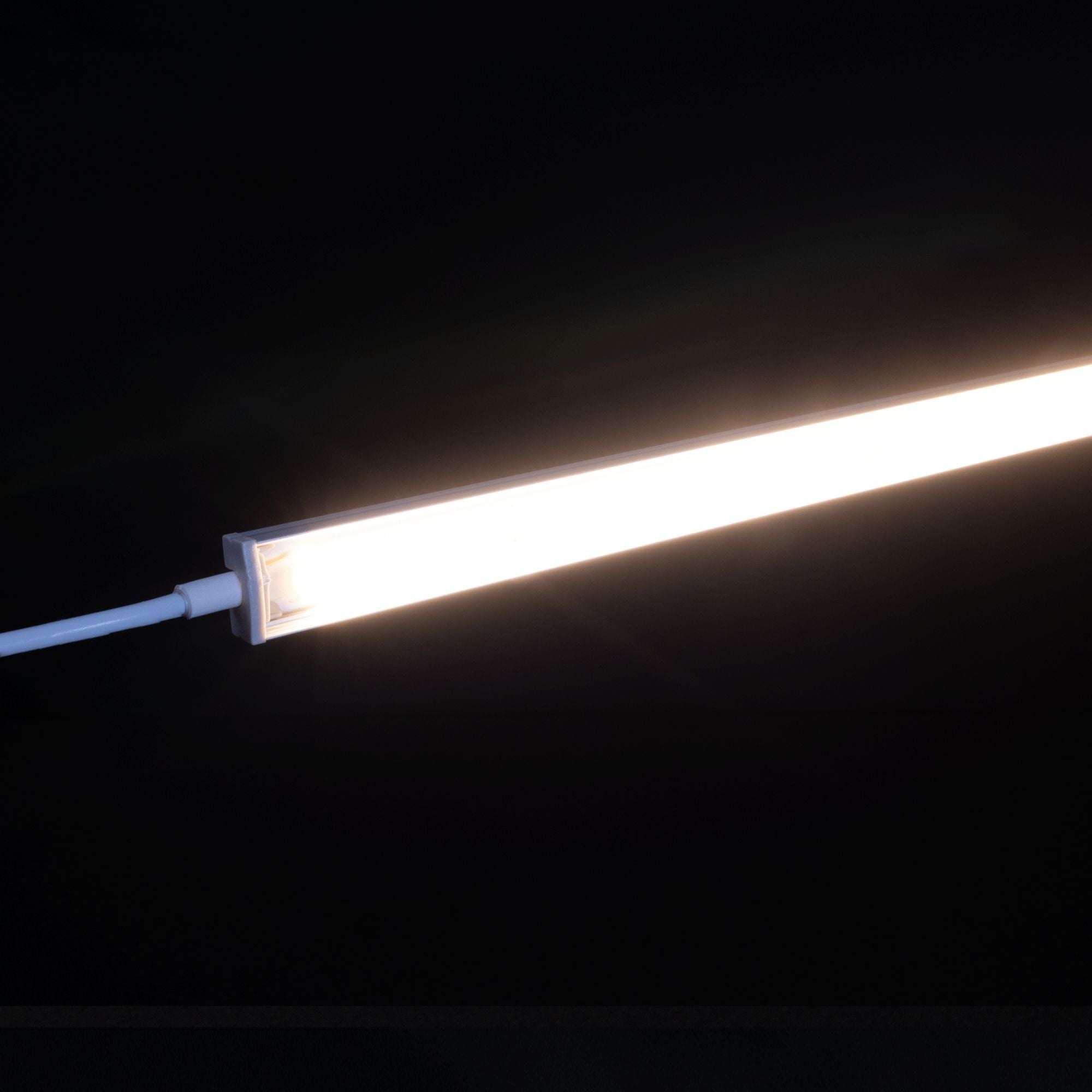

The tape light features a 0.31 in. wide PCB, ensuring compatibility with standard aluminum channels. It includes a protective coating for durability and a 3M adhesive backing for easy installation in dry and damp environments.
LED Illumination & Performance

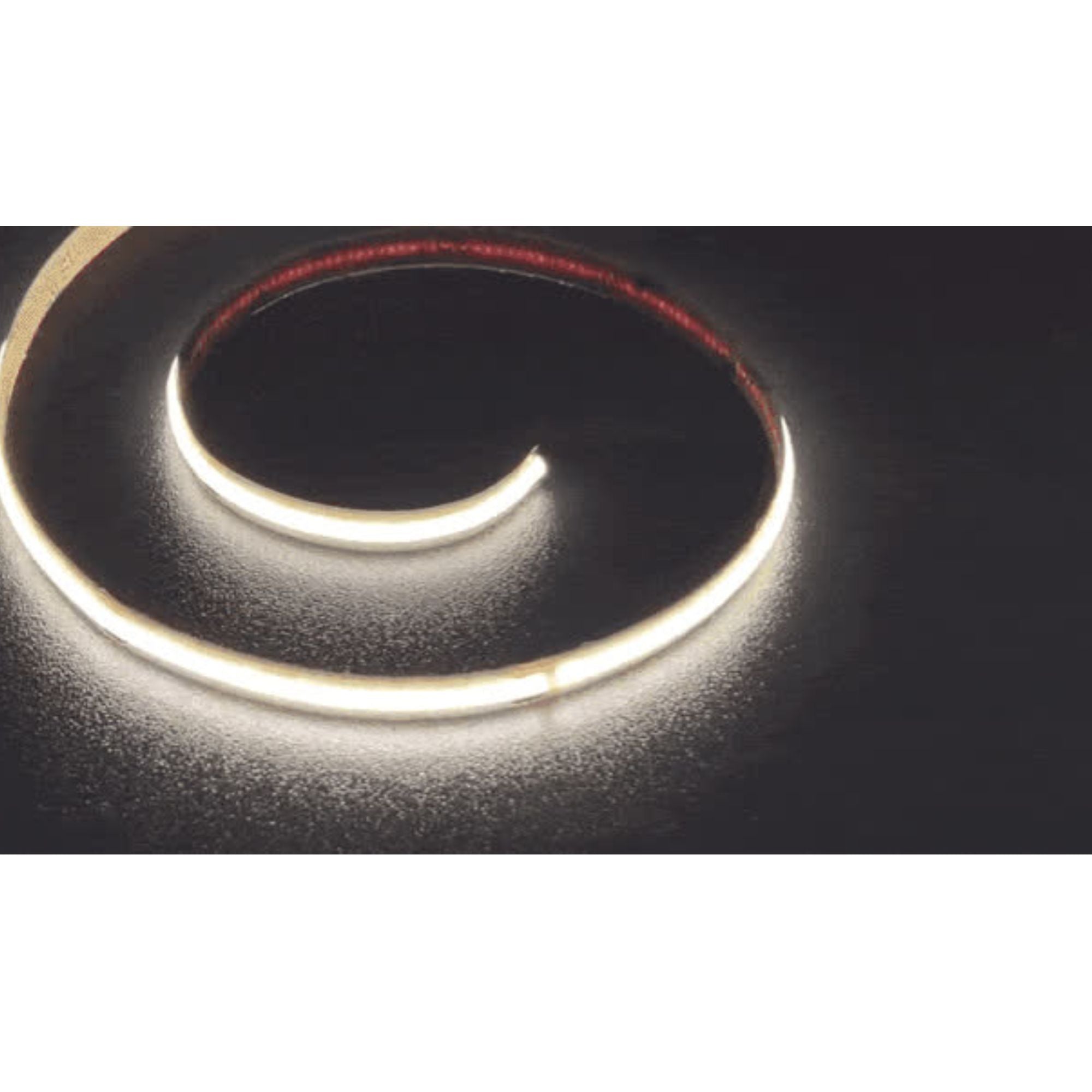

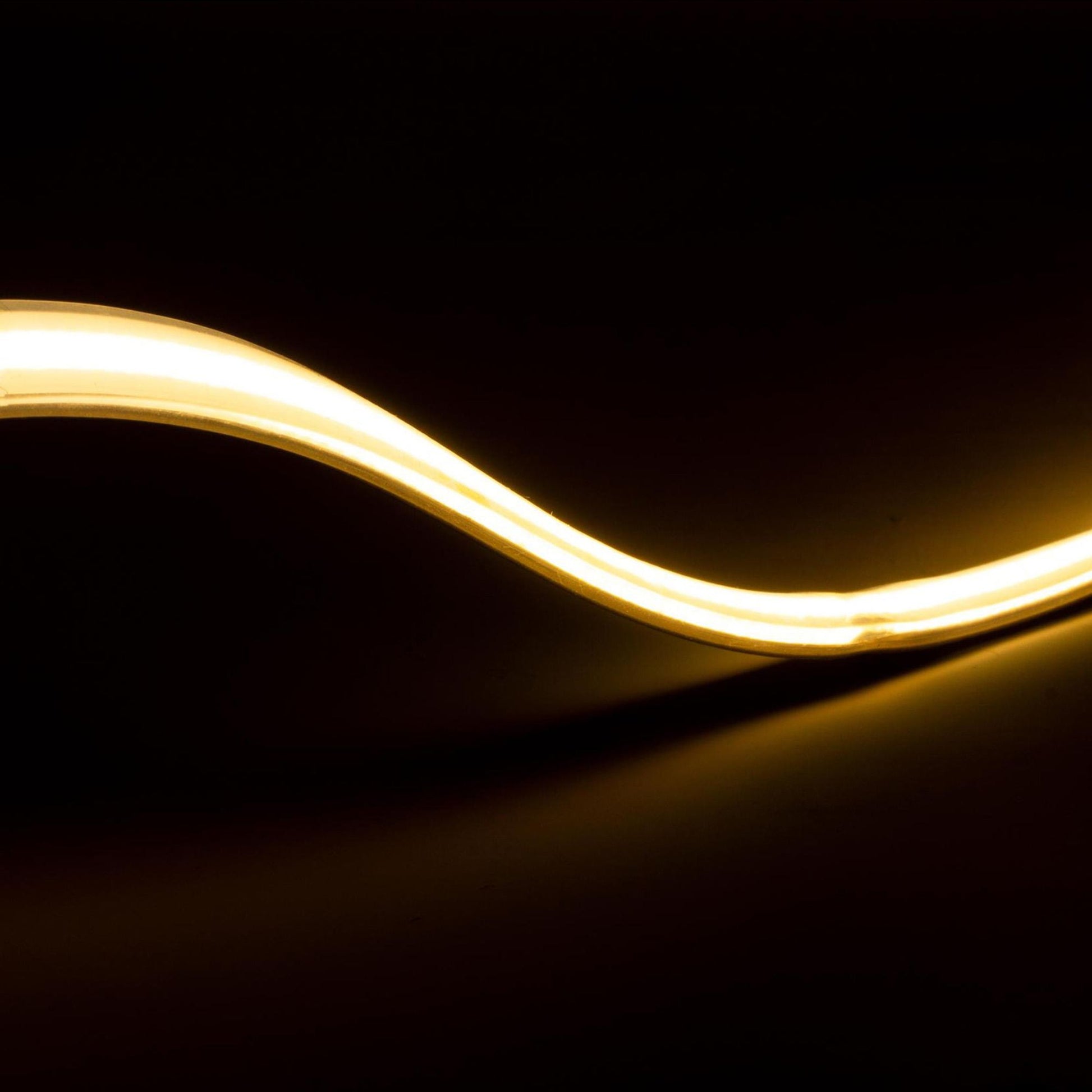

With 284 lumens per foot and a CRI of 90+, this tape light delivers high-quality illumination. The COB technology ensures dot-free, uniform light output, ideal for accent and task lighting.
Power, Wiring & Installation
Requires a 24V driver for operation. The tape is field-cuttable every 1.96 in., allowing for precise customization. Maximum continuous run is 16.4 ft to prevent voltage drop. Fully dimmable with compatible drivers.
Where This Tape Works Best

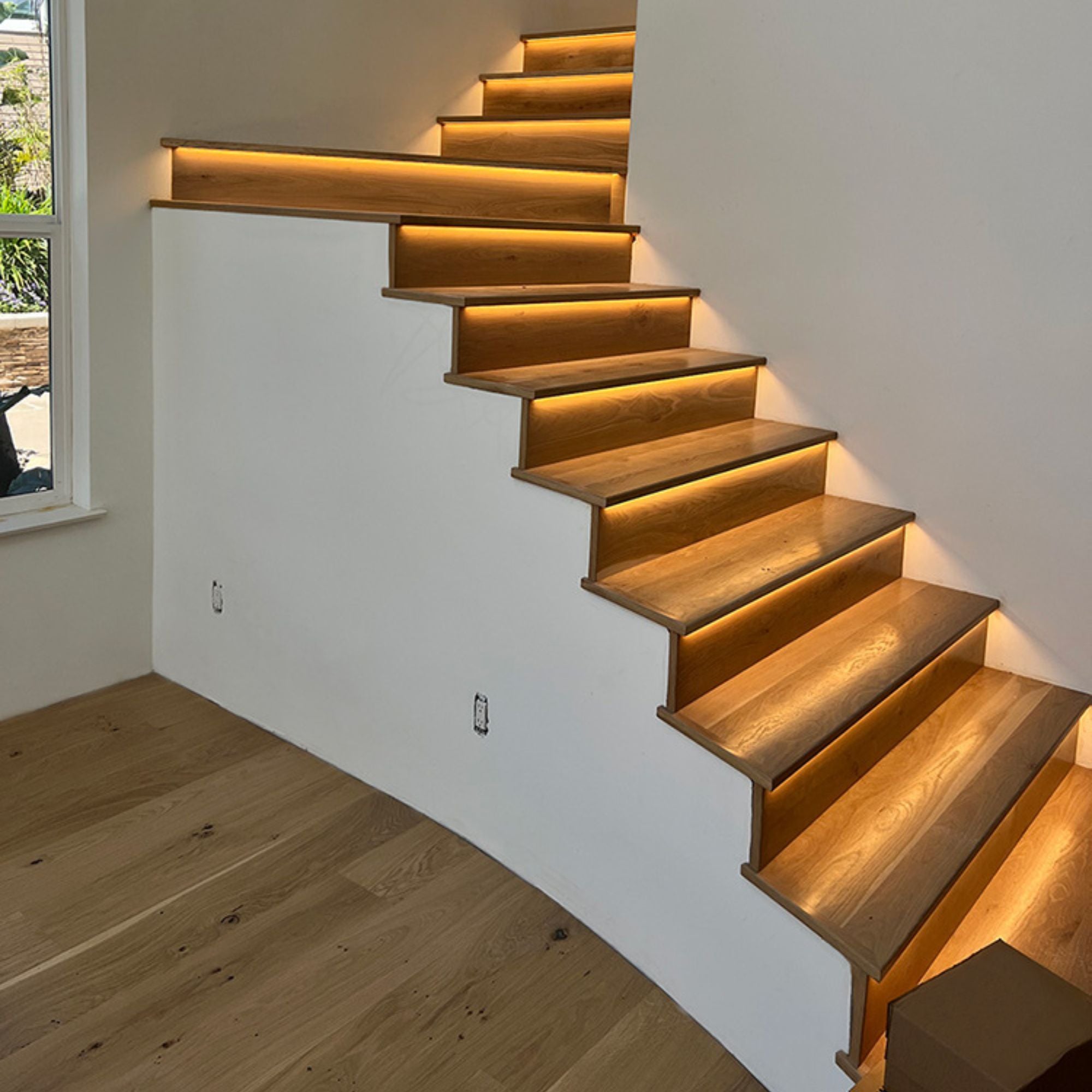

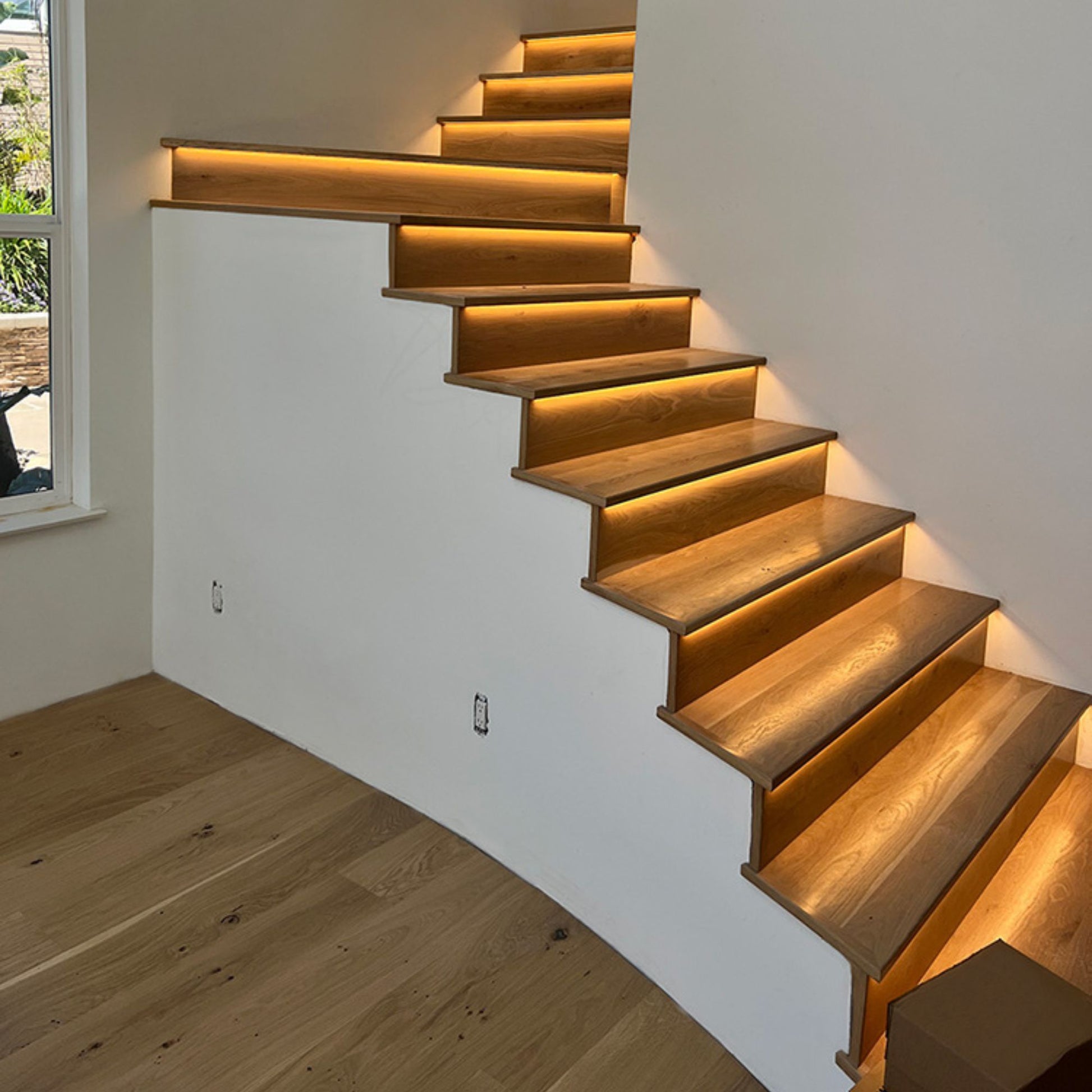

- Cove lighting
- Under cabinet lighting

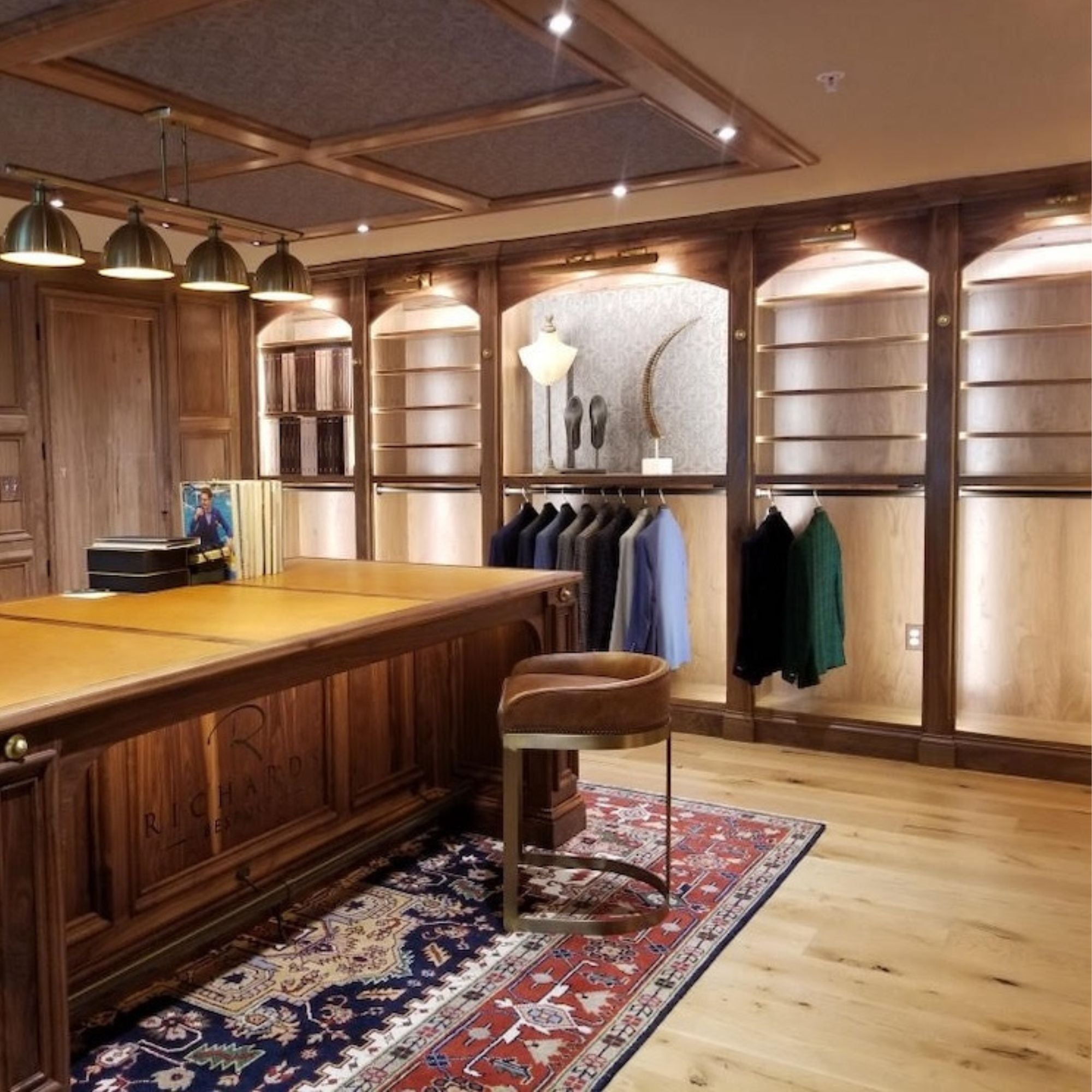

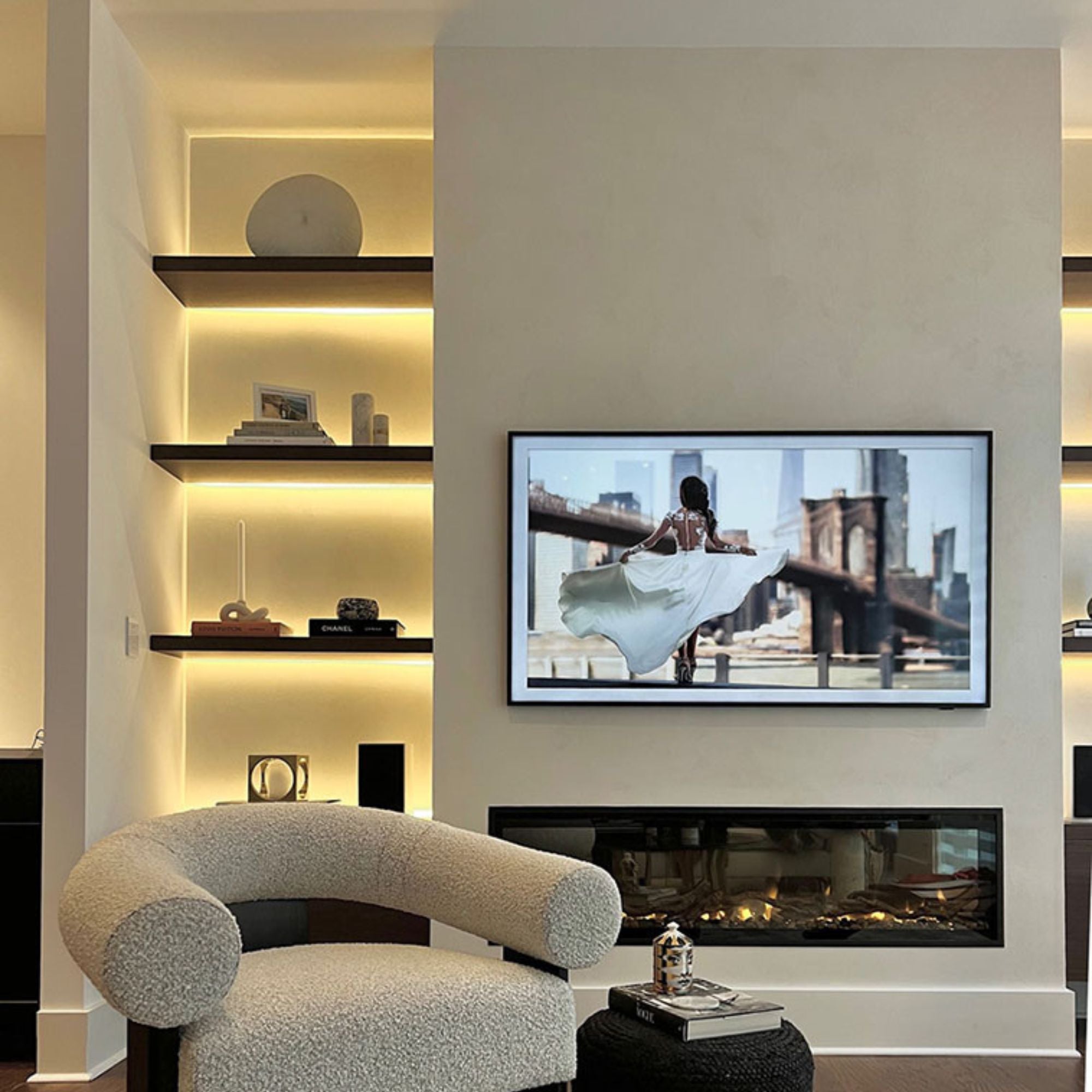

- Accent lighting
- Display case lighting
- Retail shelf lighting
What's Included
- 16 ft spool of LED tape light
- 36 in. white bare lead wire
