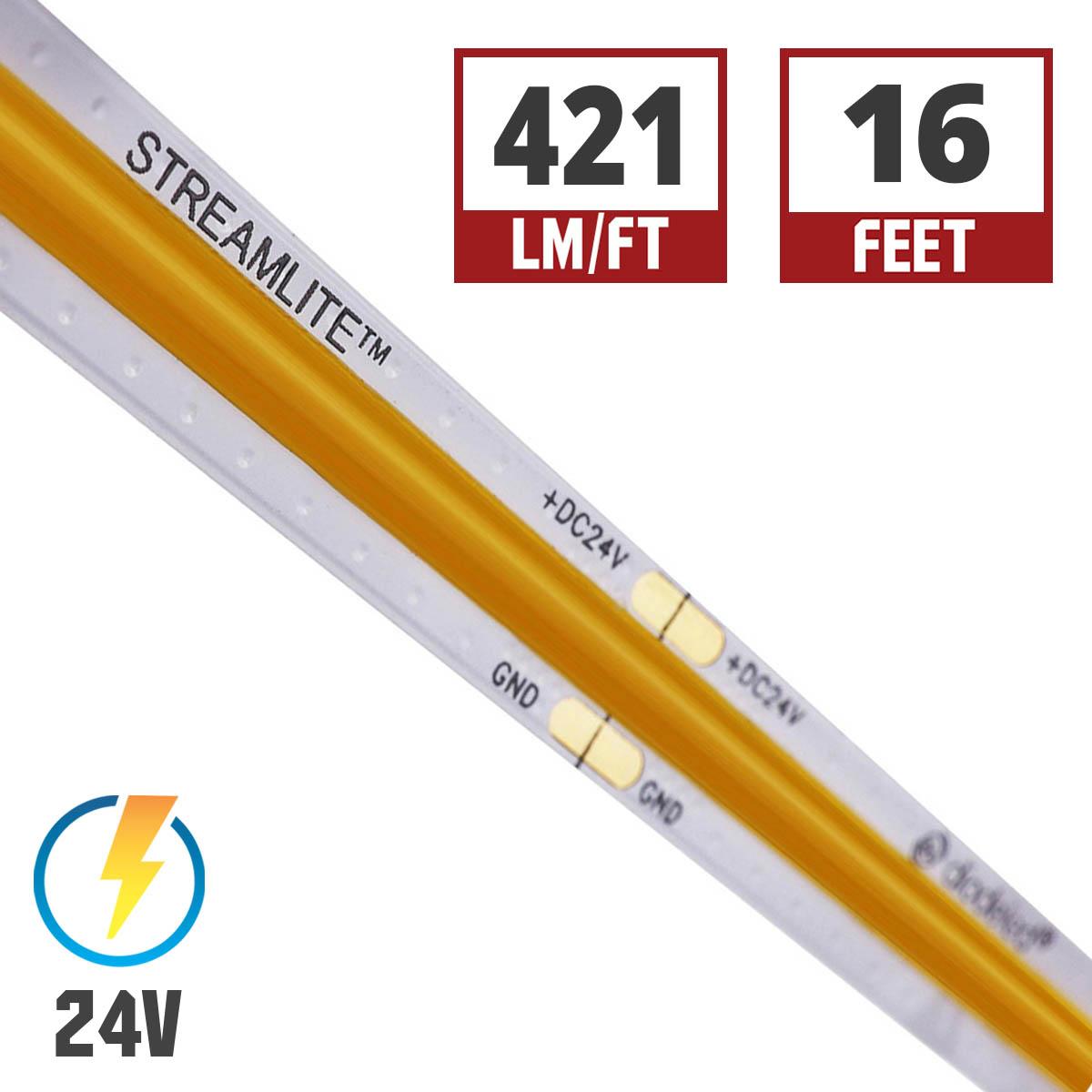

Diode LED Streamlite, 16 ft, LED Tape Light, 3500K, 421 Lm/ft, 24V
Available in stock (100)
About this item
About this item
- Voltage: Operates at 24V for efficient power consumption and compatibility with low-voltage systems.
- Color Temperature: Provides a neutral white light at 3500K, ideal for various applications.
- Lumens per Foot: Delivers 421 lumens per foot for bright and effective illumination.
- Max Run: Maximum continuous run length of 16.4 ft to prevent voltage drop.
- Cuttable Increments: Field cuttable every 1.8 inches for custom lengths and installations.
We process payments securely and do not store credit card information.
Description
Description

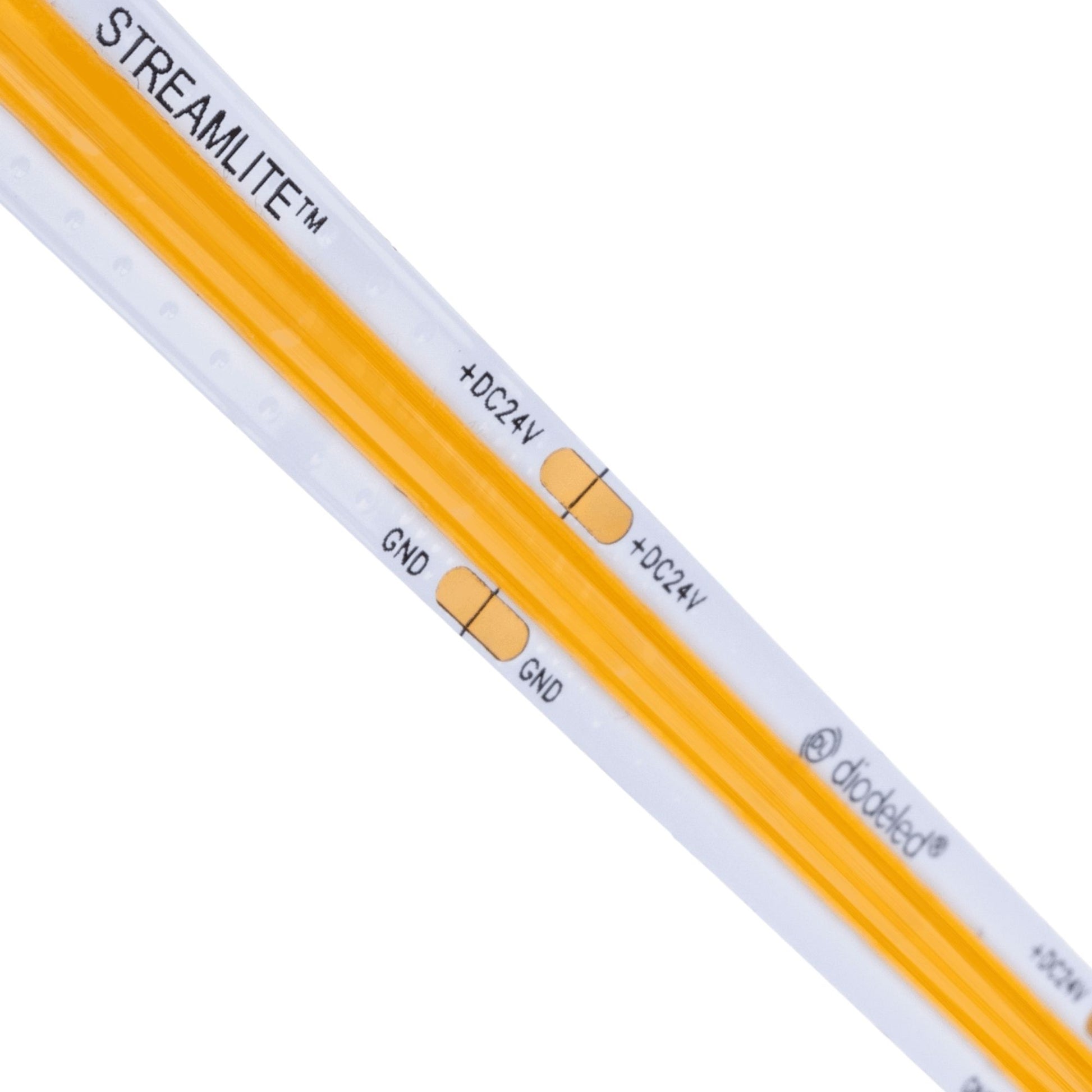

Diode LED Streamlite LED Tape Light — 3500K & COB Technology

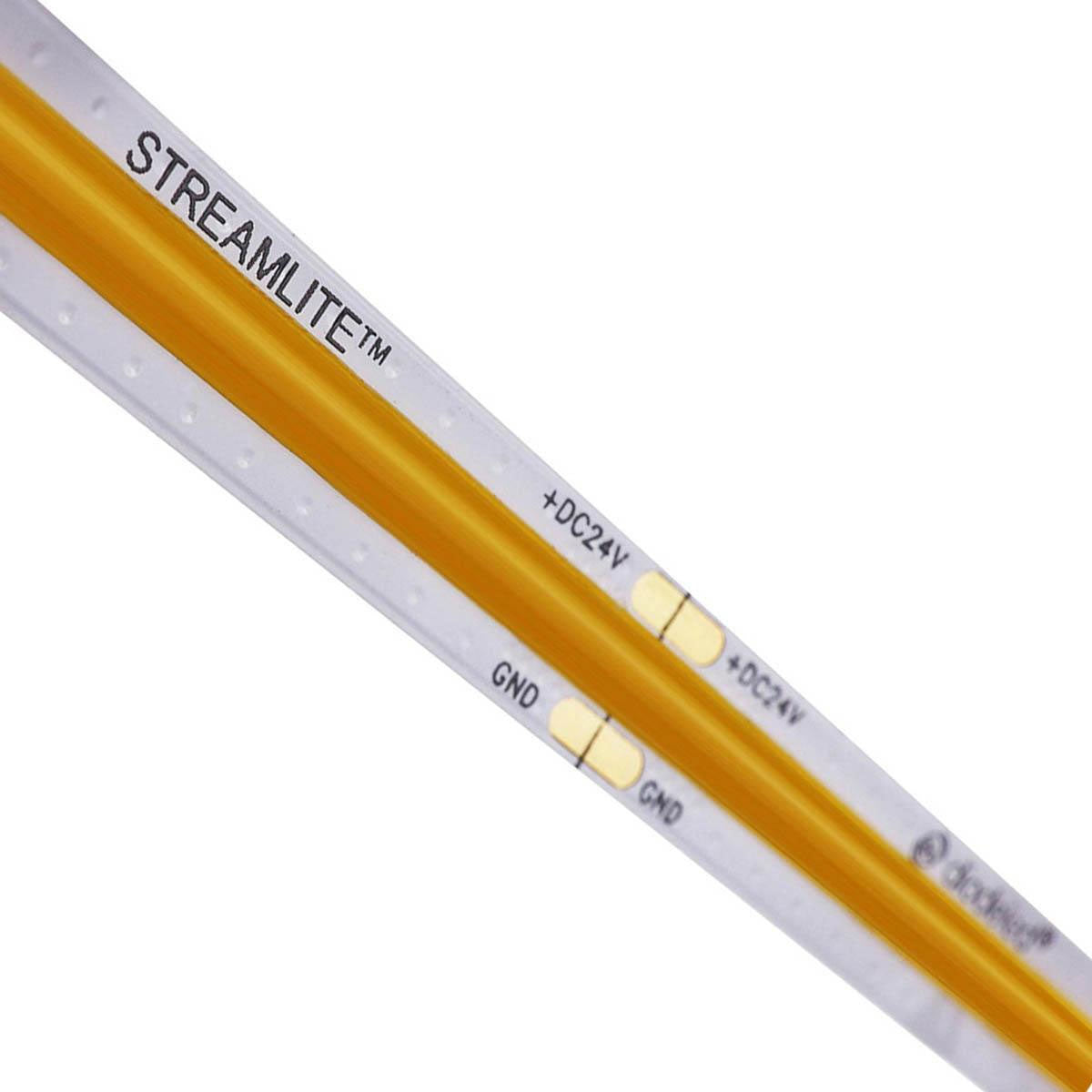

The Diode LED Streamlite DI-24V-STMLT4-35-016 is a 16 ft LED tape light featuring COB technology for a dotless appearance. This tape light operates at 24V and is IP20 rated for indoor and damp locations. It offers a 3500K color temperature, providing a neutral white light suitable for various applications.
Key Features
- Voltage: 24V DC operation for efficient power usage.
- Wattage: Consumes 3.3W per foot.
- Lumens per Foot: 421 lumens for bright illumination.
- LEDs per Foot: 176 LEDs for uniform light distribution.
- Max Run Length: 16.4 ft to prevent voltage drop.

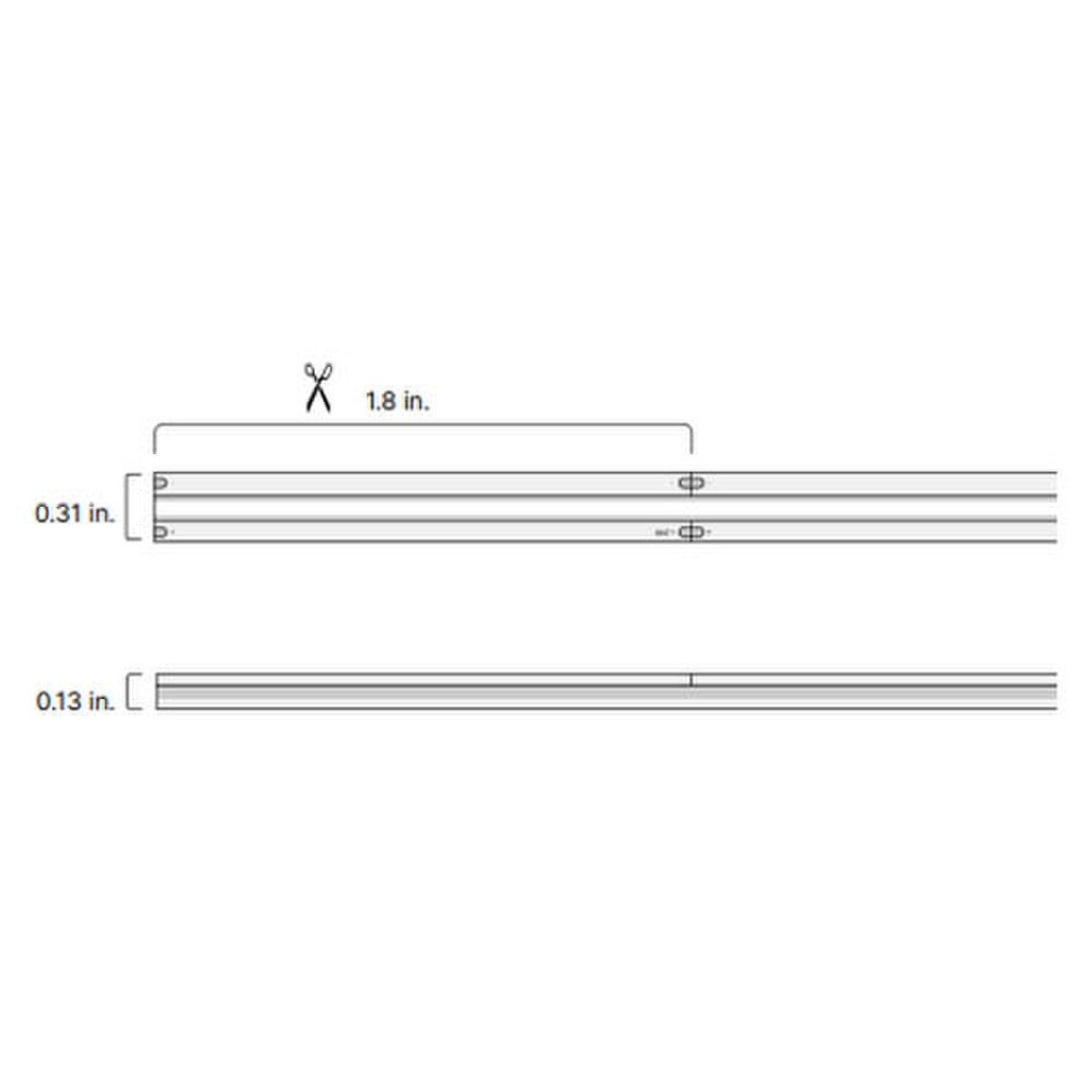

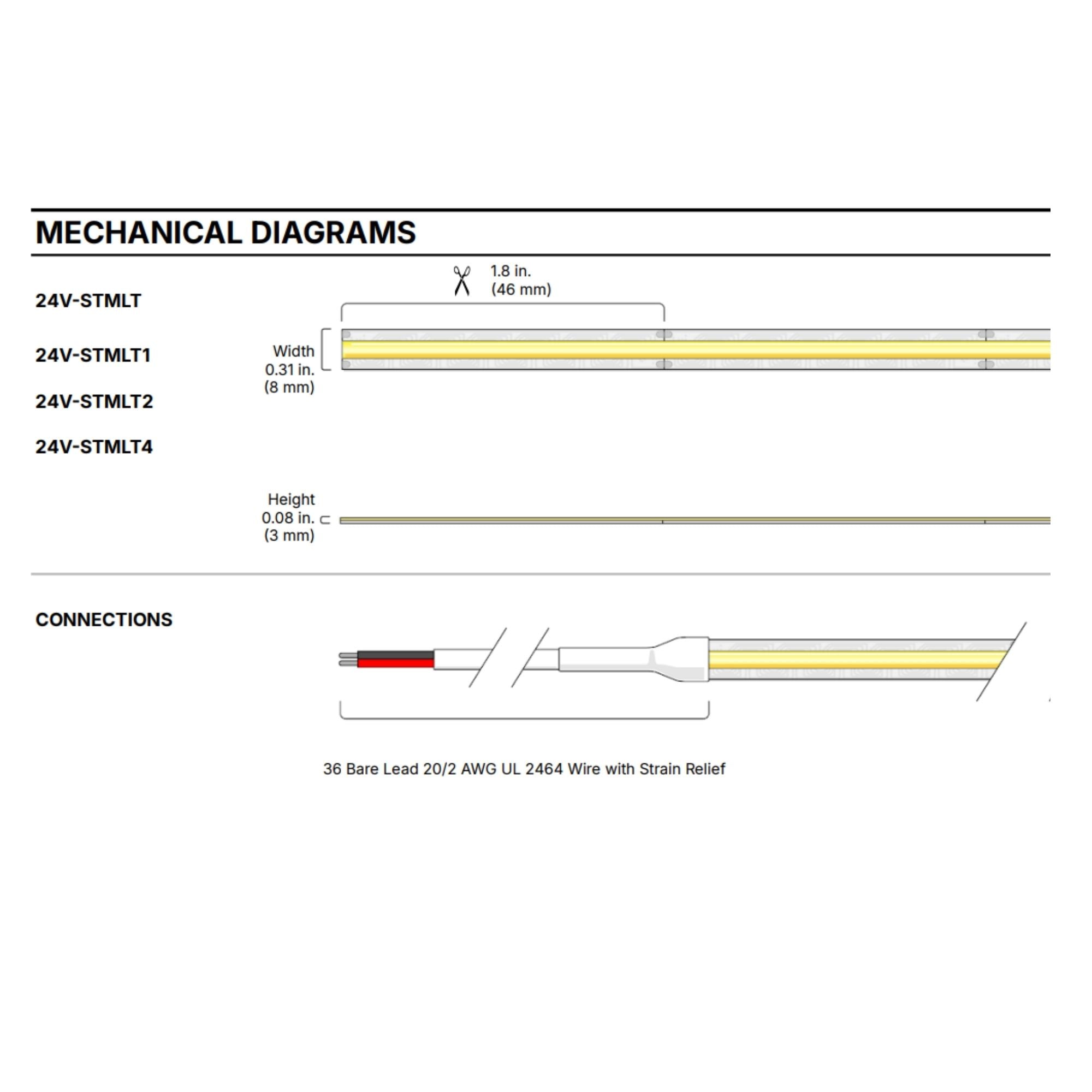

- Cuttable Increments: Every 1.8 inches for custom lengths.
- PCB Width: 0.31 inches for compatibility with standard channels.
- Beam Angle: 180 degrees for wide light distribution.
- IP Rating: IP20 for indoor and damp locations.
- Certifications: UL Listed, RoHS Compliant, Title 24.
Core Design & Construction

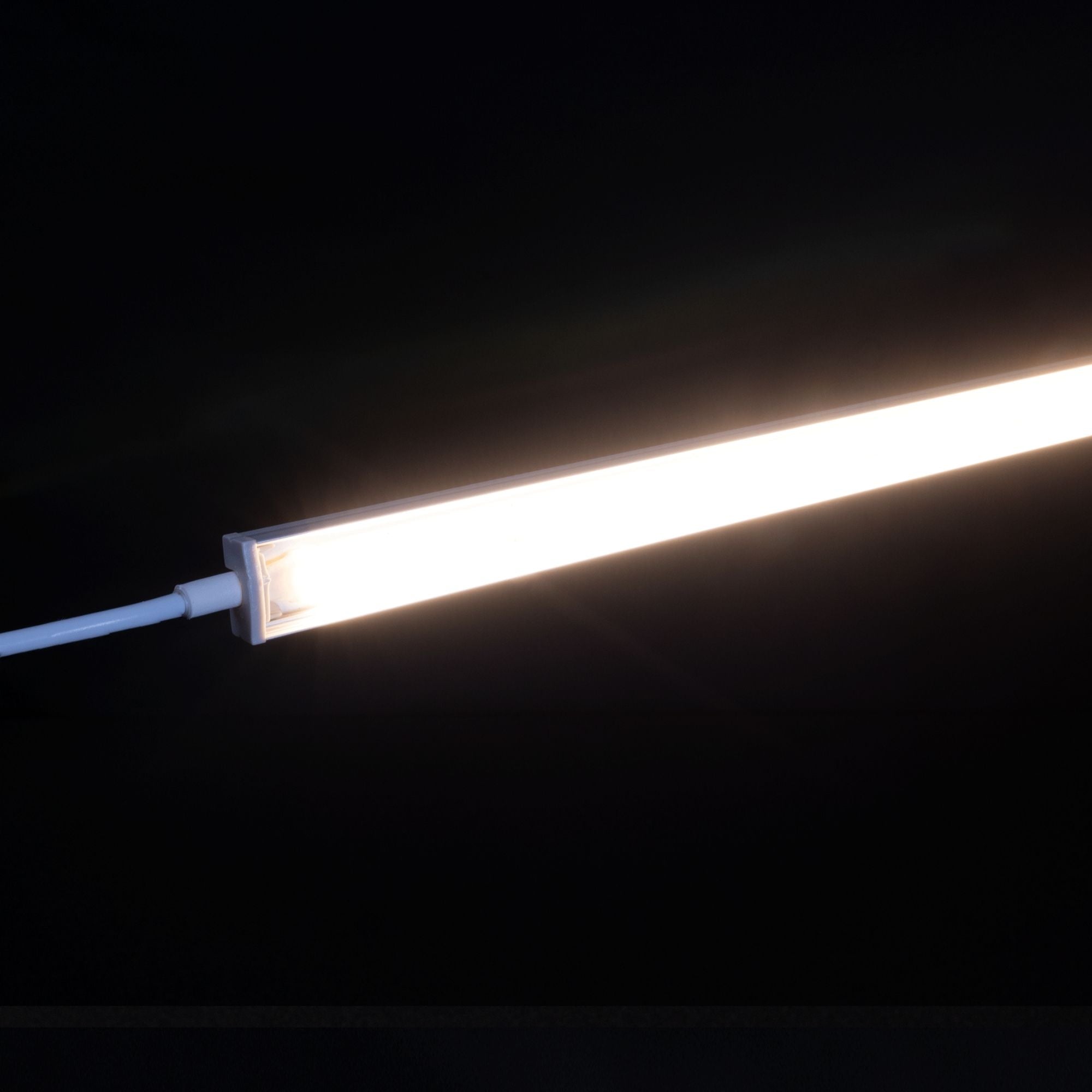

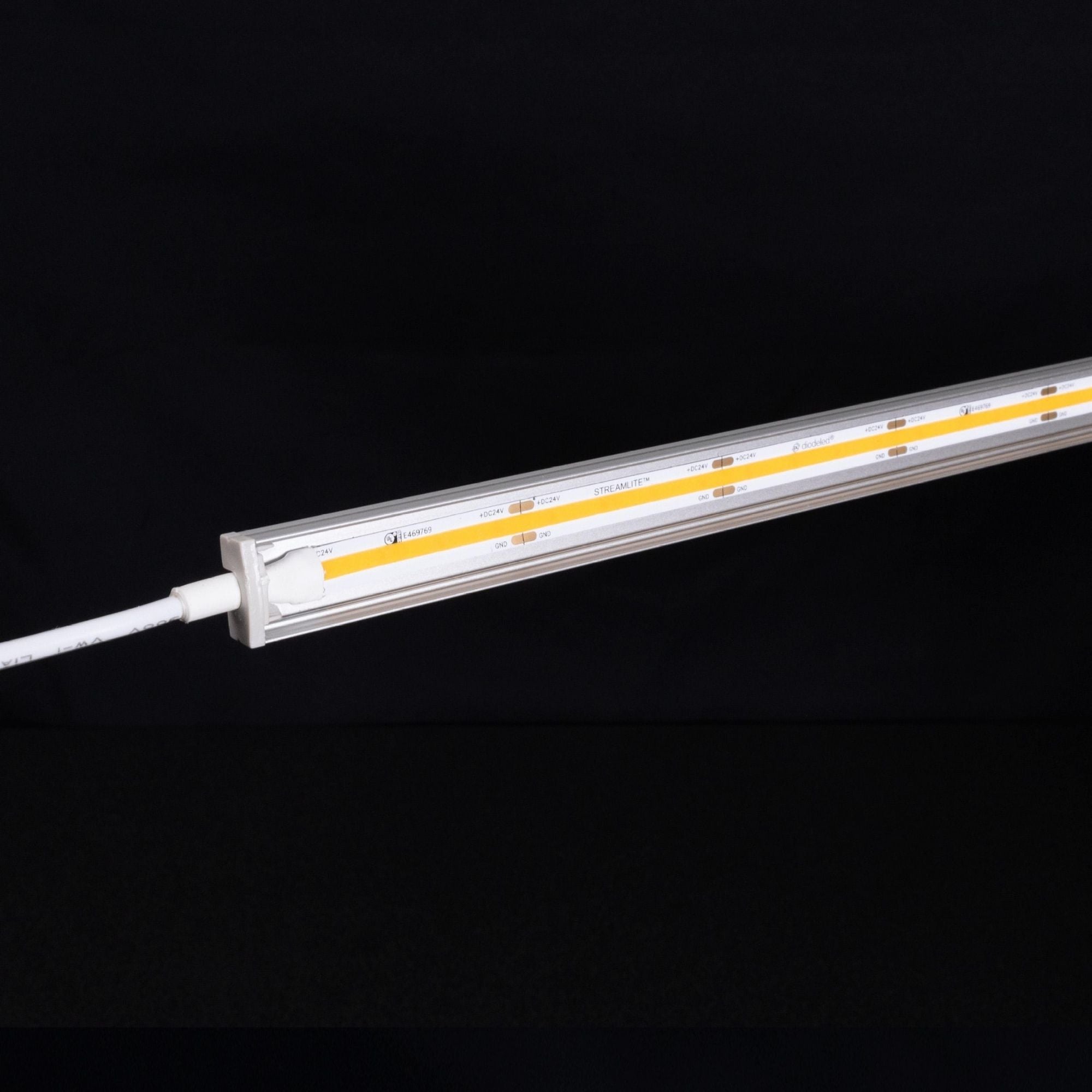

The Streamlite tape light features a 0.31-inch wide PCB, making it compatible with most aluminum channels. It includes a durable silicone coating for protection and a reliable 3M adhesive backing for easy installation in various environments.
LED Illumination & Performance

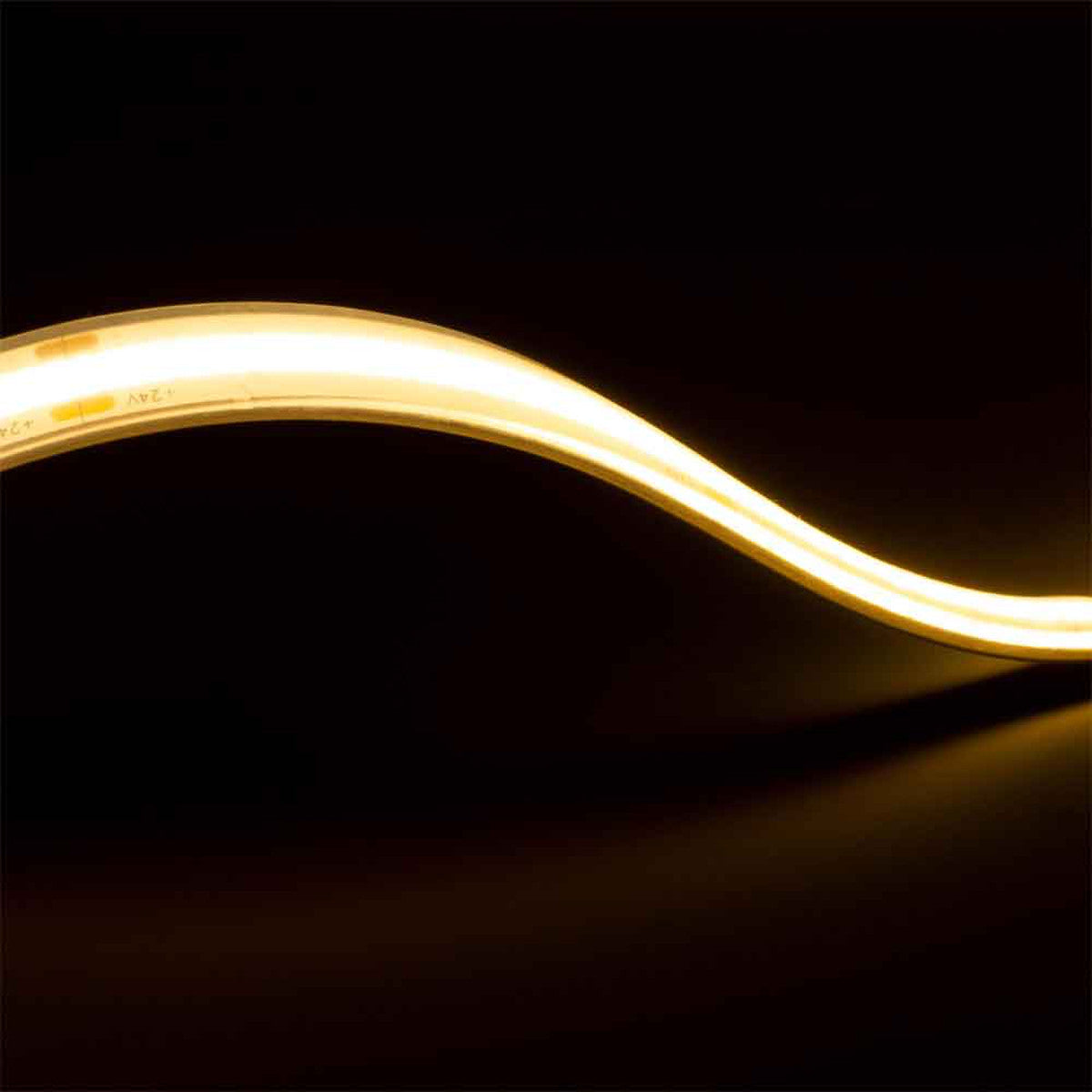

With 421 lumens per foot and a CRI of 90+, this tape light ensures high-quality illumination. The COB technology provides a dotless appearance, enhancing the aesthetic appeal of the installation.
Power, Wiring & Installation
This tape light requires a 24V driver for operation. It is field cuttable every 1.8 inches, allowing for custom lengths. The maximum continuous run is 16.4 ft to prevent voltage drop, and it is dimmable for adjustable lighting levels.

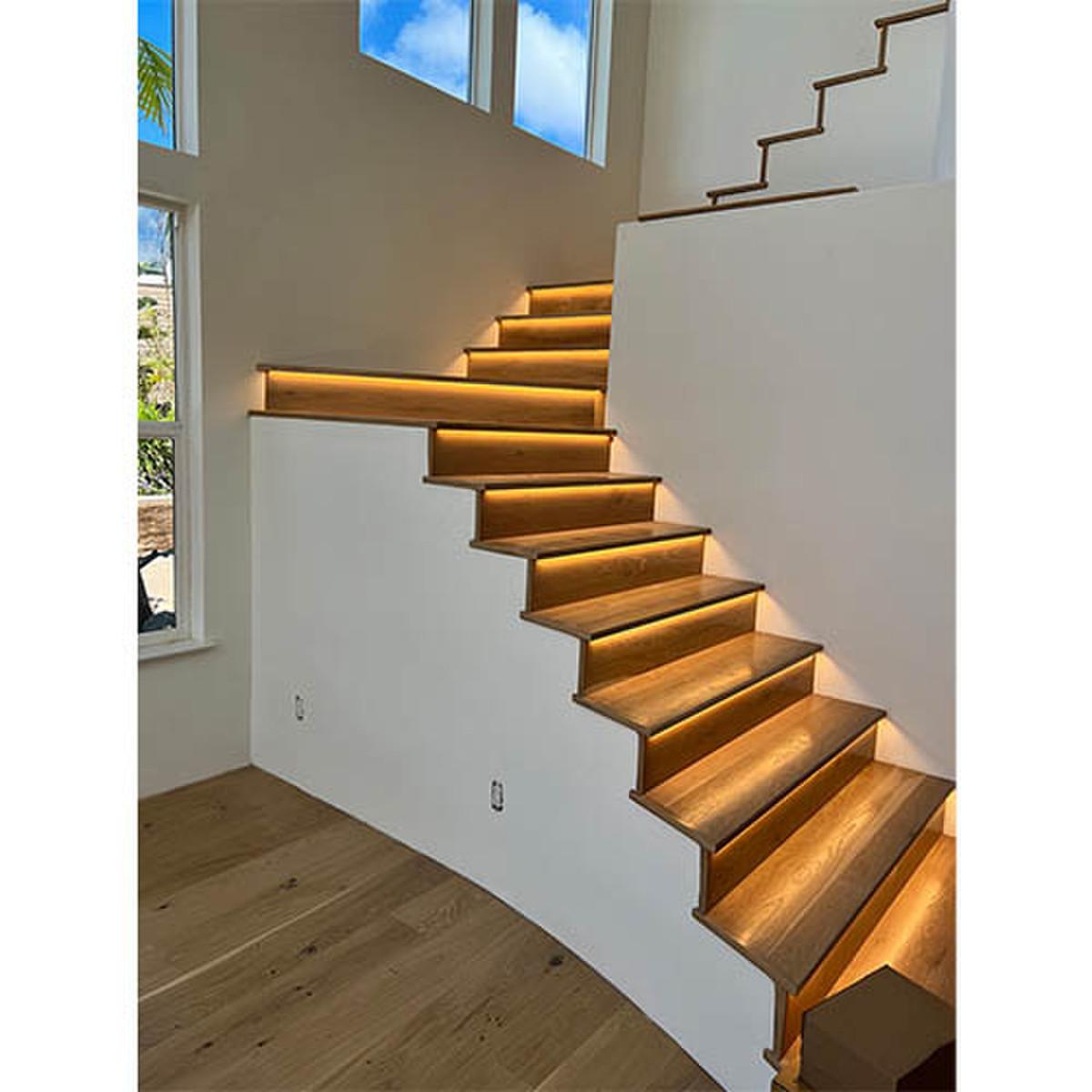

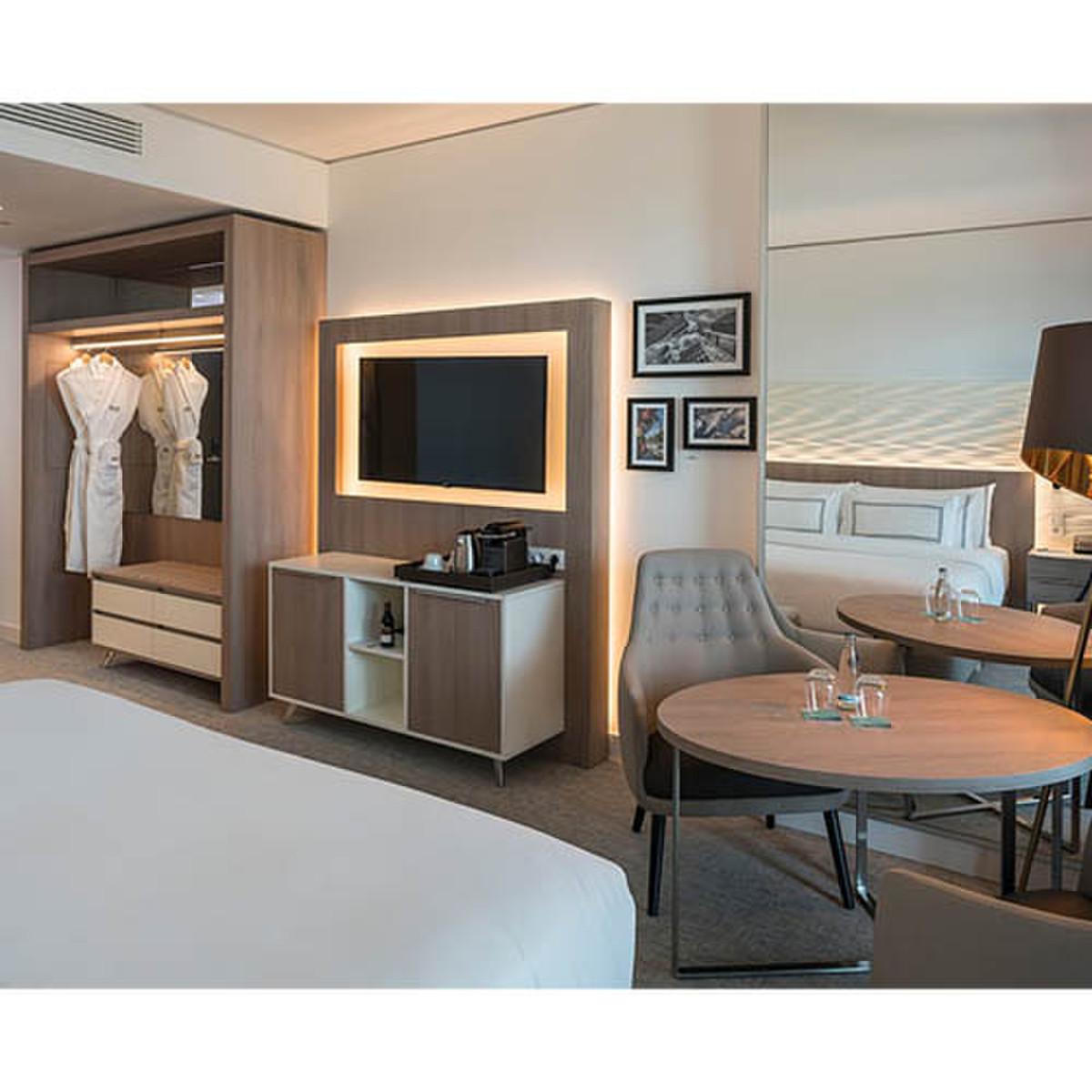

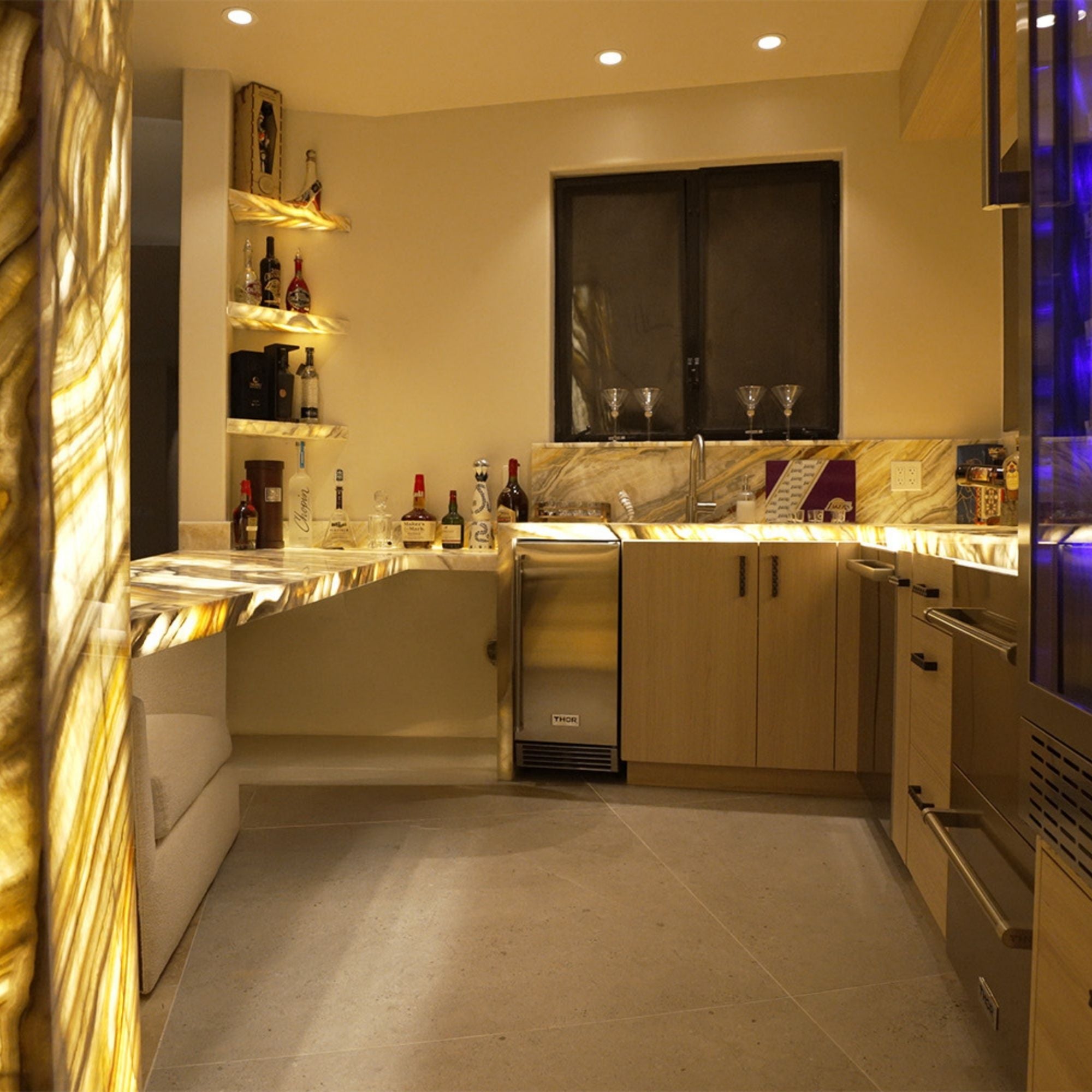

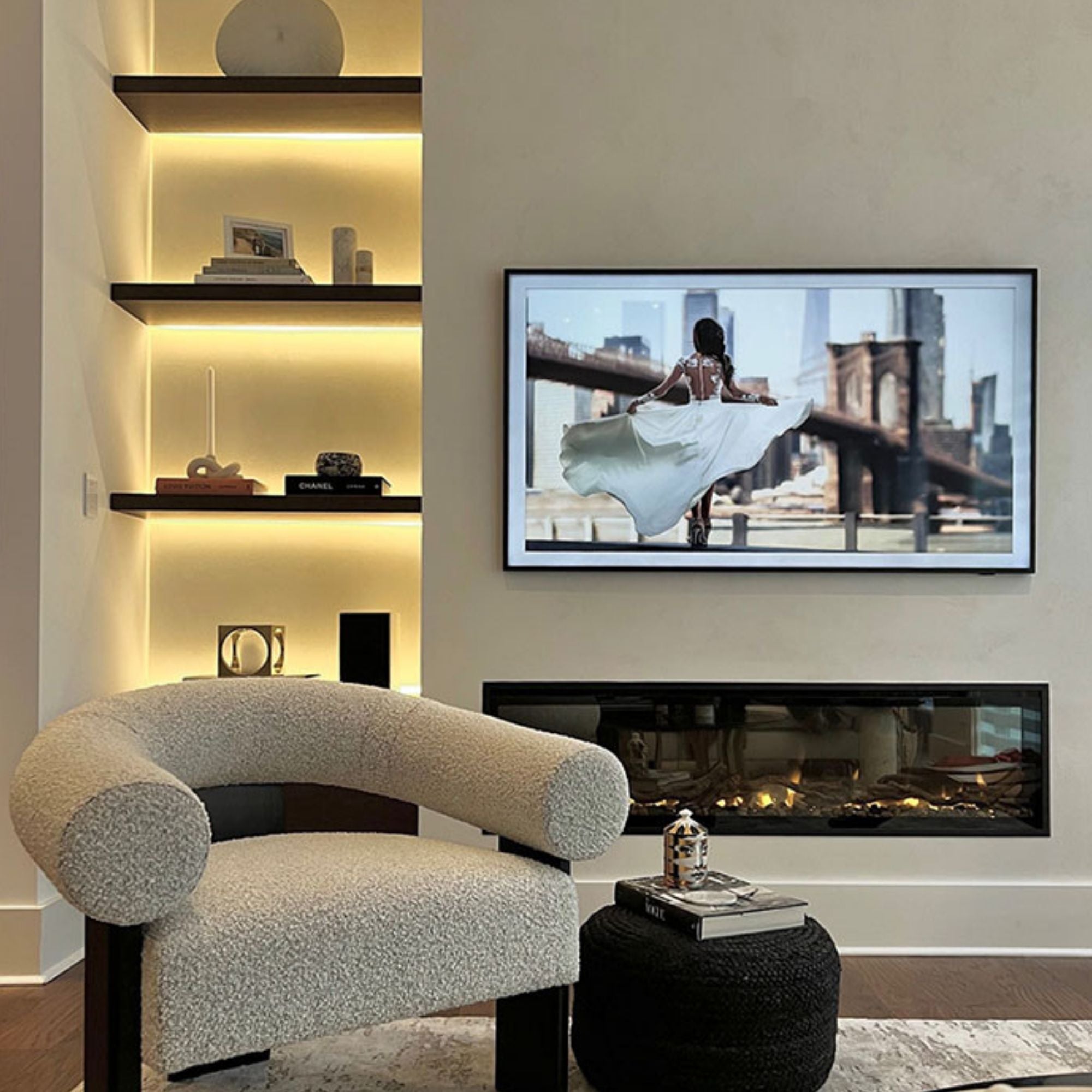

Where This Tape Works Best

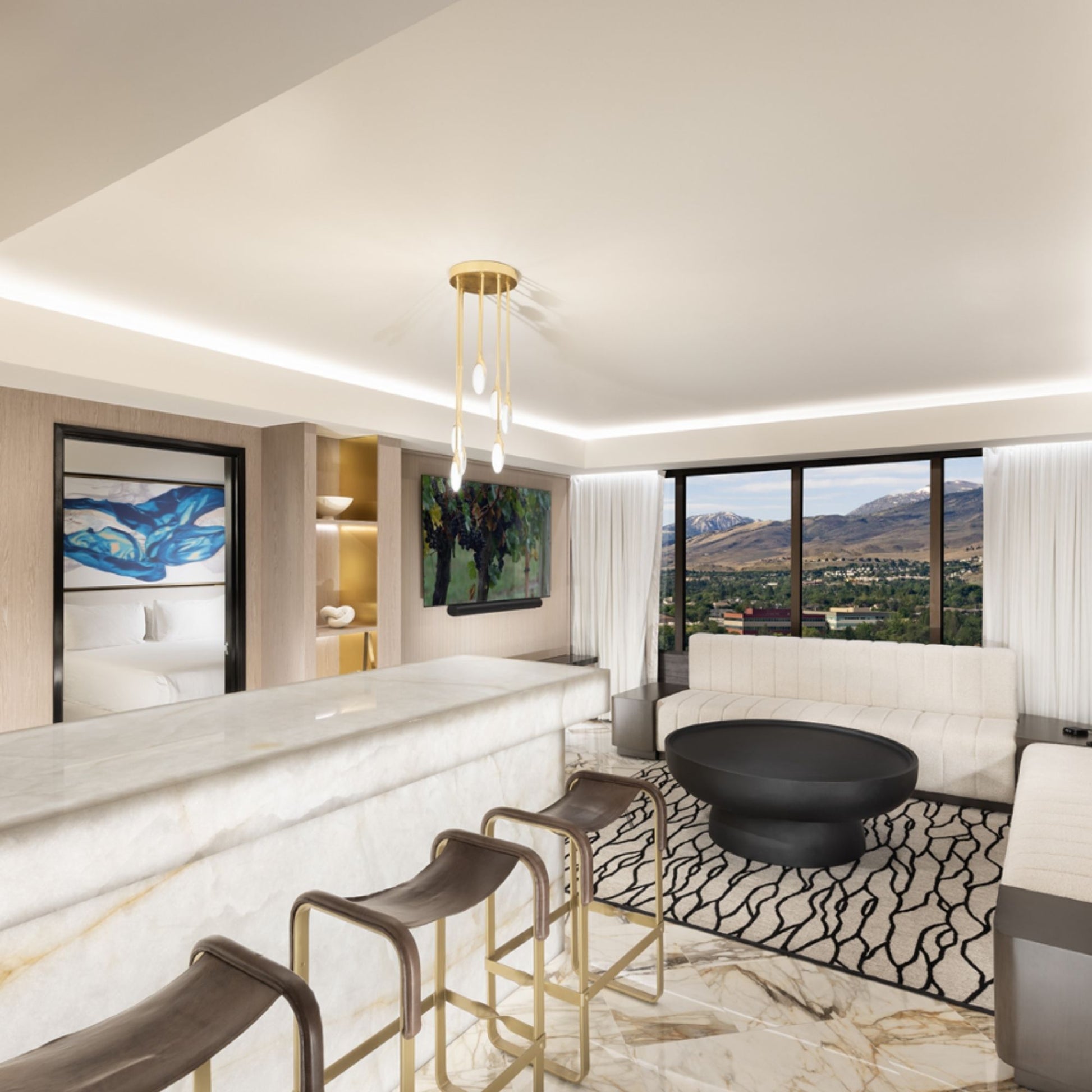

- Cove lighting for ambient illumination.
- Under cabinet lighting for task lighting.
- Accent lighting in retail displays.
- Architectural lighting for highlighting features.
What's Included
- 16 ft spool of LED tape light.
- 36 in. bare lead wire for easy connection.
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
