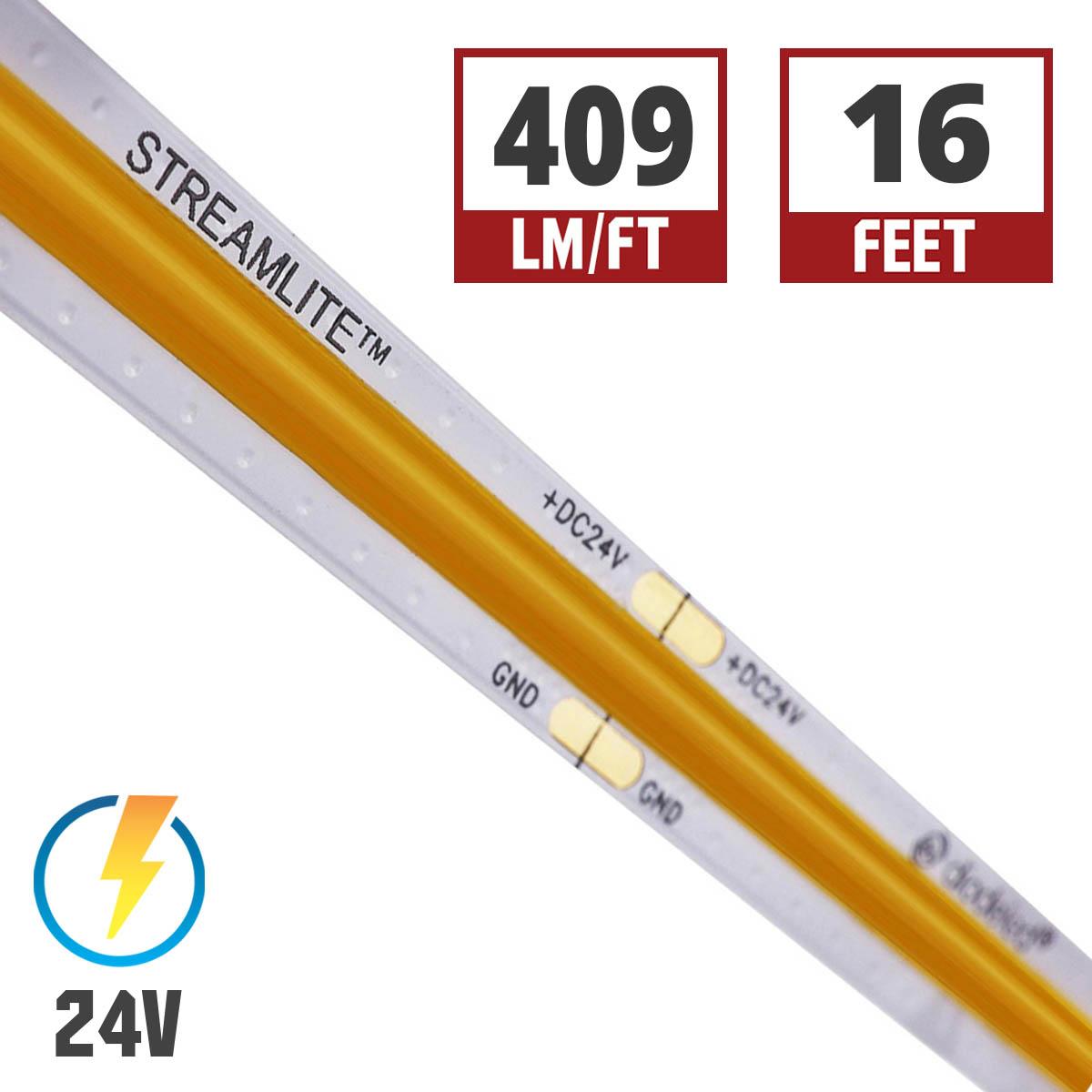

STREAMLITE™ Dotless LED Tape Light | 3000K Soft White | 409 Lm/Ft | 24V | 16.4 Ft Reel
STREAMLITE™ Dotless LED Tape Light | 3000K Soft White | 409 Lm/Ft | 24V | 16.4 Ft Reel
Regular price
$209.95
Sale price
$209.95
Regular price
$0.00
Shipping calculated at checkout.
In stock
Choose your location
enter a US zip code
Must be ordered in quantities of .
Couldn't load pickup availability
About this item
About this item
- Uniform, diffused light with no visible LED hotspots, even without additional diffusion
- Ultra-Compact Design: 0.31" W × 0.08" H (Indoor) fits in the tightest spaces
- IP20 Indoor/Damp Location: Protected for interior applications including kitchens, closets, and commercial spaces
- UL Listed & Title 24: UL Listed 2108 Flexible Lighting Systems and California Title 24 compliant
- 10 Year Limited Warranty: Backed by Diode LED's comprehensive warranty program
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
Payment & Security
Payment methods
We process payments securely and do not store credit card information.
Description
Description
Overview

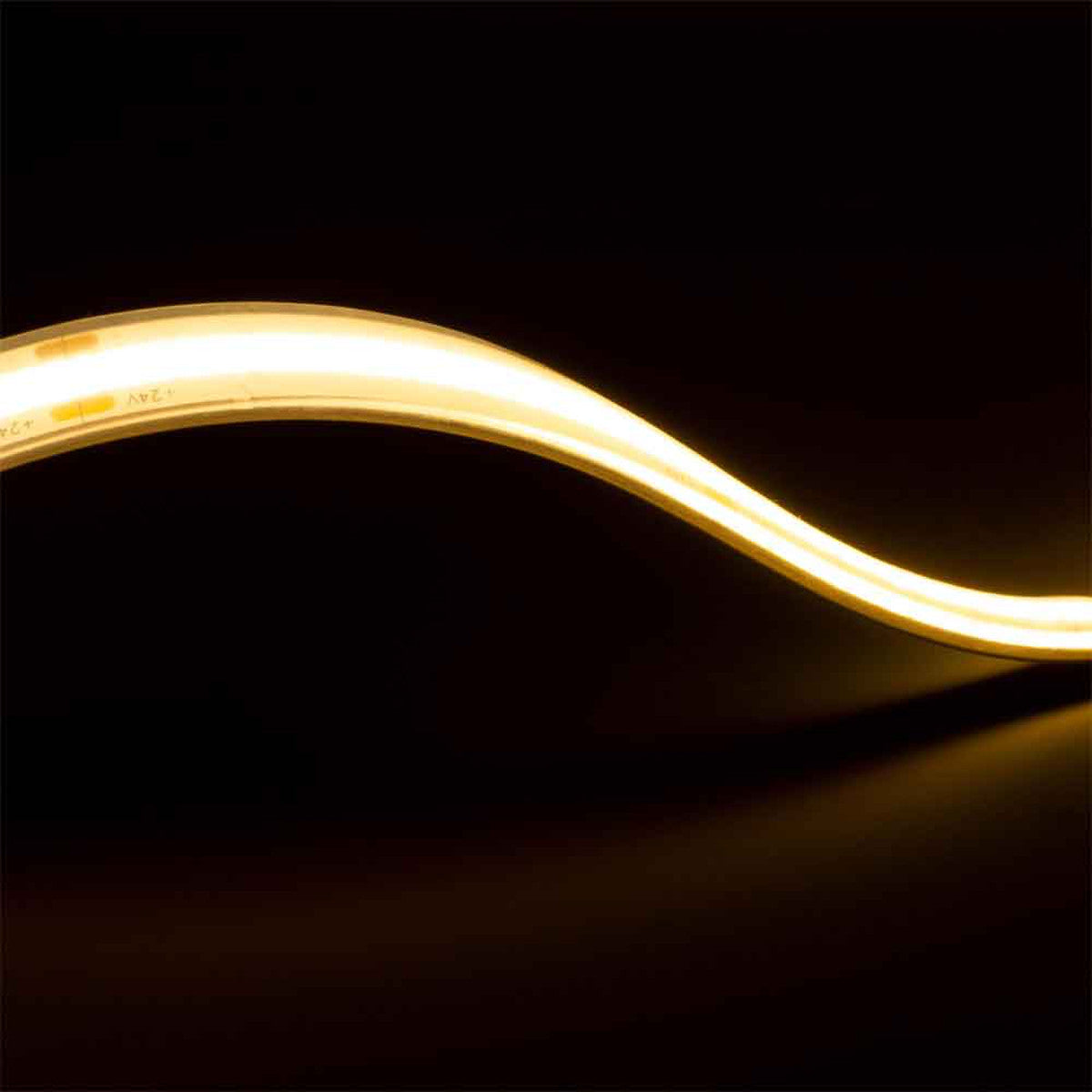

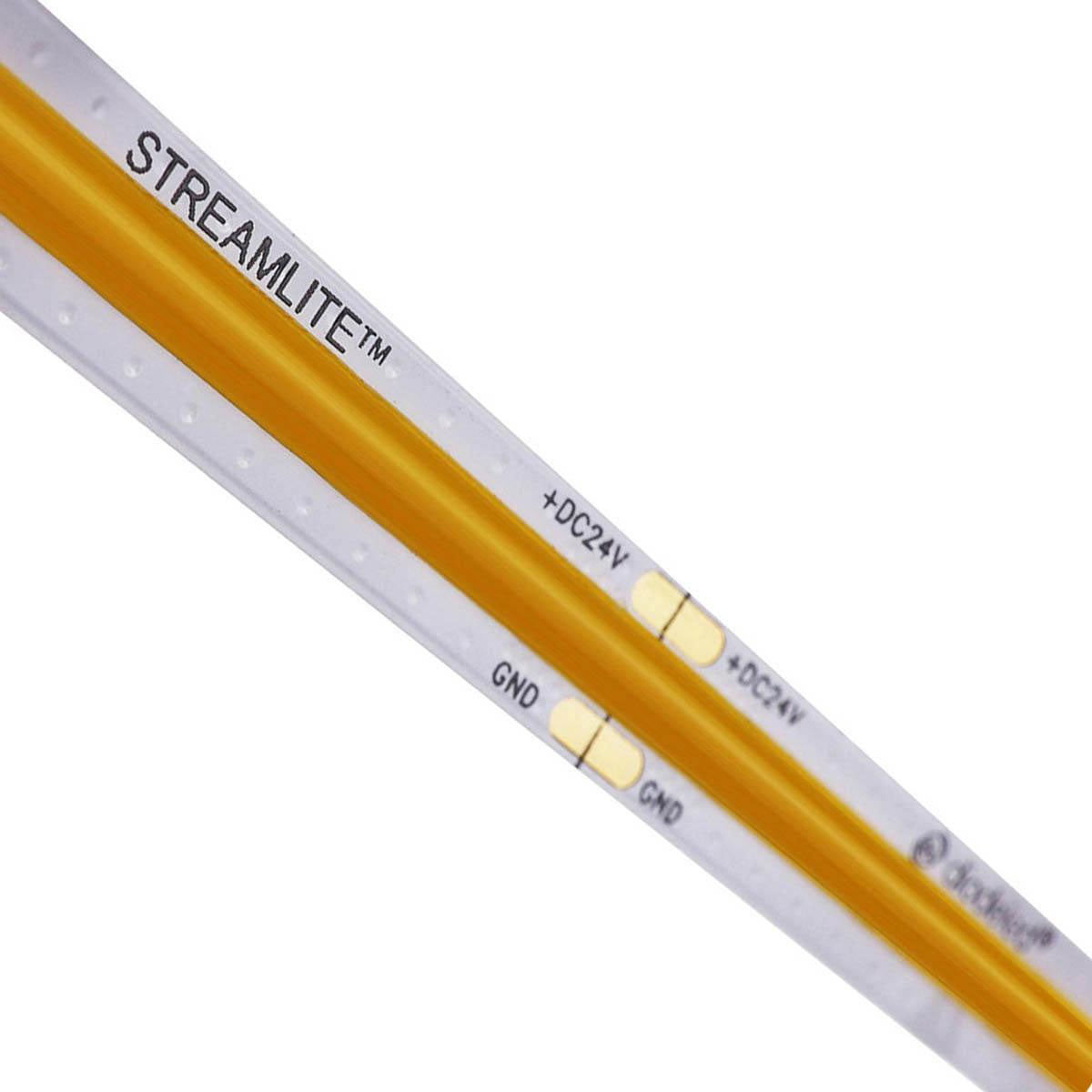

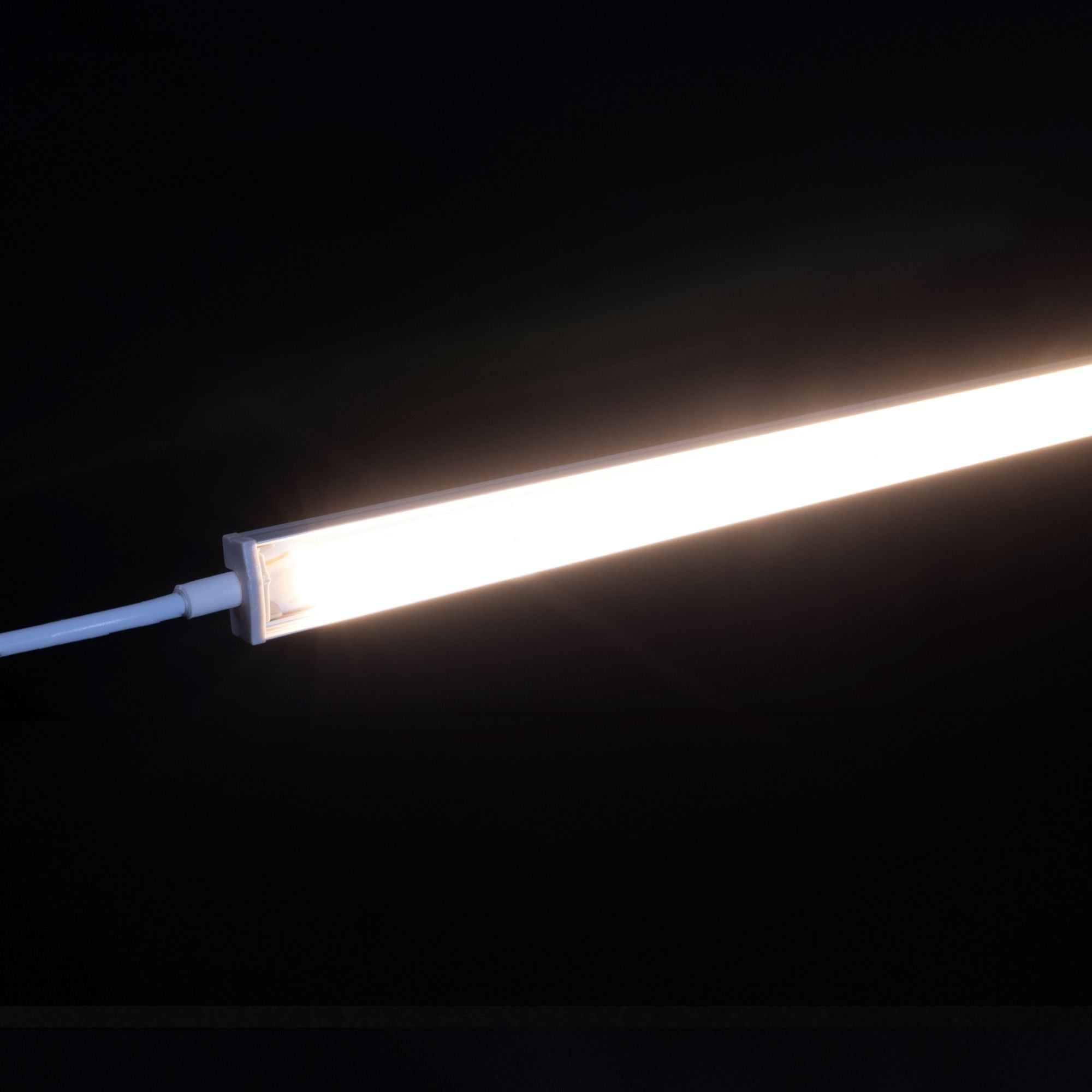

STREAMLITE™ LED Tape Light delivers dot-free linear lighting without any visible LEDs. Engineered for tight spaces and simple, impactful installations, this ultra-slim COB (Chip-on-Board) LED tape produces uniform, diffused light that appears dotless even without a diffusing lens. Ideal for architectural applications requiring seamless illumination in confined areas.
Features
- Dotless Appearance: Uniform, diffused light with no visible LED hotspots, even without additional diffusion
- Ultra-Compact Design: 0.31" W × 0.08" H fits in the tightest spaces
- Wide Beam Angle: 180° beam angle ensures even light distribution across surfaces
- High CRI: 90+ CRI for accurate color rendering in residential and commercial settings
- Dimmable: Compatible with 24V DC dimmers for full control over light levels
- Flexible Installation: 1.8" cut points for precise field customization
- Long Life: Rated for over 50,000 hours of operation
- Indoor/Dry Location: IP20 rated for protected interior applications
- 10-Year Limited Warranty: Backed by Diode LED's industry-leading warranty program
Specifications
- Model: DI-24V-STMLT4-30-016
- Voltage: 24V DC
- Color Temperature: 3000K (Soft White)
- Lumen Output: 409 Lm/Ft
- Wattage: 5 W/Ft
- Max Run Length: 16.4 Ft
- CRI: 90+
- Beam Angle: 180°

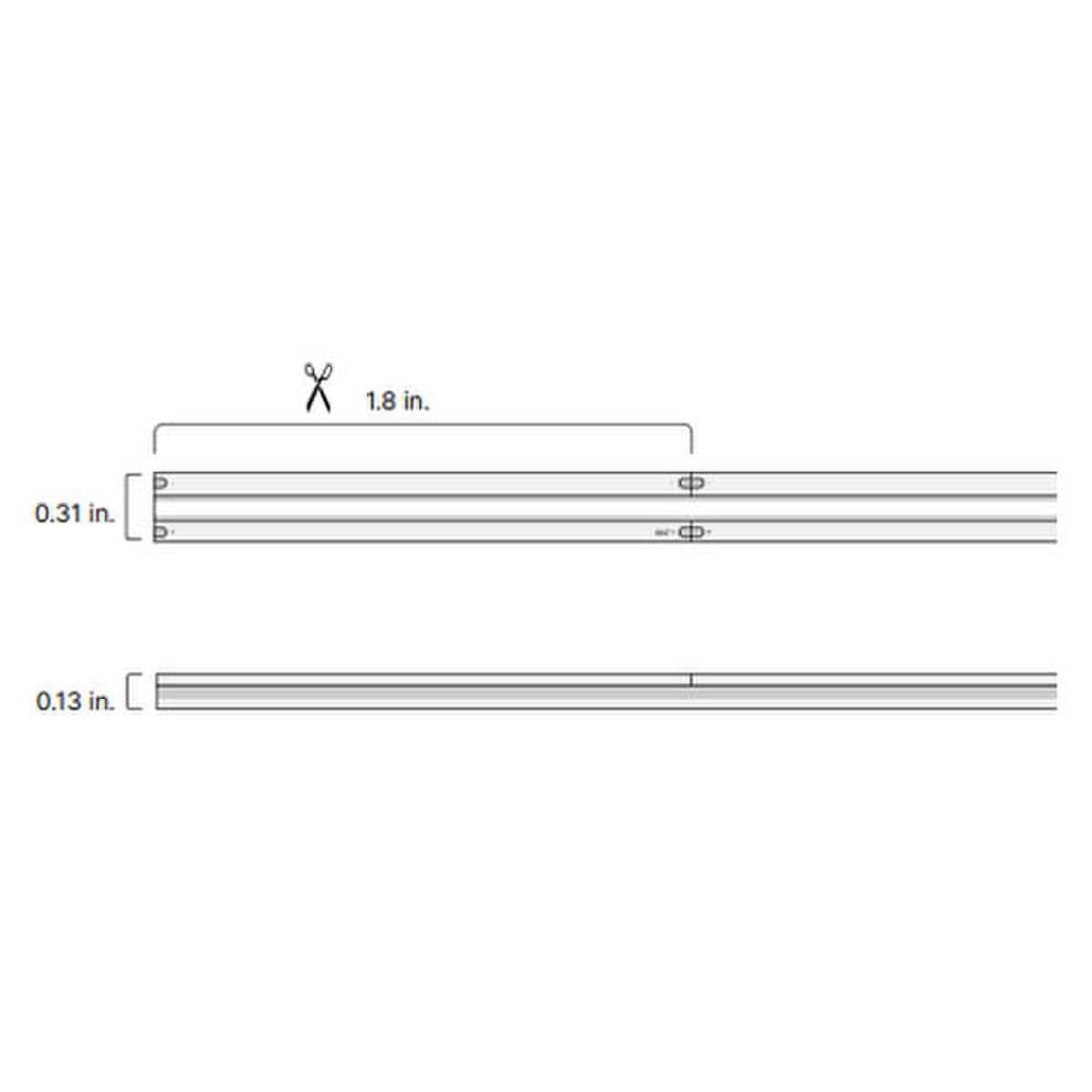

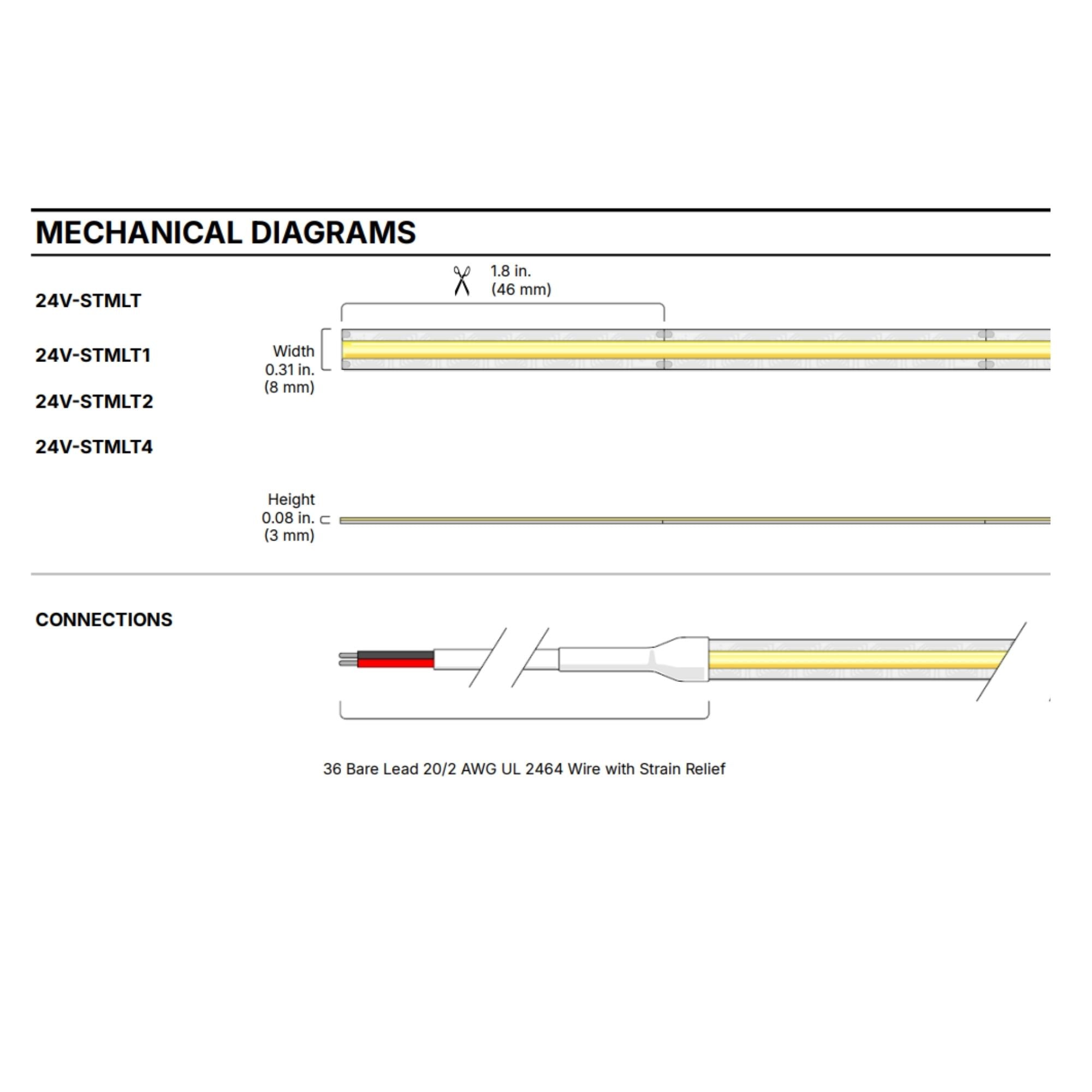

- Dimensions: 0.31" W × 0.08" H
- Reel Length: 16.4 Ft
- Cut Points: 1.8 in.
- LED Chips: 176/ft.
- IP Rating: IP20 (Indoor/Damp Location)
- LED Type: COB (Chip-on-Board)
- Lead Wire A: 36 in. Bare Lead 20/2 AWG UL 2464 Wire with Strain Relief
- Lead Wire B: 36 in. Bare Lead 20/2 AWG UL 2464 Wire with Strain Relief
- Certifications: UL Listed 2108, Title 24
- Warranty: 10 Year Limited Warranty
Applications

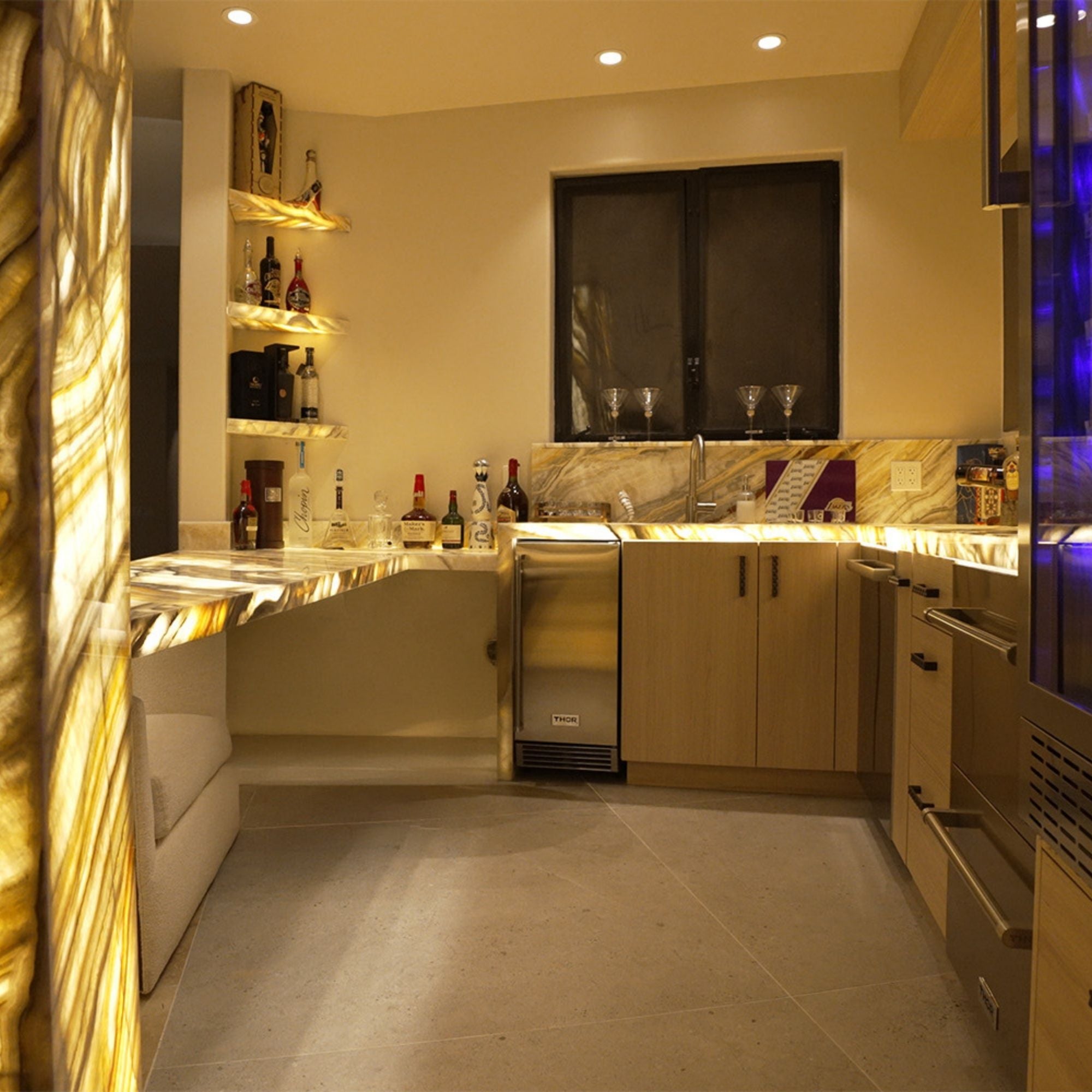

- Under-Cabinet Lighting: Seamless task lighting for kitchens and workspaces

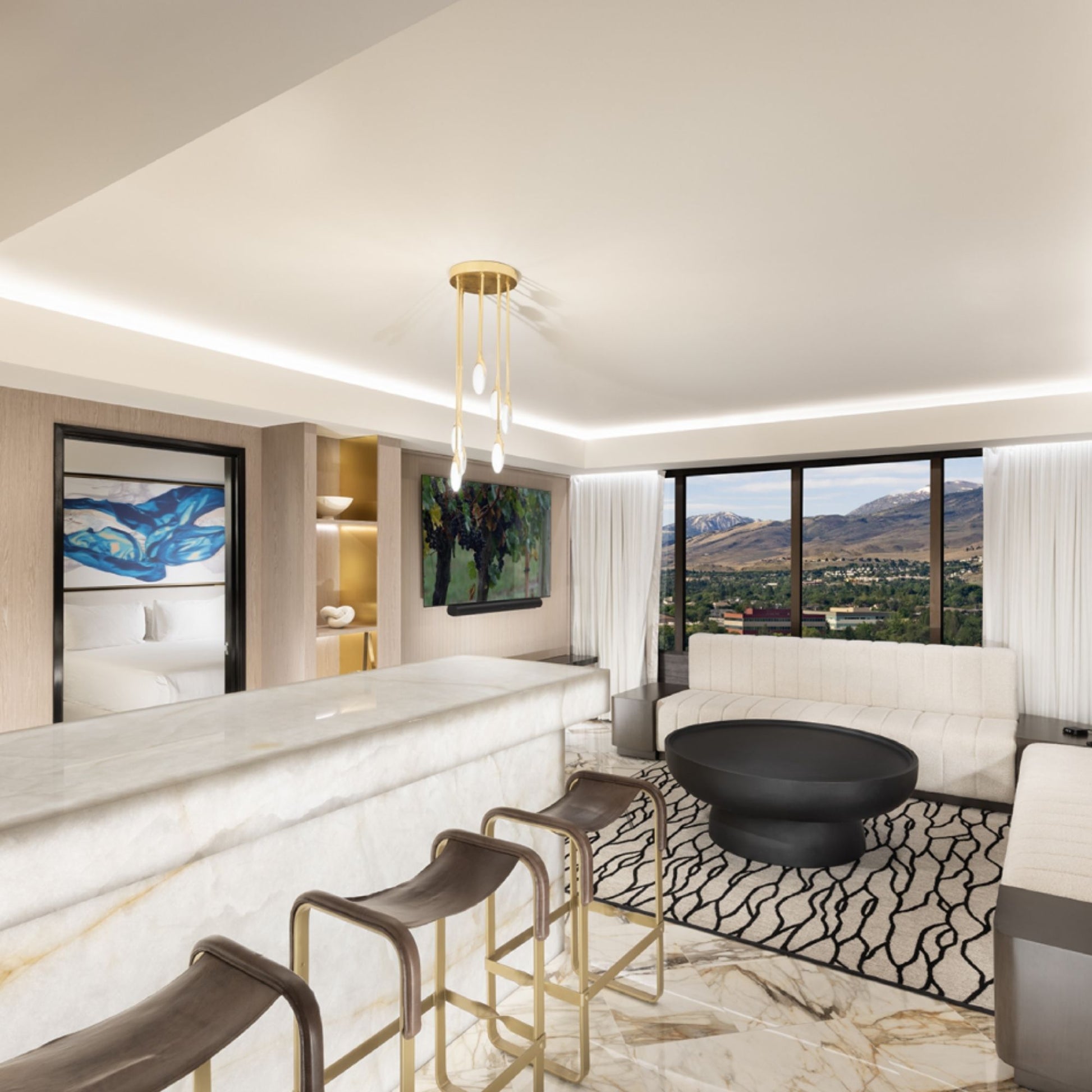

- Cove & Recessed Lighting: Indirect architectural accent lighting in tight channels
- Display & Retail: High-CRI illumination for merchandise and exhibits

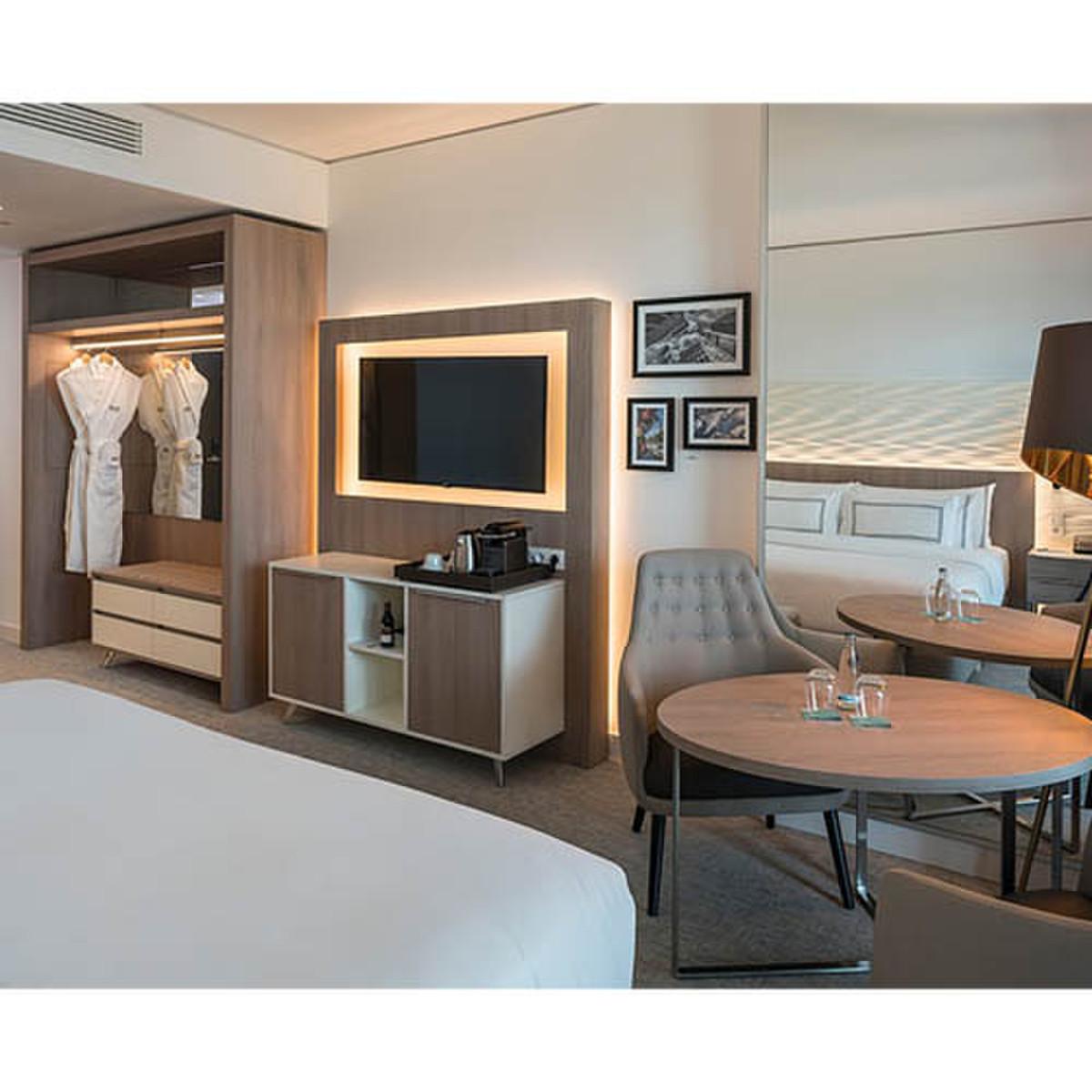

- Hospitality: Elegant linear lighting for hotels, restaurants, and bars

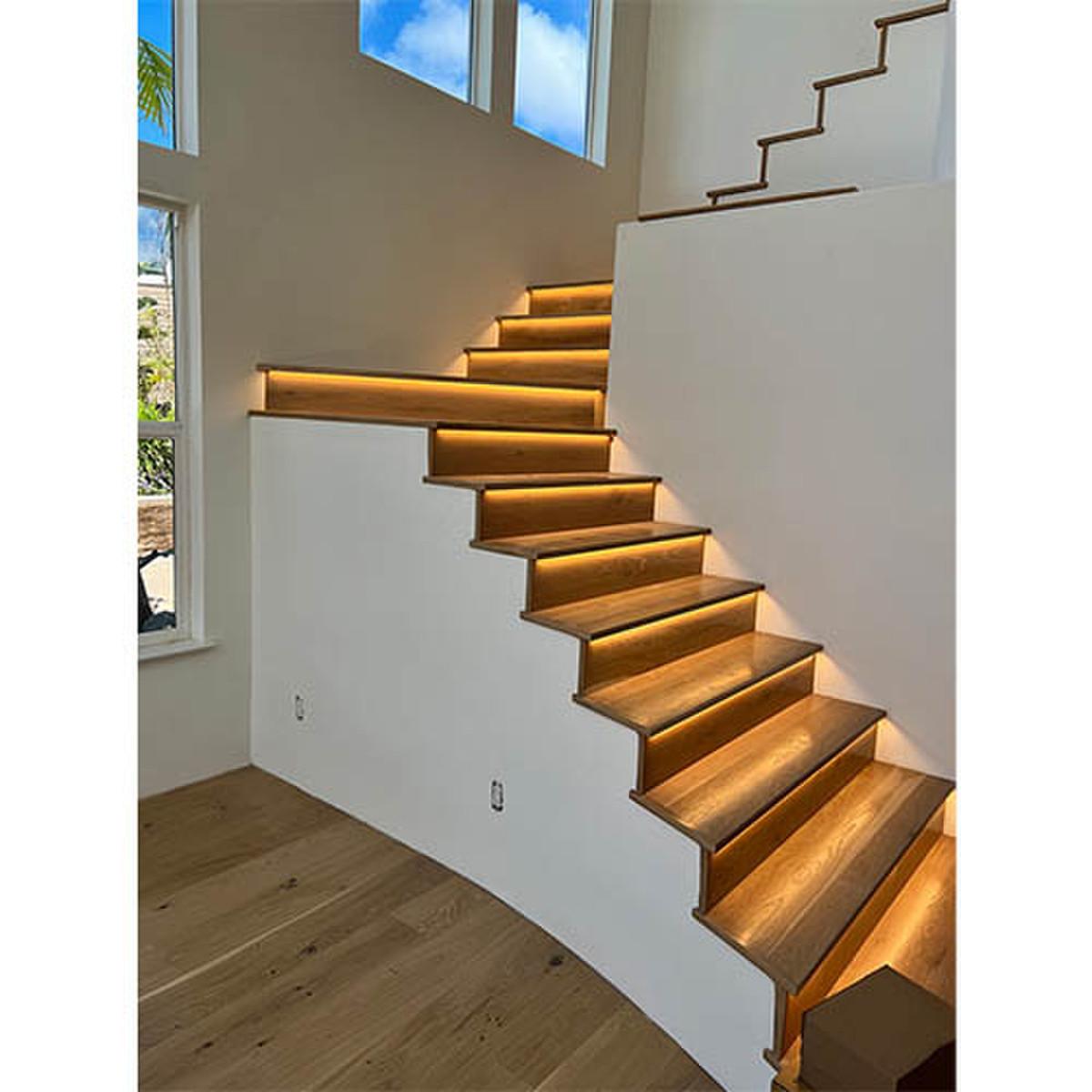

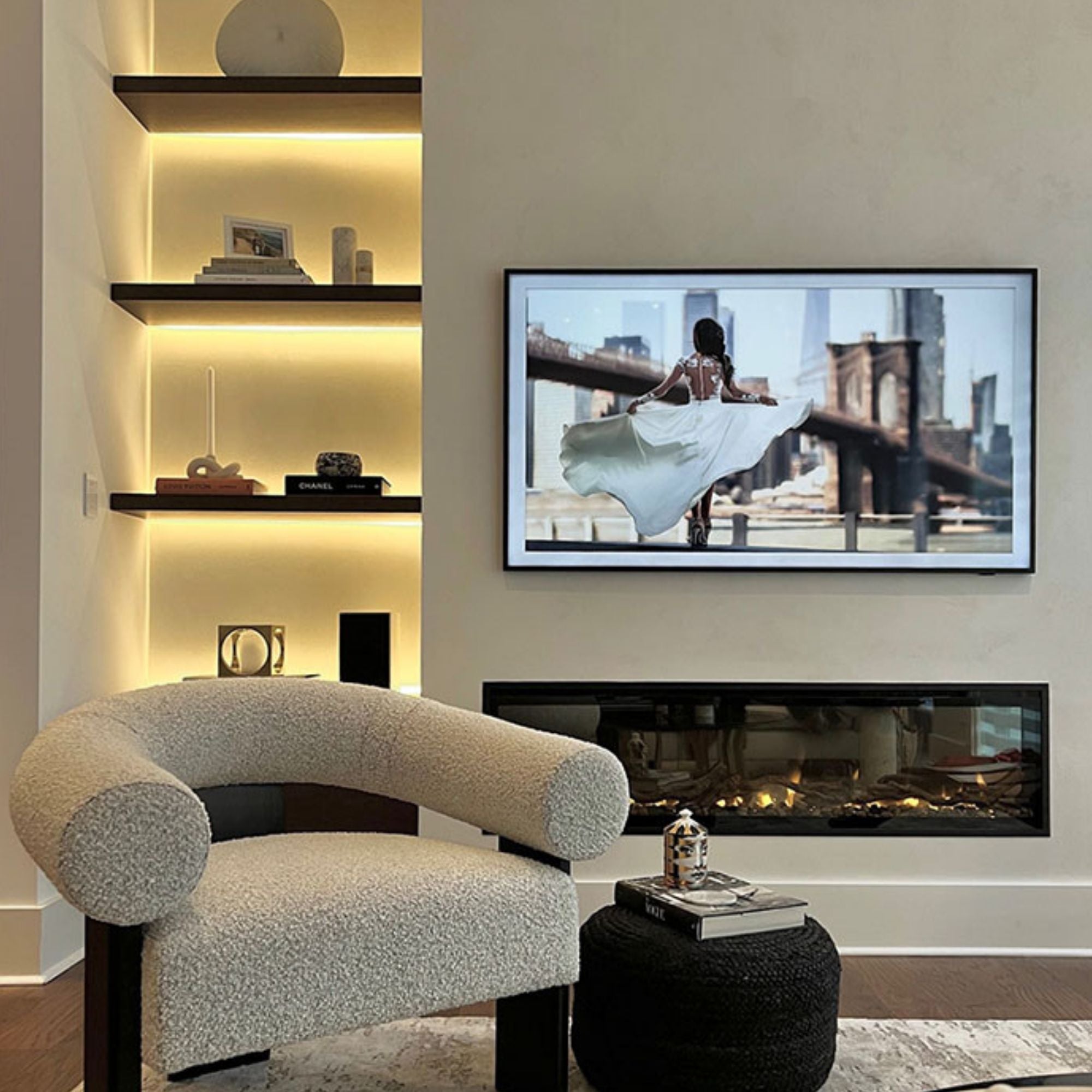

- Residential: Closets, shelving, toe-kicks, and decorative accent lighting
- Commercial: Office spaces, reception areas, and feature walls
Note: Requires compatible 24V DC power supply (sold separately). Maximum run length: 16.4 ft. Consult specification sheet for complete installation requirements and compatibility.
Specifications
Specifications
Dimensions
Length/Depth
192 in
Width/Diameter
0.31 in
Height
0.08 in
Weight
0.25 lb
Documents
Characteristics & Features
Lamp Color
3000K
Color Rendering
90 CRI
Beam Angle
180
Dimmable
Yes
Electrical Information
Voltage
24V
Item Details
SKU
DI-24V-STMLT4-30-016
Brand
Diode LED
Family
Streamlite
UPC
848333033384
Warranty & Certifications
Product Warranty
10-year limited warranty
Lamp Life
50,000 Hours
Product Rating
Damp Rated, IP20 Rated
Frequently Asked Questions
Can I cut LED strip lights to a specific length?
Can I cut LED strip lights to a specific length?
Yes, LED strip lights are designed to be cut to length at designated points, typically marked by a small black line or scissor icon every few inches. Cutting at these marks will ensure the electrical circuit remains functional.
What is the main difference between 12V and 24V LED strip lights?
What is the main difference between 12V and 24V LED strip lights?
The main difference is the maximum run length. 24V LED strip lights can run longer distances (typically up to 60 feet) before experiencing noticeable voltage drop, while 12V LED strip lights are best used for shorter, simpler applications (up to 30 feet).
What is the benefit of COB LED Strip Lights over SMD strips?
What is the benefit of COB LED Strip Lights over SMD strips?
COB LED Strip Lights use Chip-on-Board technology, which packs the LEDs tightly together to produce a single, continuous line of light. This eliminates the individual "dots" or "hot spots" visible in standard SMD LED tape light, creating a cleaner aesthetic.
Do all LED strip lights require an external driver?
Do all LED strip lights require an external driver?
Only low-voltage LED strip lights (12V and 24V) require an external power supply or LED driver to convert 120V house power down to a safe working voltage. 120V LED Strip Lights connect directly to the wall outlet and do not require an external driver.
How do I install my flexible LED strip for a clean, professional look?
How do I install my flexible LED strip for a clean, professional look?

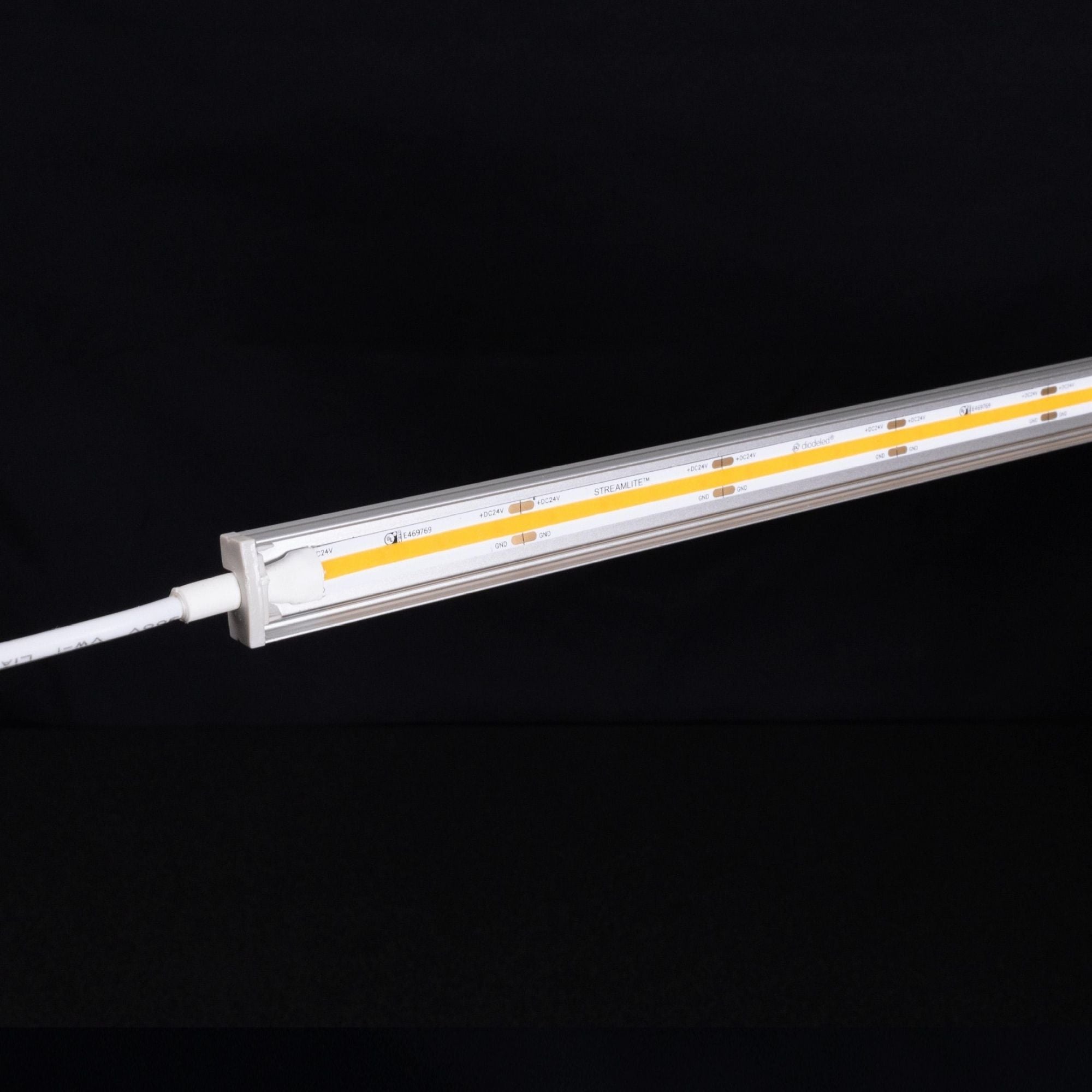

For the cleanest appearance, mount your flexible LED strip inside an aluminum channel with a frosted diffuser. This provides better heat dissipation, protects the strip, and turns the segmented light into a smooth, continuous line of strip lighting.
