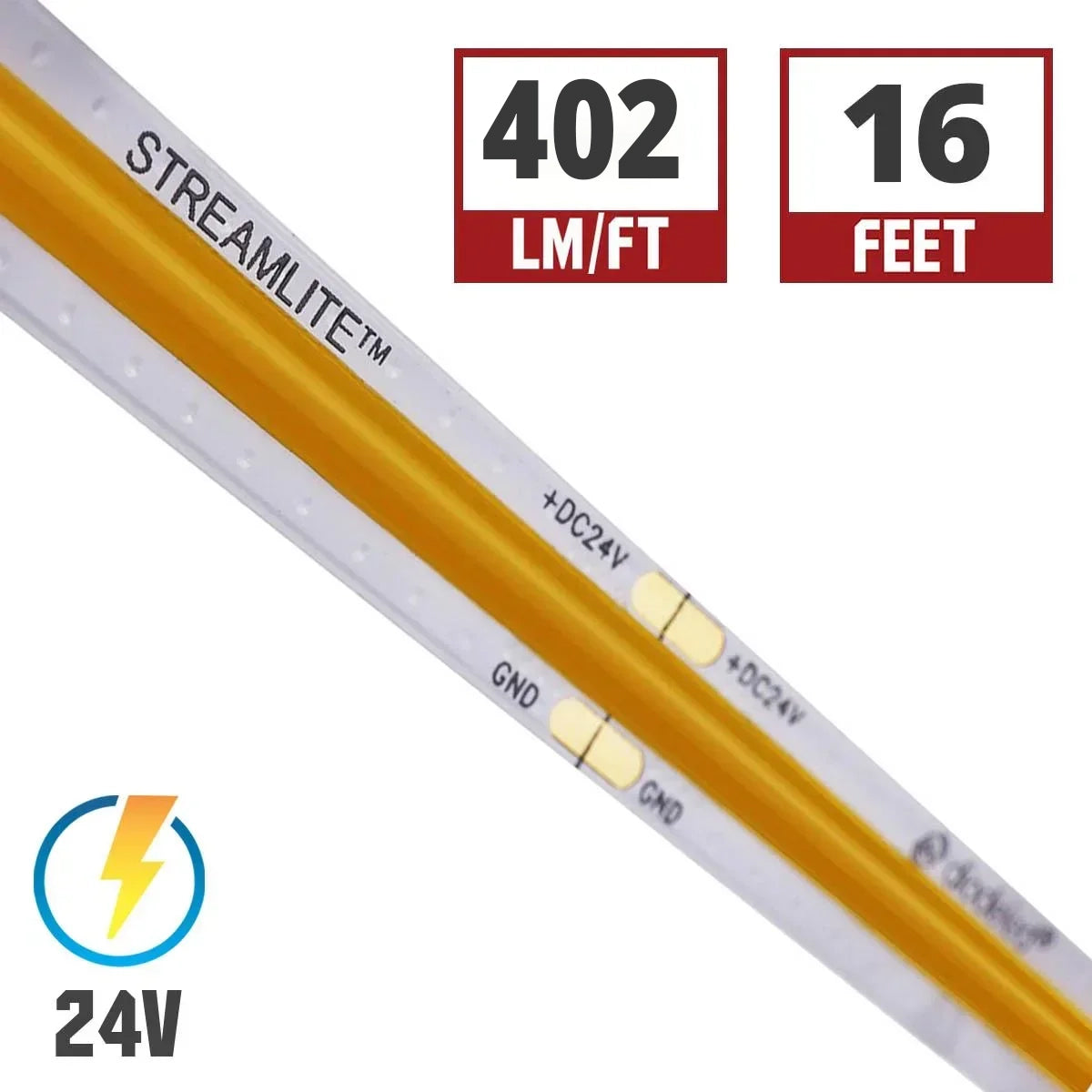

Diode LED Streamlite 16 ft. LED Tape Light, 2700K, 402 Lumens/ft, 24V
Available in stock (100)
About this item
About this item
- Voltage: Operates at 24V DC for efficient power consumption and compatibility with low-voltage systems.
- Color Temperature: Provides a warm 2700K light, ideal for creating cozy and inviting spaces.
- Lumens per Foot: Delivers 402 lumens per foot, ensuring bright and effective illumination.
- Max Run: Supports a maximum run of 16.4 feet, allowing for extended installations without significant voltage drop.
- Cuttable Increments: Can be cut every 1.8 inches, offering flexibility for custom installations.
We process payments securely and do not store credit card information.
Description
Description

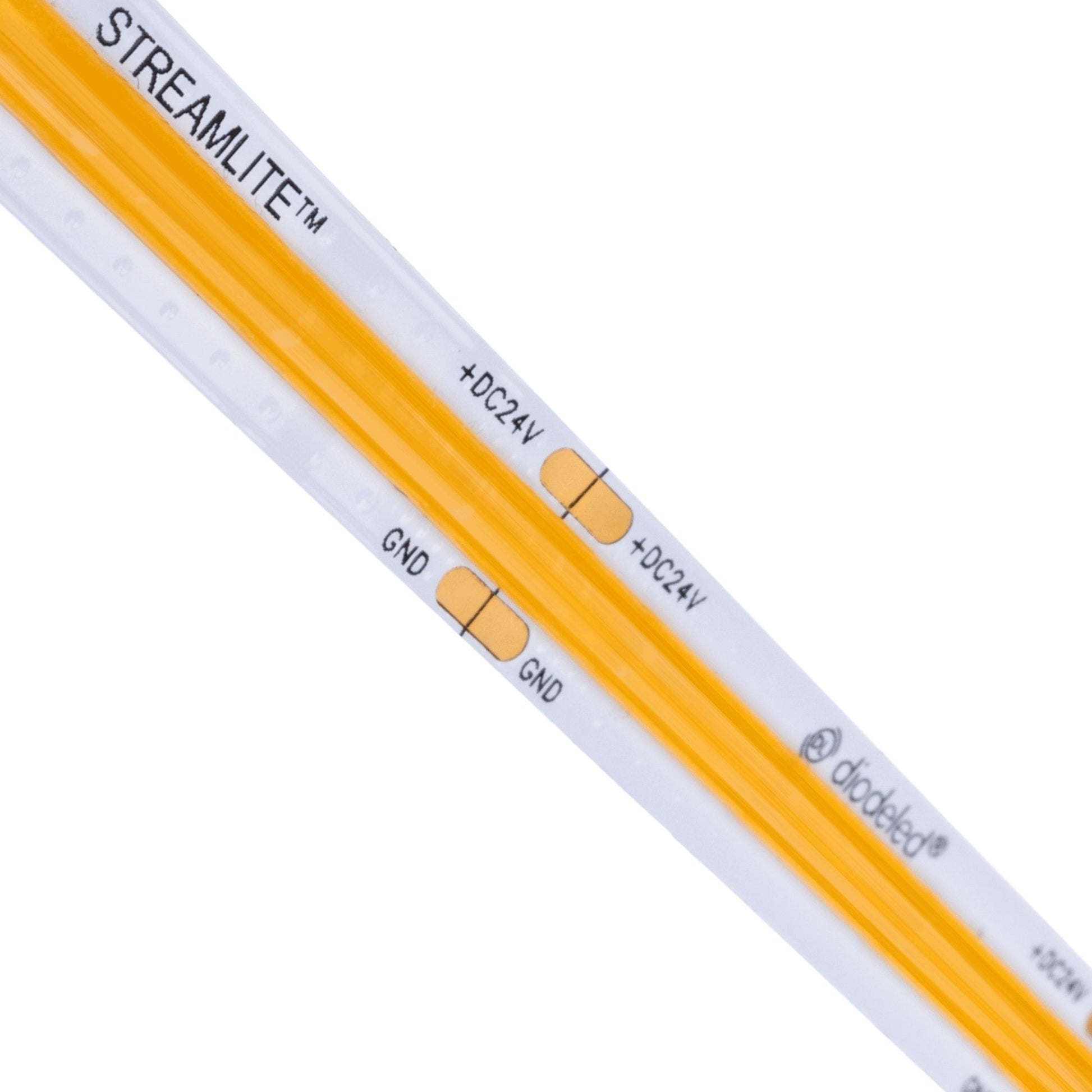

Diode LED Streamlite LED Tape Light — 2700K & COB Dotless
The Diode LED DI-24V-STMLT4-27-016 is a 16-foot LED tape light designed for indoor applications. Featuring a 2700K color temperature, this tape light provides a warm and inviting glow. It operates at 24V DC, making it suitable for low-voltage systems and is IP20 rated for indoor use.
Key Features
- Voltage: 24V DC for efficient power usage.
- Wattage: 3.3W per foot for energy-efficient lighting.
- Lumens per Foot: 402 lumens for bright illumination.
- LEDs per Foot: 176 LEDs for uniform light distribution.
- Maximum Run: 16.4 feet to prevent voltage drop.
- Cuttable Increments: 1.8 inches for custom lengths.
- PCB Width: 0.31 inches for compatibility with standard channels.
- Beam Angle: 180 degrees for wide light spread.
- IP Rating: IP20 for indoor use.
- Certifications: UL Listed, RoHS Compliant, Title 24.
Core Design & Construction

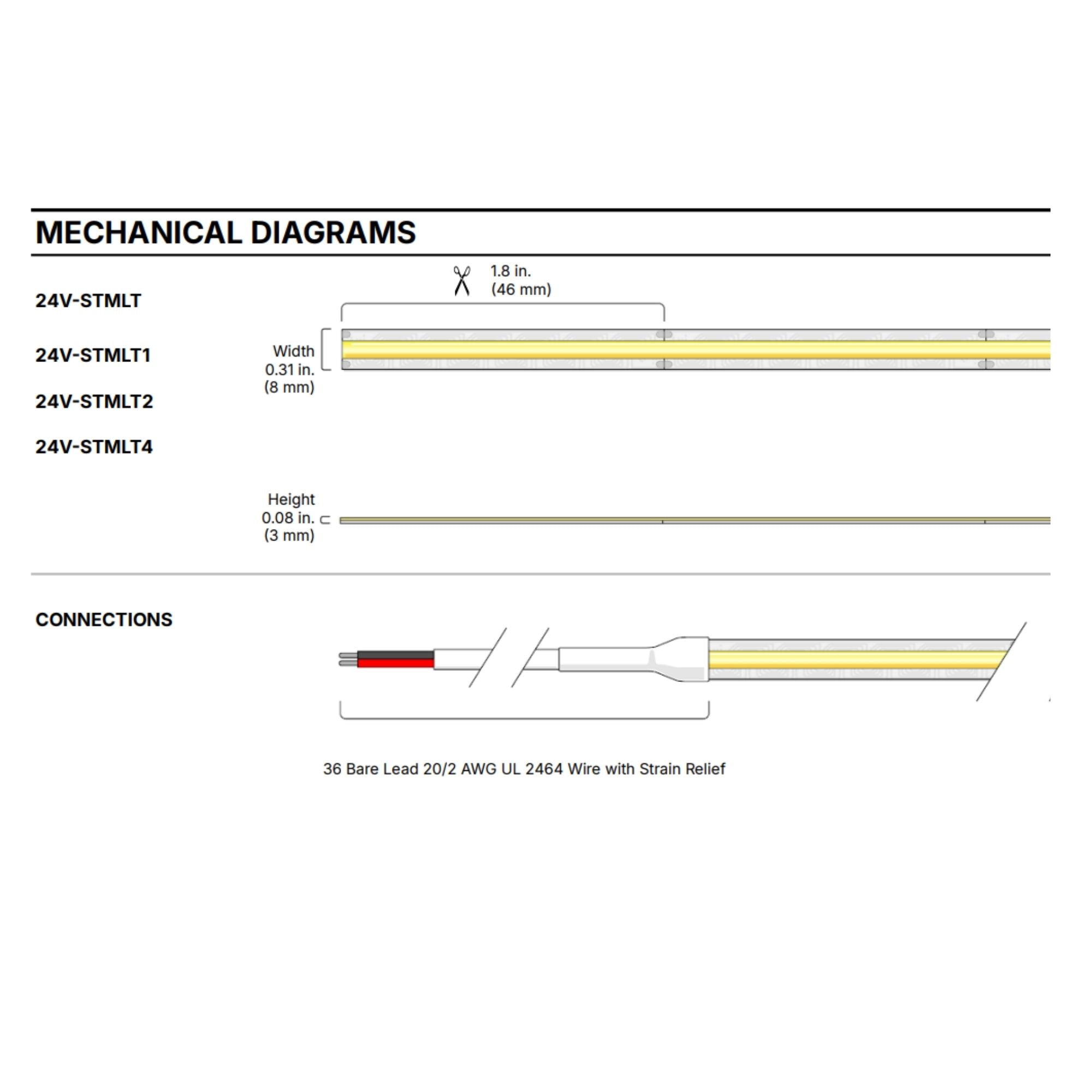

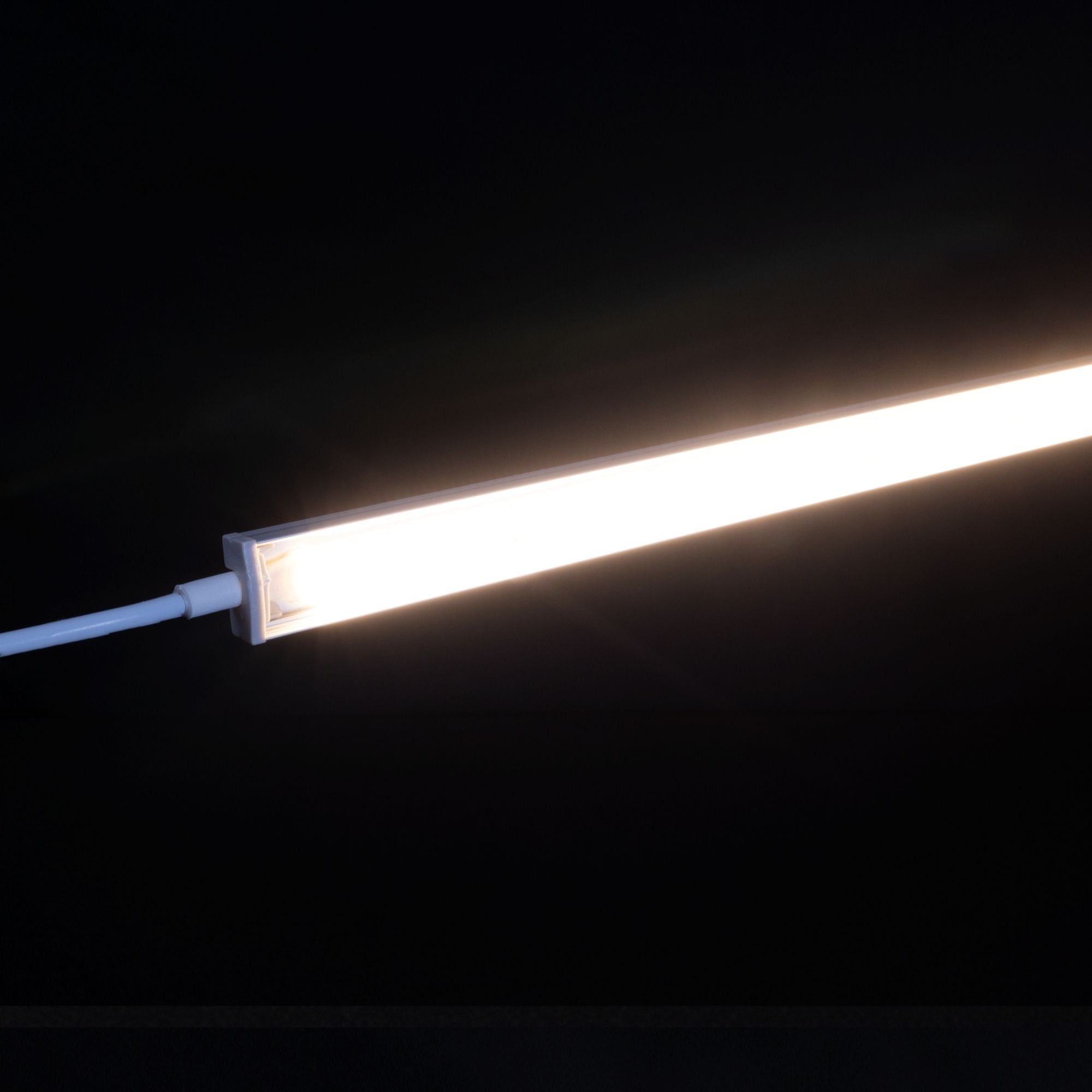

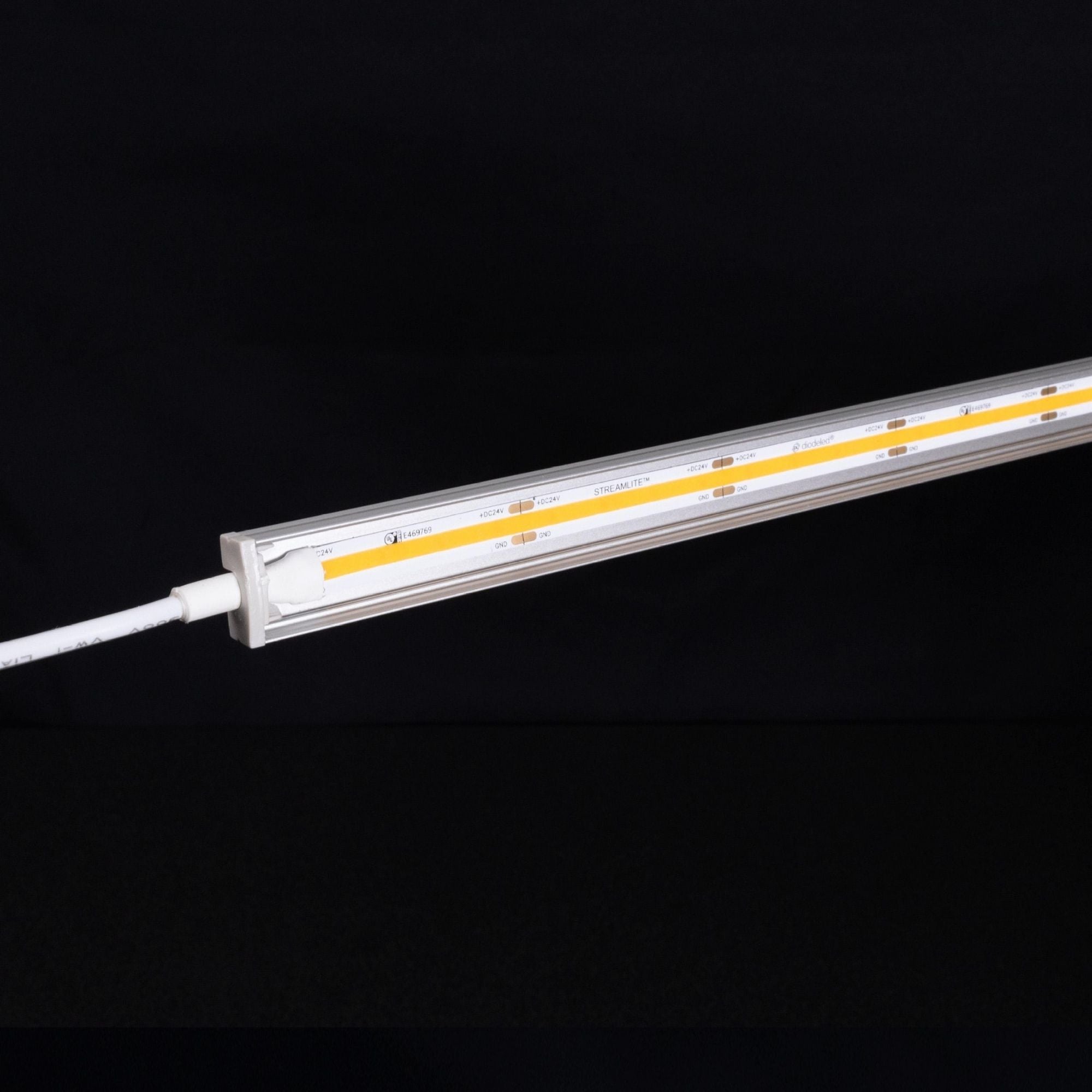

The Streamlite tape light features a narrow 0.31-inch PCB width, making it compatible with various aluminum channels. Its dotless COB design ensures a smooth and continuous light output without visible LED points. The tape light includes a durable adhesive backing for easy installation on clean surfaces.
LED Illumination & Performance
With 402 lumens per foot and a high CRI of 90+, this tape light delivers vibrant and accurate color rendering. The COB technology provides a seamless and dot-free illumination, ideal for creating ambient lighting in residential and commercial spaces.
Power, Wiring & Installation
This tape light requires a 24V DC driver for operation. It is field-cuttable every 1.8 inches, allowing for precise length adjustments. The maximum continuous run is 16.4 feet to prevent voltage drop. It is dimmable, offering flexibility in light intensity control.
Where This Tape Works Best

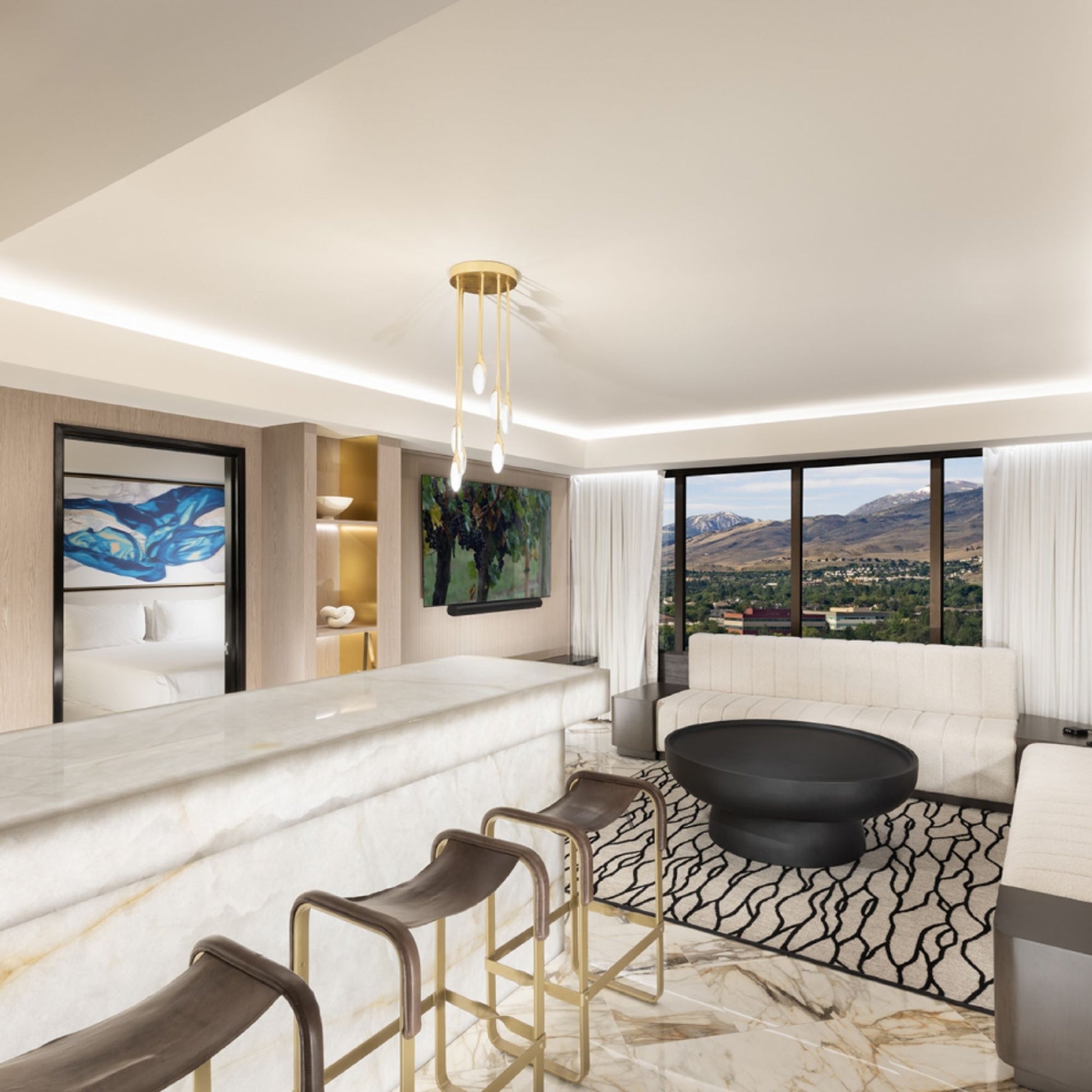

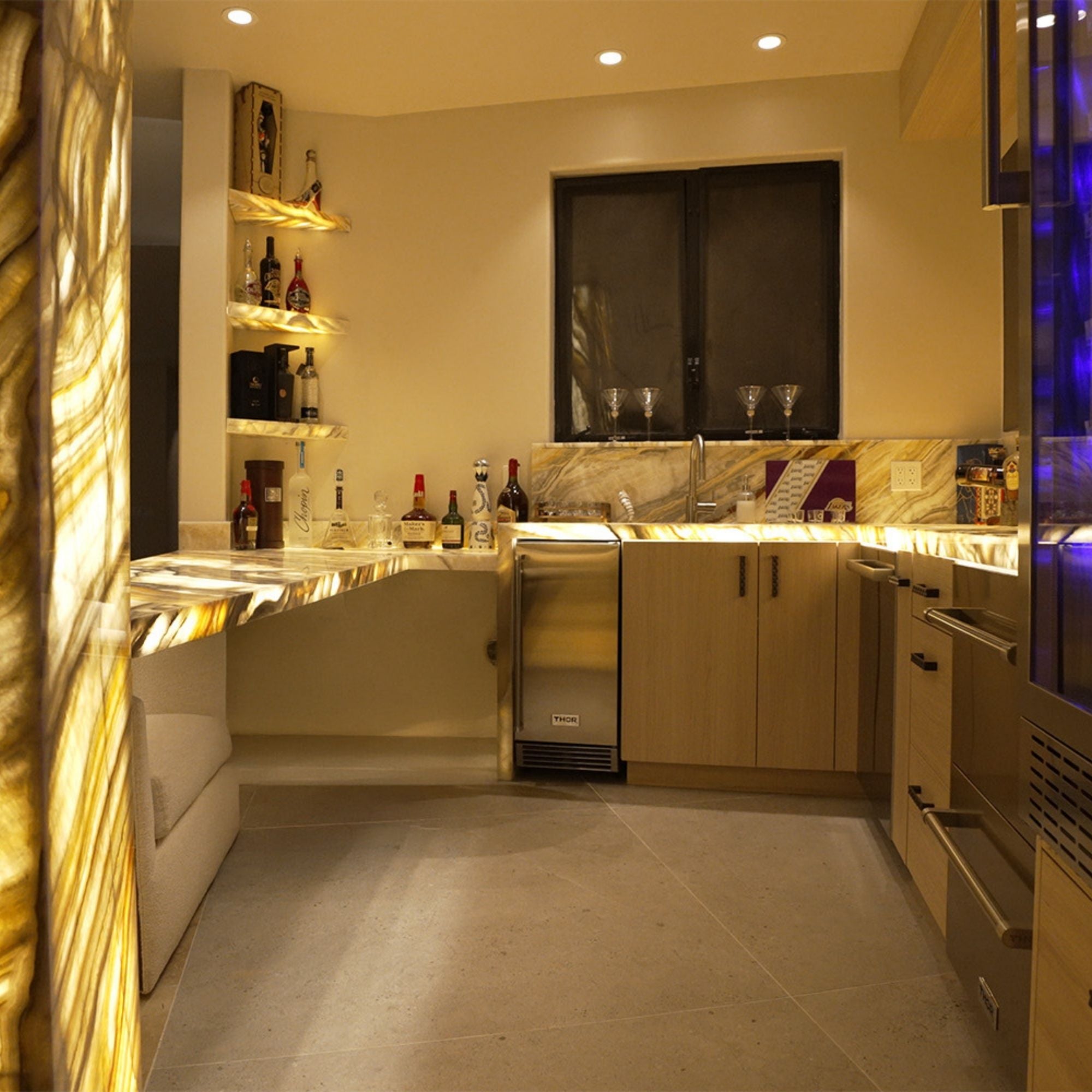

- Cove lighting
- Under cabinet lighting

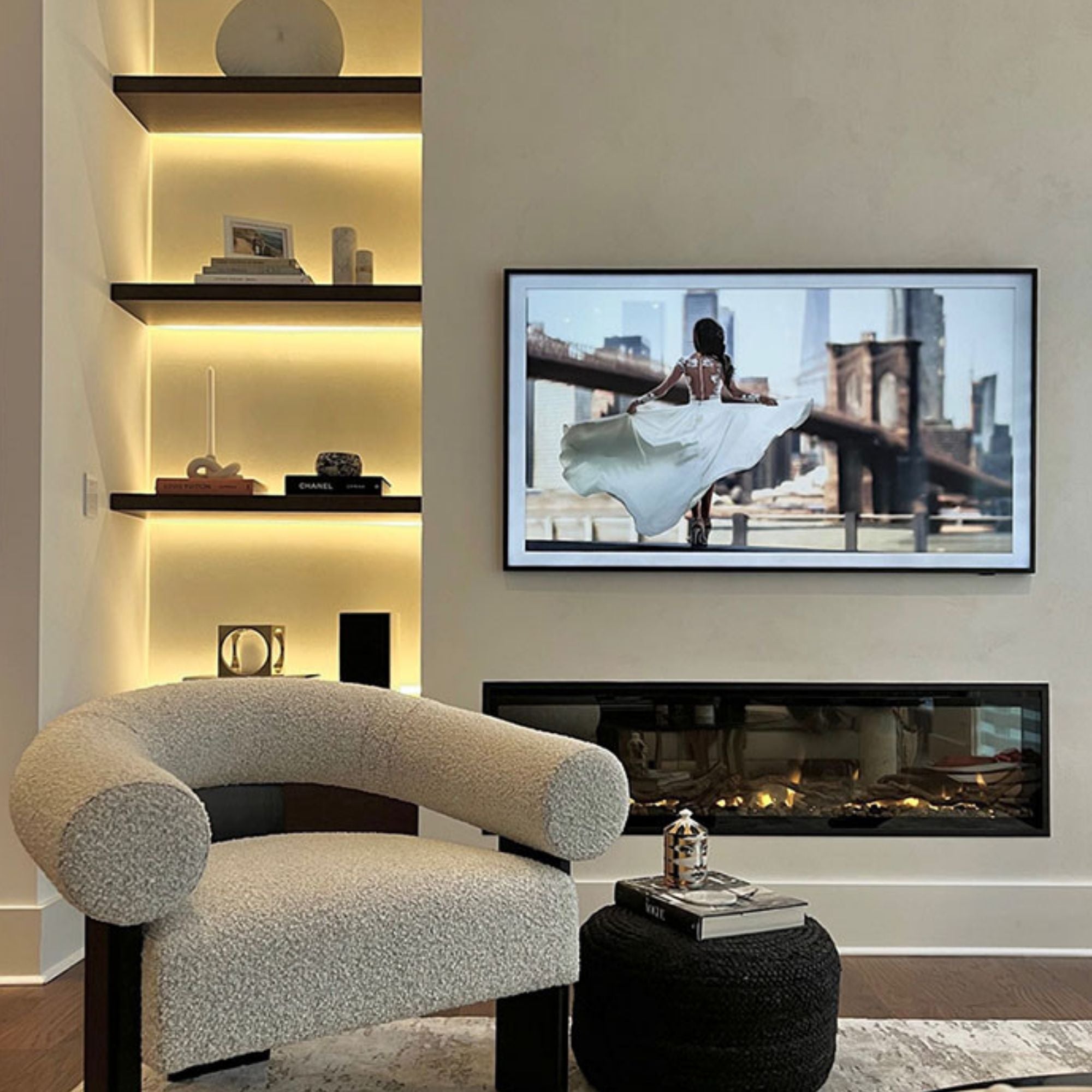

- Accent lighting
- Display case lighting
- Architectural lighting
What's Included
- 16 ft. spool of LED tape light
- 36 in. bare lead wire
