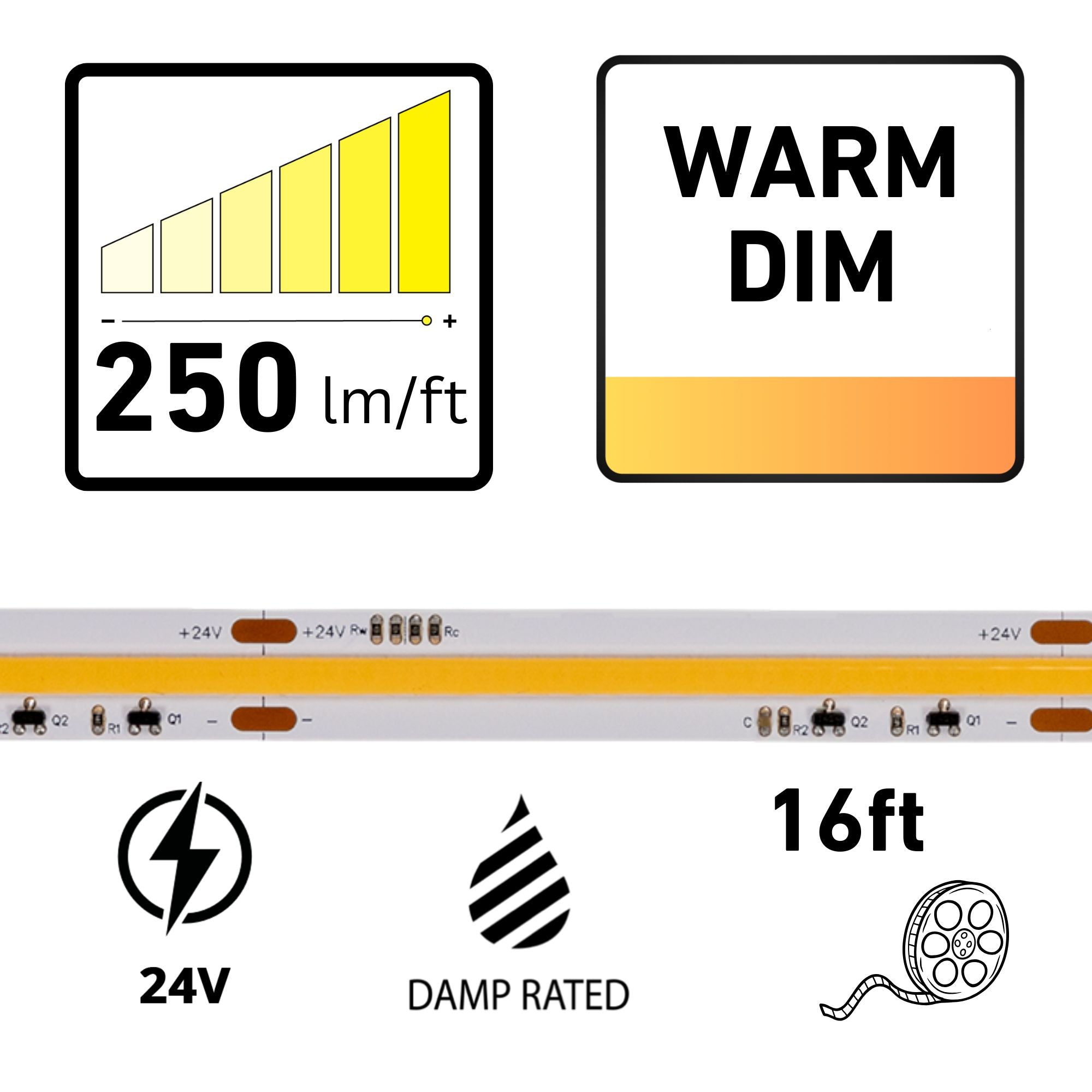

Diode LED Streamlite 16ft LED Tape Light, Warm Dim, 250 Lm/ft, 24V
Available in stock (100)
About this item
About this item
- Color Temperature: Warm Dim technology transitions from 3000K to 1800K for a dynamic lighting experience.
- Voltage & Max Run: Operates at 24VDC with a maximum run of 20 feet, ensuring consistent illumination.
- Cuttable Increments: Field cuttable every 1.96 inches for customized lengths.
- CRI & Lumens: High CRI of 90+ with up to 250 lumens per foot for vibrant color rendering.
- Environment: Suitable for indoor and damp locations with an IP20 rating.
We process payments securely and do not store credit card information.
Description
Description
Diode LED Streamlite LED Tape Light — Warm Dim & COB Technology
The Diode LED Streamlite DI-24V-STMLT-WD3018-016 is a 16-foot LED tape light featuring Warm Dim technology, transitioning from 3000K to 1800K as it dims. This tape light operates at 24VDC and is designed for indoor and damp locations with an IP20 rating.
Key Features
- Voltage: 24VDC for efficient power consumption.
- Wattage: 3.6 watts per foot.
- Lumens: Up to 250 lumens per foot.
- LEDs per Foot: 170 LEDs per foot for uniform light distribution.
- Max Run: 20 feet maximum run length.
- Cuttable: Cuttable every 1.96 inches for custom installations.
- PCB Width: 0.39 inches for compatibility with various channels.
- Beam Angle: 120 degrees for wide light coverage.
- IP Rating: IP20, suitable for indoor and damp locations.
- Certifications: UL Listed, RoHS Compliant, Title 24.
Core Design & Construction
The Streamlite tape light features a narrow 0.39-inch PCB width, making it compatible with a variety of aluminum channels. It includes a durable silicone coating and 3M adhesive backing for secure mounting in indoor environments.
LED Illumination & Performance
With 250 lumens per foot and a 90+ CRI, this tape light provides vibrant and accurate color rendering. The COB technology ensures a dotless, smooth light output.
Power, Wiring & Installation
Requires a 24V driver for operation. The tape light is field-cuttable every 1.96 inches and supports a maximum continuous run of 20 feet. It is dimmable for adjustable brightness levels.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16-foot spool of LED tape light
- 36-inch white bare lead wire
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the Streamlite tape light?
What is the maximum run length for the Streamlite tape light?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for the Streamlite tape light?
What voltage is required for the Streamlite tape light?
Is the Streamlite tape light dimmable?
Is the Streamlite tape light dimmable?
What type of channels are compatible with this tape light?
What type of channels are compatible with this tape light?
