Diode LED Streamlite 16 ft. LED Tape Light, IP20, Tunable White, 200-260 Lm/ft, 24V
Available in stock (100)
About this item
About this item
- Voltage: Operates at 24V DC for efficient power consumption.
- CCT Range: Tunable white from 2700K to 6500K for versatile lighting applications.
- Lumens per Foot: Provides 200-260 lumens per foot depending on CCT.
- Max Run: Maximum continuous run length of 16.4 ft to prevent voltage drop.
- Cuttable: Field cuttable every 1 in. for customized lengths.
We process payments securely and do not store credit card information.
Description
Description

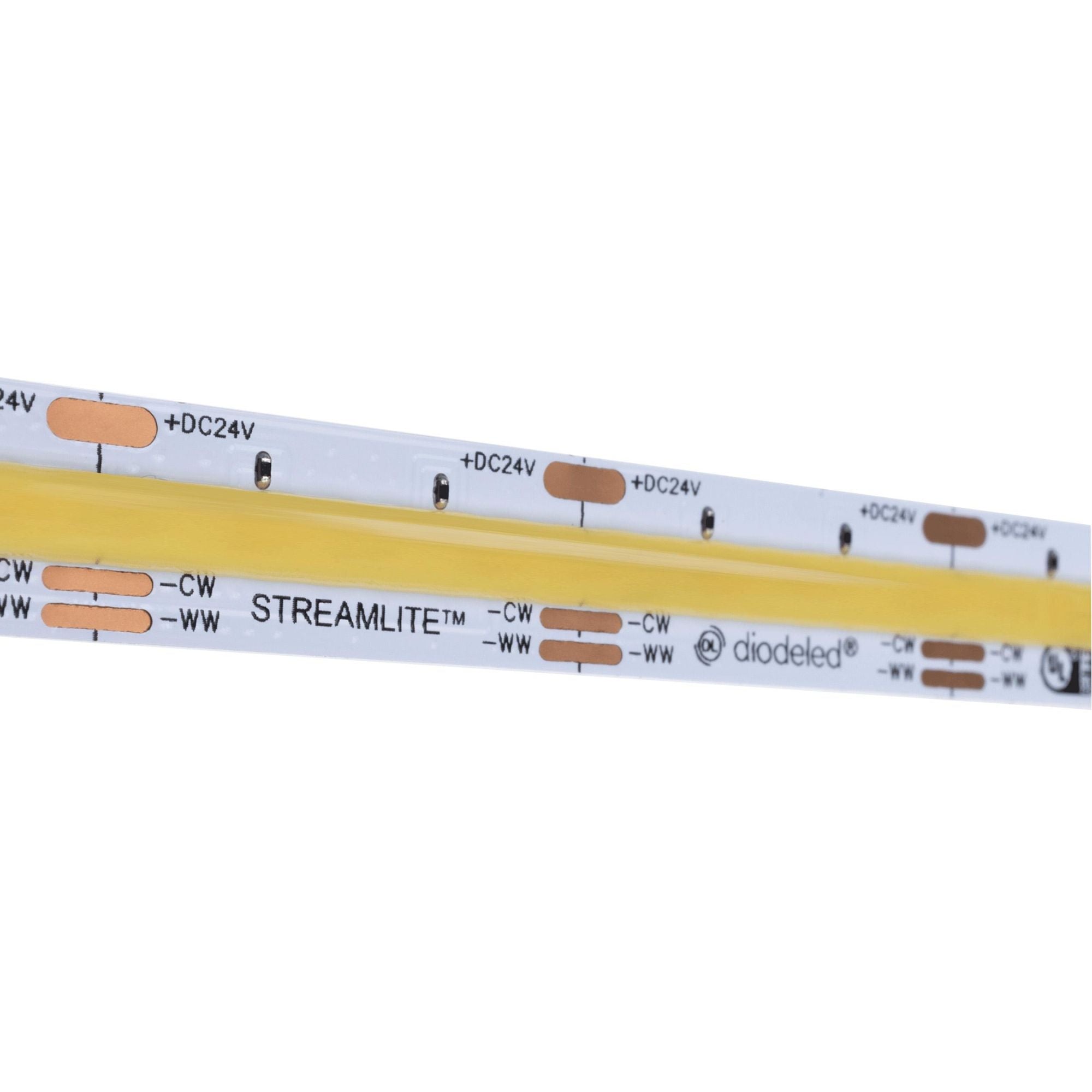

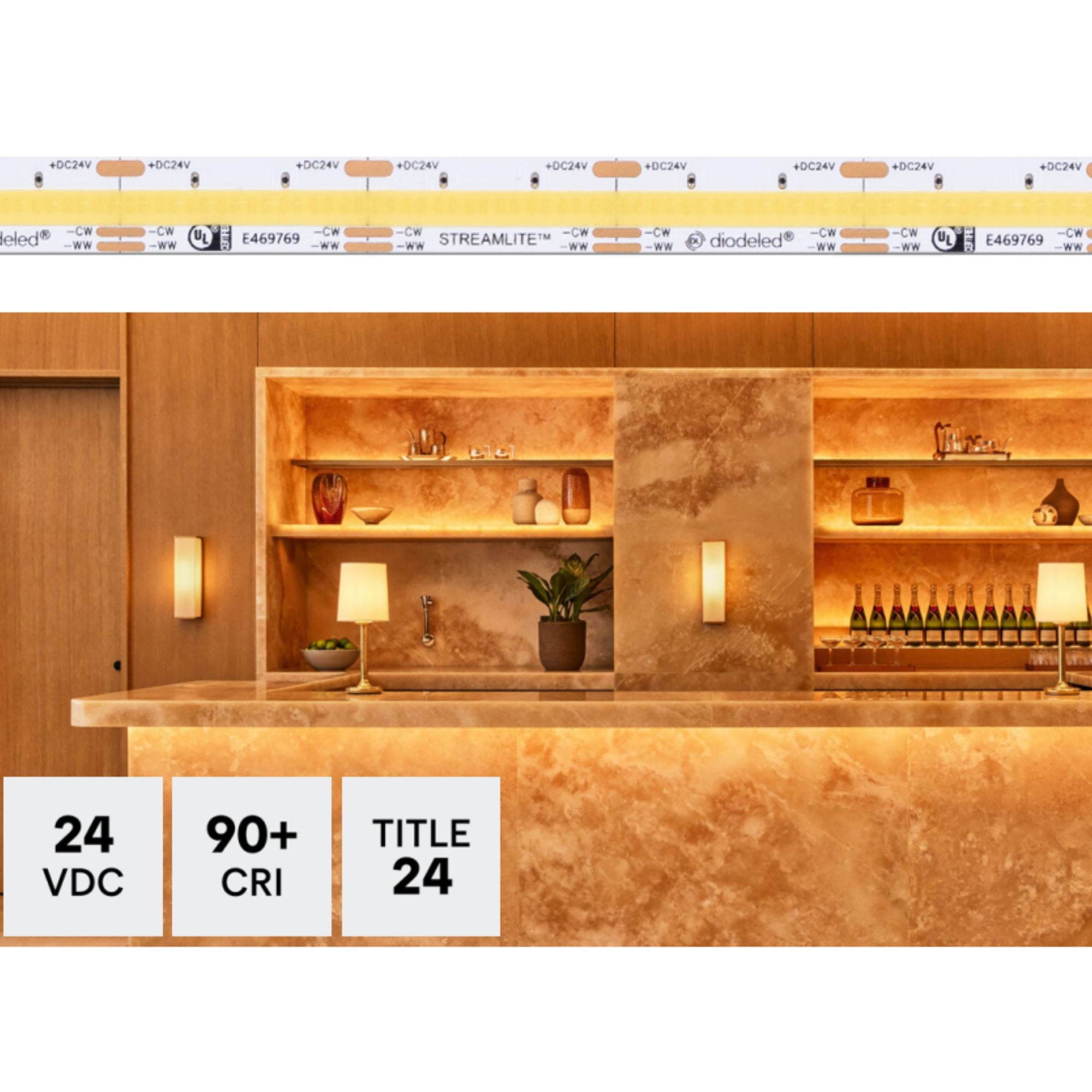

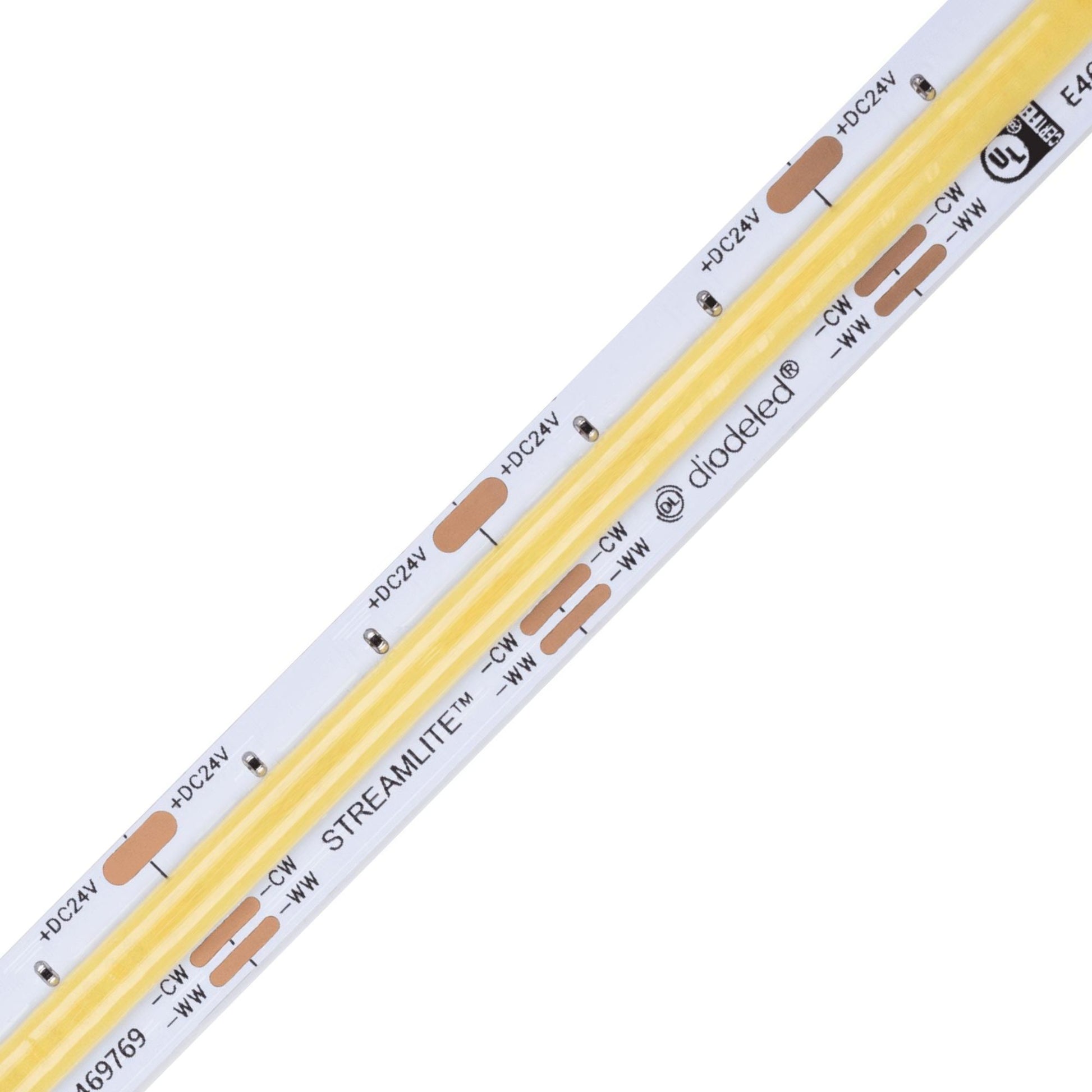

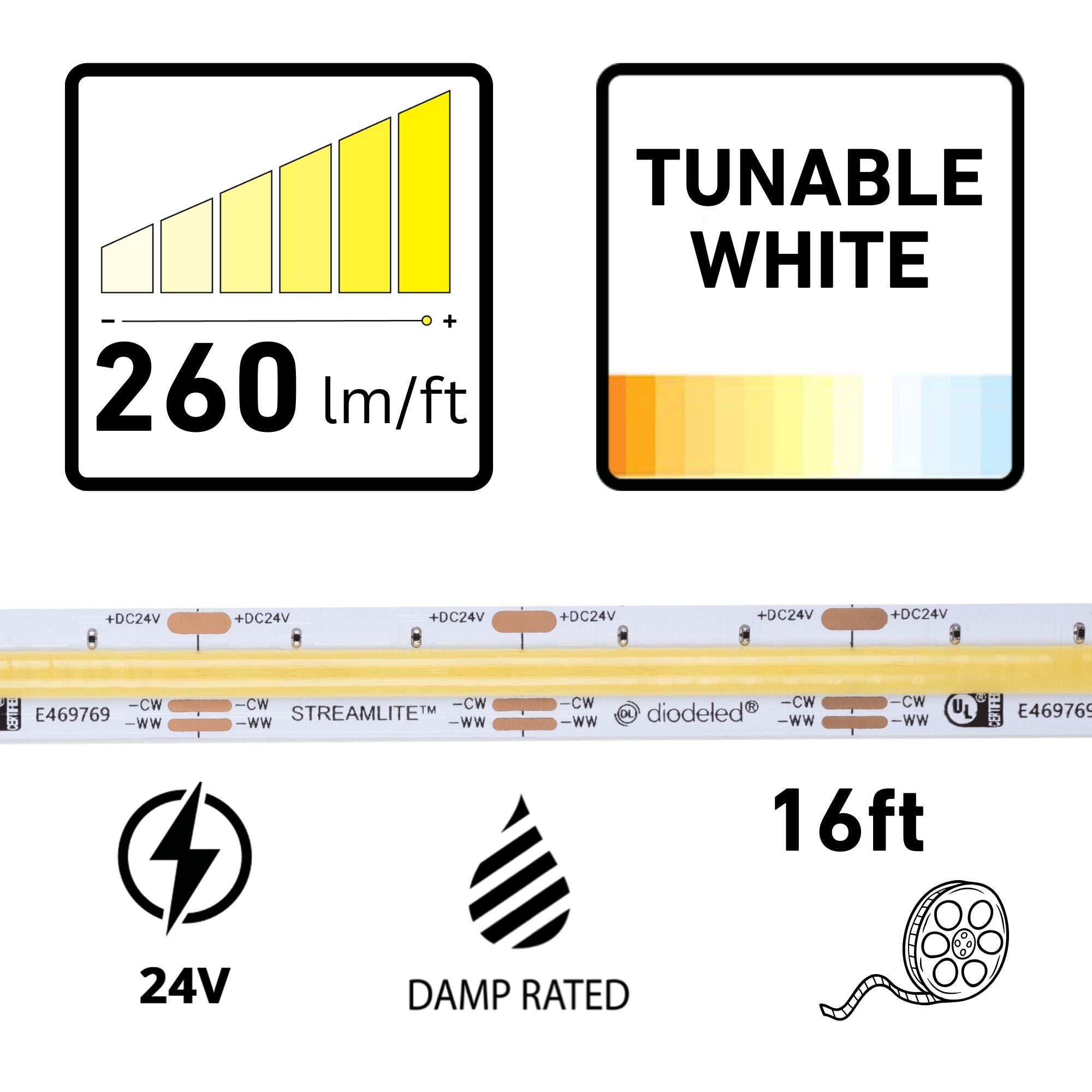

Diode LED Streamlite LED Tape Light — Tunable White & Dotless Design
The Diode LED DI-24V-STMLT-TW2765-016 is a 16 ft. LED tape light featuring a tunable white CCT range from 2700K to 6500K. This tape light operates at 24V DC and is suitable for indoor environments with an IP20 rating.
Key Features
- Voltage: 24V DC operation for efficient energy use.
- Wattage: Consumes 2.7W per foot.
- Lumens: 200 Lm/ft at 2700K, 218 Lm/ft at 3500K, 260 Lm/ft at 6500K.
- LED Density: 213 LEDs per foot for uniform illumination.
- Max Run: 16.4 ft maximum continuous run length.
- Cut Increments: Cuttable every 1 in. for custom installations.

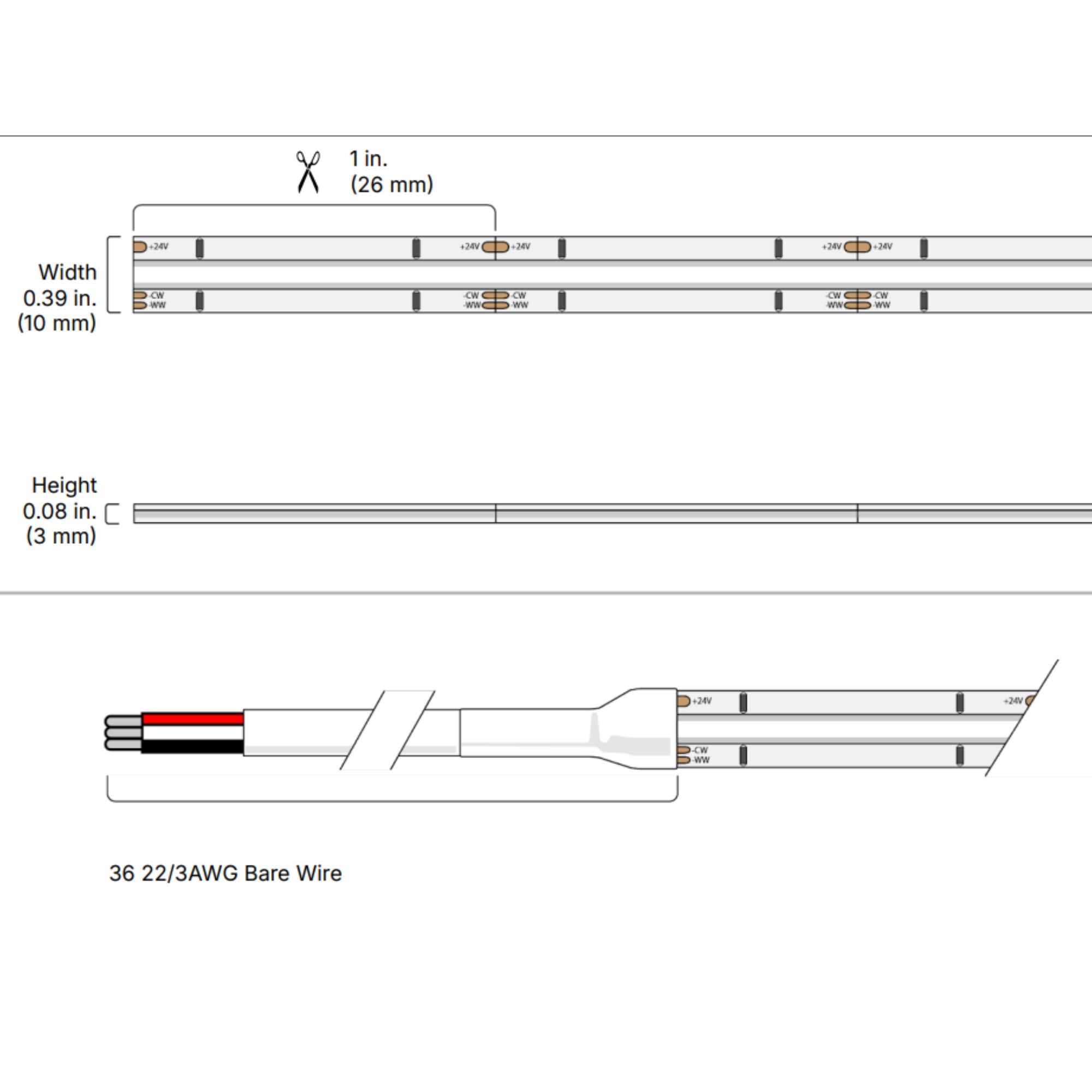

- PCB Width: 0.39 in. for compatibility with various channels.
- Beam Angle: 180º for wide light distribution.
- IP Rating: IP20 for indoor use.
- Certifications: UL Listed 2108, RoHS compliant.
Core Design & Construction
The tape light features a 0.39 in. wide PCB, making it compatible with various aluminum channels. It includes a durable protective coating and a reliable adhesive backing for easy installation in dry or damp locations.
LED Illumination & Performance

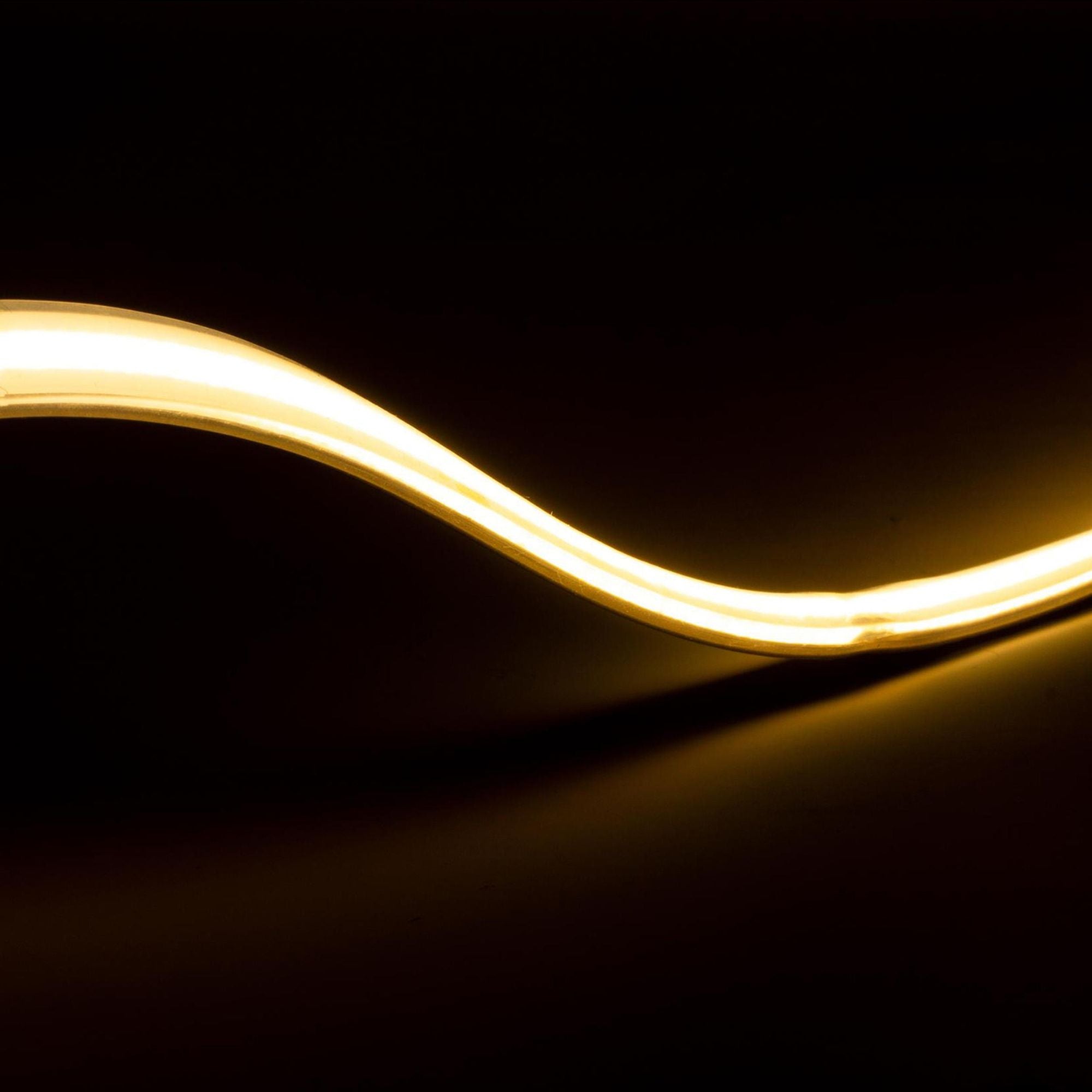

With a high CRI of 90+, this tape light ensures excellent color rendering. The dotless COB design provides smooth, uniform illumination without visible LED points.
Power, Wiring & Installation
This tape light requires a 24V DC driver for operation. It is field-cuttable every 1 in., allowing for precise customization. The maximum continuous run is 16.4 ft to prevent voltage drop, and it is fully dimmable.

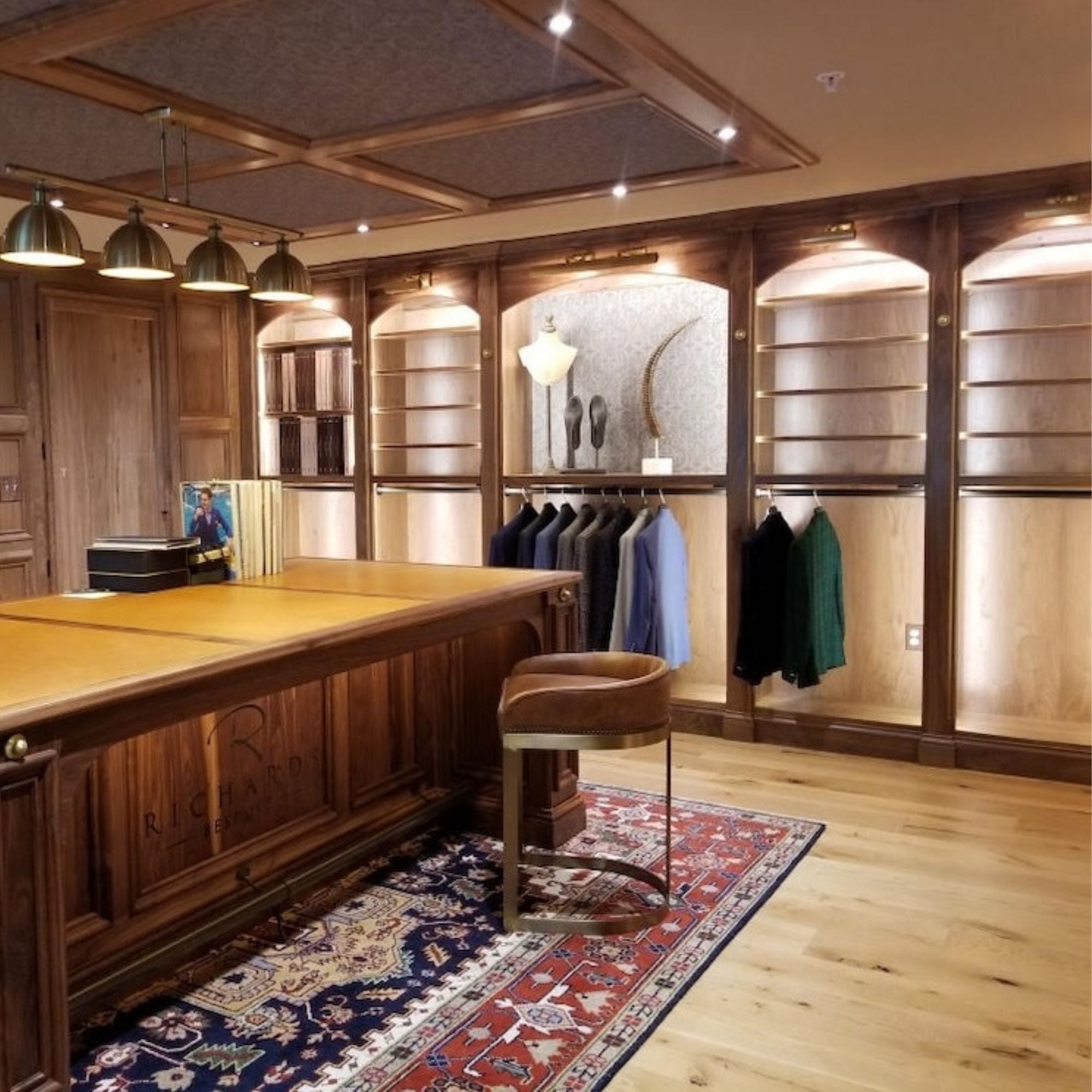

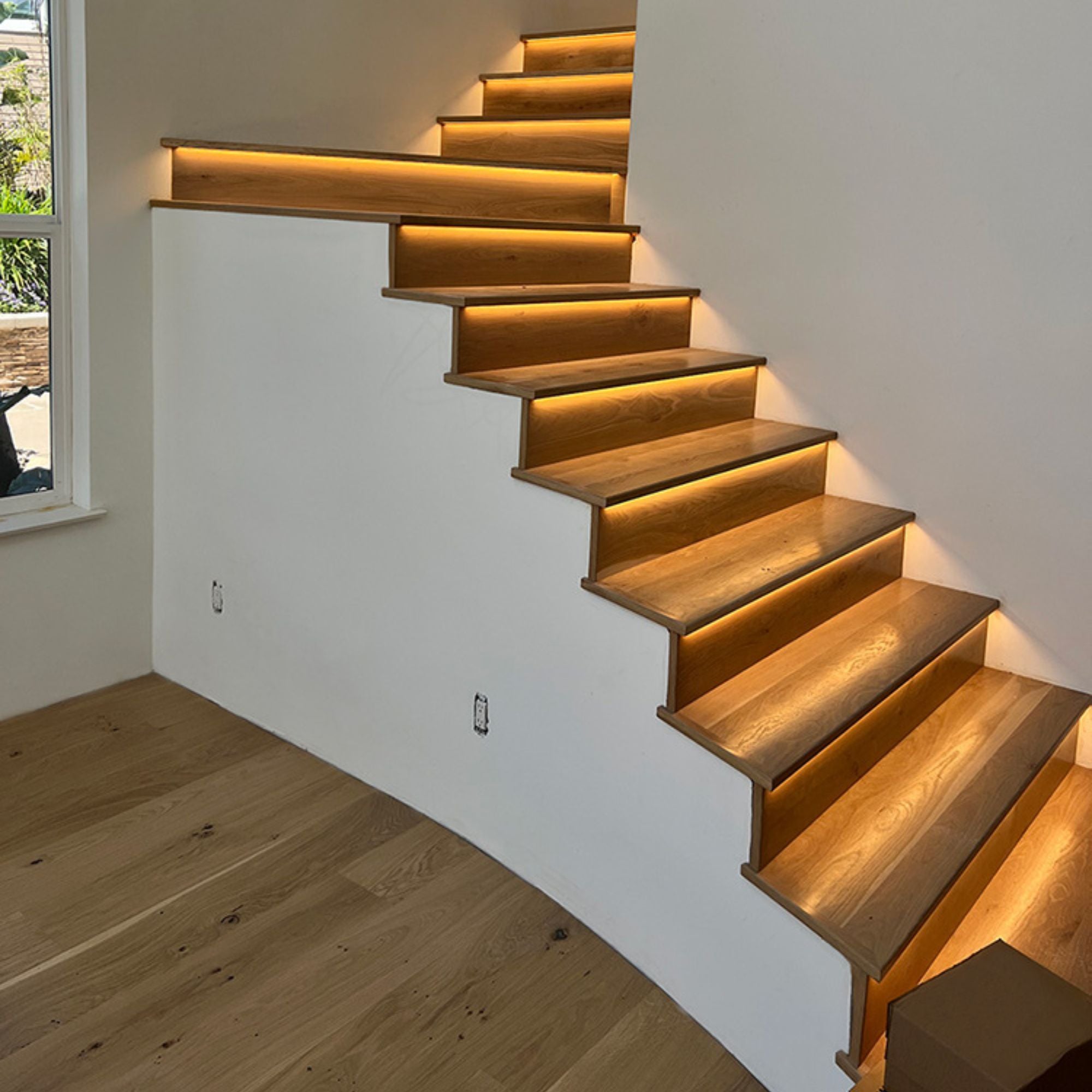

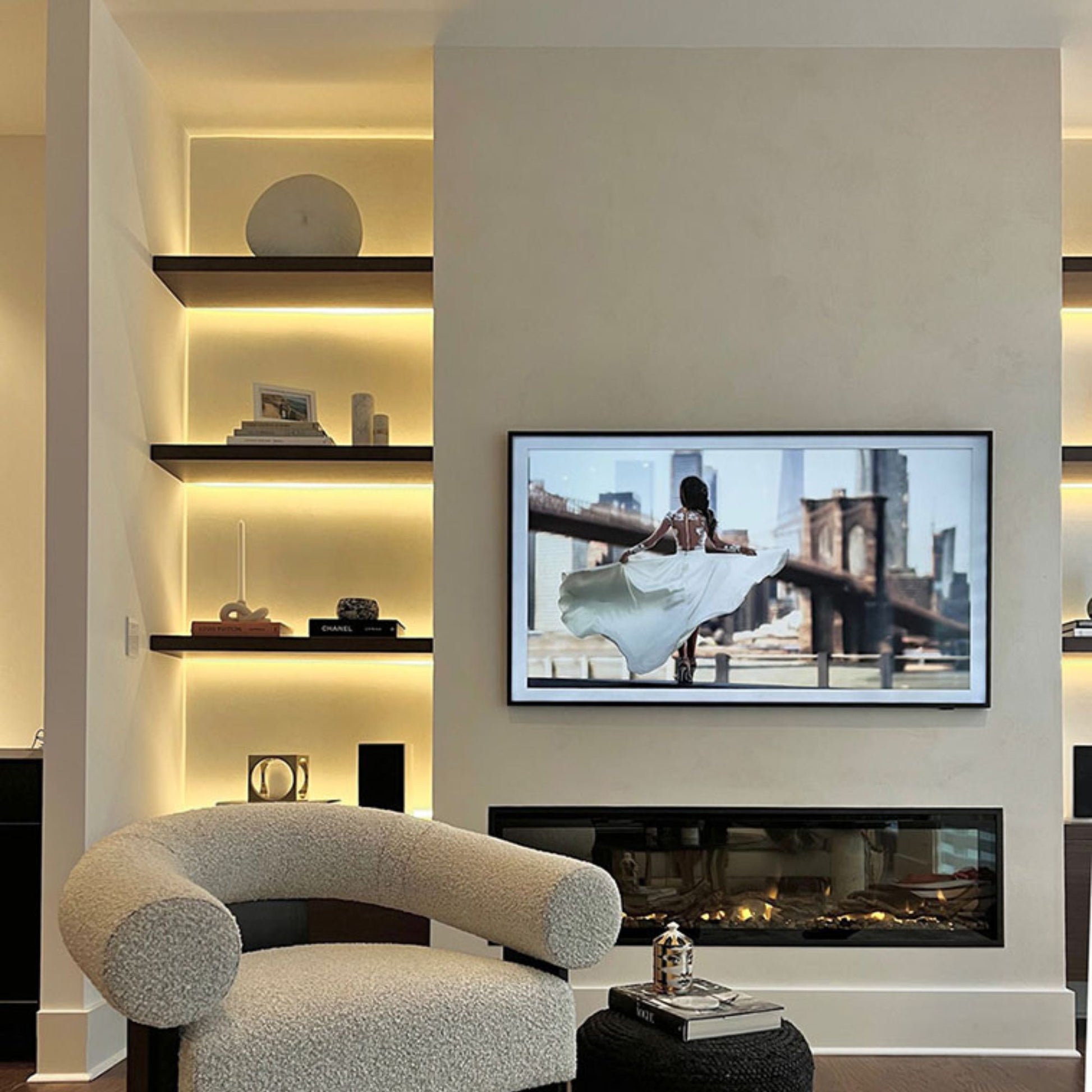

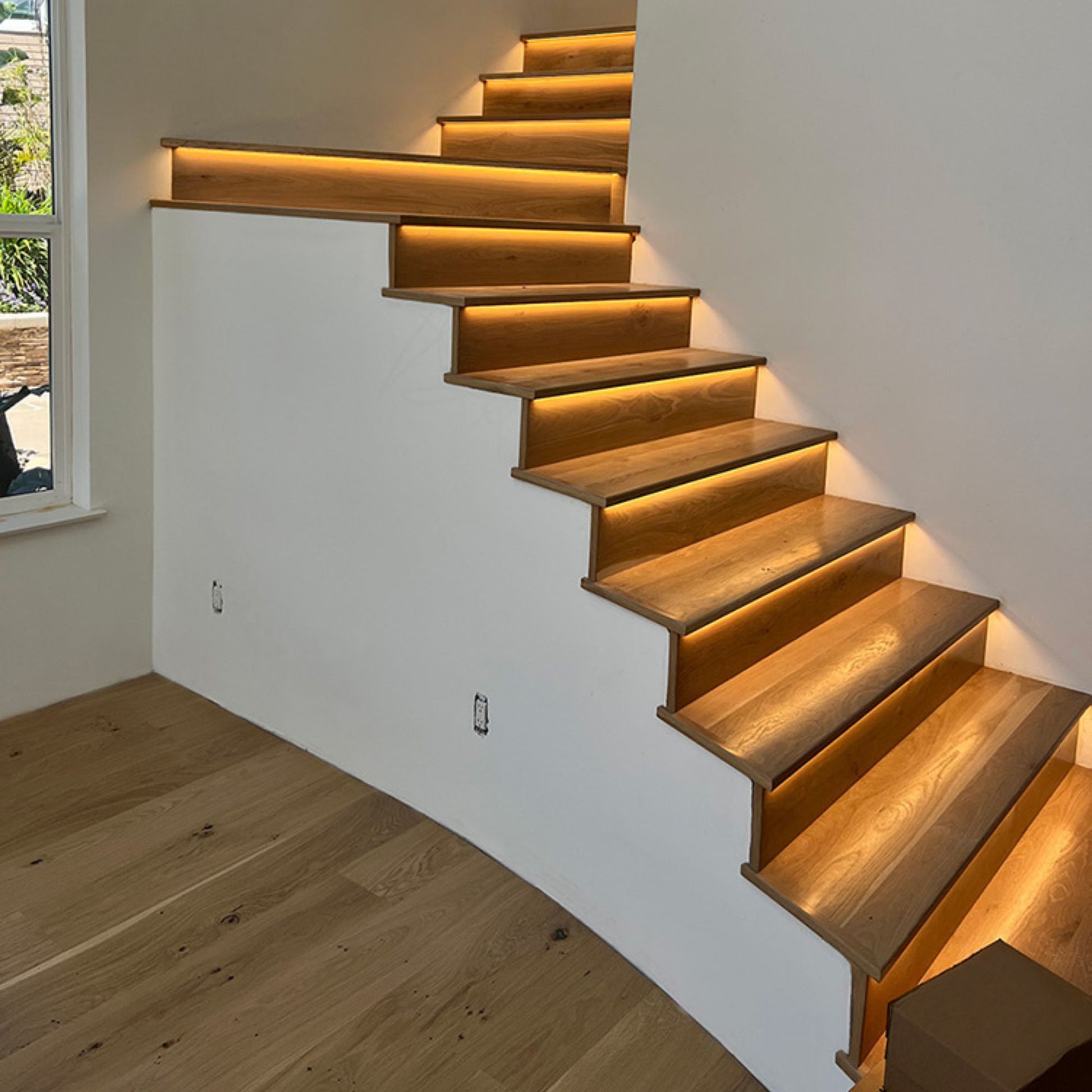

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
- Architectural detailing
What's Included
- 16 ft. spool of LED tape light
- Pre-attached leads
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the DI-24V-STMLT-TW2765-016 tape light?
What is the maximum run length for the DI-24V-STMLT-TW2765-016 tape light?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for the Streamlite tape light?
What voltage is required for the Streamlite tape light?
Is the DI-24V-STMLT-TW2765-016 tape light dimmable?
Is the DI-24V-STMLT-TW2765-016 tape light dimmable?
What is the width of the PCB for channel compatibility?
What is the width of the PCB for channel compatibility?
