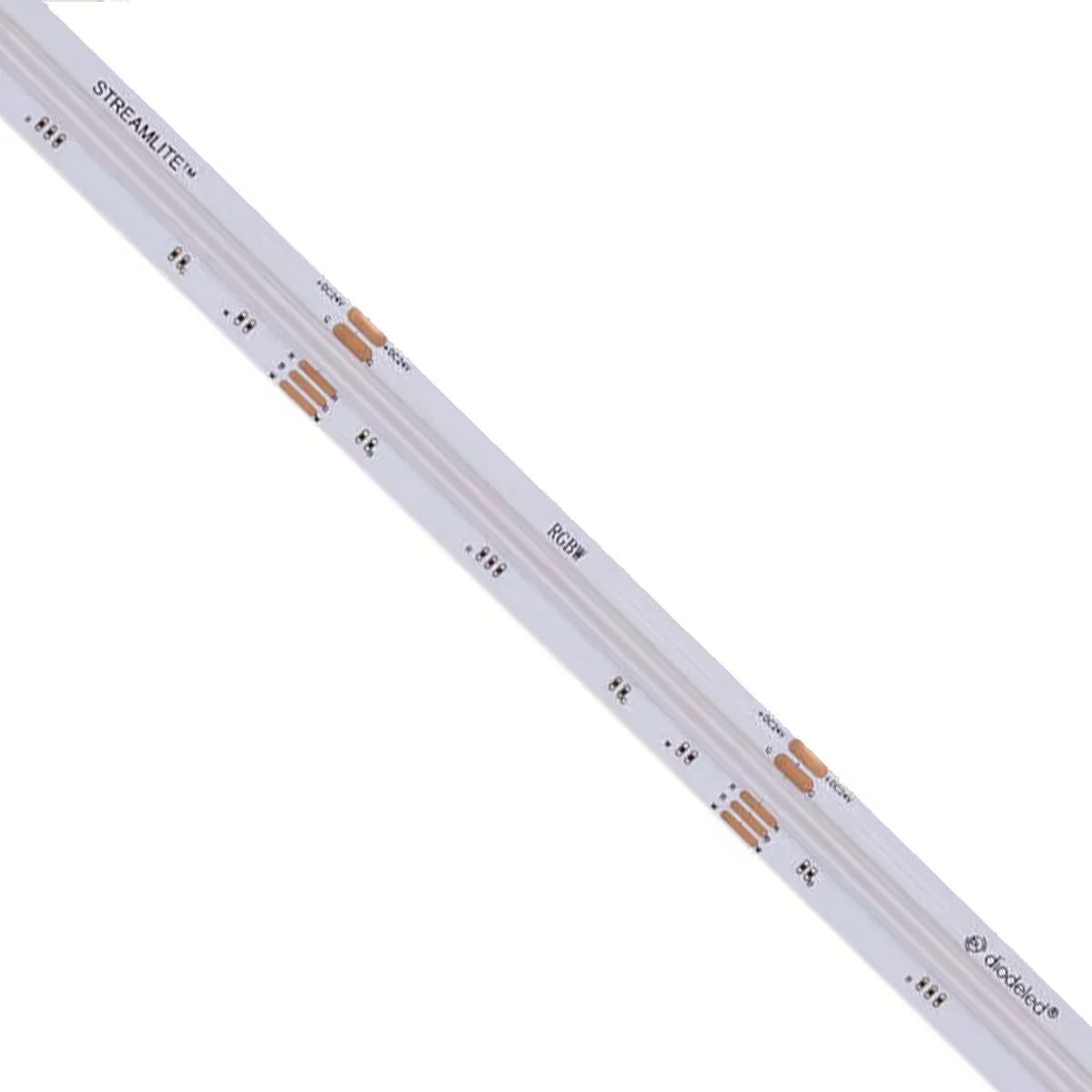

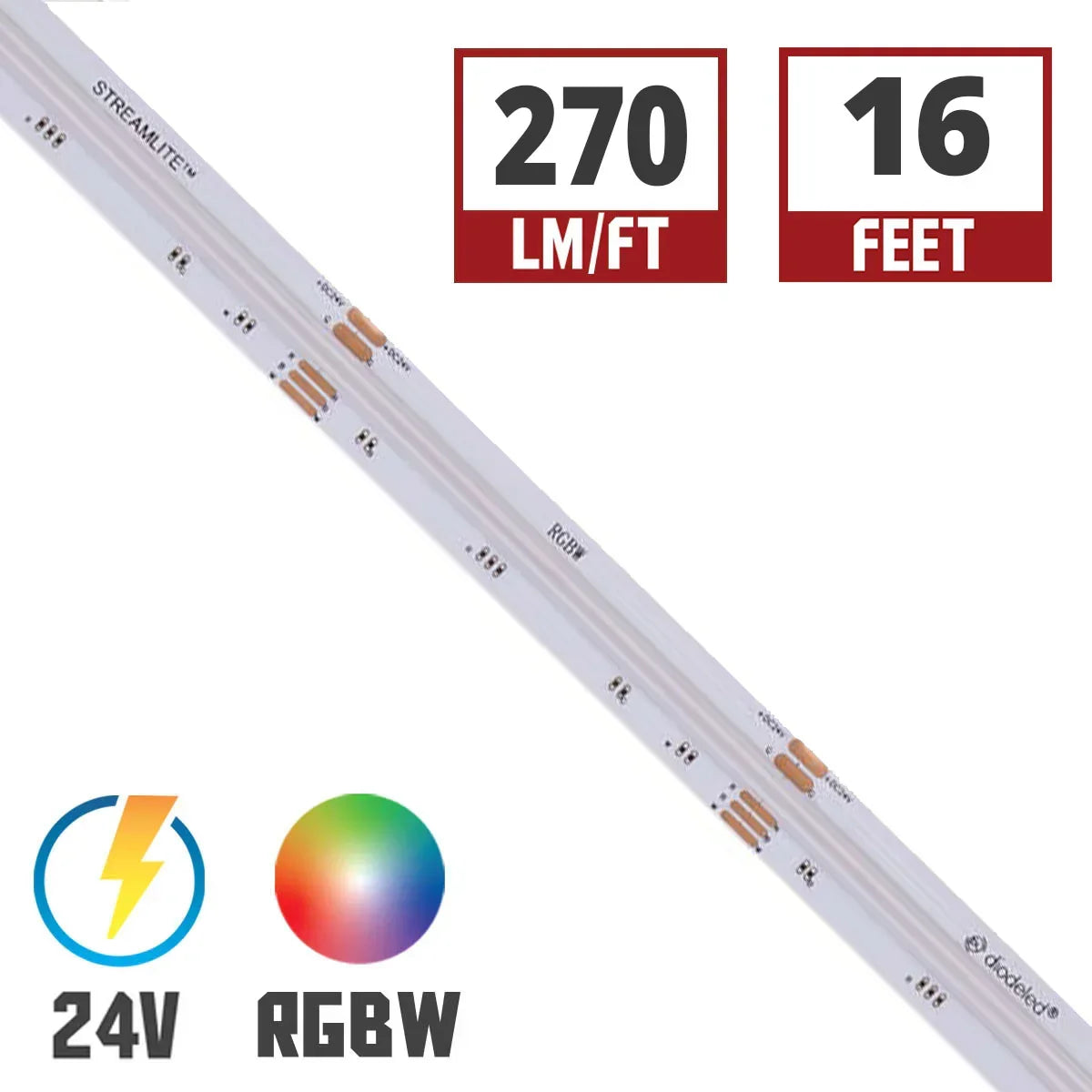

Diode LED Streamlite LED Tape Light — RGBW & Dotless Technology

The Diode LED DI-24V-STMLT-RGBW-016 is a 16 ft. LED tape light featuring RGBW color technology and dotless illumination. Designed for indoor applications, this tape light operates at 24VDC and is rated for IP20 environments, making it ideal for vibrant and dynamic lighting installations.

Key Features

• Voltage: 24VDC for stable and efficient operation.
• Wattage: 5.2W per foot for optimal energy use.
• Lumens: 270 lumens per foot for bright illumination.
• LED Density: 176 LEDs per foot for uniform light distribution.
• Max Run: 16.4 ft. to prevent voltage drop.
• Cut Increments: Cuttable every 2.46 in. for custom lengths.
• PCB Width: 0.47 in. for compatibility with standard channels.
• Beam Angle: 120° for wide light distribution.
• IP Rating: IP20 for indoor and damp locations.
• Certifications: UL Listed 2108, RoHS compliant.

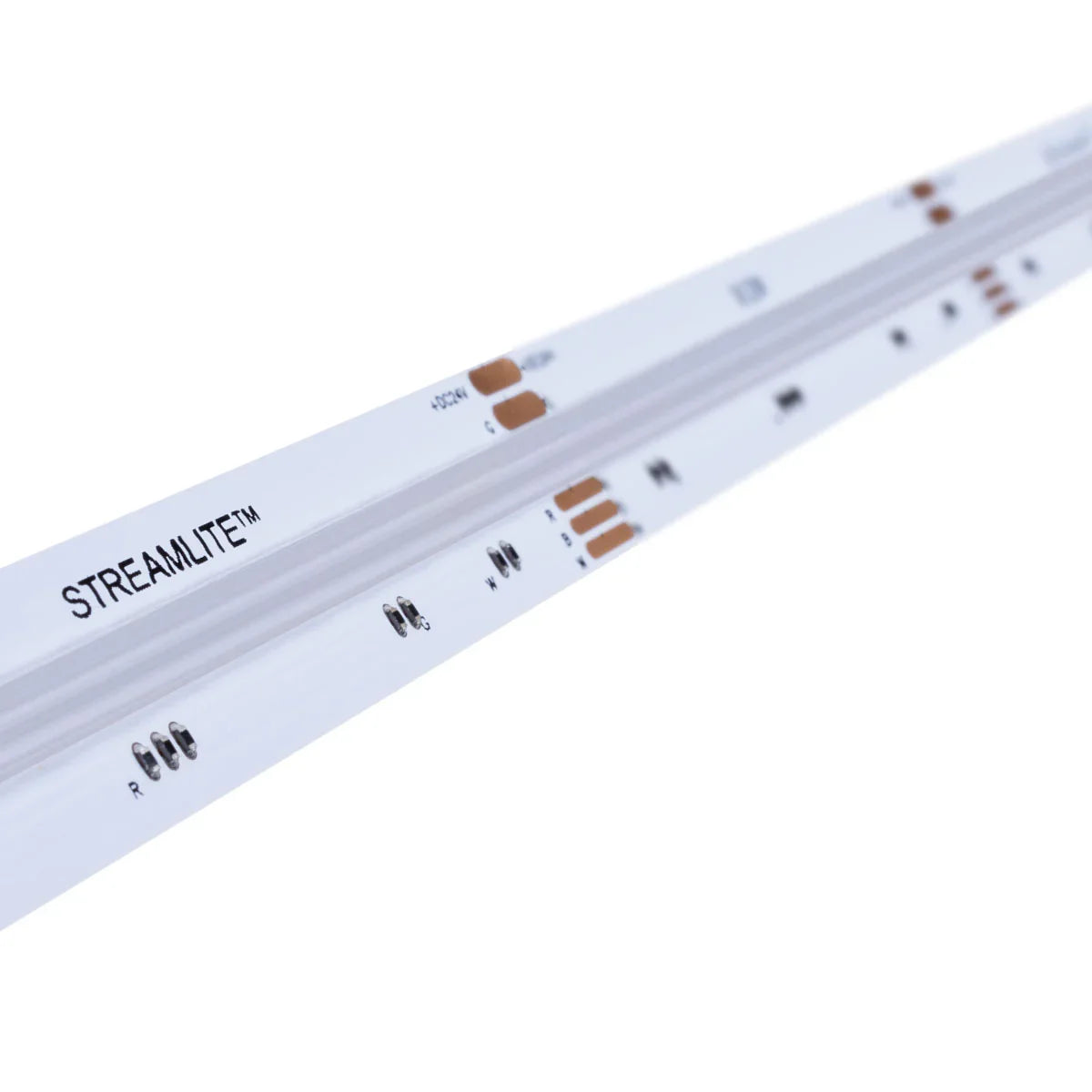

Core Design & Construction

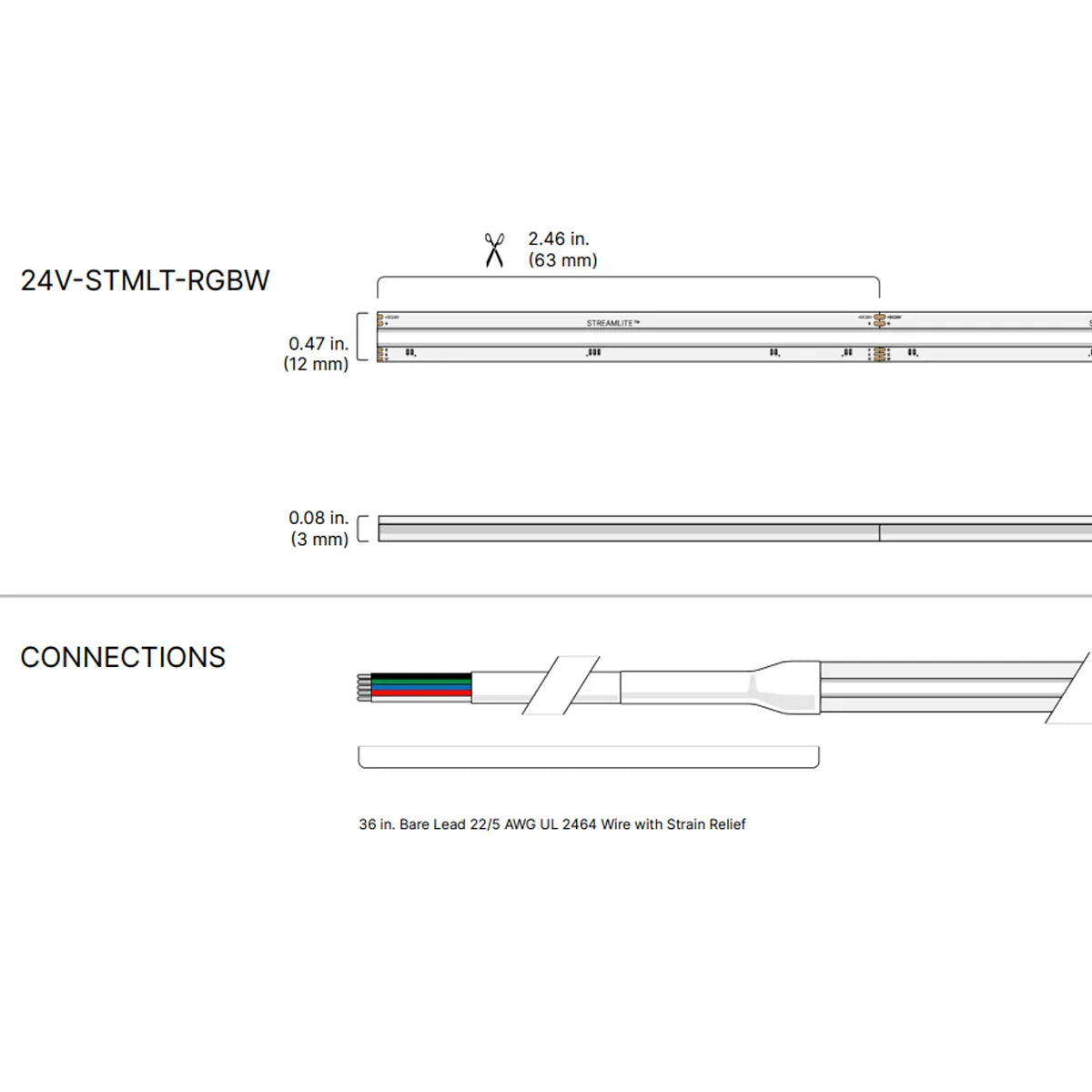

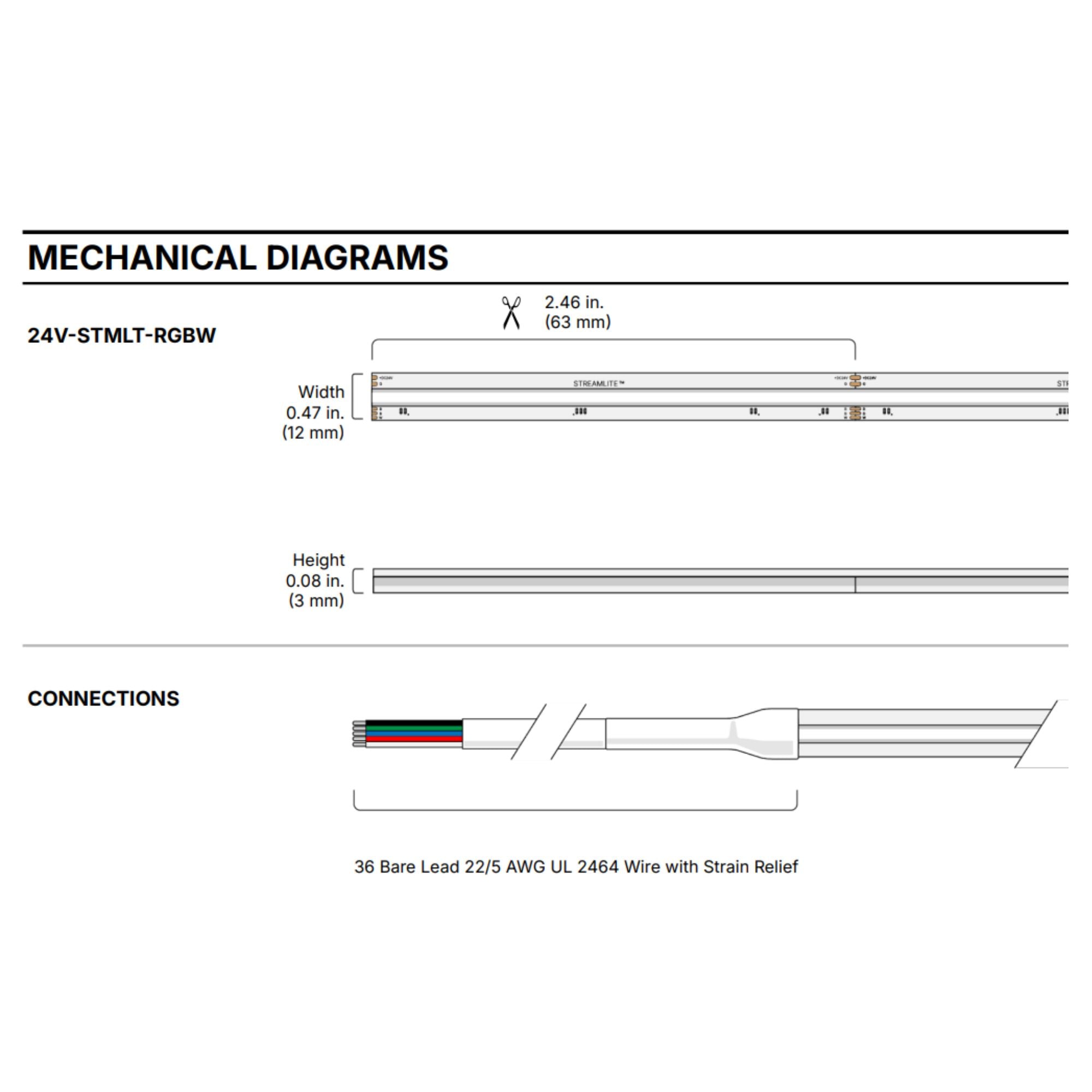

The tape light features a 0.47 in. wide PCB, ensuring compatibility with popular aluminum channels. It includes a durable silicone coating for protection and a reliable 3M adhesive backing for secure mounting in various environments.

LED Illumination & Performance

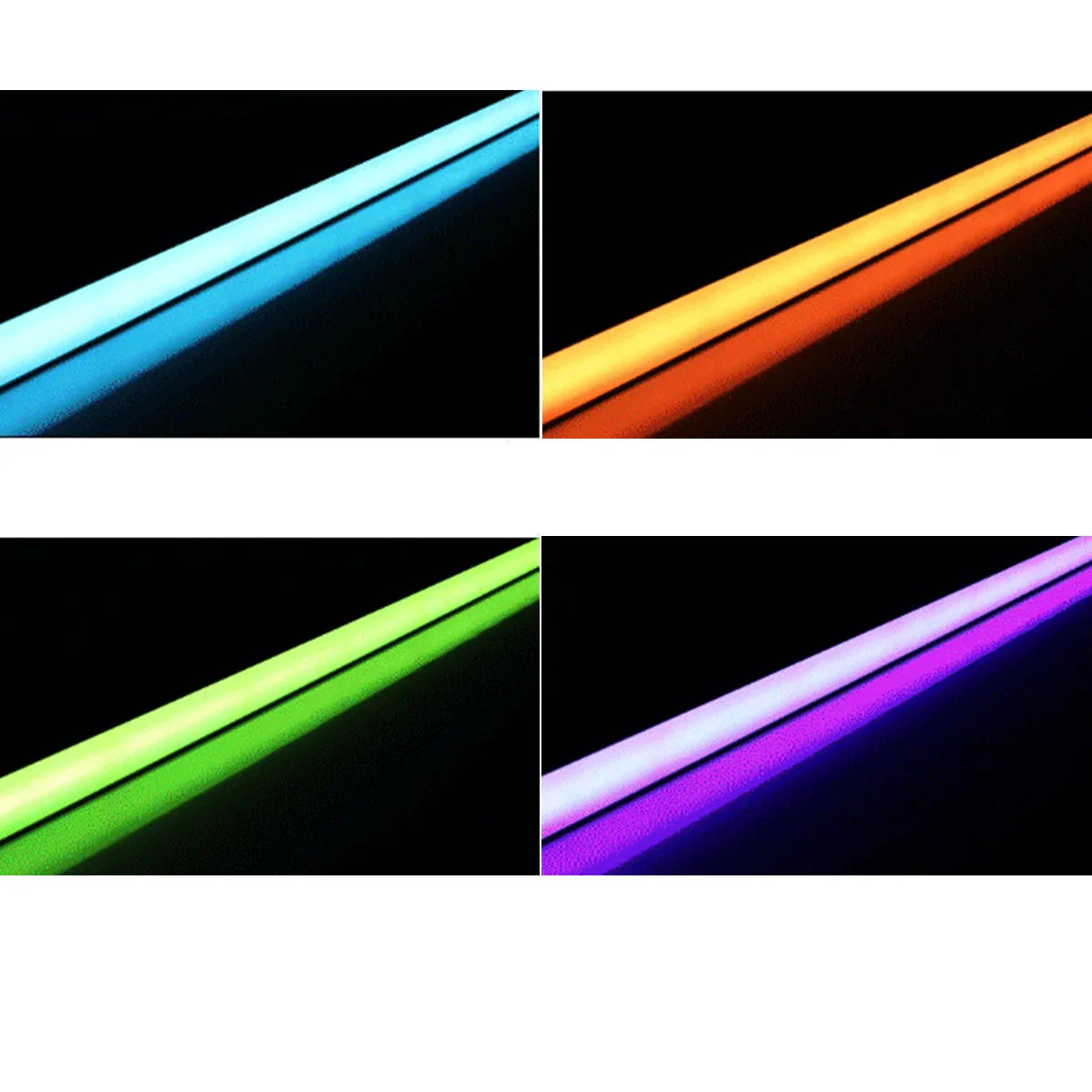

With 270 lumens per foot and a 90+ CRI, this tape light provides vibrant, high-quality illumination. The RGBW light engine allows for dynamic color mixing, offering a wide range of color options.

Power, Wiring & Installation

This tape light requires a 24V power supply and is field-cuttable every 2.46 in. The maximum continuous run is 16.4 ft. to prevent voltage drop. It is dimmable and compatible with DMX and standalone color control accessories.

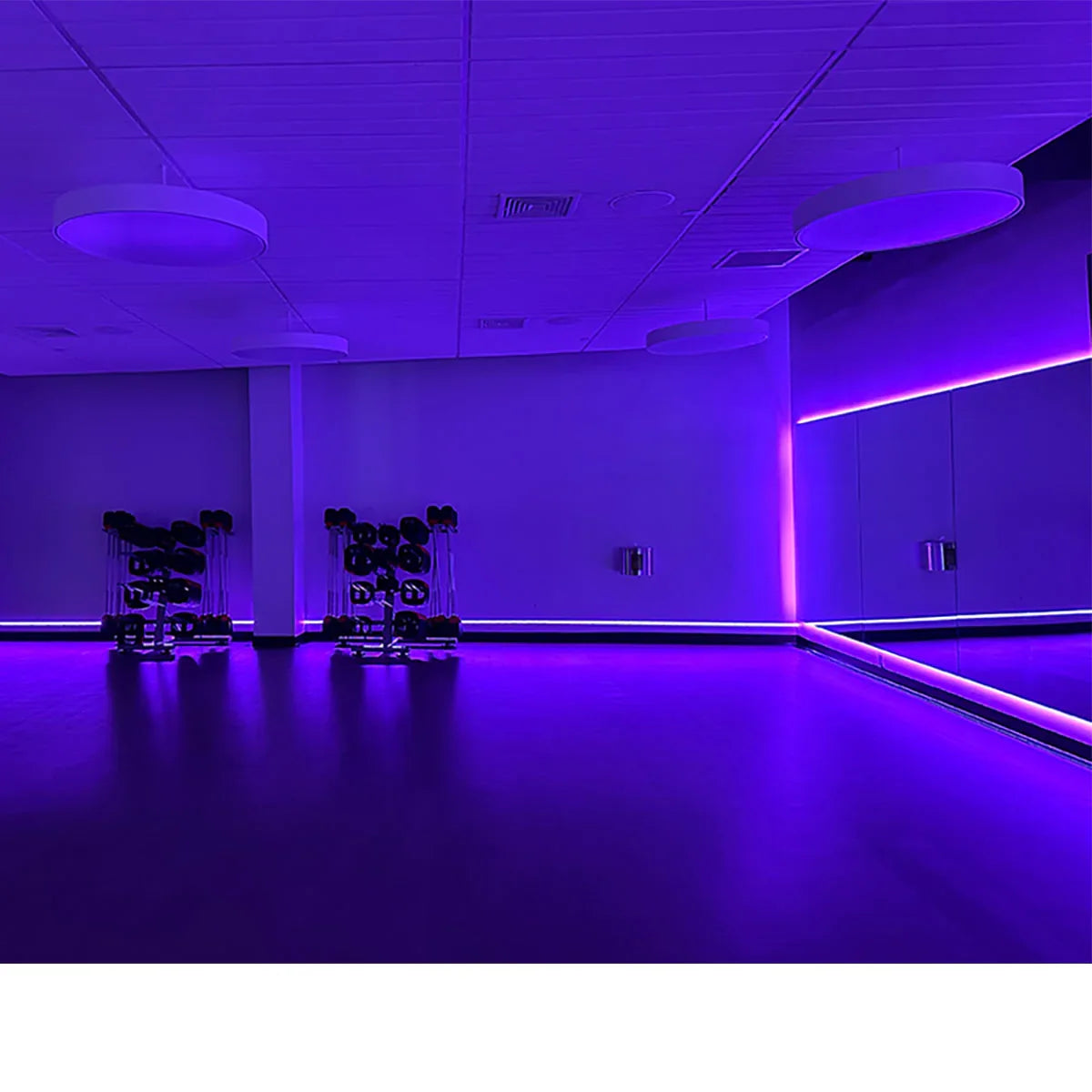

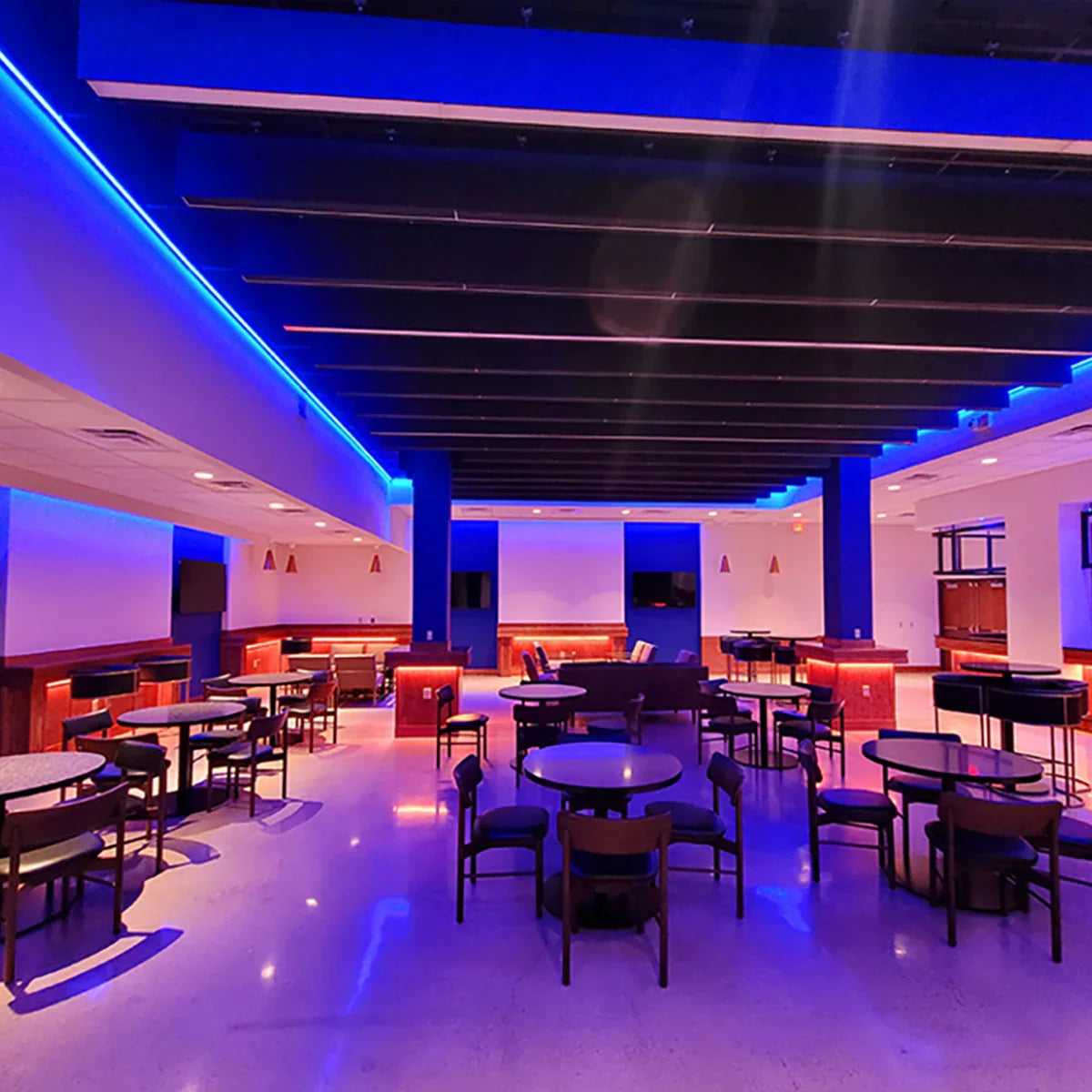

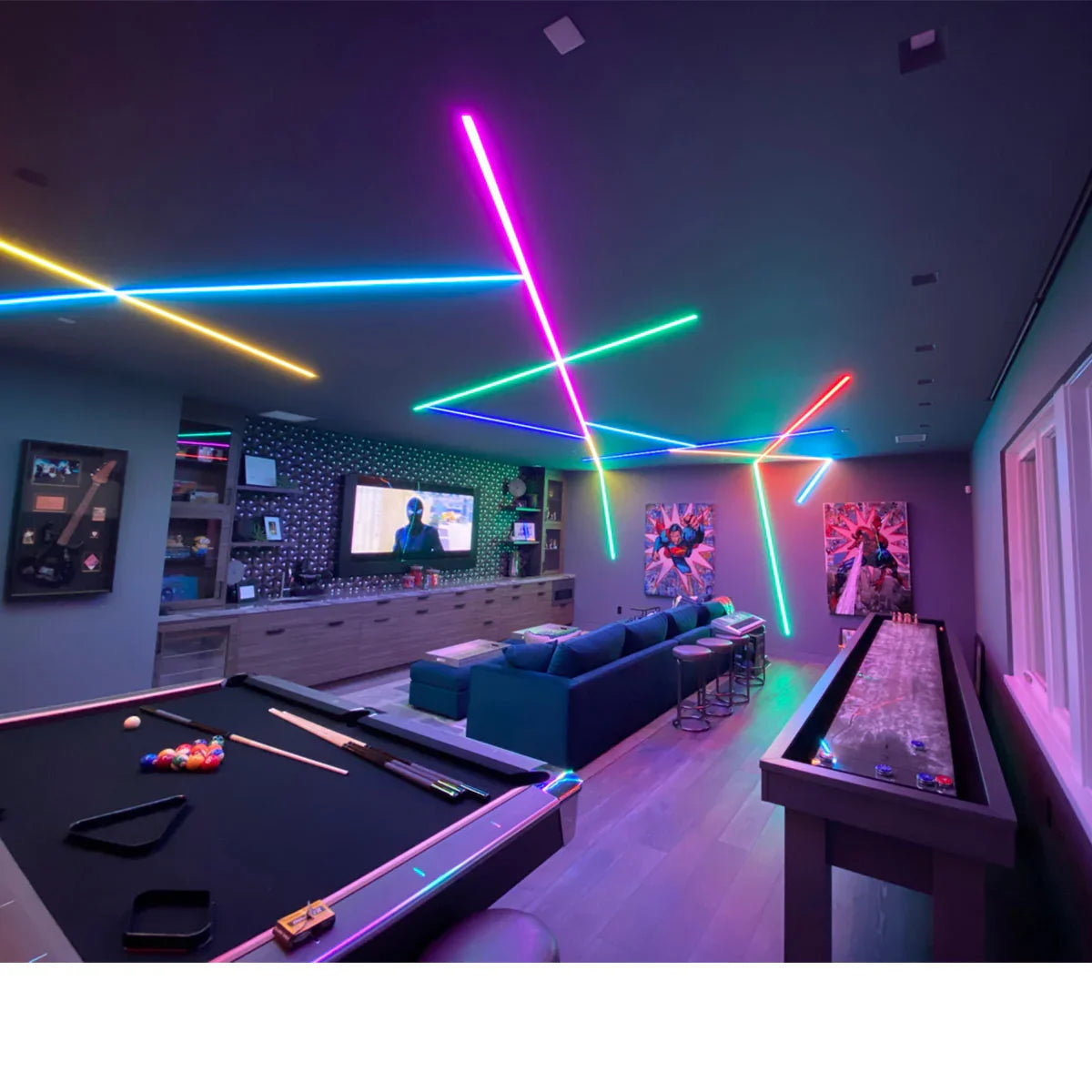

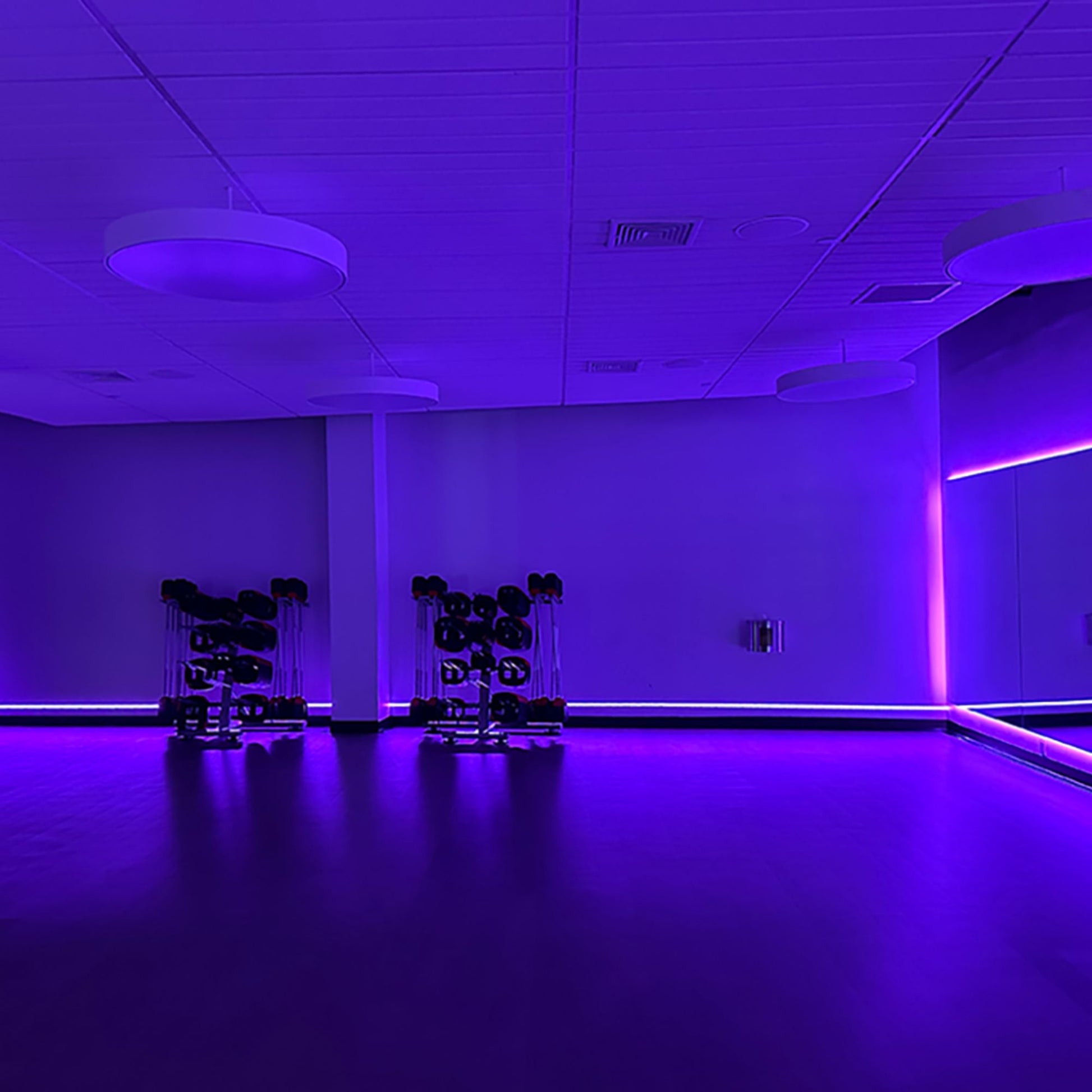

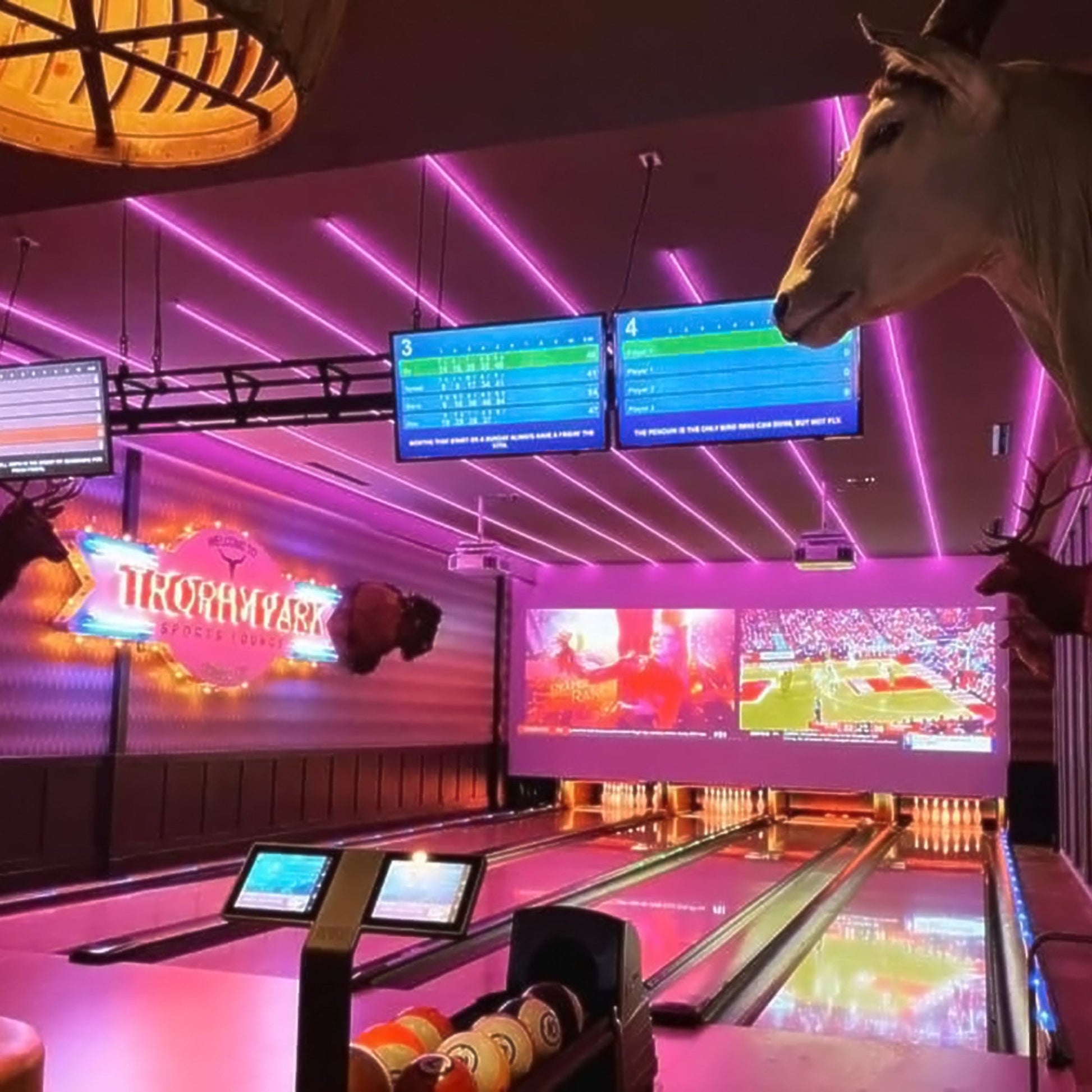

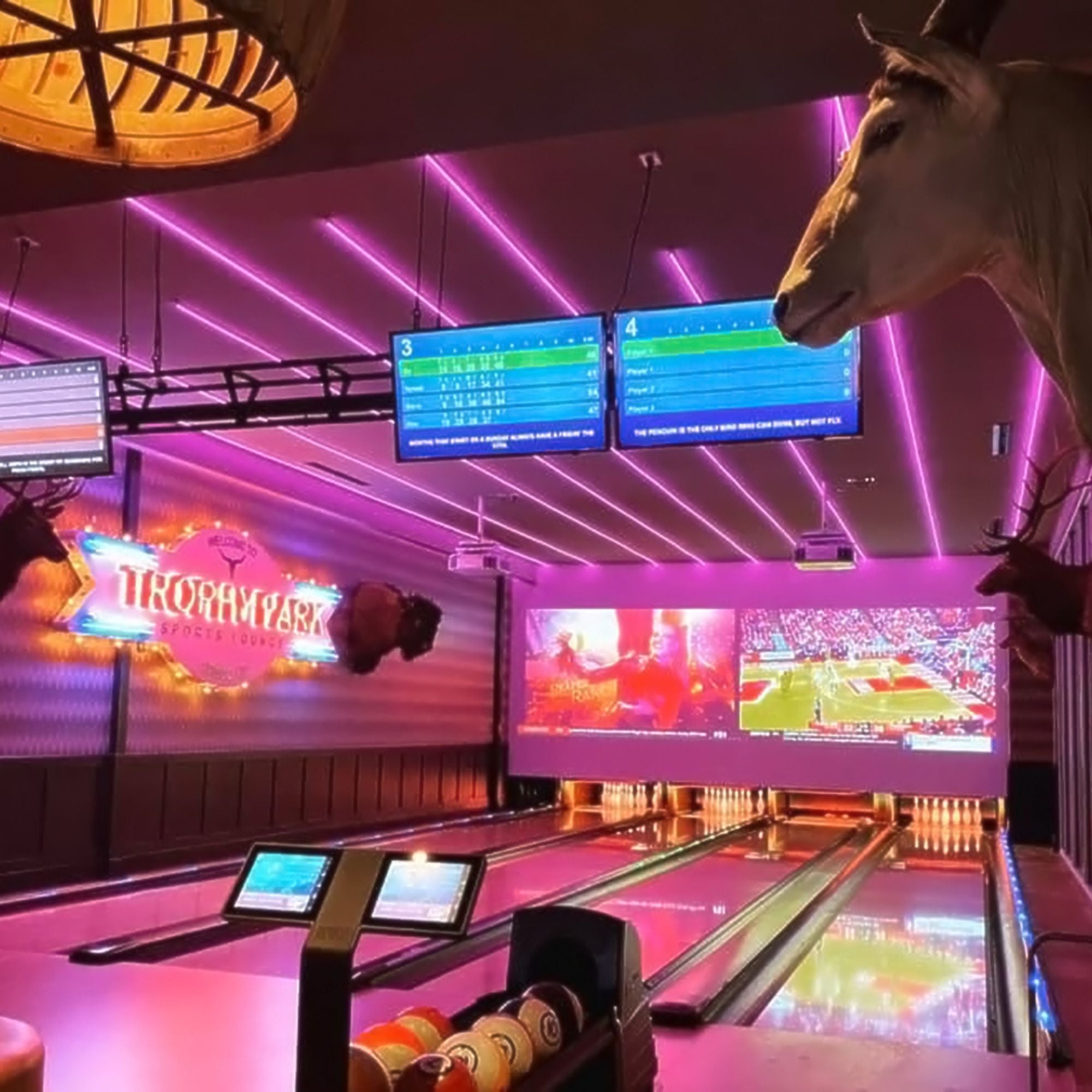

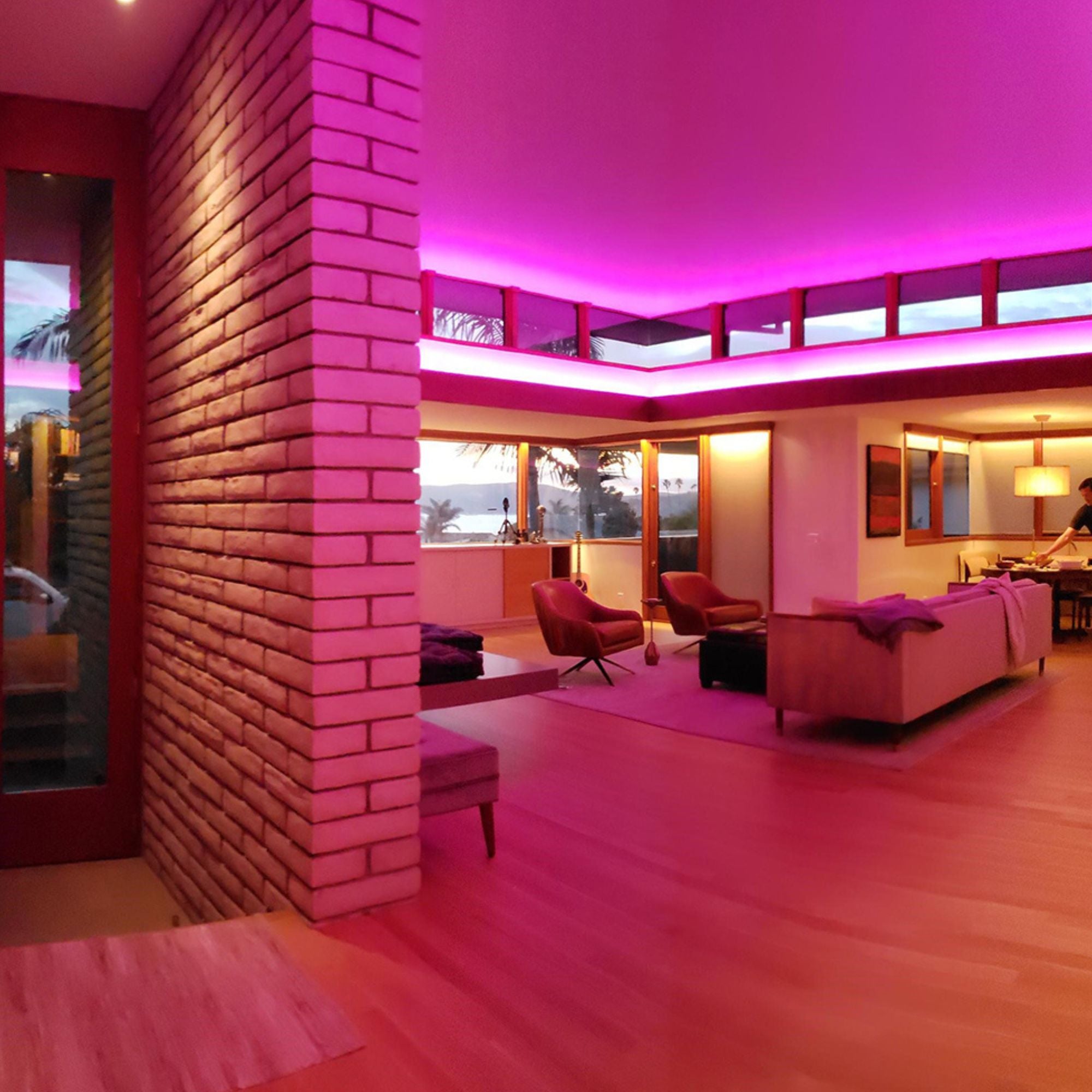

Where This Tape Works Best

• Architectural accent lighting
• Under cabinet lighting
• Cove lighting
• Retail display lighting
• Residential mood lighting

What's Included

• 16 ft. spool of RGBW LED tape light
• 36 in. bare lead wires for easy connection
