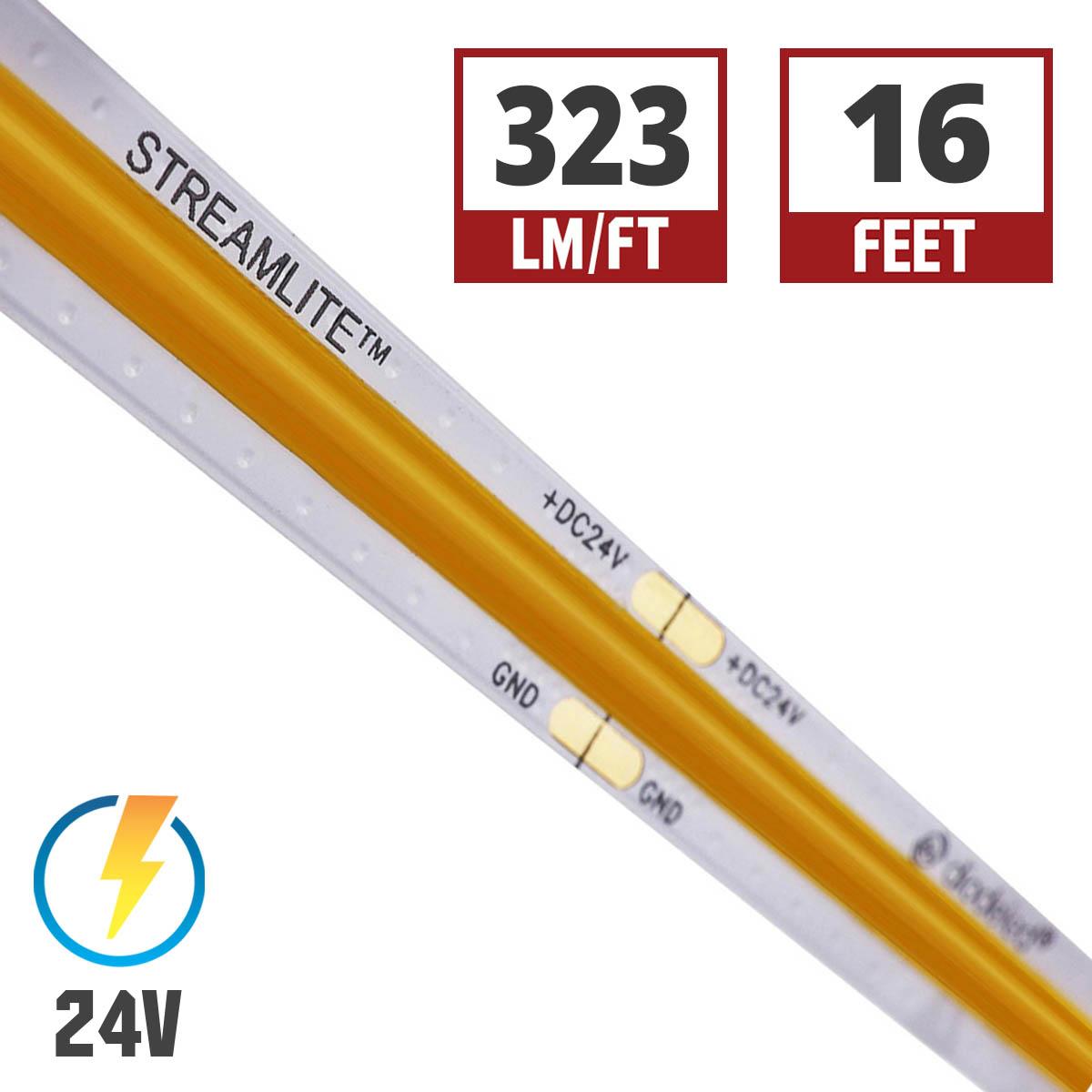

Diode LED Streamlite 16 ft. LED Tape Light, 4000K, 314 Lm/ft, 24V
Available in stock (125)
About this item
About this item
- Voltage: Operates at 24V for efficient power consumption.
- Color Temperature: Provides a crisp 4000K light, ideal for task lighting.
- Max Run: Connect up to 20 ft. in series without significant voltage drop.
- Cuttable: Field cuttable every 1.8 in. for custom lengths.
- IP Rating: Rated IP20, suitable for indoor and damp locations.
We process payments securely and do not store credit card information.
Description
Description

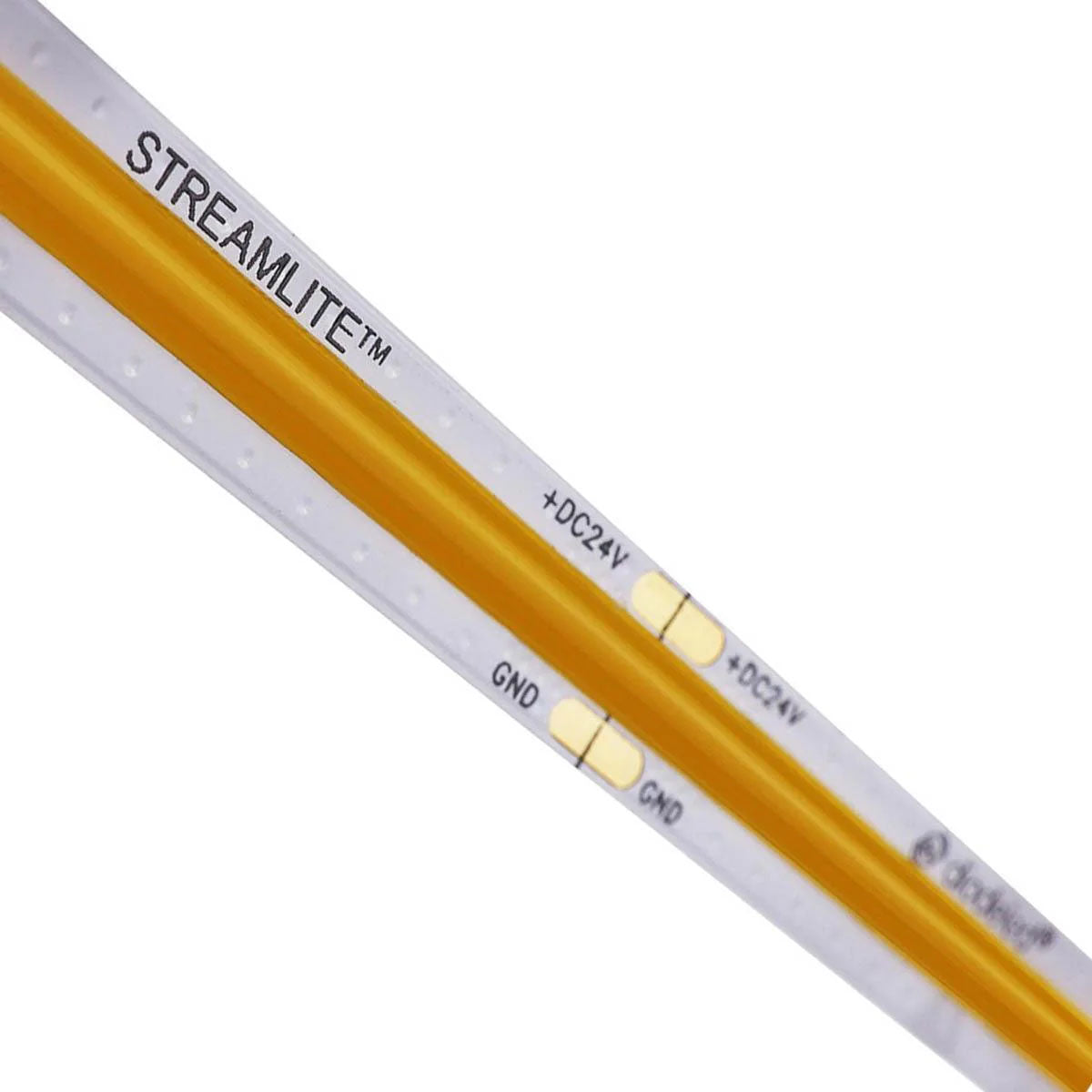

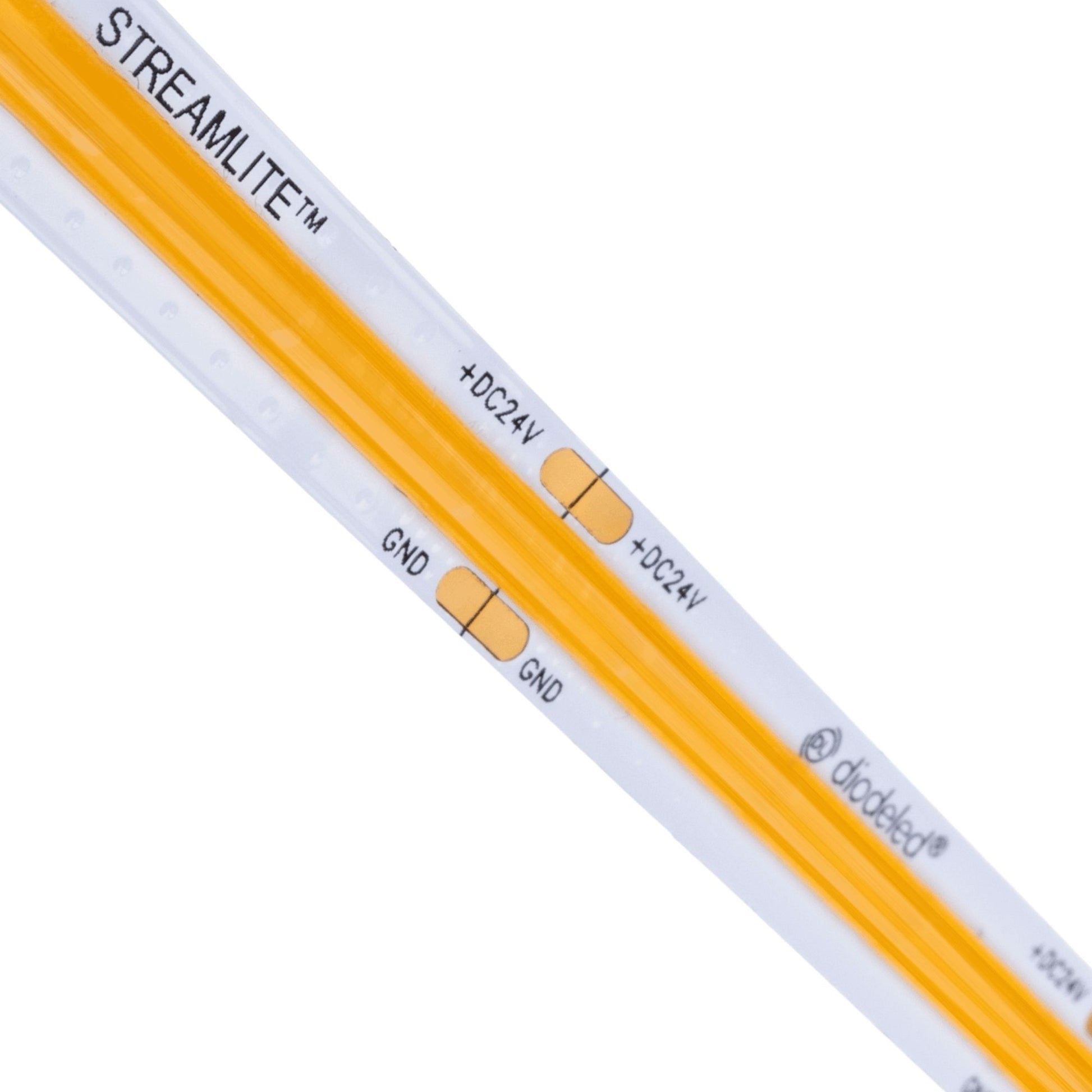

Diode LED Streamlite LED Tape Light — 4000K & COB Dotless
The Diode LED Streamlite DI-24V-STMLT-40-016 is a 16 ft. LED tape light designed for precise and efficient lighting. With a 24V input, it is suitable for indoor and damp locations, providing a seamless lighting experience.
Key Features
- Voltage: 24V DC operation for stable performance.
- Wattage: Consumes 3.3W/ft for energy efficiency.
- Lumens: Delivers 314 Lm/ft for bright illumination.
- LEDs per Foot: 160 LEDs/ft for uniform light distribution.
- Max Run: 20 ft. maximum run length to prevent voltage drop.

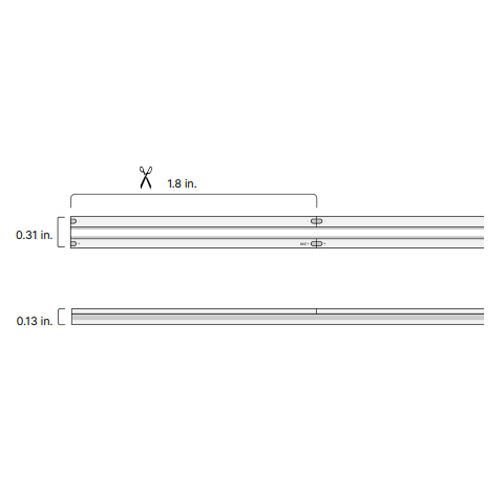

- Cut Increments: Cuttable every 1.8 in. for custom installations.
- PCB Width: 0.31 in. width for compatibility with standard channels.
- Beam Angle: 180° for wide light coverage.
- IP Rating: IP20, suitable for indoor use.
- Certifications: UL Listed, RoHS Compliant, Title 24.
Core Design & Construction

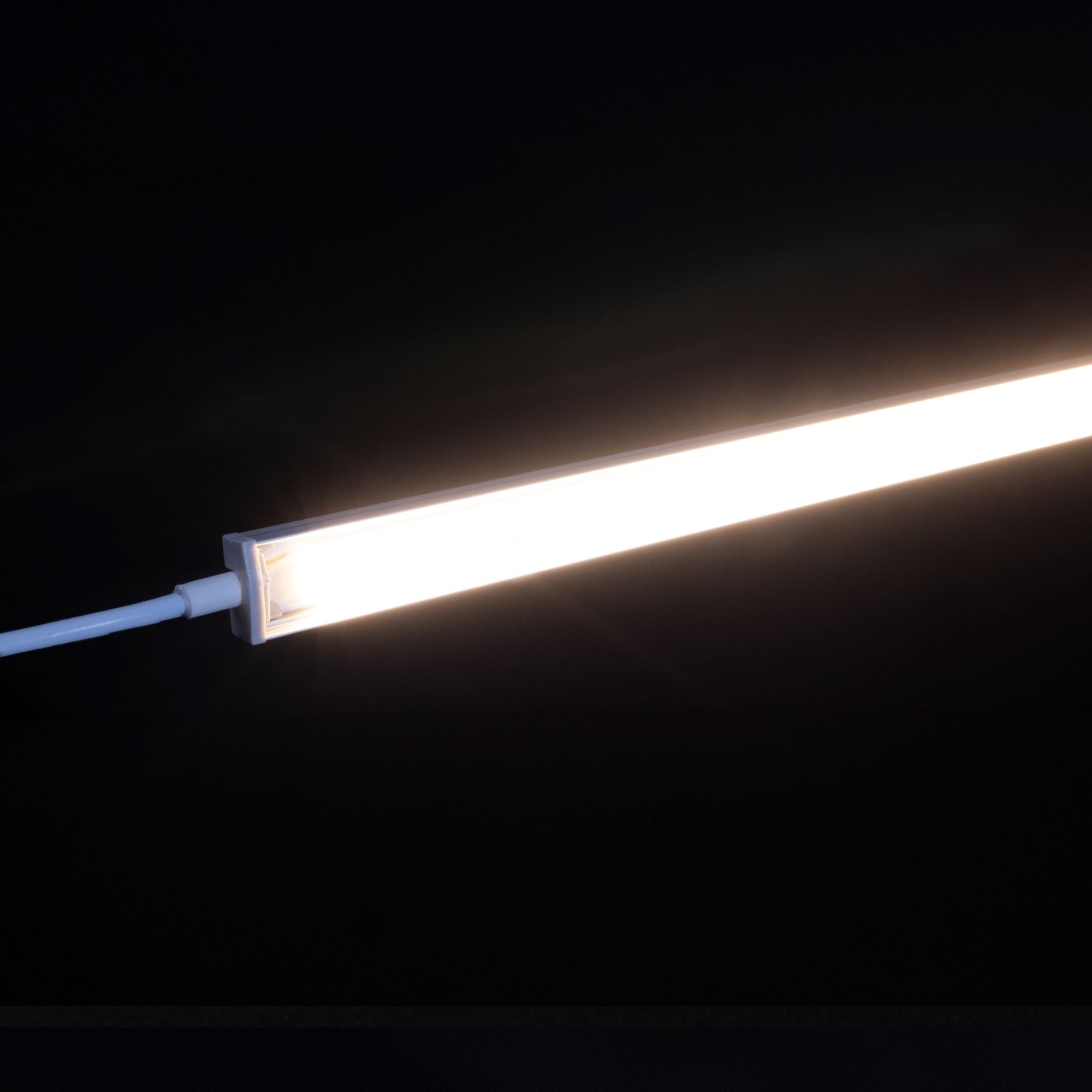

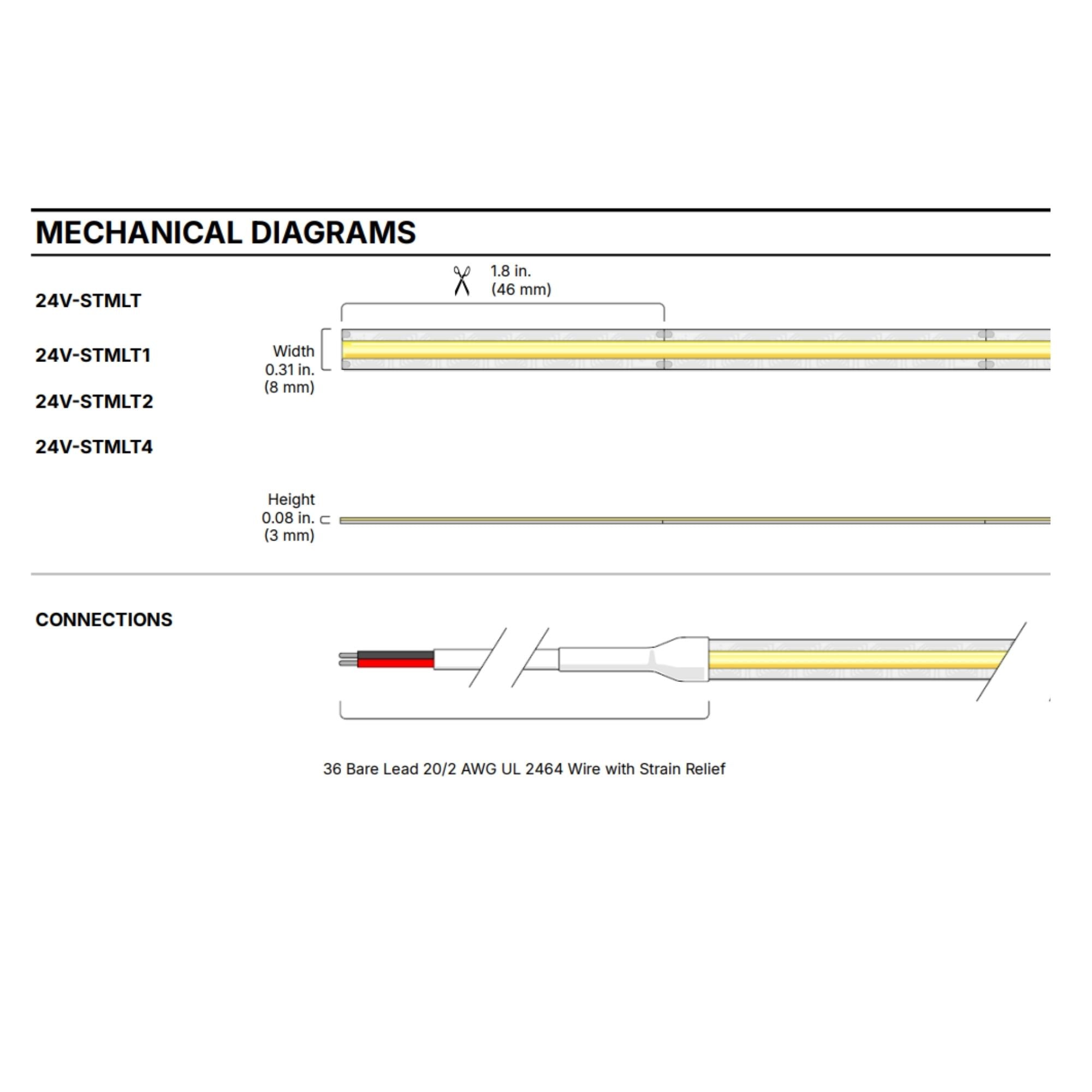

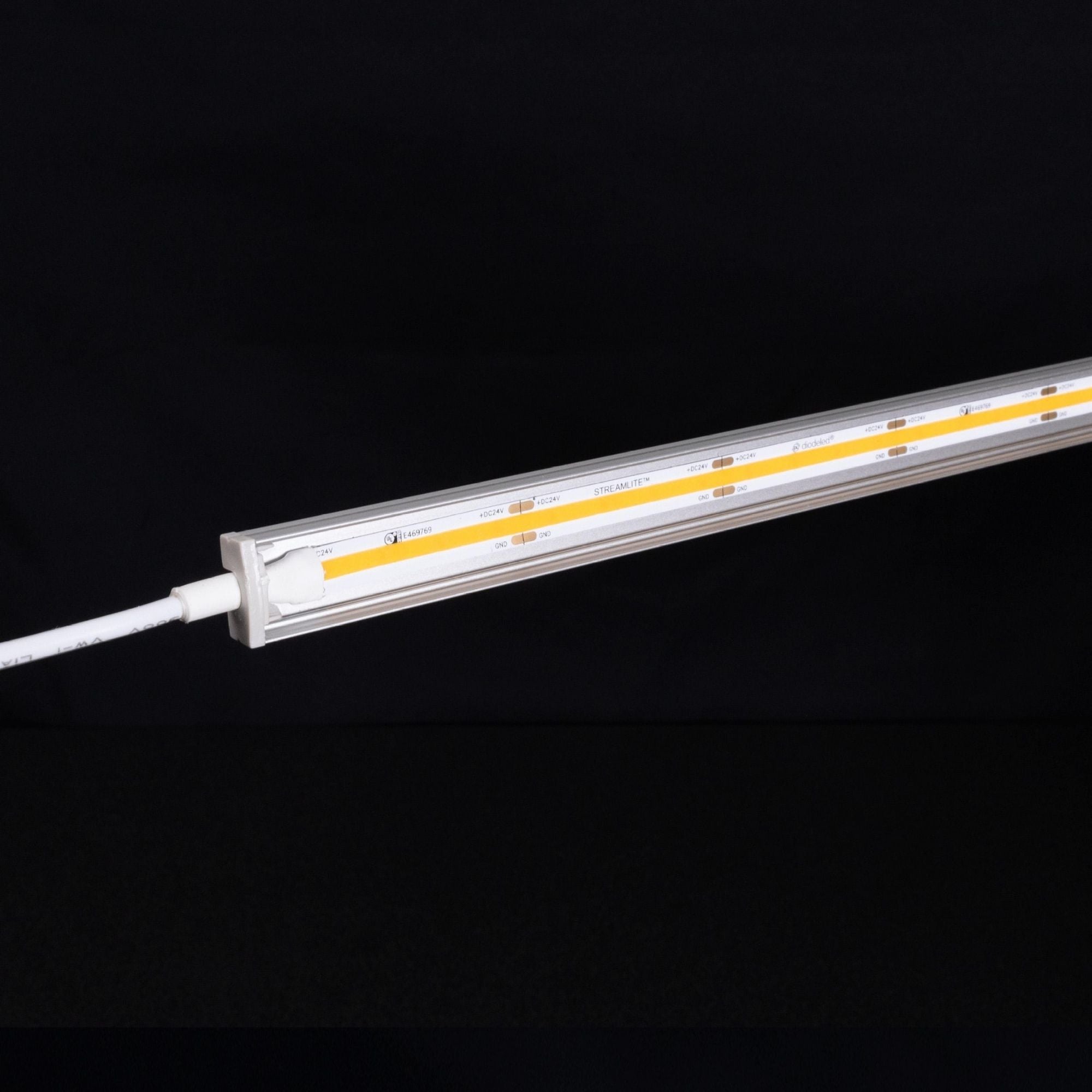

The tape light features a 0.31 in. wide PCB, ensuring compatibility with a variety of aluminum channels. It includes a durable adhesive backing for easy installation on clean surfaces.
LED Illumination & Performance

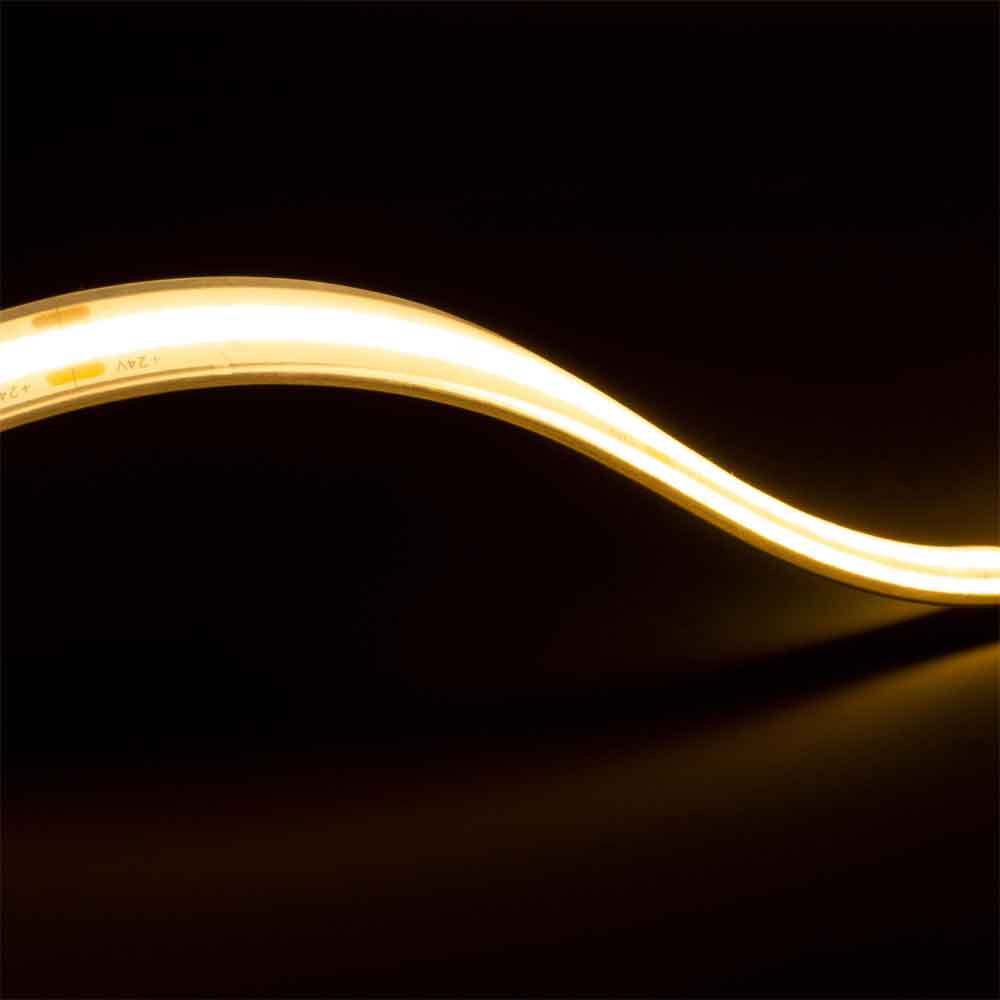

With a light output of 314 Lm/ft and a CRI of 90+, this COB tape light offers high-quality illumination with no visible LED dots, ideal for creating smooth, continuous lines of light.
Power, Wiring & Installation
Requires a 24V driver for operation. The tape is field cuttable every 1.8 in., allowing for precise customization. It supports dimming for adjustable light levels.

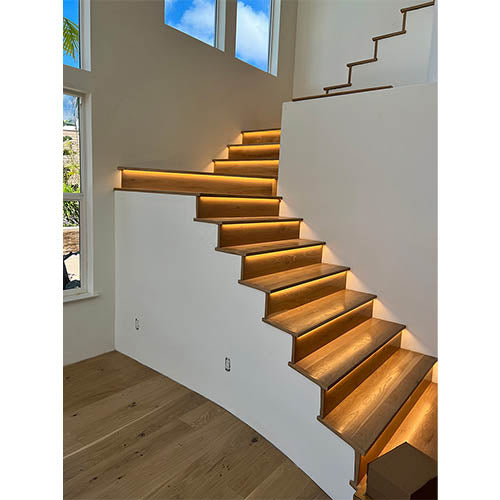

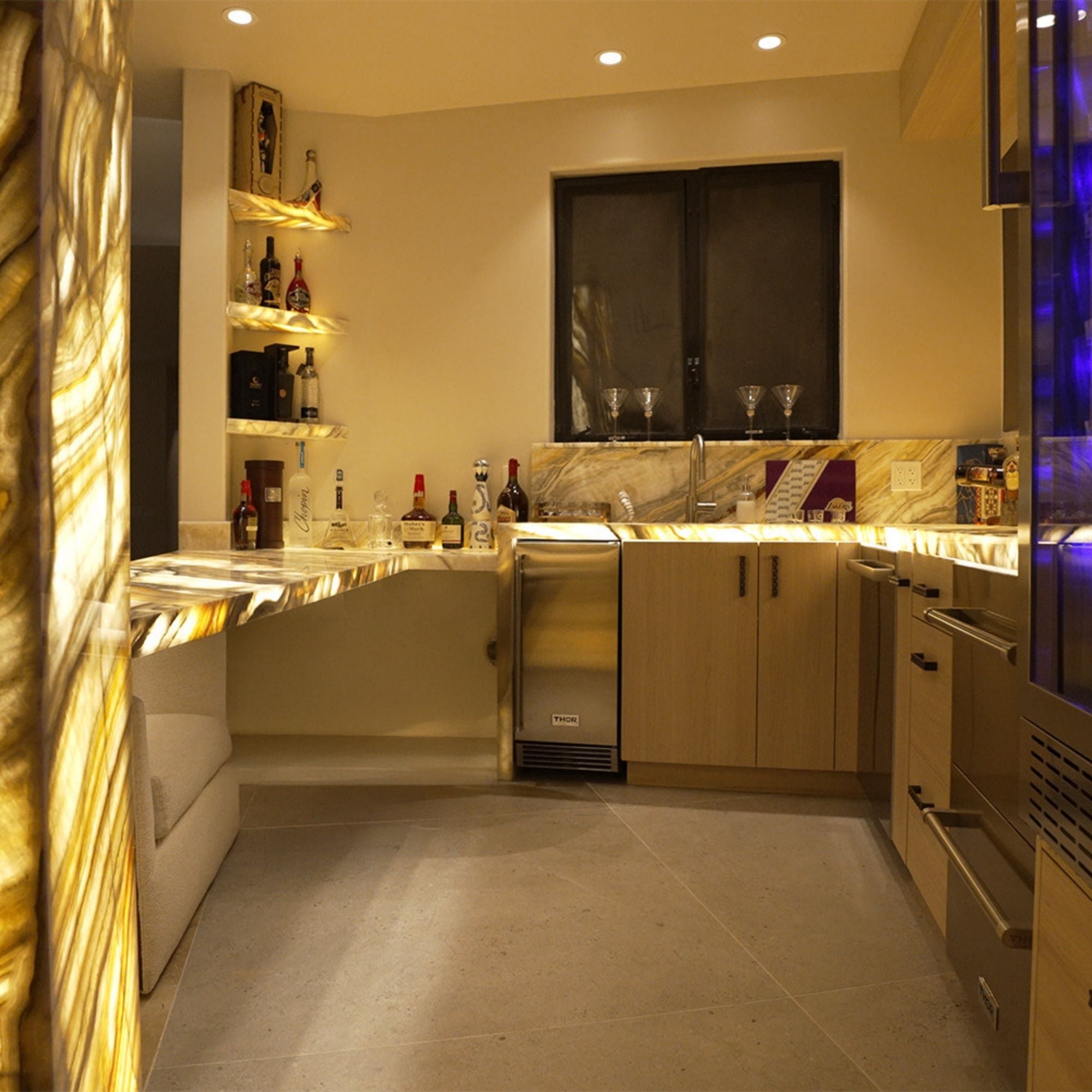

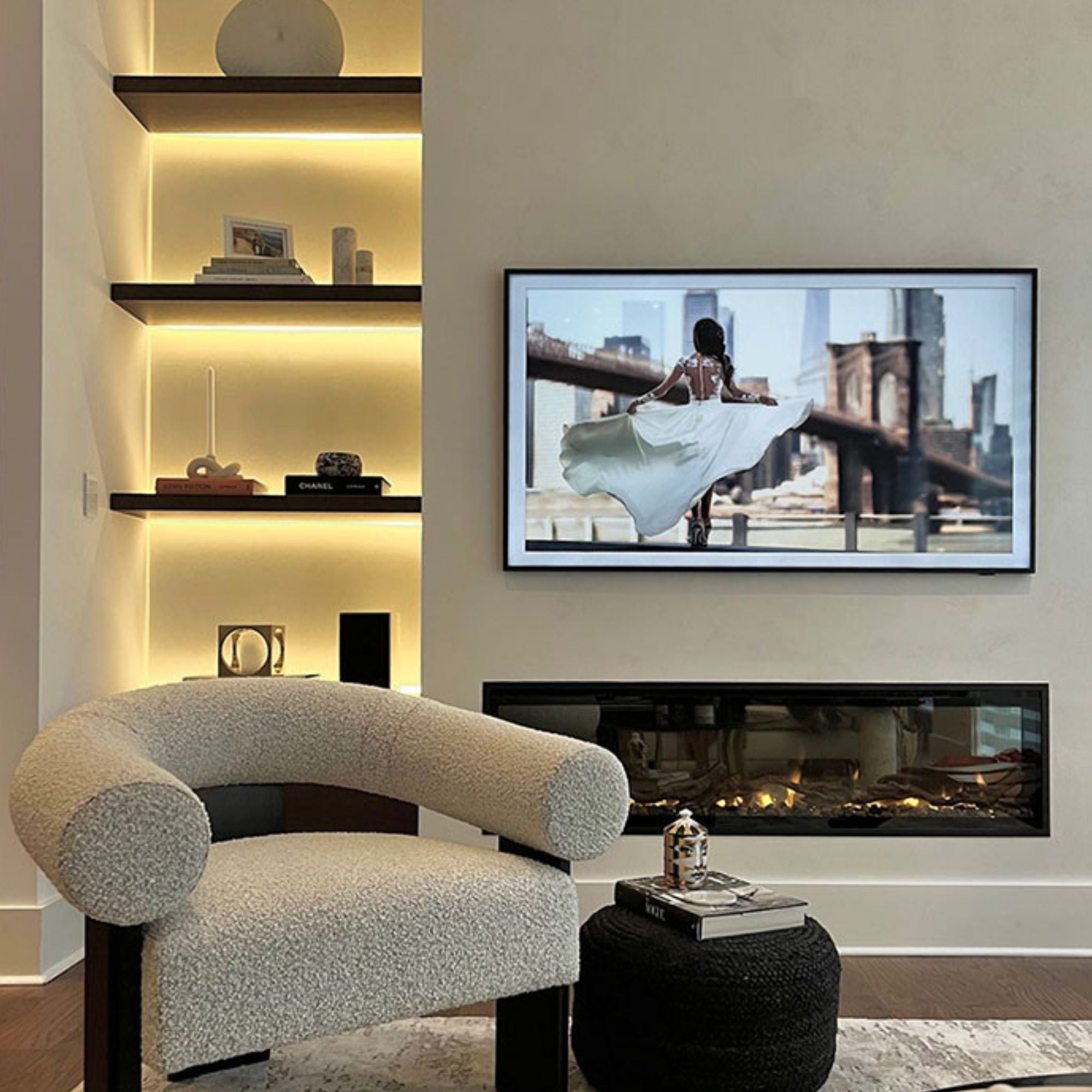

Where This Tape Works Best

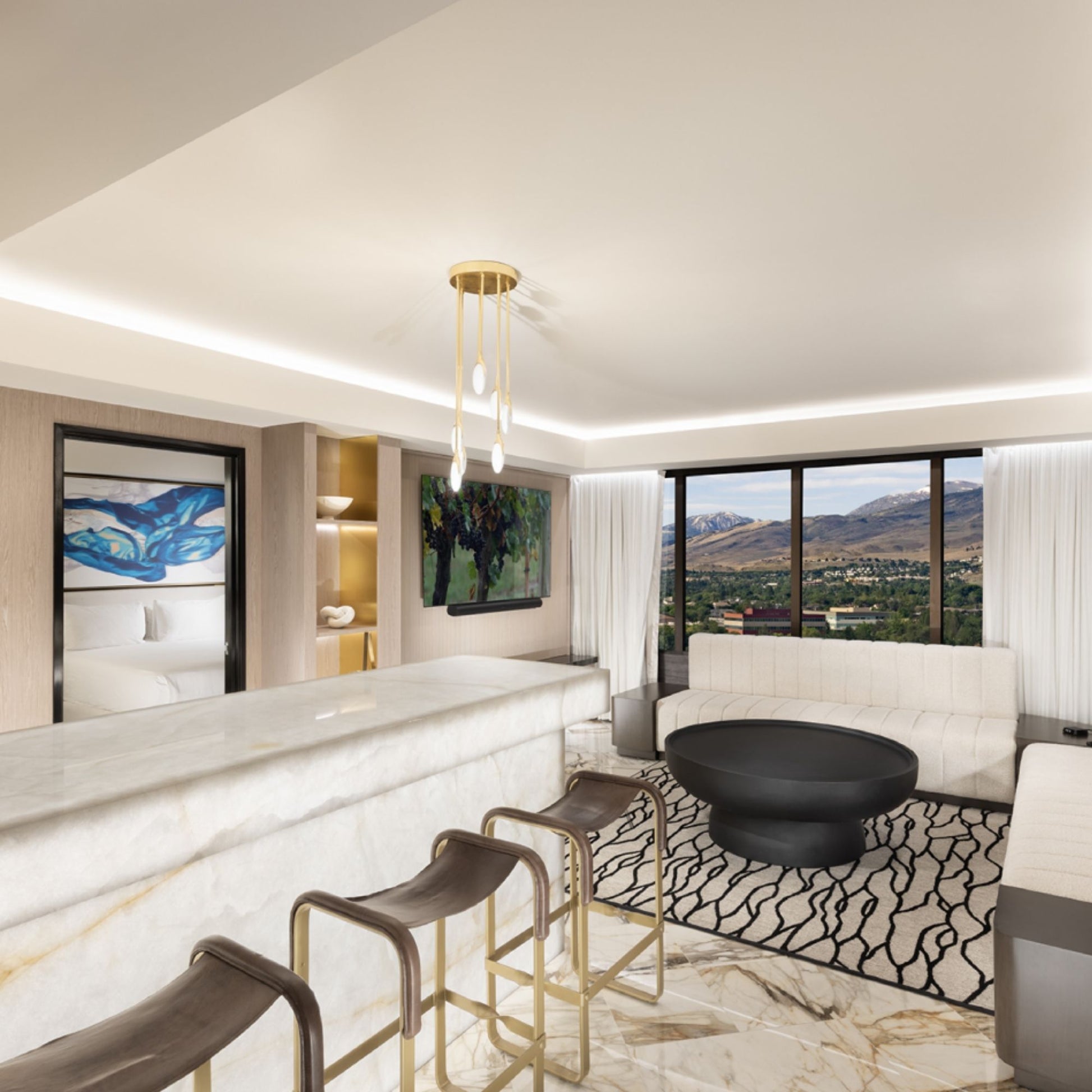

- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16 ft. spool of LED tape light
- 36 in. bare lead wire for easy connection
