Diode LED Neon BLAZE, 16 ft., Neon Tape Light, IP65, Red, 34 Lumens/ft, 24V
Available in stock (100)
About this item
About this item
- Color: Vibrant red for striking visual impact in any setting.
- Voltage: Operates on 24V DC, ideal for consistent illumination.
- Max Run: Maximum continuous length of 16 ft. to prevent voltage drop.
- Cuttable: Field cuttable every 2 in. for custom lengths.
- IP Rating: IP65 rated for wet locations, suitable for outdoor use.
We process payments securely and do not store credit card information.
Description
Description
Diode LED Neon BLAZE Neon Tape Light — Red & Diffused Illumination
The Diode LED DI-24V-SE-NBL4-RD-16 is a 16 ft. neon tape light featuring a vibrant red color. This 24V tape light is designed for wet locations with an IP65 rating, making it suitable for outdoor applications. Its fully diffused, dotless light provides a seamless glow, perfect for architectural accents.
Key Features
- Voltage: 24V DC for stable performance.
- Wattage: 4.4W/ft. for efficient energy use.
- Lumens: 34 lumens per foot for bright illumination.
- LEDs: High-density configuration for uniform light output.
- Max Run: 16 ft. to prevent voltage drop.
- Cuttable: Every 2 in. for precise customization.
- PCB Width: 0.37 in. for compatibility with standard channels.
- Beam Angle: Wide distribution for even coverage.
- IP Rating: IP65 for wet locations.
- Certifications: UL Listed, RoHS compliant.
Core Design & Construction

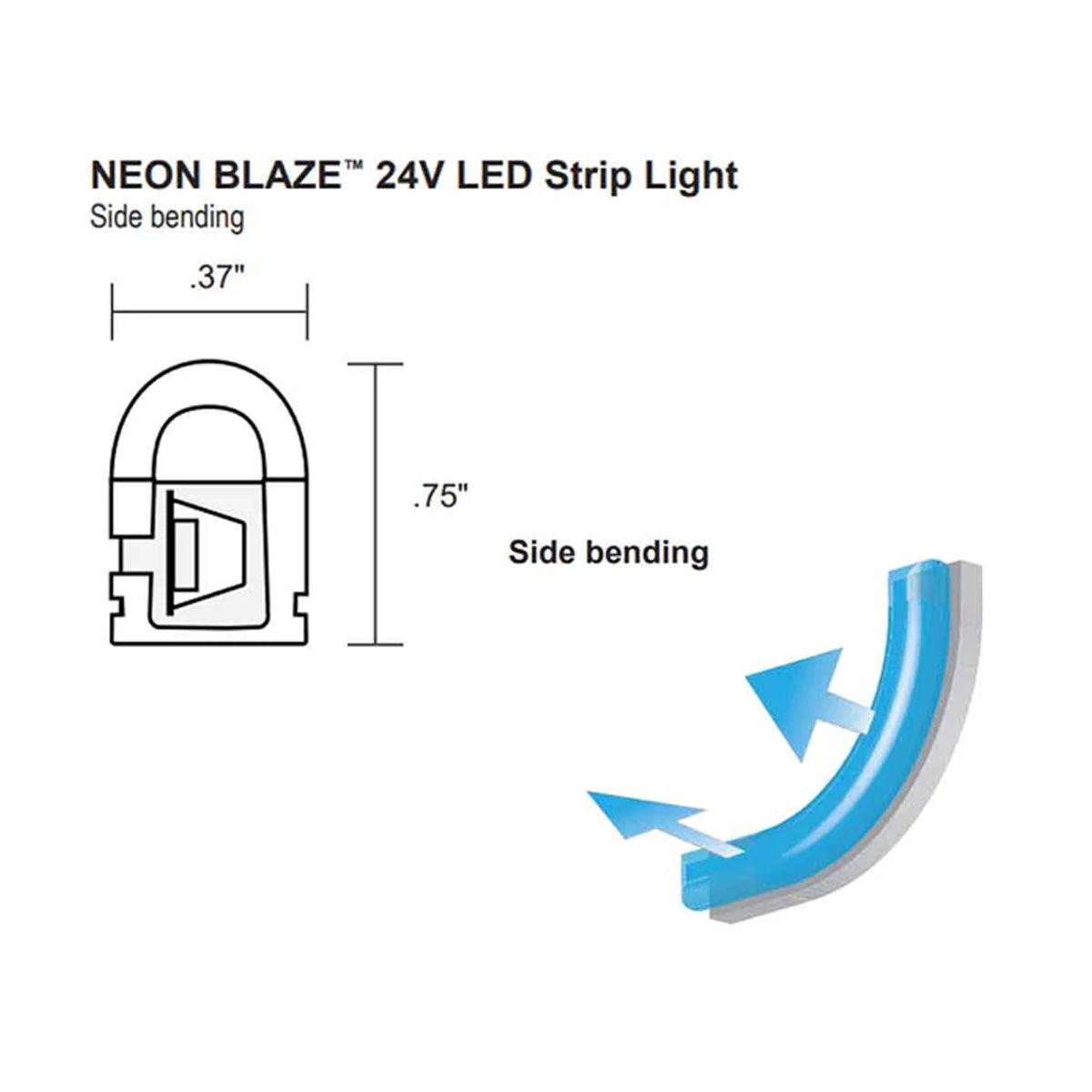

The Neon BLAZE features a 0.37 in. wide PCB, ensuring compatibility with most aluminum channels. Its silicone coating provides protection against environmental elements, while the 3M adhesive backing ensures secure installation.
LED Illumination & Performance
Delivering 34 lumens per foot with an 80+ CRI, this neon tape light offers vibrant red illumination. The diffused light engine ensures a dotless appearance, enhancing visual appeal.
Power, Wiring & Installation
Operating on 24V DC, this tape light requires a compatible driver. It is field-cuttable every 2 in., allowing for tailored installations. Ensure maximum runs do not exceed 16 ft. to avoid voltage drop. Fully dimmable for customizable lighting effects.
Where This Tape Works Best

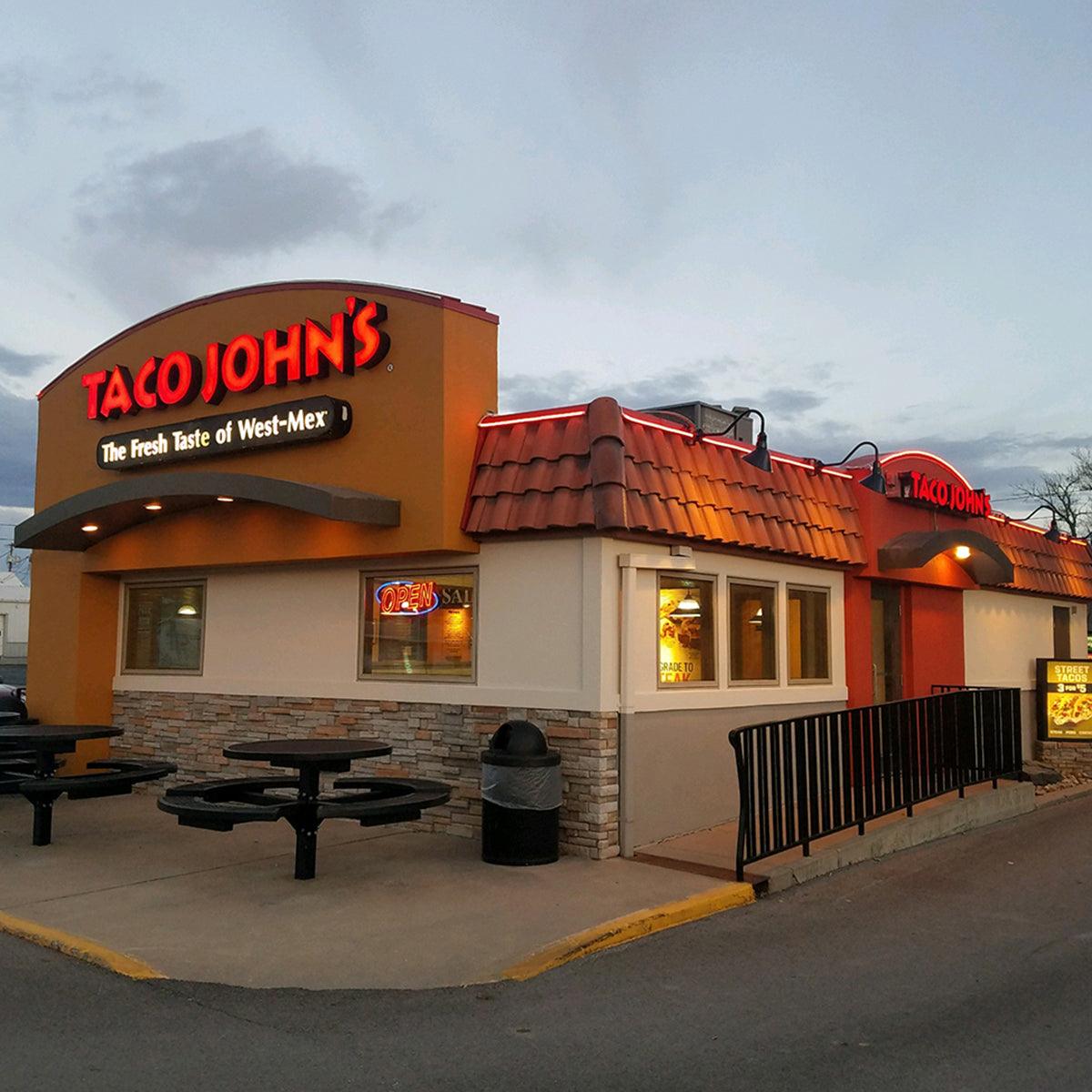

- Outdoor architectural accents
- Wet location installations
- Signage and displays
- Pathway lighting
What's Included
- 16 ft. spool of Neon BLAZE tape light
- Pre-attached leads for easy connection
