Diode LED Neon BLAZE, 16 ft, Neon Tape Light, IP65, 3000K, 198 Lumens/ft, 24V
Available in stock (100)
About this item
About this item
- Color Temperature: Provides a warm 3000K light ideal for ambient settings.
- Voltage: Operates on 24V DC, requiring a compatible driver for power.
- Max Run: Supports up to 16 ft continuous run, ensuring consistent illumination.
- Cuttable: Field cuttable every 2 inches for custom lengths.
- IP Rating: IP65 rated for wet locations, suitable for outdoor installations.
We process payments securely and do not store credit card information.
Description
Description
Diode LED Neon BLAZE Neon Tape Light — 3000K & Wet Rated
The Diode LED DI-24V-SE-NBL4-30-16 Neon Tape Light offers a sleek and flexible lighting solution with a length of 16 feet. Designed for outdoor environments, it operates on 24V DC and is IP65 rated for wet locations, making it ideal for a variety of architectural applications.
Key Features
- Voltage: 24V DC operation ensures compatibility with low voltage systems.
- Wattage: Consumes 4.4W per foot for efficient energy use.
- Lumens: Delivers 198 lumens per foot for bright illumination.
- LEDs per Foot: High-density LED arrangement for uniform light output.
- Max Run: Capable of a 16 ft maximum run without voltage drop.
- Cut Increments: Customizable with 2-inch cut increments.
- PCB Width: 0.37 inches, compatible with standard channels.
- Beam Angle: Wide beam angle for broad coverage.
- IP Rating: IP65 for wet locations, suitable for outdoor use.
- Certifications: UL Listed for safety and reliability.
Core Design & Construction
Featuring a narrow 0.37-inch PCB width, this tape light is compatible with most aluminum channels. It includes a durable silicone coating for protection against environmental elements and a reliable adhesive backing for easy installation.
LED Illumination & Performance
With 198 lumens per foot and a CRI of 80+, the Neon BLAZE provides vibrant and accurate color rendering. The diffused, dotless light output is perfect for creating seamless lighting effects.
Power, Wiring & Installation
This tape light requires a 24V DC driver for operation. It is field-cuttable every 2 inches, allowing for precise customization. Ensure a maximum continuous run of 16 feet to prevent voltage drop. Fully dimmable with compatible systems.

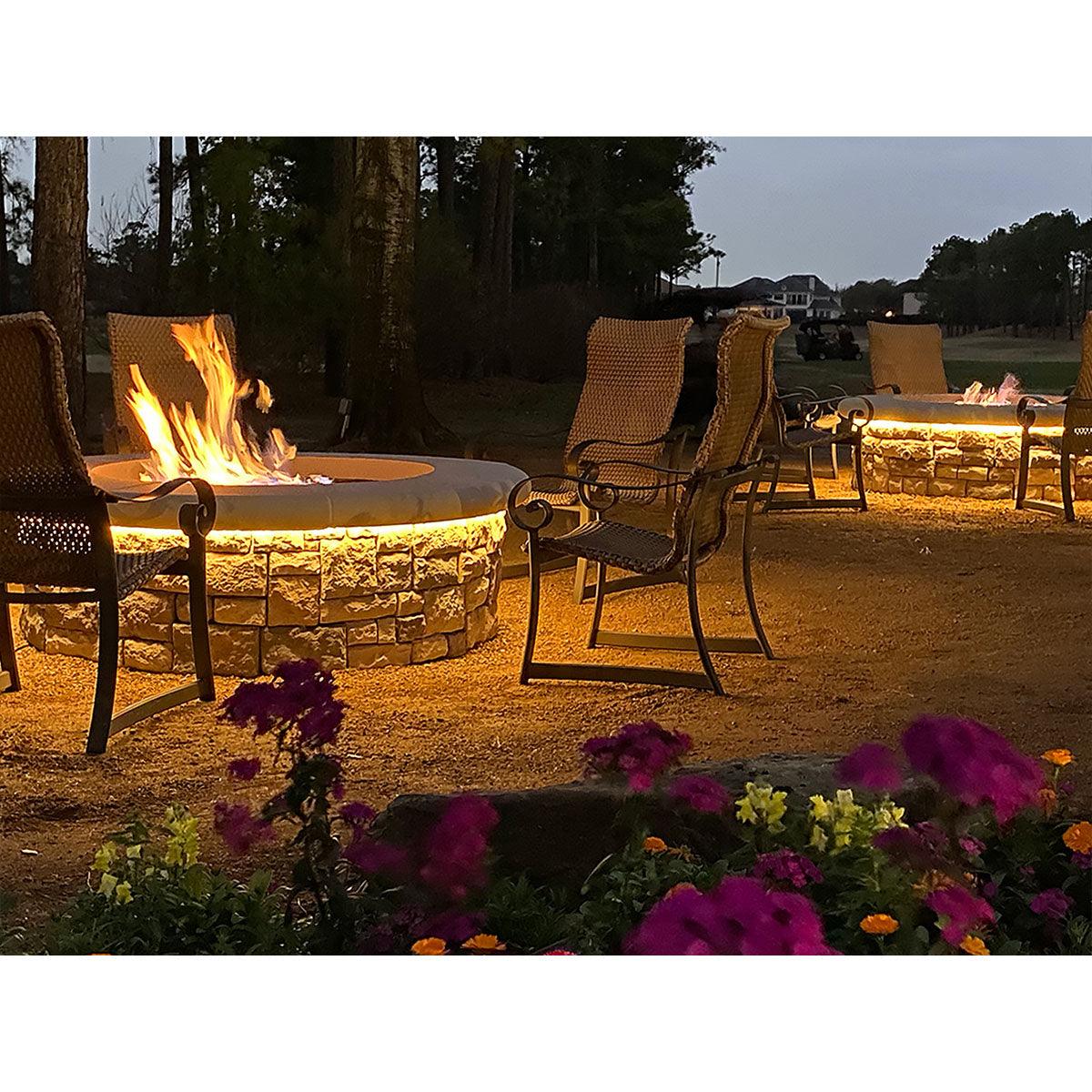

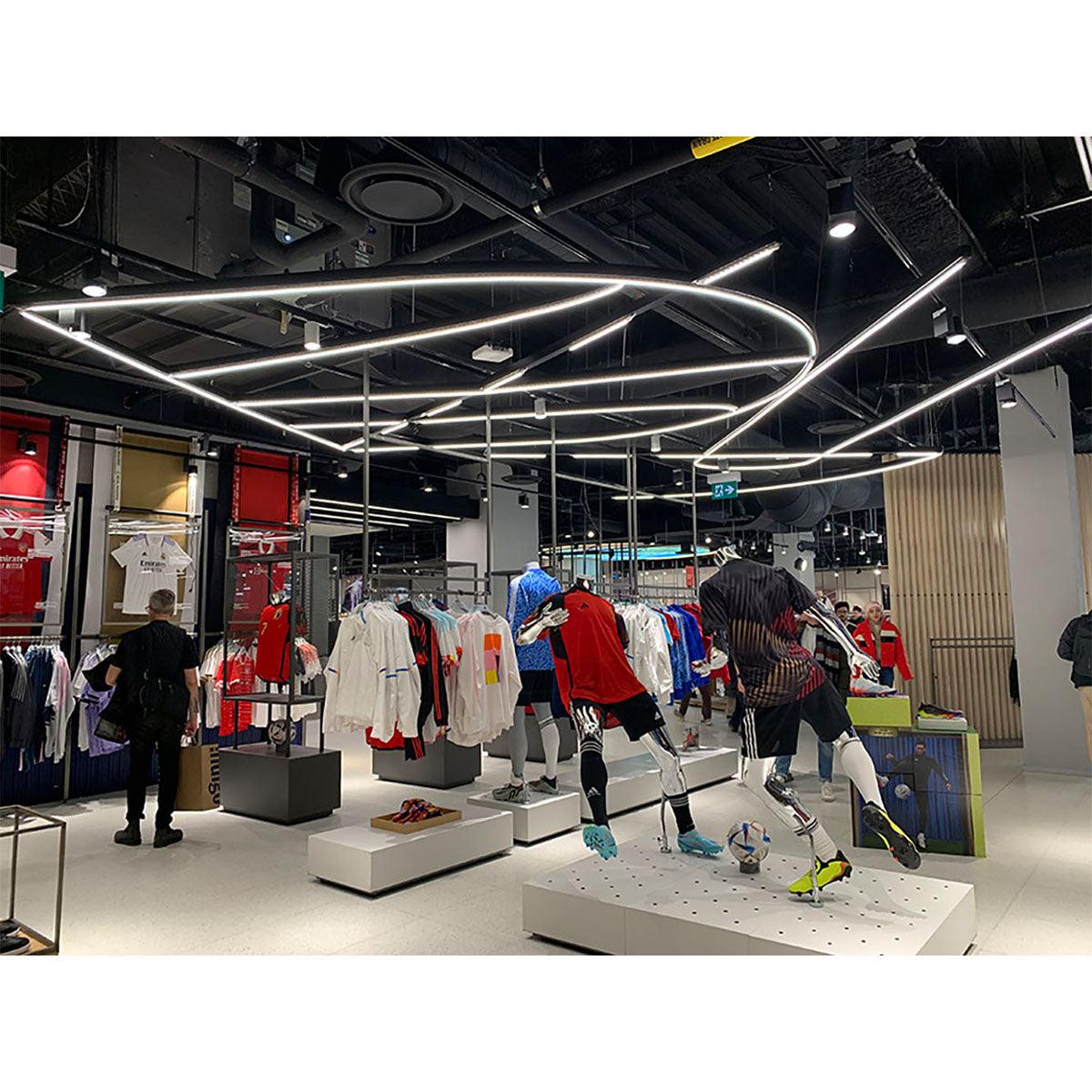

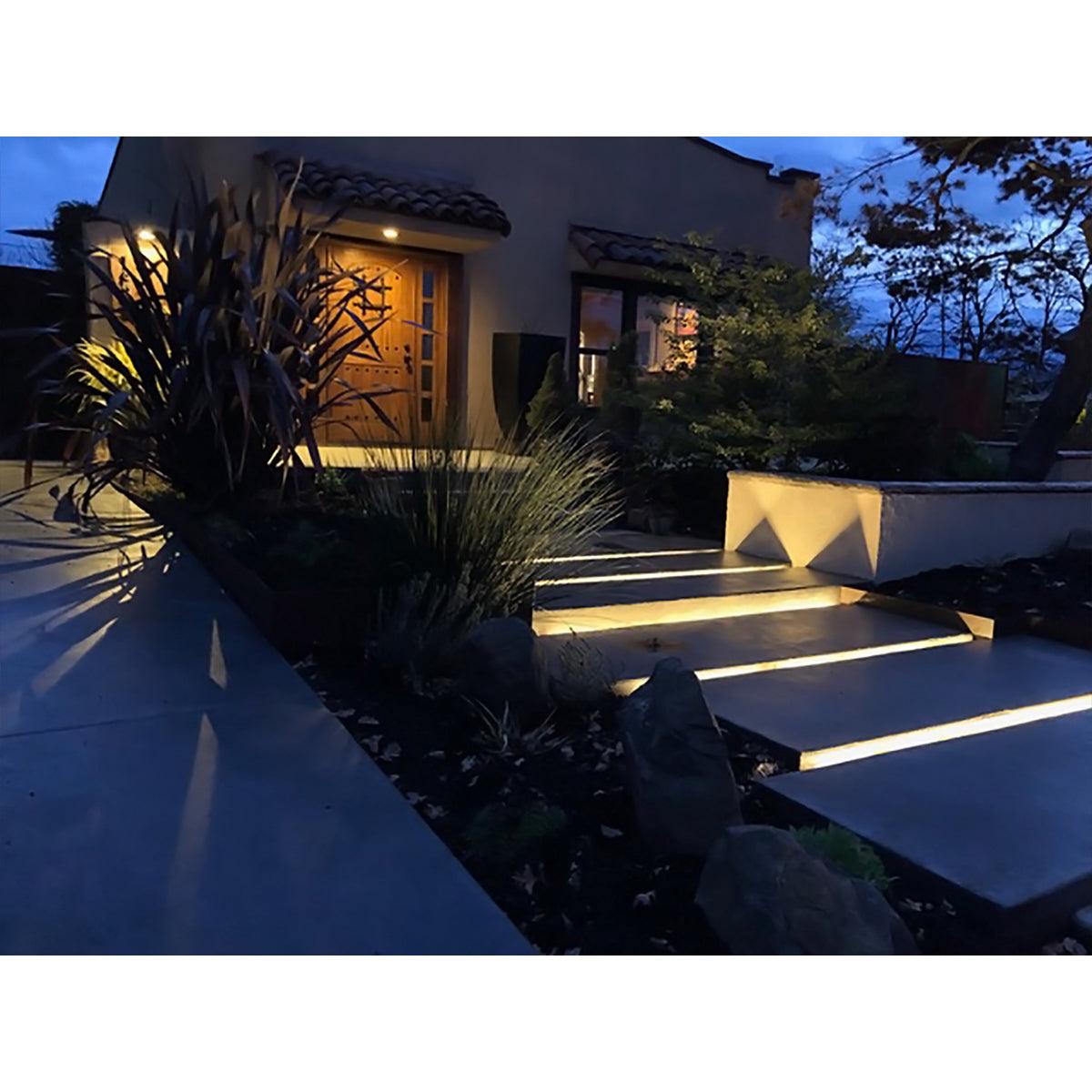

Where This Tape Works Best
- Outdoor pathways
- Architectural accents
- Garden lighting
- Facade lighting
What's Included
- 16 ft spool of Neon Tape Light
- Pre-attached leads for easy connection
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
