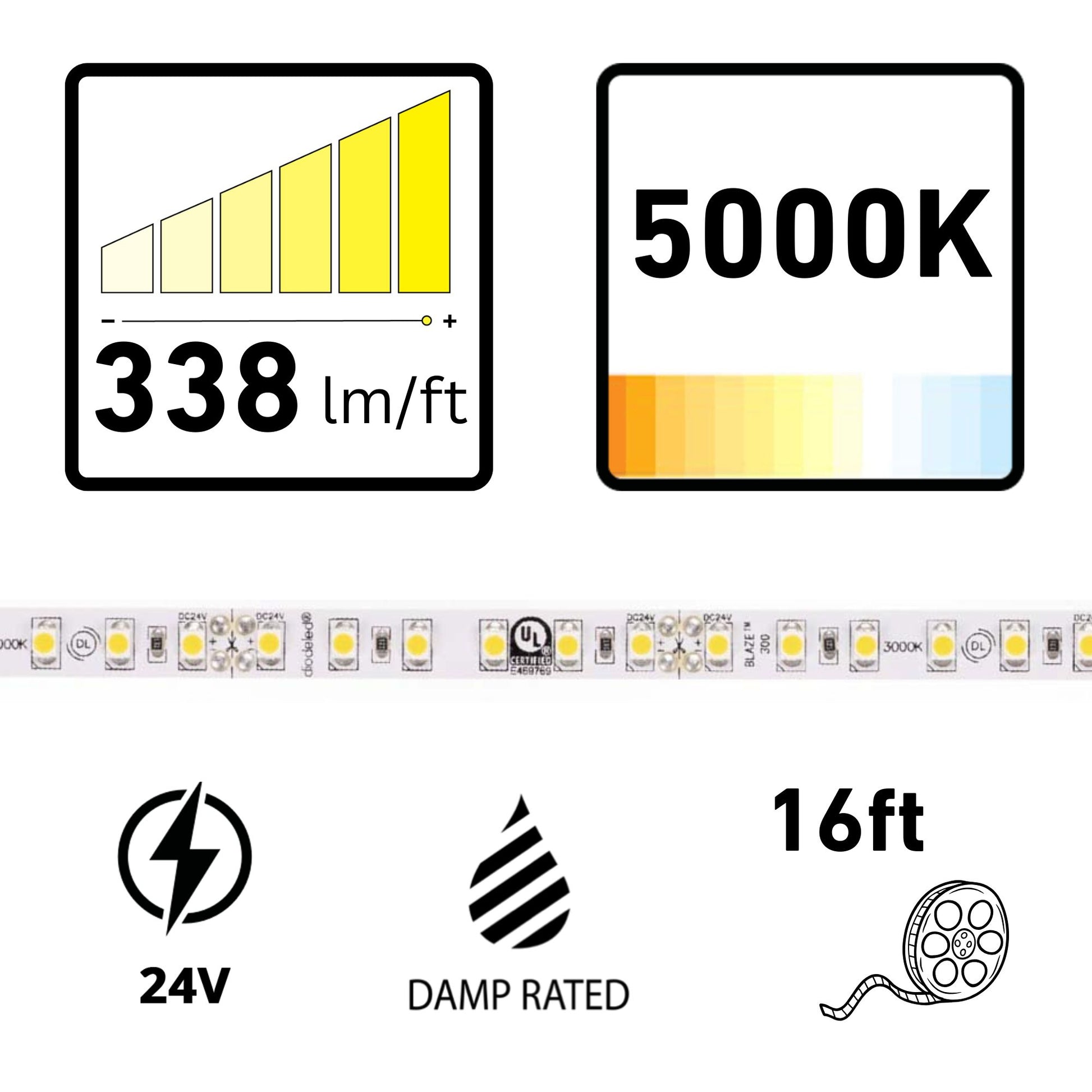

Diode LED BLAZE, 16 ft., LED Tape Light, 5000K, 338 Lumens/ft, 24V
Available in stock (100)
About this item
About this item
- Color Temperature: Delivers a crisp 5000K daylight white for vibrant illumination.
- Voltage & Max Run: Operates at 24V with a maximum run of 22 ft. to minimize voltage drop.
- Cuttable Increments: Field cuttable every 1.96 in. for custom lengths and configurations.
- IP Rating: Suitable for indoor/damp locations with an IP20 rating.
- Special Features: High 90+ CRI for excellent color rendering and visual appeal.
We process payments securely and do not store credit card information.
Description
Description

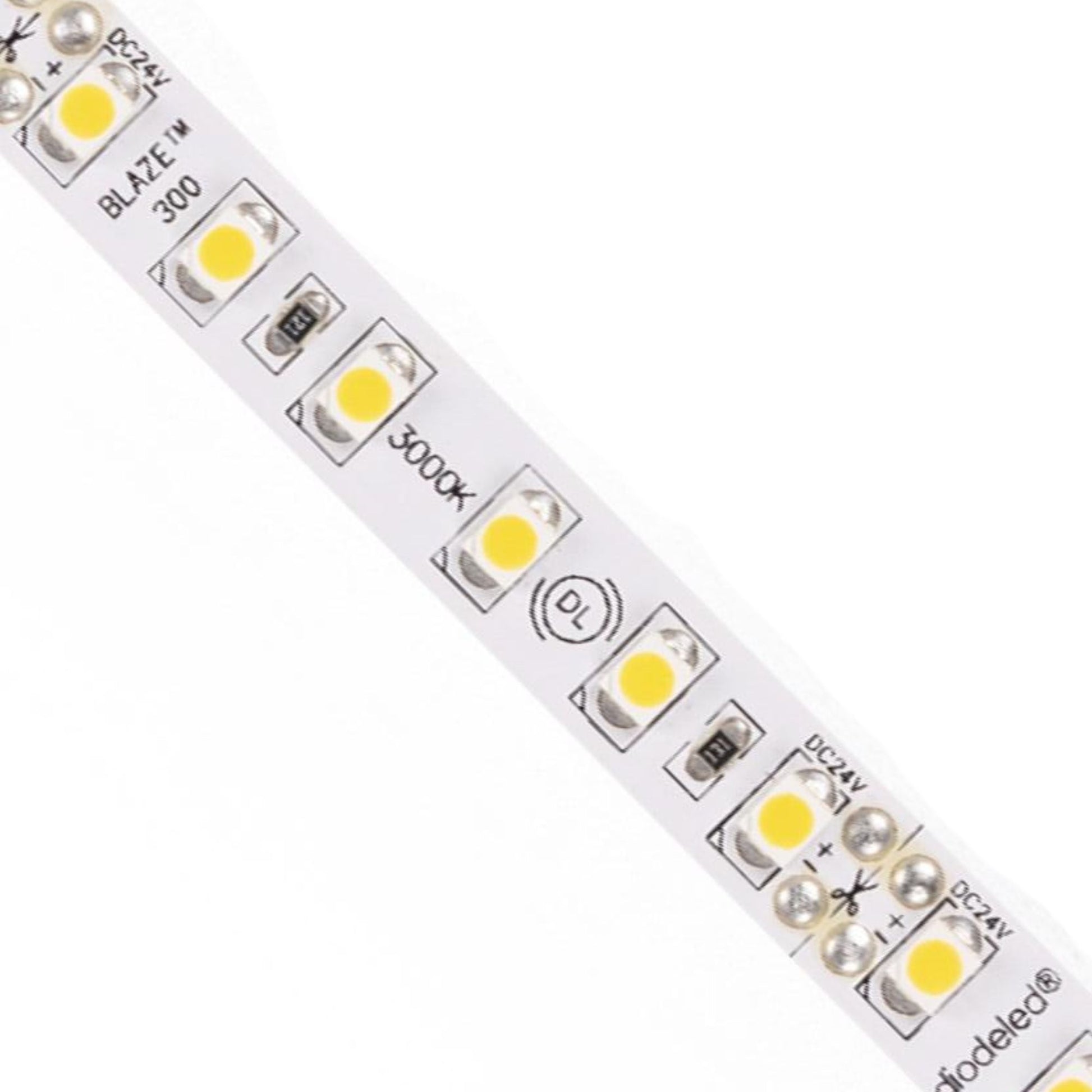

Diode LED BLAZE LED Tape Light — 5000K & High CRI
The Diode LED DI-24V-BLBSC3-50-016 is a high-performance LED Tape Light offering a 5000K color temperature for crisp, daylight illumination. This 16 ft. tape light operates at 24V and is rated for indoor/damp environments.
Key Features
- Voltage: 24V DC for efficient power consumption.
- Wattage: 4.5W/ft. for balanced energy use.
- Lumens per Foot: 338 Lm/ft. for bright, effective lighting.
- LEDs per Foot: 36 LEDs/ft. for uniform light distribution.
- Maximum Run Length: 22 ft. to prevent voltage drop.
- Field Cuttable: Every 1.96 in. for precise installation.
- PCB Width: 8mm for compatibility with standard channels.
- Beam Angle: 120° for wide light dispersion.
- IP Rating: IP20 for indoor/damp locations.
- Certifications: UL Listed, RoHS Compliant, Title 24.
Core Design & Construction
Featuring an 8mm PCB width, this tape light is designed for easy installation in standard aluminum channels. It includes a durable 3M adhesive backing for secure mounting in various applications.
LED Illumination & Performance
With 338 lumens per foot and a 90+ CRI, this tape light ensures high-quality, vibrant lighting suitable for a range of environments. The light engine utilizes standard SMD technology for reliable performance.
Power, Wiring & Installation
Requires a 24V driver for operation. The tape light is field cuttable every 1.96 in., allowing for custom lengths. Maximum continuous run is 22 ft. to avoid voltage drop. Fully dimmable for adjustable lighting levels.
Where This Tape Works Best
- Cove lighting for architectural accents.
- Under cabinet lighting in kitchens.
- Accent lighting in retail displays.
- Task lighting in workspaces.
What's Included
- 16 ft. spool of LED tape light.
- Pre-attached 36 in. bare lead wire.
- Drivers sold separately.
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the DI-24V-BLBSC3-50-016?
What is the maximum run length for the DI-24V-BLBSC3-50-016?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for the DI-24V-BLBSC3-50-016?
What voltage is required for the DI-24V-BLBSC3-50-016?
Is the DI-24V-BLBSC3-50-016 compatible with standard channels?
Is the DI-24V-BLBSC3-50-016 compatible with standard channels?
Does the tape light include a power supply?
Does the tape light include a power supply?
