Diode LED BLAZE LED Tape Light — 4000K & High CRI

The Diode LED DI-24V-BLBSC3-40-016 is a 16 ft. LED tape light offering a neutral 4000K color temperature. This tape light operates at 24V DC and is rated for damp locations, making it versatile for various indoor applications. With a high CRI of 90+, it ensures excellent color rendering for true-to-life illumination.

Key Features

• Voltage: 24V DC for efficient low voltage operation.
• Wattage: 4.5W/ft. for energy-efficient lighting.
• Lumens: 341 Lm/ft. for bright and effective illumination.
• LEDs per Foot: 36 LEDs/ft. for uniform light distribution.
• Max Run Length: 22 ft. to prevent voltage drop.

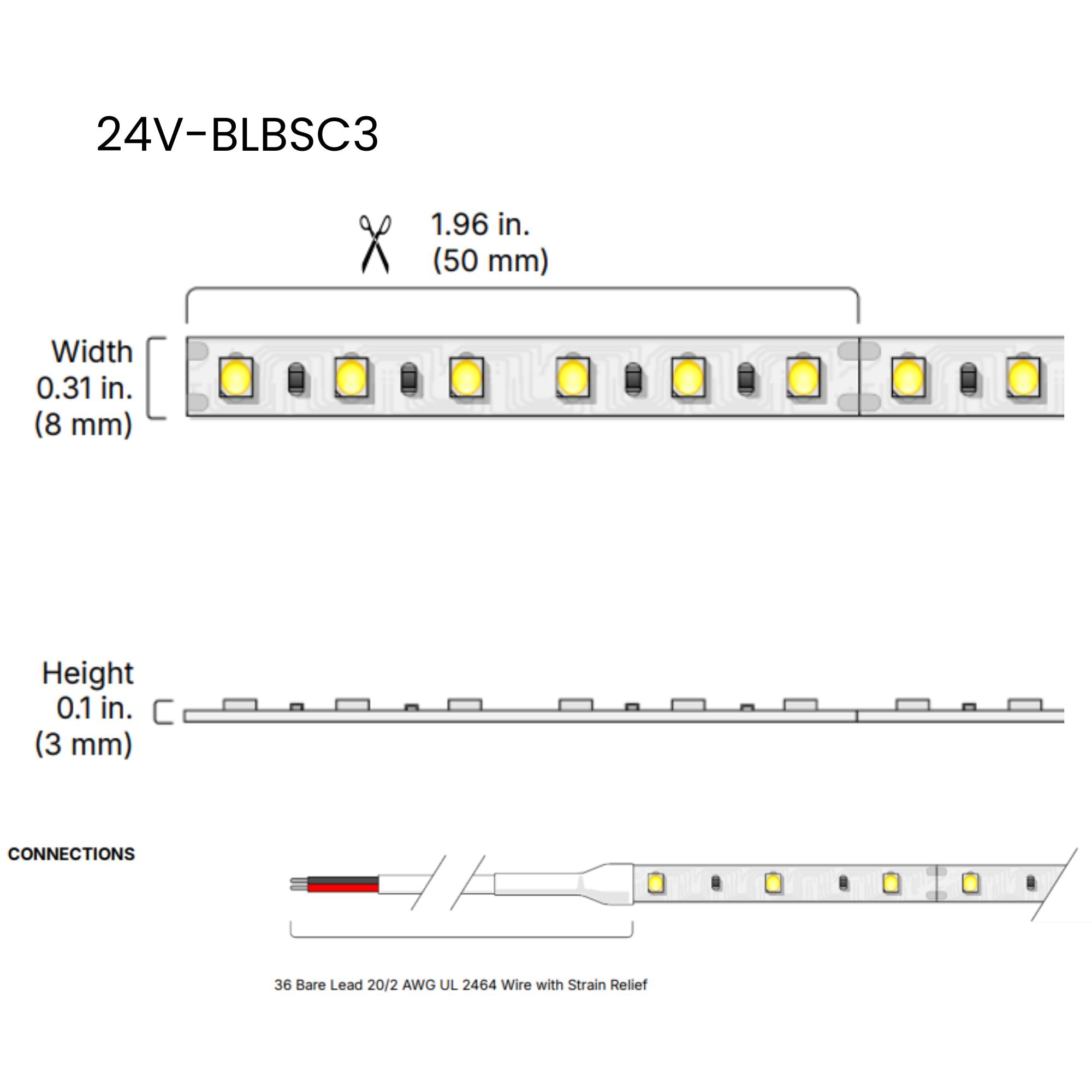

• Cut Increments: Field cuttable every 1.96 in. for custom installations.
• PCB Width: 8mm, compatible with most standard channels.
• Beam Angle: 120° for wide light distribution.
• IP Rating: IP20, suitable for indoor/damp locations.
• Certifications: UL Listed, RoHS Compliant, Title 24.

Core Design & Construction

The tape light features an 8mm PCB width, ensuring compatibility with most standard aluminum channels. It includes a durable adhesive backing for easy installation on various surfaces, and is rated for indoor/damp environments.

LED Illumination & Performance

With 341 lumens per foot and a CRI of 90+, this tape light provides bright, high-quality illumination. The light engine utilizes standard SMD LEDs for consistent and reliable performance.

Power, Wiring & Installation

This tape light requires a 24V DC power supply and is field cuttable every 1.96 in. for custom lengths. The maximum continuous run is 22 ft. to prevent voltage drop, and it is fully dimmable for adjustable lighting levels.

Where This Tape Works Best

• Cove lighting for ambient illumination.
• Under cabinet lighting for task areas.
• Accent lighting in retail displays.
• Backlighting for architectural features.

What's Included

• 16 ft. spool of LED tape light.
• 36 in. bare lead wire for easy connection.
• 2x White Tape-to-Wire Terminal Blocks (DI-TB-CONN-TTW-1).
