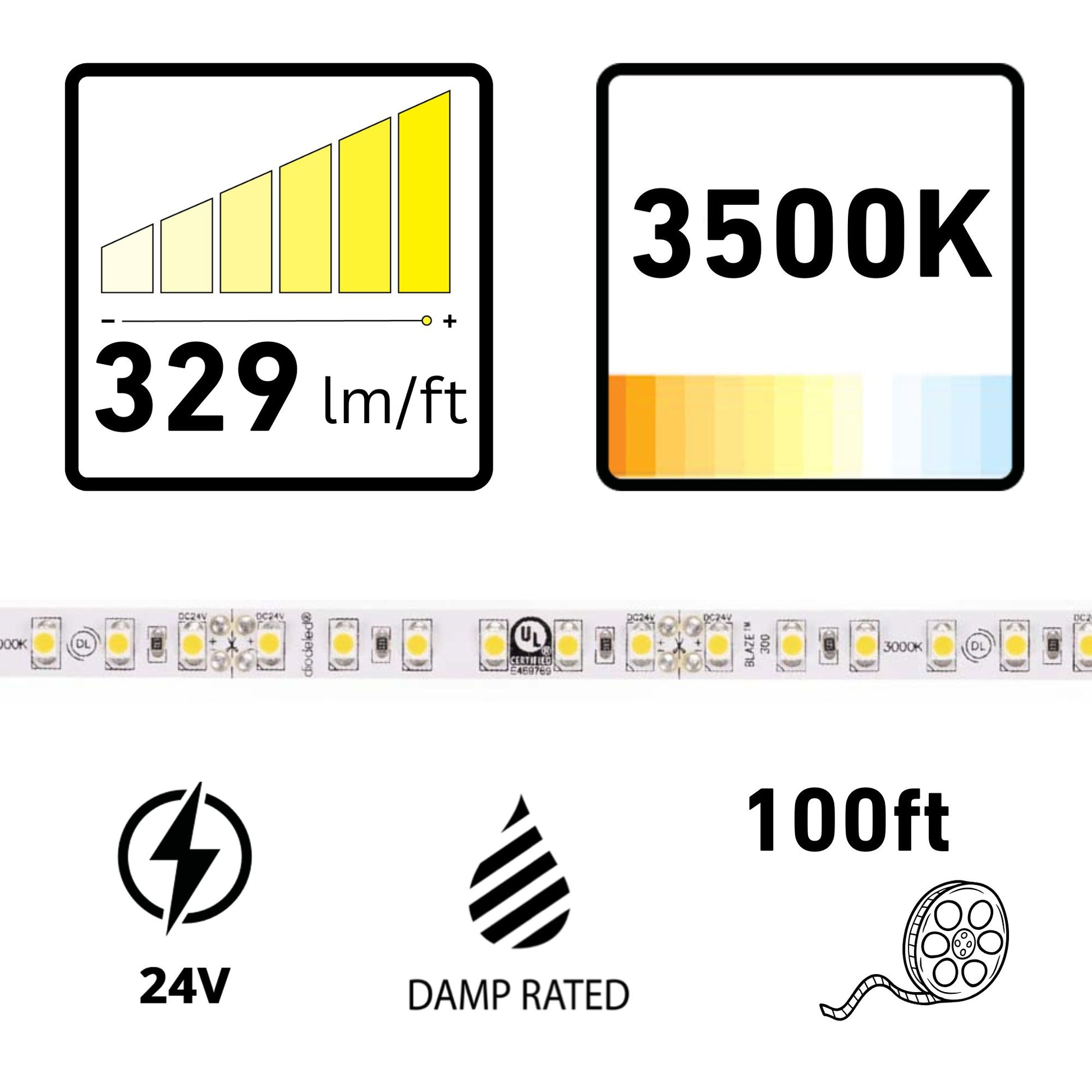

BLAZE, 100 ft., LED Tape Light, 3500K, 329 Lumens/ft., 24V
Available in stock (200)
About this item
About this item
- Color Temperature: 3500K for a neutral white light suitable for various applications.
- Voltage: Operates at 24V DC, requiring a compatible driver for installation.
- Max Run: Up to 22 ft. continuous run to prevent voltage drop.
- Cuttable: Field cuttable every 1.96 in. for customized lengths.
- Environment: Suitable for indoor/damp locations with IP20 rating.
We process payments securely and do not store credit card information.
Description
Description

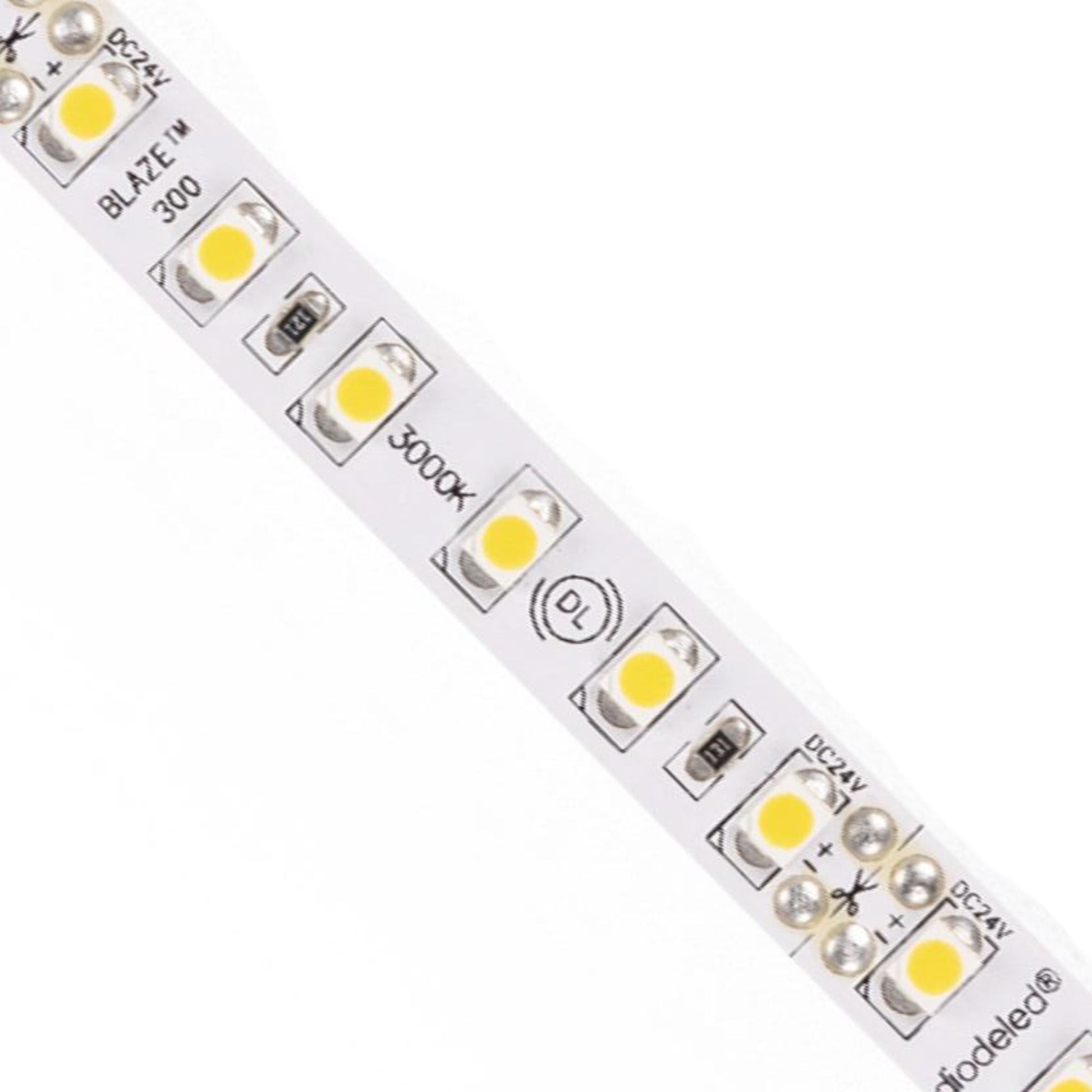

BLAZE LED Tape Light — 3500K & High CRI
The BLAZE DI-24V-BLBSC3-35-100 is a 100 ft. LED tape light offering a neutral white 3500K color temperature. This tape light operates at 24V DC and is suitable for indoor/damp locations with an IP20 rating. It features a high CRI of 90+ for excellent color rendering.
Key Features
- Voltage: 24V DC operation for efficient power consumption.
- Wattage: 4.5W/ft. for balanced brightness and energy use.
- Lumens: 329 Lm/ft. for bright, consistent illumination.
- LEDs: 36 LEDs/ft. for uniform light distribution.
- Max Run: 22 ft. to prevent voltage drop.
- Cuttable: Every 1.96 in. for precise customization.
- PCB Width: 0.31 in. for compatibility with standard channels.
- Beam Angle: 120° for wide light dispersion.
- Certifications: UL Listed, RoHS Compliant, Title 24.
Core Design & Construction
The tape light features a 0.31 in. wide PCB, ensuring compatibility with most aluminum channels. It includes a durable 3M adhesive backing for secure mounting and is designed for indoor/damp environments.
LED Illumination & Performance
With 329 lumens per foot and a CRI of 90+, this tape light delivers high-quality illumination. The light engine uses standard SMD technology for reliable performance.
Power, Wiring & Installation
This 24V tape light requires a compatible driver for operation. It is field cuttable every 1.96 in. and supports a maximum continuous run of 22 ft. to prevent voltage drop. The tape light is dimmable for adjustable lighting levels.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 100 ft. spool of LED tape light
- 36 in. bare lead wire
- 2x White Tape-to-Wire Terminal Blocks
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the BLAZE DI-24V-BLBSC3-35-100?
What is the maximum run length for the BLAZE DI-24V-BLBSC3-35-100?
How often can the BLAZE tape light be cut?
How often can the BLAZE tape light be cut?
What voltage is required for the BLAZE DI-24V-BLBSC3-35-100?
What voltage is required for the BLAZE DI-24V-BLBSC3-35-100?
Is the BLAZE tape light compatible with aluminum channels?
Is the BLAZE tape light compatible with aluminum channels?
Does the BLAZE tape light require a driver for installation?
Does the BLAZE tape light require a driver for installation?
