Diode LED BLAZE, 100 ft., LED Tape Light, 5000K, 261 Lm/ft., 24V
Available in stock (100)
About this item
About this item
- Color Temperature: 5000K for crisp, daylight-like illumination.
- Voltage: Operates on 24VDC for efficient power consumption.
- Max Run: Supports up to 40 ft. continuous run to minimize voltage drop.
- Cuttable: Field cuttable every 1.96 in. for custom lengths.
- Environment: Suitable for indoor damp locations with IP20 rating.
We process payments securely and do not store credit card information.
Description
Description

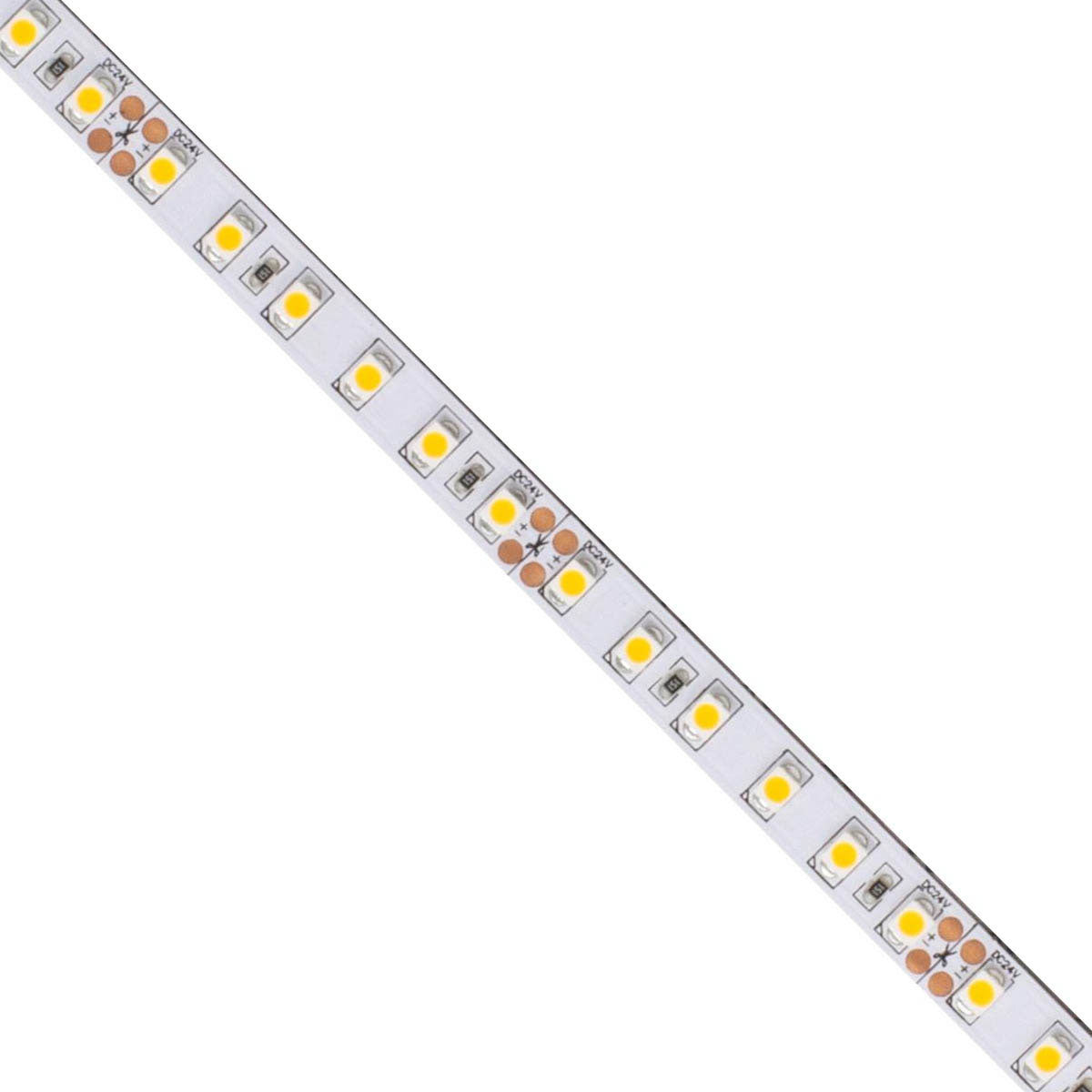

Diode LED BLAZE LED Tape Light — 5000K & High CRI
The Diode LED DI-24V-BLBSC2-50-100 is a 100 ft. LED tape light designed for high-performance lighting applications. With a color temperature of 5000K and a high CRI of 90+, this tape light delivers clear and accurate color rendering. It operates on 24VDC and is rated for indoor damp locations with an IP20 rating.
Key Features
- Voltage: 24VDC for efficient energy use.
- Wattage: 2.93W/ft. for optimal power consumption.
- Lumens: 261 Lm/ft. for bright illumination.
- LEDs per Foot: 36/ft. for consistent light output.
- Max Run: 40 ft. to prevent voltage drop.

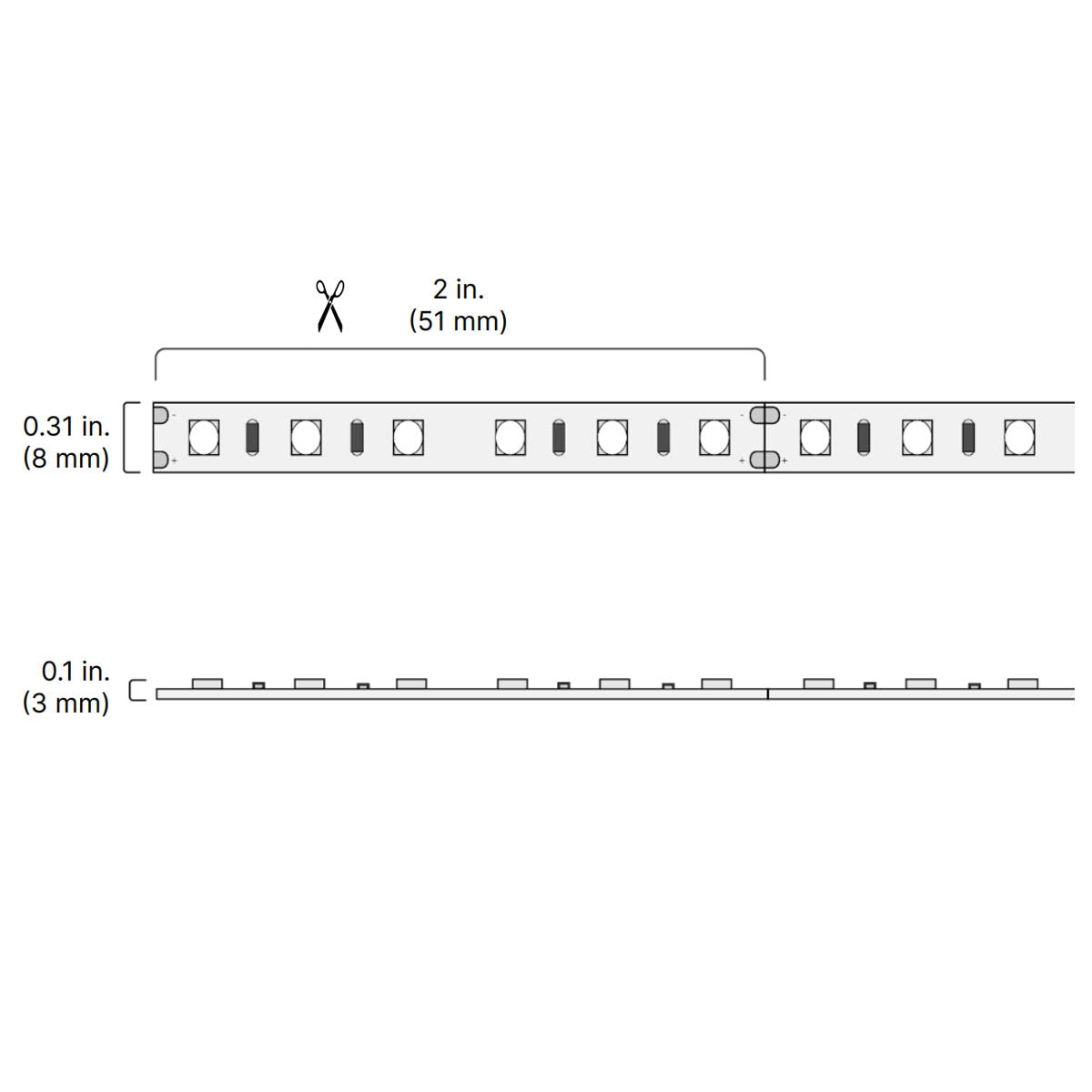

- Cuttable: Every 1.96 in. for custom installations.

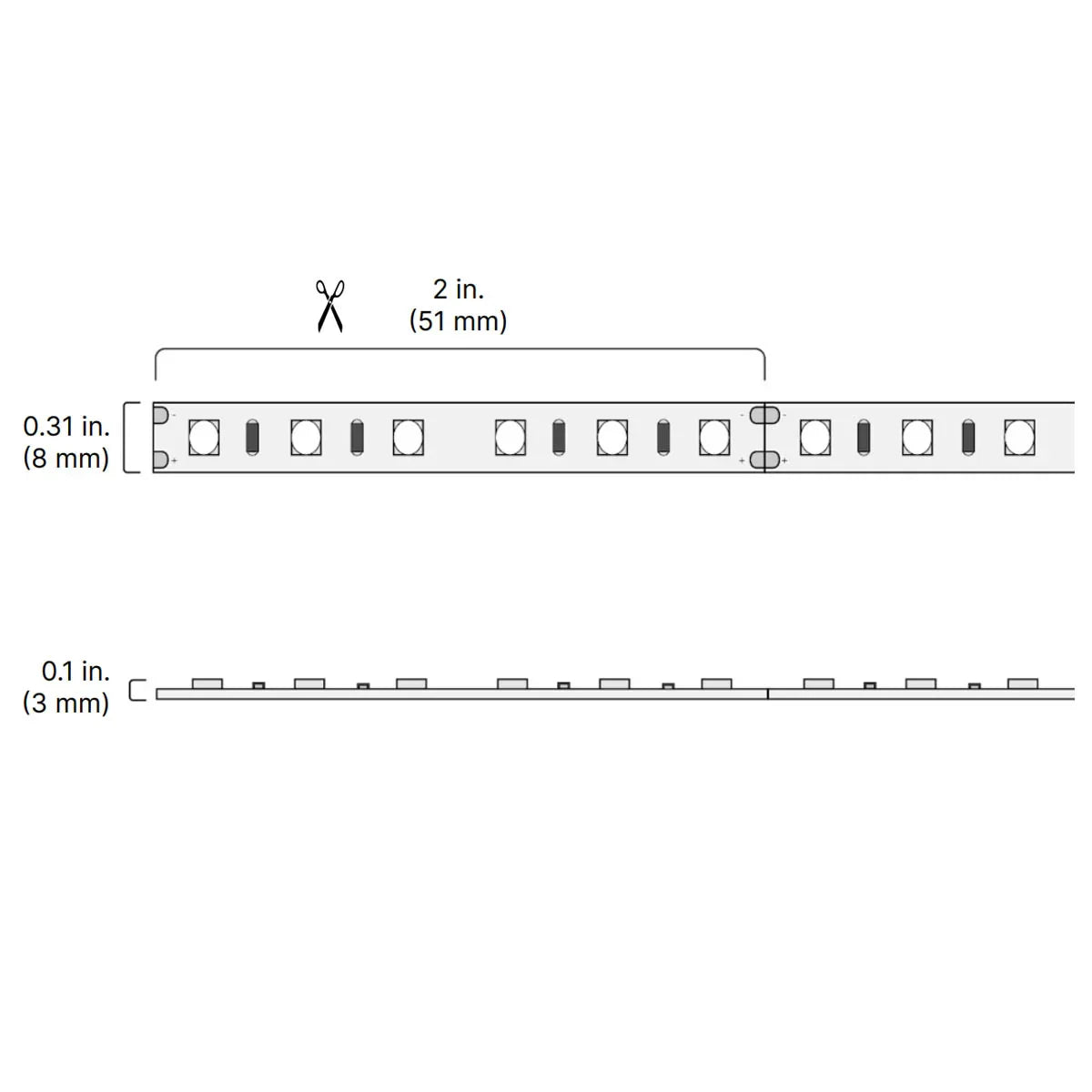

- PCB Width: 0.31 in. for channel compatibility.
- Beam Angle: 120° for wide light distribution.
- Certifications: UL Listed 2108, RoHS compliant.
Core Design & Construction
The tape light features a narrow 0.31 in. PCB width, ensuring compatibility with a variety of aluminum channels. It includes a durable 3M adhesive backing for secure mounting and is designed for indoor damp environments.
LED Illumination & Performance
With 261 Lm/ft. and a 90+ CRI, this LED tape light provides vibrant and true-to-life colors, making it ideal for applications requiring precise color rendering.
Power, Wiring & Installation
This tape light requires a 24V driver, sold separately. It is field cuttable every 1.96 in. and supports a maximum continuous run of 40 ft. to minimize voltage drop. It is dimmable for customizable lighting effects.

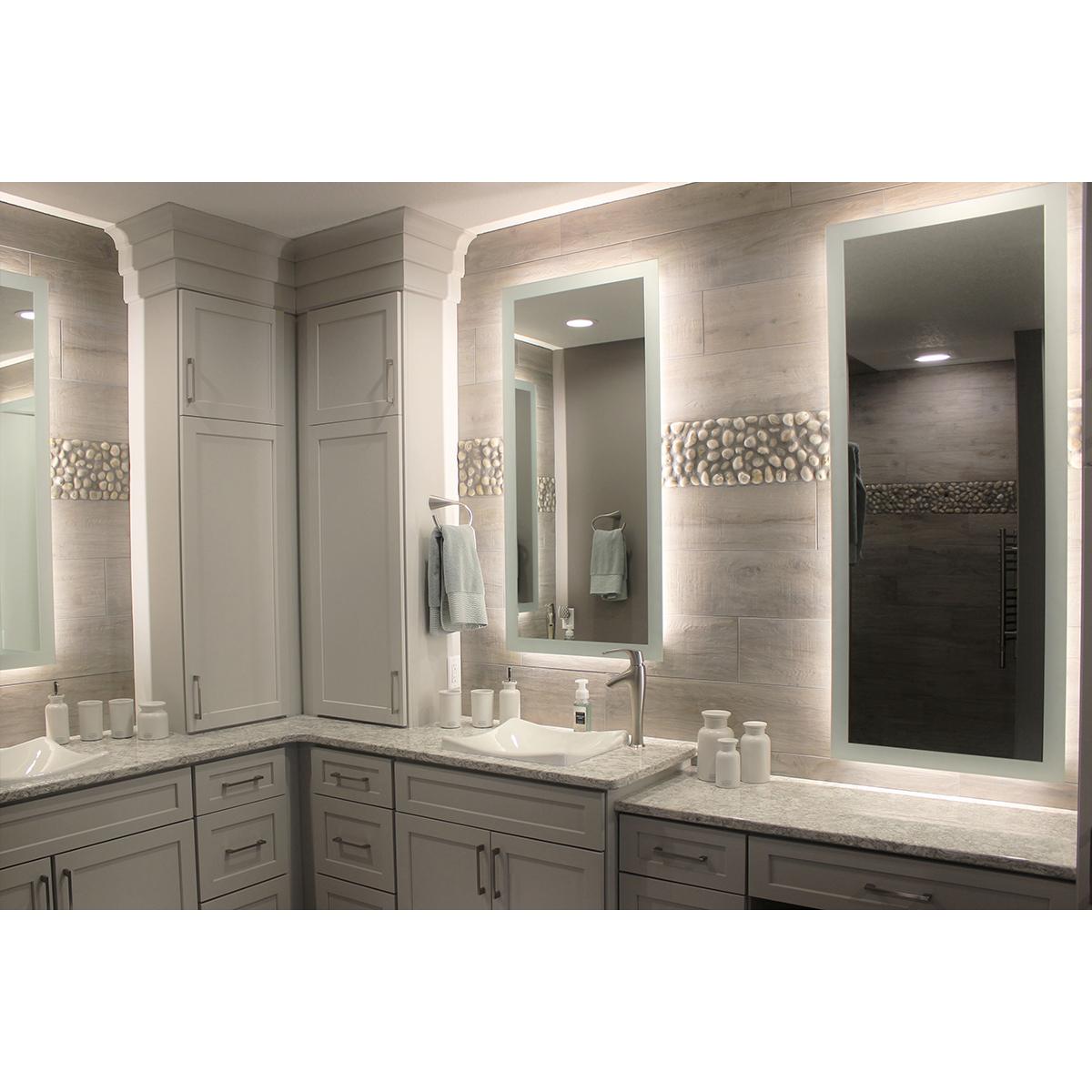

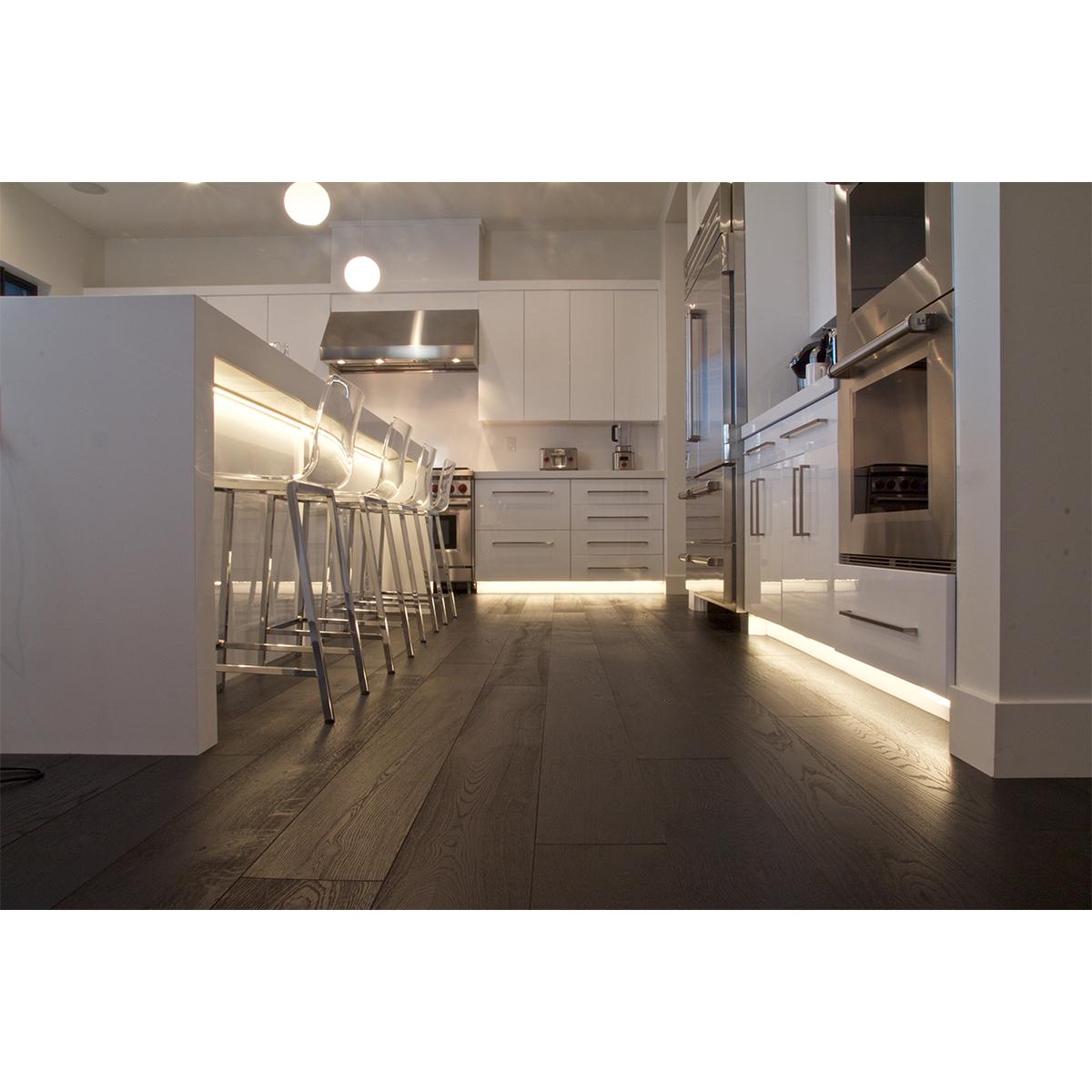

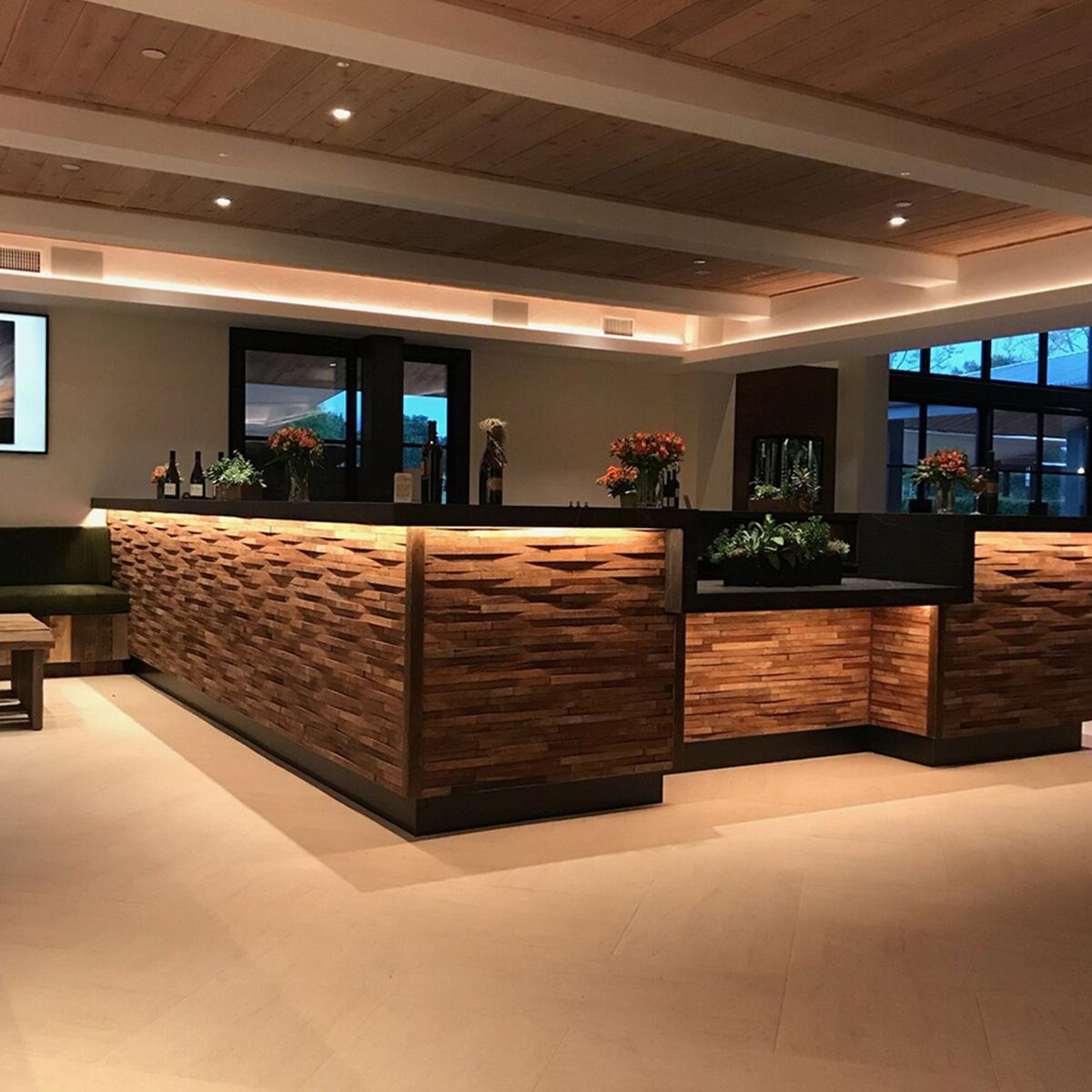

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 100 ft. spool of LED tape light
- 36 in. bare lead wire with strain relief

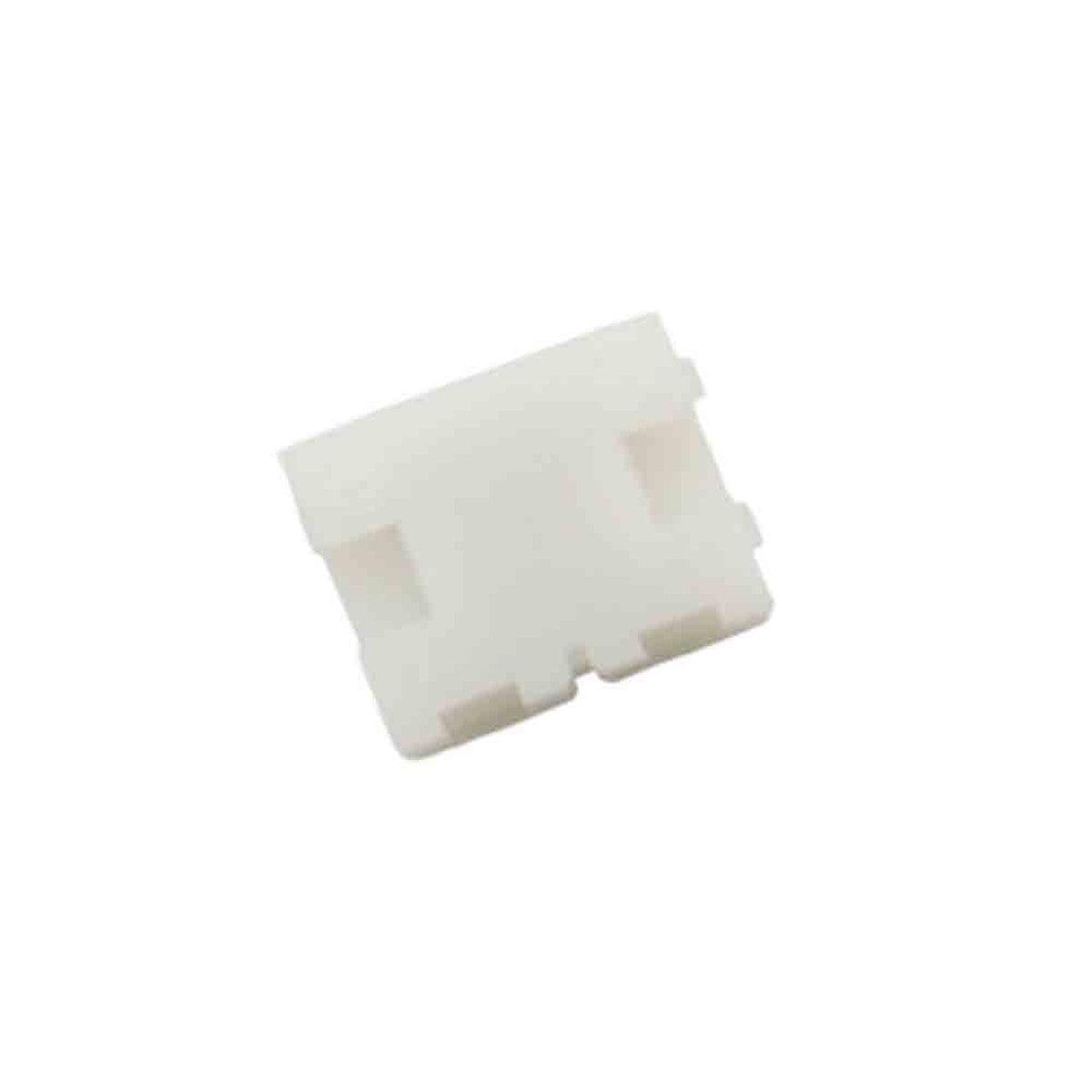

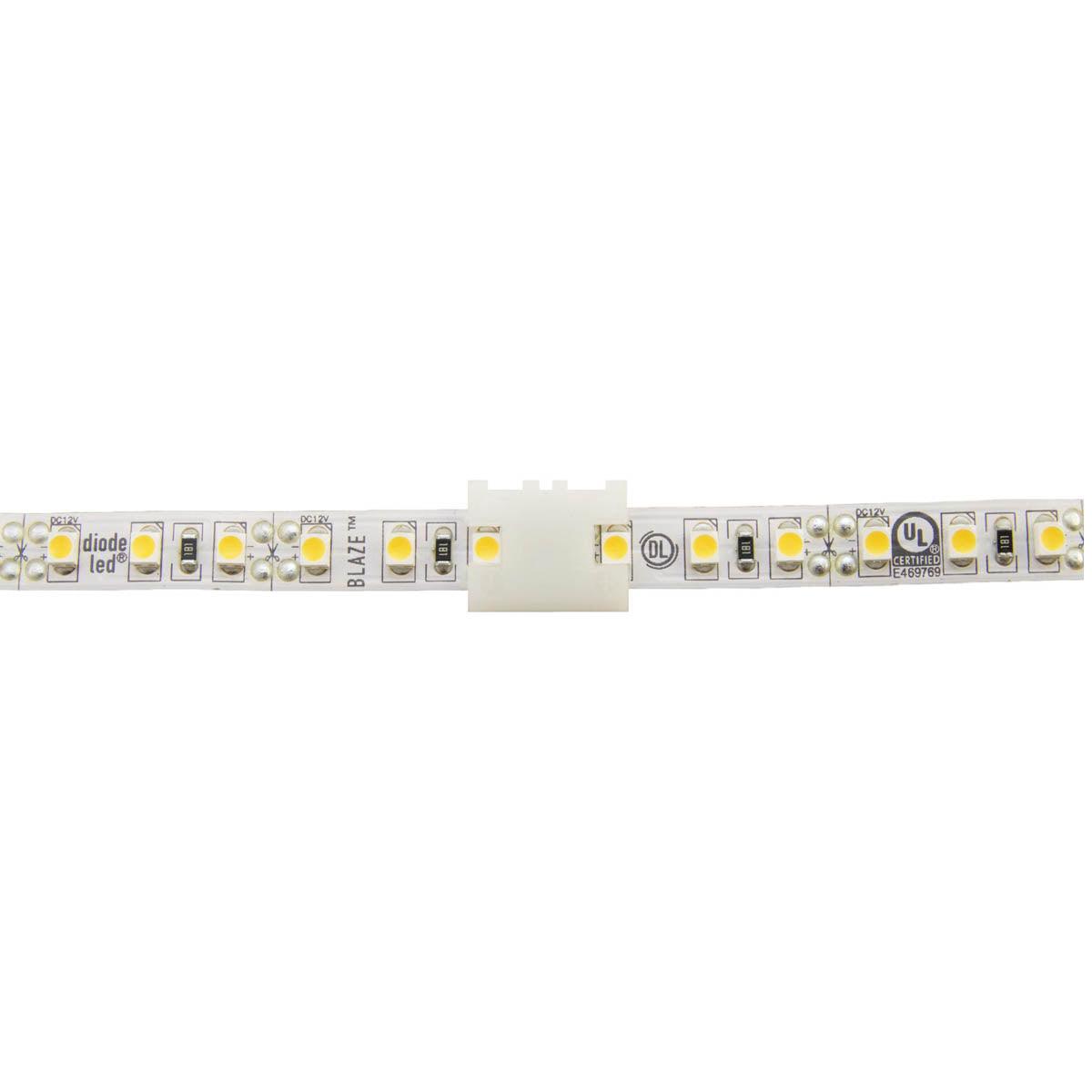

- 2x White Tape-to-Wire Terminal Blocks
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the DI-24V-BLBSC2-50-100?
What is the maximum run length for the DI-24V-BLBSC2-50-100?
At what increments can the tape light be cut?
At what increments can the tape light be cut?
What voltage is required for the DI-24V-BLBSC2-50-100?
What voltage is required for the DI-24V-BLBSC2-50-100?
Is the DI-24V-BLBSC2-50-100 dimmable?
Is the DI-24V-BLBSC2-50-100 dimmable?
What is the PCB width of the tape light?
What is the PCB width of the tape light?
