Diode LED BLAZE 16ft LED Tape Light, 5000K, 261 Lm/ft, 24V
Available in stock (200)
About this item
About this item
- Color Temperature: 5000K for bright, daylight illumination.
- Voltage: Operates at 24VDC, ensuring efficient power usage.
- Max Run: Supports up to 40 ft. continuous run to minimize voltage drop.
- Cuttable: Field cuttable every 1.96 in. for custom lengths.
- CRI: High 90+ CRI for superior color rendering.
We process payments securely and do not store credit card information.
Description
Description

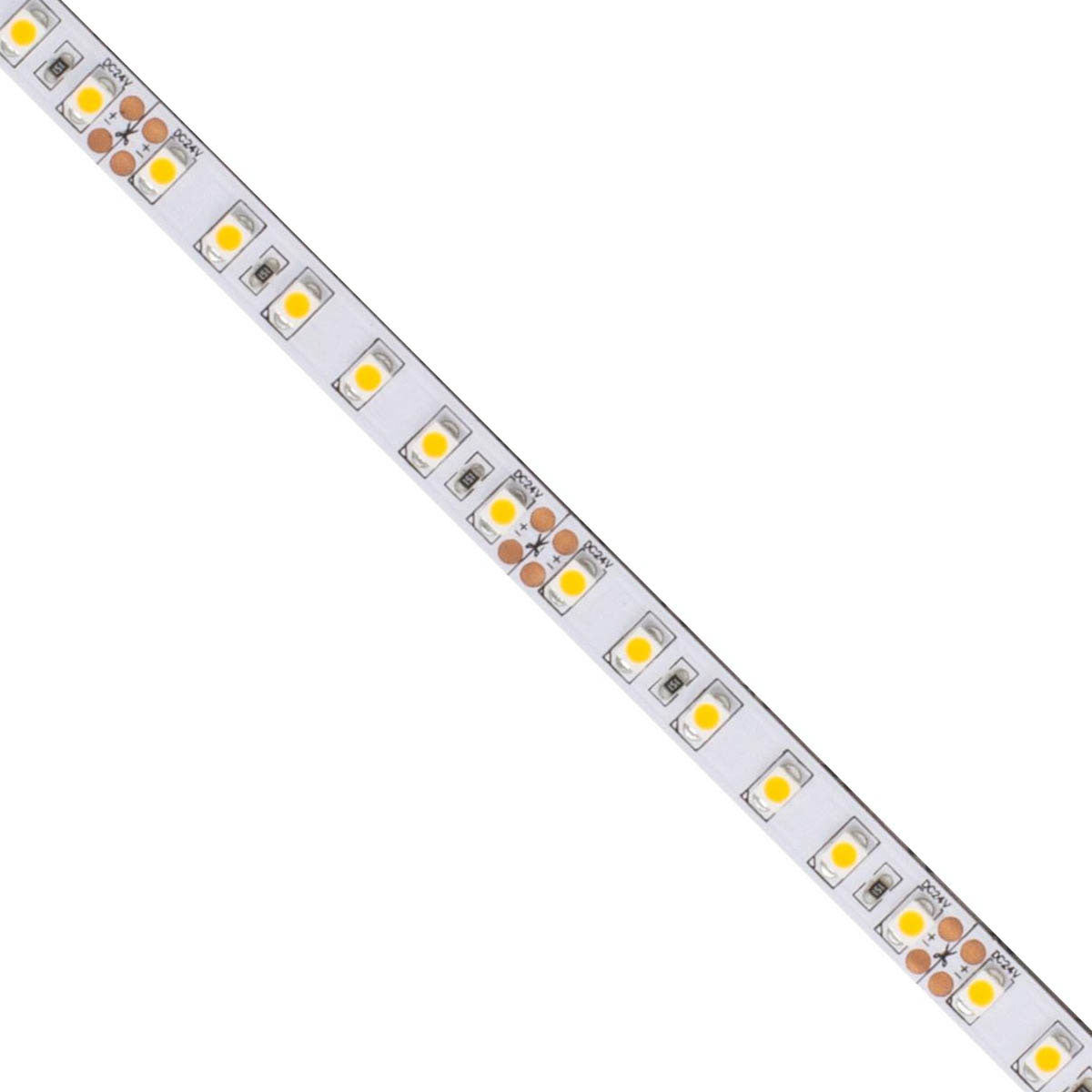

Diode LED BLAZE LED Tape Light — 5000K & High CRI
The Diode LED DI-24V-BLBSC2-50-016 is a 16ft LED Tape Light offering a bright 5000K color temperature and high 90+ CRI for excellent color accuracy. This tape light operates at 24VDC and is suitable for indoor/damp locations with an IP20 rating.
Key Features
- Voltage: 24VDC for efficient energy consumption.
- Wattage: 2.93W/ft for optimal power usage.
- Lumens: 261 Lm/ft for bright illumination.
- LEDs: 36 LEDs/ft for consistent light output.
- Max Run: 40 ft. to prevent voltage drop.

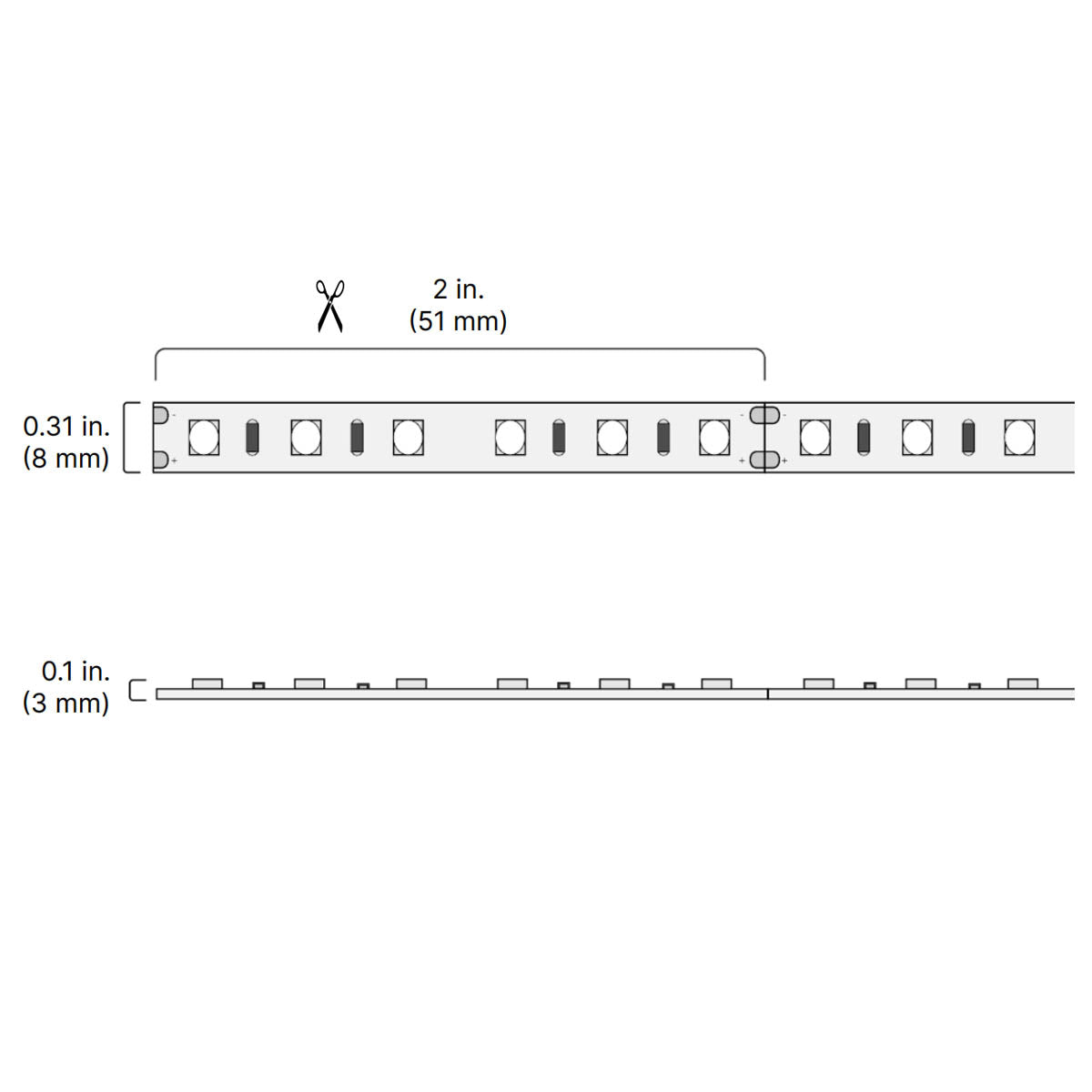

- Cuttable: Every 1.96 in. for custom installations.
- PCB Width: 0.31 in. for compatibility with standard channels.
- Beam Angle: 120° for wide light distribution.
- Certifications: UL Listed, Title 24 compliant.
Core Design & Construction
The tape light features a 0.31 in. wide PCB, suitable for most aluminum channels, and includes a durable 3M adhesive backing for secure mounting. Rated for indoor/damp locations.
LED Illumination & Performance
Delivering 261 Lm/ft with a high 90+ CRI, this tape light ensures vibrant and accurate color rendering, ideal for detailed tasks and ambient lighting.
Power, Wiring & Installation
Requires a 24V driver (sold separately). Field cuttable every 1.96 in. with a maximum run of 40 ft. Dimmable with compatible drivers.

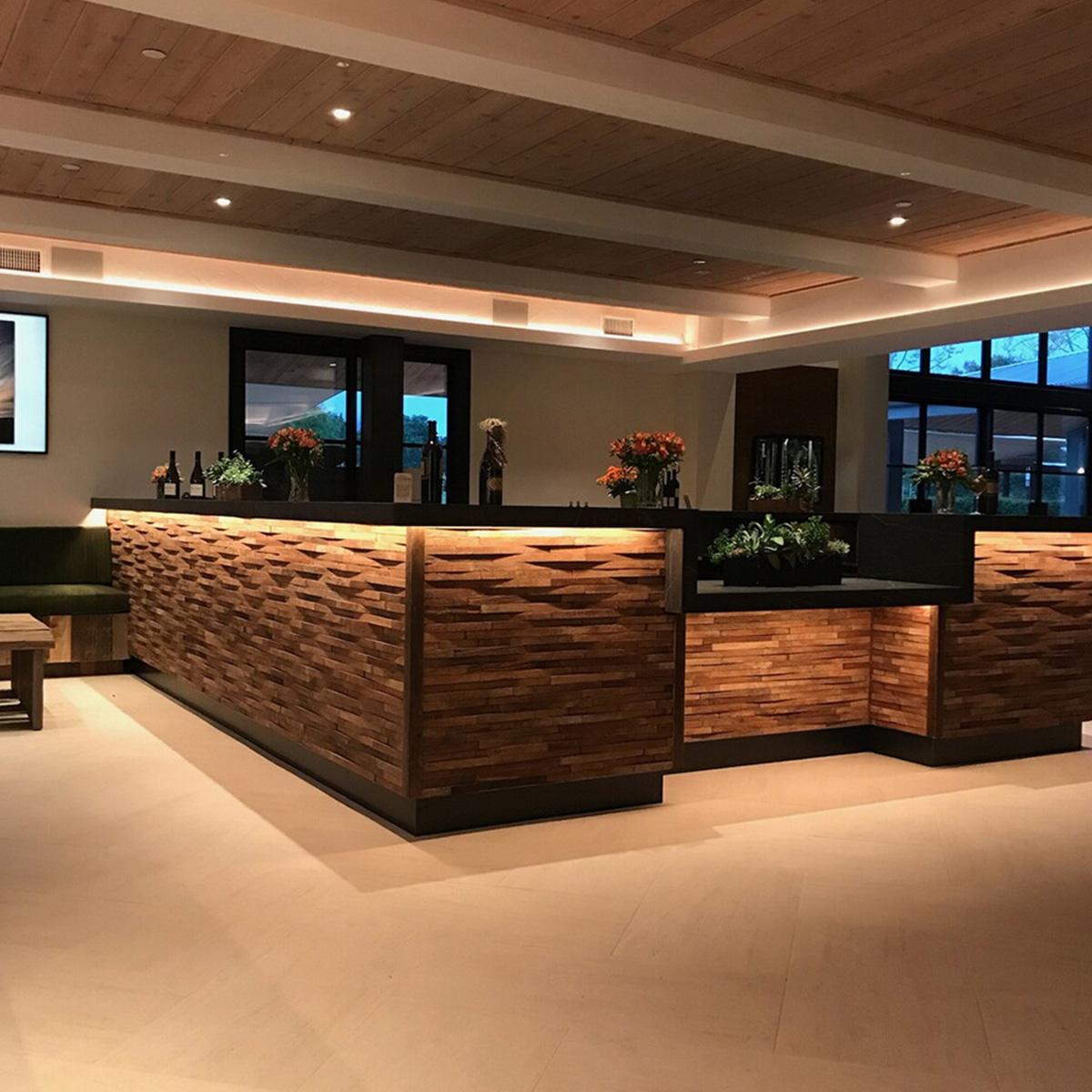

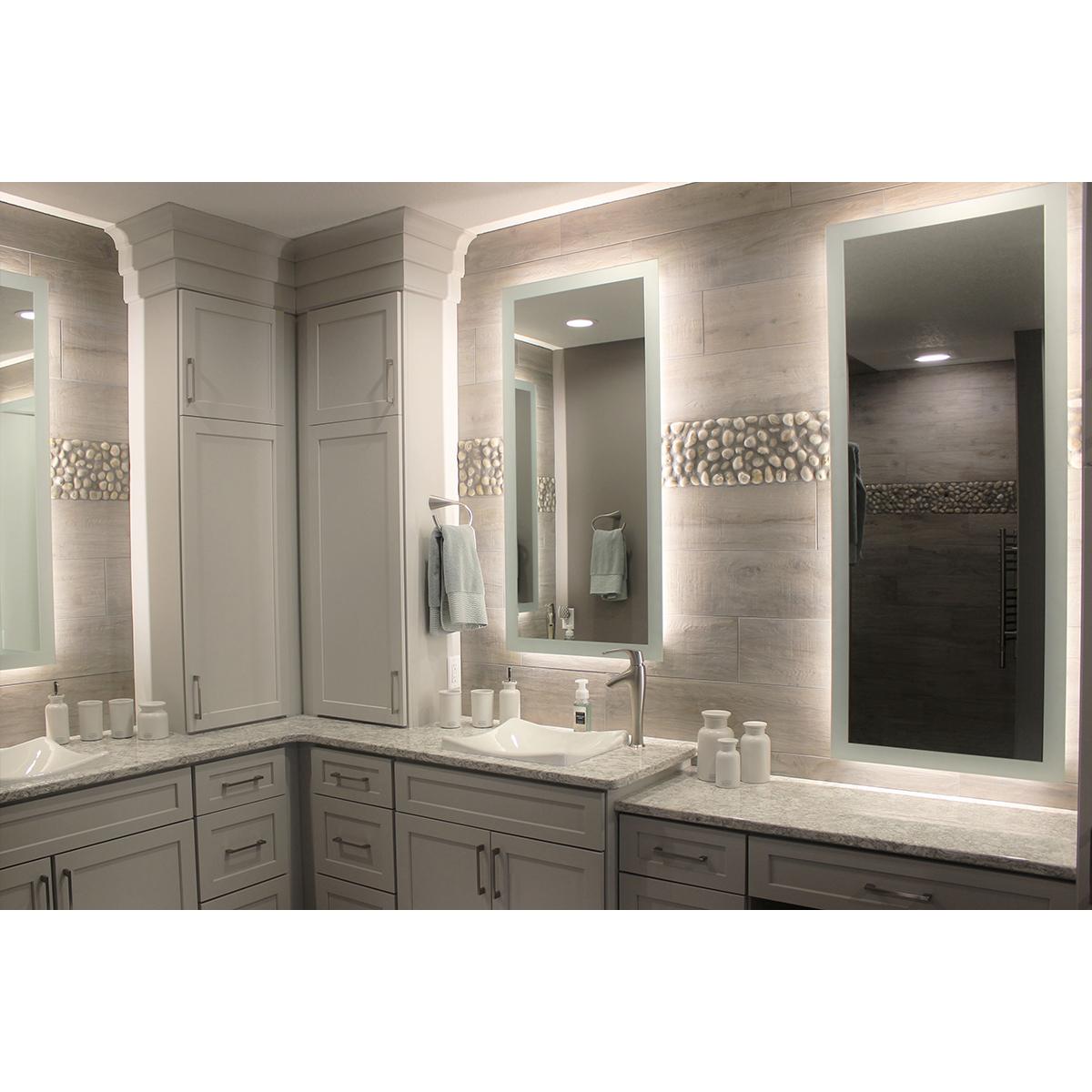

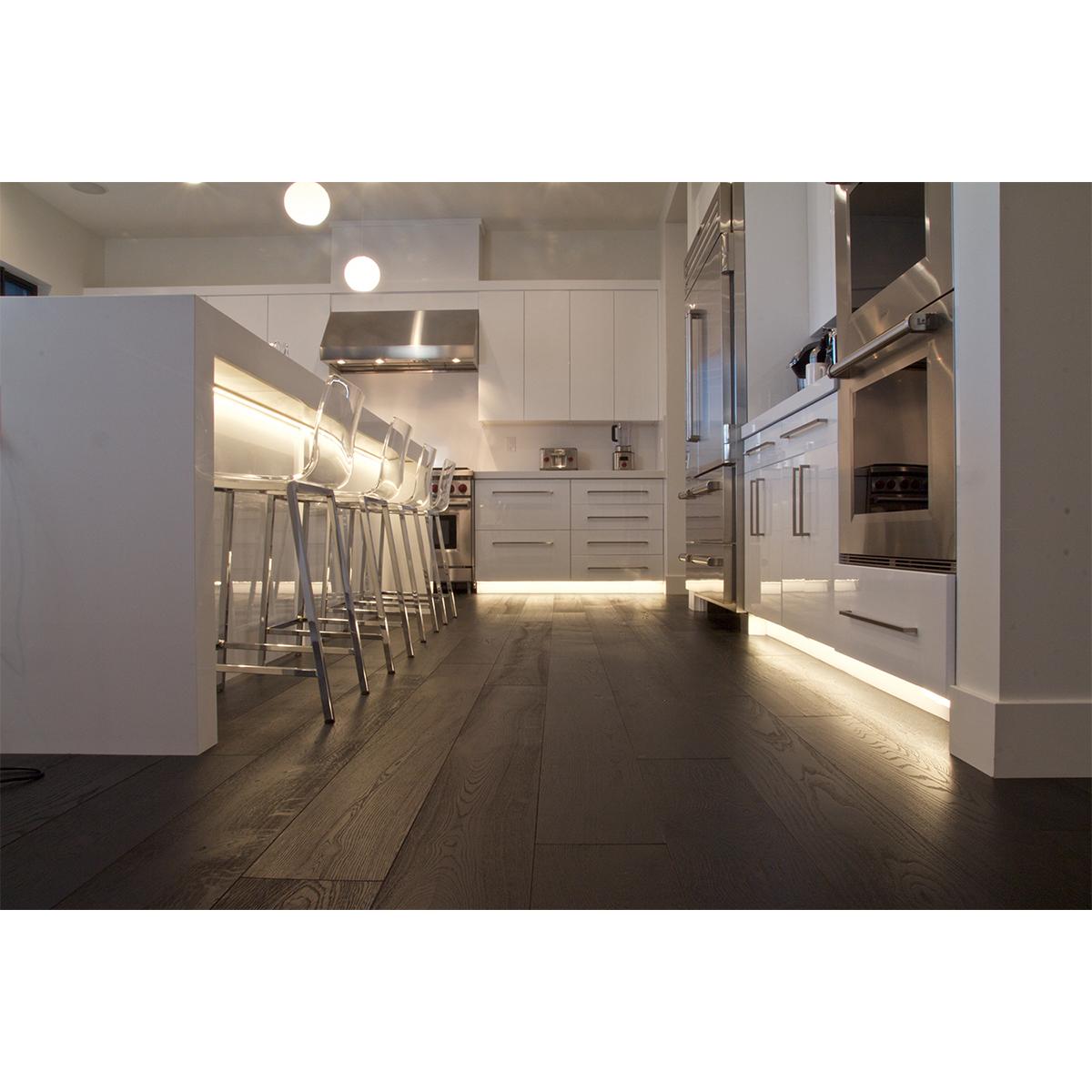

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16 ft. spool of LED tape light
- 36 in. bare lead wire
- 2x White Tape-to-Wire Terminal Blocks
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the DI-24V-BLBSC2-50-016?
What is the maximum run length for the DI-24V-BLBSC2-50-016?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for the DI-24V-BLBSC2-50-016?
What voltage is required for the DI-24V-BLBSC2-50-016?
Is the DI-24V-BLBSC2-50-016 dimmable?
Is the DI-24V-BLBSC2-50-016 dimmable?
What is the width of the PCB for channel compatibility?
What is the width of the PCB for channel compatibility?
