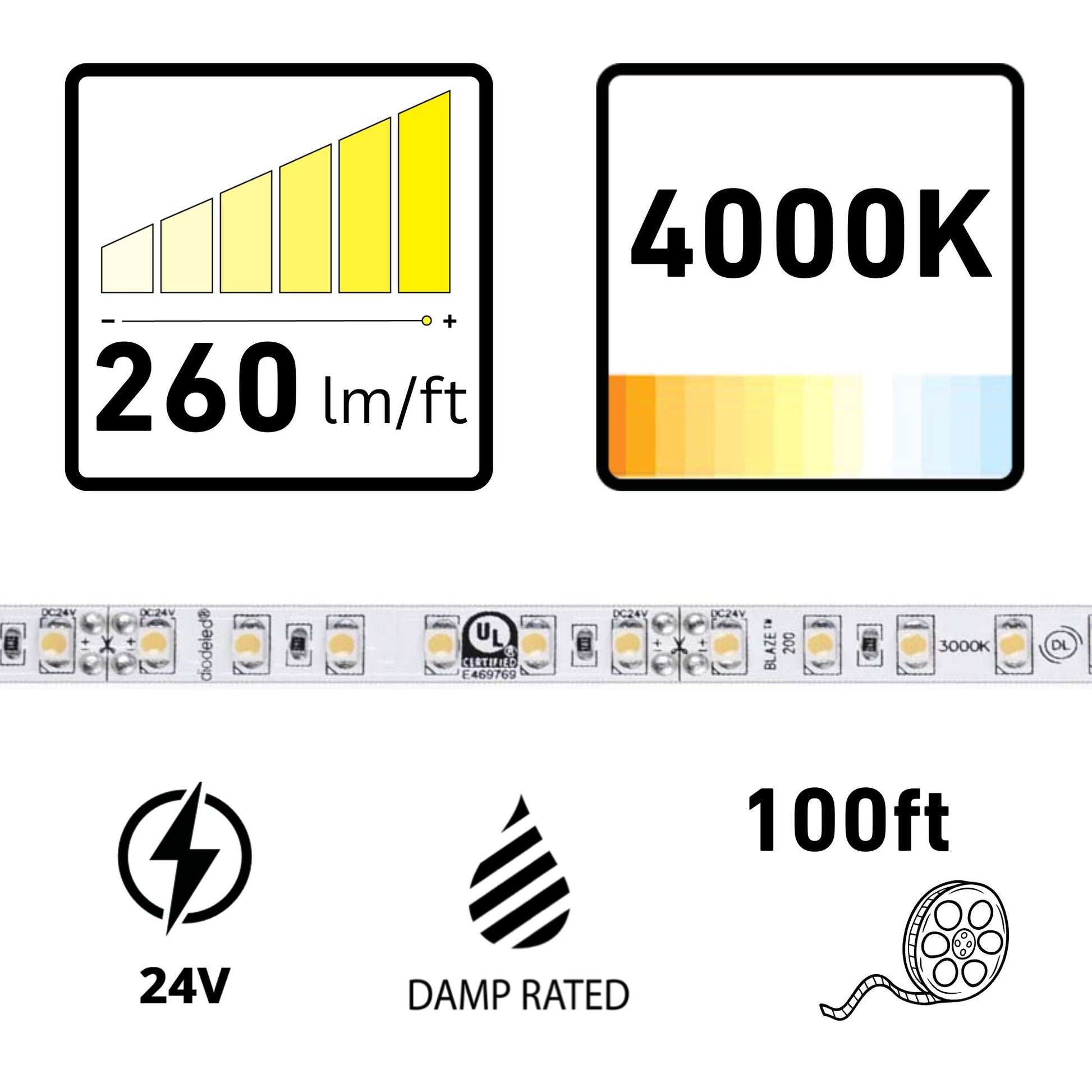

BLAZE, 100ft, LED Tape Light, 4000K, 260 Lm/ft, 24V
Available in stock (100)
About this item
About this item
- Color Temperature: 4000K provides a neutral white light ideal for task lighting.
- Voltage: Operates on 24VDC, ensuring efficient power consumption.
- Max Run: Supports up to 40 ft. continuous run to minimize voltage drop.
- Cuttable: Field cuttable every 1.96 in. for custom lengths.
- Environment: Suitable for indoor/damp locations with IP20 rating.
We process payments securely and do not store credit card information.
Description
Description
BLAZE LED Tape Light — 4000K & High CRI
The BLAZE DI-24V-BLBSC2-40-100 is a high-performance LED tape light offering a neutral white 4000K color temperature and 260 lumens per foot. This 100-foot tape light is designed for indoor applications, operating on 24VDC and suitable for damp locations with an IP20 rating.
Key Features
- Voltage: 24VDC for efficient power usage.
- Wattage: 2.93W/ft. for energy-efficient lighting.
- Lumens: 260 Lm/ft. for bright illumination.
- LED Density: 36 LEDs per foot for uniform light distribution.
- Max Run: 40 ft. continuous run to prevent voltage drop.
- Cuttable: Every 1.96 in. for precise customization.
- PCB Width: 0.31 in. for compatibility with standard channels.
- Beam Angle: 120° for wide light dispersion.
- IP Rating: IP20 for indoor/damp environments.
- Certifications: UL Listed, Title 24, JA8, RoHS compliant.
Core Design & Construction
The tape light features a 0.31 in. wide PCB, ensuring compatibility with most aluminum channels. It includes a durable 3M adhesive backing for secure mounting and is rated for indoor/damp environments.
LED Illumination & Performance
With 260 lumens per foot and a 90+ CRI, this tape light delivers high-quality illumination with excellent color rendering, utilizing standard SMD LED technology.
Power, Wiring & Installation
Requires a 24V driver for operation. The tape light is field-cuttable every 1.96 in., supporting a maximum continuous run of 40 ft. It is dimmable for adjustable lighting levels.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 100 ft. spool of LED tape light
- 36 in. bare lead wire
- 2x White Tape-to-Wire Terminal Blocks
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the BLAZE DI-24V-BLBSC2-40-100?
What is the maximum run length for the BLAZE DI-24V-BLBSC2-40-100?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for this LED tape light?
What voltage is required for this LED tape light?
Is the BLAZE LED tape light dimmable?
Is the BLAZE LED tape light dimmable?
What is the width of the PCB for channel compatibility?
What is the width of the PCB for channel compatibility?
