BLAZE, 100ft, LED Tape Light, 3500K, 249 Lm/ft, 24V
Available in stock (100)
About this item
About this item
- Color Temperature: 3500K provides a neutral white light ideal for various applications.
- Voltage: Operates at 24VDC, requiring a compatible driver for installation.
- Max Run: Supports up to 40 ft. continuous runs to minimize voltage drop.
- Cuttable: Field cuttable every 1.96 in. for custom lengths.
- Environment: Suitable for indoor and damp locations with an IP20 rating.
We process payments securely and do not store credit card information.
Description
Description

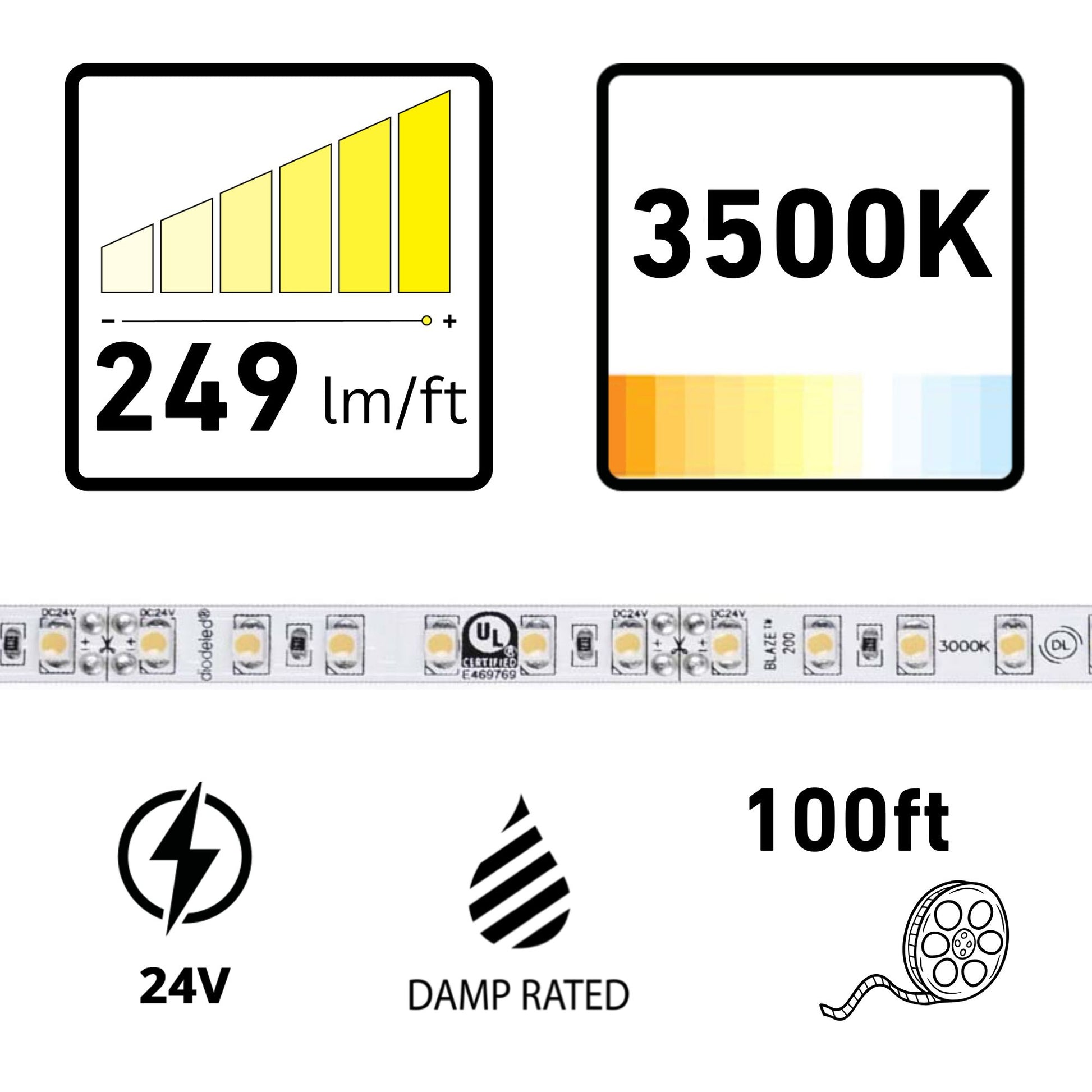

BLAZE LED Tape Light — 3500K & High CRI
The BLAZE DI-24V-BLBSC2-35-100 is a high-performance LED tape light offering 3500K neutral white illumination. This 100 ft. spool is designed for indoor applications, operating at 24VDC and suitable for damp locations with an IP20 rating.
Key Features
- Voltage: 24VDC operation for efficient power usage.
- Wattage: Consumes 2.93W per foot.
- Lumens: Delivers 249 lumens per foot for bright, consistent lighting.
- LED Density: 36 LEDs per foot for uniform light distribution.
- Max Run: Capable of 40 ft. maximum continuous runs.
- Cut Increments: Field cuttable every 1.96 in. for precise installations.
- PCB Width: 0.31 in. width for compatibility with standard channels.
- Beam Angle: 120-degree beam angle for wide light spread.
- Certifications: UL Listed, Title 24 compliant, and RoHS certified.
Core Design & Construction
The tape light features a 0.31 in. wide PCB, ensuring compatibility with most aluminum channels. It includes a durable 3M adhesive backing for secure mounting and is rated for indoor/damp environments.
LED Illumination & Performance
With 249 lumens per foot and a CRI of 90+, this tape light ensures high-quality illumination with excellent color rendering, ideal for accent and task lighting.
Power, Wiring & Installation
Requires a 24V driver for operation. The tape light is field cuttable every 1.96 in. and supports dimming for customizable lighting solutions. Maximum continuous run is 40 ft. to prevent voltage drop.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 100 ft. spool of LED tape light
- 36 in. bare lead wire with strain relief
- 2x White Tape-to-Wire Terminal Blocks
