Diode LED BLAZE 16 ft. LED Tape Light, IP65, 3000K, 226 Lm/ft, 24V
Available in stock (104)
About this item
About this item
- Color Temperature: Provides a warm 3000K light, ideal for creating inviting environments.
- Voltage: Operates at 24V, ensuring compatibility with a wide range of low-voltage systems.
- Max Run: Supports up to 40 ft. continuous run, minimizing voltage drop concerns.
- Cuttable Increments: Can be cut every 1.96 in., allowing for precise length customization.
- IP Rating: IP65 rated for wet locations, suitable for outdoor installations.
We process payments securely and do not store credit card information.
Description
Description
Diode LED BLAZE LED Tape Light — 3000K & Wet Rated

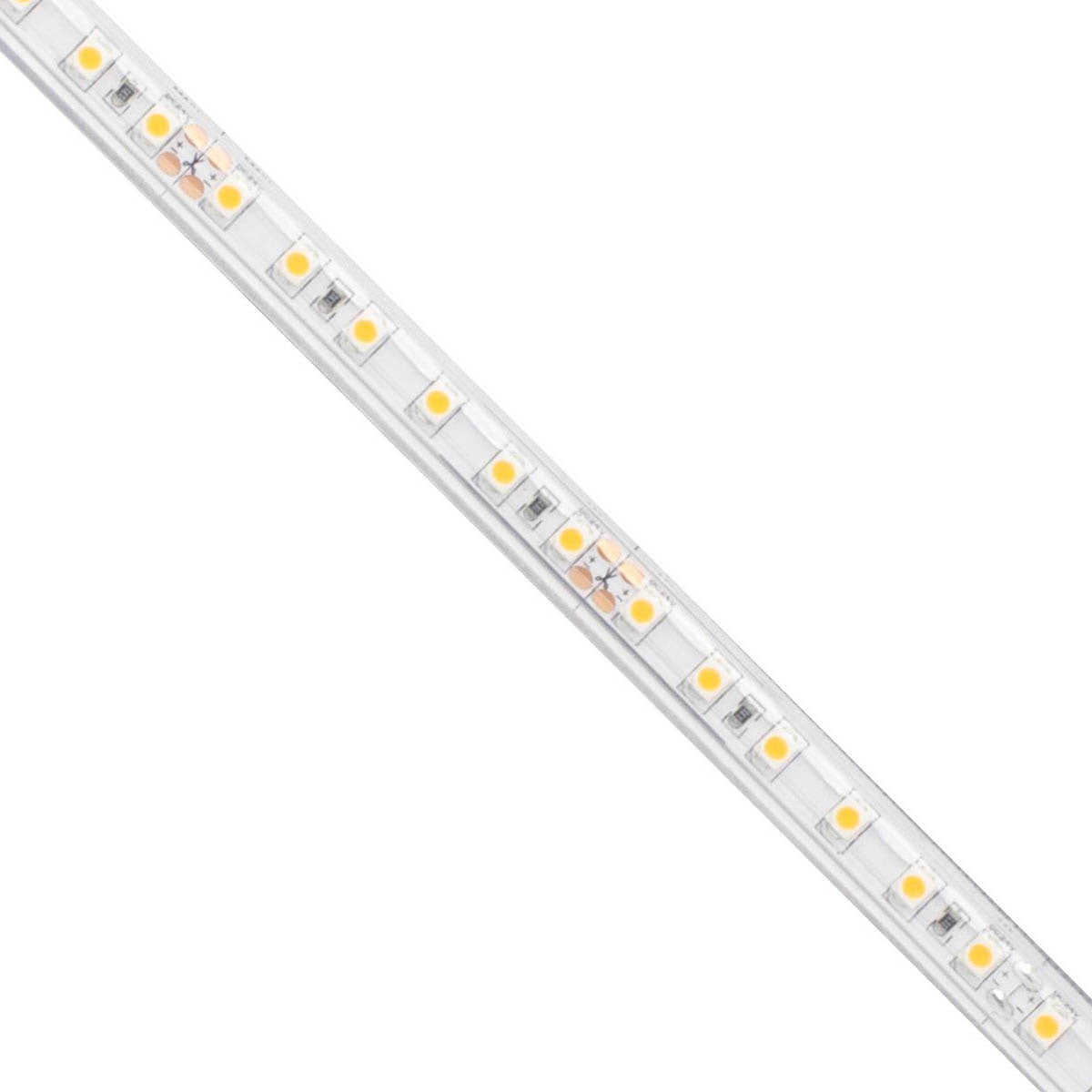

The Diode LED DI-24V-BLBSC2-30-W016 is a 16 ft. LED tape light designed for wet locations with an IP65 rating. It operates at 24V and delivers a warm 3000K color temperature, making it ideal for outdoor applications. This tape light features a high 90+ CRI for excellent color rendering.
Key Features
- Voltage: 24V DC for efficient low-voltage operation.
- Wattage: 2.93W/ft. for balanced power consumption.
- Lumens per Foot: 226 Lm/ft. for bright illumination.
- LEDs per Foot: 36 LEDs/ft. for consistent light distribution.
- Maximum Run Length: 40 ft. to prevent voltage drop.
- Field Cuttable: Every 1.96 in. for custom installations.

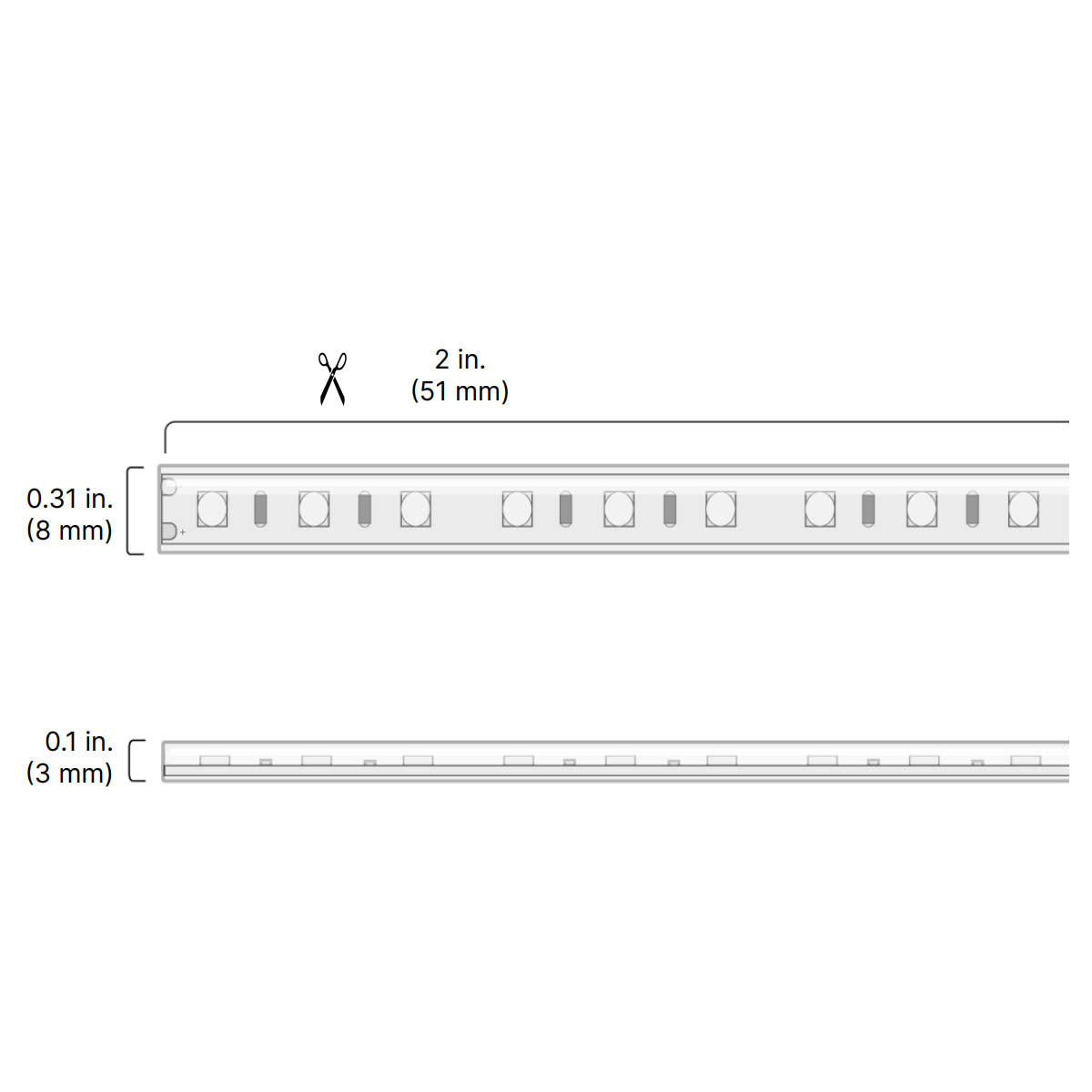

- PCB Width: 0.39 in. for compatibility with standard channels.
- Beam Angle: 120° for wide light dispersion.
- IP Rating: IP65 for wet locations.
- Certifications: UL Listed, RoHS Compliant.
Core Design & Construction
The tape light features a 0.39 in. wide PCB, suitable for most aluminum channels. It is protected by a durable silicone coating, ensuring longevity in wet environments. The tape light comes with a reliable 3M adhesive backing for easy installation.
LED Illumination & Performance
With 226 lumens per foot and a high CRI of 90+, this tape light offers superior illumination quality. It uses standard SMD LEDs for consistent and reliable performance.
Power, Wiring & Installation
This tape light requires a 24V driver for operation. It is field-cuttable every 1.96 in. and supports a maximum continuous run of 40 ft. It is dimmable, allowing for adjustable light levels.
Where This Tape Works Best

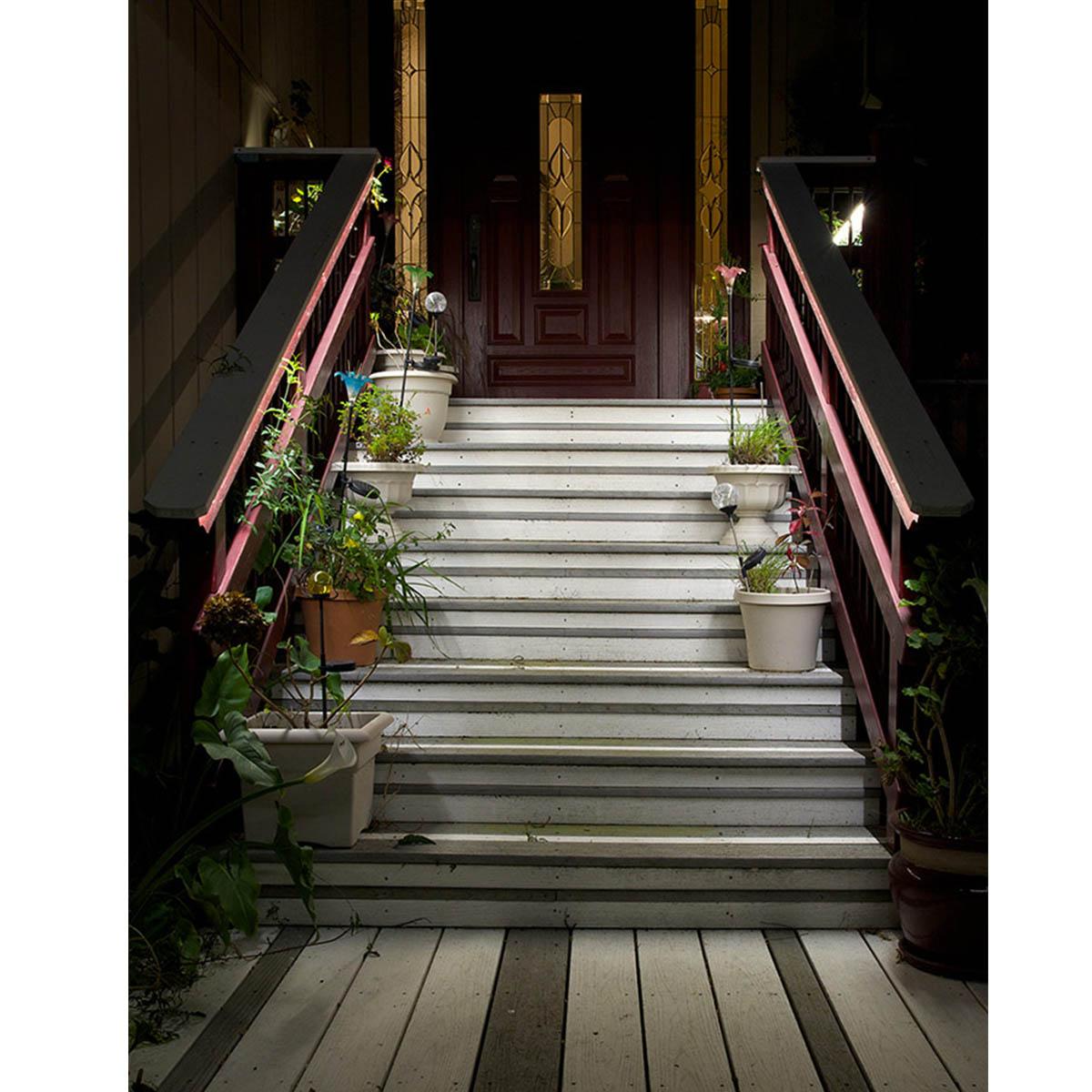

- Outdoor pathways
- Garden lighting
- Patio and deck lighting

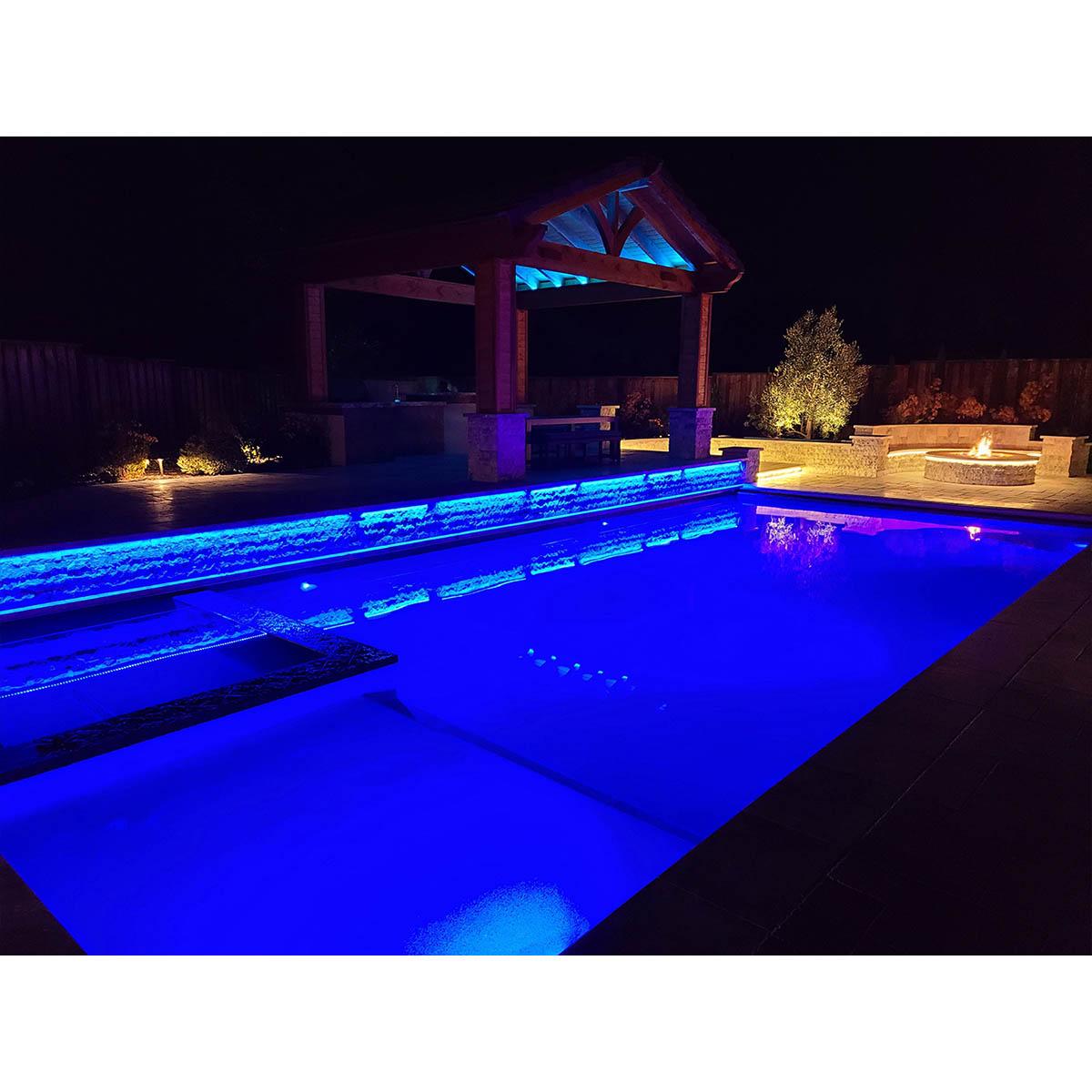

- Poolside illumination
What's Included
- 16 ft. spool of LED tape light
- Pre-attached leads
