BLAZE, 16ft, LED Tape Light, 3000K, 237 Lm/ft, 24V
Available in stock (195)
About this item
About this item
- Color Temperature: Provides a warm 3000K light, ideal for creating cozy atmospheres.
- Voltage: Operates at 24VDC, ensuring efficient power usage and compatibility with low-voltage systems.
- Max Run: Capable of running up to 40 feet continuously, minimizing the need for additional power feeds.
- Cuttable Increments: Can be cut every 1.96 inches, allowing for precise customization to fit any space.
- IP Rating: Rated for indoor/damp locations (IP20), suitable for protected environments.
We process payments securely and do not store credit card information.
Description
Description
BLAZE LED Tape Light — 3000K & High CRI
The BLAZE DI-24V-BLBSC2-30-016 is a high-performance LED tape light designed for indoor applications. This 16-foot tape light operates at 24VDC and is suitable for damp locations with an IP20 rating. It delivers a warm 3000K color temperature with a brightness of 237 lumens per foot.
Key Features
- Voltage: 24VDC for efficient power consumption.
- Wattage: 2.93W per foot for energy-efficient lighting.
- Lumens: 237 Lm/ft for bright illumination.
- LEDs per Foot: 36 LEDs per foot for uniform light distribution.
- Max Run: 40 feet maximum run length to minimize voltage drop.

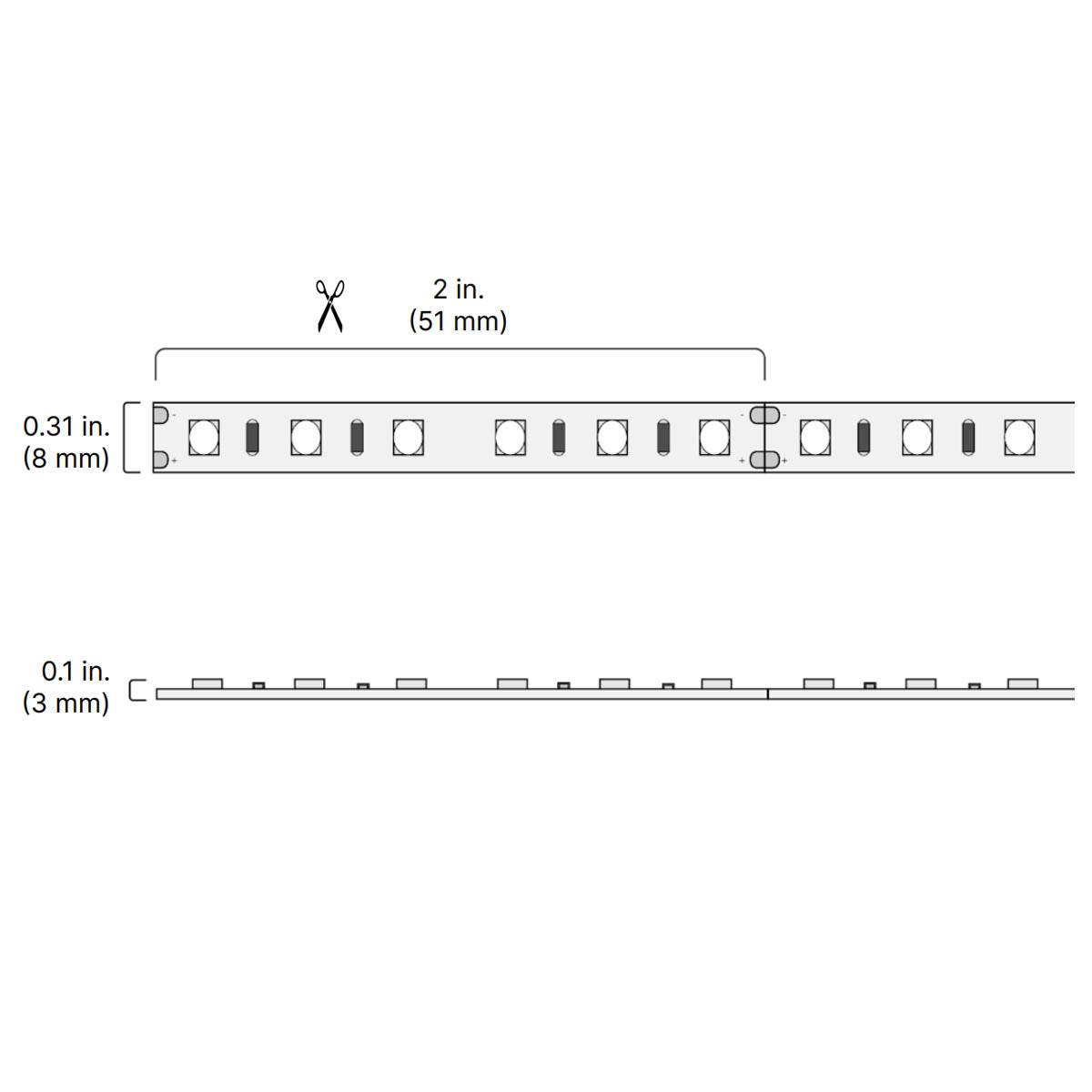

- Cuttable: Field cuttable every 1.96 inches for custom lengths.
- PCB Width: 8mm for compatibility with standard channels.
- Beam Angle: 120 degrees for wide light coverage.
- IP Rating: IP20 for indoor/damp locations.
- Certifications: UL Listed, Title 24, JA8, RoHS compliant.
Core Design & Construction
The tape light features a narrow 8mm PCB width, making it compatible with a variety of aluminum channels. It includes a durable 3M adhesive backing for easy installation on clean surfaces. Rated for indoor/damp environments, it is protected against dust and moisture.
LED Illumination & Performance
With a high CRI of 90+, the BLAZE tape light ensures accurate color rendering, making it ideal for applications where color accuracy is critical. The light engine uses standard SMD LEDs for reliable performance and longevity.
Power, Wiring & Installation
This tape light requires a 24V driver for operation. It is field-cuttable every 1.96 inches, allowing for precise customization. The maximum continuous run is 40 feet to prevent voltage drop. It is dimmable, offering flexibility in light output.
Where This Tape Works Best

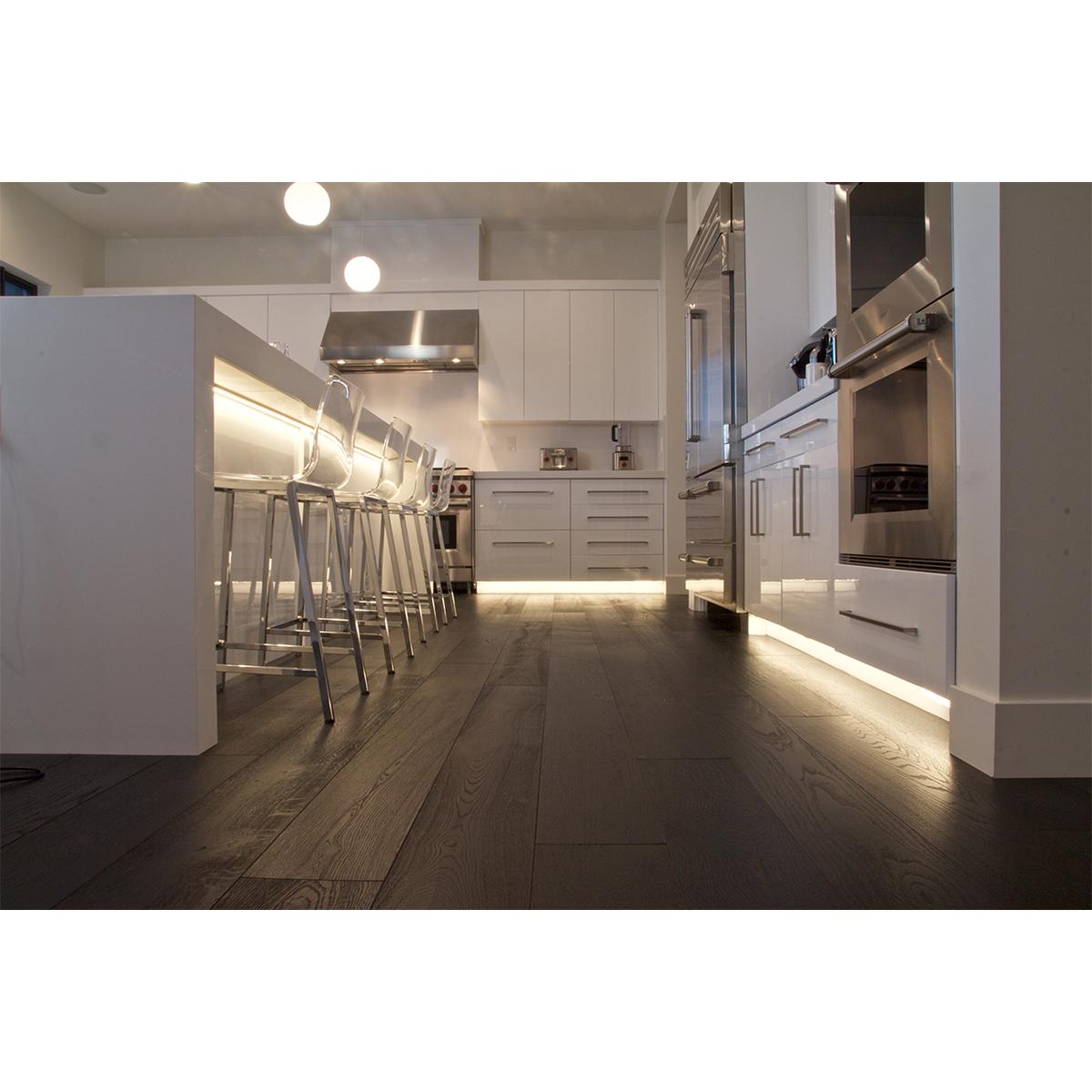

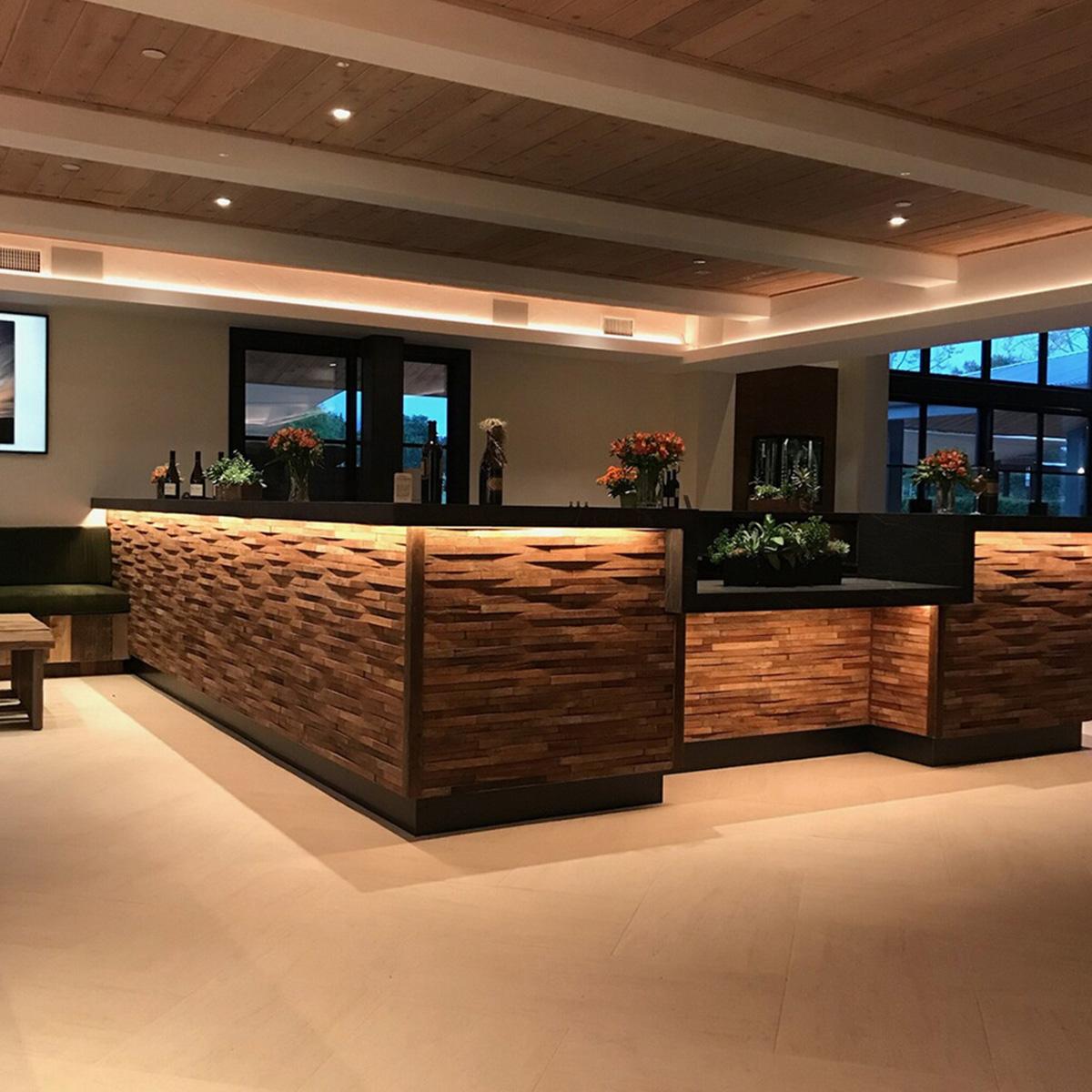

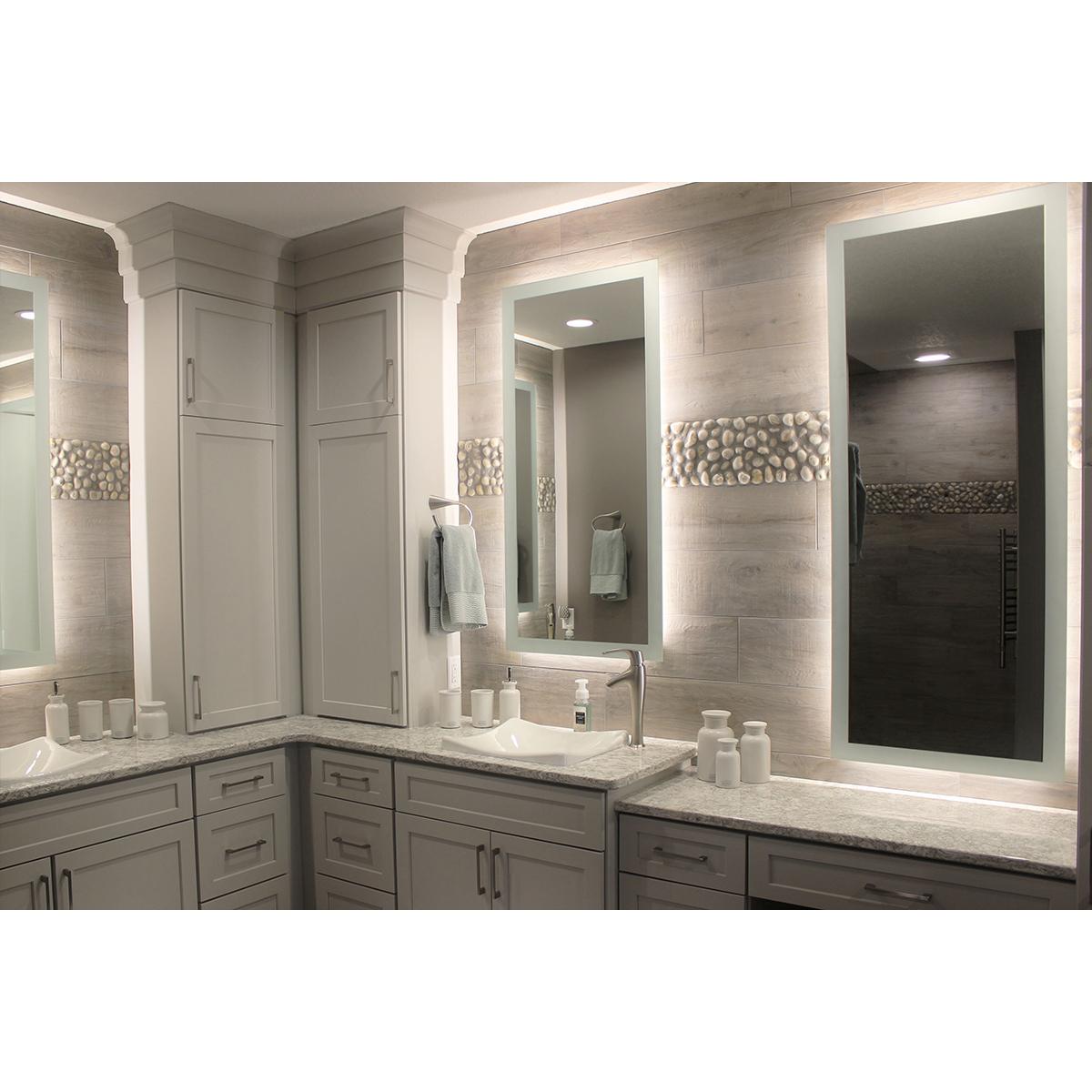

- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
- Architectural lighting
What's Included
- 16-foot spool of LED tape light
- 36-inch bare lead wire with strain relief
- 2x White Tape-to-Wire Terminal Blocks
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the BLAZE DI-24V-BLBSC2-30-016?
What is the maximum run length for the BLAZE DI-24V-BLBSC2-30-016?
How often can the BLAZE tape light be cut?
How often can the BLAZE tape light be cut?
What voltage is required for the BLAZE DI-24V-BLBSC2-30-016?
What voltage is required for the BLAZE DI-24V-BLBSC2-30-016?
Is the BLAZE tape light compatible with standard channels?
Is the BLAZE tape light compatible with standard channels?
Is the BLAZE tape light suitable for outdoor use?
Is the BLAZE tape light suitable for outdoor use?
