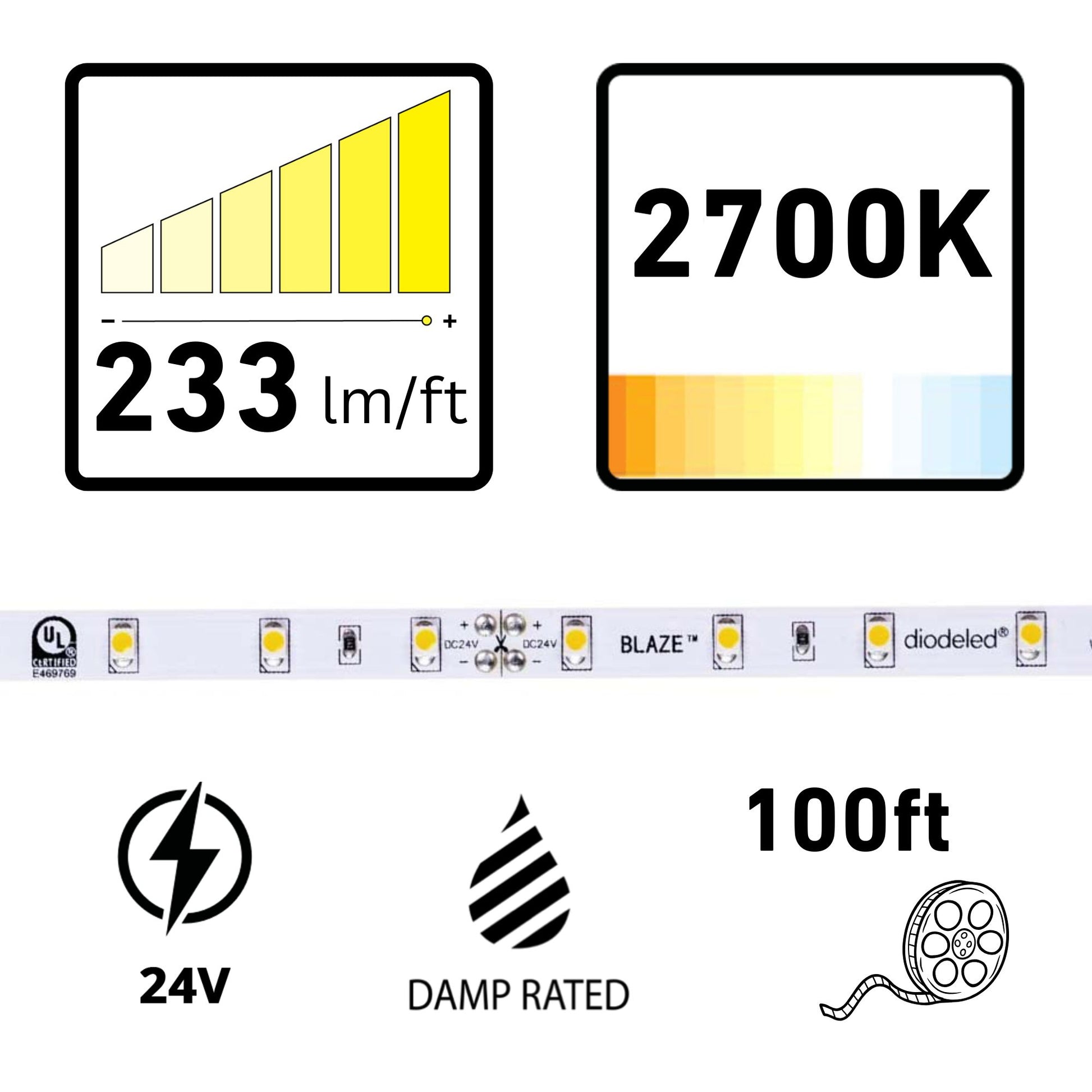

Diode LED BLAZE, 100 ft., LED Tape Light, 2700K, 233 Lm/ft, 24V
Available in stock (200)
About this item
About this item
- Color Temperature: Emits a warm 2700K light, ideal for creating cozy atmospheres.
- Voltage: Operates at 24VDC, ensuring efficient power consumption.
- Max Run Length: Supports up to 40 ft. continuous runs, minimizing voltage drop.
- Cuttable Increments: Field cuttable every 1.96 in. for custom lengths.
- IP Rating: Rated for indoor/damp locations with IP20 protection.
We process payments securely and do not store credit card information.
Description
Description
Diode LED BLAZE LED Tape Light — 2700K & High CRI
The Diode LED DI-24V-BLBSC2-27-100 is a 100 ft. LED tape light offering a warm 2700K color temperature and high 90+ CRI for superior color rendering. This tape light operates at 24VDC and is suitable for indoor/damp locations with an IP20 rating.
Key Features
- Voltage: 24VDC operation for consistent performance.
- Wattage: Consumes 2.93W/ft.
- Lumens: Delivers 233 Lm/ft for bright illumination.
- LEDs per Foot: 36 LEDs/ft for uniform light distribution.
- Max Run: Supports up to 40 ft. continuous runs.
- Cut Increments: Field cuttable every 1.96 in. for precise installations.
- PCB Width: 0.31 in. for compatibility with standard channels.
- Beam Angle: 120° for wide light distribution.
- Certifications: UL Listed 2108, Title 24 compliant.
Core Design & Construction
The tape light features a 0.31 in. wide PCB, compatible with various aluminum channels. It includes a 3M adhesive backing for secure mounting and is rated for damp environments.
LED Illumination & Performance
With 233 Lm/ft and a 90+ CRI, this tape light provides excellent illumination and color accuracy, utilizing standard SMD technology.
Power, Wiring & Installation
Requires a 24V driver (sold separately). Cuttable every 1.96 in. for custom lengths, with a maximum run of 40 ft. Dimmable for adjustable lighting.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 100 ft. spool of LED tape light
- 2x White Tape-to-Wire Terminal Blocks
- 36 in. Bare Lead 20/2 AWG UL 2464 Wire with Strain Relief
