Diode LED BLAZE, 100 ft., LED Tape Light, 2700K, 233 Lm/ft, 24V
Available in stock (100)
About this item
About this item
- Color Temperature: Emits a warm 2700K light, ideal for creating cozy atmospheres.
- Voltage: Operates at 24VDC, ensuring efficient power consumption.
- Max Run Length: Supports up to 40 ft. continuous runs, minimizing voltage drop.
- Cuttable Increments: Field cuttable every 1.96 in. for custom lengths.
- IP Rating: Rated for indoor/damp locations with IP20 protection.
We process payments securely and do not store credit card information.
Description
Description
Diode LED BLAZE LED Tape Light — 2700K & High CRI
The Diode LED DI-24V-BLBSC2-27-100 is a 100 ft. LED tape light offering a warm 2700K color temperature and high 90+ CRI for superior color rendering. This tape light operates at 24VDC and is suitable for indoor/damp locations with an IP20 rating.
Key Features
- Voltage: 24VDC operation for consistent performance.
- Wattage: Consumes 2.93W/ft.
- Lumens: Delivers 233 Lm/ft for bright illumination.
- LEDs per Foot: 36 LEDs/ft for uniform light distribution.
- Max Run: Supports up to 40 ft. continuous runs.

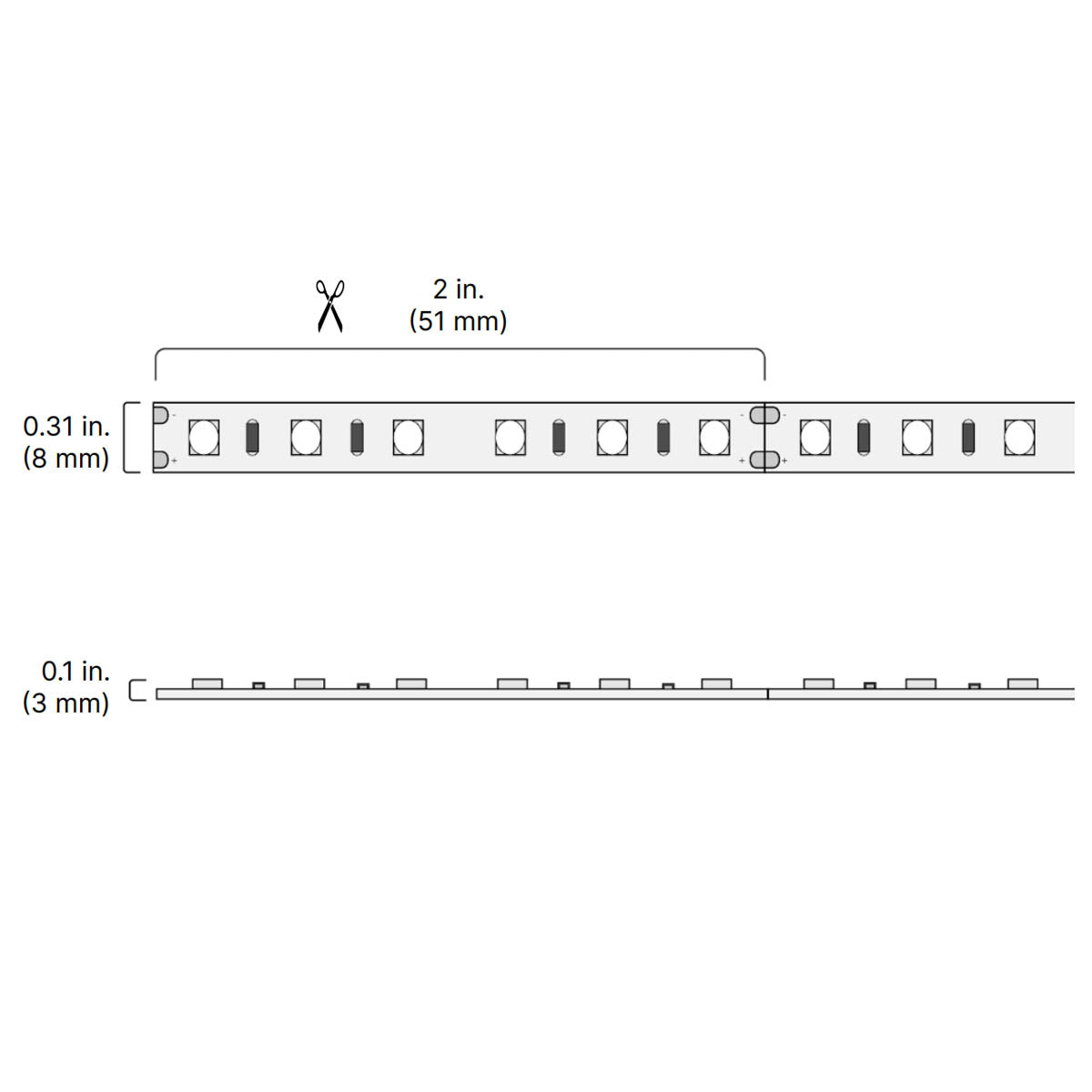

- Cut Increments: Field cuttable every 1.96 in. for precise installations.
- PCB Width: 0.31 in. for compatibility with standard channels.
- Beam Angle: 120° for wide light distribution.
- Certifications: UL Listed 2108, Title 24 compliant.

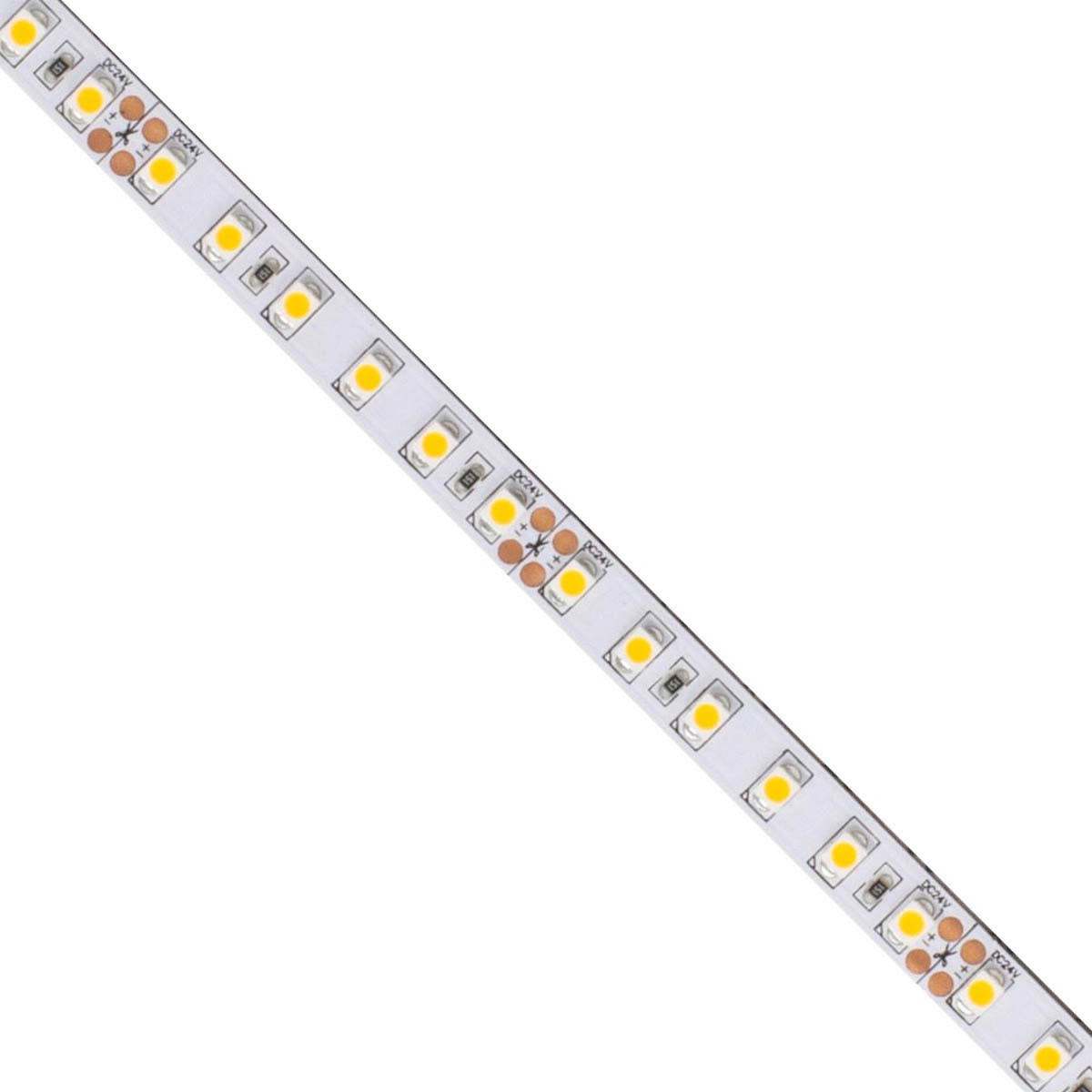

Core Design & Construction
The tape light features a 0.31 in. wide PCB, compatible with various aluminum channels. It includes a 3M adhesive backing for secure mounting and is rated for damp environments.
LED Illumination & Performance
With 233 Lm/ft and a 90+ CRI, this tape light provides excellent illumination and color accuracy, utilizing standard SMD technology.
Power, Wiring & Installation
Requires a 24V driver (sold separately). Cuttable every 1.96 in. for custom lengths, with a maximum run of 40 ft. Dimmable for adjustable lighting.

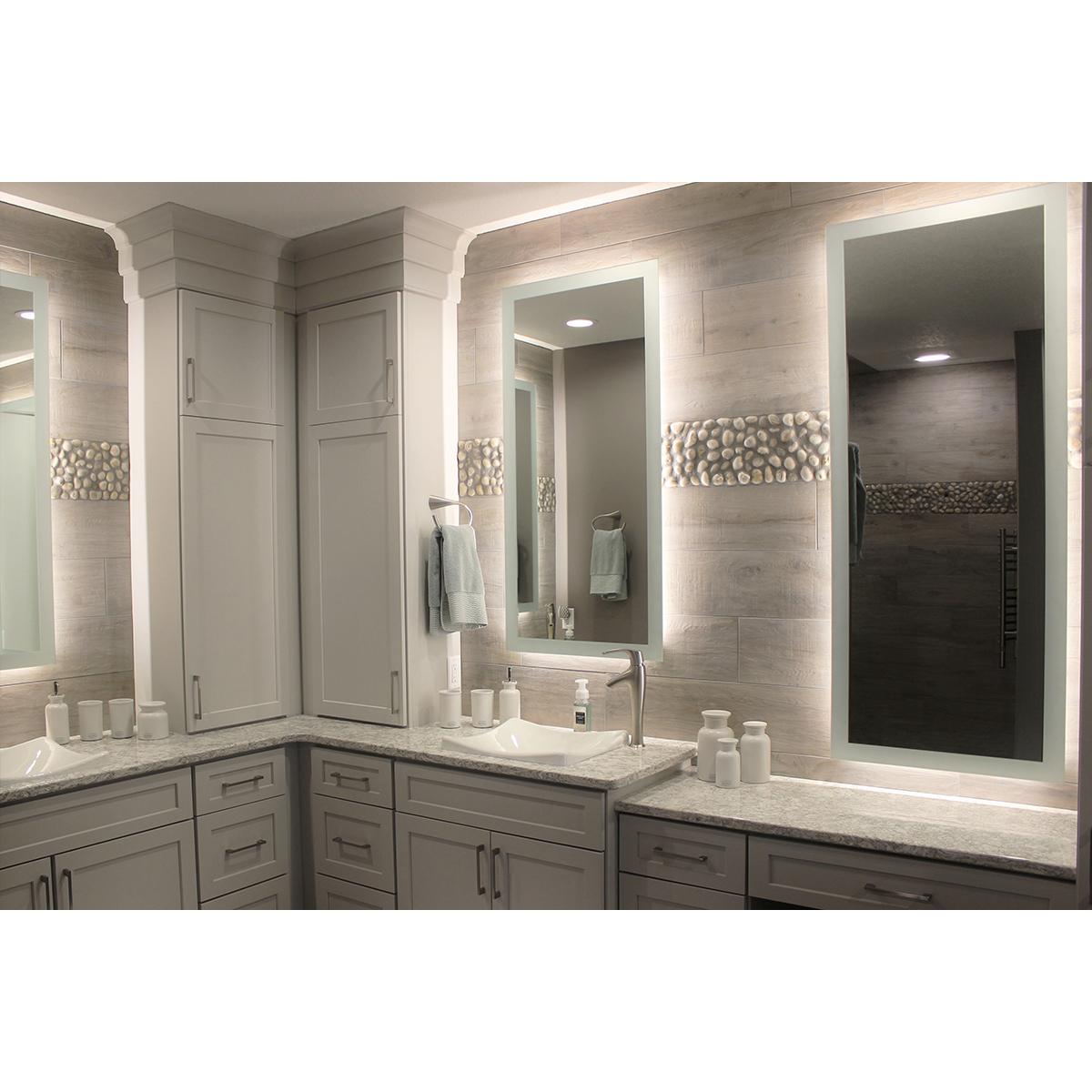

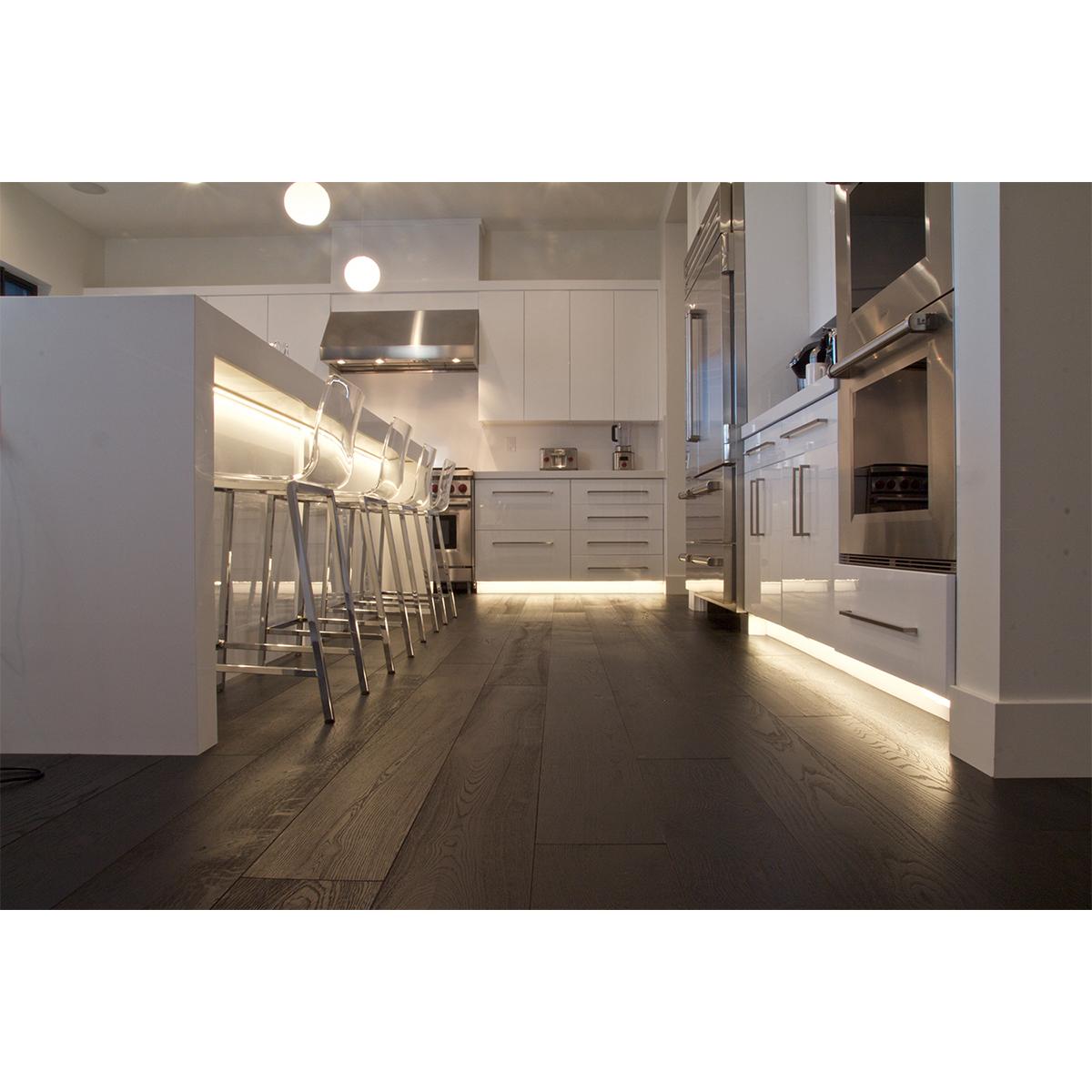

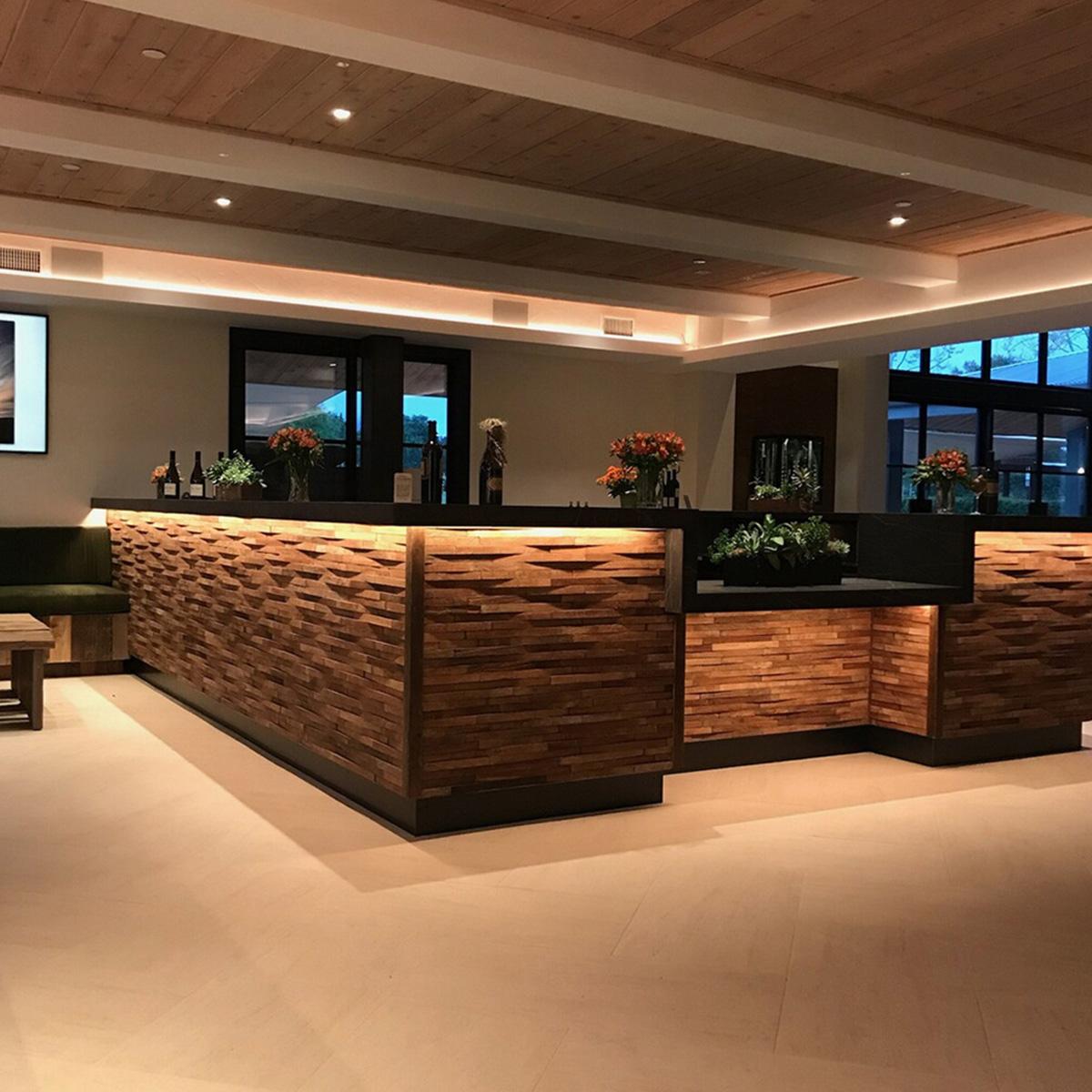

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 100 ft. spool of LED tape light
- 2x White Tape-to-Wire Terminal Blocks
- 36 in. Bare Lead 20/2 AWG UL 2464 Wire with Strain Relief
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the DI-24V-BLBSC2-27-100?
What is the maximum run length for the DI-24V-BLBSC2-27-100?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage does the tape light require?
What voltage does the tape light require?
Is the DI-24V-BLBSC2-27-100 suitable for outdoor use?
Is the DI-24V-BLBSC2-27-100 suitable for outdoor use?
What type of channels are compatible with this tape light?
What type of channels are compatible with this tape light?
