BLAZE, 100 ft., LED Tape Light, 5000K, 132 Lm/ft, 24V
Available in stock (100)
About this item
About this item
- Color Temperature: 5000K provides a bright, daylight-like illumination ideal for task lighting.
- Voltage & Max Run: Operates at 24VDC with a maximum run of 55 ft. to prevent voltage drop.
- Cuttable Increments: Field cuttable every 3.93 in. for customized lengths.
- Environment: Suitable for indoor and damp locations with an IP20 rating.
- Special Features: High CRI of 90+ ensures accurate color rendering.
We process payments securely and do not store credit card information.
Description
Description

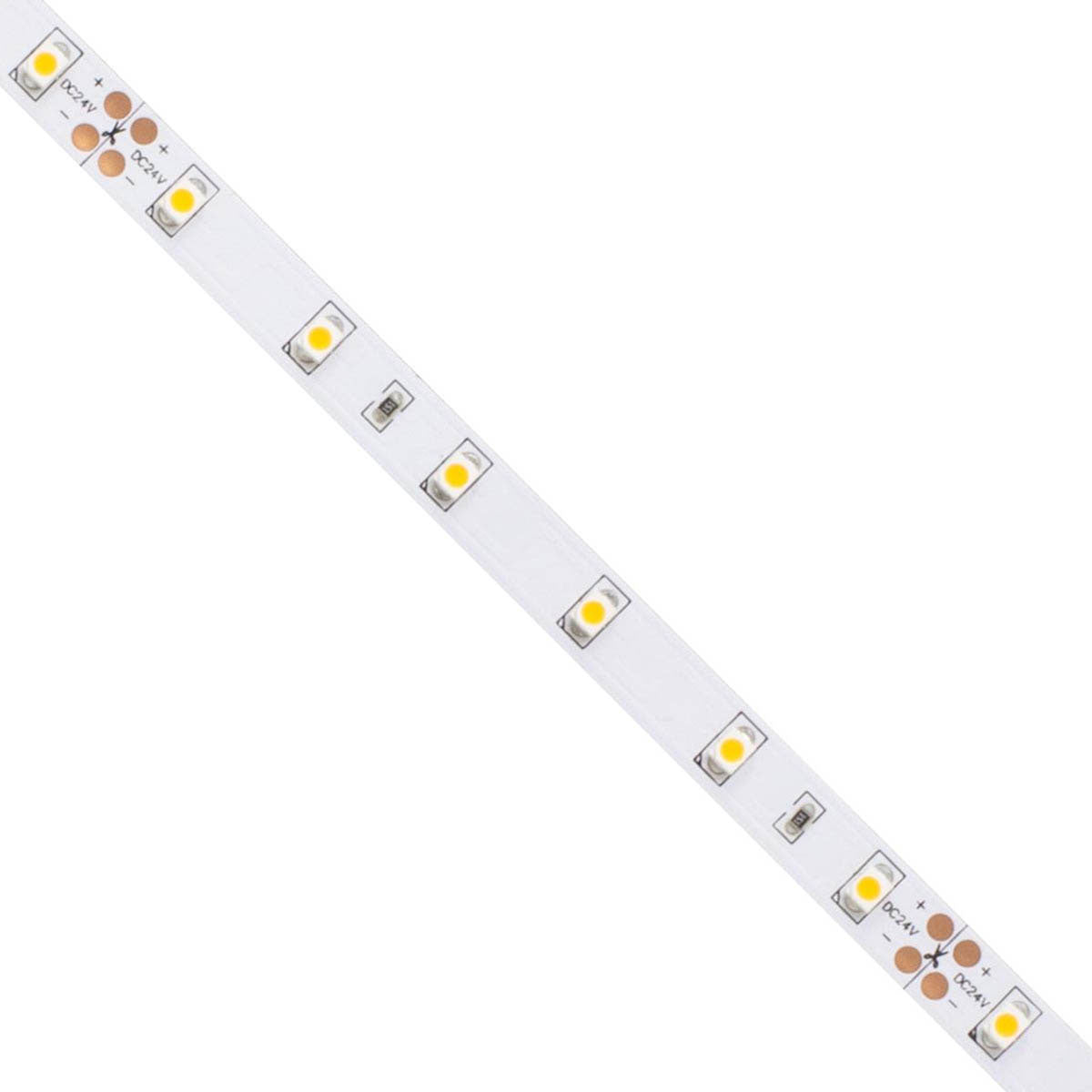

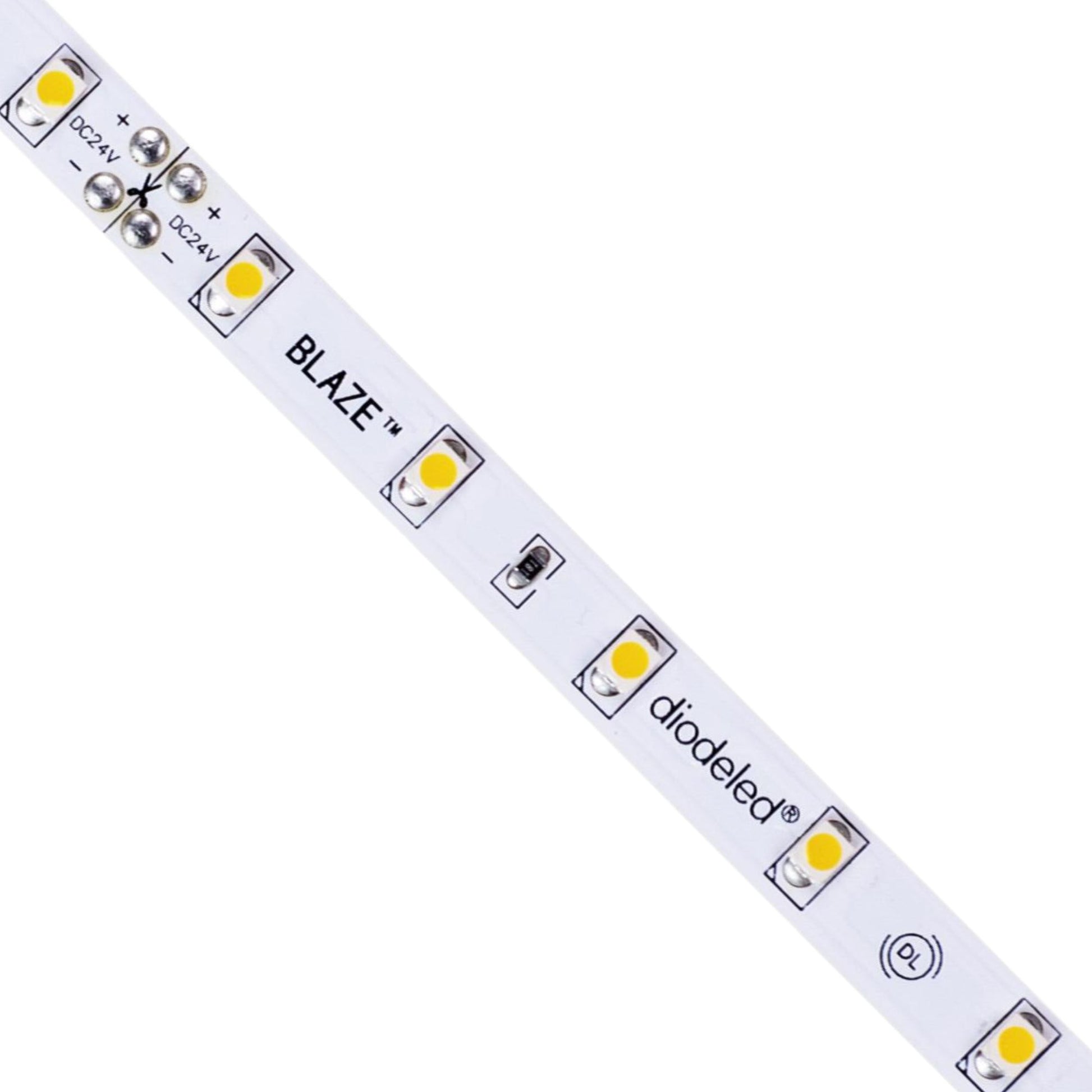

BLAZE LED Tape Light — 5000K & High CRI
The BLAZE DI-24V-BLBSC1-50-100 LED Tape Light is a 100 ft. spool designed for high-performance lighting applications. Operating at 24VDC, this tape light is suitable for indoor and damp locations with an IP20 rating. It features a 5000K color temperature, providing bright, daylight-like illumination.
Key Features
- Voltage: 24VDC for efficient power consumption.
- Wattage: 1.46W/ft. ensures energy efficiency.
- Lumens per Foot: 132 Lm/ft. for bright illumination.
- LEDs per Foot: 18 LEDs/ft. for consistent light output.
- Maximum Run Length: 55 ft. to prevent voltage drop.
- Field Cuttable: Every 3.93 in. for custom installations.

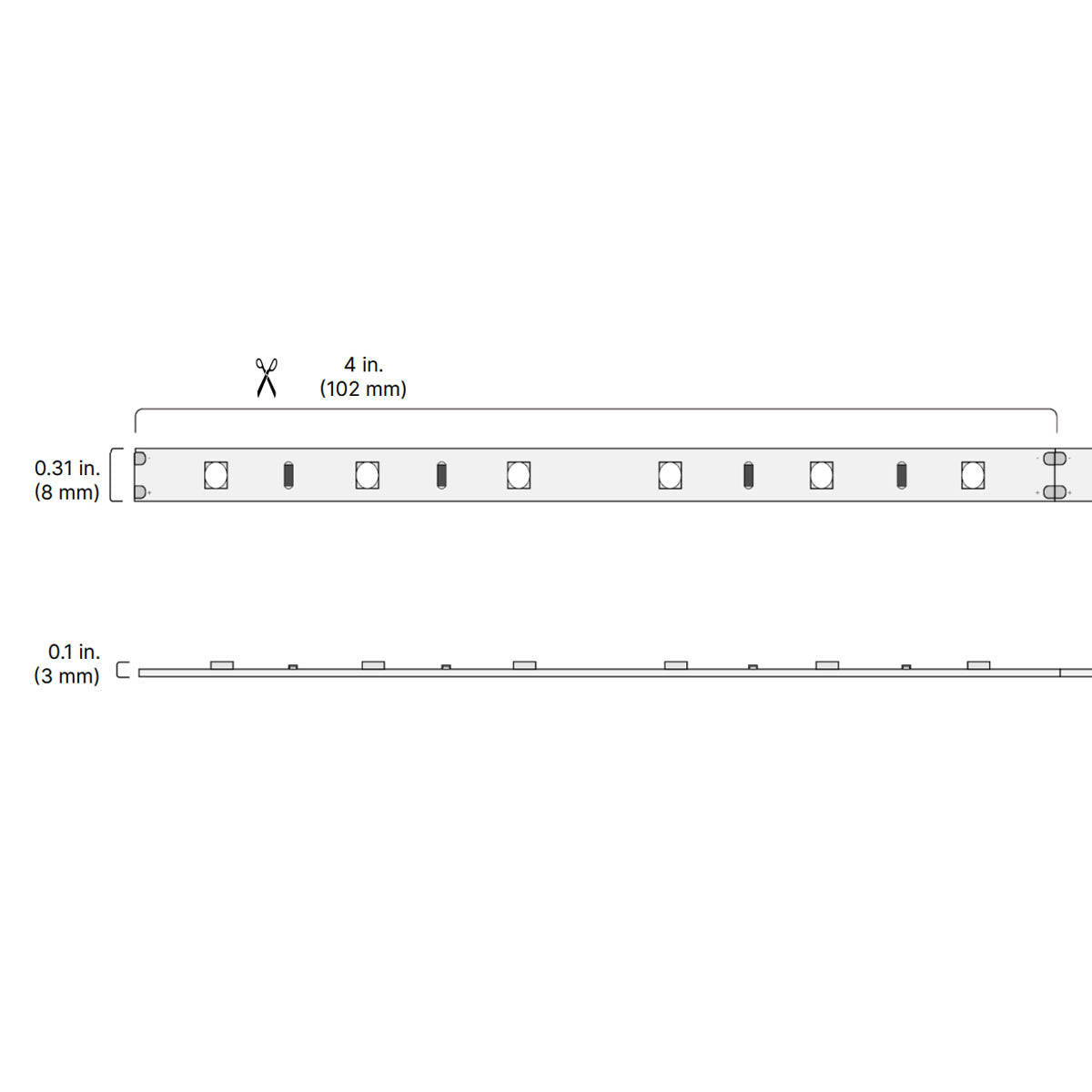

- PCB Width: 0.31 in. for compatibility with most channels.
- Beam Angle: 120° for wide light distribution.
- IP Rating: IP20 for indoor and damp environments.
- Certifications: UL Listed 2108, RoHS Compliant.
Core Design & Construction
The tape light features a 0.31 in. wide PCB, compatible with standard aluminum channels. It includes a durable 3M adhesive backing for secure mounting in various applications.
LED Illumination & Performance
With 132 lumens per foot and a CRI of 90+, this tape light ensures high-quality illumination with accurate color rendering, ideal for detailed tasks.
Power, Wiring & Installation
This 24V tape light requires a compatible driver for operation. It is field cuttable every 3.93 in. and supports a maximum continuous run of 55 ft. Dimmable with compatible drivers.
Where This Tape Works Best

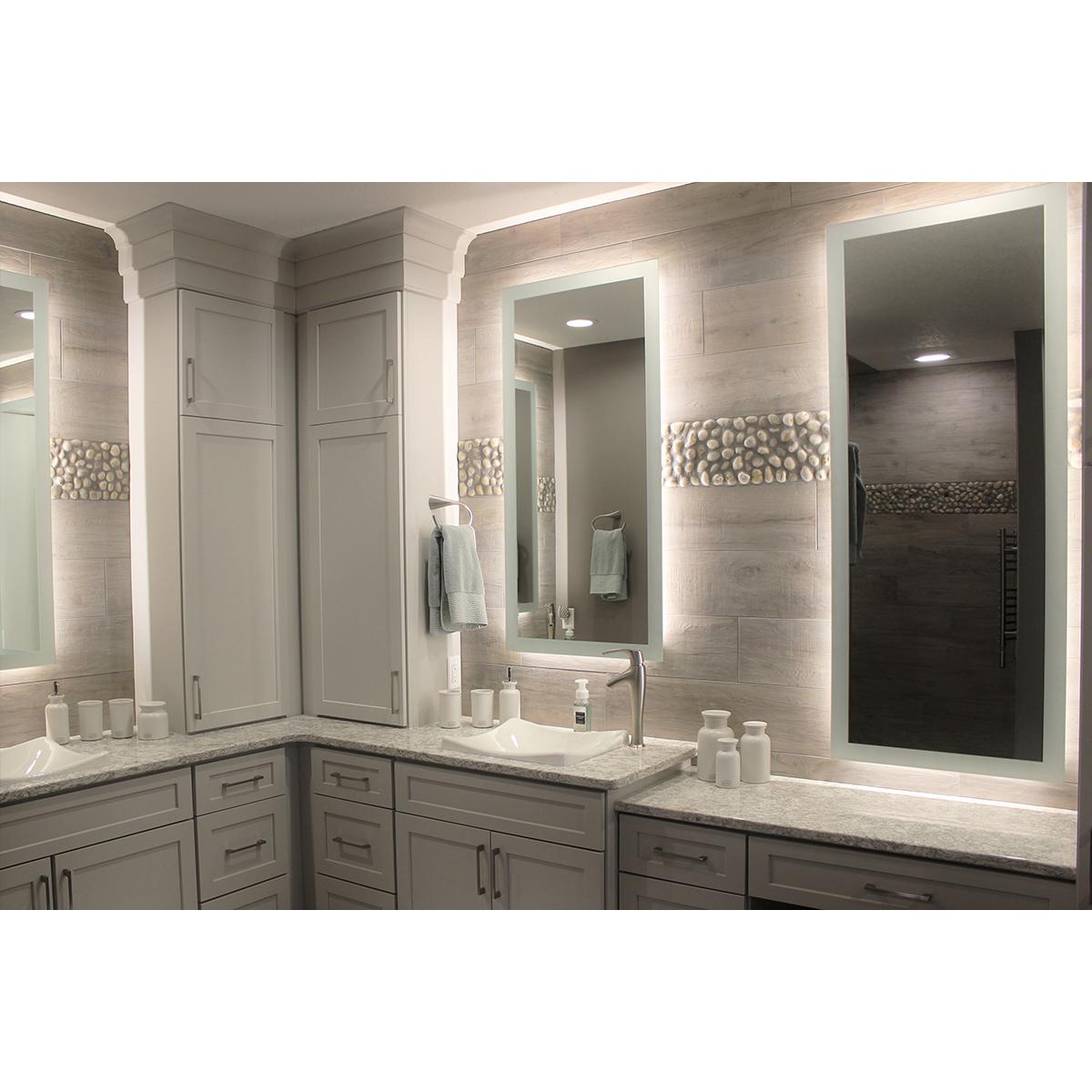

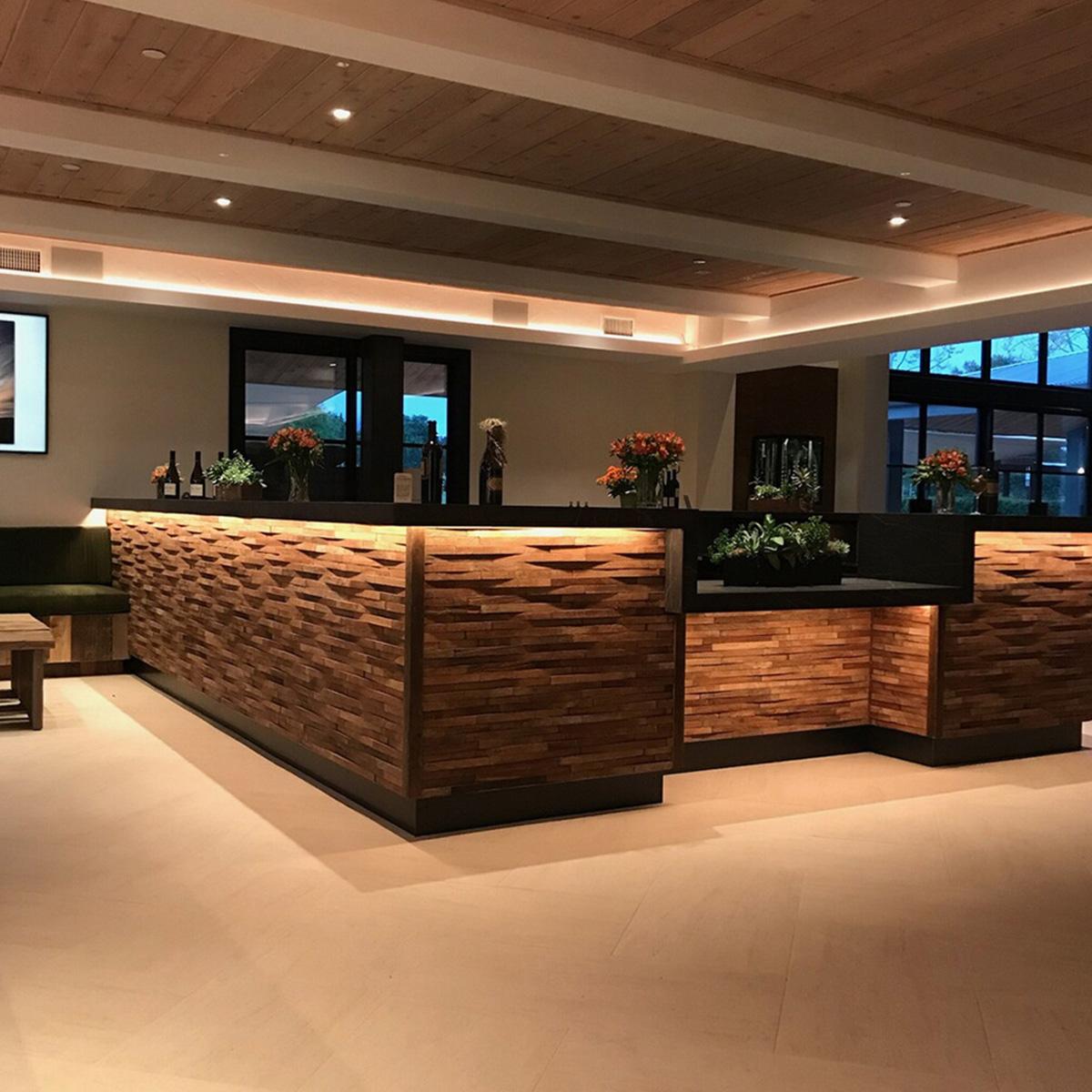

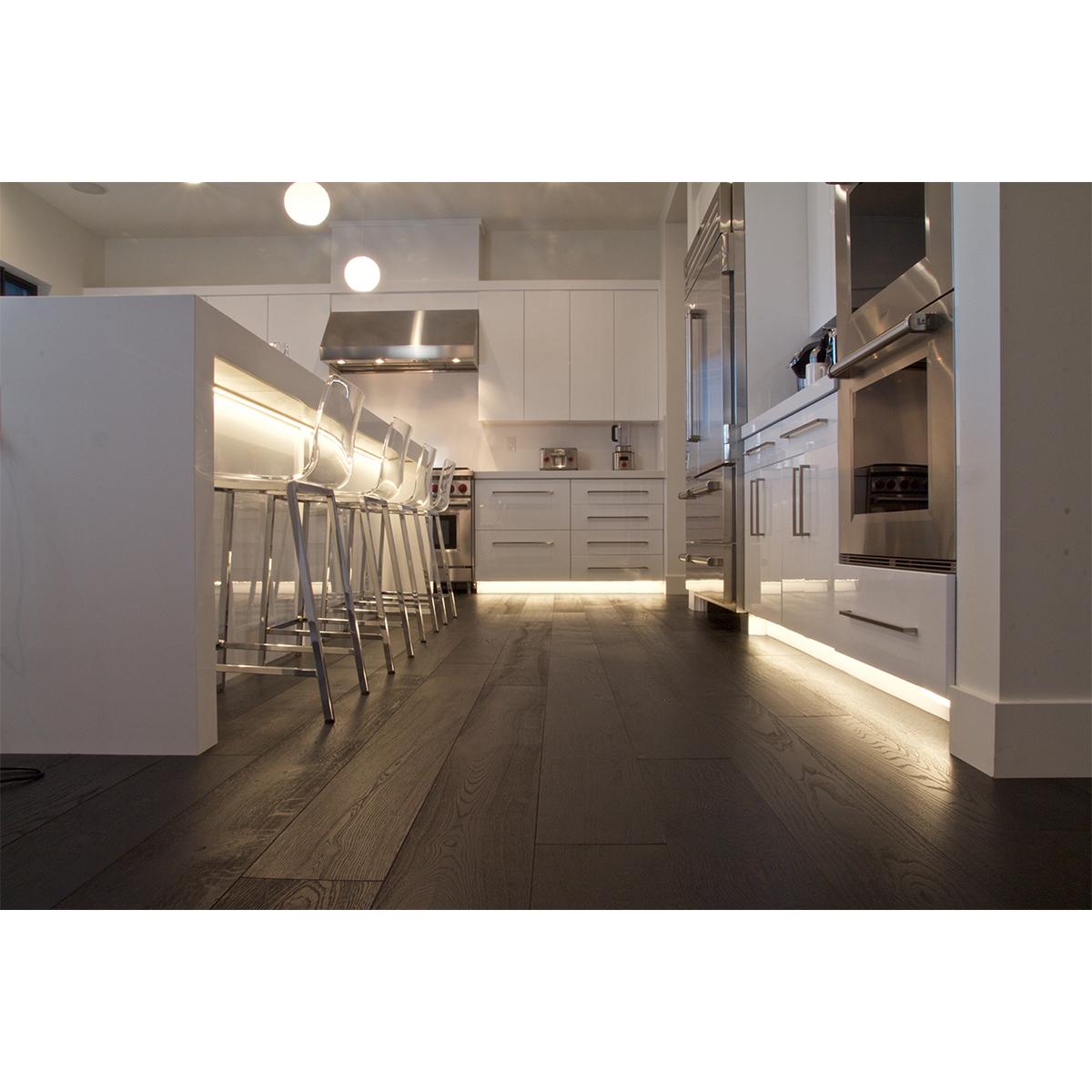

- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 100 ft. spool of LED tape light
- 36 in. bare lead wire with strain relief
- 2x White Tape-to-Wire Terminal Blocks
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the BLAZE DI-24V-BLBSC1-50-100?
What is the maximum run length for the BLAZE DI-24V-BLBSC1-50-100?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for the BLAZE LED Tape Light?
What voltage is required for the BLAZE LED Tape Light?
Is the BLAZE tape light suitable for outdoor use?
Is the BLAZE tape light suitable for outdoor use?
What type of channel is compatible with this tape light?
What type of channel is compatible with this tape light?
