BLAZE, 16ft, LED Tape Light, 5000K, 132 Lm/ft, 24V
Available in stock (101)
About this item
About this item
- Color Temperature: 5000K for bright, daylight illumination.
- Voltage: Operates at 24V for efficient power consumption.
- Max Run: Up to 55 ft. continuous run to minimize voltage drop.
- Cuttable: Field cuttable every 3.93 in. for custom lengths.
- CRI: 90+ for superior color rendering in any setting.
We process payments securely and do not store credit card information.
Description
Description

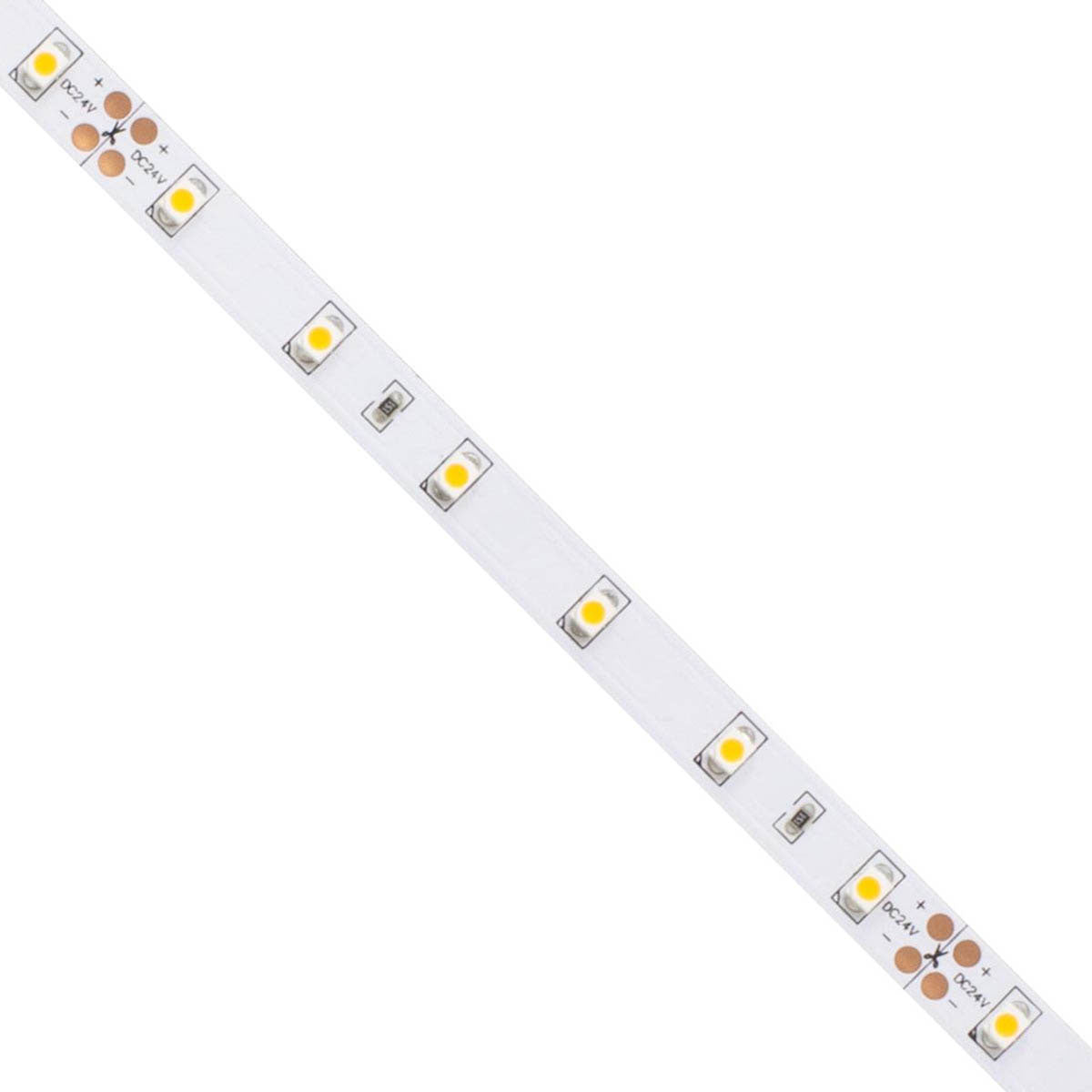

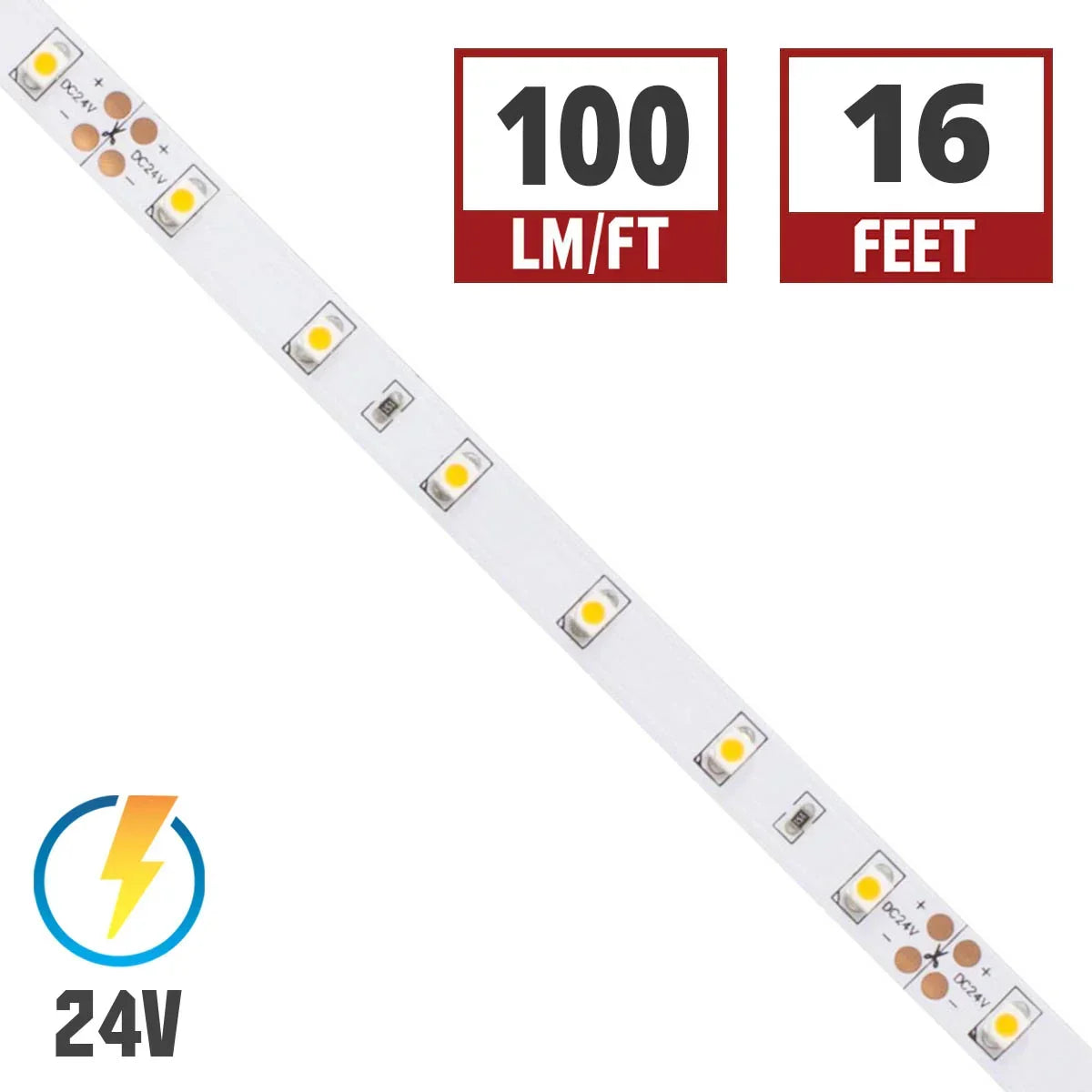

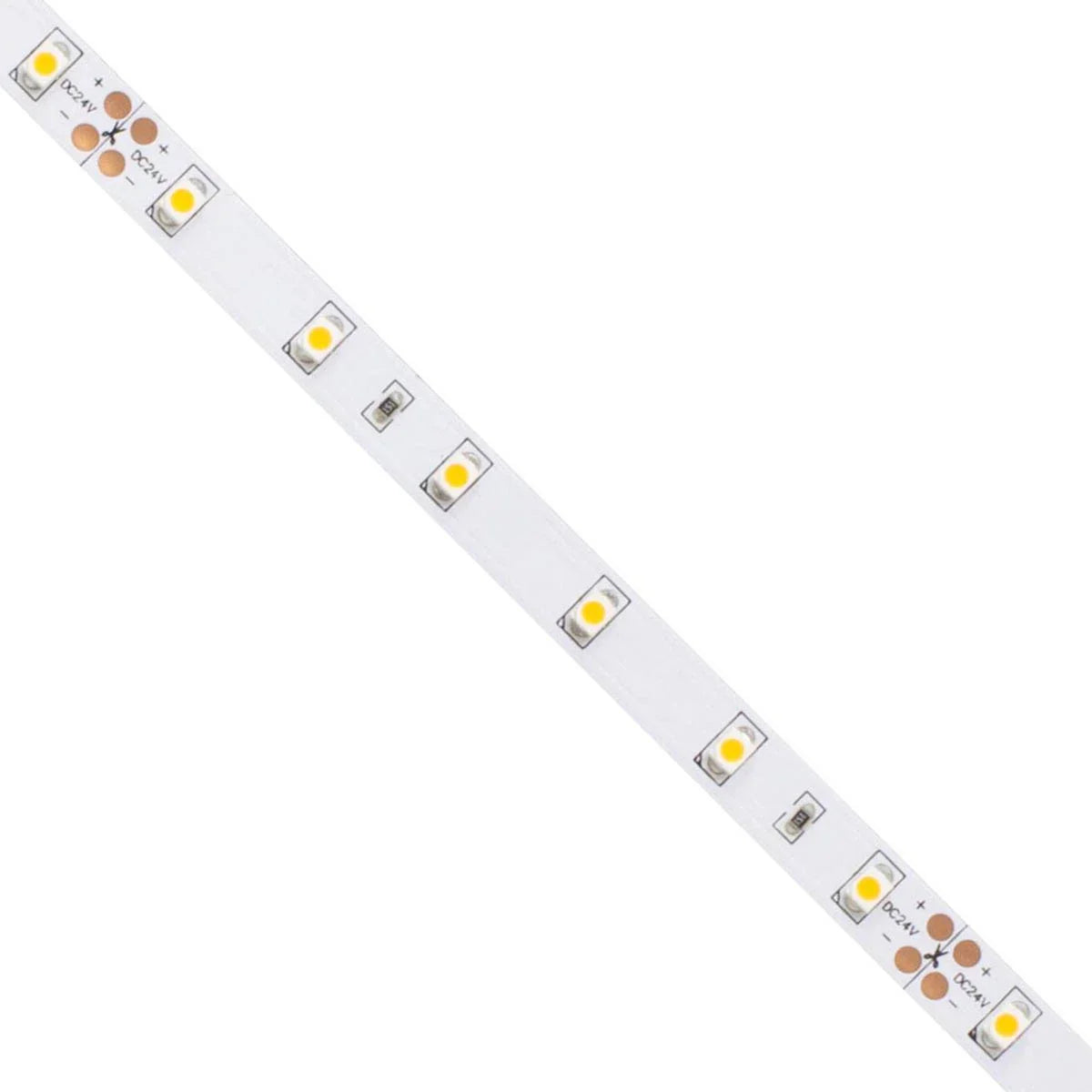

BLAZE LED Tape Light — 5000K & High CRI
The BLAZE DI-24V-BLBSC1-50-016 is a 16-foot LED tape light designed for high-performance lighting applications. With a color temperature of 5000K, it provides bright, daylight illumination ideal for various settings. This tape light operates at 24V and is suitable for damp locations.
Key Features
- Voltage: 24V DC for efficient energy use.
- Wattage: 1.46W per foot for energy efficiency.
- Lumens: 132 lumens per foot for bright illumination.
- LEDs per Foot: 18 LEDs for consistent light output.
- Max Run: 55 ft. to minimize voltage drop.
- Cut Increments: 3.93 in. for custom installations.
- PCB Width: 0.31 in. for compatibility with standard channels.
- Beam Angle: 120° for wide light distribution.
- IP Rating: IP20 for indoor/damp locations.
- Certifications: UL Listed, RoHS Compliant, Title 24.
Core Design & Construction

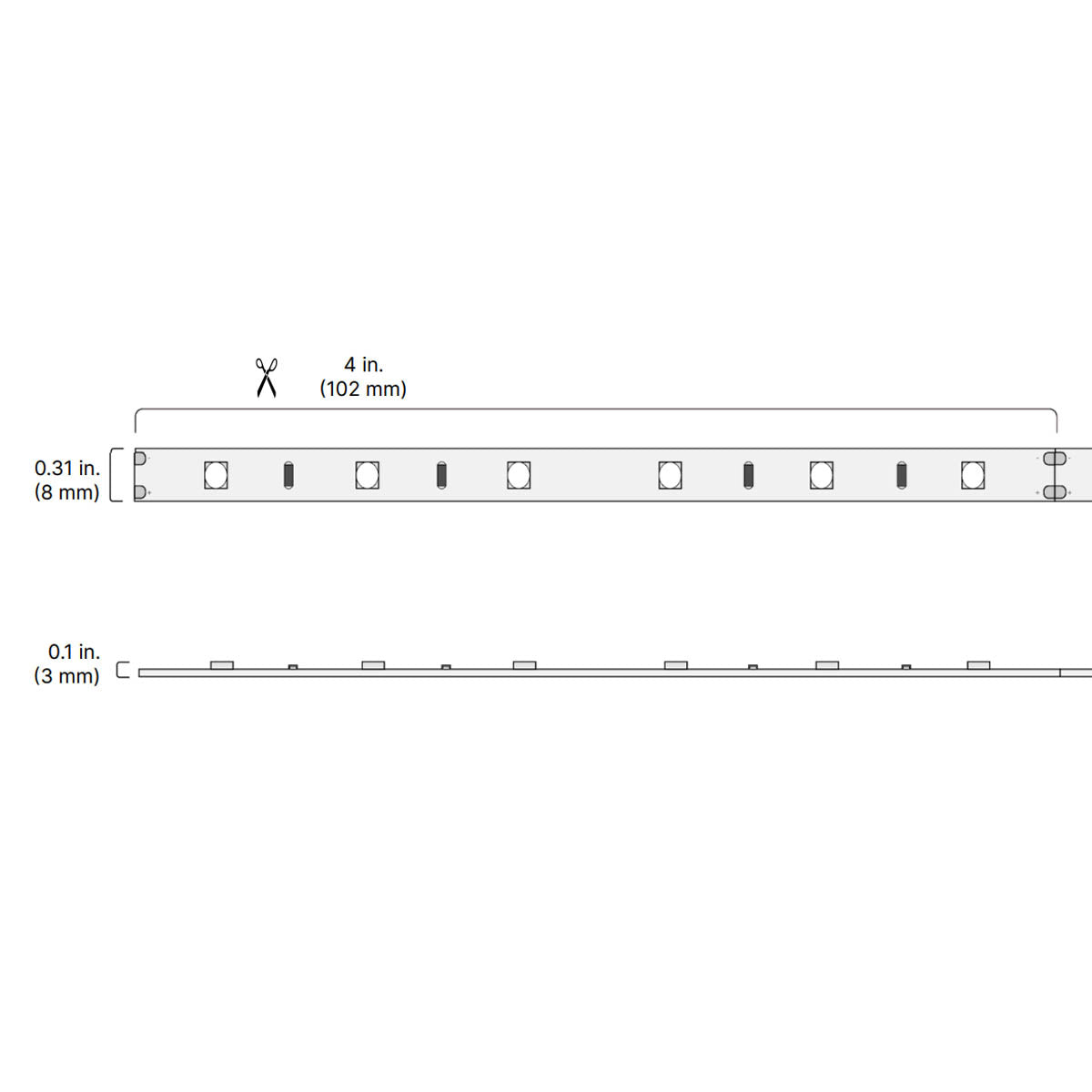

The BLAZE tape light features a 0.31 in. PCB width, ensuring compatibility with most aluminum channels. It includes a durable adhesive backing for easy installation and is rated for indoor and damp locations.
LED Illumination & Performance
With 132 lumens per foot and a 90+ CRI, this tape light delivers high-quality illumination with excellent color accuracy. The light engine is based on standard SMD technology.
Power, Wiring & Installation
This tape light requires a 24V driver for operation. It is field-cuttable every 3.93 in. and supports a maximum continuous run of 55 ft. to prevent voltage drop. It is fully dimmable with compatible drivers.

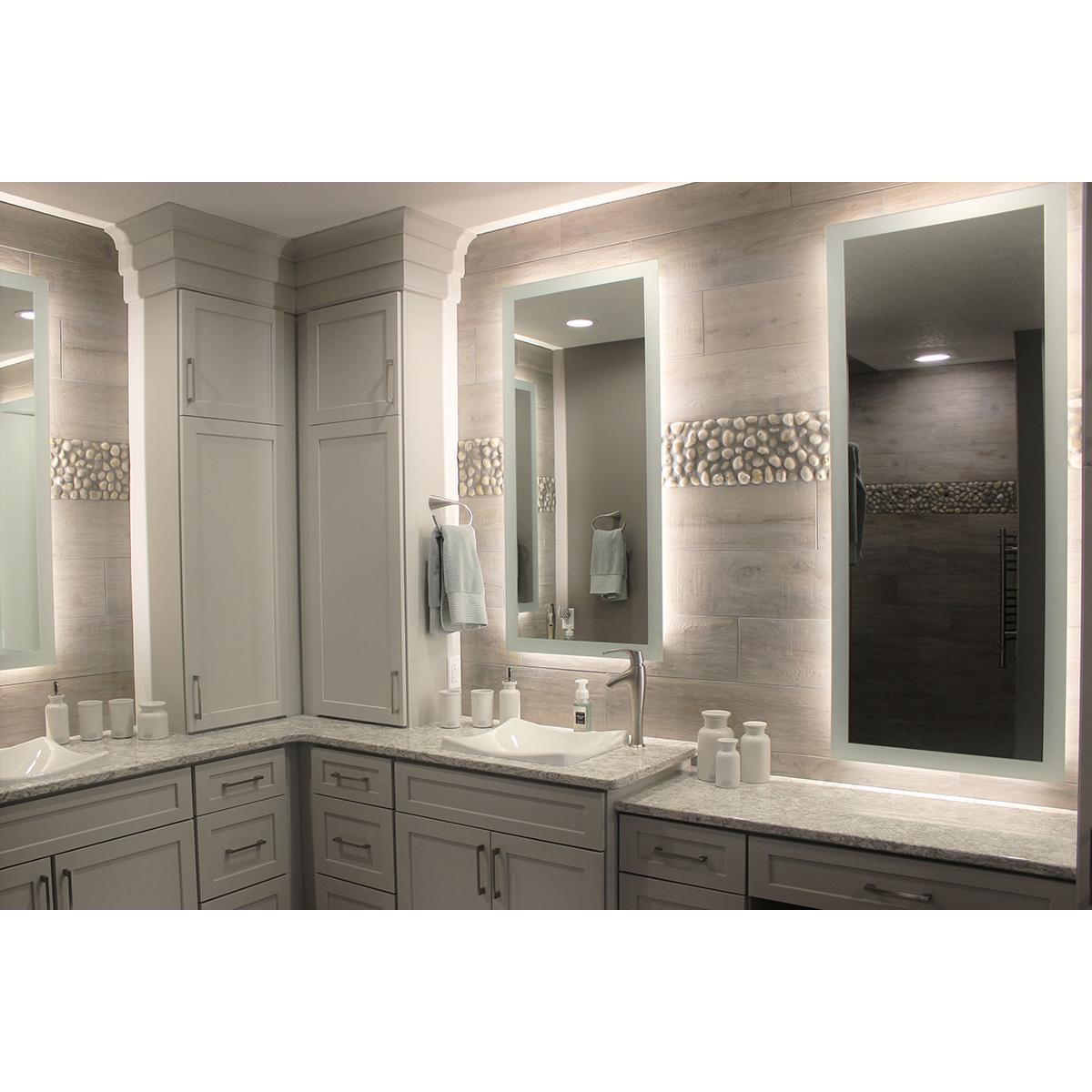

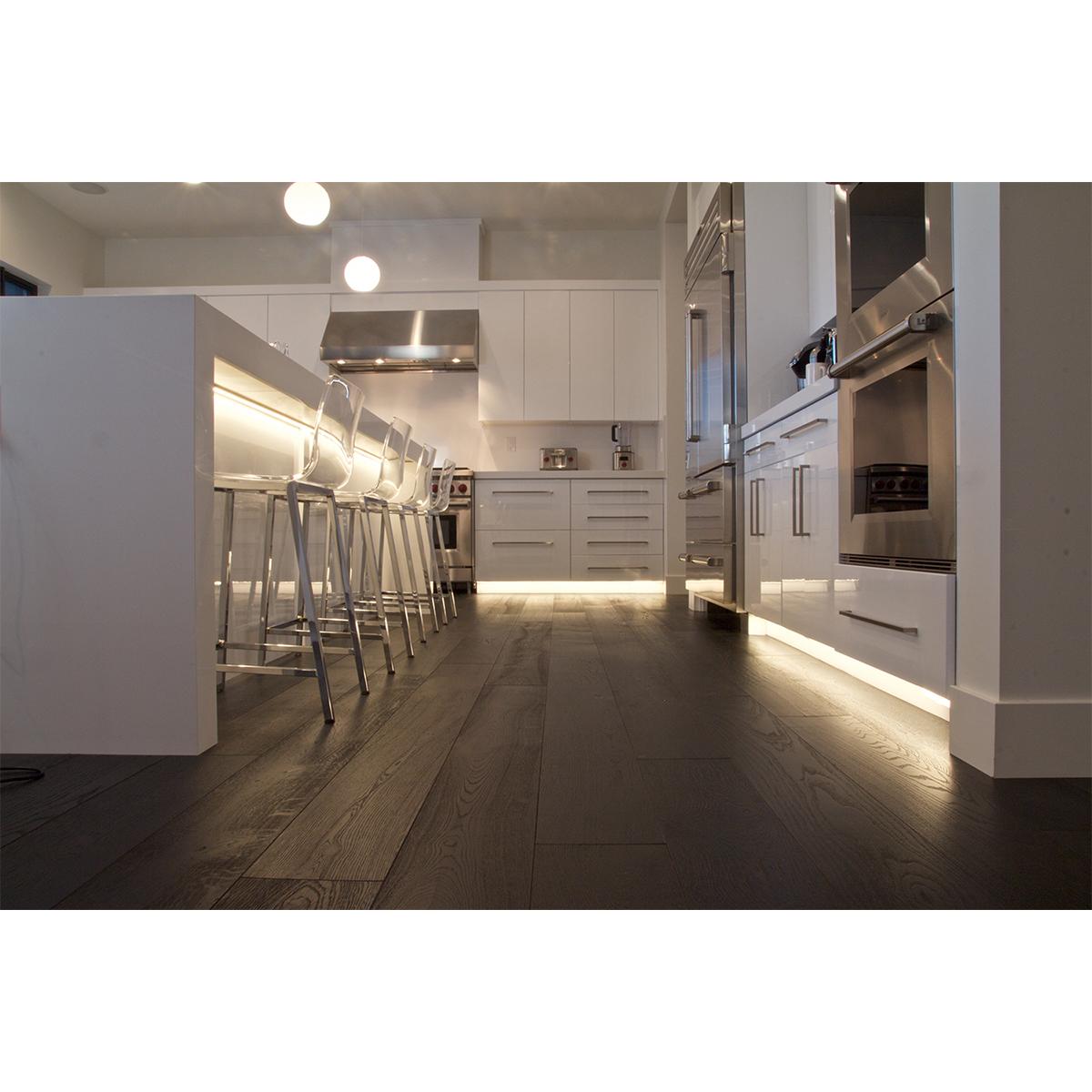

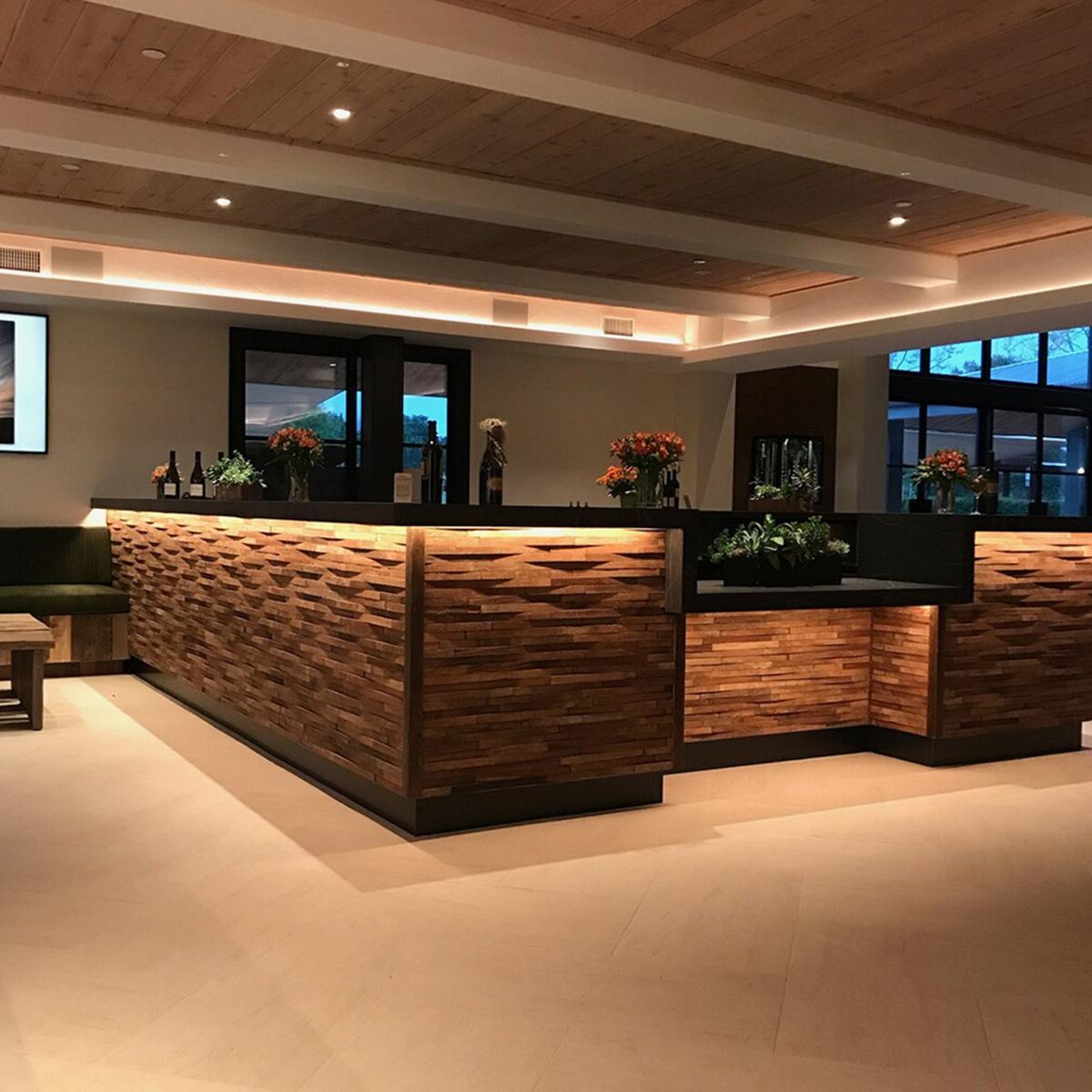

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16 ft. spool of LED tape light
- 36 in. bare lead wire
- 2x White Tape-to-Wire Terminal Blocks
