BLAZE, 16 ft., LED Tape Light, 3500K, 126 Lm/ft, 24V
Available in stock (100)
About this item
About this item
- Color Temperature: Provides a neutral white light at 3500K, perfect for versatile lighting applications.
- Voltage: Operates at 24V DC, ensuring efficient power consumption and compatibility with various drivers.
- Max Run: Capable of running up to 55 ft. continuously, minimizing the need for additional power feeds.
- Cuttable Increments: Can be cut every 3.93 in., allowing for precise customization to fit any space.
- Environment: Rated for indoor/damp locations with an IP20 rating, suitable for protected areas.
We process payments securely and do not store credit card information.
Description
Description

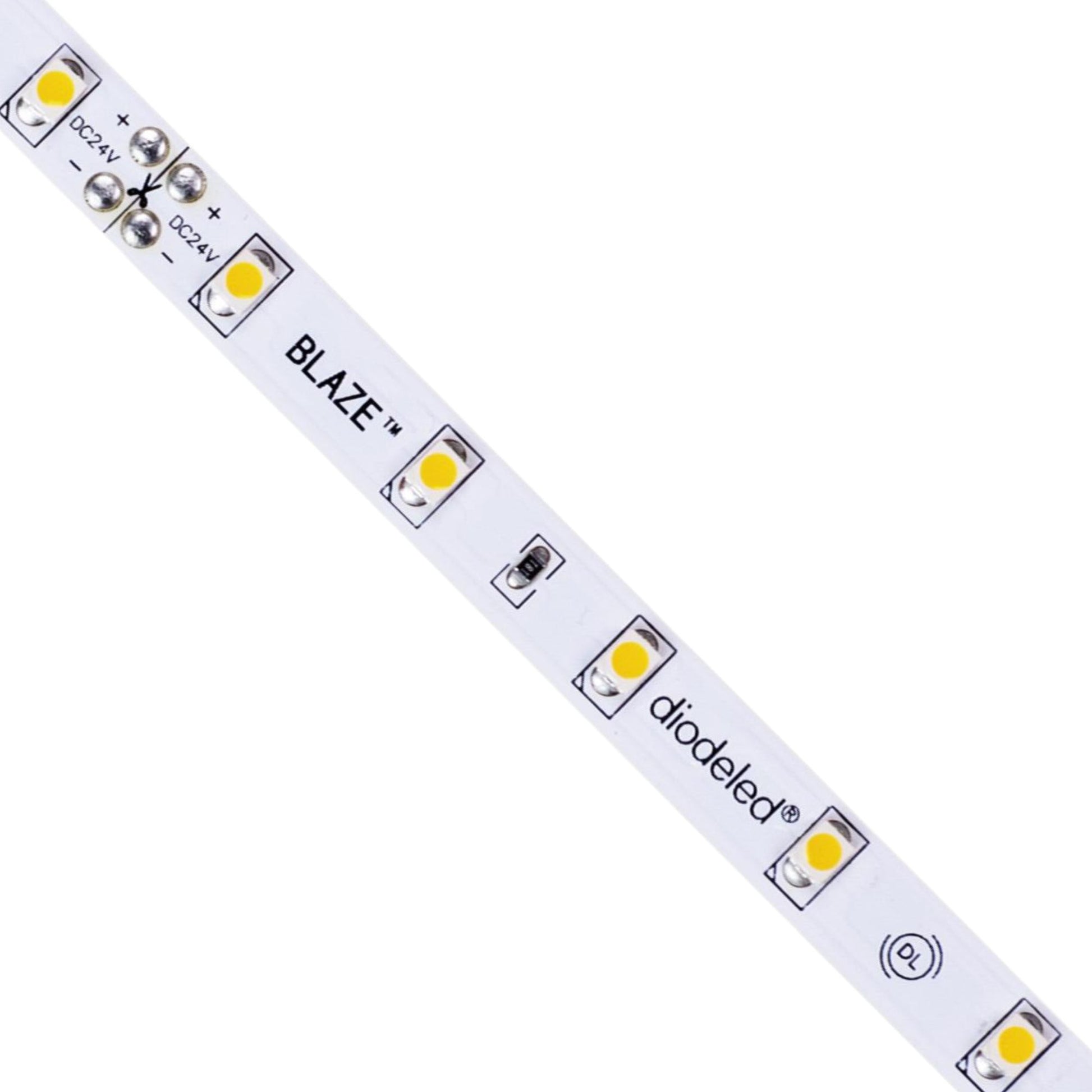

BLAZE LED Tape Light — 3500K & High CRI
The BLAZE DI-24V-BLBSC1-35-016 is a 16 ft. LED tape light designed for versatile lighting applications. With a color temperature of 3500K, it provides a neutral white light ideal for various settings. Operating at 24V DC, this tape light is suitable for indoor and damp locations, rated at IP20.
Key Features
- Voltage: 24V DC ensures efficient power use.
- Wattage: Consumes 1.46W per foot.
- Lumens: Delivers 126 lumens per foot for bright illumination.
- LEDs per Foot: 18 LEDs per foot for consistent light output.
- Max Run: Supports up to 55 ft. continuous run.

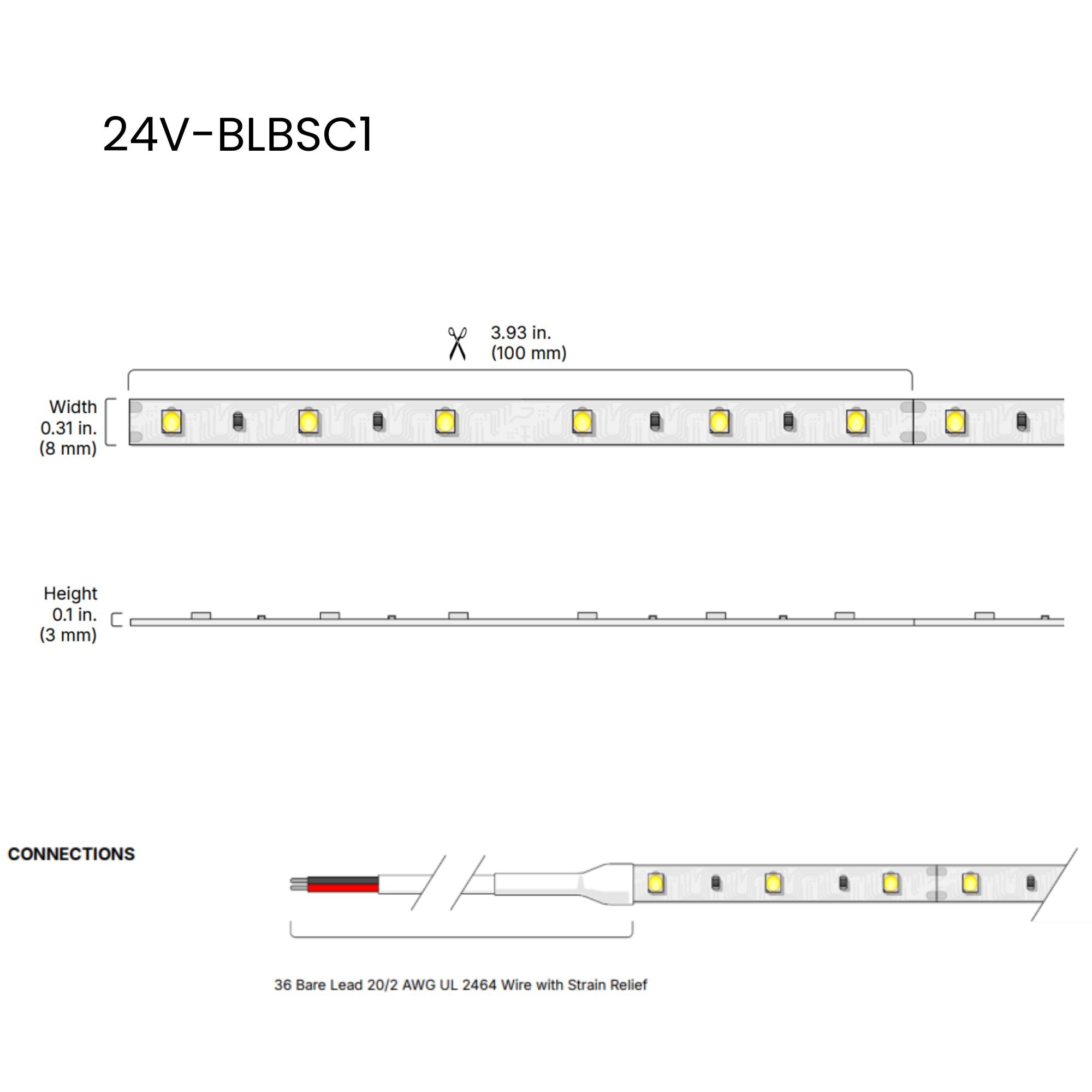

- Cuttable: Field cuttable every 3.93 in. for custom lengths.
- PCB Width: 0.31 in. width for channel compatibility.
- Beam Angle: 120° for wide light distribution.
- Certifications: UL Listed 2108, Title 24, JA8 compliant.
Core Design & Construction
The tape light features a 0.31 in. wide PCB, compatible with various aluminum channels. It includes a 3M adhesive backing for secure installation and is designed for indoor/damp environments.
LED Illumination & Performance
With 126 lumens per foot and a CRI of 90+, this tape light ensures high-quality illumination. The light engine is based on standard SMD technology, providing reliable performance.
Power, Wiring & Installation
Requires a 24V driver for operation. The tape light is field-cuttable every 3.93 in. and supports a maximum continuous run of 55 ft. It is dimmable for adjustable lighting levels.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16 ft. spool of LED tape light
- 36 in. bare lead wire with strain relief
- 2x White Tape-to-Wire Terminal Blocks
