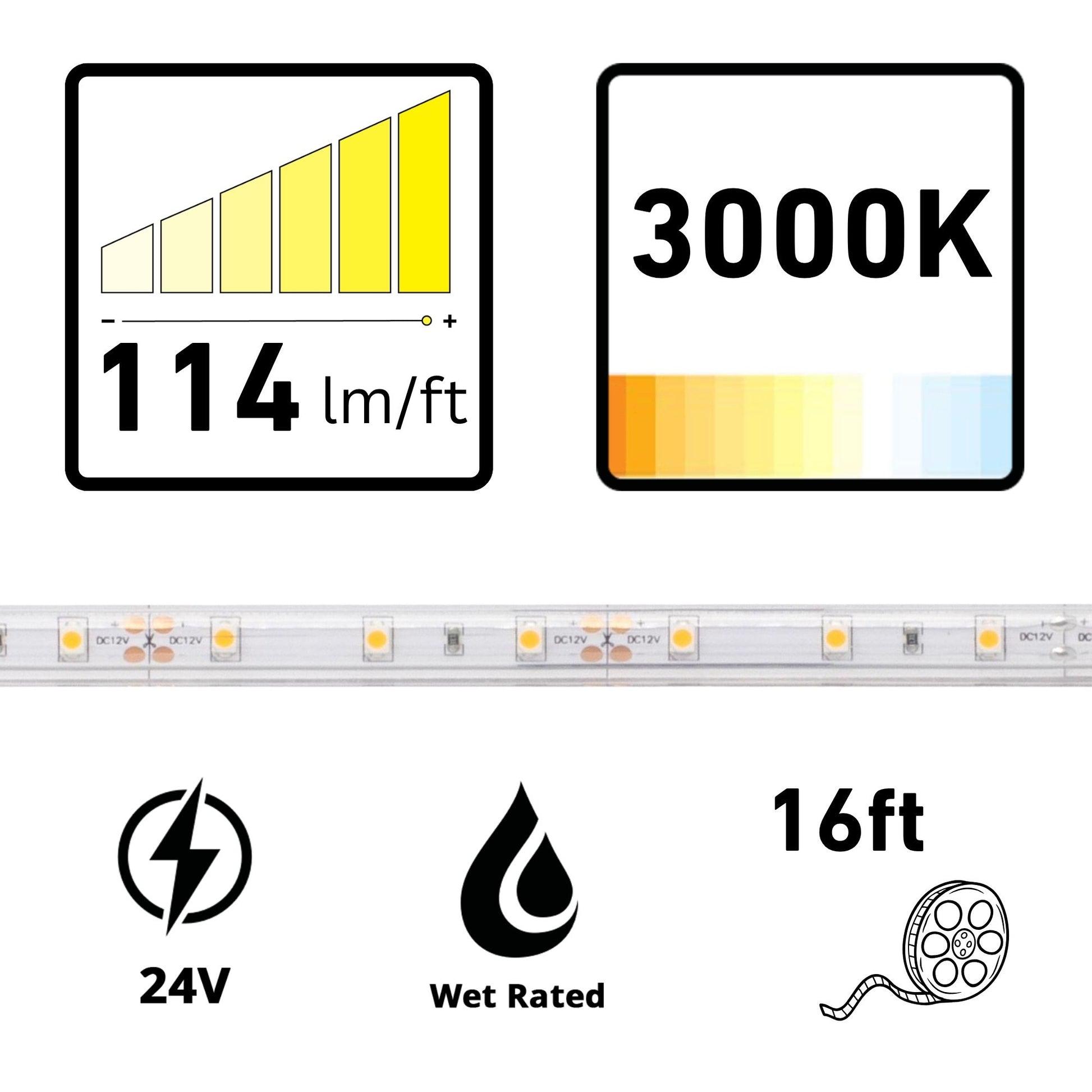

Diode LED BLAZE, 16 ft., LED Tape Light, IP65, 3000K, 114 Lm/ft, 24V
Available in stock (100)
About this item
About this item
- Color Temperature: 3000K provides a warm white light ideal for ambient settings.
- Voltage: Operates at 24V, requiring a compatible driver for installation.
- Maximum Run: Supports up to 55 ft. continuous run to prevent voltage drop.
- Cuttable Increments: Can be cut every 3.93 in. for custom lengths.
- IP Rating: IP65 rated for wet locations, suitable for outdoor applications.
We process payments securely and do not store credit card information.
Description
Description
Diode LED BLAZE LED Tape Light — 3000K & Wet Location
The Diode LED DI-24V-BLBSC1-30-W016 is a 16 ft. LED tape light designed for wet locations with an IP65 rating. It features a 3000K color temperature, providing a warm white light ideal for various applications. Operating at 24V, this tape light requires a compatible driver for installation.
Key Features
- Voltage: 24V DC operation for efficient power use.
- Wattage: Consumes 1.46W/ft.
- Lumens per Foot: 114 Lm/ft for bright illumination.
- LEDs per Foot: 18 LEDs/ft for consistent light output.
- Maximum Run Length: Up to 55 ft. to prevent voltage drop.
- Field Cuttable: Cut every 3.93 in. for custom lengths.
- PCB Width: 0.39 in. for compatibility with most channels.
- Beam Angle: 120 degrees for wide light distribution.
- IP Rating: IP65 for wet locations.
- Certifications: UL Listed, RoHS Compliant.
Core Design & Construction
This tape light features a 0.39 in. wide PCB, compatible with most aluminum channels. It is protected by a silicone coating, ensuring durability in wet environments. The tape light includes a strong adhesive backing for easy installation.
LED Illumination & Performance
With 114 lumens per foot and a CRI of 90+, this tape light delivers high-quality illumination. The light engine uses standard SMD LEDs, providing a consistent and reliable light output.
Power, Wiring & Installation
Operating at 24V, this tape light requires a compatible driver. It can be cut every 3.93 in. for custom installations, with a maximum continuous run of 55 ft. to prevent voltage drop. The tape light is dimmable for adjustable lighting levels.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Outdoor pathways
- Accent lighting
What's Included
- 16 ft. spool of LED tape light
- Pre-attached leads
