Diode LED BLAZE, 100 ft., LED Tape Light, 3000K, 117 Lumens/ft, 24V
Available in stock (201)
About this item
About this item
- Color Temperature: Provides a warm 3000K light, ideal for ambient lighting applications.
- Voltage: Operates on 24V DC, ensuring efficient power consumption and compatibility with standard drivers.
- Max Run: Capable of a maximum continuous run of 55 ft., reducing the need for multiple power feeds.
- Cuttable: Field cuttable every 3.93 in., allowing for precise length customization on-site.
- Environment: Rated for indoor/damp locations, suitable for protected installations.
We process payments securely and do not store credit card information.
Description
Description

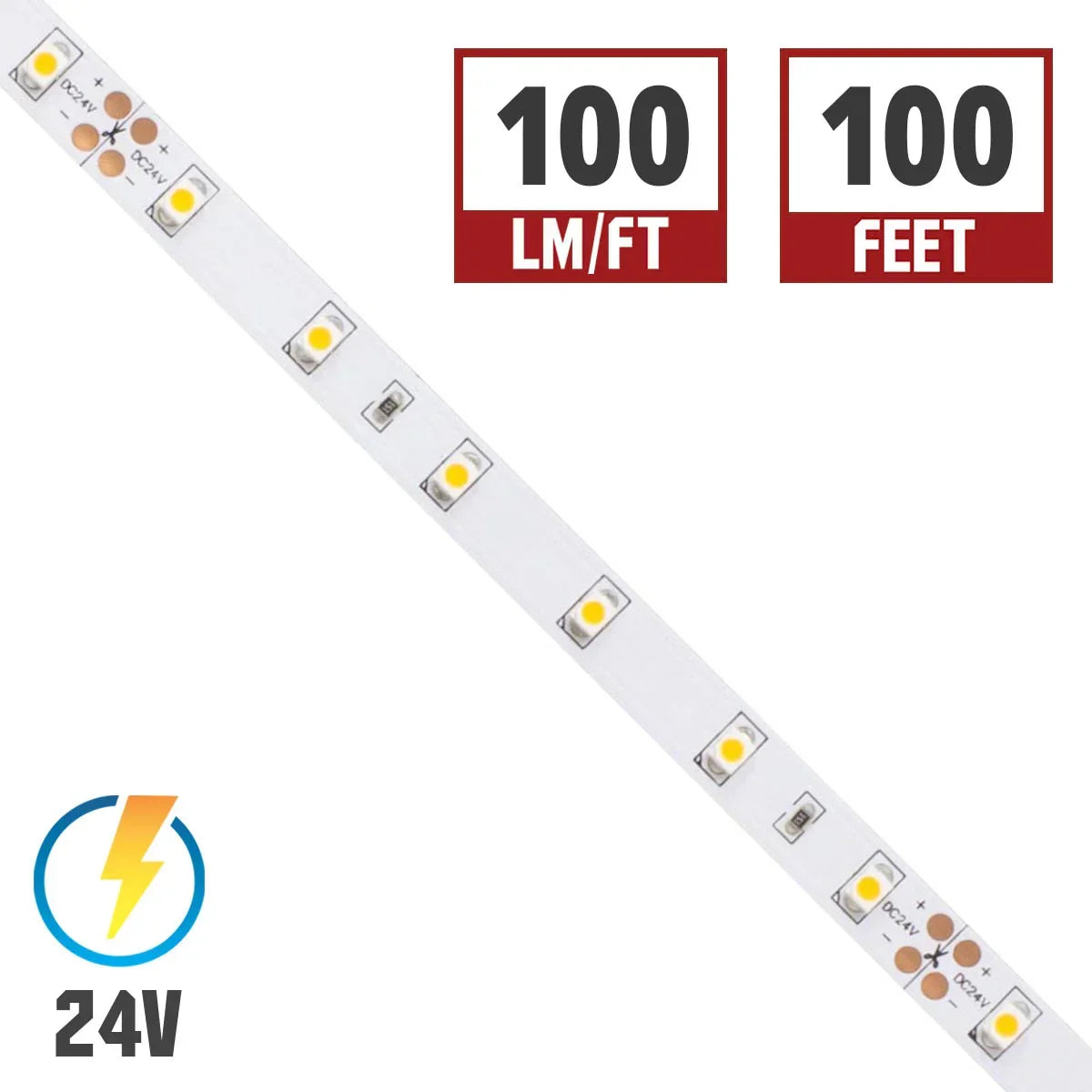

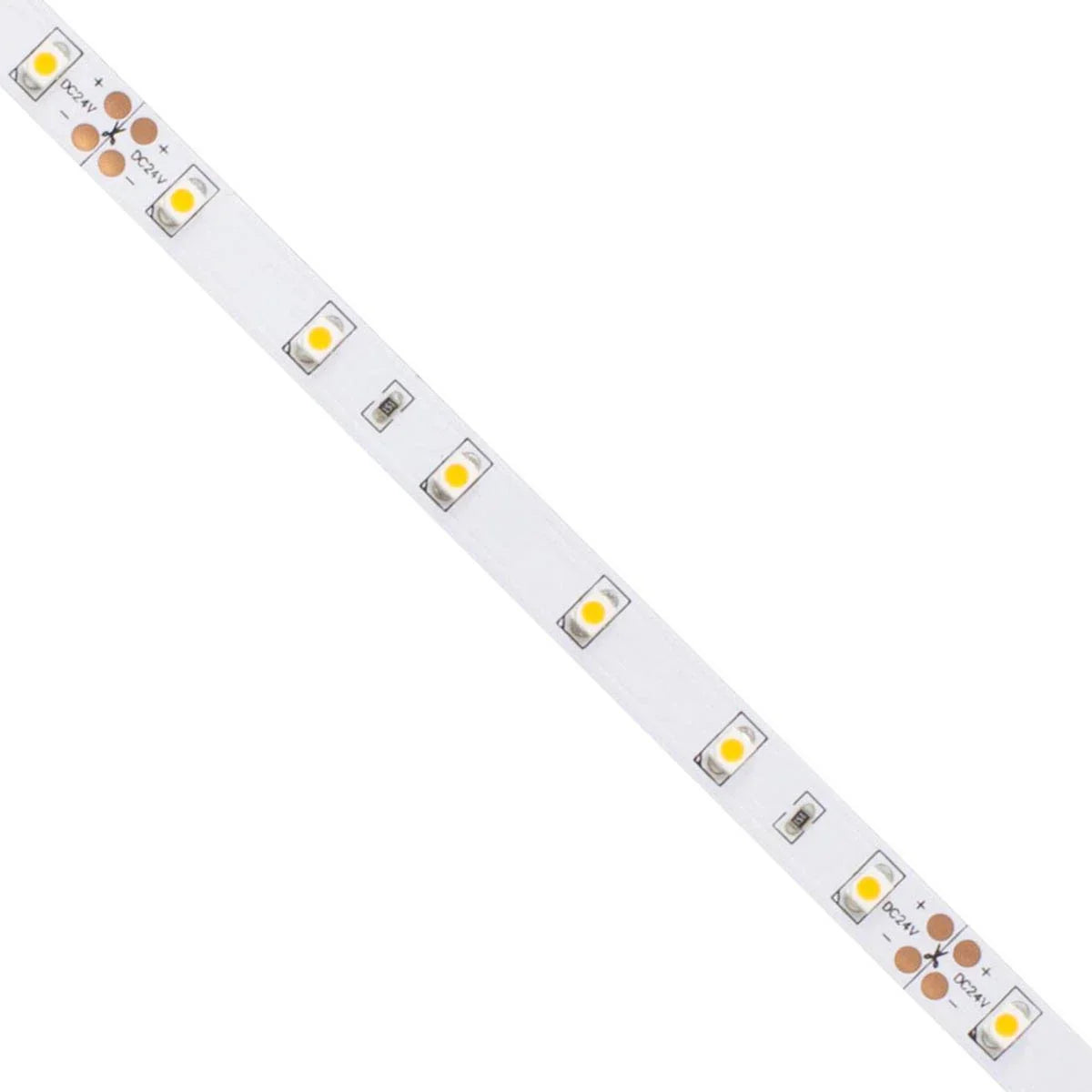

Diode LED BLAZE LED Tape Light — 3000K & High CRI
The Diode LED DI-24V-BLBSC1-30-100 is a high-performance LED tape light offering a warm 3000K color temperature and a high CRI of 90+. This tape light is 100 feet long, operates on 24V DC, and is rated for indoor/damp locations.
Key Features
- Voltage: 24V DC for efficient power usage.
- Wattage: 1.46W per foot.
- Lumens: 117 lumens per foot for bright illumination.
- LEDs: 18 LEDs per foot for consistent light output.
- Max Run: 55 ft. maximum continuous run.
- Cuttable: Cuttable every 3.93 in. for custom lengths.
- PCB Width: 0.31 in. for compatibility with standard channels.
- Beam Angle: 120° for wide light distribution.
- IP Rating: IP20, suitable for indoor/damp locations.
- Certifications: UL Listed, RoHS Compliant, Title 24.
Core Design & Construction

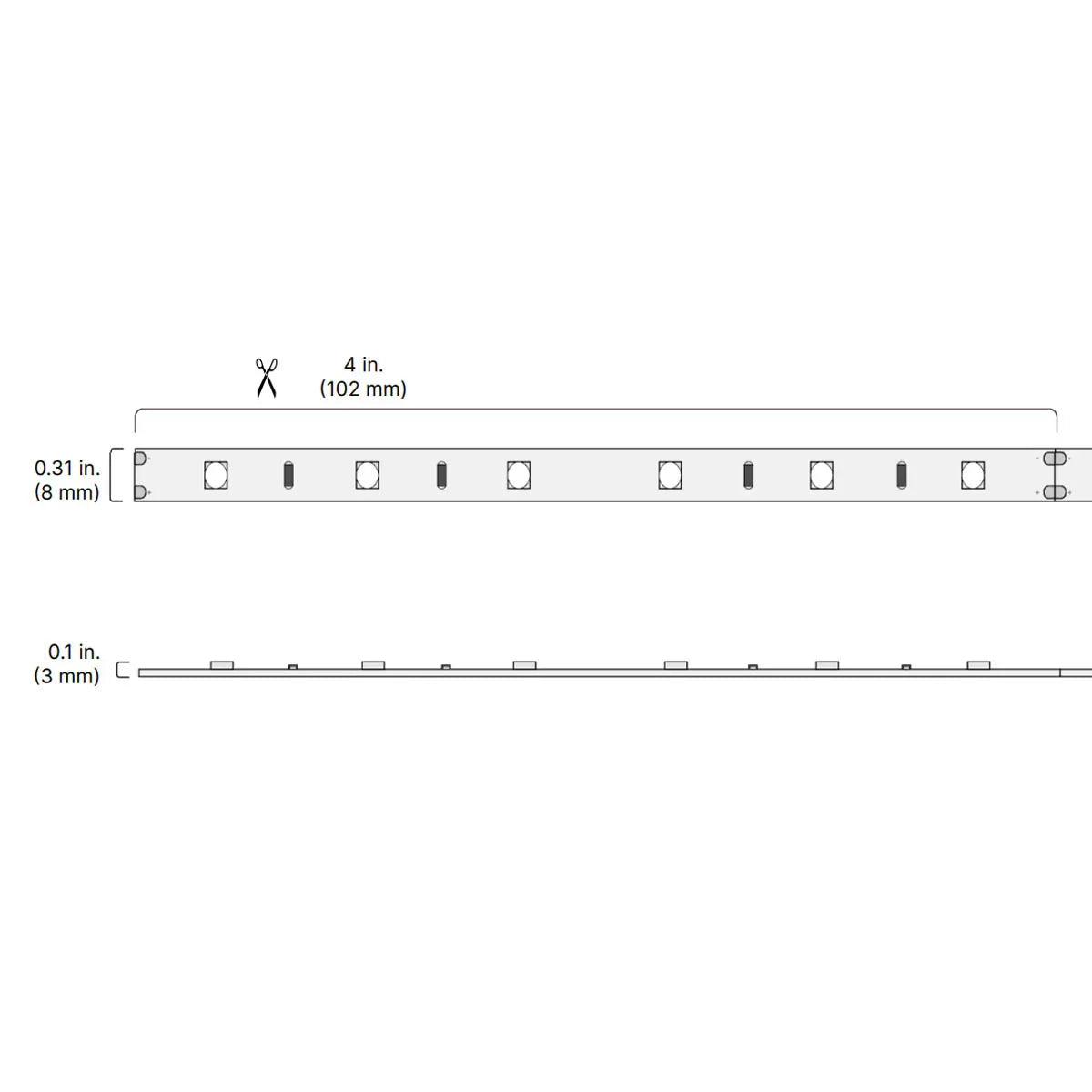

The tape light features a narrow 0.31 in. PCB width, making it compatible with most aluminum channels. It includes a durable adhesive backing for easy installation on various surfaces.
LED Illumination & Performance
With 117 lumens per foot and a high CRI of 90+, this tape light ensures vibrant and accurate color rendering, ideal for architectural and accent lighting.
Power, Wiring & Installation
Requires a 24V driver for operation. The tape is field-cuttable every 3.93 in. and supports a maximum run of 55 ft. to prevent voltage drop. It is dimmable for customizable lighting levels.

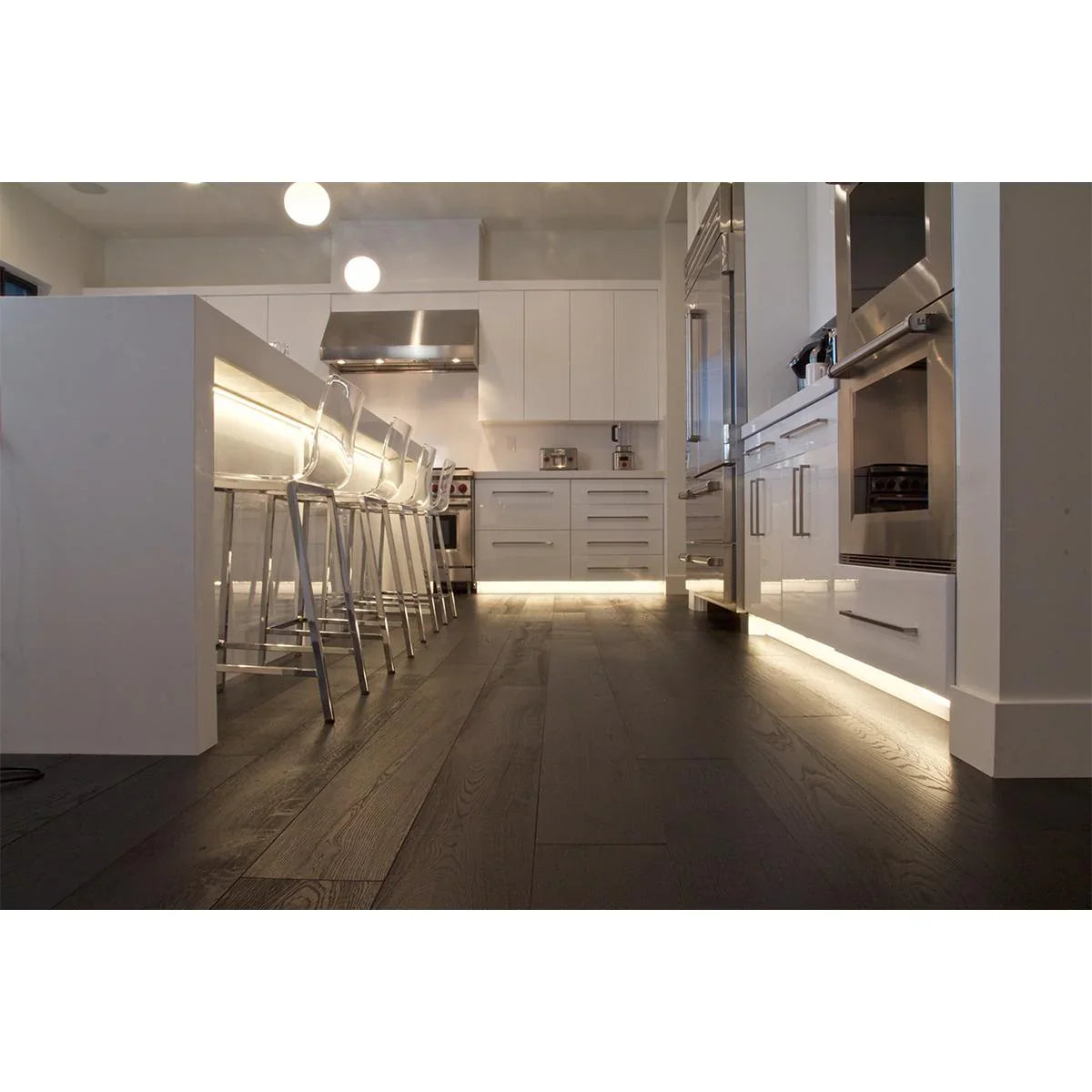

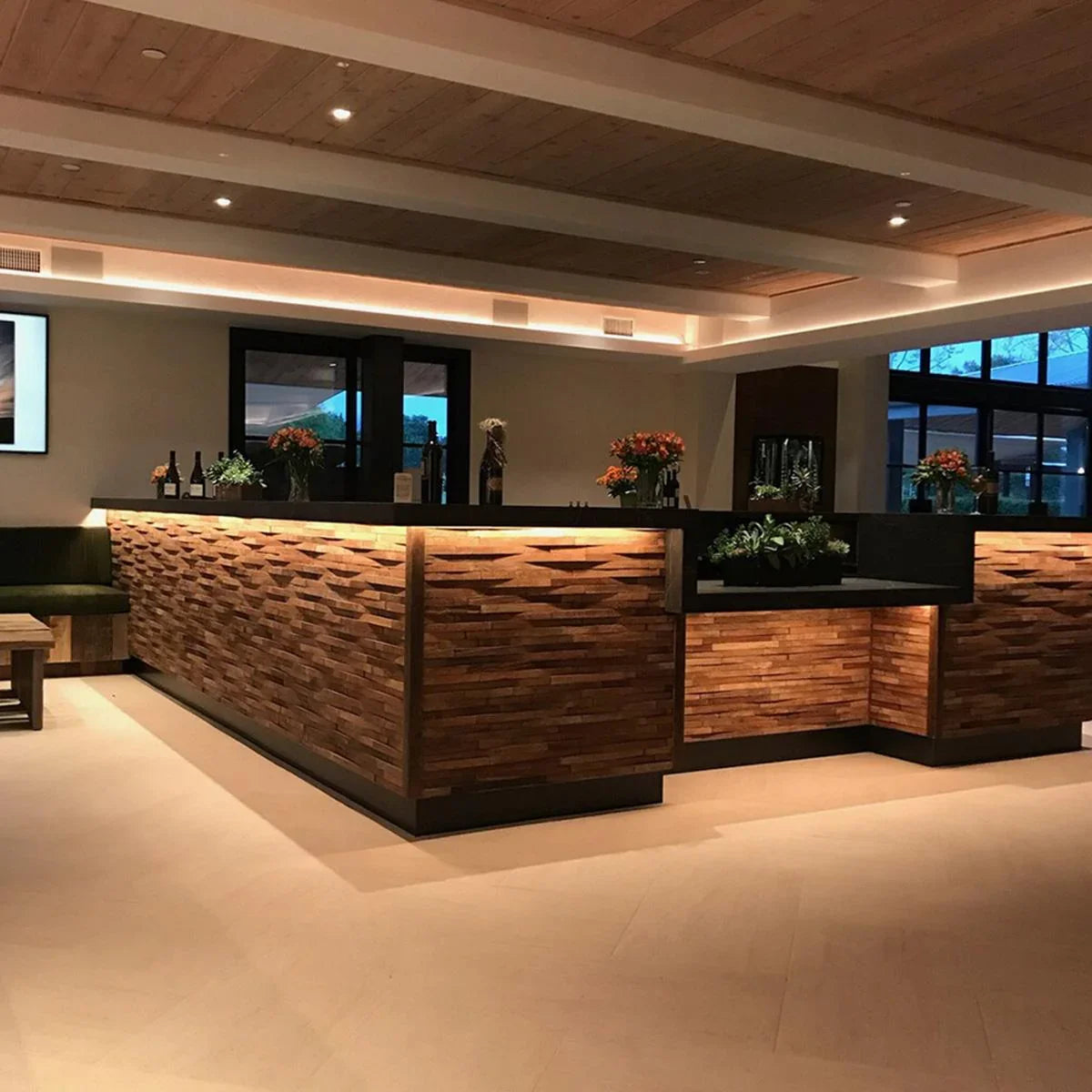

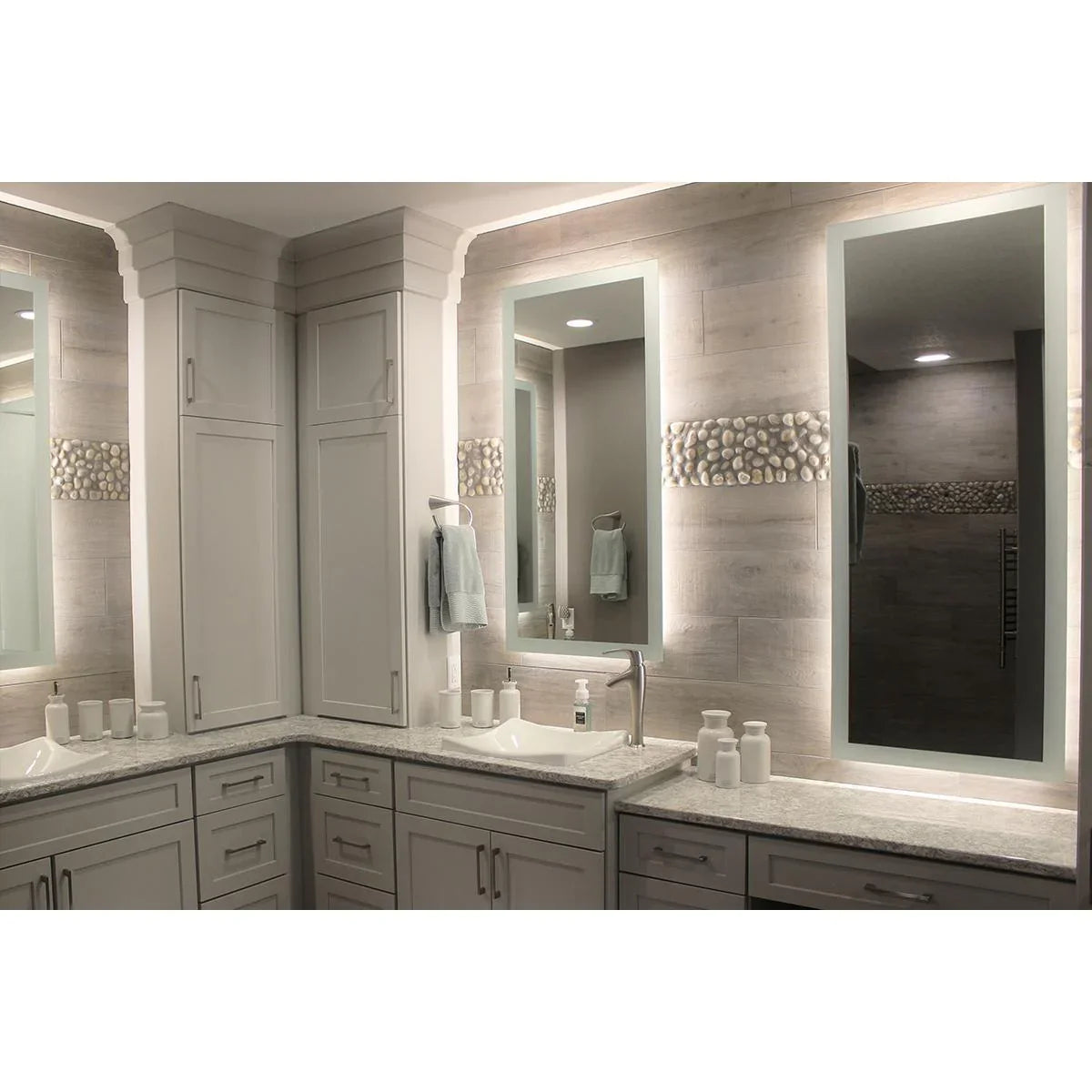

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
- Retail lighting
What's Included
- 100 ft. spool of LED tape light
- 36 in. bare lead wire
- 2x White Tape-to-Wire Terminal Blocks
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the DI-24V-BLBSC1-30-100 tape light?
What is the maximum run length for the DI-24V-BLBSC1-30-100 tape light?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for the DI-24V-BLBSC1-30-100 tape light?
What voltage is required for the DI-24V-BLBSC1-30-100 tape light?
Is the DI-24V-BLBSC1-30-100 tape light dimmable?
Is the DI-24V-BLBSC1-30-100 tape light dimmable?
What channel sizes are compatible with this tape light?
What channel sizes are compatible with this tape light?
