BLAZE, 16 ft., LED Tape Light, 3000K, 117 Lm/ft, 24V
Available in stock (200)
About this item
About this item
- Color Temperature: 3000K for warm white illumination.
- Voltage: Operates on 24V for efficient power usage.
- Max Run: Up to 55 ft. for extended installations.
- Cuttable: Field cuttable every 3.93 in. for custom lengths.
- Environment: Suitable for damp locations with IP20 rating.
We process payments securely and do not store credit card information.
Description
Description
BLAZE LED Tape Light — 3000K & High CRI
The BLAZE DI-24V-BLBSC1-30-016 LED Tape Light offers a warm 3000K color temperature with a high CRI of 90+, ensuring vibrant and accurate color rendering. This 16 ft. tape light operates at 24V and is suitable for indoor/damp locations with an IP20 rating.
Key Features
- Voltage: 24V DC for consistent power delivery.
- Wattage: 1.46W per foot for energy efficiency.
- Lumens: 117 lumens per foot for bright illumination.
- LEDs: 18 LEDs per foot for uniform light distribution.
- Max Run: 55 ft. maximum run length to prevent voltage drop.
- Cuttable: Cuttable every 3.93 in. for precise installations.

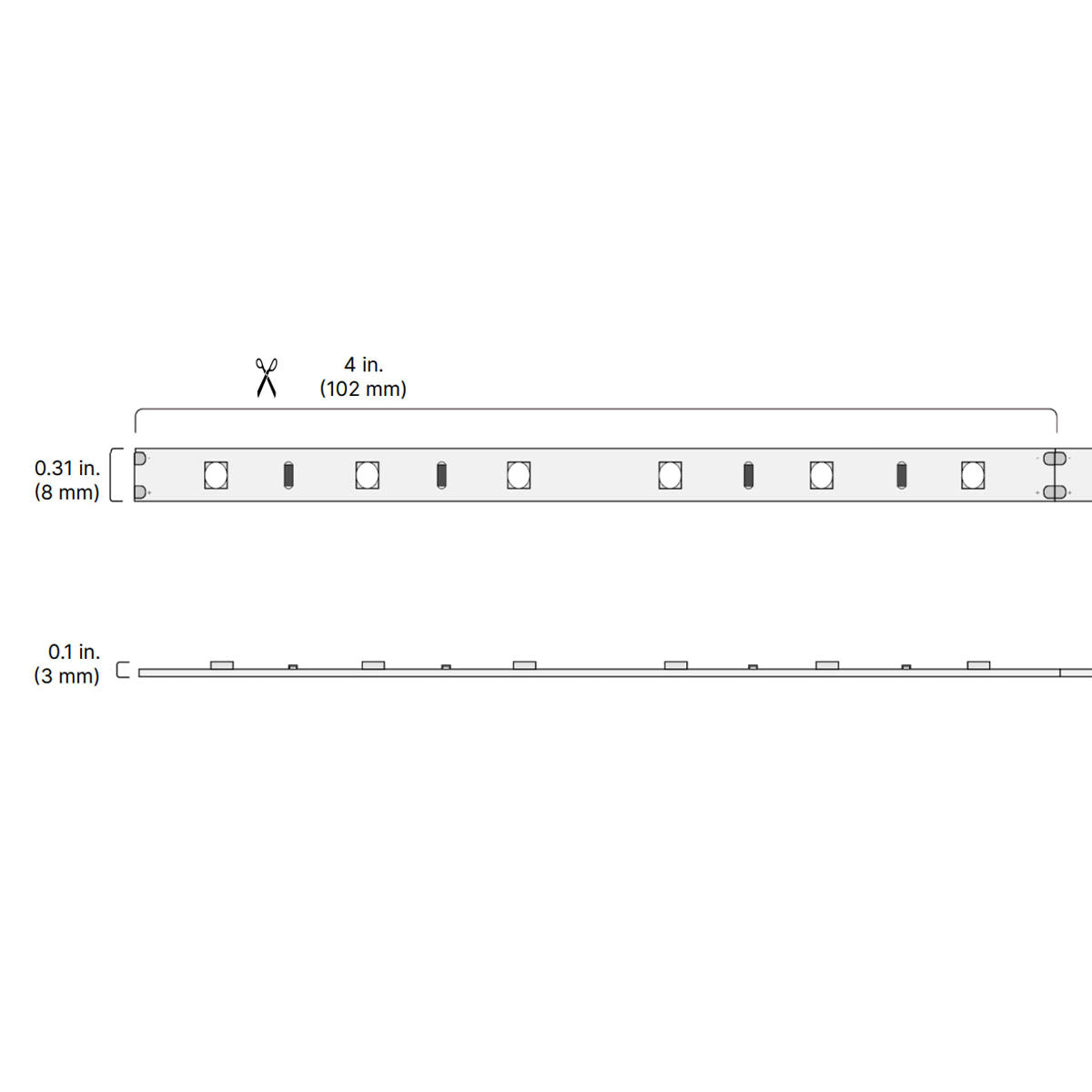

- PCB Width: 8mm for compatibility with standard channels.
- Beam Angle: 120 degrees for wide light coverage.
- IP Rating: IP20, suitable for indoor/damp environments.
- Certifications: UL Listed, Title 24 compliant.
Core Design & Construction

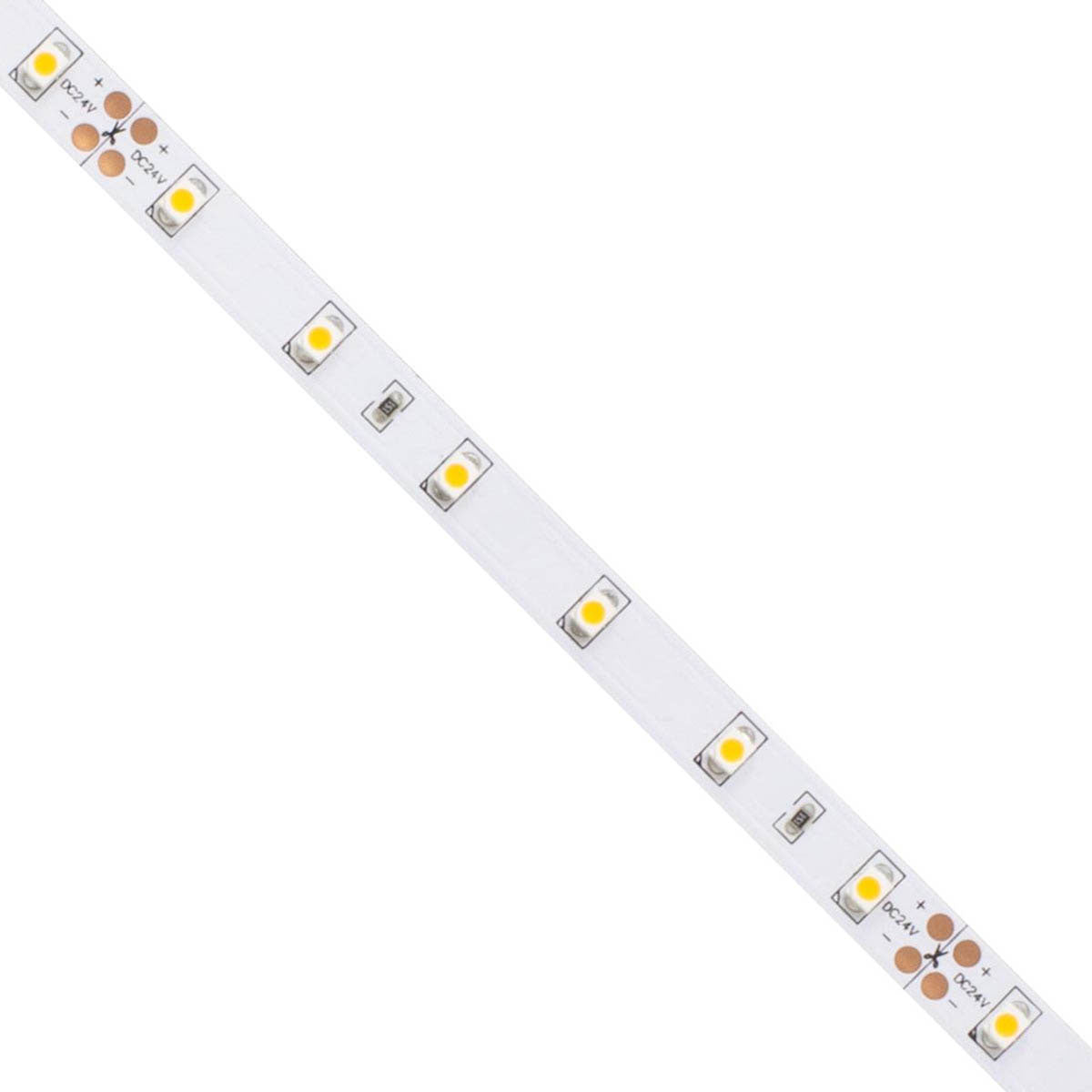

The tape light features a narrow 8mm PCB width, making it compatible with most aluminum channels. It includes a durable 3M adhesive backing for secure mounting and is designed for indoor/damp environments.
LED Illumination & Performance
Delivering 117 lumens per foot with a 90+ CRI, this tape light ensures high-quality illumination. The light engine uses standard SMD technology for reliable performance.
Power, Wiring & Installation
Requires a 24V driver for operation. The tape light is field cuttable every 3.93 in., allowing for custom lengths. It supports dimming for adjustable lighting levels.
Where This Tape Works Best

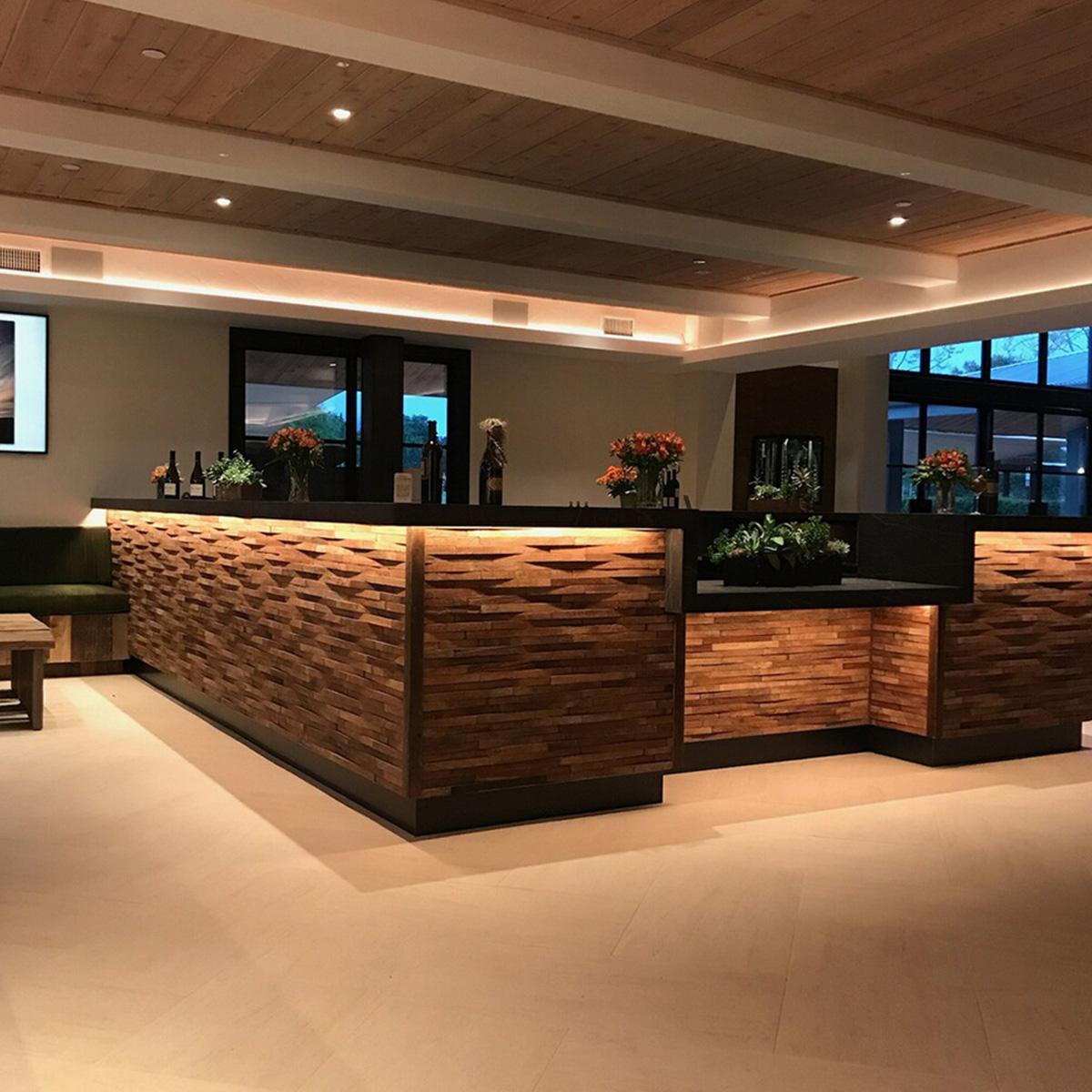

- Cove lighting

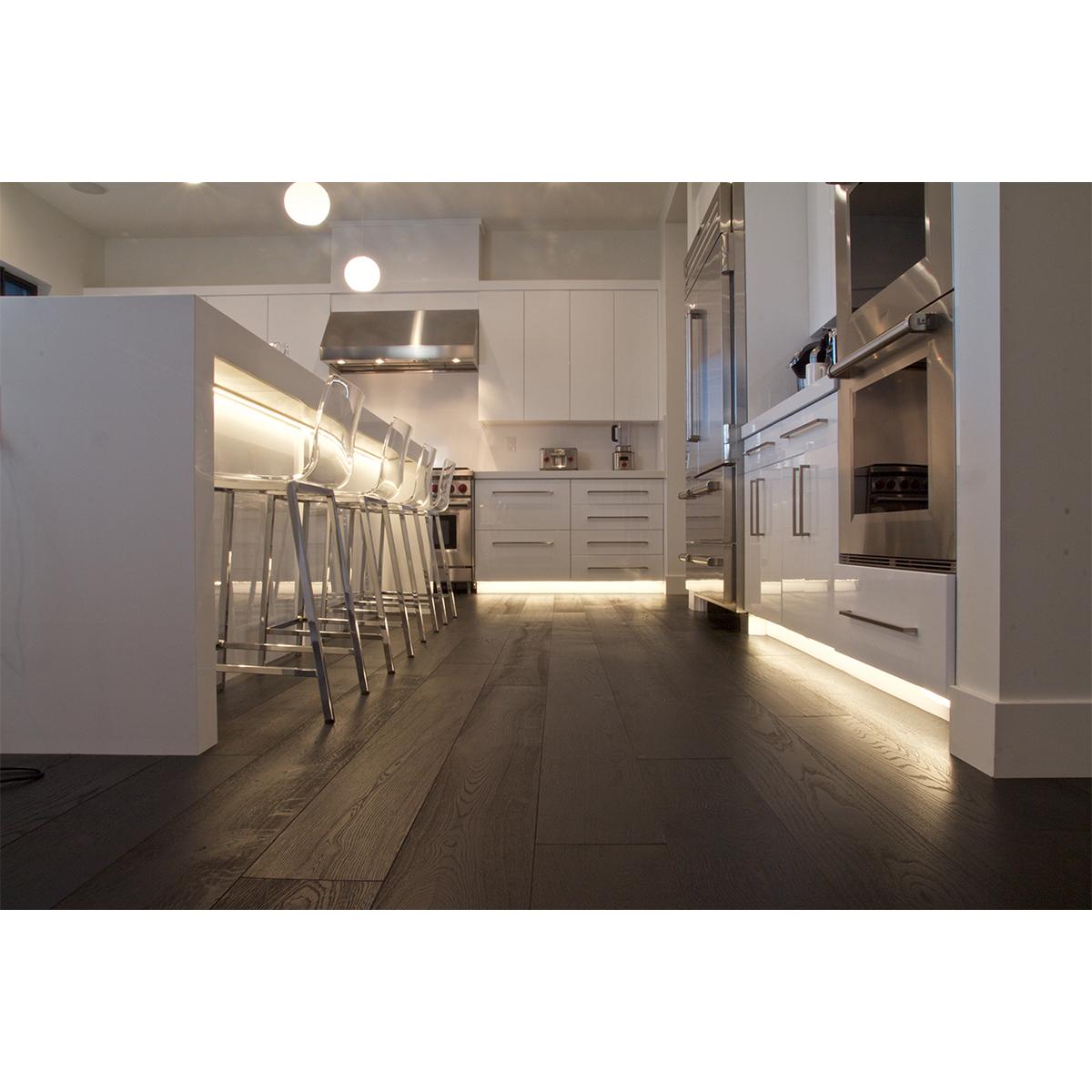

- Under cabinet lighting

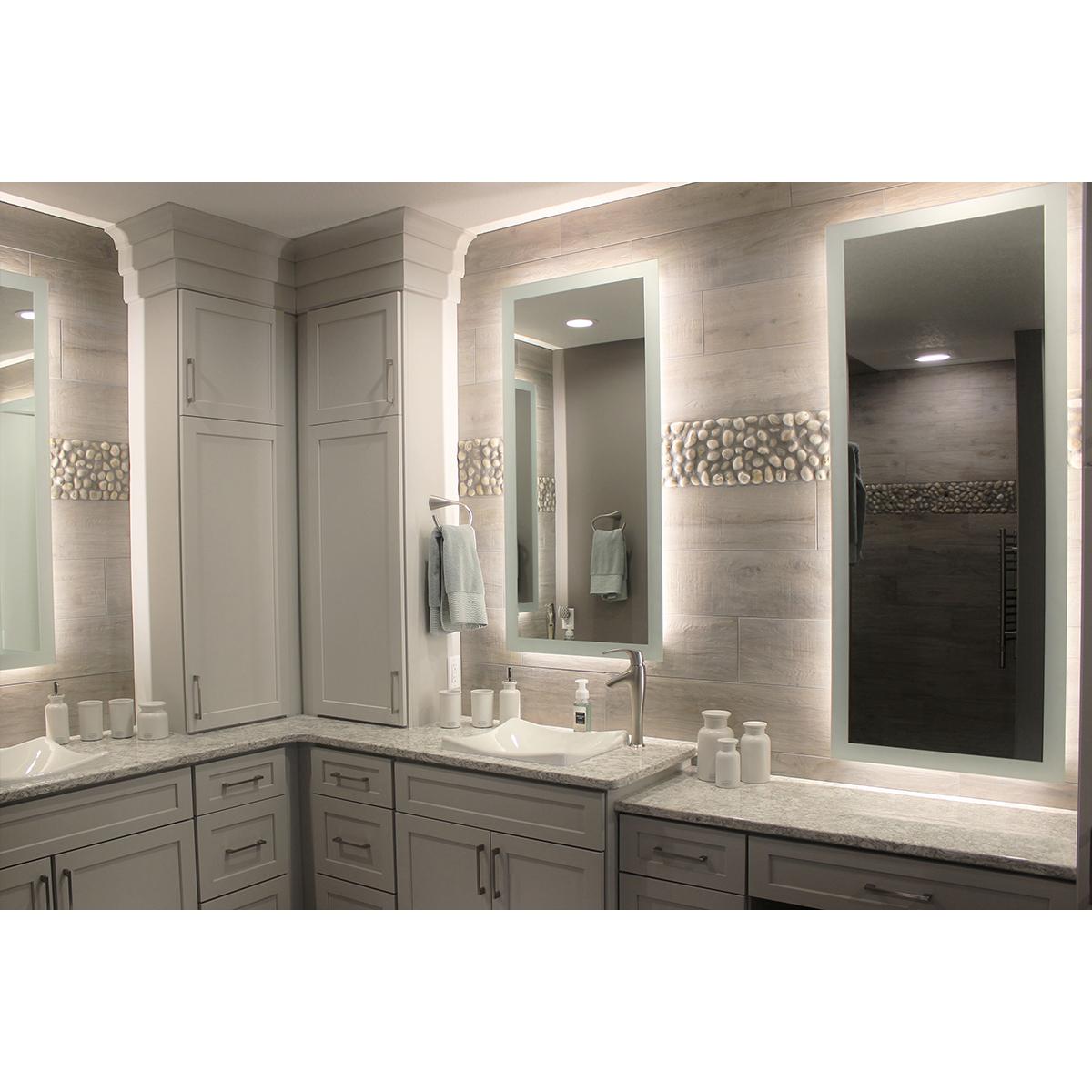

- Accent lighting
- Display case lighting
What's Included
- 16 ft. spool of LED tape light
- 36 in. bare lead wire
- 2x White Tape-to-Wire Terminal Blocks
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the BLAZE DI-24V-BLBSC1-30-016?
What is the maximum run length for the BLAZE DI-24V-BLBSC1-30-016?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for this LED tape light?
What voltage is required for this LED tape light?
Is the BLAZE tape light suitable for outdoor use?
Is the BLAZE tape light suitable for outdoor use?
What type of channels are compatible with this tape light?
What type of channels are compatible with this tape light?
