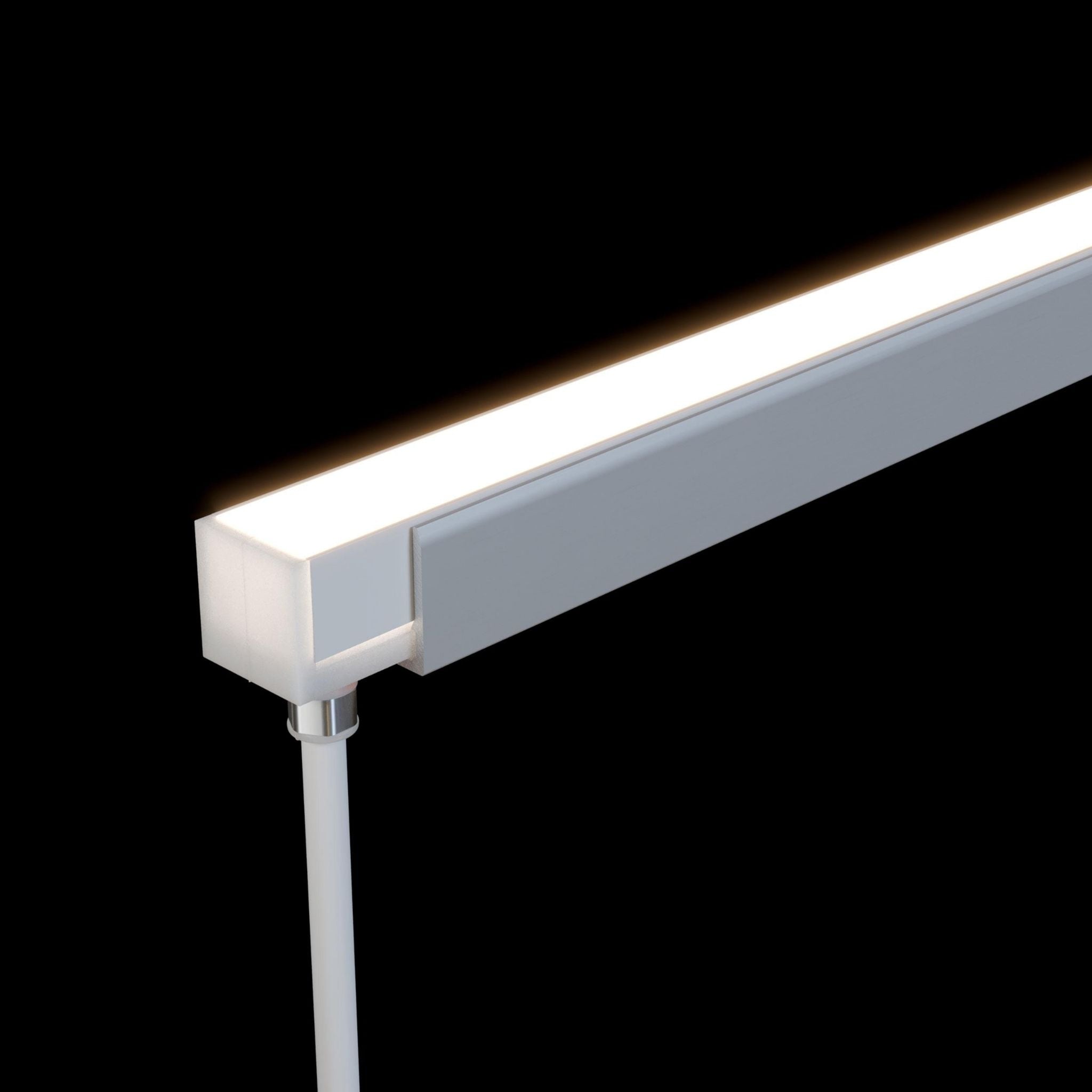

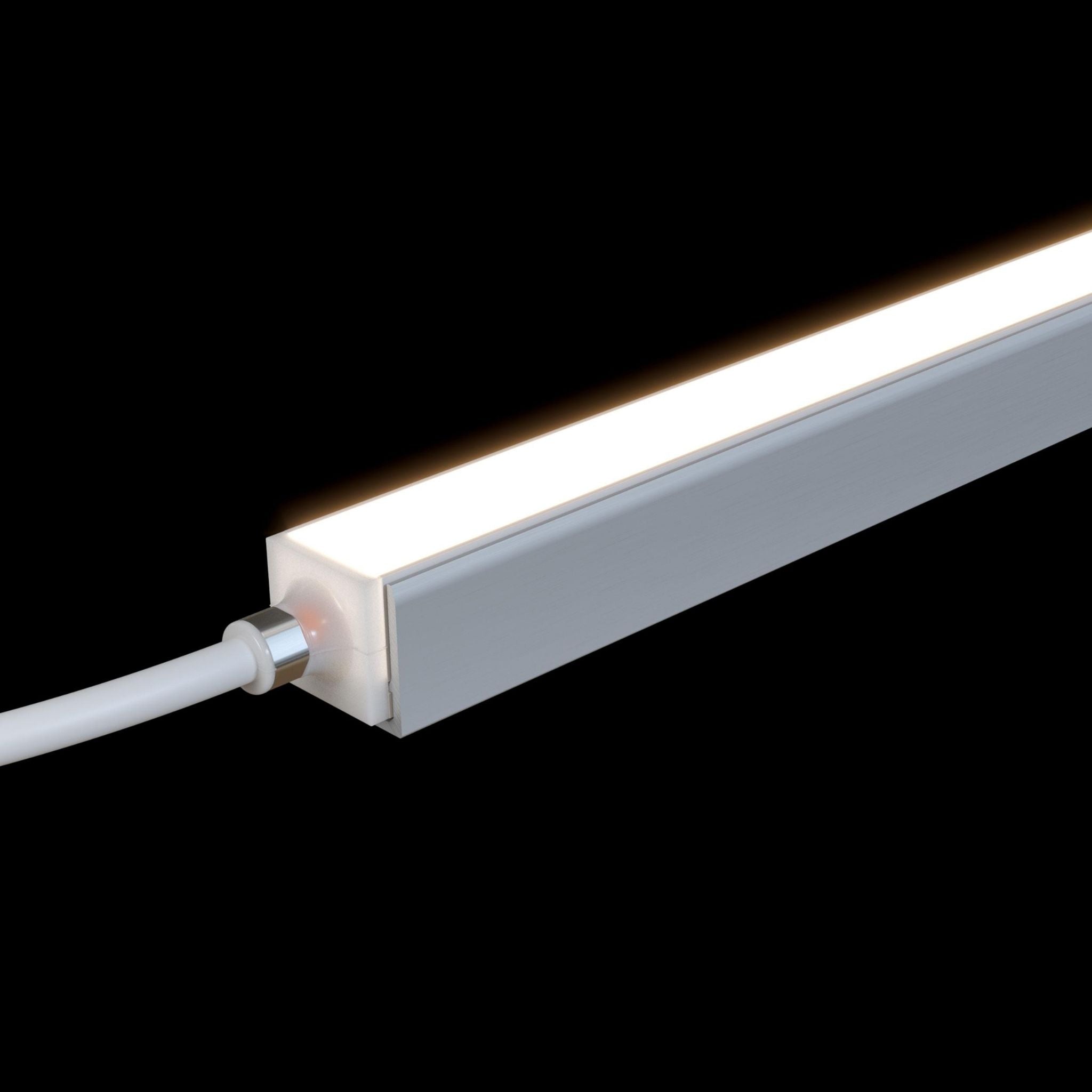

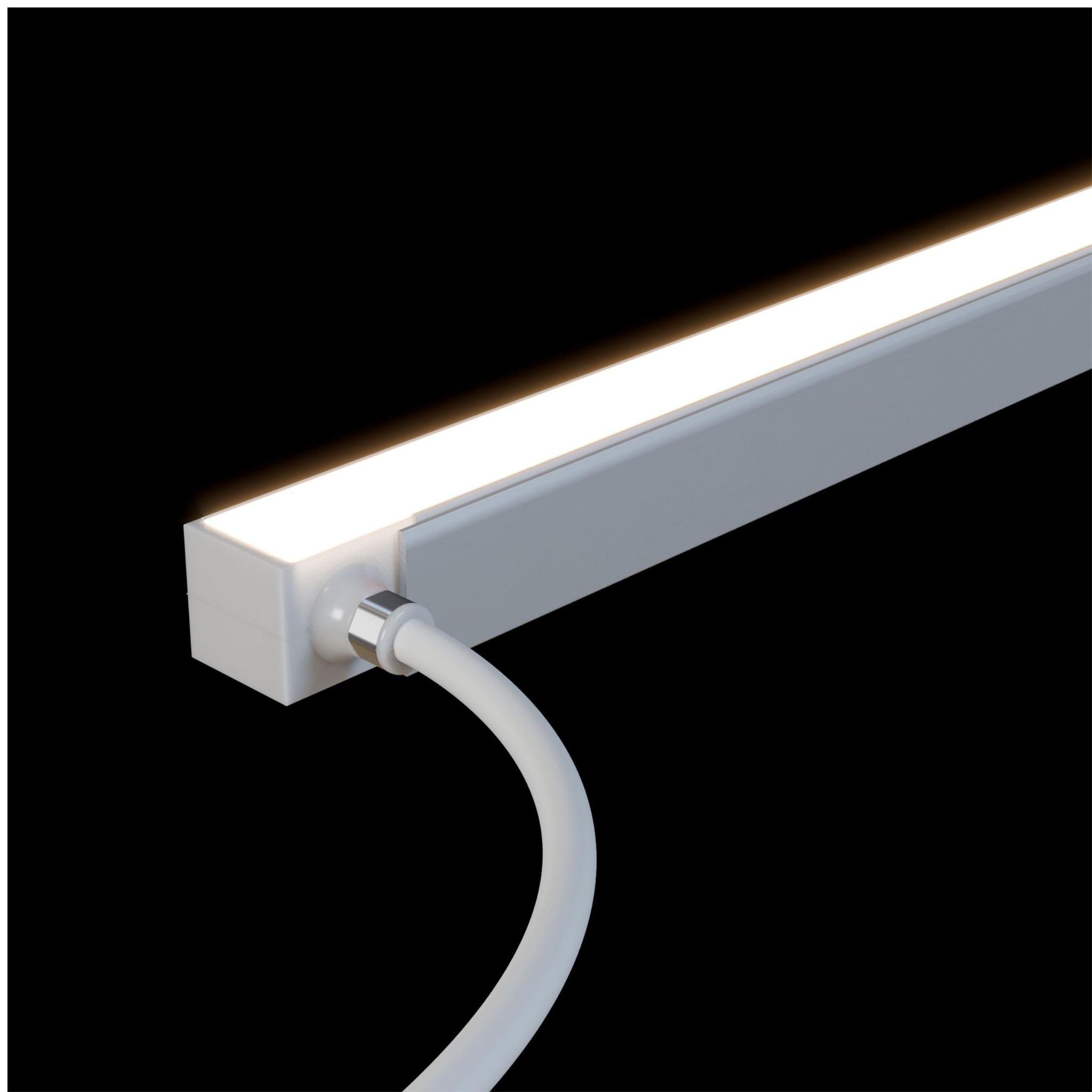

Diode LED DI-24V-3D-LIN-TW1840-016 Diode LED LINAIRE, 16 ft. Neon Tape Light, IP67, Tunable White, 203 Lumens/ft, 24V
In stock
About this item
About this item
- Voltage: Operates at 24V DC for efficient power consumption.
- Color Temperature: Tunable white from 1800K to 4000K for versatile lighting applications.
- Max Run: Maximum continuous run of 16.4 ft to prevent voltage drop.
- Cuttable Increments: Field cuttable every 1.96 in. for custom lengths.
- IP Rating: Rated IP65/IP67 for wet locations, suitable for outdoor use.
We process payments securely and do not store credit card information.
Description
Description

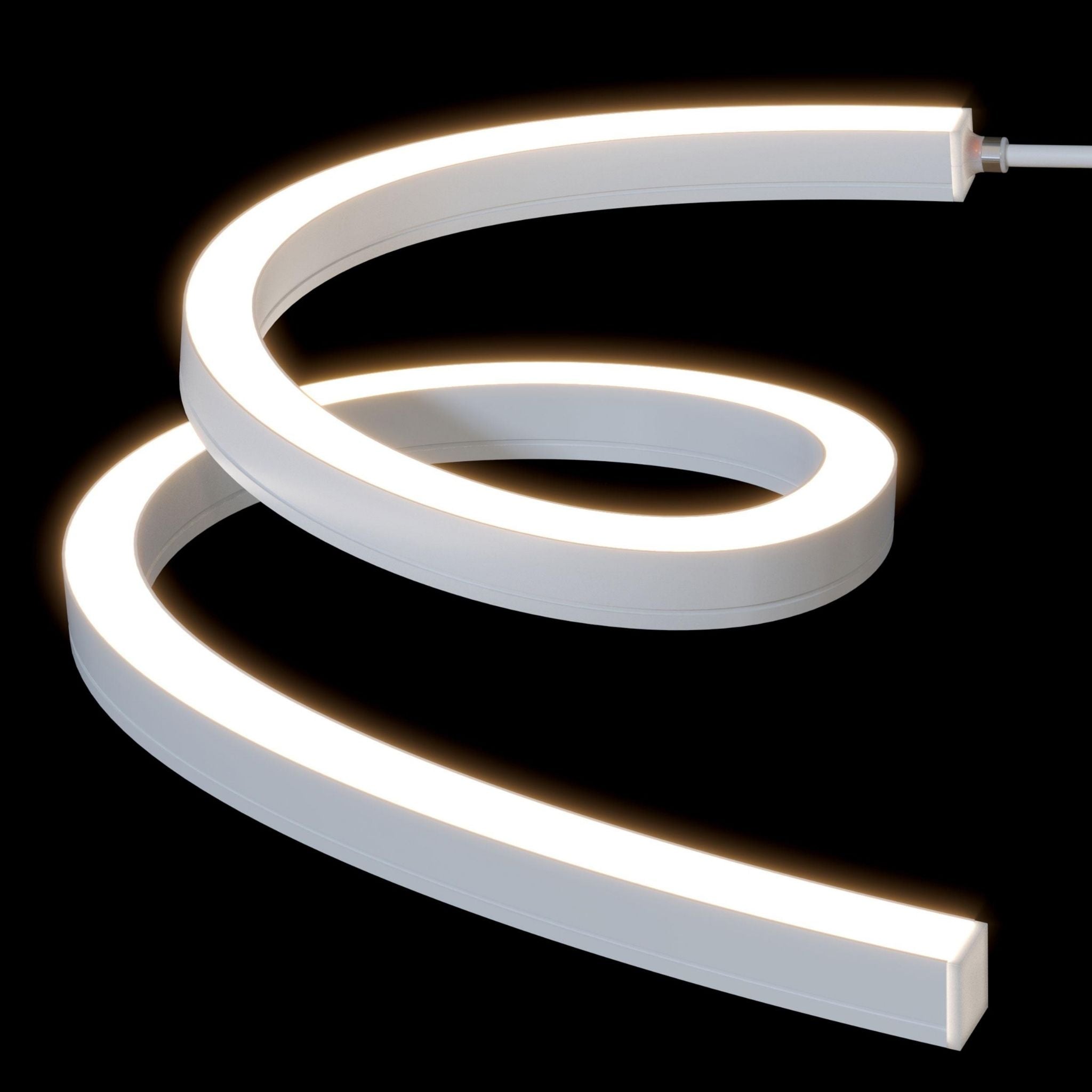

Diode LED LINAIRE Neon Tape Light — Tunable White & 3D Bend
The Diode LED DI-24V-3D-LIN-TW1840-016 is a 16 ft. Neon Tape Light designed for both indoor and outdoor applications. Operating at 24V DC, this tape light is IP65/IP67 rated for wet locations, ensuring durability in various environments.
Key Features
- Voltage: 24V DC for consistent power delivery.
- Wattage: 4.26W per foot for energy-efficient lighting.
- Lumens: 1800K at 74 Lm/ft, 4000K at 132 Lm/ft, all on at 203 Lm/ft.
- LEDs per Foot: 73 LEDs for uniform light distribution.
- Max Run: 16.4 ft. maximum run length to prevent voltage drop.
- Cuttable: Cuttable every 1.96 in. for custom installations.
- PCB Width: 0.79 in. width for channel compatibility.
- IP Rating: IP65/IP67 for wet location use.
- Certifications: UL Listed 2108 for safety and performance.
Core Design & Construction

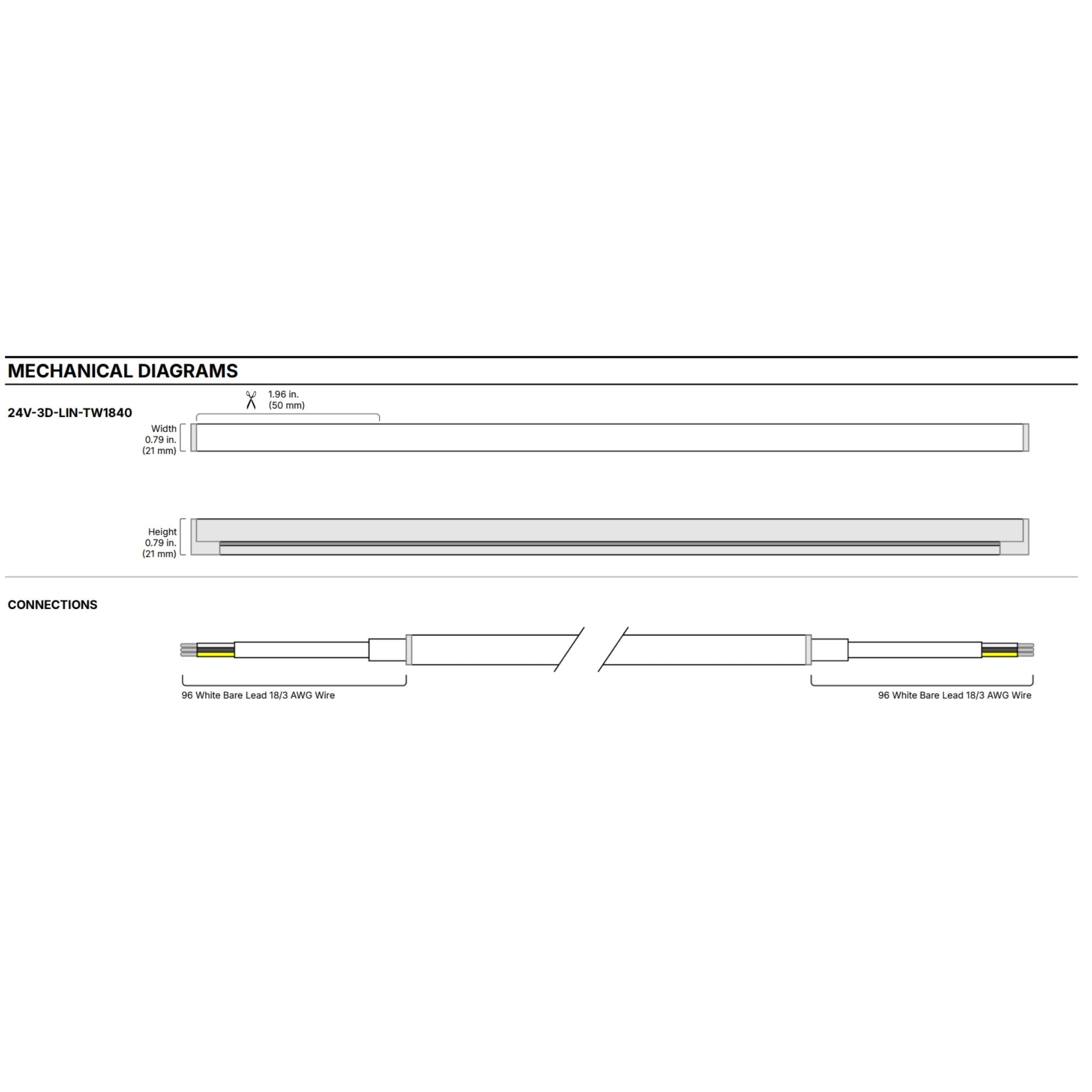

The tape light features a 0.79 in. x 0.79 in. profile, allowing for seamless integration into architectural designs. It includes a durable silicone coating for protection against environmental elements and uses 3M adhesive backing for secure installation.
LED Illumination & Performance
With a high CRI of 90+, this tape light provides excellent color rendering. The tunable white light engine allows for adjustable color temperatures between 1800K and 4000K, offering flexibility for various lighting needs.
Power, Wiring & Installation
Requiring a 24V DC power supply, this tape light is field-cuttable every 1.96 in. and supports a maximum continuous run of 16.4 ft. It is dimmable, providing control over light intensity.

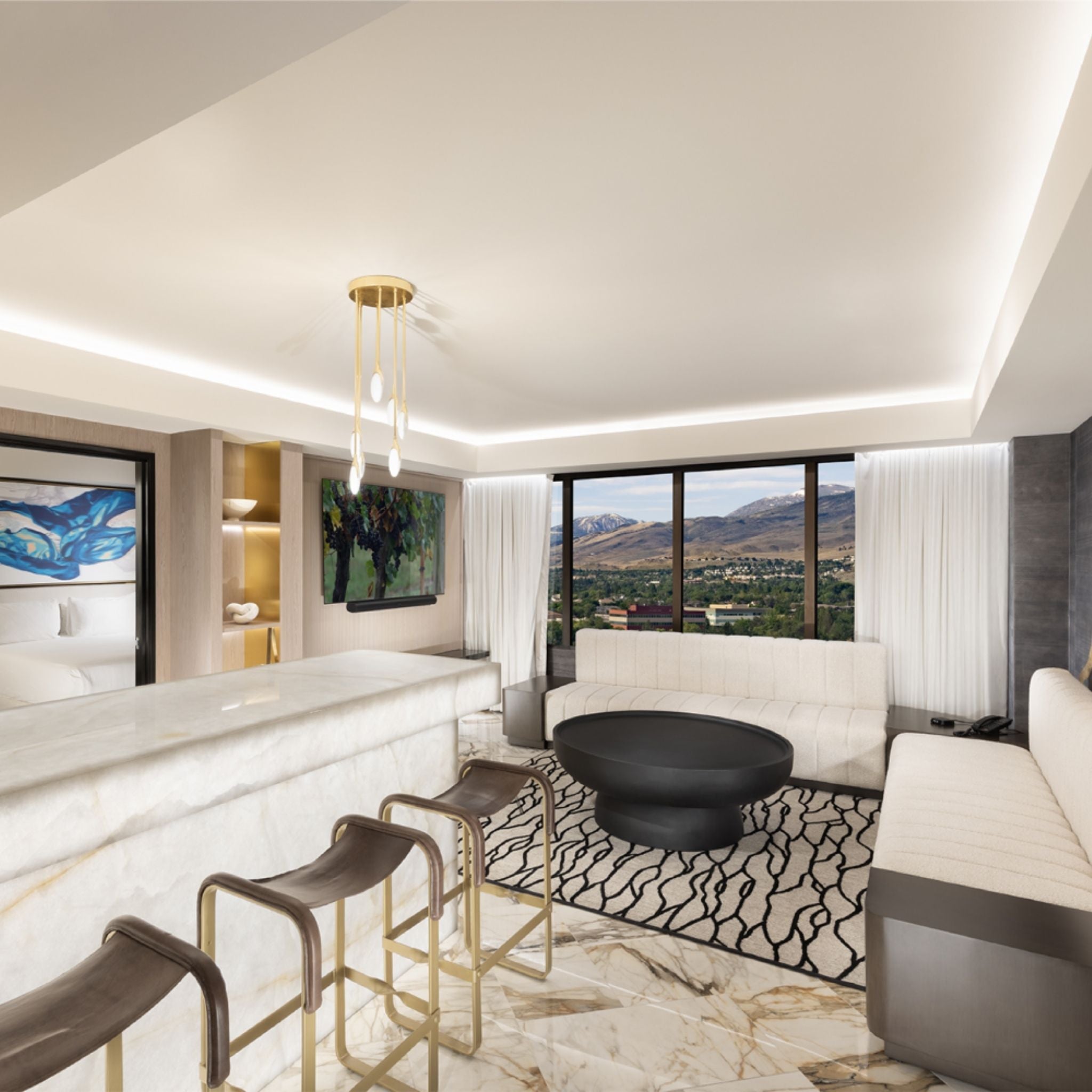

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Outdoor pathways
- Accent lighting
What's Included
- 16 ft. spool of neon tape light
- Pre-attached wire leads
