BLAZE, 16 ft., LED Tape Light, 5000K, 256 Lumens/ft, 12V
Available in stock (200)
About this item
About this item
- Voltage: Operates at 12V DC, ensuring compatibility with low-voltage systems.
- Color Temperature: Delivers bright 5000K light, ideal for task lighting.
- Lumens per Foot: Provides 256 lumens per foot for high brightness applications.
- Max Run: Supports a maximum run of 20 feet to prevent voltage drop.
- Cuttable Increments: Field cuttable every 0.98 inches for custom lengths.
We process payments securely and do not store credit card information.
Description
Description
BLAZE LED Tape Light — 5000K & 90+ CRI
The BLAZE DI-12V-BLBSC2-50-016 is a 16-foot LED tape light designed for high-performance lighting applications. Operating at 12V DC, this tape light is suitable for indoor and damp locations, providing a bright 5000K color temperature with a high 90+ CRI for accurate color rendering.
Key Features
- Voltage: 12V DC for low-voltage applications.
- Wattage: 2.93W/ft for efficient energy use.
- Lumens per Foot: 256 Lm/ft for bright illumination.
- LEDs per Foot: 36/ft for consistent light output.
- Maximum Run: 20 ft to prevent voltage drop.

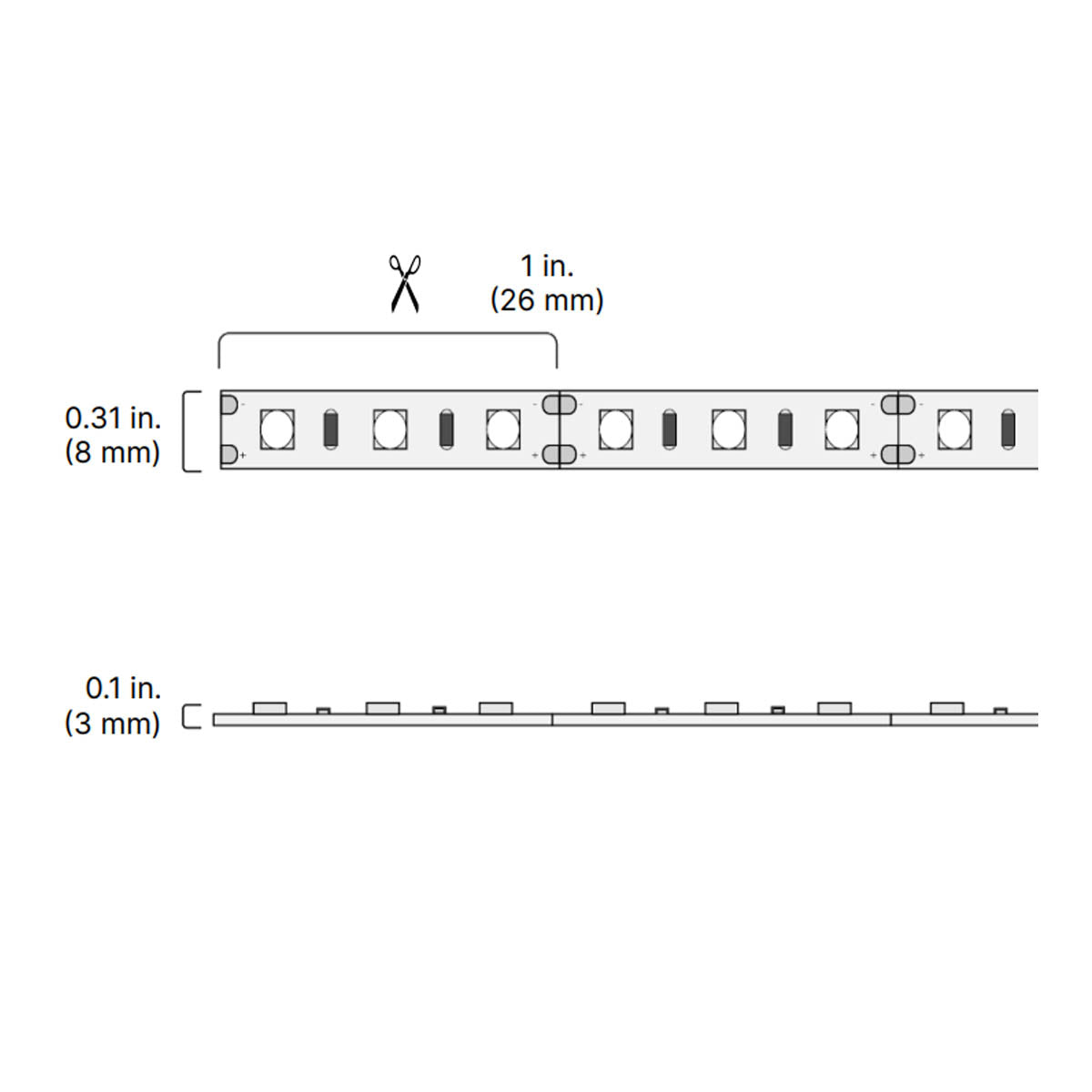

- Cuttable Increments: 0.98 in. for custom installations.
- PCB Width: 0.31 in. for channel compatibility.
- Beam Angle: 120° for wide light distribution.
- IP Rating: IP20 for indoor/damp locations.
- Certifications: UL Listed, RoHS Compliant.
Core Design & Construction
The tape light features a 0.31 in. wide PCB, compatible with various aluminum channels. It includes a durable silicone coating and 3M adhesive backing for secure installation in damp environments.
LED Illumination & Performance
With a light output of 256 lumens per foot and a high CRI of 90+, this tape light ensures vibrant and true-to-life colors, utilizing standard SMD technology.
Power, Wiring & Installation
Requires a 12V driver for operation. The tape light is field cuttable every 0.98 inches, with a maximum continuous run of 20 feet. It is dimmable for adjustable lighting levels.
Where This Tape Works Best

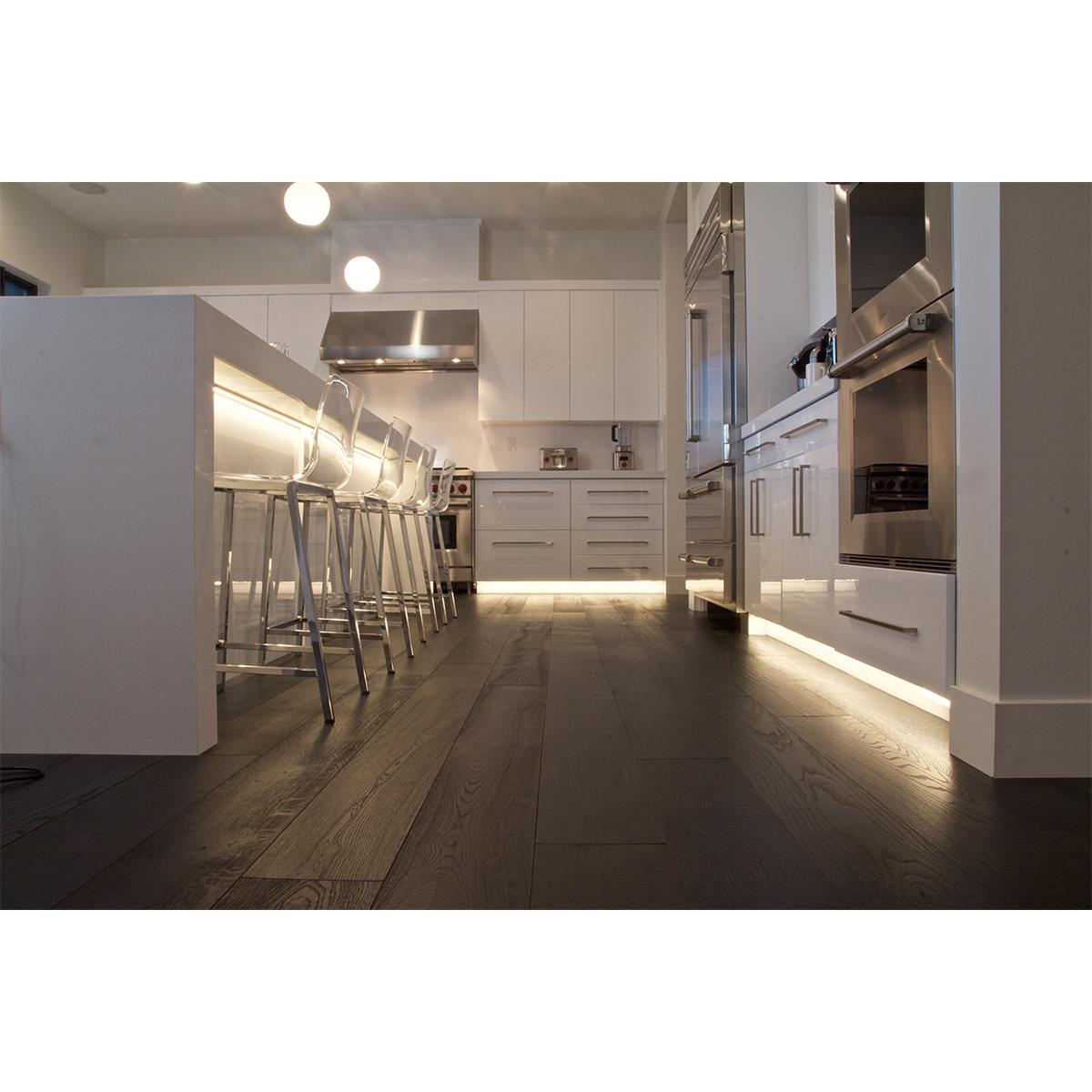

- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16 ft. spool of LED tape light
- 36 in. bare lead wire with strain relief
- 2x White Tape-to-Wire Terminal Blocks
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the BLAZE DI-12V-BLBSC2-50-016?
What is the maximum run length for the BLAZE DI-12V-BLBSC2-50-016?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for this tape light?
What voltage is required for this tape light?
Is the BLAZE tape light dimmable?
Is the BLAZE tape light dimmable?
What is the width of the PCB for channel compatibility?
What is the width of the PCB for channel compatibility?
