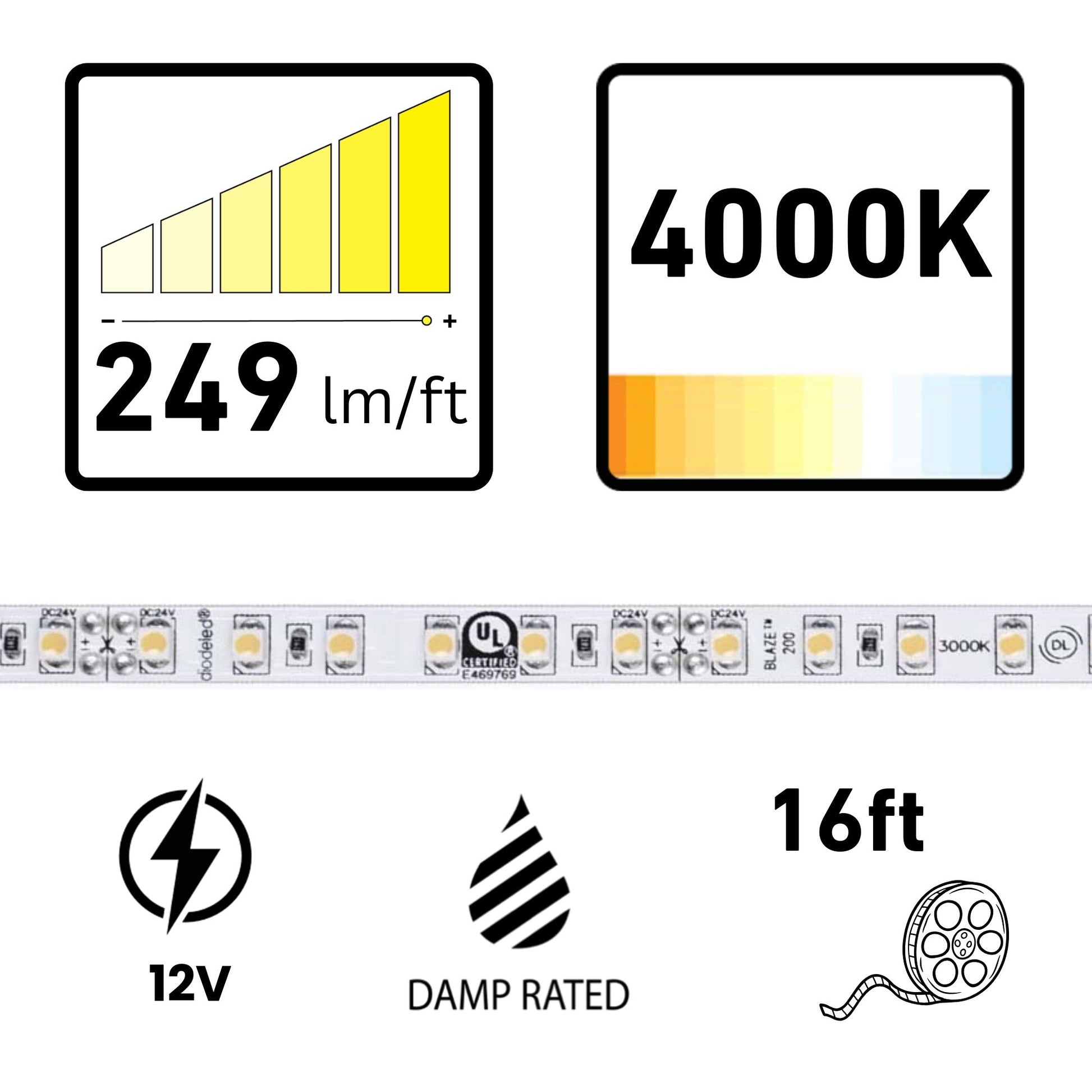

BLAZE, 16 ft., LED Tape Light, 4000K, 249 Lumens/ft, 12V
Available in stock (100)
About this item
About this item
- Color Temperature: 4000K for neutral white illumination.
- Voltage: Operates at 12V DC for efficient energy use.
- Max Run: Up to 20 ft. continuous run to prevent voltage drop.
- Cuttable: Field cuttable every 0.98 in. for custom lengths.
- Environment: Suitable for indoor/damp locations with IP20 rating.
We process payments securely and do not store credit card information.
Description
Description

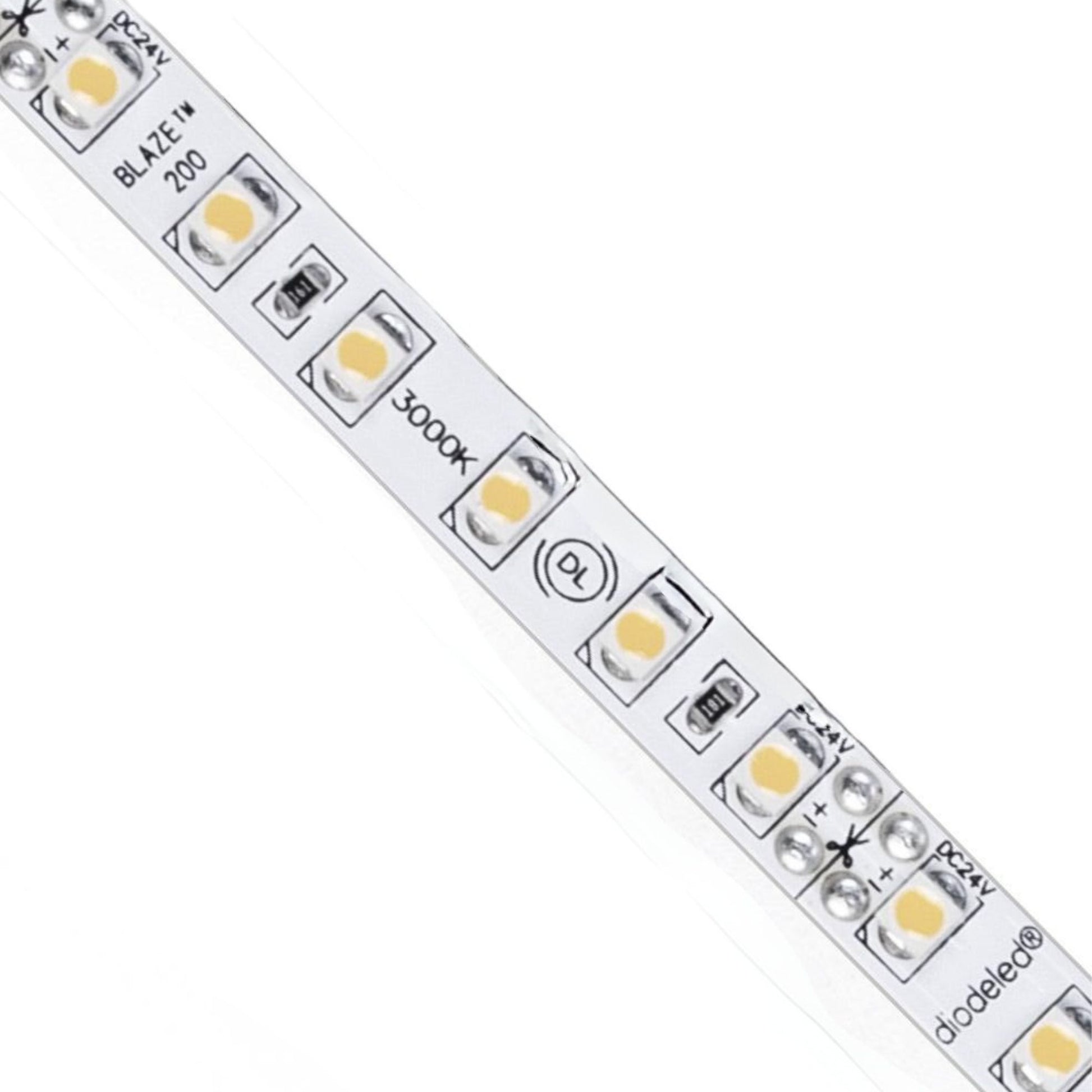

BLAZE LED Tape Light — 4000K & High CRI
The BLAZE DI-12V-BLBSC2-40-016 is a 16 ft. LED tape light designed for versatile lighting applications. With a color temperature of 4000K, it provides neutral white light, ideal for various settings. Operating at 12V DC, this tape light is suitable for indoor and damp environments, rated at IP20.
Key Features
- Voltage: 12V DC for low voltage applications.
- Wattage: 2.93W per foot for energy efficiency.
- Lumens: 249 lumens per foot for bright illumination.
- LEDs: 36 LEDs per foot for consistent light output.
- Max Run: 20 ft. to prevent voltage drop.
- Cuttable: Every 0.98 in. for custom installations.
- PCB Width: 8mm for compatibility with standard channels.
- Beam Angle: 120° for wide light distribution.
- IP Rating: IP20 for indoor/damp locations.
- Certifications: UL Listed, RoHS Compliant.
Core Design & Construction
The BLAZE tape light features an 8mm PCB width, ensuring compatibility with most aluminum channels. It includes a 3M adhesive backing for secure mounting and is rated for indoor/damp environments.
LED Illumination & Performance
With a light output of 249 lumens per foot and a CRI of 90+, this tape light delivers high-quality illumination. The light engine uses standard SMD technology for reliable performance.
Power, Wiring & Installation
This tape light requires a 12V DC power supply. It is field cuttable every 0.98 in., allowing for tailored installations. The maximum continuous run is 20 ft. to avoid voltage drop, and it is dimmable for adjustable lighting.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16 ft. LED tape light spool
- 36 in. bare lead wire with strain relief
- 2x White Tape-to-Wire Terminal Blocks
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the BLAZE DI-12V-BLBSC2-40-016?
What is the maximum run length for the BLAZE DI-12V-BLBSC2-40-016?
How often can the BLAZE tape light be cut?
How often can the BLAZE tape light be cut?
What voltage is required for the BLAZE DI-12V-BLBSC2-40-016?
What voltage is required for the BLAZE DI-12V-BLBSC2-40-016?
Is the BLAZE tape light suitable for outdoor use?
Is the BLAZE tape light suitable for outdoor use?
What type of channels are compatible with the BLAZE tape light?
What type of channels are compatible with the BLAZE tape light?
