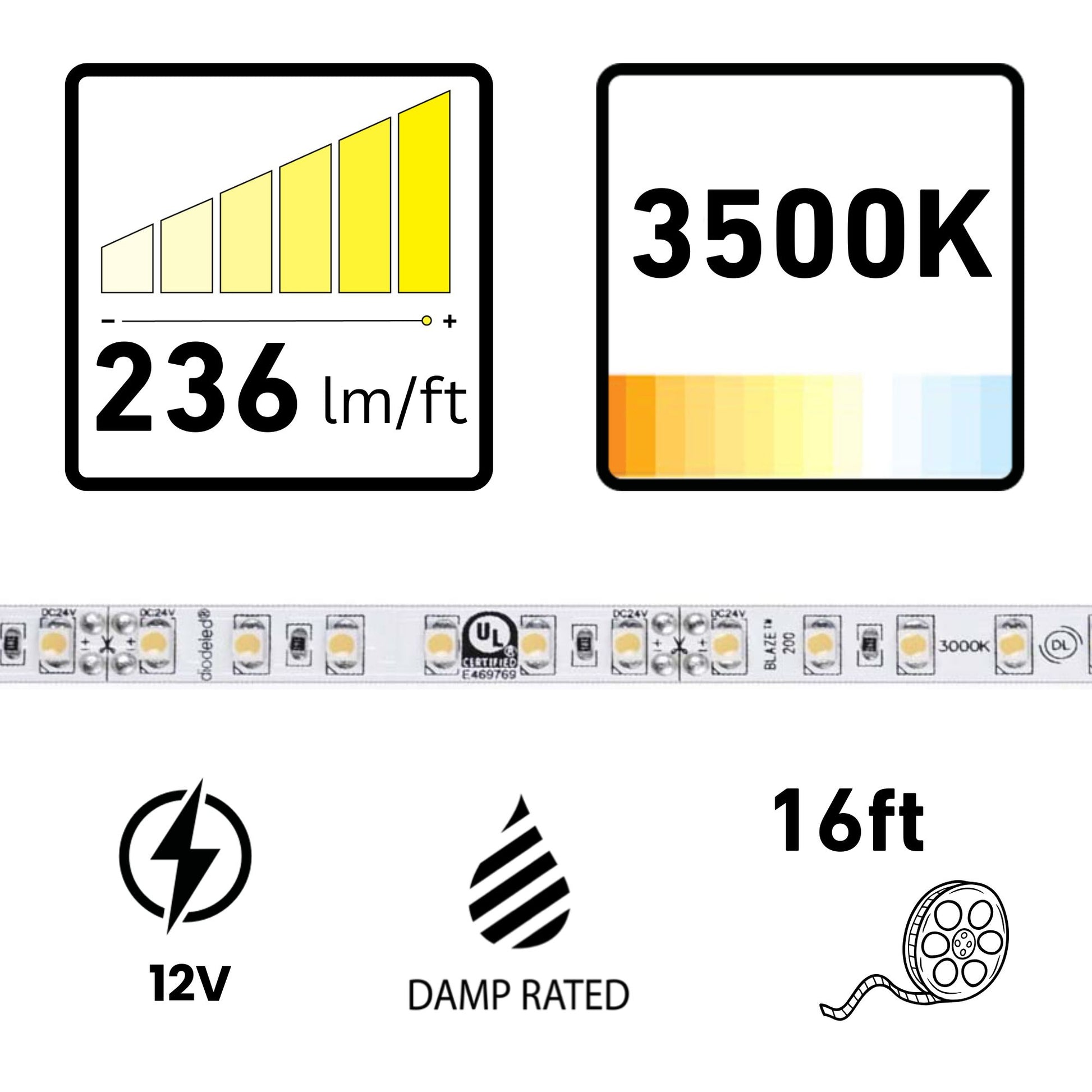

BLAZE, 16 ft., LED Tape Light, 3500K, 236 Lm/ft, 12V
Available in stock (199)
About this item
About this item
- Color Temperature: Provides a neutral white light at 3500K, ideal for task lighting.
- Voltage & Max Run: Operates at 12V DC with a maximum run of 20 ft. to prevent voltage drop.
- Cuttable Increments: Field cuttable every 0.98 in. for custom lengths and installations.
- PCB Width: 0.31 in. width ensures compatibility with standard channels and profiles.
- IP Rating: Rated for indoor/damp locations with IP20 protection.
We process payments securely and do not store credit card information.
Description
Description

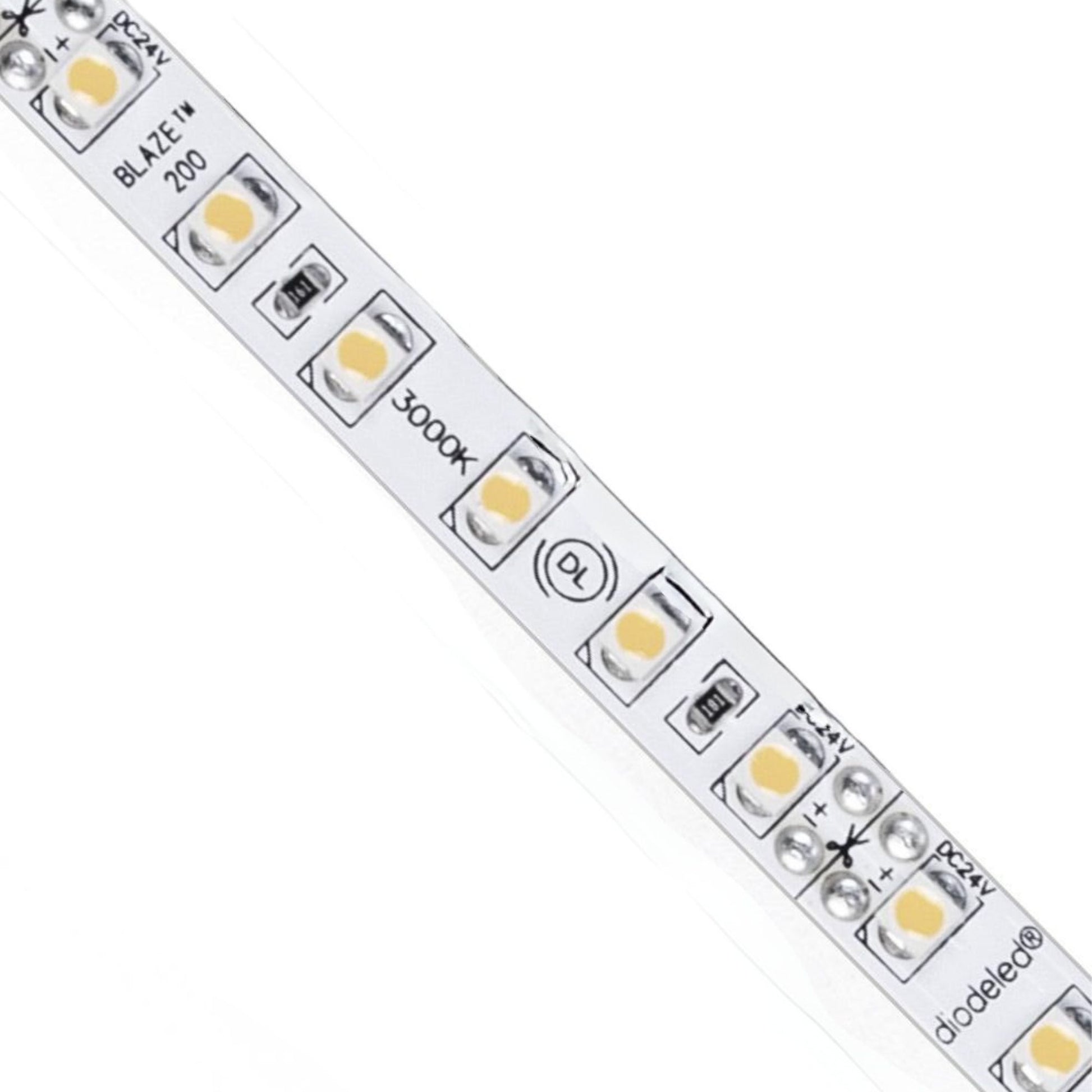

BLAZE LED Tape Light — 3500K & High CRI
The BLAZE DI-12V-BLBSC2-35-016 is a 16 ft. LED tape light offering a neutral white light at 3500K. This tape light operates at 12V DC and is suitable for indoor/damp locations with an IP20 rating.
Key Features
- Voltage: 12V DC operation for safe and efficient lighting.
- Wattage: Consumes 2.93W per foot for energy-efficient performance.
- Lumens: Delivers 236 lumens per foot for bright illumination.
- LED Density: 36 LEDs per foot for uniform light distribution.
- Max Run: Maximum continuous run of 20 ft. to prevent voltage drop.
- Cuttable: Field cuttable every 0.98 in. for custom installations.
- PCB Width: 0.31 in. width for compatibility with standard channels.
- Beam Angle: 120-degree beam angle for wide light distribution.
- Certifications: UL Listed 2108, RoHS compliant, and Title 24 compliant.
Core Design & Construction
The tape light features a 0.31 in. wide PCB, ensuring compatibility with most aluminum channels. It includes a 3M adhesive backing for secure mounting and is rated for indoor/damp environments.
LED Illumination & Performance
With a high CRI of 90+, this tape light provides excellent color rendering, making it ideal for applications where color accuracy is crucial. The light engine is designed for consistent and reliable performance.
Power, Wiring & Installation
Requires a 12V driver for operation. The tape light is field cuttable every 0.98 in. and supports dimming for customizable lighting solutions. Maximum continuous run is 20 ft. to avoid voltage drop.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16 ft. spool of LED tape light
- 36 in. bare lead wire with strain relief
- 2x White Tape-to-Wire Terminal Blocks
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the BLAZE DI-12V-BLBSC2-35-016?
What is the maximum run length for the BLAZE DI-12V-BLBSC2-35-016?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for this tape light?
What voltage is required for this tape light?
Is the BLAZE tape light compatible with standard channels?
Is the BLAZE tape light compatible with standard channels?
What is the CRI of the BLAZE DI-12V-BLBSC2-35-016?
What is the CRI of the BLAZE DI-12V-BLBSC2-35-016?
