BLAZE, 16 ft., LED Tape Light, 3000K, 221 Lm/ft, 12V
Available in stock (200)
About this item
About this item
- Voltage: Operates at 12V DC, ideal for low-voltage applications.
- Color Temperature: Provides a warm 3000K light, suitable for ambient lighting.
- Lumens per Foot: Delivers 221 lumens per foot for bright illumination.
- Max Run: Maximum continuous run of 20 feet to prevent voltage drop.
- Cut Increments: Field cuttable every 0.98 inches for custom lengths.
We process payments securely and do not store credit card information.
Description
Description
BLAZE LED Tape Light — 3000K & High CRI
The BLAZE DI-12V-BLBSC2-30-016 is a 16-foot LED tape light designed for versatile lighting applications. It operates at 12V DC and is suitable for indoor/damp locations. This tape light features a 3000K color temperature, providing a warm and inviting ambiance.
Key Features
- Voltage: 12V DC for low-voltage applications.
- Wattage: 2.93W per foot for efficient energy use.
- Lumens: 221 lumens per foot for bright illumination.

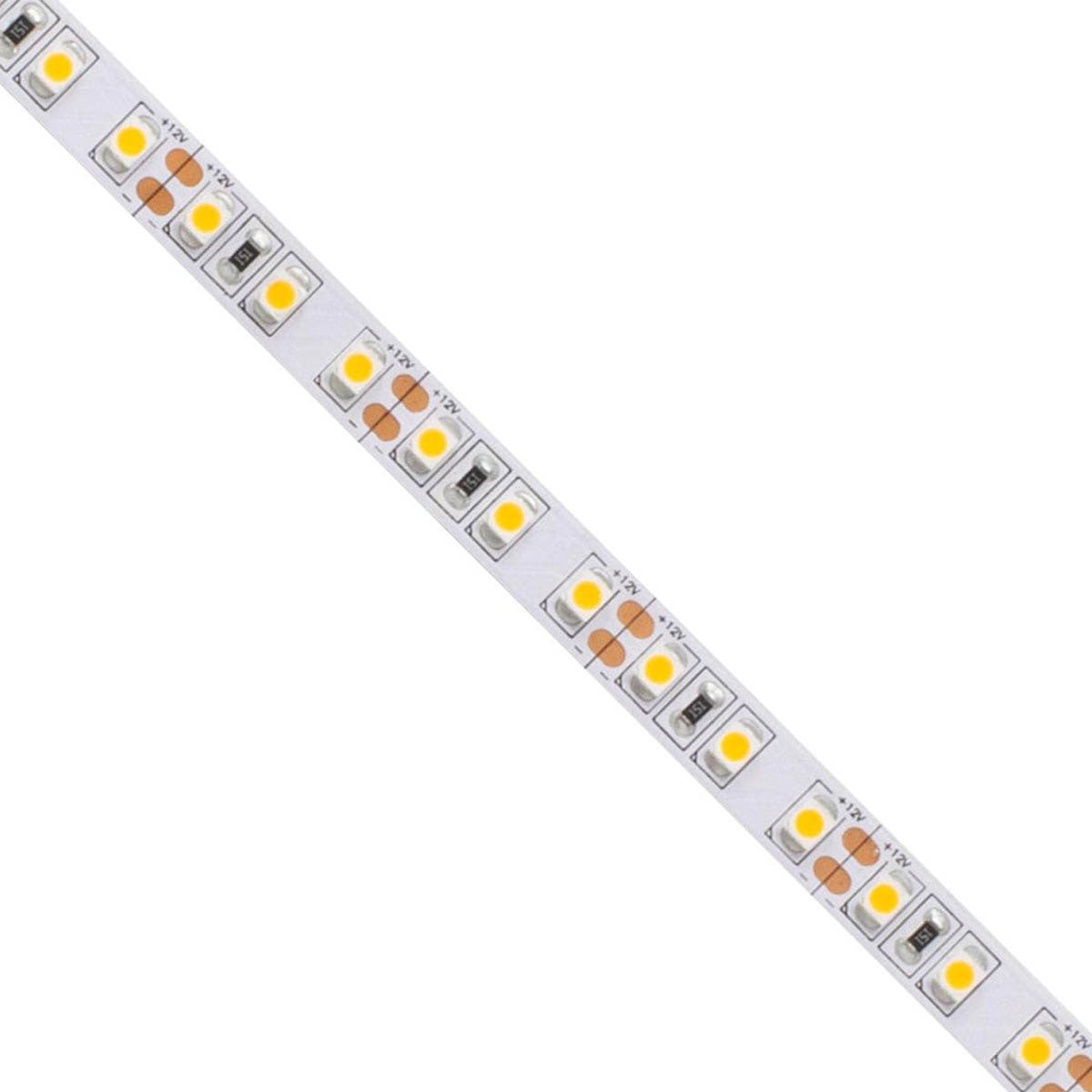

- LEDs per Foot: 36 LEDs per foot for consistent light output.
- Max Run: 20 feet to prevent voltage drop.

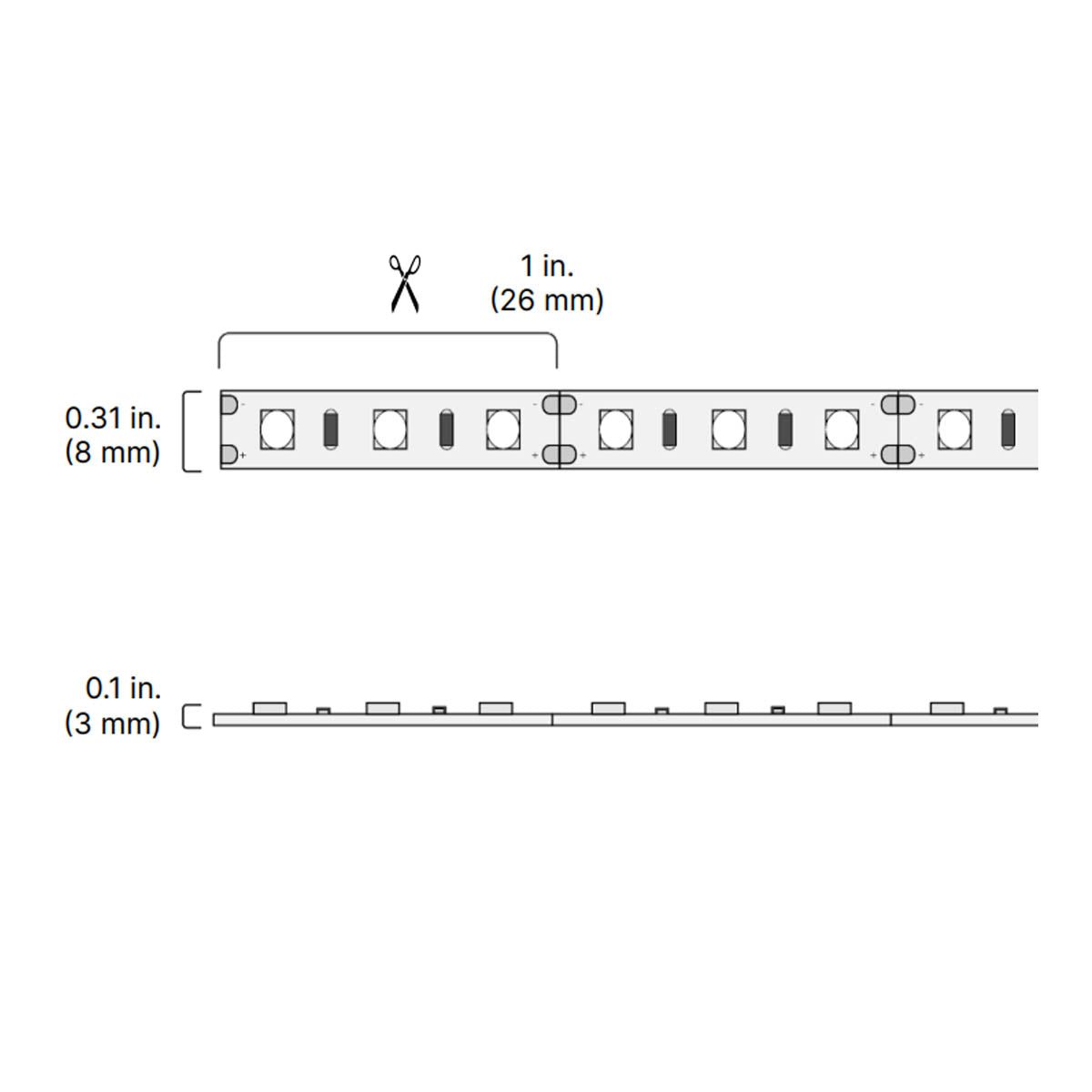

- Cut Increments: Cuttable every 0.98 inches for custom lengths.
- PCB Width: 0.31 inches, compatible with most channels.
- Beam Angle: 120 degrees for wide light distribution.
- IP Rating: IP20, suitable for indoor/damp locations.
- Certifications: UL Listed, RoHS Compliant, Title 24.
Core Design & Construction
The tape light features a narrow 0.31-inch PCB width, making it compatible with various aluminum channels. It includes a durable adhesive backing for easy installation and is rated for indoor/damp environments.
LED Illumination & Performance
With 221 lumens per foot and a high CRI of 90+, this tape light ensures vibrant and accurate color rendering, making it ideal for both residential and commercial applications.
Power, Wiring & Installation
This tape light requires a 12V DC driver (sold separately). It is field cuttable every 0.98 inches, allowing for precise customization. The maximum continuous run is 20 feet to prevent voltage drop, and it is fully dimmable for adjustable lighting.
Where This Tape Works Best

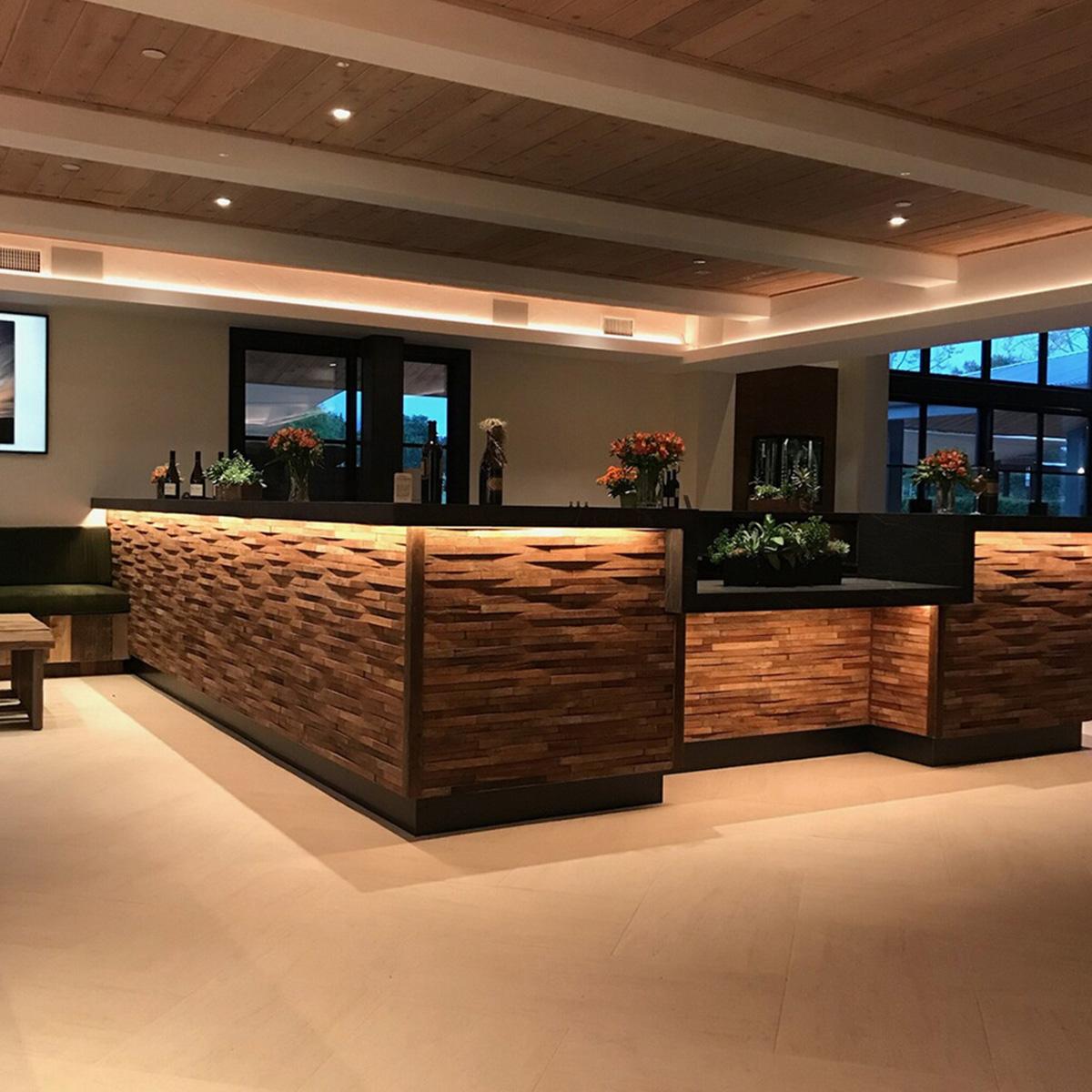

- Cove lighting

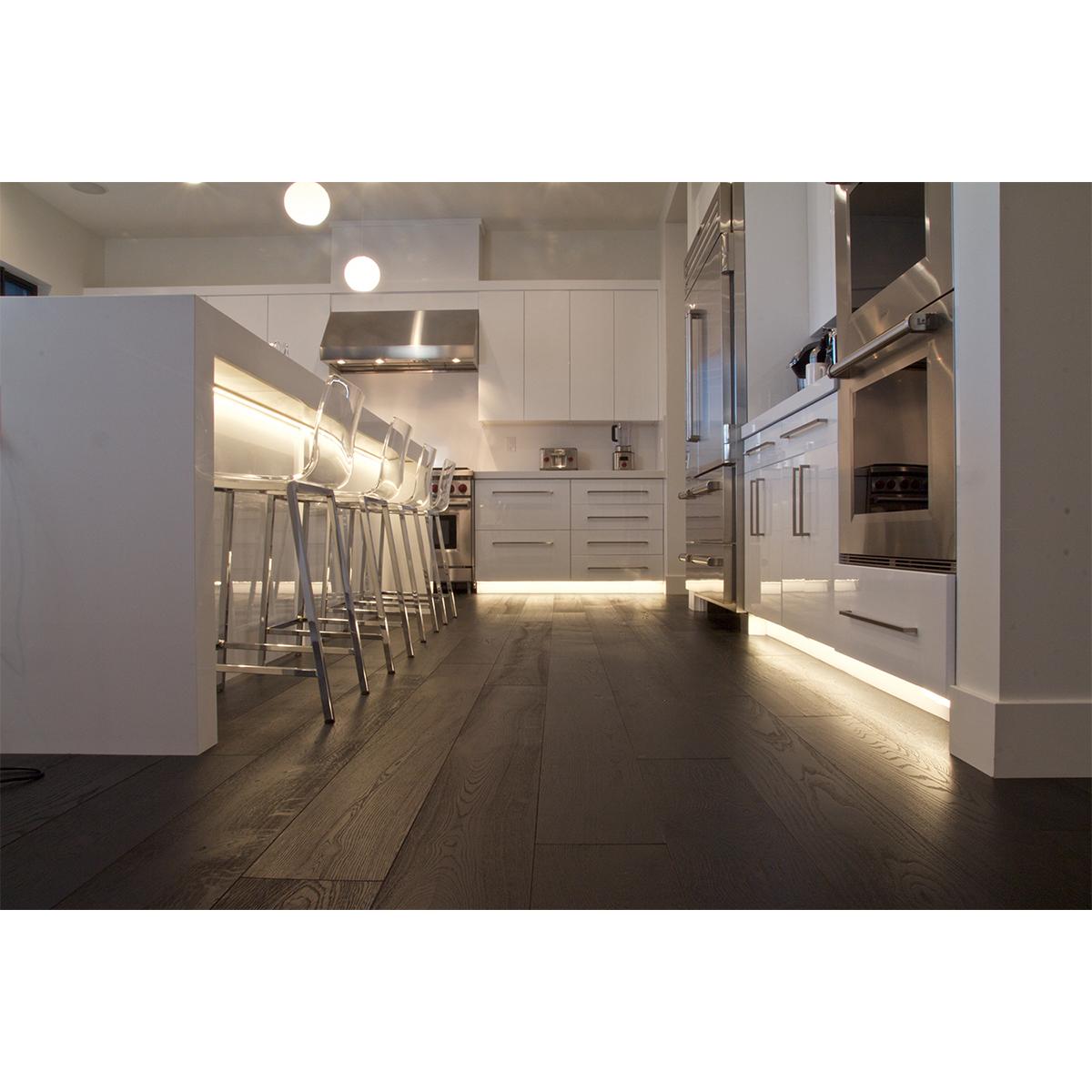

- Under cabinet lighting

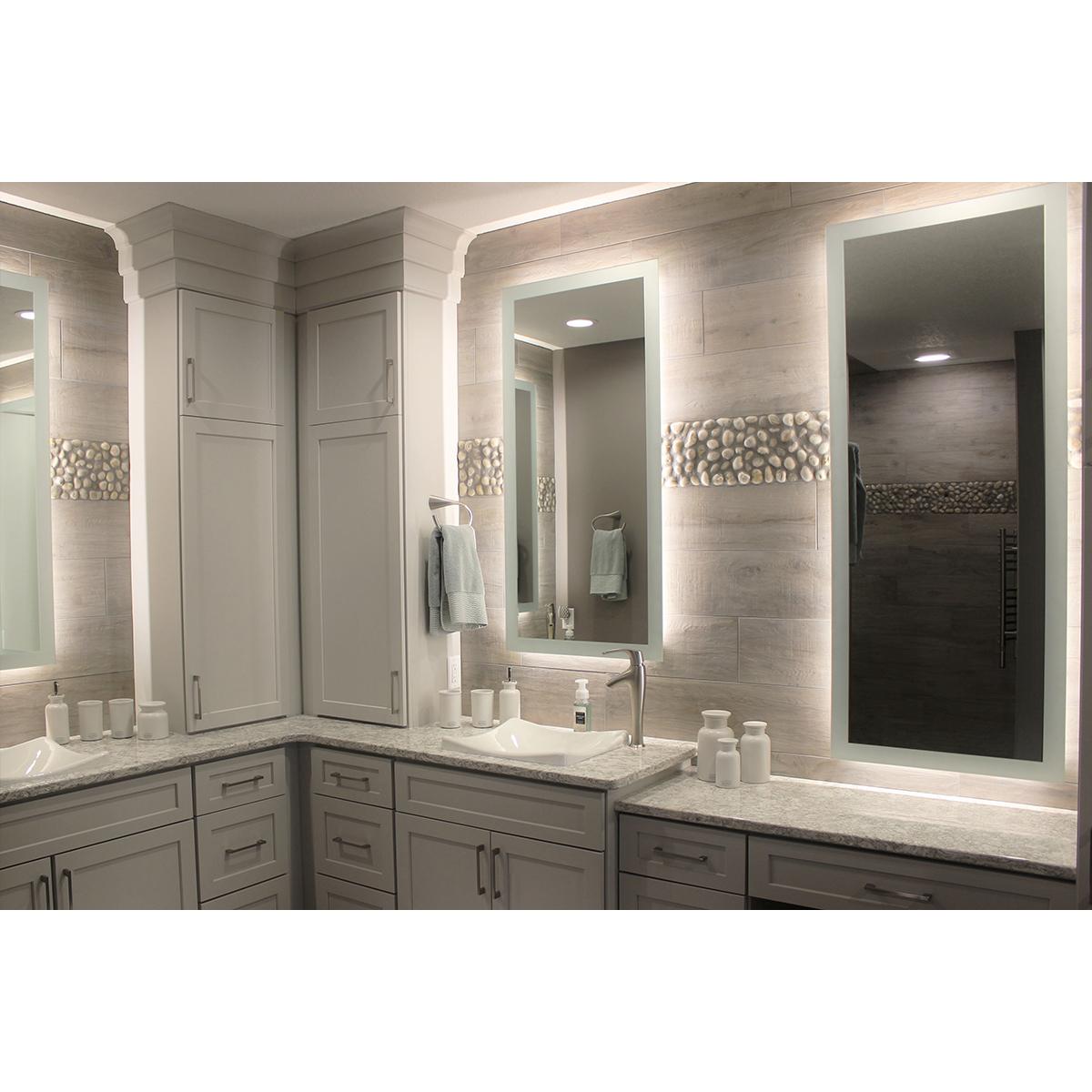

- Accent lighting
- Display case lighting
What's Included
- 16-foot spool of LED tape light
- 36-inch bare lead wire with strain relief
- 2x White Tape-to-Wire Terminal Blocks
