Overview

Overview

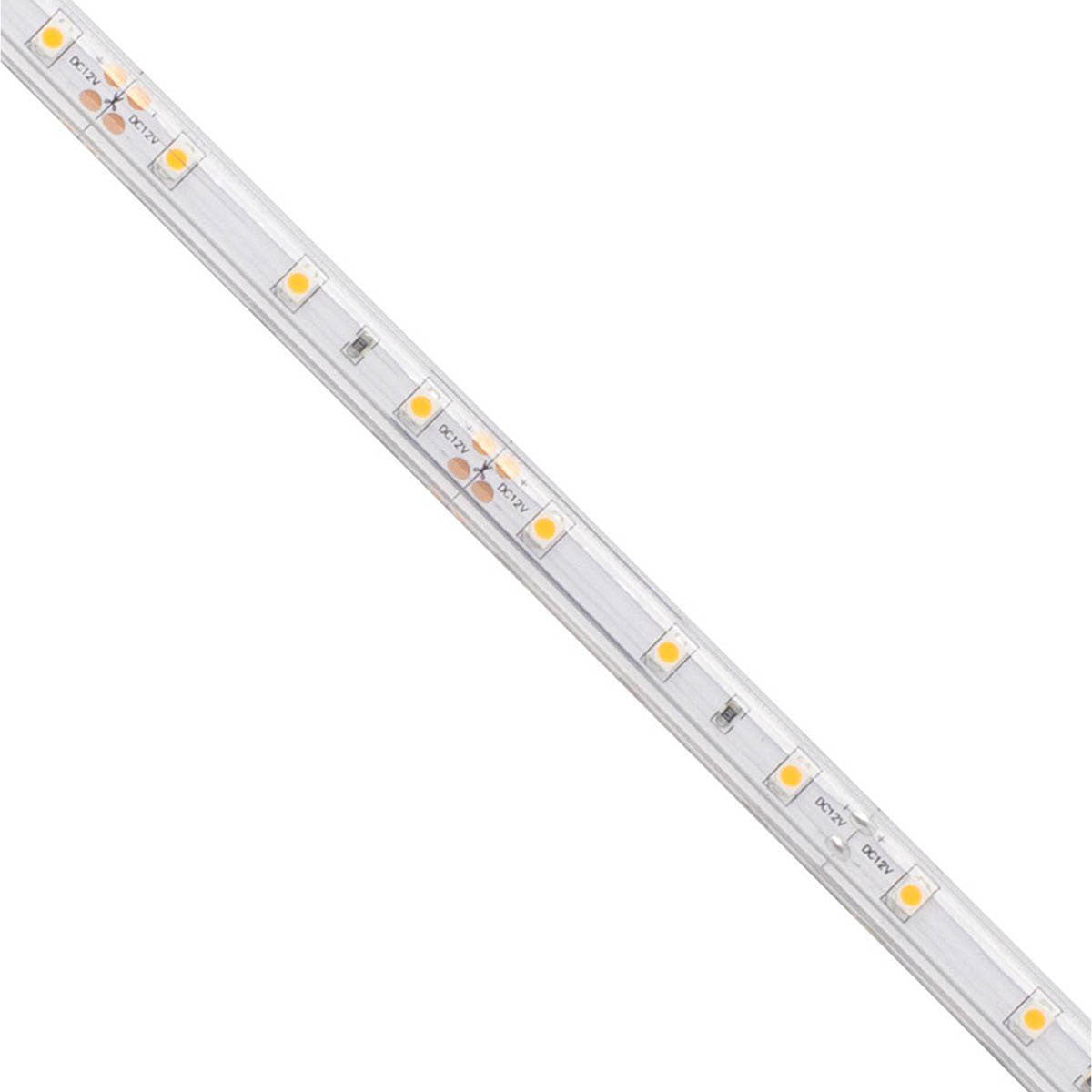

The BLAZE™ Wet Location LED Strip Light delivers performance and value for everyday lighting projects. This IP65-rated tape light is suitable for wet locations prone to splashing, spraying, or rain, making it ideal for both indoor and outdoor applications. With 90+ CRI and 116 lumens per foot output, BLAZE provides superior color rendering and consistent illumination at an accessible price point.

Features

  • 90+ CRI for accurate color rendering
  • IP65 wet location rated for outdoor and moisture-prone environments
  • Dimmable for flexible lighting control
  • Cuttable every 0.98 inches for precise installation
  • 2835 LED chip technology
  • UL Listed 2108 Low Voltage Lighting System / Low Voltage Luminaire
  • 7 Year Limited Warranty
  • Compatible with Diode LED tape light accessories including channels, drivers, and controls

Specifications

  • Model: DI-12V-BLBSC1-50-W016
  • Voltage: 12VDC
  • Wattage: 1.46W/ft
  • Output: 116 Lm/ft (5000K)
  • Color Temperature: 5000K (daylight)
  • CRI: 90+
  • Cut Points: 1.96 in.
  • Max Run Length: 27 ft
  • Reel Length: 16 ft
  • LED Density: 18/ft
  • Dimensions: 0.39 x 0.19 in. (W x H)
  • IP Rating: IP65 (outdoor/wet location)
  • Lifespan: >50,000 hours (TM-21 LM-80)
  • Operating Temperature: -4°F to 176°F (-20°C to 80°C)
  • Certifications: UL Listed, CE & EMC Compliant, RoHS Compliant
  • Title 24 Compliance: Can be used to comply with Title 24 Part 6 High Efficacy Lighting LED requirements (JA8-2016-2022-E)

Applications

  • Under cabinet and task lighting
  • Cove and architectural accent lighting
  • Outdoor landscape and pathway lighting
  • Wet location installations (bathrooms, kitchens, covered patios)
  • Retail and hospitality display lighting
  • Residential and light commercial projects

What's Included

  • 16 ft reel of BLAZE™ LED strip light
  • 36 in. Wet Location Connector 20/2 AWG UL 2464 Wire with Strain Relief

Note: Compatible controller, power supply, and dimmer sold separately. Refer to Diode LED's specification sheets and installation guides for proper system design.

  • 7 Year limited warranty
  • cULus Listed for Outdoor wet locations (IP65)
  • Title 24 JA8, RoHs Compliant and Closet Rated
  • Dimmable with most 0-10V, ELV and TRIAC dimmers
  • Cuttable every 1.96 inches With a maximum run length of 27 feet

Technical Resources

Specifications

Size:
192.0'' L X 0.32'' W X 0.1016'' H
Lamp Color:
5000K
Color Rendering:
90
Lamp Life:
50,000 Hours
