Diode LED BLAZE, 16 ft., LED Tape Light, 5000K, 130 Lm/ft, 12V
Available in stock (103)
About this item
About this item
- Color Temperature: 5000K for bright, daylight illumination.
- Voltage: Operates on 12VDC, ideal for low-voltage applications.
- Max Run: 27 ft. to prevent voltage drop and ensure consistent brightness.
- Cuttable Increments: Field cuttable every 1.96 in. for custom lengths.
- Environment: Suitable for indoor/damp locations with IP20 rating.
We process payments securely and do not store credit card information.
Description
Description

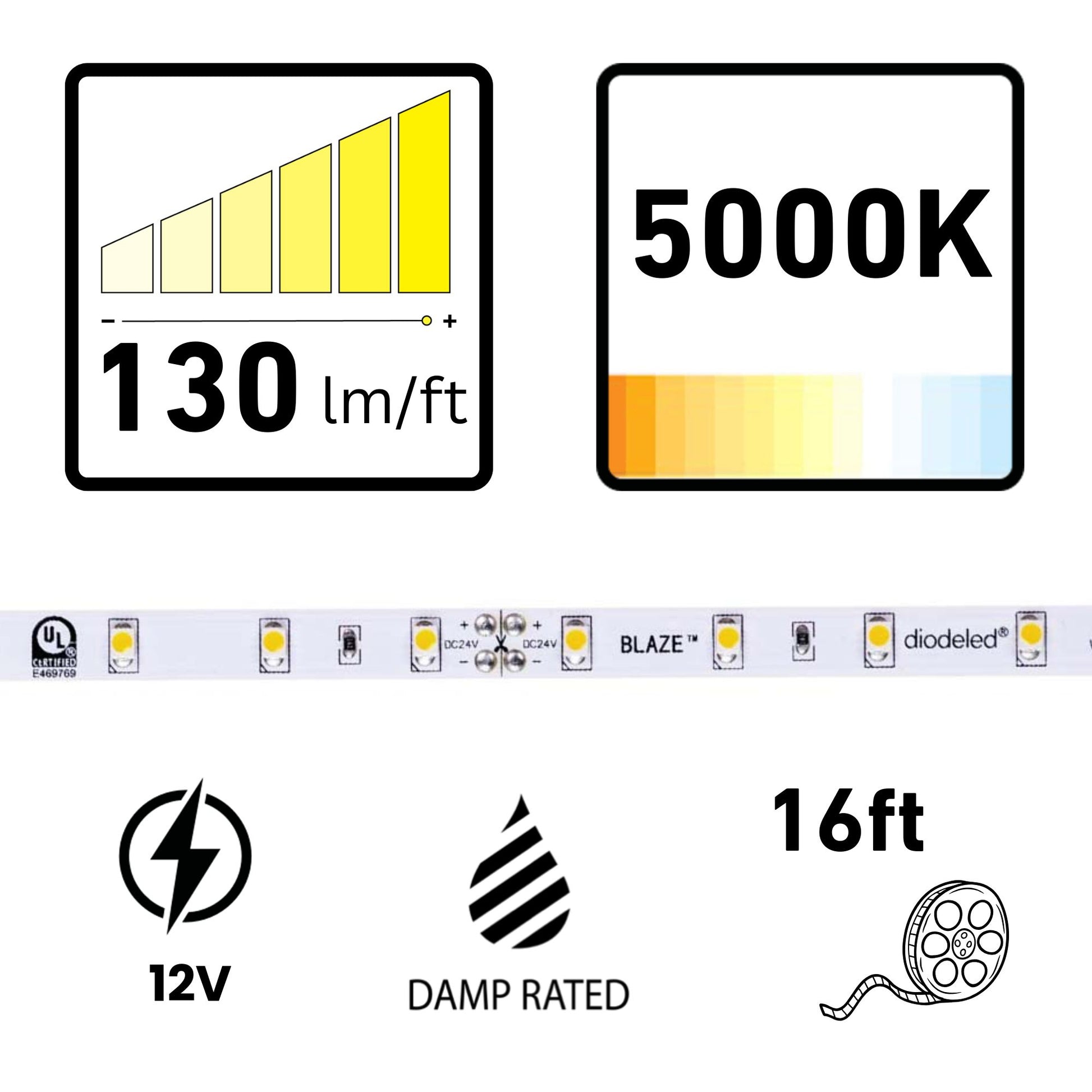

Diode LED BLAZE LED Tape Light — 5000K & High CRI
The Diode LED DI-12V-BLBSC1-50-016 is a 16 ft. LED tape light offering a bright 5000K color temperature and 130 lumens per foot. This tape light operates on 12VDC and is suitable for indoor/damp locations with an IP20 rating. Its high 90+ CRI ensures excellent color rendering for various applications.
Key Features
- Voltage: 12VDC for low-voltage lighting systems.
- Wattage: 1.46W per foot for energy-efficient operation.
- Lumens: 130 Lm/ft for bright illumination.
- LEDs per Foot: 18 LEDs for uniform light distribution.
- Max Run: 27 ft. to maintain brightness and prevent voltage drop.

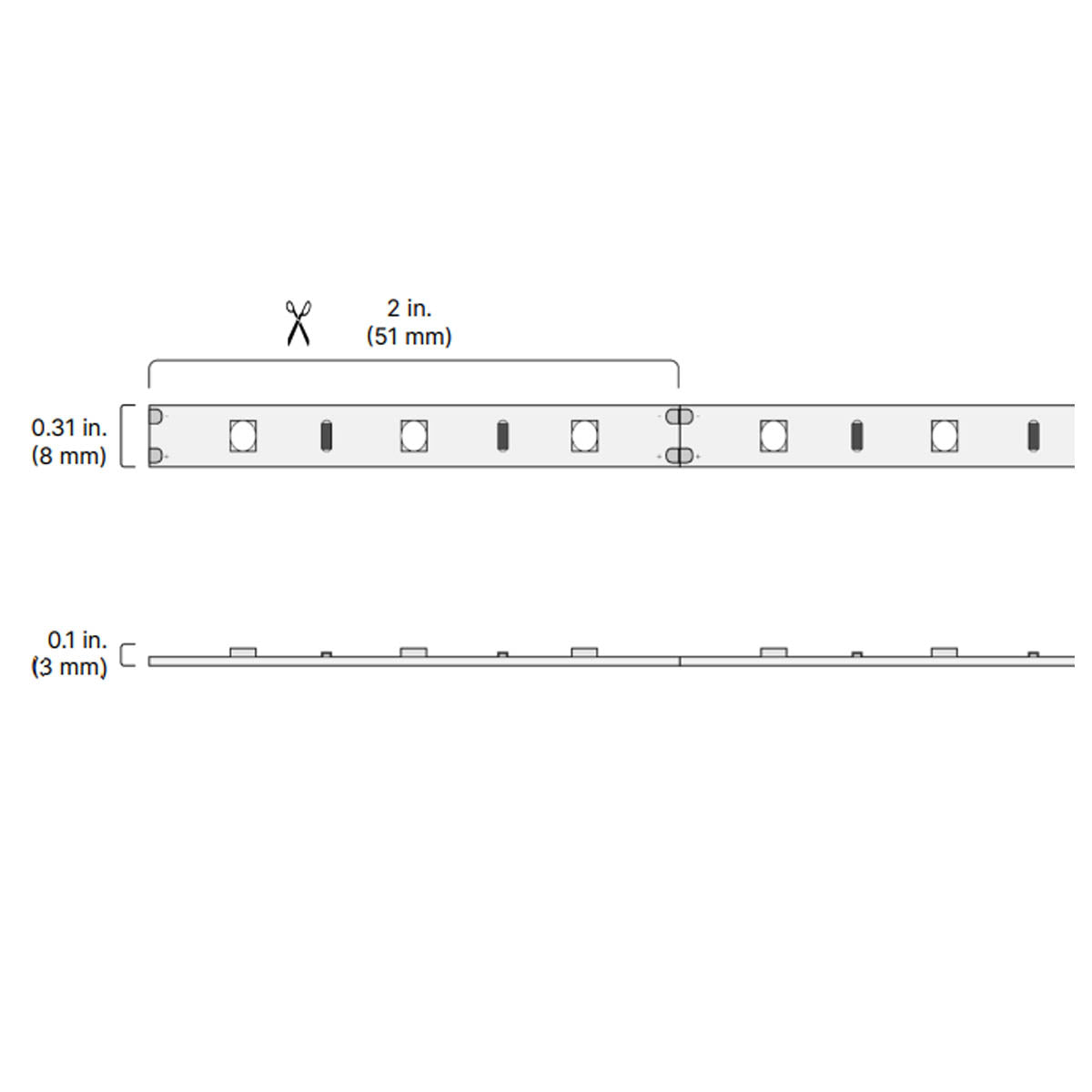

- Cuttable: Every 1.96 in. for precise customization.
- PCB Width: 8mm for compatibility with various channels.
- Beam Angle: 120° for wide light dispersion.
- IP Rating: IP20 for indoor/damp environments.
- Certifications: UL Listed, Title 24, JA8, RoHS compliant.
Core Design & Construction
The tape light features an 8mm wide PCB, compatible with standard channels, and a durable construction with 3M adhesive backing for secure installation in various environments.
LED Illumination & Performance

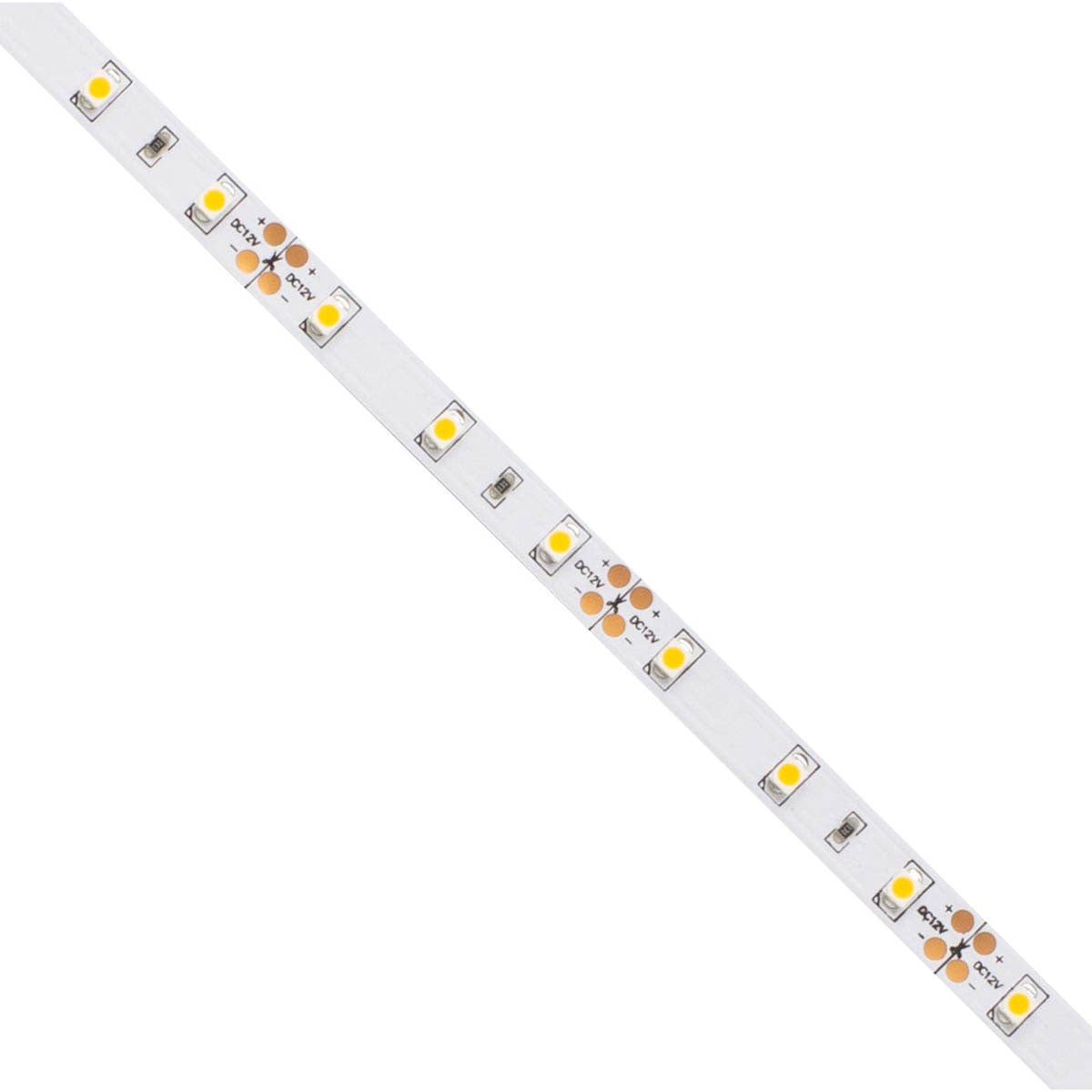

Delivering 130 lumens per foot with a 90+ CRI, this tape light provides high-quality illumination using 2835 SMD LEDs, perfect for applications requiring accurate color representation.
Power, Wiring & Installation
Requires a 12V driver (sold separately) and is field-cuttable every 1.96 in. The maximum continuous run is 27 ft. to prevent voltage drop. Compatible with dimming systems for adjustable brightness.

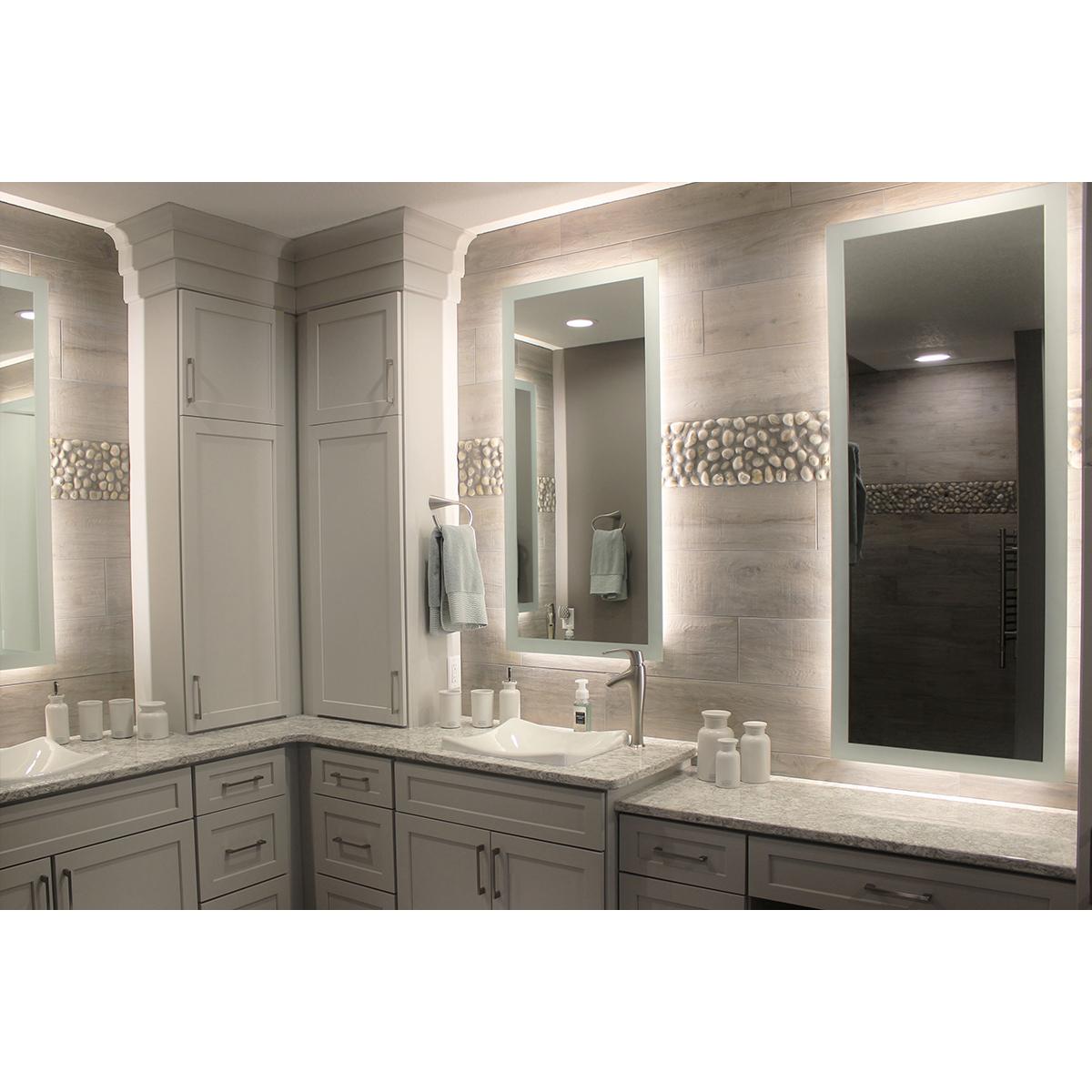

Where This Tape Works Best

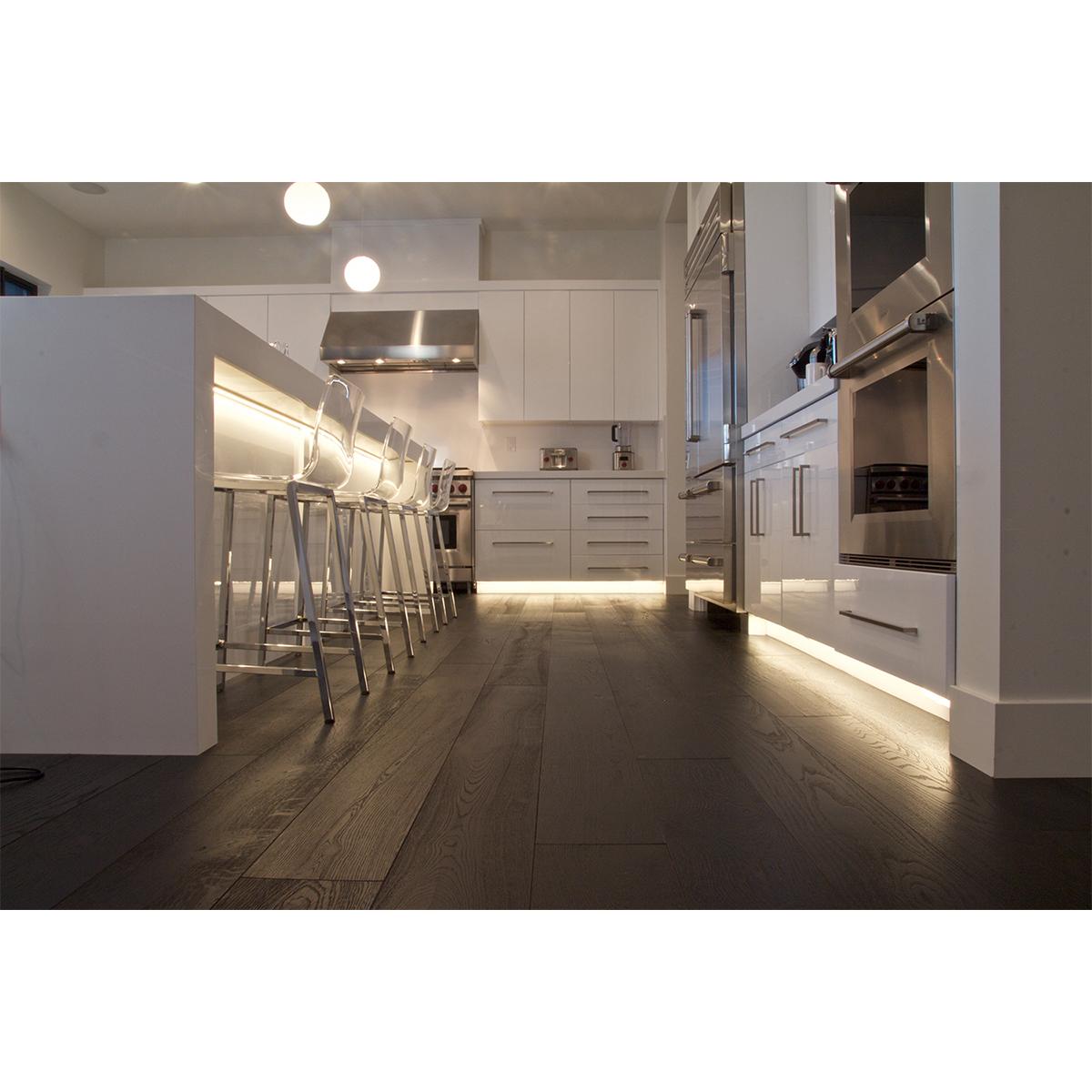

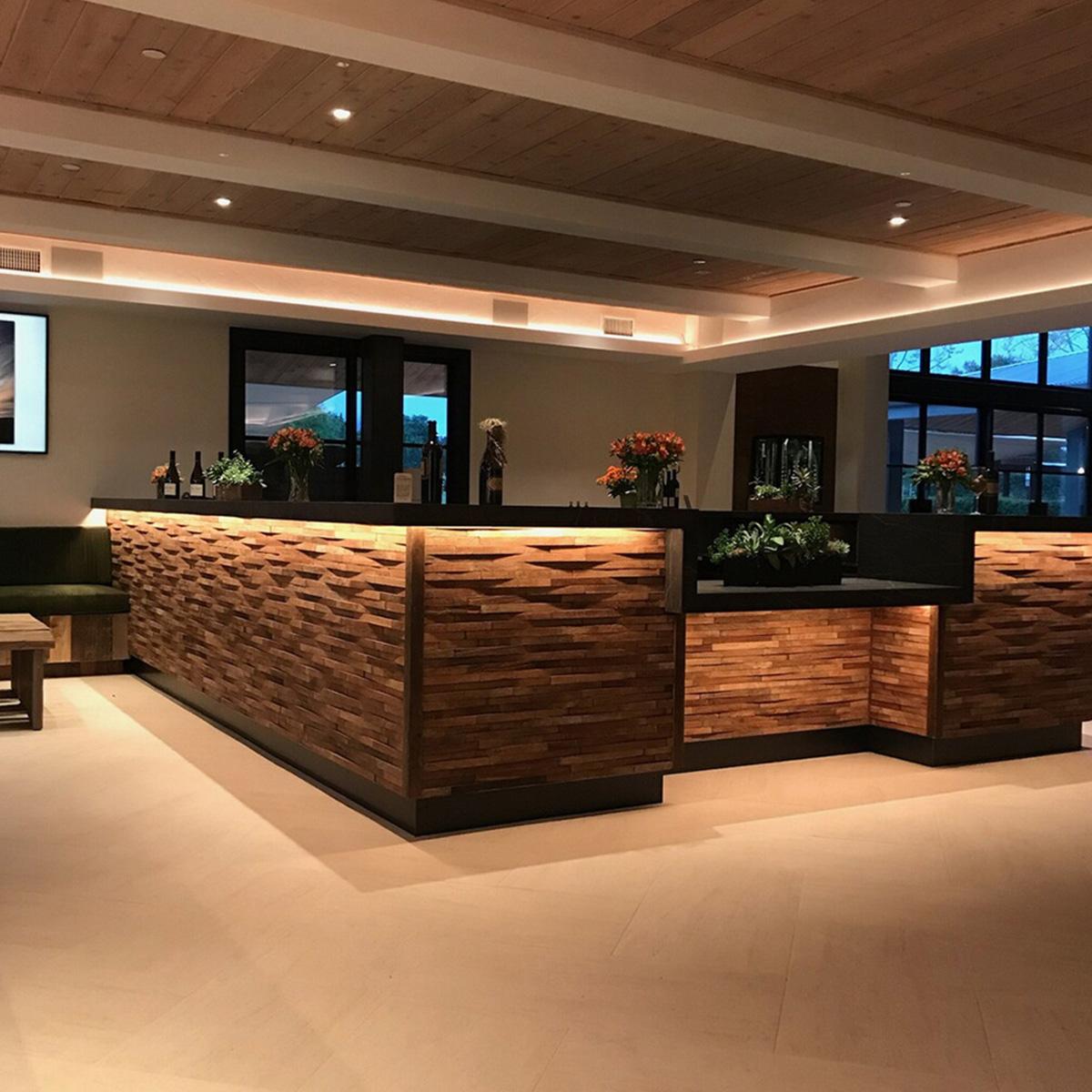

- Cove lighting for ambient illumination.
- Under cabinet lighting for task areas.
- Accent lighting in display cases.
- Architectural lighting for highlighting features.
What's Included
- 16 ft. spool of LED tape light.
- 36 in. bare lead wire with strain relief.
- 2x White Tape-to-Wire Terminal Blocks (DI-TB-CONN-TTW-1).
