Diode LED BLAZE, 100 ft, LED Tape Light, 4000K, 129 Lm/ft, 12V
Available in stock (200)
About this item
About this item
- Color Temperature: Provides a crisp 4000K light, ideal for task lighting and general illumination.
- Voltage: Operates on 12VDC, requiring a compatible driver for installation.
- Max Run: Supports up to 27 ft per run, ensuring consistent brightness without voltage drop.
- Cuttable Increments: Can be cut every 1.96 in. for customized lengths.
- Environment: Suitable for indoor/damp locations with an IP20 rating.
We process payments securely and do not store credit card information.
Description
Description

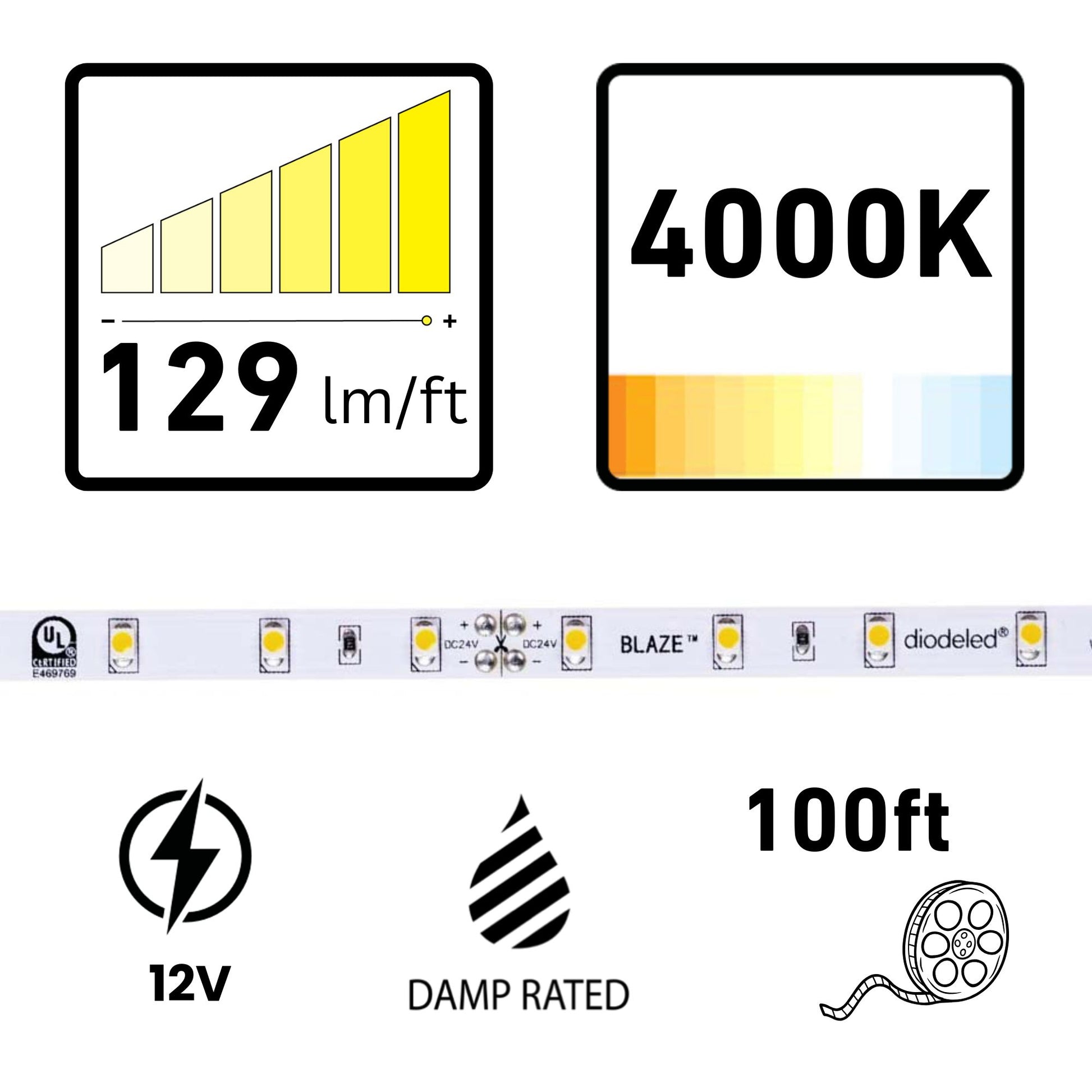

Diode LED BLAZE LED Tape Light — 4000K & High CRI
The Diode LED BLAZE DI-12V-BLBSC1-40-100 is a 100 ft LED tape light offering a crisp 4000K color temperature with a high 90+ CRI. This tape light operates at 12VDC and is designed for indoor/damp locations with an IP20 rating.
Key Features
- Voltage: 12VDC operation for low-voltage applications.
- Wattage: Consumes 1.46W/ft for energy-efficient lighting.
- Lumens: Delivers 129 Lm/ft for bright illumination.
- LEDs per Foot: Features 18 LEDs/ft for uniform light distribution.
- Max Run: Supports up to 27 ft per run.
- Cut Increments: Field cuttable every 1.96 in. for custom lengths.
- PCB Width: Measures 0.31 in. wide, compatible with most channels.
- Beam Angle: Offers a 120-degree beam angle for wide coverage.
- Certifications: UL Listed, RoHS compliant, and Title 24 JA8 compliant.
Core Design & Construction
The tape light features a 0.31 in. wide PCB, suitable for use with standard aluminum channels. It includes a durable 3M adhesive backing for secure mounting and is rated for indoor/damp environments.
LED Illumination & Performance
With 129 Lm/ft and a 90+ CRI, this tape light provides excellent color rendering and brightness, utilizing 2835 SMD LEDs for consistent light output.
Power, Wiring & Installation
Requires a 12V driver for operation. The tape light is cuttable every 1.96 in. and supports a maximum continuous run of 27 ft. It is dimmable with compatible systems.
Where This Tape Works Best
- Under cabinet lighting
- Cove lighting
- Accent lighting
- Display case lighting
- Task lighting
What's Included
- 100 ft spool of LED tape light
- 36 in. bare lead wire with strain relief
- 2x White Tape-to-Wire Terminal Blocks
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the DI-12V-BLBSC1-40-100 tape light?
What is the maximum run length for the DI-12V-BLBSC1-40-100 tape light?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for the DI-12V-BLBSC1-40-100 tape light?
What voltage is required for the DI-12V-BLBSC1-40-100 tape light?
Is the DI-12V-BLBSC1-40-100 tape light dimmable?
Is the DI-12V-BLBSC1-40-100 tape light dimmable?
What channel width is compatible with this tape light?
What channel width is compatible with this tape light?
