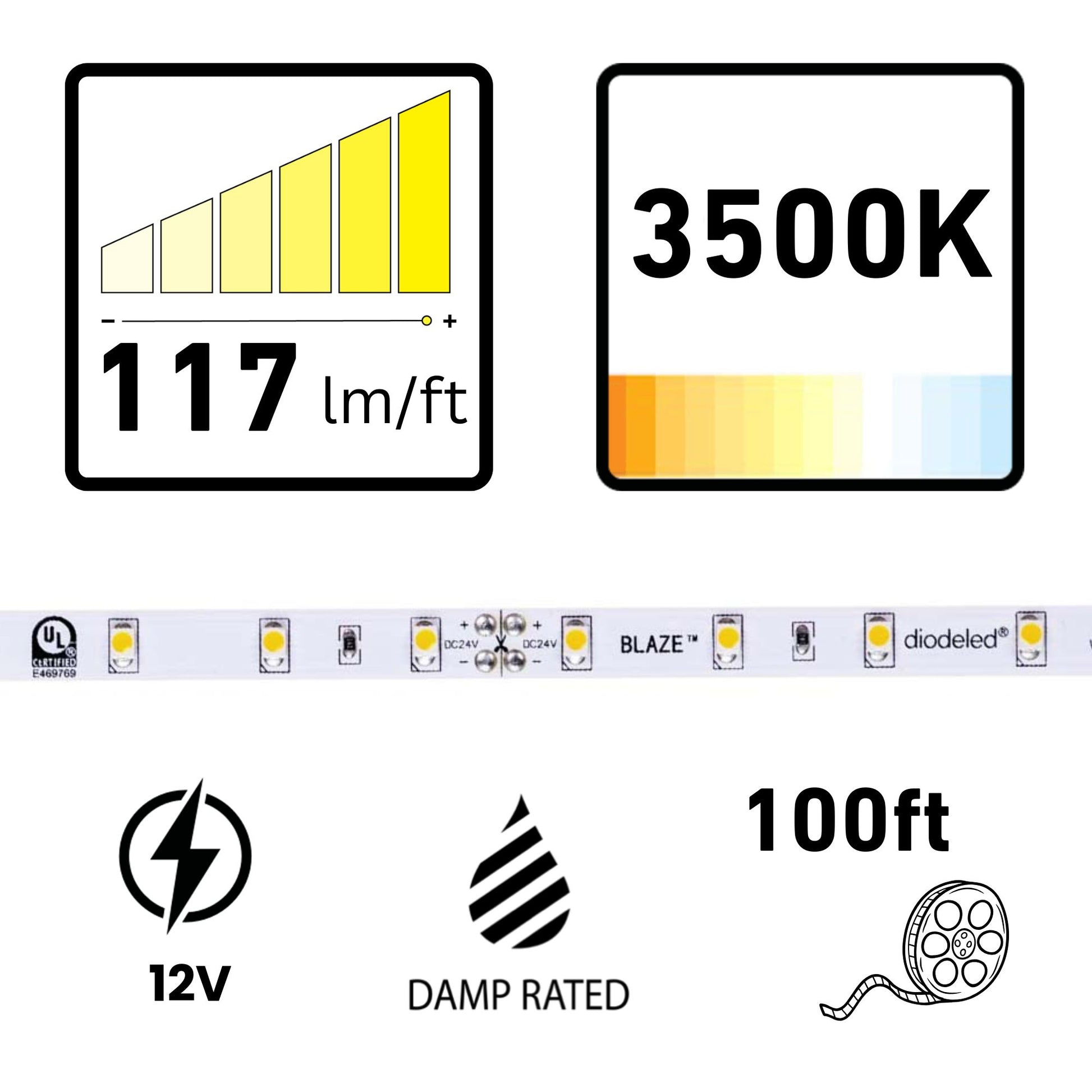

Diode LED BLAZE, 100ft LED Tape Light, 3500K, 117 Lm/ft, 12V
Available in stock (100)
About this item
About this item
- Color Temperature: Provides a neutral white light at 3500K, ideal for versatile lighting applications.
- Voltage: Operates on 12VDC, suitable for low-voltage lighting systems.
- Max Run: Supports a maximum continuous run of 27 feet to prevent voltage drop.
- Cuttable Increments: Field cuttable every 1.96 inches for custom lengths.
- IP Rating: Rated for indoor/damp locations with an IP20 rating.
We process payments securely and do not store credit card information.
Description
Description
Diode LED BLAZE LED Tape Light — 3500K & High CRI
The Diode LED DI-12V-BLBSC1-35-100 is a 100-foot LED tape light offering a neutral white light at 3500K with a high 90+ CRI. Designed for indoor applications, this tape light operates on 12VDC and is rated for damp locations.
Key Features
- Voltage: Operates on 12VDC for low-voltage applications.
- Wattage: Consumes 1.46W per foot.
- Lumens: Delivers 117 lumens per foot for bright illumination.
- LEDs: Features 18 LEDs per foot for consistent light output.
- Max Run: Maximum continuous run of 27 feet.
- Cuttable: Field cuttable every 1.96 inches for custom installations.
- PCB Width: Measures 0.31 inches wide, compatible with standard channels.
- Beam Angle: Provides a 120-degree beam angle for wide light distribution.
- IP Rating: Rated IP20 for indoor/damp locations.
- Certifications: UL Listed and RoHS Compliant.
Core Design & Construction
The tape light features a narrow 0.31-inch PCB width, ensuring compatibility with most aluminum channels. It includes a durable adhesive backing for easy installation on clean surfaces.
LED Illumination & Performance
With a light output of 117 lumens per foot and a high 90+ CRI, this tape light ensures vibrant and accurate color rendering, suitable for various lighting applications.
Power, Wiring & Installation
Requires a 12VDC power supply. The tape light is field cuttable every 1.96 inches and supports a maximum run of 27 feet. It is dimmable with compatible dimmers.
Where This Tape Works Best
- Under cabinet lighting
- Cove lighting
- Accent lighting
- Display case lighting
- Bookshelf lighting
What's Included
- 100-foot spool of LED tape light
- 36-inch bare lead wire with strain relief
- 2x White Tape-to-Wire Terminal Blocks (DI-TB-CONN-TTW-1)
