Diode LED BLAZE, 100ft, LED Tape Light, 3000K, 121 Lm/ft, 12V
Available in stock (100)
About this item
About this item
- Color Temperature: Provides a warm 3000K light, ideal for creating cozy environments.
- Voltage: Operates at 12VDC, suitable for low-voltage applications.
- Max Run: Supports up to 27 ft. continuous run to minimize voltage drop.
- Cuttable: Field cuttable every 1.96 in. for custom lengths.
- IP Rating: Rated for indoor/damp locations with IP20 protection.
We process payments securely and do not store credit card information.
Description
Description

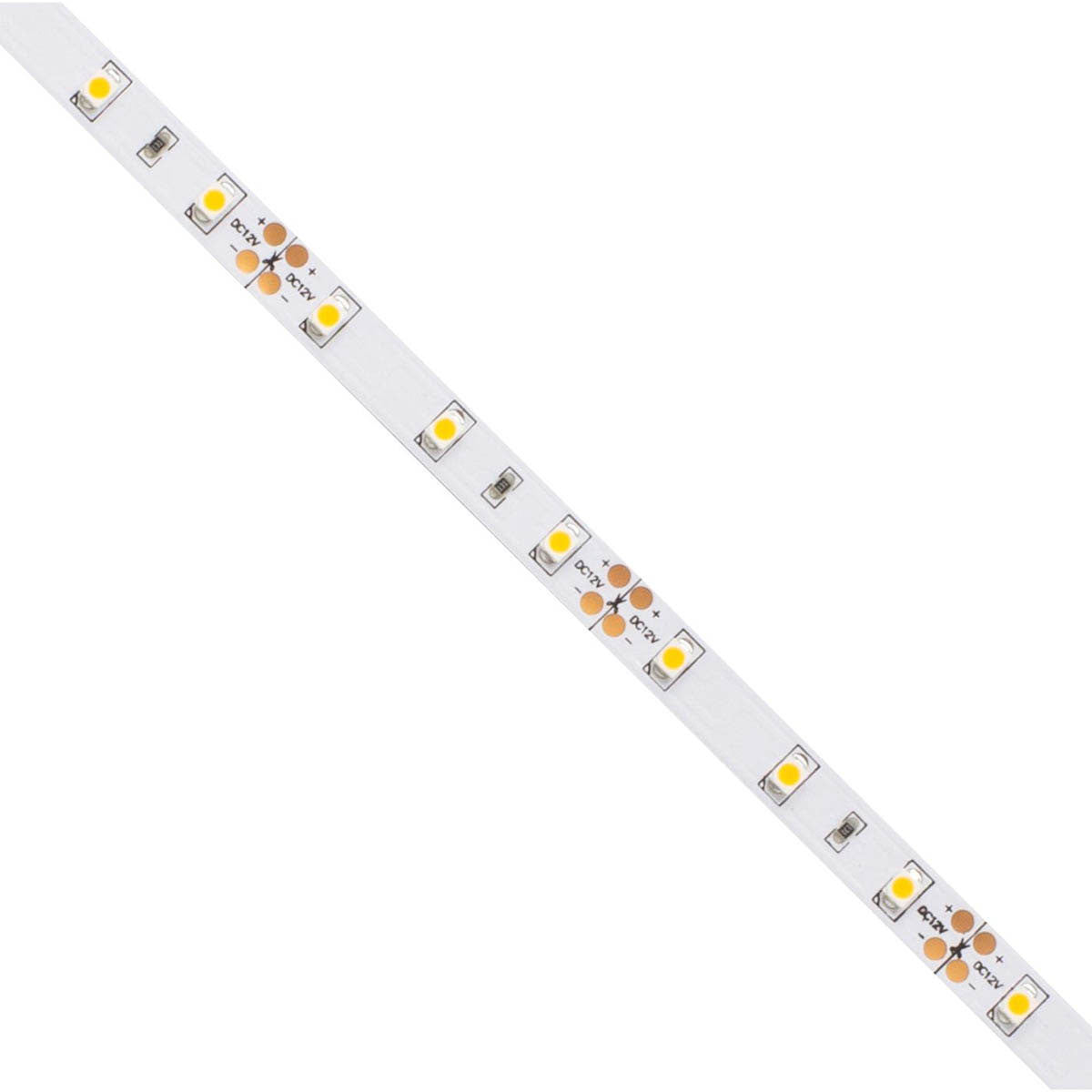

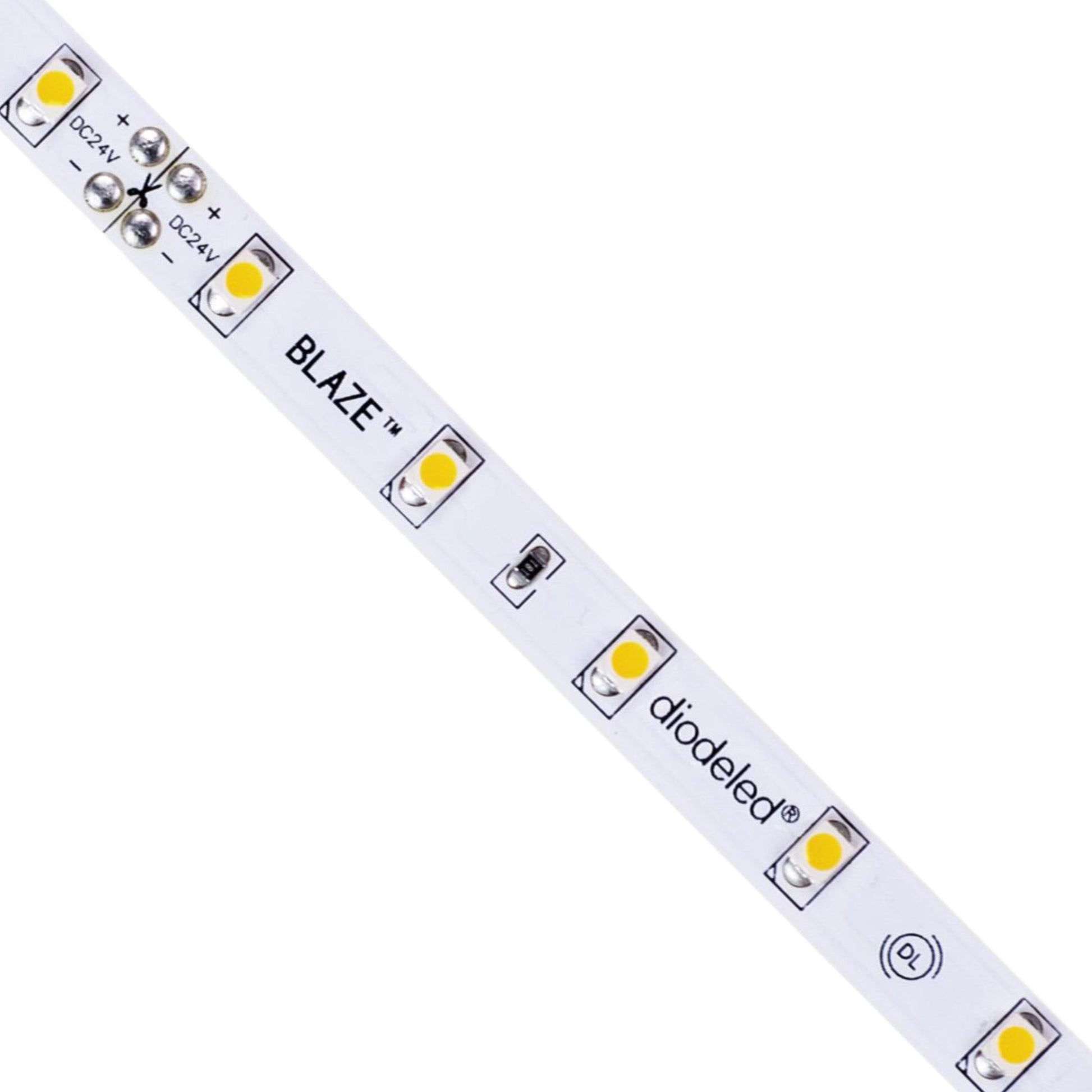

Diode LED BLAZE LED Tape Light — 3000K & High CRI
The Diode LED DI-12V-BLBSC1-30-100 is a high-performance LED Tape Light designed for indoor applications. It features a 3000K color temperature and delivers 121 lumens per foot. This 100ft tape light operates at 12VDC and is suitable for indoor/damp locations.
Key Features
- Voltage: 12VDC operation for low-voltage applications.
- Wattage: Consumes 1.46W per foot.
- Lumens: Delivers 121 lumens per foot for bright illumination.
- LEDs: 18 LEDs per foot for consistent light output.
- Max Run: Supports up to 27 ft. continuous run.
- Cuttable: Field cuttable every 1.96 in. for custom installations.

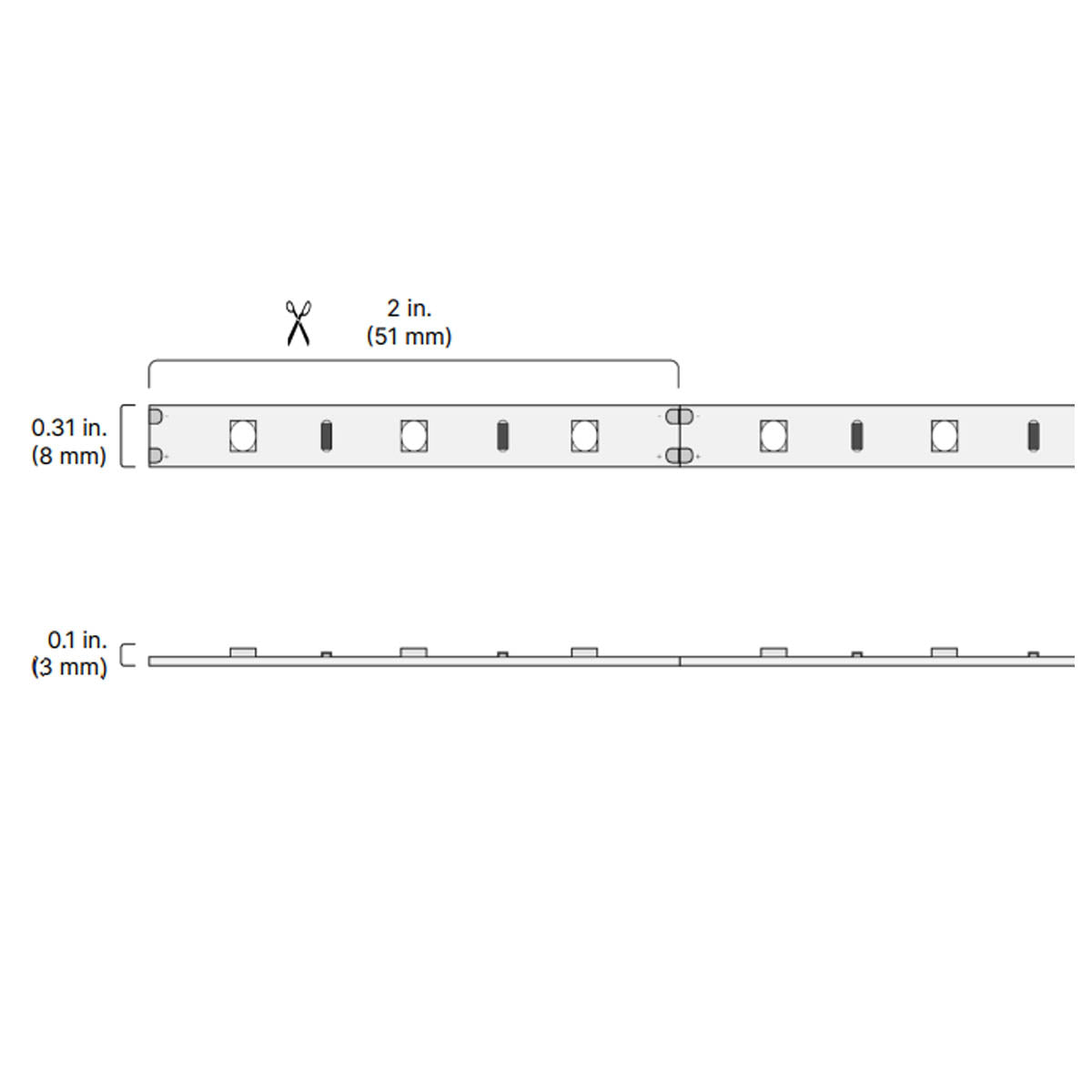

- PCB Width: 0.31 in. width for compatibility with standard channels.
- Beam Angle: 120-degree beam angle for wide light distribution.
- IP Rating: IP20 rated for indoor/damp locations.
- Certifications: UL Listed, RoHS Compliant, Title 24.
Core Design & Construction
The tape light features a 0.31 in. PCB width for compatibility with standard channels and includes a durable adhesive backing for easy installation. It is designed for indoor/damp environments.
LED Illumination & Performance
With 121 lumens per foot and a 90+ CRI, this tape light provides high-quality illumination suitable for various applications. It uses standard SMD LEDs for reliable performance.
Power, Wiring & Installation
This tape light requires a 12VDC power supply and is dimmable. It can be cut every 1.96 in. and supports a maximum continuous run of 27 ft. to prevent voltage drop.
Where This Tape Works Best

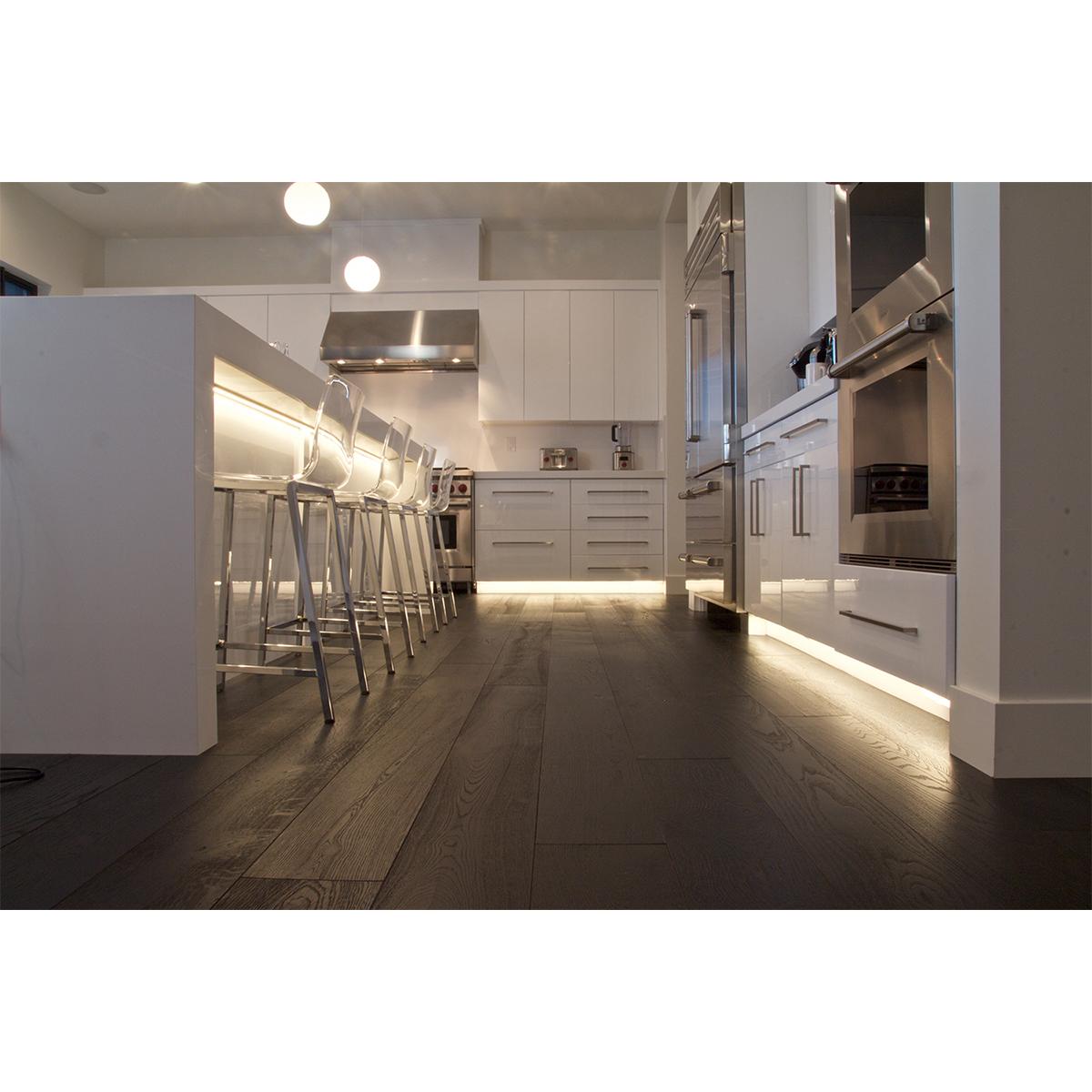

- Under cabinet lighting

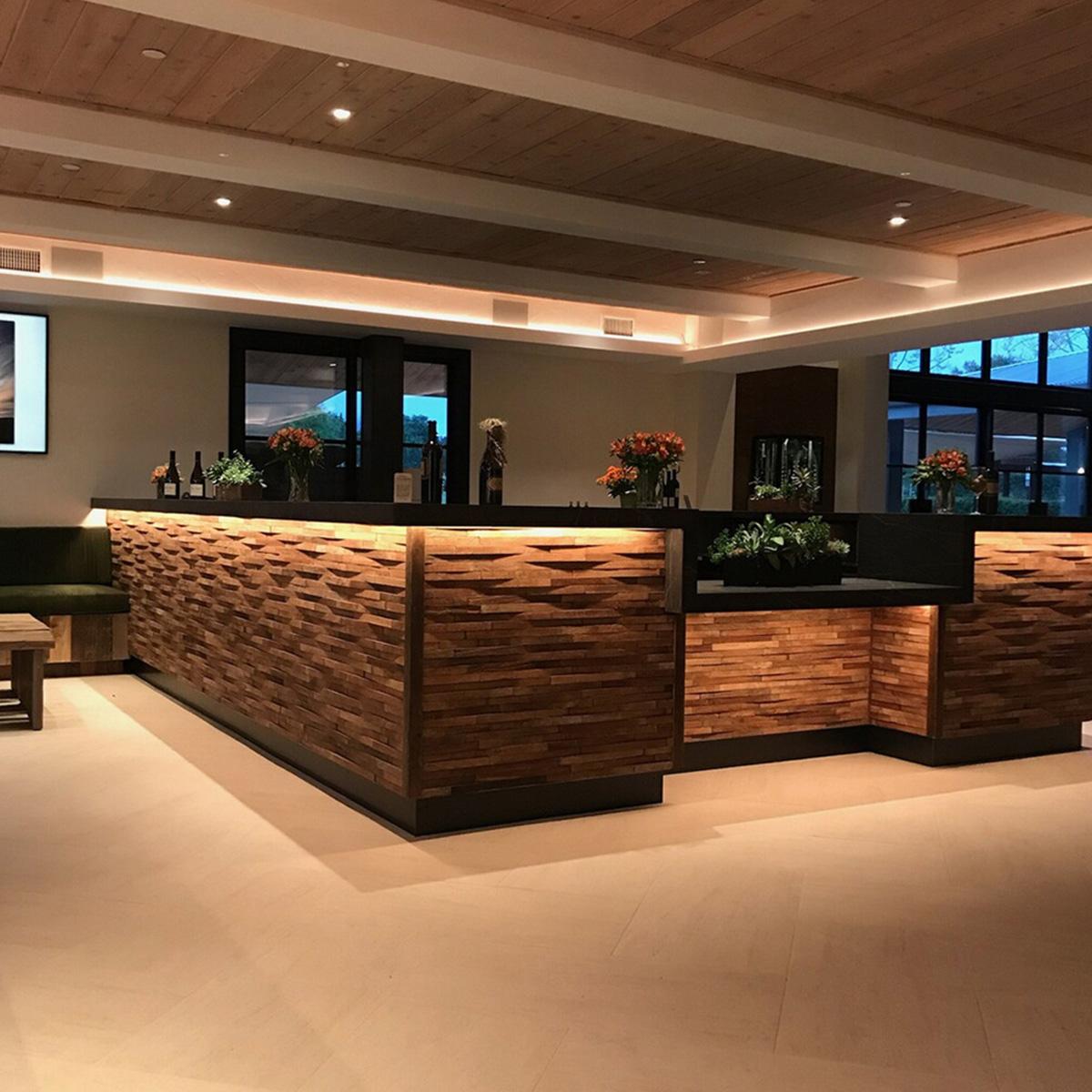

- Cove lighting

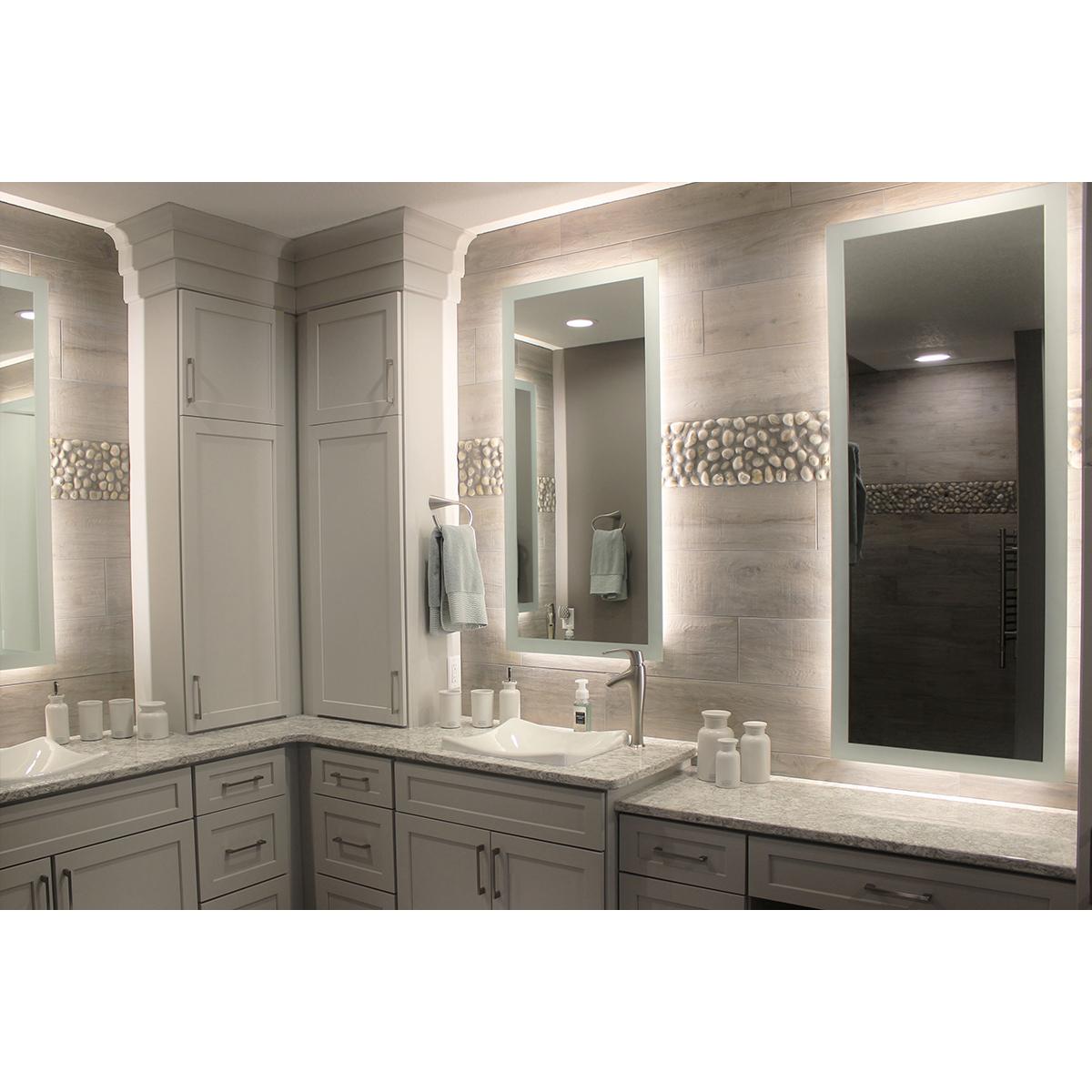

- Accent lighting
- Display case lighting
- Task lighting
What's Included
- 100 ft. spool of LED tape light
- 36 in. bare lead wire with strain relief
- 2x White Tape-to-Wire Terminal Blocks
