Diode LED BLAZE LED Tape Light — 2700K & High CRI

The Diode LED DI-12V-BLBSC1-27-100 is a high-performance LED tape light designed for indoor applications. This 100-foot tape light features a 2700K color temperature, providing a warm and inviting ambiance. Operating at 12V DC, it is suitable for damp locations with an IP20 rating.

Key Features

• Voltage: 12V DC operation for safe, low-voltage applications.
• Wattage: Consumes 1.46W per foot for energy-efficient lighting.
• Lumens: Delivers 117 lumens per foot for bright illumination.
• LED Density: 18 LEDs per foot for consistent light distribution.
• Max Run: Supports up to 27 ft continuous run.

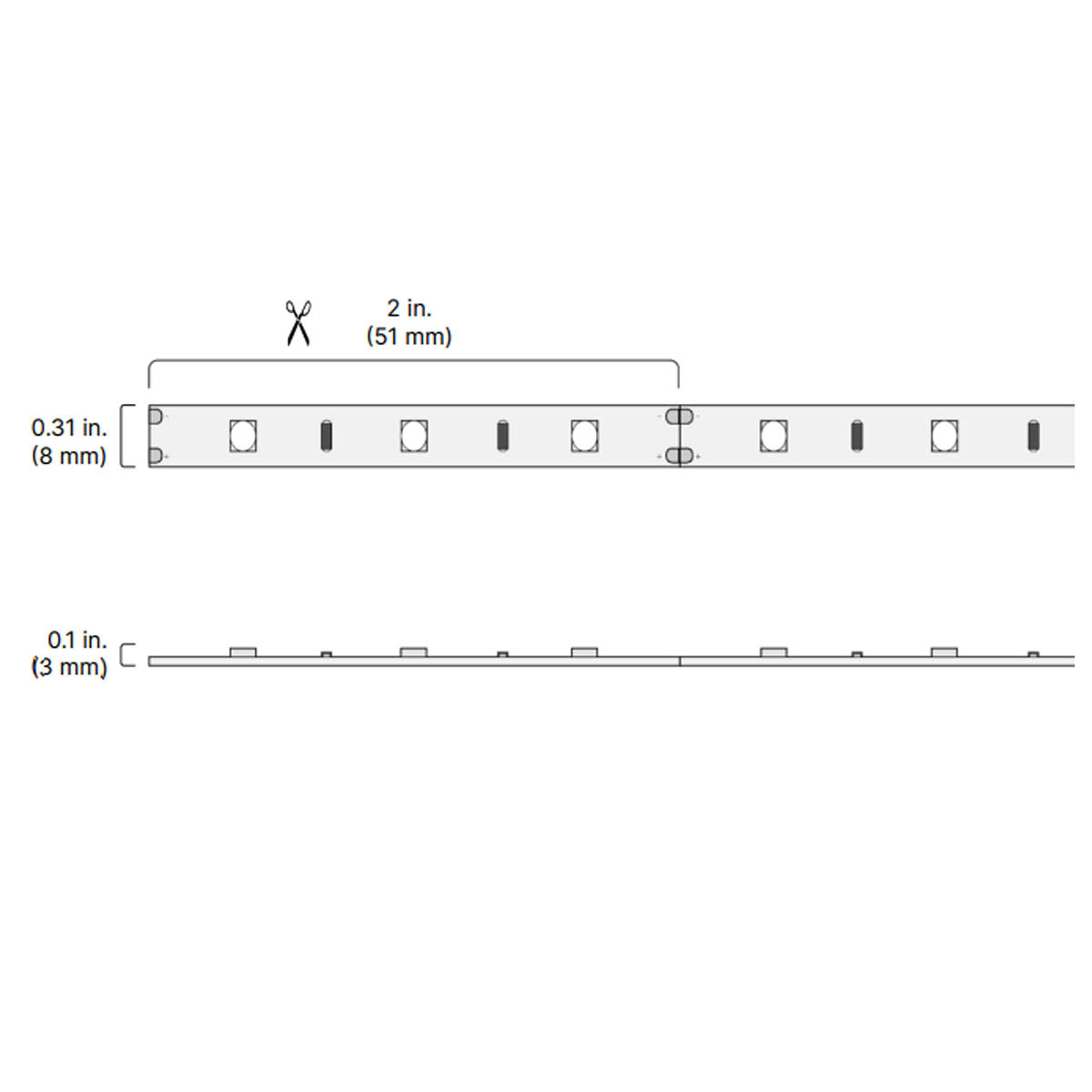

• Cuttable: Field cuttable every 1.96 in. for custom installations.
• PCB Width: 0.31 in. for compatibility with most channels.
• Beam Angle: 120° for wide light distribution.
• Certifications: UL Listed, RoHS compliant, and Title 24.

Core Design & Construction

Featuring a PCB width of 0.31 in., this tape light is compatible with a variety of aluminum channels. It includes a durable 3M adhesive backing for easy installation and is rated for indoor/damp environments.

LED Illumination & Performance

With a high CRI of 90+, the BLAZE tape light ensures excellent color rendering, making it ideal for applications where color accuracy is critical. The tape light uses standard SMD 2835 LEDs for reliable performance.

Power, Wiring & Installation

This tape light requires a 12V DC driver for operation. It is field cuttable every 1.96 in., allowing for precise length customization. The maximum continuous run is 27 ft to prevent voltage drop, and it is fully dimmable with compatible dimmers.

Where This Tape Works Best

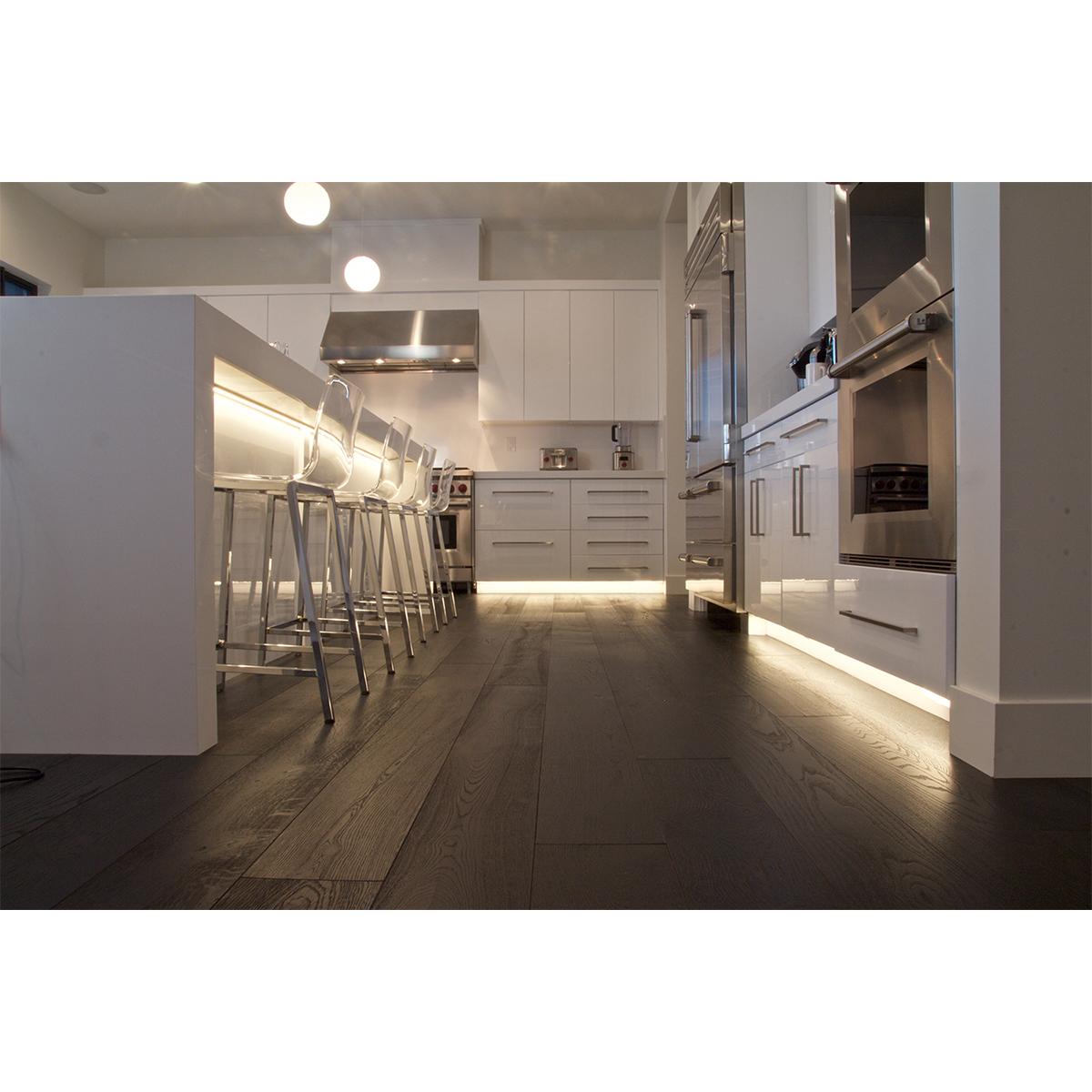

• Under cabinet lighting
• Cove lighting
• Accent lighting
• Display case lighting

What's Included

• 100 ft spool of LED tape light
• 36 in. bare lead wire with strain relief
• 2x White Tape-to-Wire Terminal Blocks
